All Aluminum Alloy Insulated Overhead Cable | AAAC Conductor Manufacturer

The products are produced in strict accordance with global mainstream standards to ensure international compatibility and reliability:

IEC 61089 (Standard for Round Wire Concentric Stranded Overhead Conductors) / ASTM B231/B 231M (Mechanical and Electrical Performance Specifications for Aluminum Stranded Wires) / BS EN 50182 (General Requirements for Overhead Conductors) / GB/T 1179-2008 (Chinese National Standard, compatible with IEC 61089) / SANS (South African Bureau of Standards Certification)

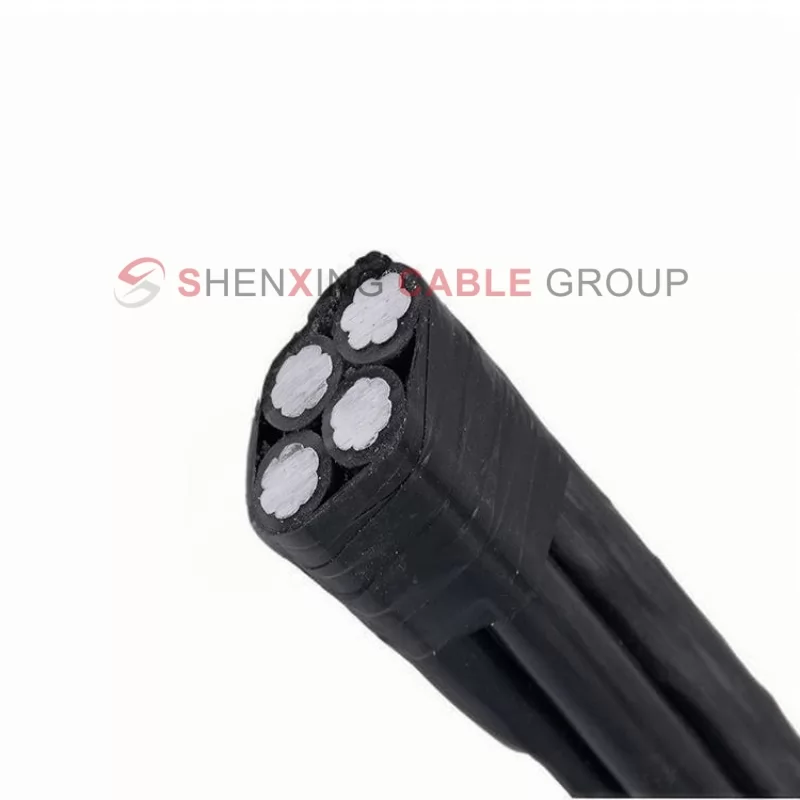

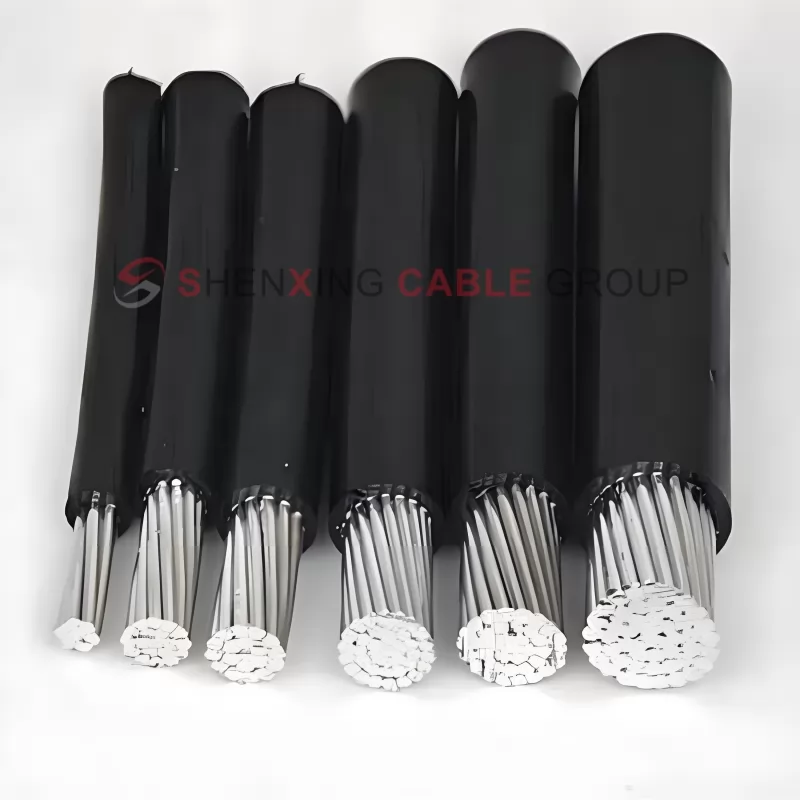

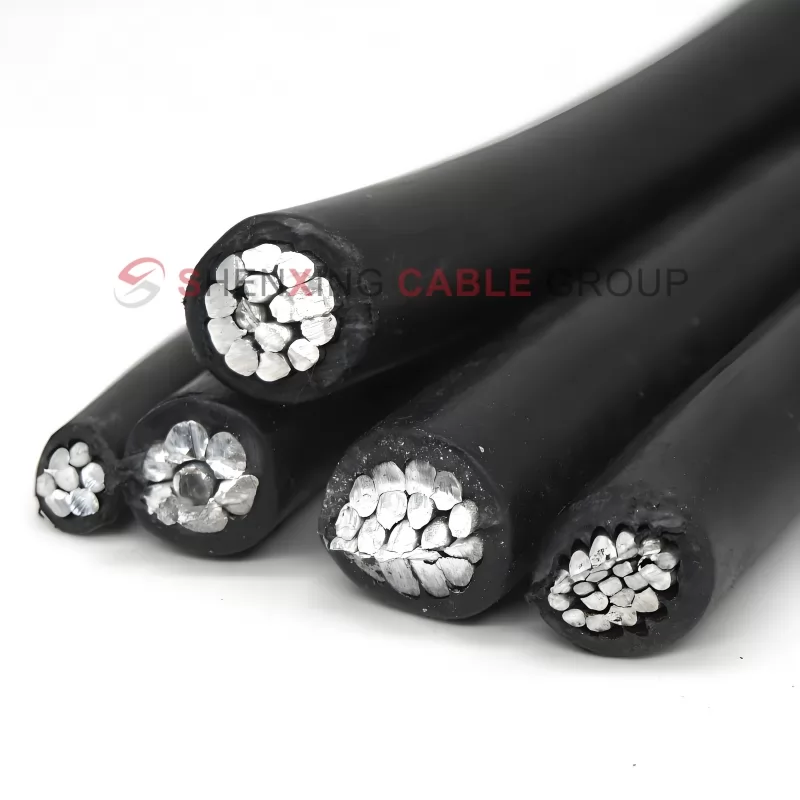

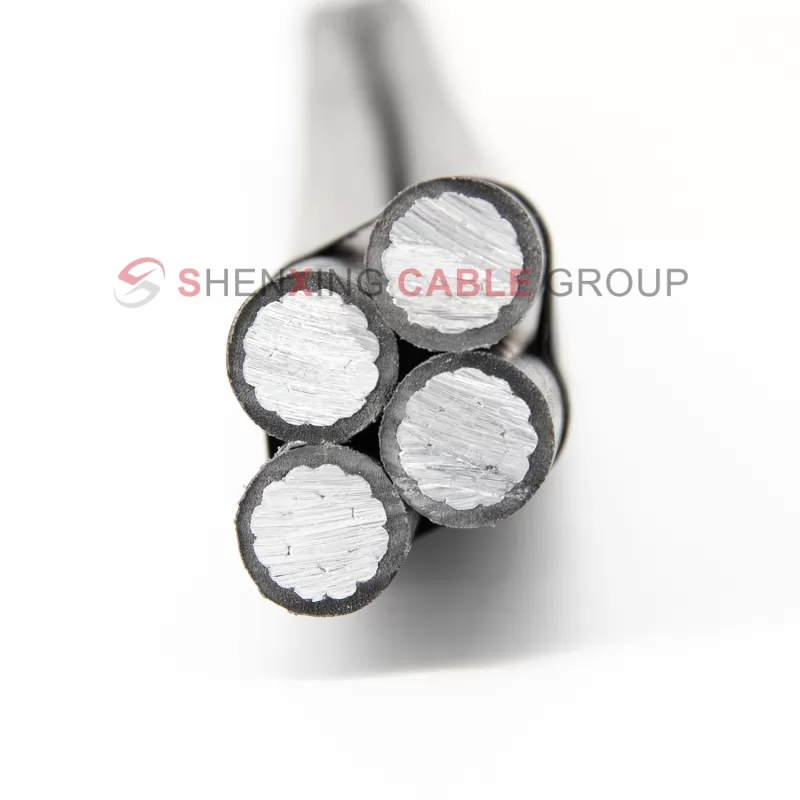

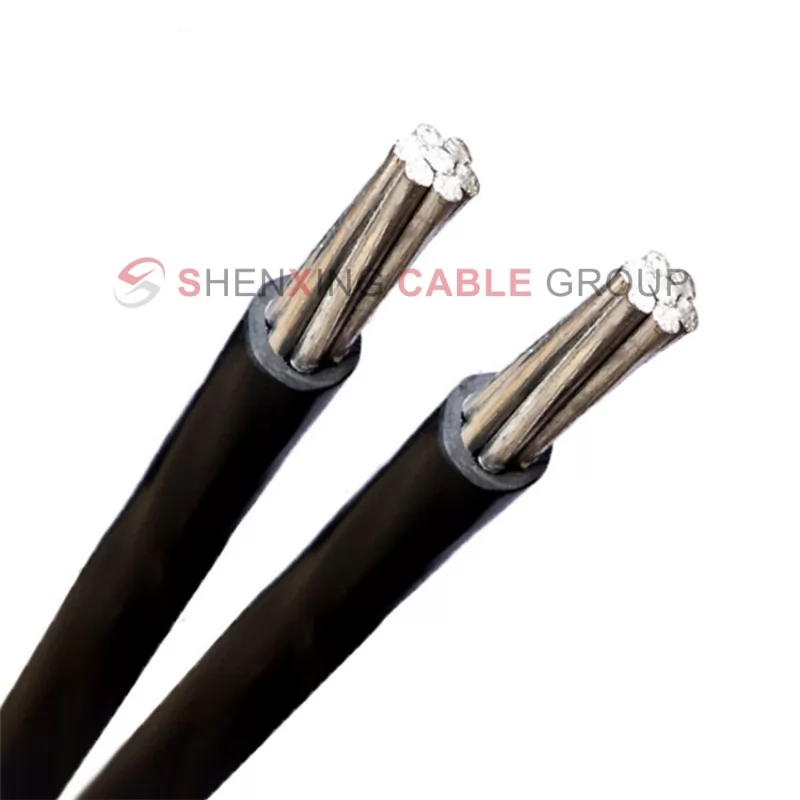

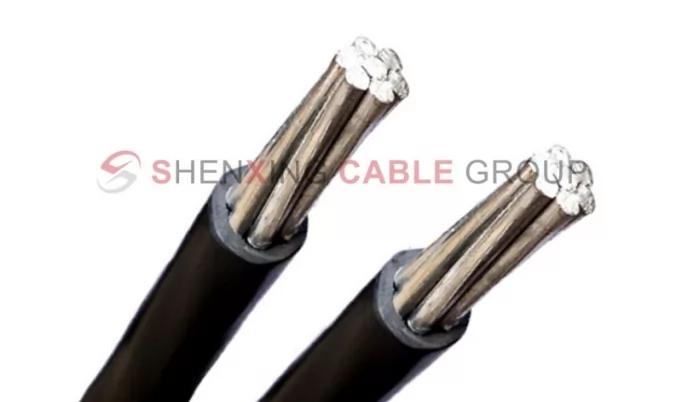

All Aluminum alloy insulated overhead cable

Product application scenarios:

High-voltage transmission lines: Suitable for 1000kV and below ultra-high voltage overhead lines, especially in long-distance and large-span scenarios (such as across rivers and valleys).

Coastal and highly corrosive environments: The salt spray corrosion resistance of aluminum alloy makes it an ideal choice for coastal areas, chemical plant areas and other areas.

Urban power grid transformation: The lightweight design can be adapted to existing towers, and line capacity can be increased without additional reinforcement, reducing transformation costs.

New energy power transmission: Widely used for grid-connected power transmission of wind farms and photovoltaic power stations, supporting high drop and severe weather conditions

All Aluminum Alloy Conductor-AAAC

Advantages:

Overall costs are reduced by more than 20%:

Lightweight design (30% lighter than traditional steel core aluminum stranded wire) reduces the load-bearing pressure of the tower and saves infrastructure costs;

Sag is reduced by 20%, reducing the height requirement of the tower, saving land and steel usage;

Corrosion resistance reduces the frequency of later maintenance, and the operation and maintenance cost is reduced by 35% within the 30-year life cycle.

Construction efficiency is improved by 15%:

The surface hardness of the conductor reaches 75HB, and no additional protective cover is required during installation, and it can be directly pulled;

Pre-twisted stranded structure avoids on-site loose strands, and the single-day installation length is increased by 300-500 meters.

Long-term investment security:L

Passed the IEC 60502 insulation aging test, and the conductivity decay is less than 2% in 30 years;

Short circuit tolerance is 250℃/5 seconds, and the line integrity can still be maintained in fire scenarios.

Technical Data

Nominal Cross Section	Structural Root Number/Diameter	Cable Outer Diameter	DC Resistance	Breaking Force	Weight
(mm²)	(mm)	(mm)	( ≤Ω/km)	(N)	(kg/km)
16	7/1.70	5.1	1.802	2340	43.5
25	7/2.15	6.5	1.127	4355	69.6
35	7/2.50	7.5	0.8332	5760	94.1
50	7/3.00	9	0.5786	7930	135.5
70	7/3.60	10.8	0.4018	10950	195.1
95	7/4.16	12.5	0.3009	14450	260.5
120	19/2.85	14.3	0.2373	19420	333.5
150	19/3.15	15.8	0.1943	23310	407.4
185	19/3.50	17.5	0.1574	28440	503
210	19/3.75	18.8	0.1371	32260	577.4
240	19/4.00	20	0.1205	36260	656.9
300	37/3.20	22.4	0.09689	46850	820.4
400	37/3.70	25.9	0.07247	61150	1097
500	37/4.16	29.1	0.05733	76370	1387
630	61/3.63	32.7	0.04577	91940	1744
800	61/4.10	36.9	0.03588	115900	2225

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

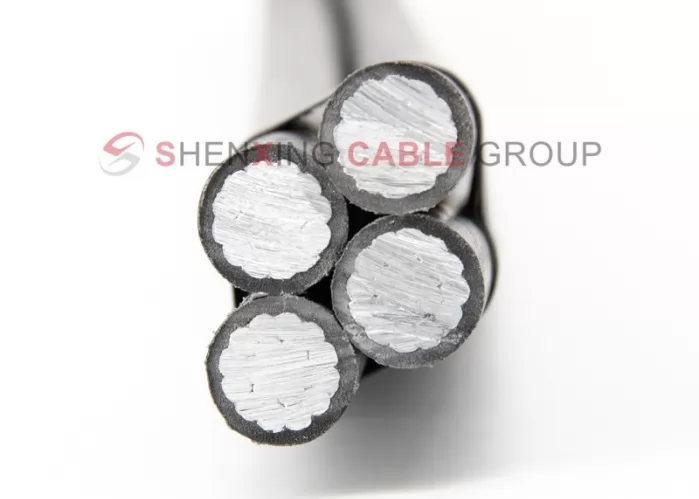

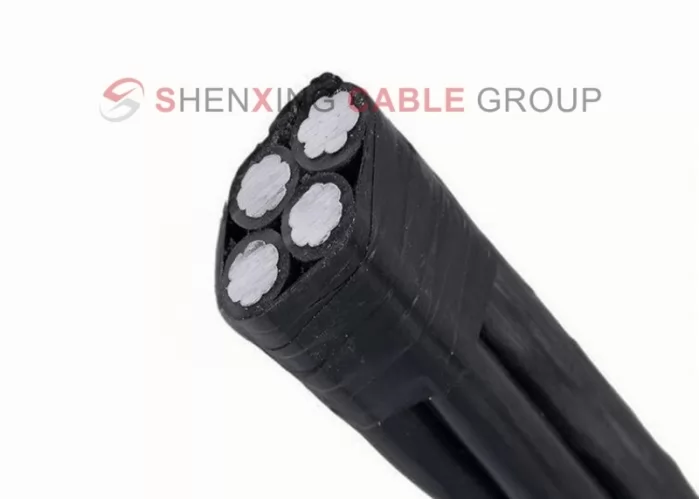

Cable Structure

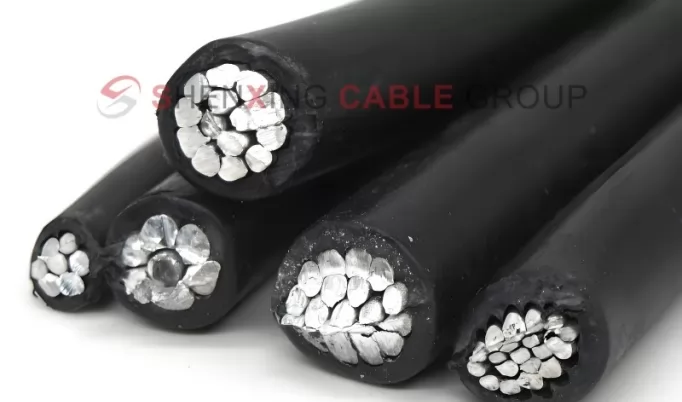

All Aluminum alloy insulated overhead cable

Features

Product Features

Material innovation:

Conductor: aluminum-magnesium-silicon alloy (AAAC), tensile strength 280-320MPa, conductivity 53% IACS;

Insulation layer: cross-linked polyethylene (XLPE), temperature resistance -40℃~90℃, oxygen index ≥28 (flame retardant grade).

Electrical performance:

100mm² cross-section conductor DC resistance ≤0.2701Ω/km (20℃);

Corona inception voltage ≥1.2 times rated voltage (actual measured data for 1000kV scenario).

Environmental adaptability:

Passed ASTM B117 salt spray test for 1000 hours (no corrosion);

UV accelerated aging test for 5000 hours, insulation layer tensile strength retention rate ＞85%.

Experimental performance data

Experimental performance data

Electrical performance:

20℃ DC resistance: ≤0.2701Ω/km (taking 100mm² cross section as an example).

Insulation resistance: 10kV cable ≥1500MΩ·km (GB 14049 standard).

Mechanical properties:

Tension force: 100mm² cross section conductor ≥18.08kN (BS EN 50182 standard).

Environmental test:

Passed salt spray test (500 hours without corrosion), high and low temperature cycle test (-40℃ to +90℃), ensuring 30 years of service life

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

Intelligent Upgrade of Luxury Cruise Ships

An internationally renowned luxury cruise company plans to carry out comprehensive intelligent upgrades on several of its cruise ships to improve passenger experience and operational efficiency. Read More

Application Case of Shenxing Cable in Data Center Room

Located on the edge of the city, a large data center room is the core data processing center for many enterprises and government agencies. Read More

Cable Application in a Public Charging Station in a City

In order to promote the development of new energy vehicles, a city built a number of charging stations in public areas. Due to the special working environment of the charging station, the performance requirements for the cable are extremely high. Read More

Cable Solutions for Offshore Wind Farms

A coastal area plans to build offshore wind farms on a large scale to meet the growing demand for clean energy. However, the harsh offshore environment, high salt spray, strong winds and other factors have placed extremely high demands on the performance of cables. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the application scenarios for aluminum stranded overhead cables?

Aluminum stranded overhead cables are widely used in urban and rural power transmission and distribution networks, especially for low and medium voltage overhead power lines. It is commonly used in distribution systems, transmission lines, substations, and some industrial power facilities, and is particularly suitable for long-distance power transmission.

What are the advantages of aluminum stranded overhead cables?

The main advantages of aluminum stranded overhead cables are their lighter weight and lower cost. Although aluminum is not as conductive as copper, it is sufficient to meet most power transmission needs. In addition, the flexibility of aluminum stranded wire makes it easier to install, especially in environments where long-distance installation is required.

What is the rated voltage of aluminum stranded overhead cables?

The rated voltage of aluminum stranded overhead cables is usually 0.6/1kV, which is suitable for low and medium voltage power systems. In some high-voltage applications, models with a rated voltage of 10kV can also be selected to select the appropriate cable specifications according to power transmission requirements.

How to ensure the installation safety of aluminum stranded overhead cables?

When installing aluminum stranded overhead cables, it is necessary to ensure that the bending radius of the cable meets the standard requirements to avoid excessive bending that causes cable damage. And use appropriate tools and methods, such as professional cable clamps and fixtures, to ensure the stability and safety of the cable during operation.

What is the temperature resistance of aluminum stranded overhead cables?

The temperature resistance of aluminum stranded overhead cables usually depends on the insulation material. Aluminum stranded cables insulated with polyvinyl chloride (PVC) usually have a temperature resistance of 70°C; while aluminum stranded cables insulated with cross-linked polyethylene (XLPE) can reach a temperature resistance of 90°C, which is suitable for a wider range of working environments.

What is the corrosion resistance of aluminum stranded overhead cables?

Aluminum stranded overhead cables have excellent corrosion resistance, especially in environments with moisture, salt spray or heavy pollution, and can maintain good electrical performance. Aluminum conductors themselves have natural corrosion resistance, and external insulation materials such as cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC) further enhance their durability in harsh environments.
