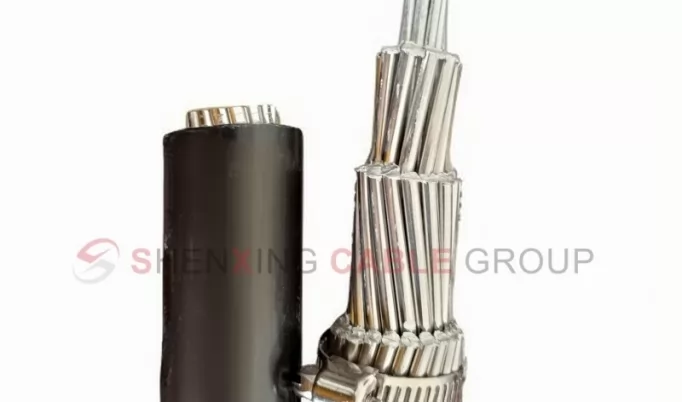

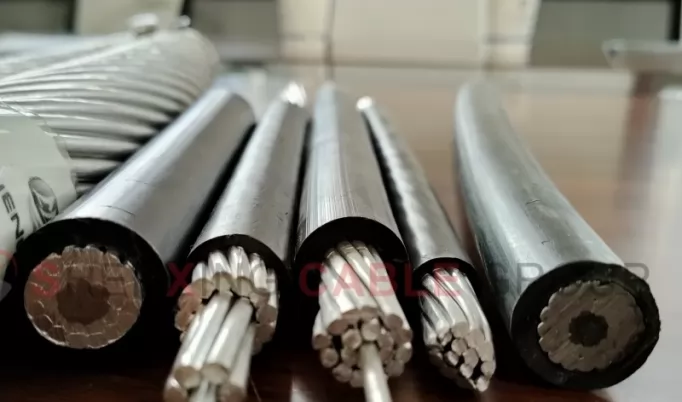

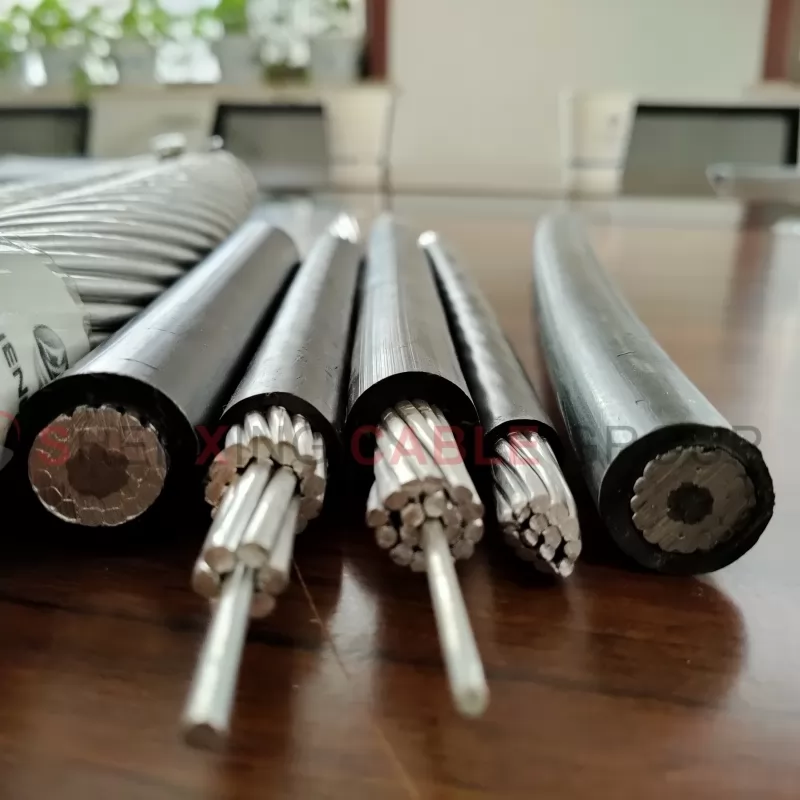

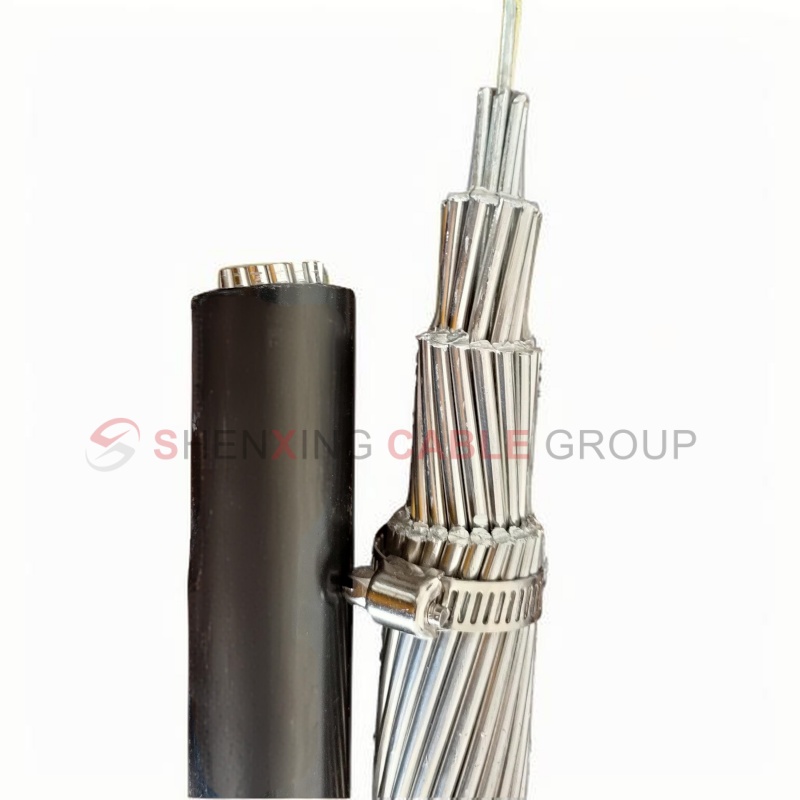

High performance steel core aluminum stranded insulated overhead cable

Compliance with international standards

National standards: GB/T 1179-2008 (round wire concentric stranded overhead conductor), GB/T 12527-2008 (1kV and below overhead insulated cables), GB/T 14049-2008 (10kV, 35kV overhead insulated cables).

International standards: Support customized production, comply with international standards such as IEC 61089 (International Electrotechnical Commission), BS 215 (British Standard), ASTM B232 (American Society for Testing and Materials).

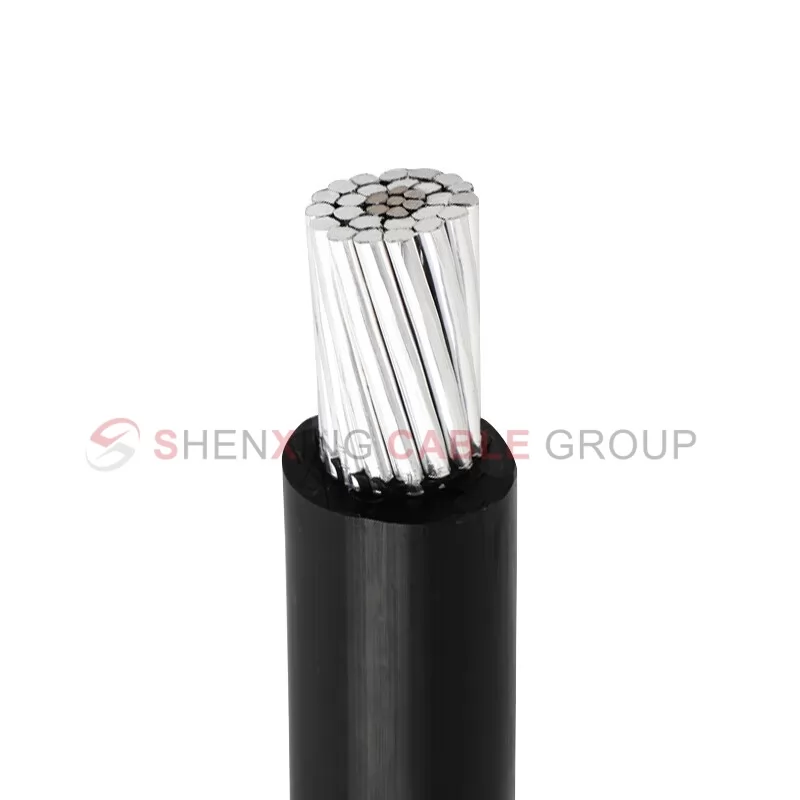

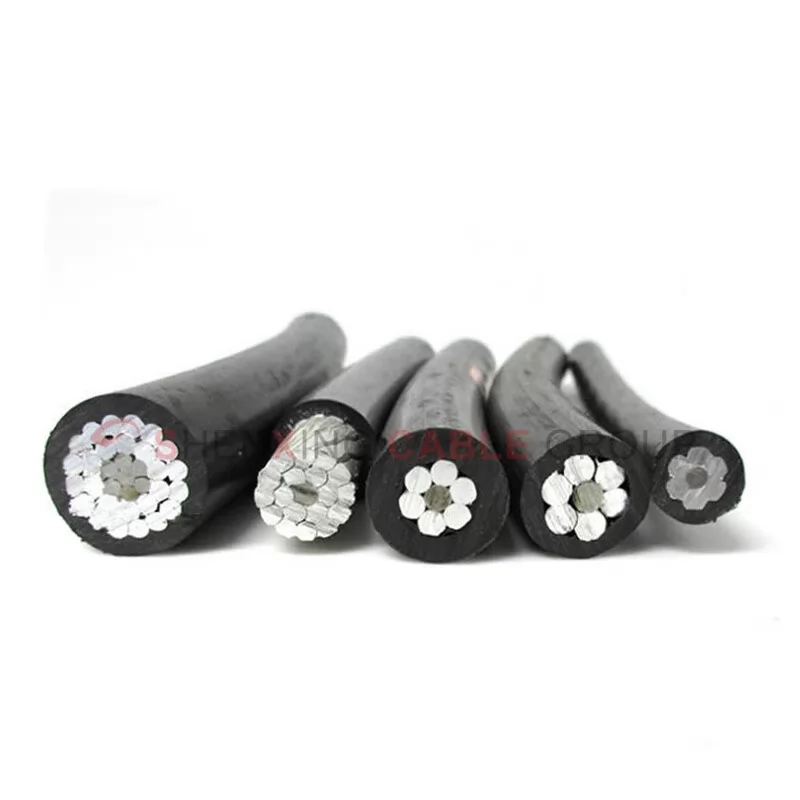

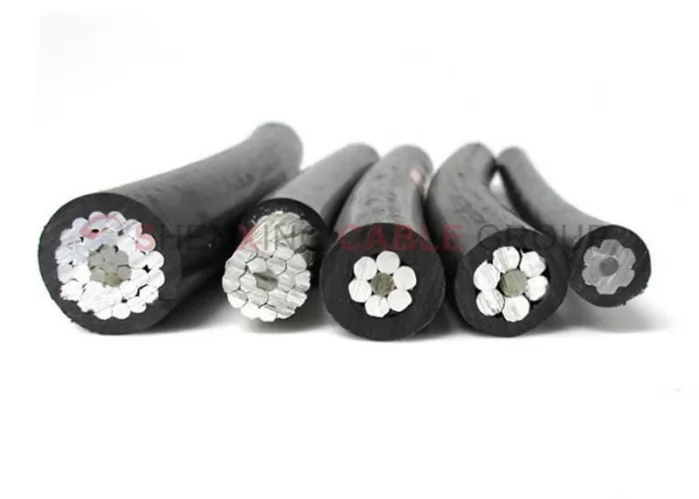

Aluminum Conductor Steel Reinforced Insulated Overhead Cable

Core application scenarios:

Urban power grid transformation: erected along existing poles and towers, no additional land acquisition is required, and construction costs are reduced.

Rural and remote areas: adapt to long-distance power transmission (10kV system can reach 15 kilometers) and reduce voltage loss.

Crossing complex terrain: rivers, valleys, forests and other areas, strong wind and ice load resistance.

Highly corrosive environment: coastal salt spray areas, industrial areas, aluminum core has excellent anti-oxidation performance and extends service life.

Temporary power supply system: construction sites, mining areas and other scenes, lightweight design facilitates rapid deployment.

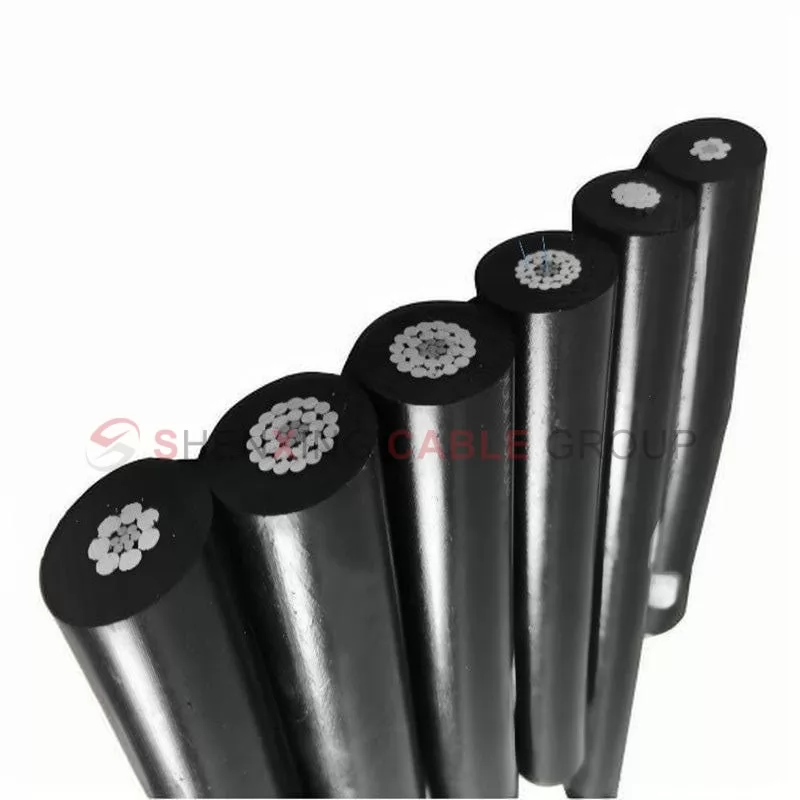

Aluminum Conductor Steel Reinforced Insulated Overhead Cable

Advantages:

1.Breakthrough in material performance

High-strength alloy conductor: tensile strength increased by 60% (compared to pure aluminum), completely solving the problem of traditional steel core corrosion.

Intelligent insulation design: three-layer co-extruded XLPE structure, resistant to electrical tracking and UV rays, with a service life of more than 40 years.

2. Scenario-based competitiveness

Lightweight: 20% lighter than traditional steel core aluminum stranded wire (ACSR), reducing tower load requirements.

Maintenance-free: no risk of steel core aging, reducing inspection costs by 80%.

3. Green and sustainable

100% recyclable: the recycling rate of aluminum alloy conductors reaches 95%, reducing carbon footprint.

Energy saving and consumption reduction: production energy consumption is only 30% of copper cable, in line with the global carbon neutrality trend.

Technical Data

Nominal Cross Section	Structural Root Number/Diameter	Cable Outer Diameter	DC Resistance	Breaking Force	Weight
(mm²)	(mm)	(mm)	( ≤Ω/km)	(N)	(kg/km)
16	7/1.70	5.1	1.802	2340	43.5
25	7/2.15	6.5	1.127	4355	69.6
35	7/2.50	7.5	0.8332	5760	94.1
50	7/3.00	9	0.5786	7930	135.5
70	7/3.60	10.8	0.4018	10950	195.1
95	7/4.16	12.5	0.3009	14450	260.5
120	19/2.85	14.3	0.2373	19420	333.5
150	19/3.15	15.8	0.1943	23310	407.4
185	19/3.50	17.5	0.1574	28440	503
210	19/3.75	18.8	0.1371	32260	577.4
240	19/4.00	20	0.1205	36260	656.9
300	37/3.20	22.4	0.09689	46850	820.4
400	37/3.70	25.9	0.07247	61150	1097
500	37/4.16	29.1	0.05733	76370	1387
630	61/3.63	32.7	0.04577	91940	1744
800	61/4.10	36.9	0.03588	115900	2225

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

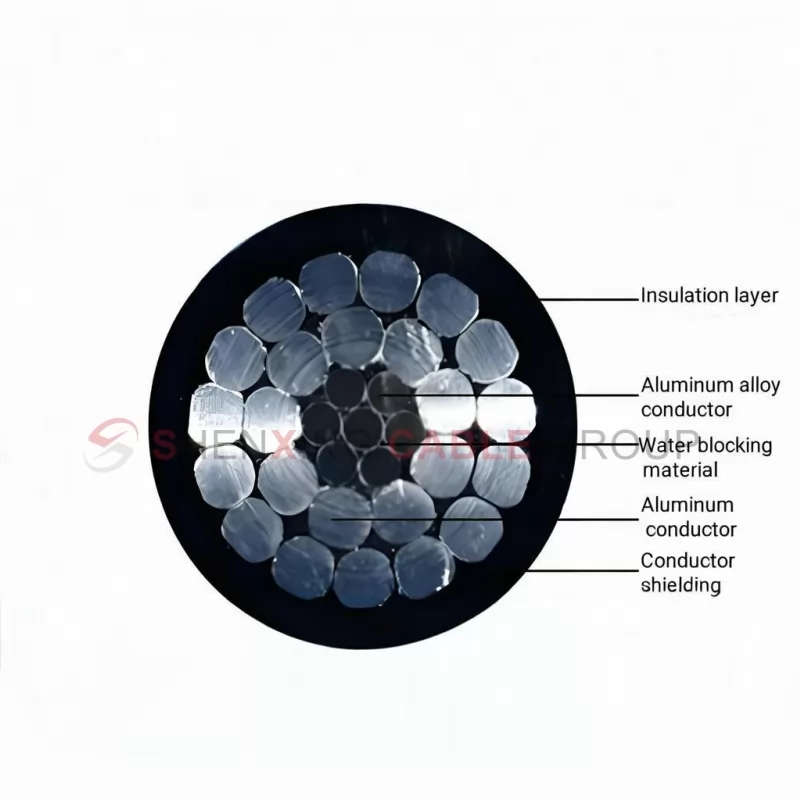

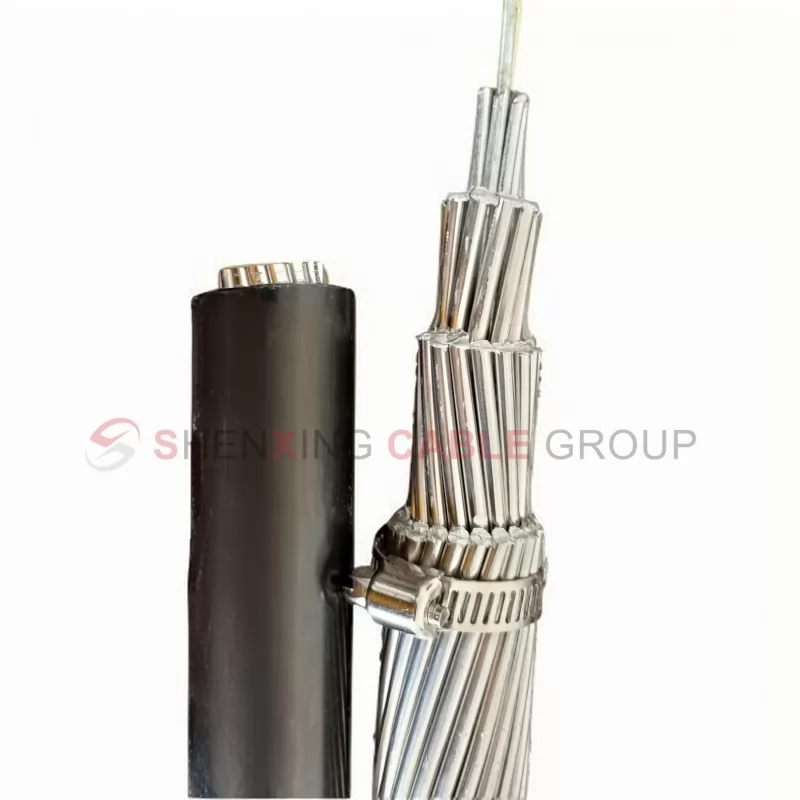

Cable Structure

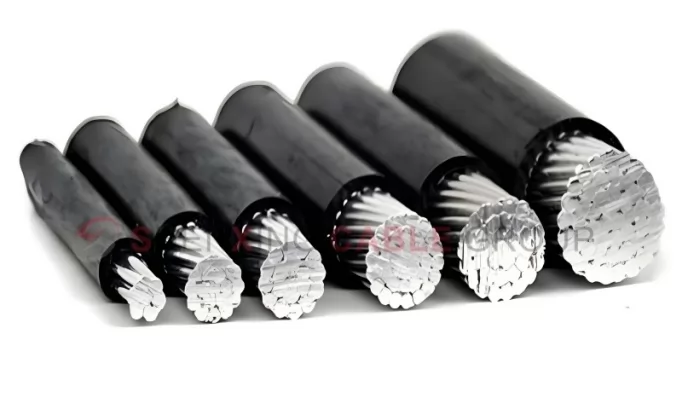

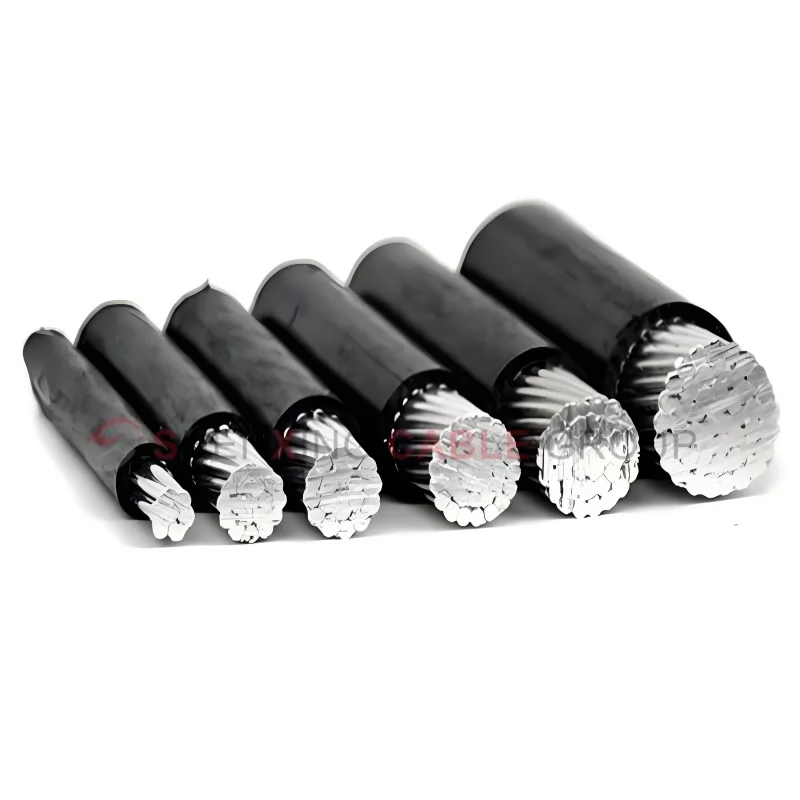

Aluminum Conductor Steel Reinforced Insulated Overhead Cable

Features

Product Features

1. Conductor technology

Alloy formula: Add magnesium (Mg) and silicon (Si) elements, tensile strength ≥ 300MPa, creep resistance is better than ACSR.

Structural optimization: 54 concentric strands + outer layer Z-shaped embossing to reduce wind vibration noise and corona loss.

2. Insulation protection

Weatherproof layer: XLPE material containing carbon black, UV protection level reaches the highest ASTM standard (no degradation for 2000 hours).

Electrical safety: power frequency withstand voltage 45kV/min (10kV level), partial discharge <5pC (industry leading level).

3. Intelligent scalability

Fiber composite design: optional embedded OPGW fiber unit, real-time monitoring of temperature, sag and external force damage.

Electromagnetic compatibility: metal shielding layer design, passed CISPR 22 electromagnetic interference test.scenarios.

Experimental performance

Experimental performance and quality control:

Electrical performance test: The conductor shielding layer is uniform and has no defects, the insulation resistance is ≥1000MΩ·km, and the partial discharge is <10pC.

Mechanical performance test: The tensile strength of the steel core is ≥1570MPa (G3A ultra-high strength steel), and the elongation of the aluminum stranded wire is ≥1.5%.

Environmental adaptability test: Passed the salt spray test (5000 hours without corrosion), high and low temperature cycle test (-40℃ to 120℃) and ultraviolet accelerated aging test.
