PVC Insulated Overhead Cable – High Performance, Durable, Cost-effective Solution

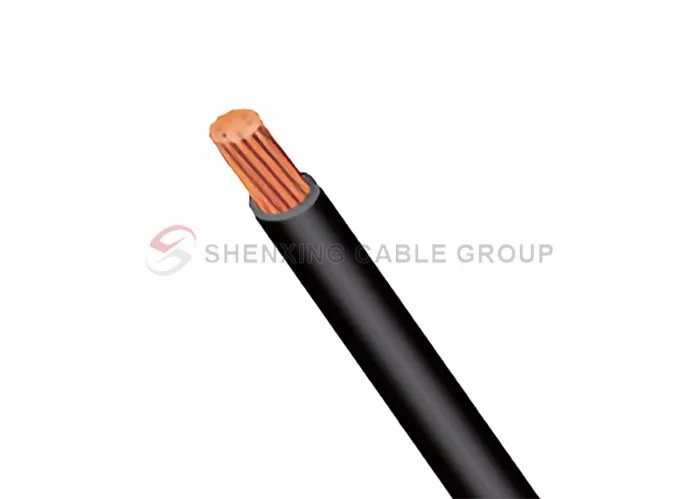

Copper conductor PVC insulated overhead cable

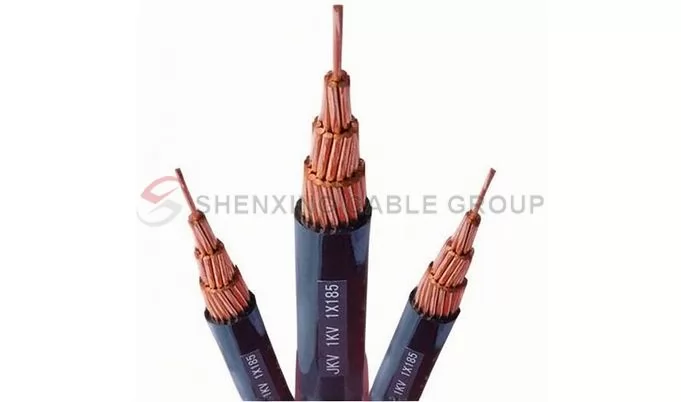

Insulated Aerial Cable-JKV

JKV polyvinyl chloride insulated overhead cable is an overhead cable commonly used in power transmission and distribution systems. It uses high-conductivity round or sector-shaped copper conductors, and is covered with highly weather-resistant polyvinyl chloride (PVC) insulation materials. It has excellent mechanical strength, electrical properties and aging resistance. This product is particularly suitable for short-distance distribution systems, urban and rural power grid transformation, and industrial and commercial power sites, and is widely exported to the Middle East, Southeast Asia, Africa and Latin American markets.

International standard certification：

GB/T 14049-2008，IEC 60502-1，ASTM B231/B231M，RoHS、REACH

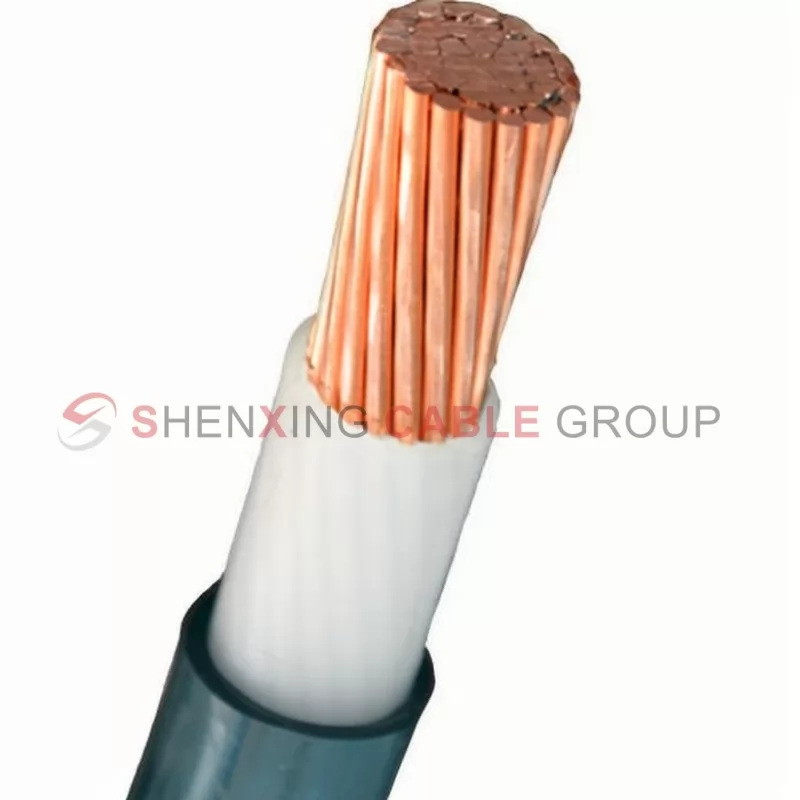

Copper conductor PVC insulated overhead cable

Product application scenarios:

Overhead wiring of urban and rural low-voltage power grids

Internal transmission lines for industrial and mining enterprises

Power distribution outside urban residential areas and commercial buildings

Temporary construction power, distribution box connection lines

Applicable to extreme climate areas such as tropical, arid, and high altitude

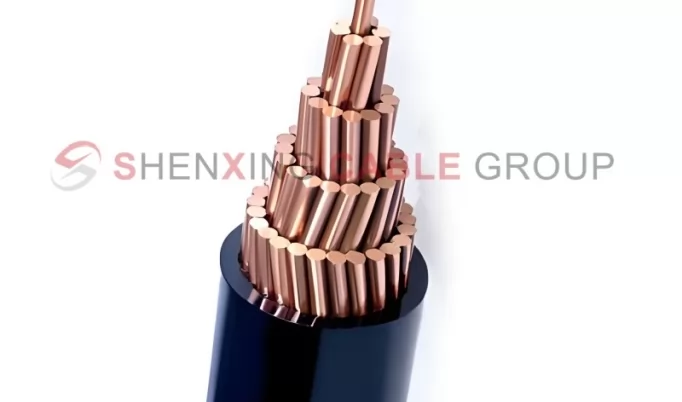

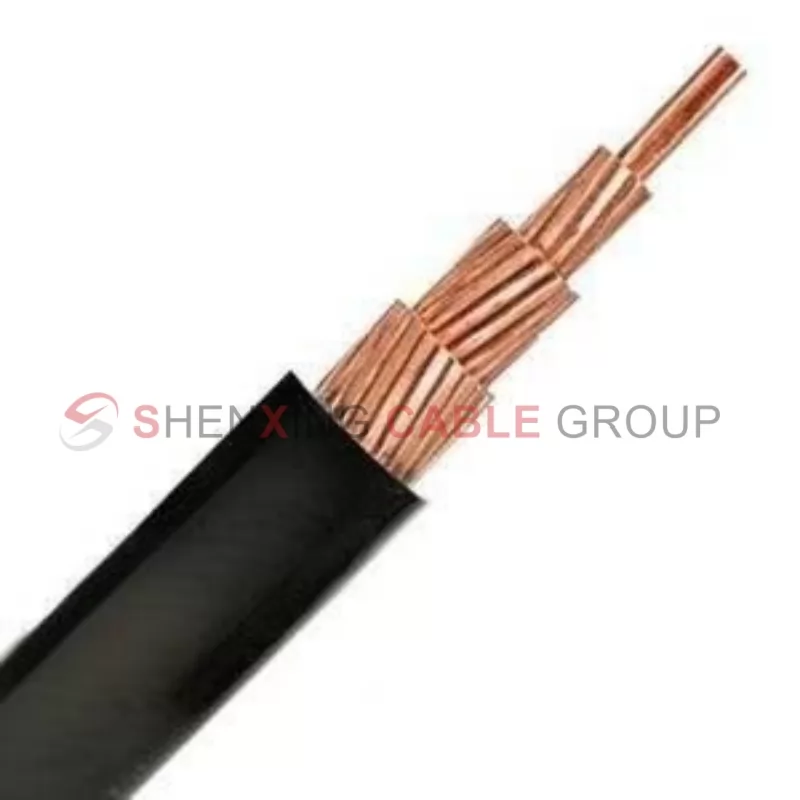

Copper conductor PVC insulated overhead cable

Advantages:

High safety: PVC insulation has good flame retardancy, reducing the risk of short circuit and fire

Excellent weather resistance: can withstand outdoor environmental influences such as sunlight, rain, snow, and high temperature

Excellent conductivity: high-purity annealed copper is used, with low resistivity and high transmission efficiency

Easy installation: good flexibility, easy overhead laying and maintenance

High cost performance: lower cost than cross-linked cables, suitable for large-scale engineering needs

Technical Data

Number of Conductors	Conductor Diameter	Nominal Area	Insulation Thickness	Cable Outer Diameter	Cable Weight	Cable Breaking Force	Maximum Resistance of Conductor（20℃）		Current Carrying Capacity
	(mm)	(mm²)	(mm)	(mm)	( kg/km)	(N)	(Ω/km)		(A)
							Hard copper	Soft copper	PVC	PE	XLPE
Single Core	3.8	10	1	5.8	114	3471	1.906	1.83	65	65	85
	4.8	16	1.2	7.2	181	5486	1.198	1.15	89	90	122
	6.2	25	1.2	8.4	260	8465	0.749	0.727	120	124	166
	7.2	35	1.4	9.8	377	11731	0.54	0.524	148	152	204
	8.5	50	1.4	11.1	485	16502	0.399	0.387	182	188	252
	10.2	70	1.4	12.8	668	23461	0.276	0.268	231	239	320
	11.8	95	1.6	14.9	941	31759	0.199	0.193	289	299	400
	13.2	120	1.6	16.2	1174	39911	0.158	0.153	334	348	467
	14.8	150	1.8	17.7	1477	49505	0.128	0.124	385	399	633
	16.4	185	2	20.2	1768	61846	0.1021	0.0991	448	466	622
	18.6	240	2	22.8	2305	79823	0.0777	0.0754	535	558	746
	20.6	300	2.4	24.4	2946	99898	0.0619	0.0601	615	630	865
Two Cores	3.8	10	1	11.6	228	6890	1.906	1.83	60	60	78
	4.8	16	1.2	14.4	362	10972	1.198	1.15	82	83	112
	6.2	25	1.2	16.8	521	16930	0.749	0.727	110	114	153
	7.2	35	1.4	19.6	733	23462	0.54	0.524	136	140	188
	8.5	50	1.4	22.2	969	33004	0.399	0.387	167	173	232
	10.2	70	1.4	25.2	1336	46922	0.276	0.268	213	220	194
	11.8	95	1.6	29.4	1882	63518	0.199	0.193	266	275	368
	13.2	120	1.6	32.2	2348	79822	0.158	0.153	307	320	430
	14.8	150	1.8	36.2	2954	99010	0.128	0.124	354	367	490
	16.4	185	2	40	3536	123692	0.1021	0.0991	412	429	572
	18.6	240	2	45.4	4609	159646	0.0777	0.0754	492	513	686
	20.6	300	2.4	50.6	5891	199576	0.0619	0.0601	566	580	730
Three Cores	3.8	10	1	12.5
	4.8	16	1.2	15.5
	6.2	25	1.2	18.1
	7.2	35	1.4	21.1
	8.5	50	1.4	23.9
	10.2	70	1.4	27.1
	11.8	95	1.6	31.7
	13.2	120	1.6	34.7
	14.8	150	1.8	39
	16.4	185	2	43.1
	18.6	240	2	48.9
	20.6	300	2.4	54.5
Four Cores	3.8	10	1	13	456	13384	1.906	1.83	53	53	70
	4.8	16	1.2	16.2	721	21944	1.198	1.15	73	74	100
	6.2	25	1.2	19.6	1040	33860	0.749	0.727	98	102	136
	7.2	35	1.4	22.7	1464	46924	0.54	0.524	121	125	167
	8.5	50	1.4	25.9	1936	66008	0.399	0.387	149	154	207
	10.2	70	1.4	30	2669	93844	0.276	0.268	189	196	262
	11.8	95	1.6	34.6	3761	127036	0.199	0.193	237	245	328
	13.2	120	1.6	38	4692	159644	0.158	0.153	274	285	383
	14.8	150	1.8	42.6	5903	198020	0.128	0.124	316	327	437
	16.4	185	2	47.2	7065	247684	0.1021	0.0991	367	382	505
	18.6	240	2	52.6	9210	319292	0.0777	0.0754	439	458	612
	20.6	300	2.4	58.9	11770	399152	0.0619	0.0601	504	517	710

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

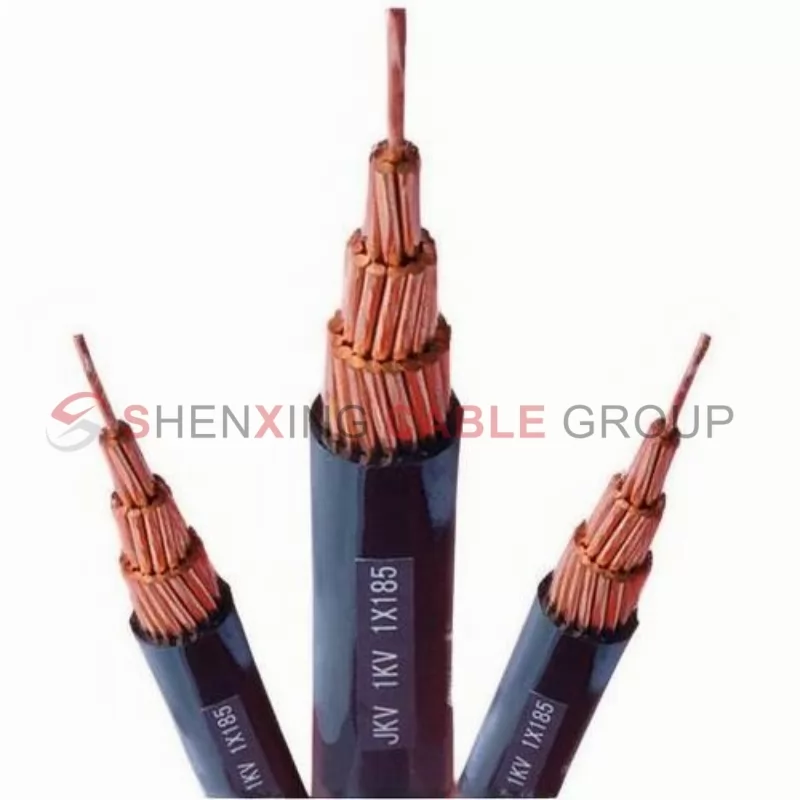

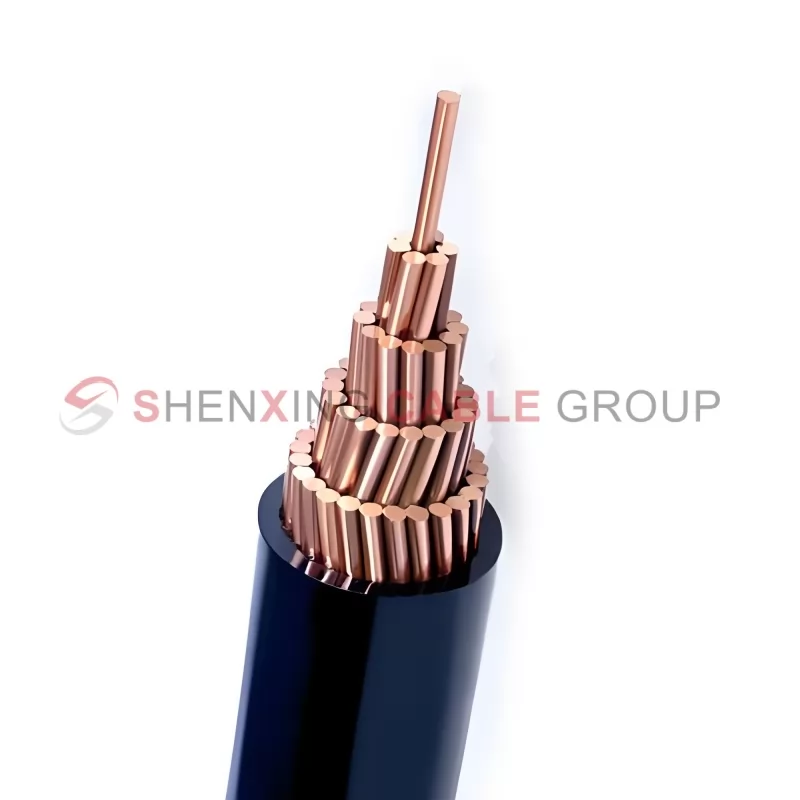

Copper conductor PVC insulated overhead cable

Features

Laying Installation

Product Features：

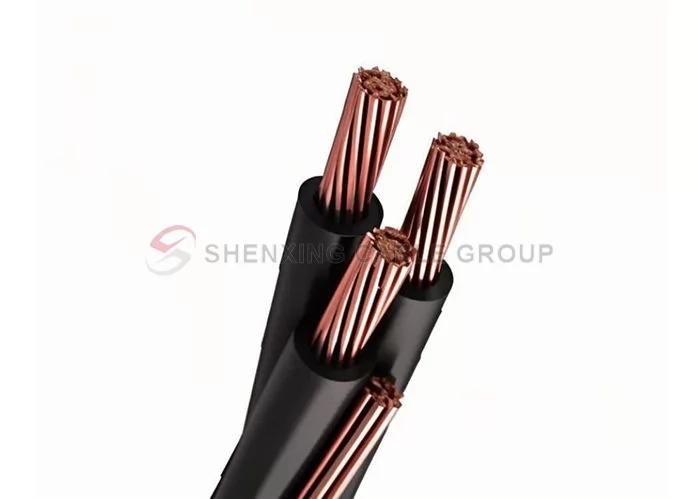

Single-core or multi-core structure to meet different power distribution needs

PVC insulation color can be customized: black, red, yellow, blue, green/yellow, etc.

Optional steel wire bearing core for large-span overhead laying

Anti-ultraviolet, anti-oxidation, low-smoke and low-toxic environmentally friendly materials are available

Support OEM/ODM production and support customer LOGO printing

Experimental Performance

Experimental performance data：

Conductor material: multi-strand annealed copper or solid copper (Class 1/2)

Conductor cross-section range: 10mm² ~ 240mm²

PVC insulation thickness: in line with IEC/GB standards

Operating temperature range: -20℃ ~ +70℃

Short-term temperature limit: 160℃ (5 seconds)

Finished product insulation resistance: ≥36.7 MΩ·km

AC withstand voltage test: 3.5kV/5min without breakdown

Flame vertical burning test: in line with IEC 60332-1 requirements

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the application scenarios of copper core PVC insulated overhead cables?

Copper core PVC insulated overhead cables are widely used in low-voltage and medium-voltage overhead power transmission, especially suitable for urban power distribution systems, rural power lines, photovoltaic power systems and street lighting systems. It is also used in building power systems, industrial power distribution and traffic lighting systems, and can provide long-term stable power supply under severe weather conditions.

How can copper core PVC insulated overhead cables ensure long-term weather resistance and durability?

The PVC insulation layer of copper core PVC insulated overhead cables has excellent resistance to UV, high temperature and chemical corrosion. PVC materials can still maintain excellent physical and electrical properties under long-term exposure to solar UV, wind and rain and chemical erosion. In addition, the high conductivity and oxidation resistance of copper conductors further improve the stability and durability of the cable.

What is the maximum operating temperature and use environment of this cable?

The temperature range of copper core PVC insulated overhead cables is typically **-20°C to +70°C**. It is suitable for both hot and cold environments and can work normally in various extreme weather conditions, including high temperature, severe cold, rain, snow and stormy weather. PVC insulation materials perform well in these temperature ranges, ensuring long-term and stable operation of the cable.

How high a voltage can a copper core PVC insulated overhead cable withstand?

The rated voltage of a copper core PVC insulated overhead cable is usually 0.6/1kV, which is suitable for low-voltage and medium-voltage power transmission systems. This cable is widely used in medium and low-voltage power systems such as overhead power lines and photovoltaic power access to ensure safe and reliable power transmission.

What are the advantages of copper core PVC insulated overhead cables compared with aluminum core cables?

Copper core cables have significantly higher conductivity than aluminum core cables. Copper has a lower resistivity than aluminum, so copper core cables have stronger conductivity, can reduce energy loss at the same current, and have higher transmission efficiency. In addition, copper conductors are also more resistant to oxidation than aluminum conductors, which makes copper core cables have a longer service life in long-term use.

What are the installation requirements for copper core PVC insulated overhead cables?

The installation of copper core PVC insulated overhead cable is very simple and convenient, with good flexibility, suitable for wiring in complex environments. It can be laid overhead without additional protective pipes. During installation, ensure that the support points and spacing of the cables meet relevant specifications to avoid damage to the cables due to excessive load. For long-term operation, it is recommended to regularly check whether the cables have signs of damage or aging to ensure the safety and stability of the power system.
