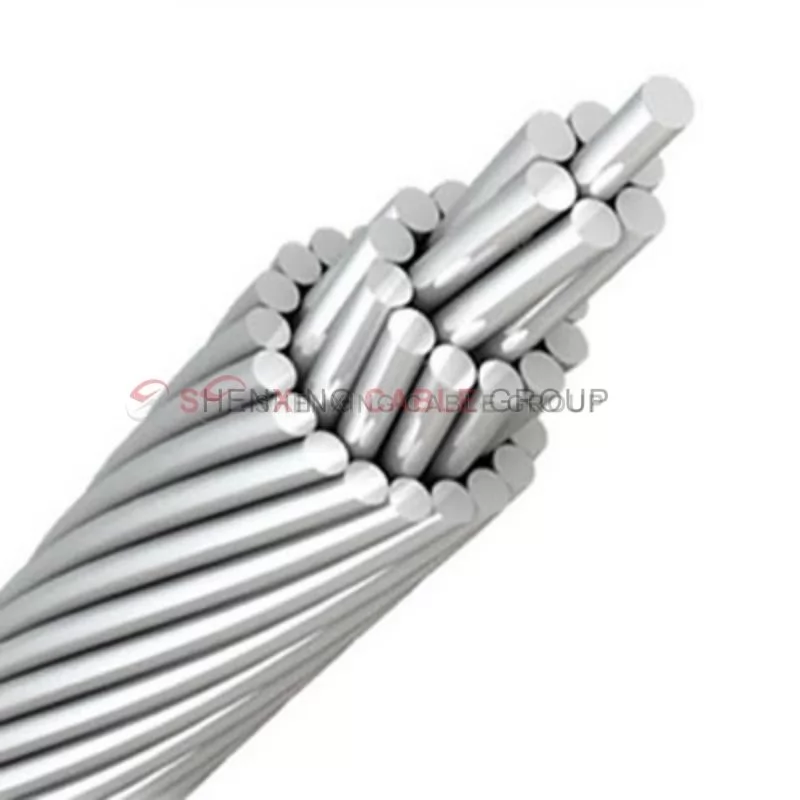

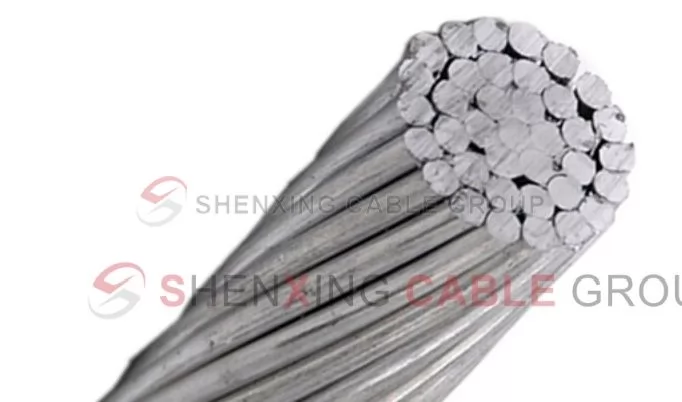

Overhead All Aluminum Conductor Cable（AAC）

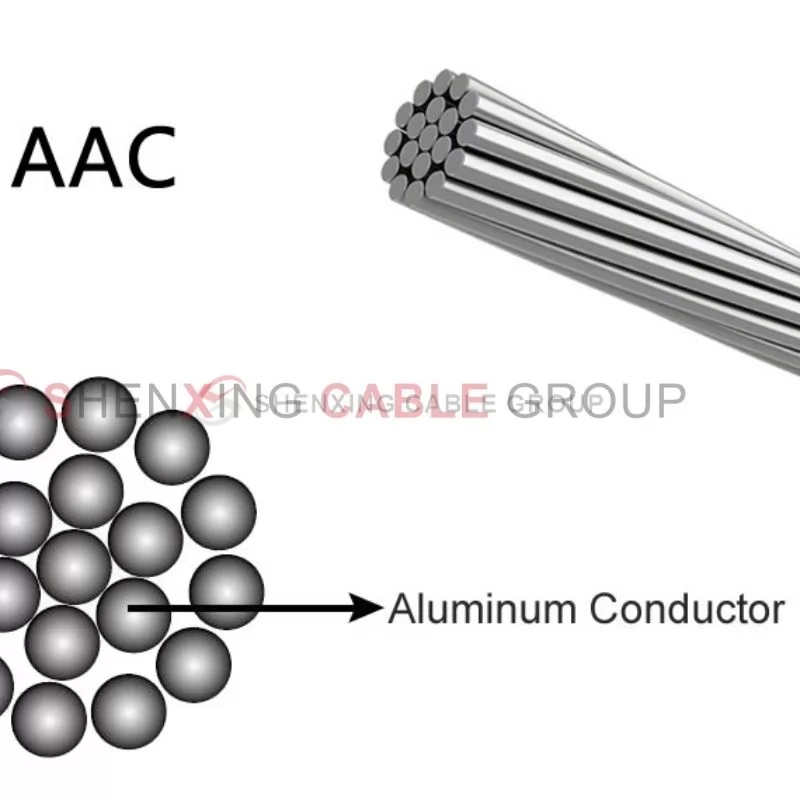

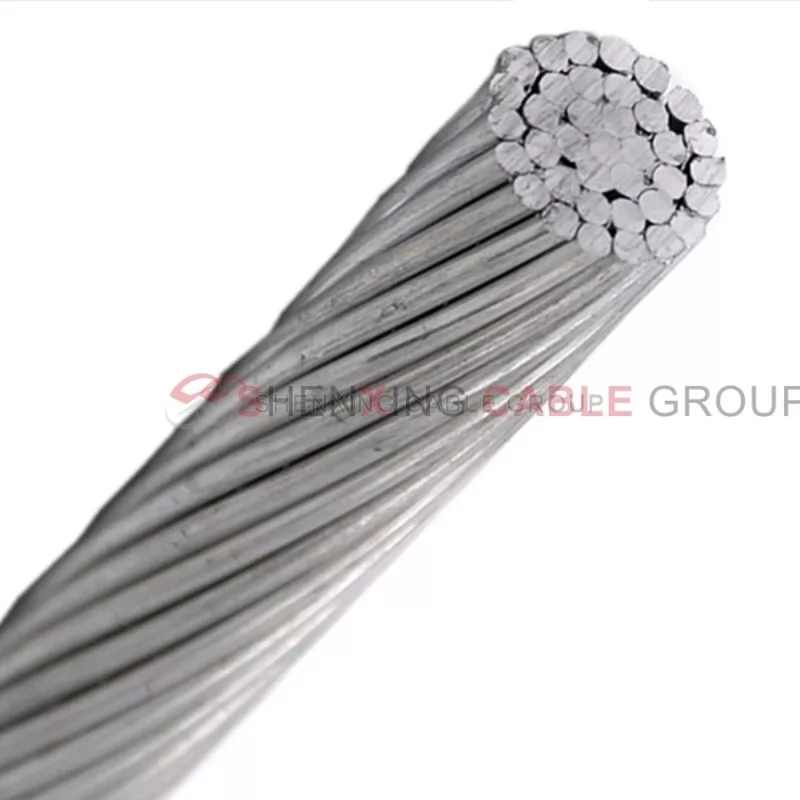

AAC (All Aluminum Conductor) cables are made of high purity hard aluminum (1350-H19) round wires concentrically stranded, with an aluminum purity of not less than 99.7%. The conductor can consist of 7, 19, 37, 61 or more conductors arranged in 1, 2, 3, 4 or more layers around a central conductor. Each successive layer should have 6 more conductors than the layer immediately below. For a given cross-sectional area, the greater the number of conductors (and the corresponding reduction in the size of each conductor), the more flexible the conductor. This design makes AAC cables excellent in short span, high conductivity overhead transmission lines, particularly suitable for urban distribution networks and coastal areas.
Share:
Comply with international standards

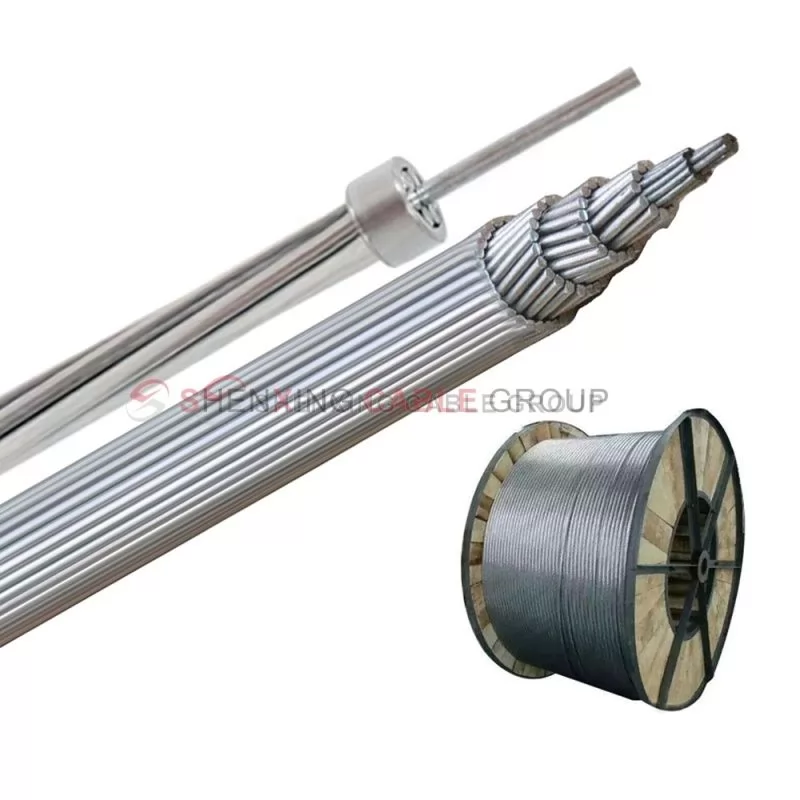

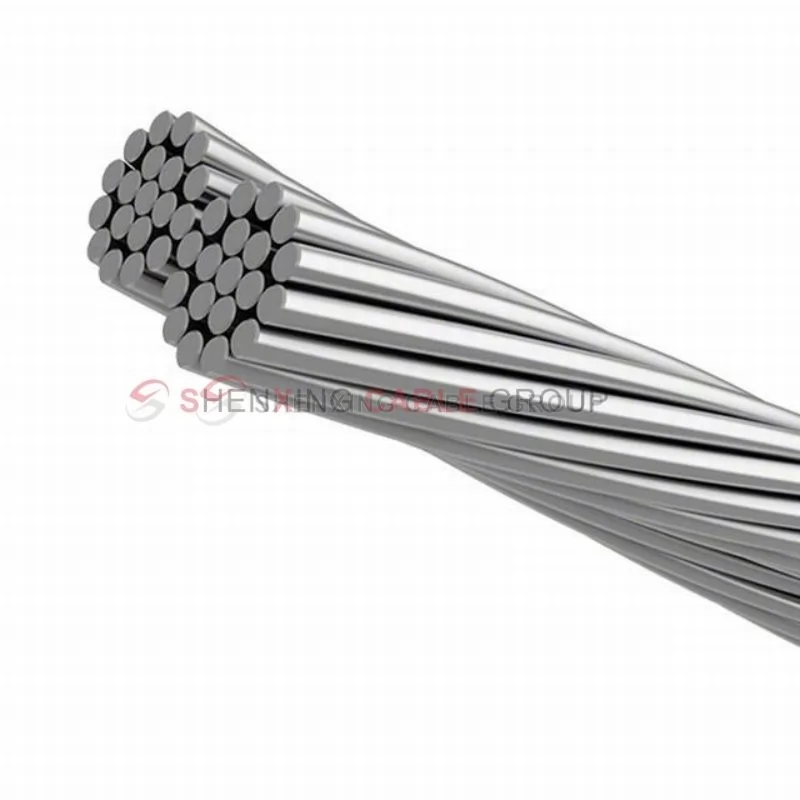

SHENXING Cable offers AAC conductors in various sizes and standards (ASTM, IEC, DIN, BS), and we accept OEM customization to meet your specific project requirements. Our cables are packaged in secure wooden barrels to ensure safe transportation.
Core application scenarios
Due to its lightweight construction and excellent corrosion resistance, AAC conductors are ideal for use in coastal areas, urban grids, and areas with challenging environmental factors. This makes it a highly durable and efficient choice for power distribution.
Urban grids: Suitable for low, medium, and high voltage overhead distribution lines in urban areas, especially when short spans are required but high conductivity is required.
Coastal areas: Due to the excellent corrosion resistance of aluminum, AAC cables perform well in coastal and other highly corrosive environments.
Advantages:
High conductivity: High-purity aluminum ensures excellent conductivity and reduces line loss.
Lightweight structure: The low density of aluminum makes AAC cables light and easy to install and transport.
Strong corrosion resistance: The natural corrosion resistance of aluminum allows AAC cables to maintain stable performance in harsh environments.
Economical: Compared with other conductor materials, AAC cables are lower in cost and more cost-effective.
Customized according to project requirements: Available in a variety of sizes and international standards (ASTM, IEC, DIN, BS, AS, CSA, NFC, Ss), and can be customized according to specific project requirements to ensure versatility in different applications.
Technical Data
| Nominal Cross Section | Structural Root Number/Diameter | Cable Outer Diameter | DC Resistance | Breaking Force | Weight |
| (mm²) | (mm) | (mm) | ( ≤Ω/km) | (N) | (kg/km) |
| 16 | 7/1.70 | 5.1 | 1.802 | 2340 | 43.5 |
| 25 | 7/2.15 | 6.5 | 1.127 | 4355 | 69.6 |
| 35 | 7/2.50 | 7.5 | 0.8332 | 5760 | 94.1 |
| 50 | 7/3.00 | 9 | 0.5786 | 7930 | 135.5 |
| 70 | 7/3.60 | 10.8 | 0.4018 | 10950 | 195.1 |
| 95 | 7/4.16 | 12.5 | 0.3009 | 14450 | 260.5 |
| 120 | 19/2.85 | 14.3 | 0.2373 | 19420 | 333.5 |
| 150 | 19/3.15 | 15.8 | 0.1943 | 23310 | 407.4 |
| 185 | 19/3.50 | 17.5 | 0.1574 | 28440 | 503 |
| 210 | 19/3.75 | 18.8 | 0.1371 | 32260 | 577.4 |
| 240 | 19/4.00 | 20 | 0.1205 | 36260 | 656.9 |
| 300 | 37/3.20 | 22.4 | 0.09689 | 46850 | 820.4 |
| 400 | 37/3.70 | 25.9 | 0.07247 | 61150 | 1097 |
| 500 | 37/4.16 | 29.1 | 0.05733 | 76370 | 1387 |
| 630 | 61/3.63 | 32.7 | 0.04577 | 91940 | 1744 |
| 800 | 61/4.10 | 36.9 | 0.03588 | 115900 | 2225 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

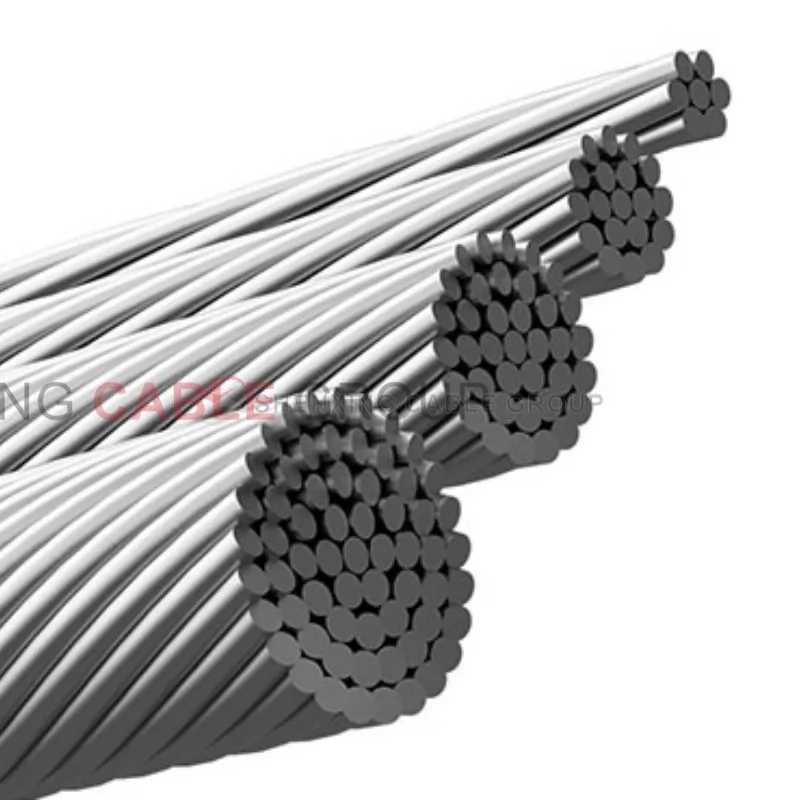

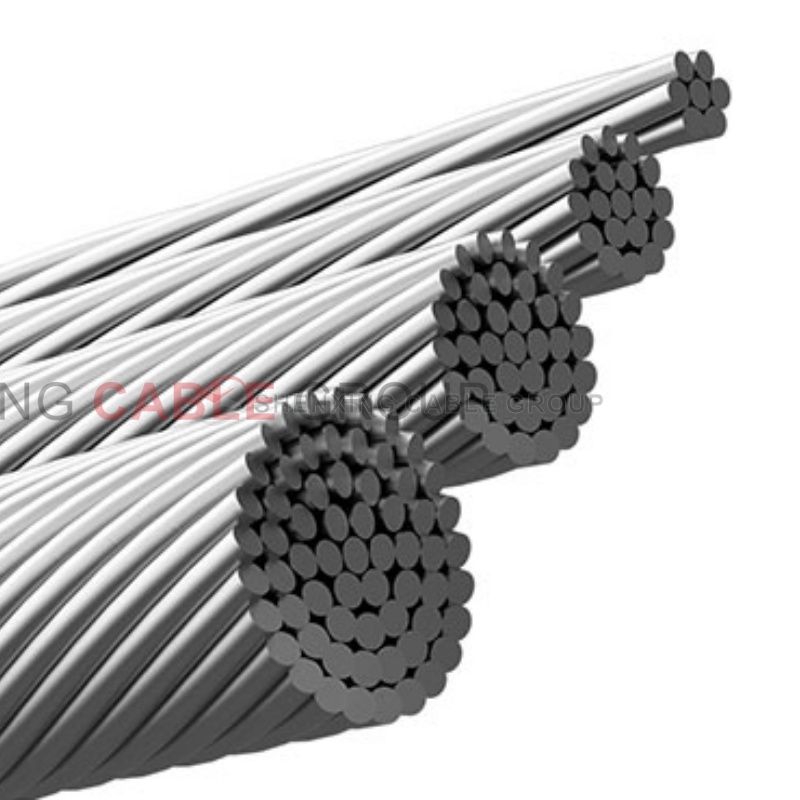

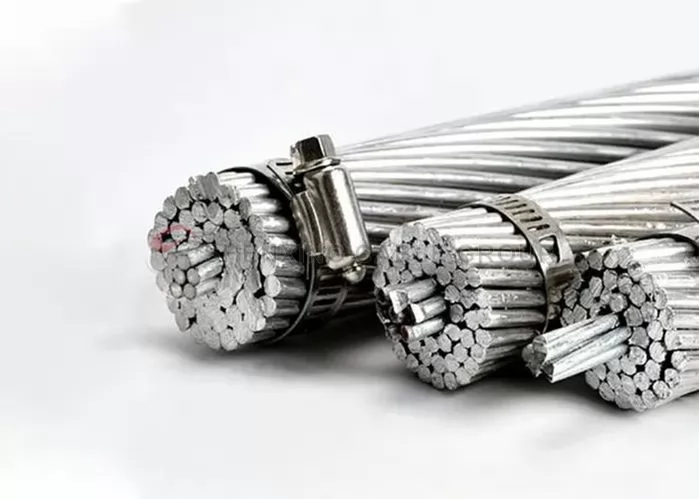

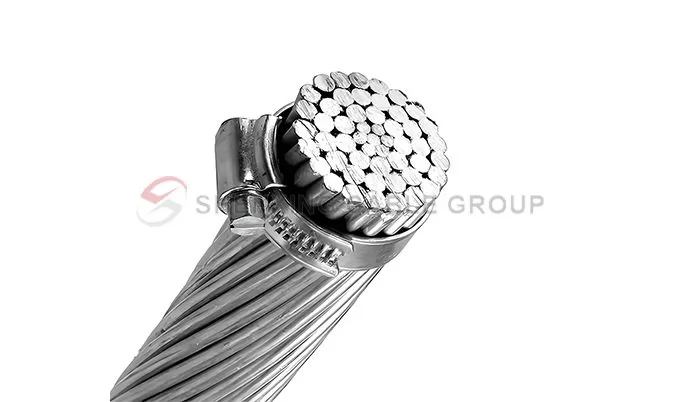

Cable Structure

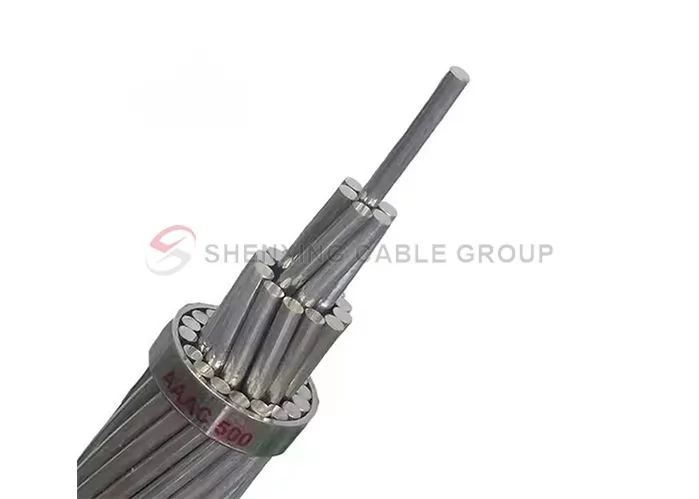

All Aluminum Conductor Overhead Cable（AAC）
Features
Features
Product Features

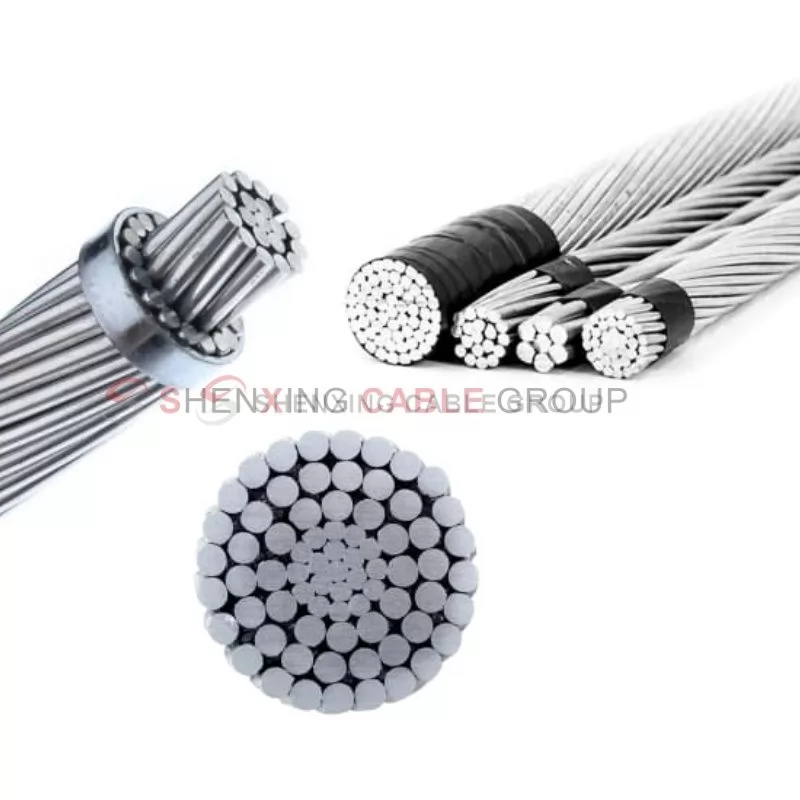

Structural diversity:According to the needs, the conductor can be made of 7, 19, 37, 61 or more aluminum wires, which increases the application range and flexibility of the product.
Good flexibility:By increasing the number of stranded wires, the flexibility of the conductor can be improved, which is convenient for construction operations.
Wide applicability:It can be used for overhead lines of various voltage levels to meet the needs of different scenarios.
Conductor material: Aluminum stranded wire (AAC)
Electrical Properties
Density@20oC: 2.703 kg/dm
Temperature Coefficient@20°C: 0.00403 (°C)
Resistivity@20°C: 0.028264
Linear Expansivity: 23 x10-6 (°C)
Production
Production Equipment
Projects
Empowering Green Energy: Shenxing Cable Group Supports 50MW Wind Power Project
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the application scenarios for aluminum stranded overhead cables?
Aluminum stranded overhead cables are widely used in urban and rural power transmission and distribution networks, especially for low and medium voltage overhead power lines. It is commonly used in distribution systems, transmission lines, substations, and some industrial power facilities, and is particularly suitable for long-distance power transmission.
What are the advantages of aluminum stranded overhead cables?
The main advantages of aluminum stranded overhead cables are their lighter weight and lower cost. Although aluminum is not as conductive as copper, it is sufficient to meet most power transmission needs. In addition, the flexibility of aluminum stranded wire makes it easier to install, especially in environments where long-distance installation is required.
What is the rated voltage of aluminum stranded overhead cables?
The rated voltage of aluminum stranded overhead cables is usually 0.6/1kV, which is suitable for low and medium voltage power systems. In some high-voltage applications, models with a rated voltage of 10kV can also be selected to select the appropriate cable specifications according to power transmission requirements.
How to ensure the installation safety of aluminum stranded overhead cables?
When installing aluminum stranded overhead cables, it is necessary to ensure that the bending radius of the cable meets the standard requirements to avoid excessive bending that causes cable damage. And use appropriate tools and methods, such as professional cable clamps and fixtures, to ensure the stability and safety of the cable during operation.
What is the temperature resistance of aluminum stranded overhead cables?
The temperature resistance of aluminum stranded overhead cables usually depends on the insulation material. Aluminum stranded cables insulated with polyvinyl chloride (PVC) usually have a temperature resistance of 70°C; while aluminum stranded cables insulated with cross-linked polyethylene (XLPE) can reach a temperature resistance of 90°C, which is suitable for a wider range of working environments.
What is the corrosion resistance of aluminum stranded overhead cables?
Aluminum stranded overhead cables have excellent corrosion resistance, especially in environments with moisture, salt spray or heavy pollution, and can maintain good electrical performance. Aluminum conductors themselves have natural corrosion resistance, and external insulation materials such as cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC) further enhance their durability in harsh environments.
More Frequently Asked Questions.
