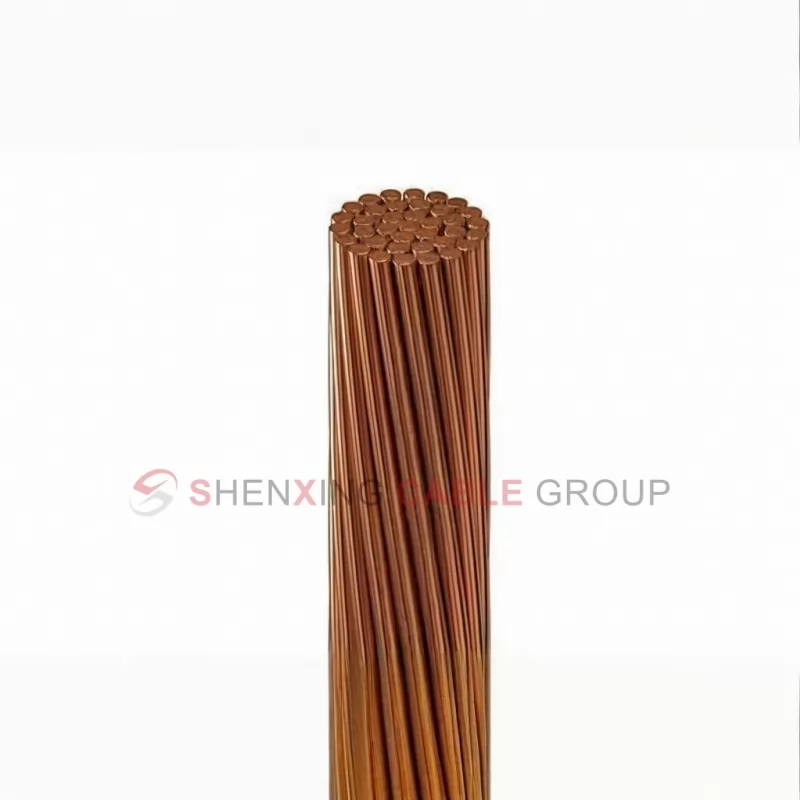

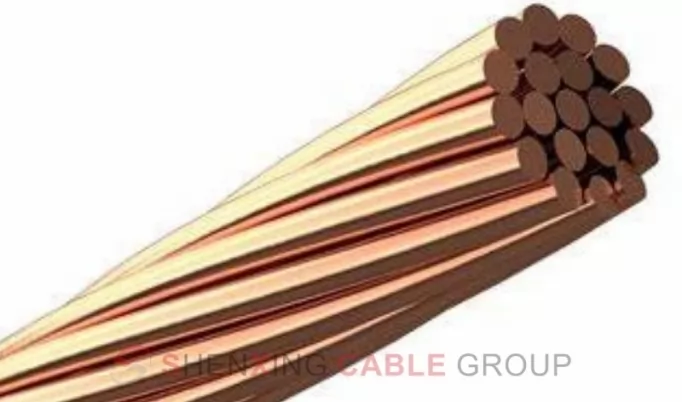

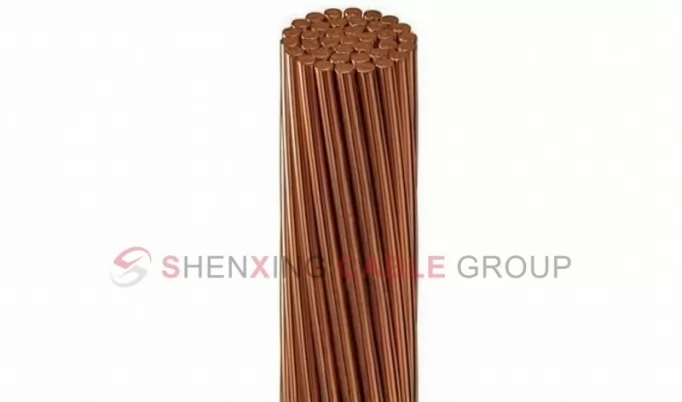

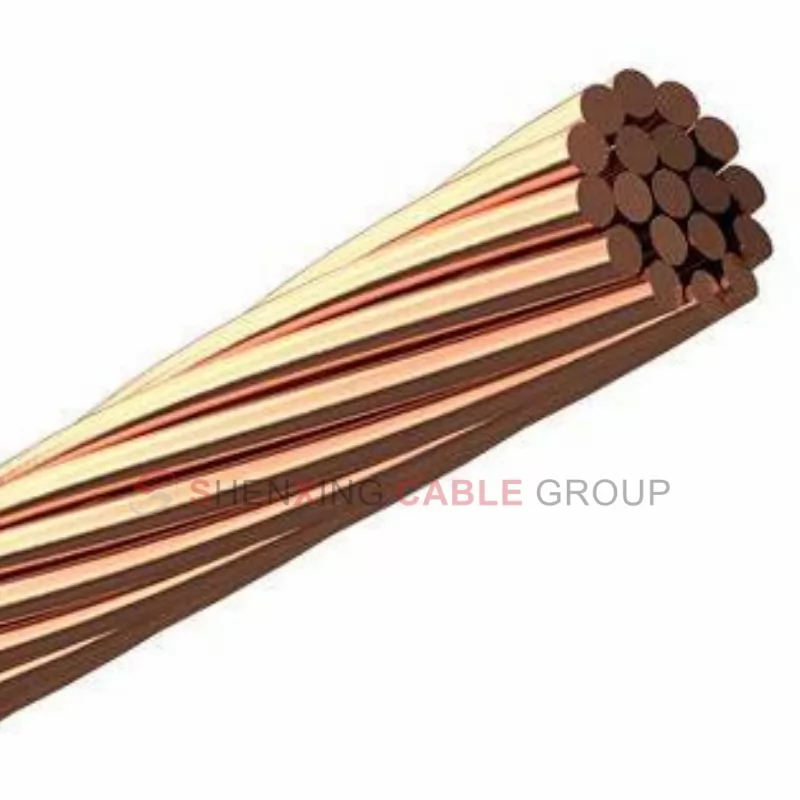

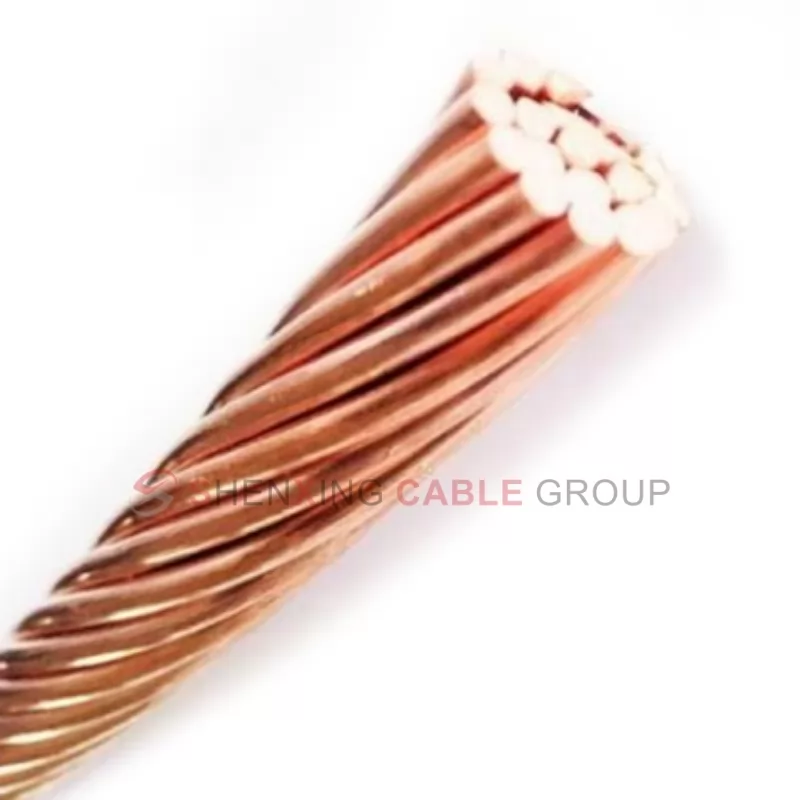

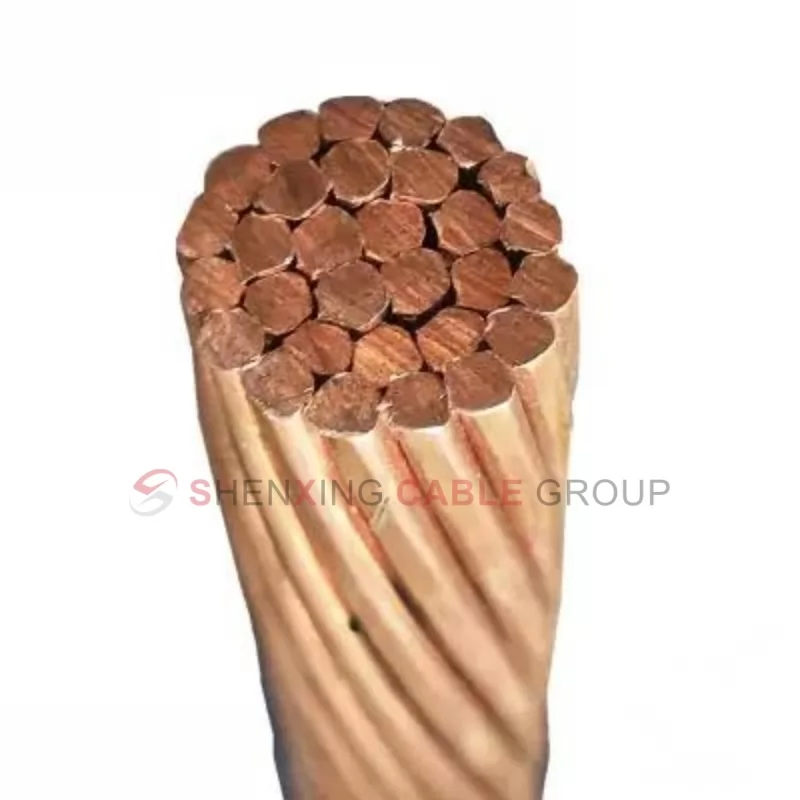

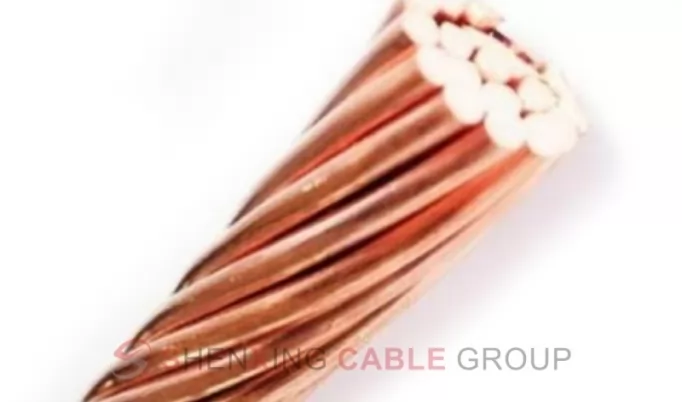

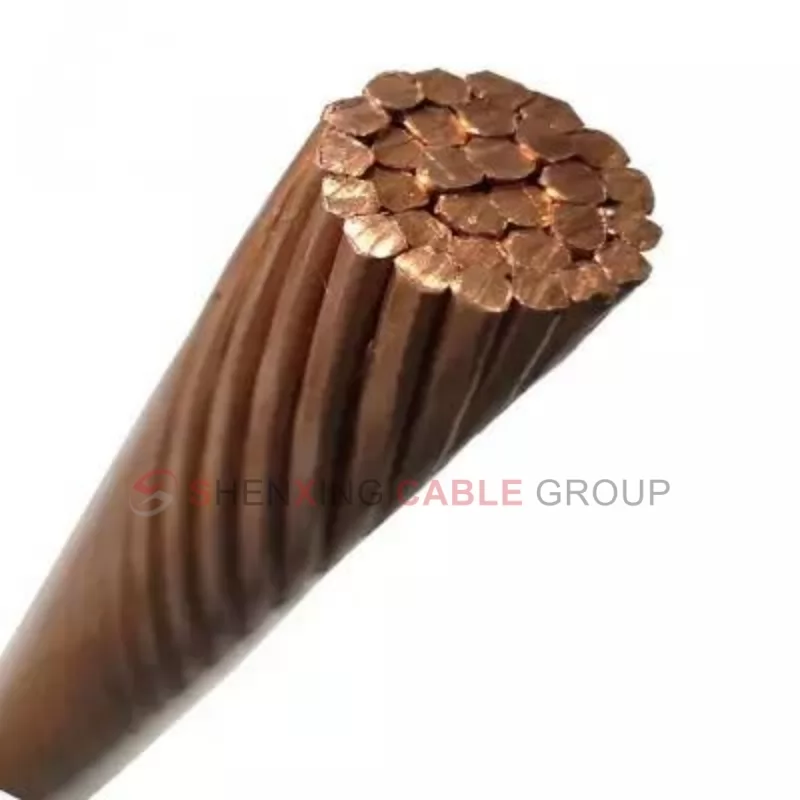

Bare conductor cable-pure copper stranded wire
Bare copper stranded wire is a conductor made of multiple strands of high-purity copper wires, which is widely used in power transmission, electronic equipment connection, and building wiring. Its excellent conductivity and mechanical strength make it perform well in various application scenarios. Bare copper stranded wire uses high-purity copper material, and forms a conductor with good flexibility by twisting multiple strands of copper wires together. This design ensures excellent conductivity and facilitates installation and wiring in complex environments.
Share:
Comply with international standards:
ASTM B33:Specifies requirements for tinned and bare copper conductors.
IEC 60228:Defines the classification and performance requirements for power cable conductors.
UL 62:Safety specification for copper conductors.
Core application scenarios:
Power transmission: used for the erection of high-voltage and low-voltage power lines to ensure a stable power supply.
Electronic equipment connection: used for signal transmission and power connection inside electronic equipment to ensure the reliability of data transmission.
Building wiring: used for electrical wiring inside buildings to meet lighting and power needs.
Automobile and transportation: used in automobile and railway systems to connect electrical systems to ensure safe operation.
Advantages:
Excellent conductivity: High-purity copper ensures low resistance of the wire and reduces energy loss.
Good flexibility: The twisted structure makes the wire flexible and easy to install and wire.
Strong corrosion resistance: Copper has good corrosion resistance and is suitable for a variety of environmental conditions.
High mechanical strength: The twisted design enhances the tensile strength of the wire and adapts to complex installation environments.
Technical Data
| Nominal Cross Section | Structural Root Number/Diameter | Cable Outer Diameter | DC Resistance | Breaking Force | Weight |
| (mm²) | (mm) | (mm) | ( ≤Ω/km) | (N) | (kg/km) |
| 16 | 7/1.70 | 5.1 | 1.802 | 2340 | 43.5 |
| 25 | 7/2.15 | 6.5 | 1.127 | 4355 | 69.6 |
| 35 | 7/2.50 | 7.5 | 0.8332 | 5760 | 94.1 |
| 50 | 7/3.00 | 9 | 0.5786 | 7930 | 135.5 |
| 70 | 7/3.60 | 10.8 | 0.4018 | 10950 | 195.1 |
| 95 | 7/4.16 | 12.5 | 0.3009 | 14450 | 260.5 |
| 120 | 19/2.85 | 14.3 | 0.2373 | 19420 | 333.5 |
| 150 | 19/3.15 | 15.8 | 0.1943 | 23310 | 407.4 |
| 185 | 19/3.50 | 17.5 | 0.1574 | 28440 | 503 |
| 210 | 19/3.75 | 18.8 | 0.1371 | 32260 | 577.4 |
| 240 | 19/4.00 | 20 | 0.1205 | 36260 | 656.9 |
| 300 | 37/3.20 | 22.4 | 0.09689 | 46850 | 820.4 |
| 400 | 37/3.70 | 25.9 | 0.07247 | 61150 | 1097 |
| 500 | 37/4.16 | 29.1 | 0.05733 | 76370 | 1387 |
| 630 | 61/3.63 | 32.7 | 0.04577 | 91940 | 1744 |
| 800 | 61/4.10 | 36.9 | 0.03588 | 115900 | 2225 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure
Bare conductor cable-TJ
Features
Features
Product Features
Multi-strand twisted design: Made of multiple strands of copper wire, it provides good flexibility and tensile strength.
High-purity copper material: High-purity copper is used to ensure excellent conductivity and reliability.
High temperature resistance: Suitable for applications in high temperature environments, ensuring long-term stable performance.
Environmentally friendly and pollution-free: Copper material can be recycled, is environmentally friendly, and meets modern environmental protection requirements.
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the application scenarios for aluminum stranded overhead cables?
Aluminum stranded overhead cables are widely used in urban and rural power transmission and distribution networks, especially for low and medium voltage overhead power lines. It is commonly used in distribution systems, transmission lines, substations, and some industrial power facilities, and is particularly suitable for long-distance power transmission.
What are the advantages of aluminum stranded overhead cables?
The main advantages of aluminum stranded overhead cables are their lighter weight and lower cost. Although aluminum is not as conductive as copper, it is sufficient to meet most power transmission needs. In addition, the flexibility of aluminum stranded wire makes it easier to install, especially in environments where long-distance installation is required.
What is the rated voltage of aluminum stranded overhead cables?
The rated voltage of aluminum stranded overhead cables is usually 0.6/1kV, which is suitable for low and medium voltage power systems. In some high-voltage applications, models with a rated voltage of 10kV can also be selected to select the appropriate cable specifications according to power transmission requirements.
How to ensure the installation safety of aluminum stranded overhead cables?
When installing aluminum stranded overhead cables, it is necessary to ensure that the bending radius of the cable meets the standard requirements to avoid excessive bending that causes cable damage. And use appropriate tools and methods, such as professional cable clamps and fixtures, to ensure the stability and safety of the cable during operation.
What is the temperature resistance of aluminum stranded overhead cables?
The temperature resistance of aluminum stranded overhead cables usually depends on the insulation material. Aluminum stranded cables insulated with polyvinyl chloride (PVC) usually have a temperature resistance of 70°C; while aluminum stranded cables insulated with cross-linked polyethylene (XLPE) can reach a temperature resistance of 90°C, which is suitable for a wider range of working environments.
What is the corrosion resistance of aluminum stranded overhead cables?
Aluminum stranded overhead cables have excellent corrosion resistance, especially in environments with moisture, salt spray or heavy pollution, and can maintain good electrical performance. Aluminum conductors themselves have natural corrosion resistance, and external insulation materials such as cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC) further enhance their durability in harsh environments.
