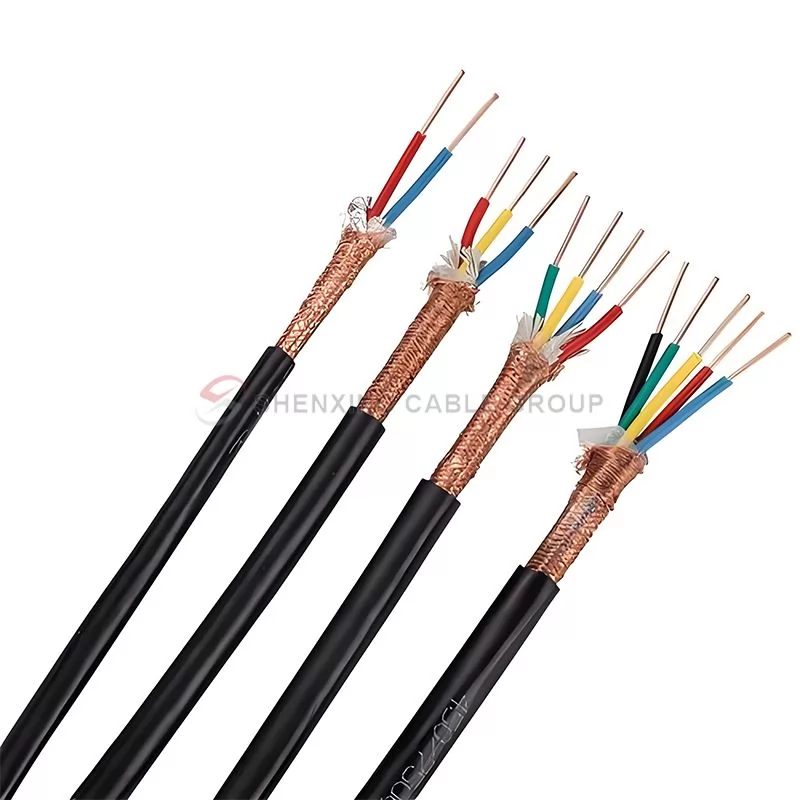

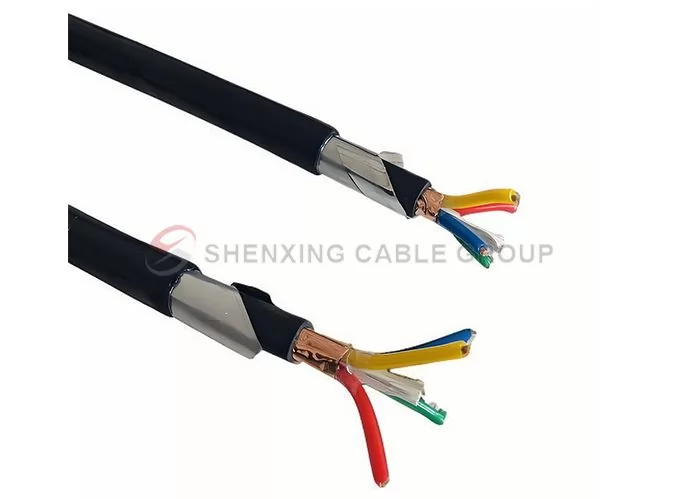

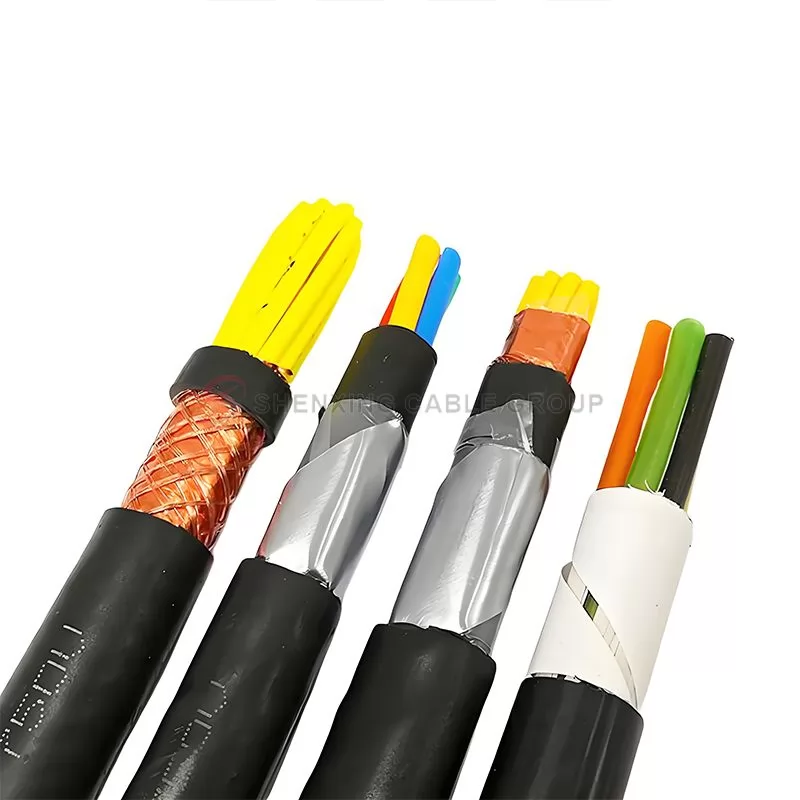

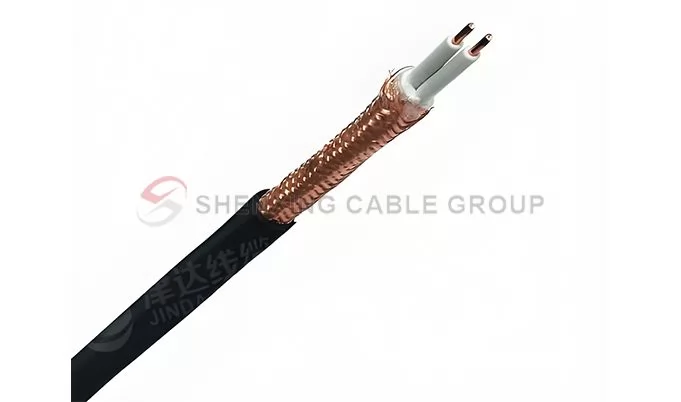

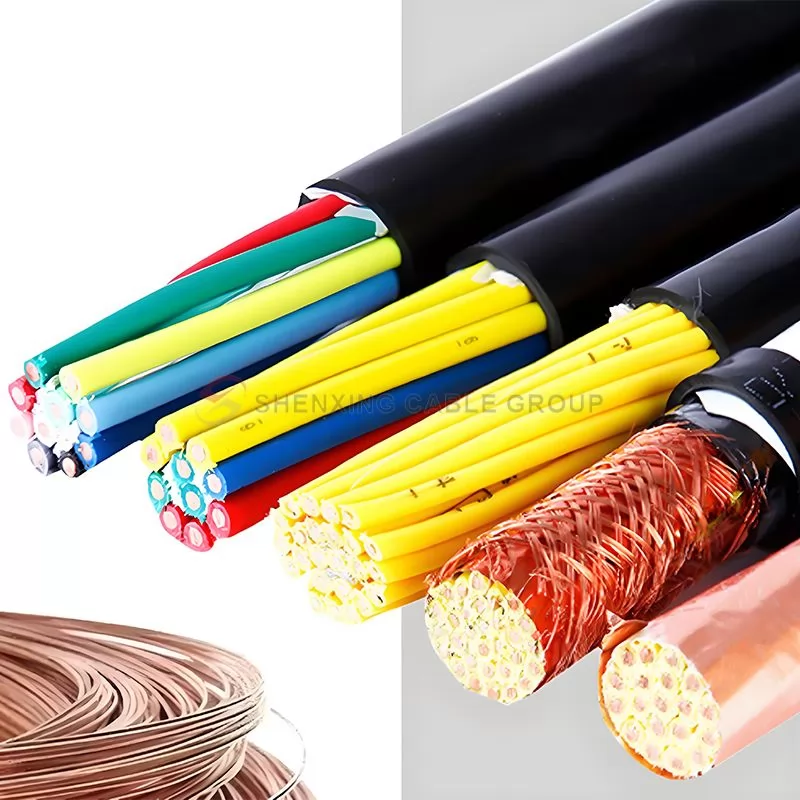

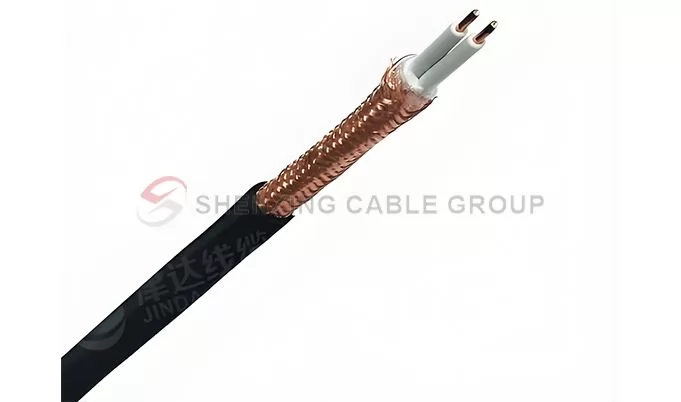

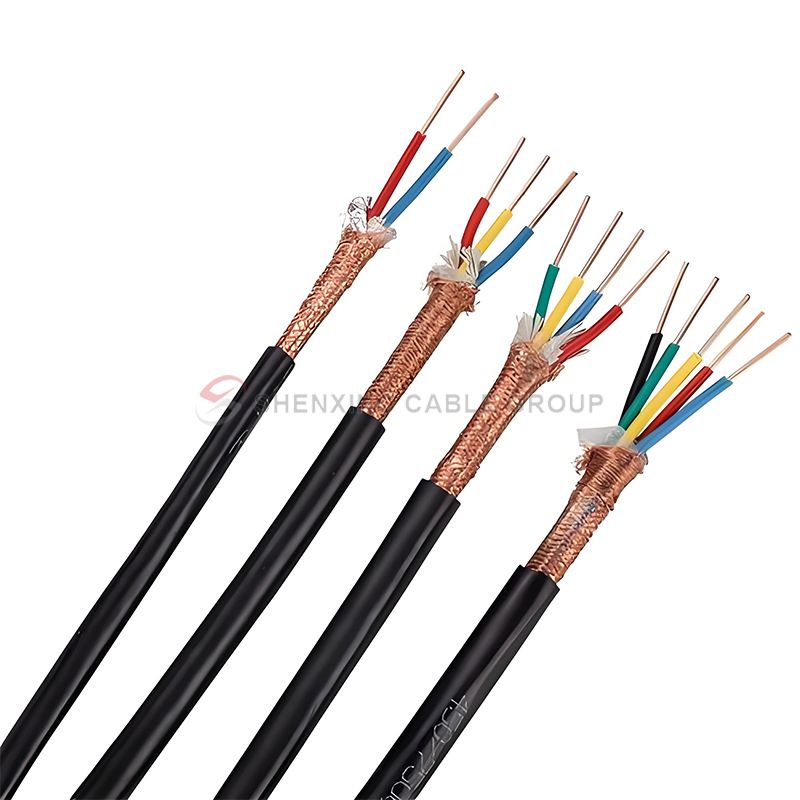

Copper Conductor PVC Insulated and Sheathed Control Cable with Steel Tape Shield

Item Name:

China Cable Manufacturer KVV, KVVP, KVV22, KVVP22, KVVR, KVVRP Copper Braided Control Cables

Widely Use:

Industrial automation cables: connect various automation equipment (such as PLC, inverter, sensor).

Mechanical equipment cables: used for CNC machine tools and industrial robots.

Building electrical cables: used for lighting control and fire alarm systems.

Power industry cables: transmit control signals in power generation, substation and distribution systems.

Transportation cables: used in rail transportation and highway monitoring systems.

Marine engineering cables: used in ship electrical systems and offshore platform control.

New energy cables: connect equipment in wind and solar power generation systems.

Advantage:

Compared with ordinary PVC sheathed cables on the market, Shenxing's KVVRP cables use a double-layer PVC protection design, which allows the cables to have a longer service life in outdoor or harsh industrial environments and reduce operating costs caused by frequent replacement.

The shielding layer of peer products uses a simple aluminum foil shield, while our KVVRP cables use a high-density braided shielding layer to more effectively block electromagnetic interference.

KVVRP cables are specially designed with a high-flexibility structure, which is easy to flexibly wire in a small and complex equipment environment, reduce bending loss, avoid breakage, and extend the life of the cable.

Unlike many similar cables that are only suitable for environments above 0℃, Shenxing's KVVRP cables can operate stably in a temperature range of **-20℃ to +70℃**, adapting to more stringent climatic conditions.

Technical Data

Cable Model	Structural Features			Conductor nominal cross-sectional area （mm²）
	Shielding Type	Armor Type	Flexible cable	0.5	0.75	1	1.5	2.5	4	6	10
	Shielding Type	Armor Type	Flexible cable	Number of Cores
KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP	No or copper wire	None	No	—	2-61				2-19		2-10
KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4	Metal Strip	Steel belt	No	—	4-61				4-19		4-10
KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23	None or copper tape	Steel belt	No	—	7-61		4-61		4-19		4-10
KVV32、KYJV32、KYJY33	None	Steel Wire	No	—	19-61		7-61		4-19		4-10
KVVR	None	None	Yes	2-16					—	—	—
KVVRP	Copper wire	None	Yes	2-61			2-48		—	—	—

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

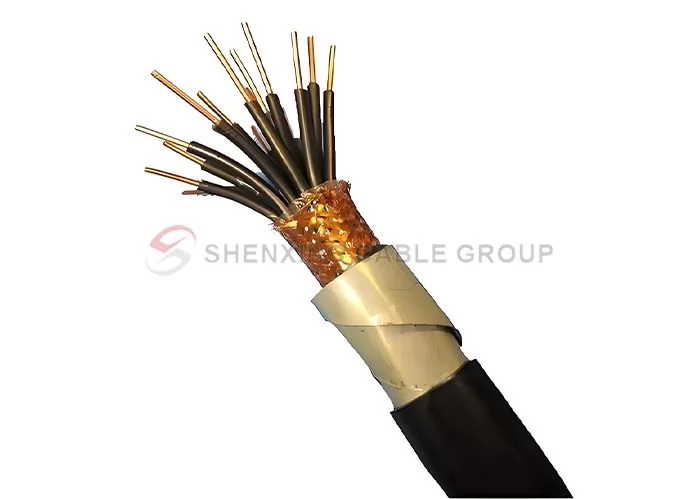

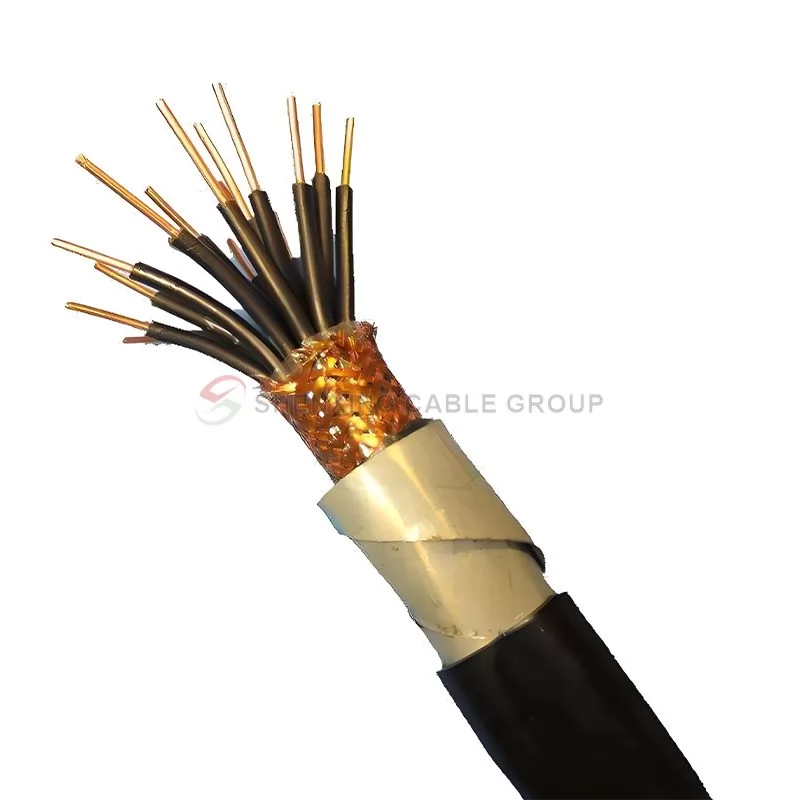

Control Cable-KVVP2

Features

Strong anti-interference performance: effectively resist electromagnetic interference and ensure signal stability.

High flexibility: suitable for flexible installation in a small space and adapt to frequent movement.

Good temperature resistance: can work stably in high and low temperature environments, with a wide range of applications.

Oil and chemical corrosion resistance: suitable for a variety of industrial environments and extend service life.

Low resistance: reduce energy loss and improve transmission efficiency.

Waterproof and moisture-proof: maintain reliability in humid environments and strong applicability.

Environmentally friendly materials: meet environmental standards and reduce the burden on the environment.

Usage Characteristics

The maximum rated operating temperature of the conductor is 90℃

The maximum short-circuit temperature of the conductor shall not exceed 250℃

The maximum time shall not exceed 5 seconds

The installation and laying temperature of the cable shall not be lower than 0℃

The laying temperature in the air shall be 40℃

The laying temperature in the soil shall be 25℃.

Minimum bending radius (D is the outer diameter of the cable)

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Automobile Production Line Automation Transformation

Shenxing Cable Helps Automakers Achieve a 20% Increase in Production Efficiency Read More

Cable Solutions for Offshore Wind Farms

A coastal area plans to build offshore wind farms on a large scale to meet the growing demand for clean energy. However, the harsh offshore environment, high salt spray, strong winds and other factors have placed extremely high demands on the performance of cables. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Power Cables Help Upgrade Smart Grids

In order to realize intelligent management of the power grid, improve power supply reliability and reduce energy loss, a coastal city decided to comprehensively upgrade the original power grid. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the application scenarios for KVVP2 cable?

KVVP2 cable is widely used in industrial automation, mechanical equipment, building electrical, transportation, ship engineering and new energy, and is particularly suitable for occasions that require high anti-interference and flexibility.

What is the operating temperature range of KVVP2 cable?

KVVP2 cable can work stably in the temperature range of -40°C to +90°C, and can adapt to a variety of extreme environments.

What is the anti-interference performance of this cable?

KVVP2 cable adopts metal shielding design to effectively resist electromagnetic and radio frequency interference, ensure stable signal transmission, and is suitable for environments with large electrical noise.

Is KVVP2 cable waterproof and moisture-proof?

Yes, KVVP2 cable has good waterproof and moisture-proof performance, suitable for humid environments, and ensures long-term reliable operation.

Can this cable withstand frequent movement and bending?

KVVP2 cable has high flexibility and uses soft insulation material, which is suitable for flexible installation in small spaces and can withstand frequent movement and bending.

Does KVVP2 cable meet environmental protection standards?

Yes, the materials used in KVVP2 cables comply with international environmental standards (such as ROHS), do not contain harmful substances, and meet the sustainable development requirements of modern enterprises.

How to choose the appropriate KVVP2 cable specifications?

When choosing the appropriate KVVP2 cable specifications, please choose according to the specific current requirements, working environment, temperature range and installation space. If you need help, please consult our professional team.
