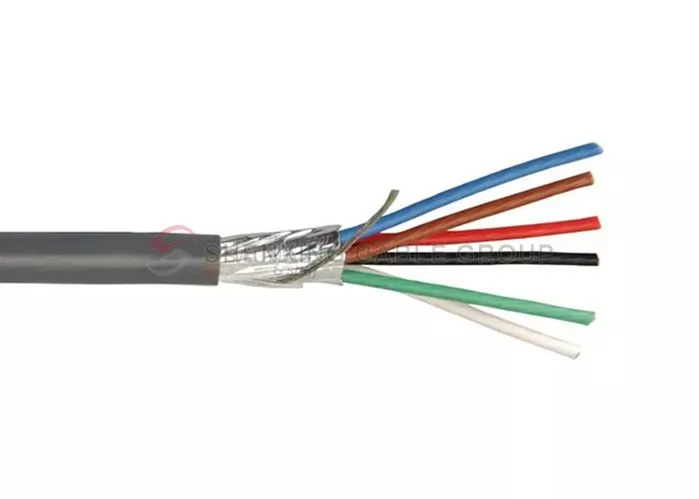

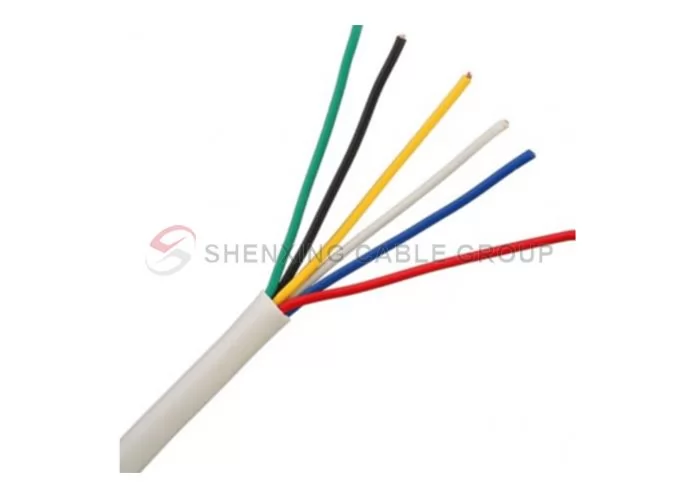

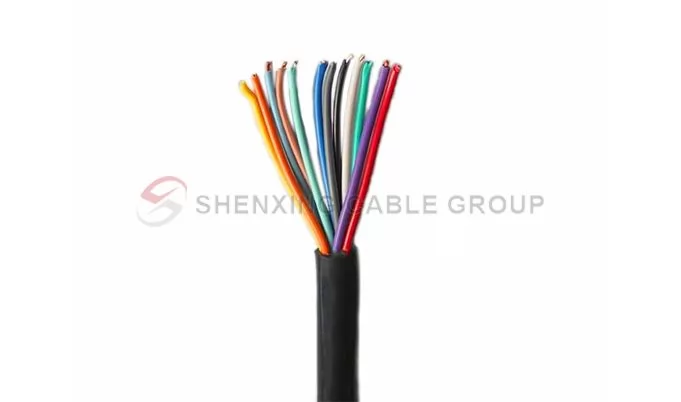

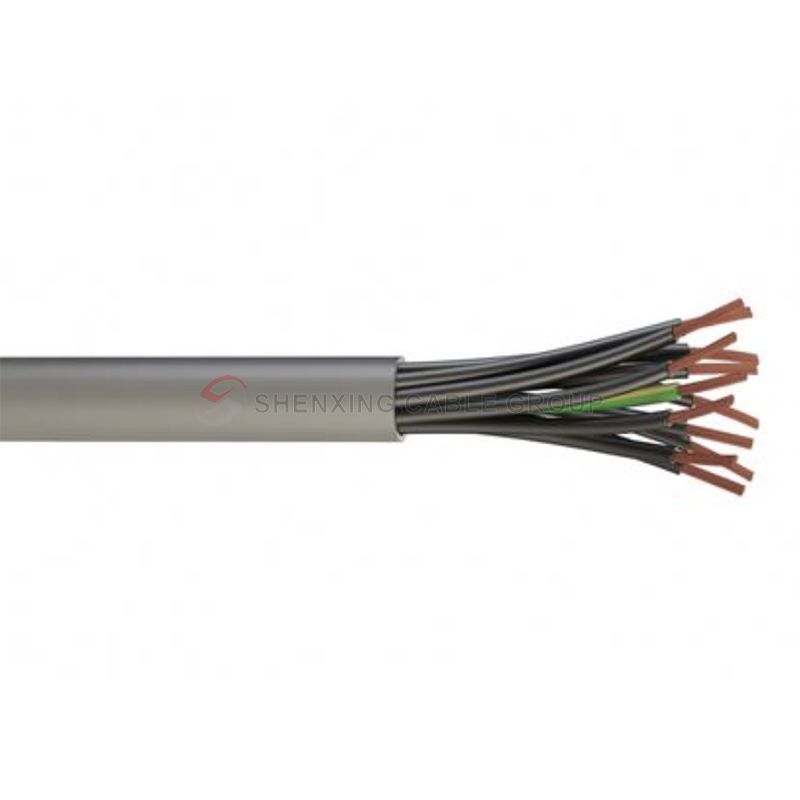

Control Cable-KVVR Cable
Shenxing Cable Group specializes in the production of KVVR control soft cables, which are widely used in automation equipment, instrumentation, monitoring systems, power protection and measurement, etc. Our KVVR cables are the best choice for robots, automated production lines, construction sites, power facilities and other industries due to their excellent flexibility, bending resistance, oil resistance and other characteristics. Whether it is wiring in a small space or connecting frequently moving equipment, Shenxing KVVR cables can provide stable and reliable power transmission to help improve your production efficiency.
Share:
Standard:
Widely Use:
It can be used to connect and transmit control cables for control signals, such as signal transmission between control devices such as PLC and DCS.
It can be used to connect various instruments and sensors, including temperature sensors, pressure sensors, flow sensors, etc., to transmit instrument signals or monitor the status of equipment.
It can be used to connect control cables of robots, automation equipment and control units to achieve control, monitoring and data transmission of robots and equipment.
KVVR cables can be used as connecting cables in communication networks such as industrial Ethernet, Modbus, Profibus, etc. to achieve data communication and information exchange between devices.
Power wiring: It can be used for low-voltage power wiring, such as electrical wiring inside buildings, electrical equipment connection, etc.
Advantage:
1. Multi-core design: the common ones are 2-core, 3-core, 4-core, etc.
2.The conductor insulation material of KVVR cables usually uses PVC.
3. Flexibility: KVVR cable has high flexibility and bending performance, is easy to install and route, and is suitable for occasions that require frequent movement or bending.
4. Anti-interference ability: Some KVVR cables may have a shielding layer to reduce the impact of external electromagnetic interference on the signal.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

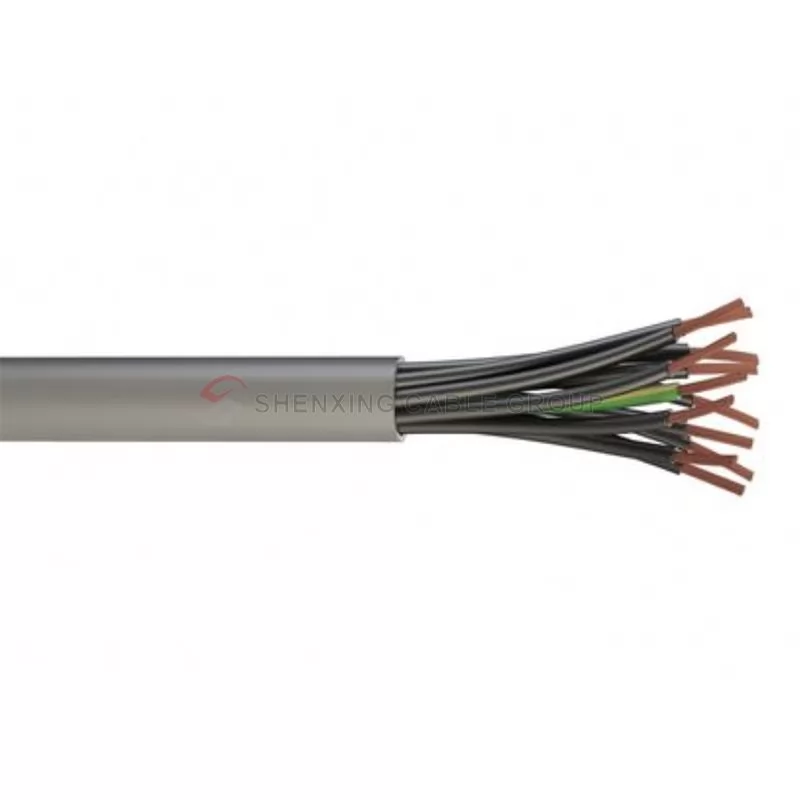

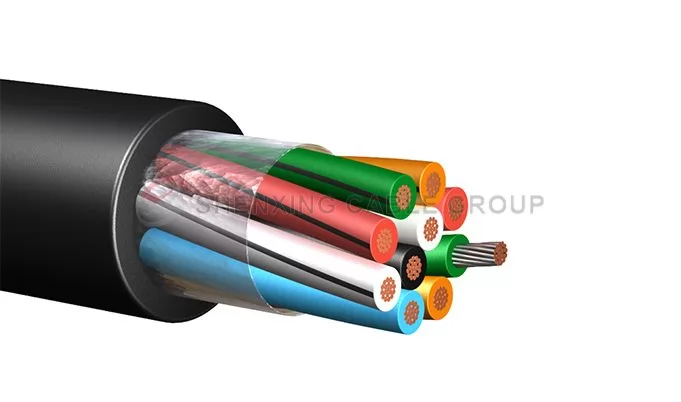

Cable Structure
Copper Conductor, PVC Insulated and Sheathed Flexible Control Cable
Features
Features
Copper core conductor: Excellent conductivity and low loss.
PVC insulation: Excellent insulation performance, high and low temperature resistance.
PVC sheath: Wear-resistant and corrosion-resistant, protecting the internal conductor.
Soft appearance: Easy to bend and lay.
Experimental Performance
Rated voltage Uo/U 450/750V
Number of cores: 2-61
Maximum operating temperature 70 or 95℃
Laying temperature not less than 0℃
Cable bending radius:
Unarmored and flexible cable: 15D±5%
Armored and copper tape shielded cable: 12D±5%
Production

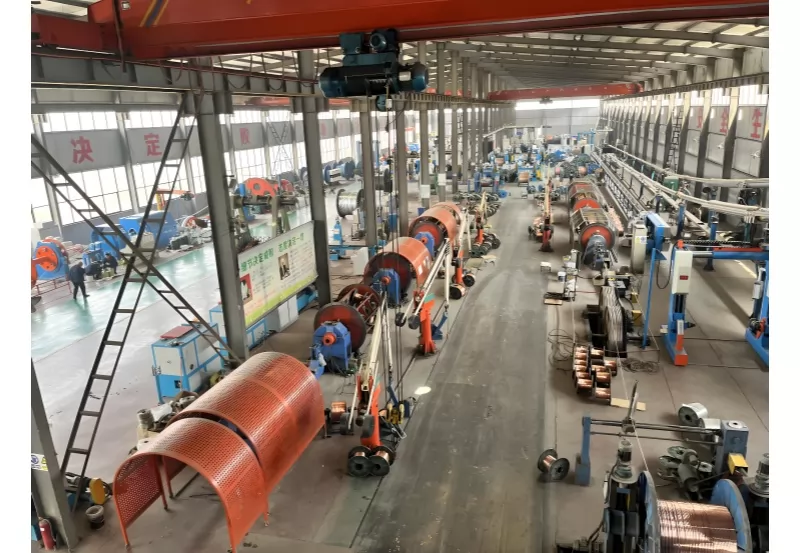

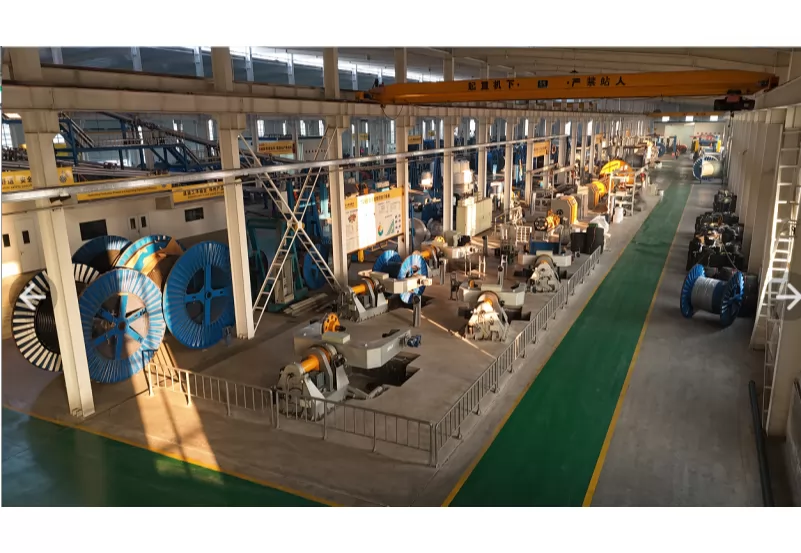

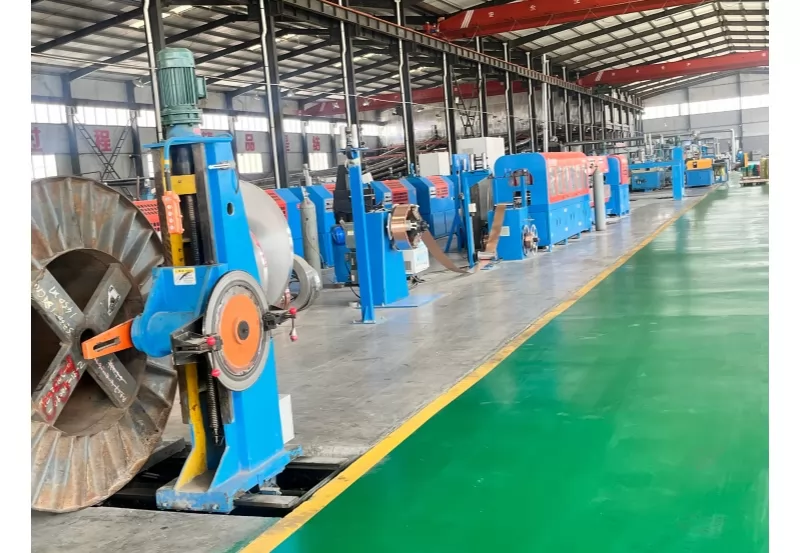

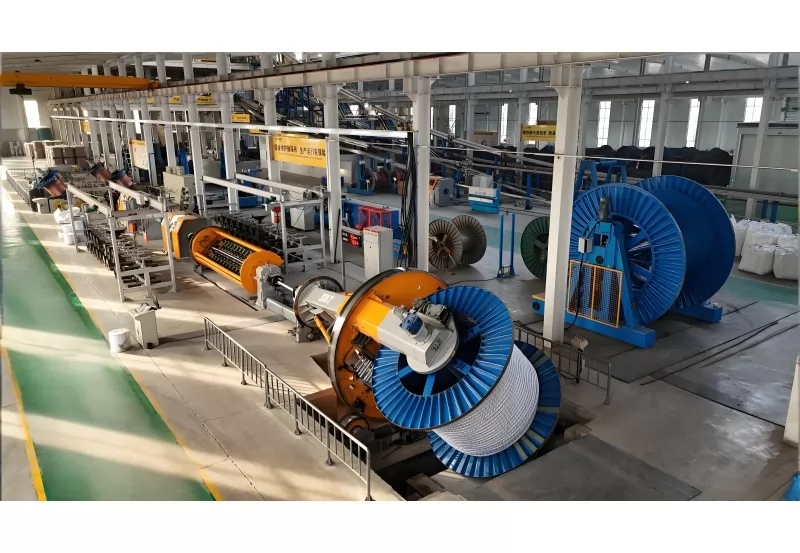

Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
KVVR Cable Selection Problem
How to choose the right conductor cross section? The choice of conductor cross section mainly depends on the size of the load current. The larger the current, the larger the conductor cross section should be to ensure the current carrying capacity of the cable.
How to choose the right number of cores? The choice of the number of cores depends on the complexity of the circuit. The more devices that need to be connected in the circuit, the more cores should be.
How to choose the right insulation level? The choice of insulation level depends on the working voltage. The higher the voltage, the higher the insulation level should be.
How to choose the right sheath material? The choice of sheath material depends on the laying environment. If the environment is harsh, such as high temperature, high humidity, corrosiveness, etc., corrosion-resistant and high-temperature resistant sheath materials should be selected.
KVVR Cable Installation Problem
What is the bending radius of KVVR cable? The bending radius of KVVR cable is generally not less than 6 times the outer diameter of the cable, and for cables with armored or copper tape shielding structures, it is not less than 12 times the outer diameter of the cable. Too small a bending radius will damage the cable and affect its service life.
What are the requirements for the laying environment of KVVR cable? The laying environment temperature of KVVR cable should not be lower than 0℃. If the ambient temperature is below 0℃, the cable should be preheated. Avoid sharp-angle bending, extrusion and other mechanical damage during laying.
How to deal with the joints of KVVR cables? The joints of KVVR cables should use special joints and be connected according to the prescribed process to ensure that the joints have good electrical performance and mechanical strength.
Problems with the Use of KVVR Cables
What is the rated temperature of KVVR cables? The rated temperature of KVVR cables is generally 70℃. Long-term operation exceeding the rated temperature will accelerate the aging of the cable and shorten its service life.
Can KVVR cables replace RVV cables? Although KVVR cables and RVV cables are both control cables, they cannot be replaced at will due to their different structures and performances. Generally speaking, RVV cables cannot replace KVVR cables, but KVVR cables can replace RVV cables under certain conditions.
What are the reasons for KVVR cable failure? There are many reasons for KVVR cable failure, the most common of which are: insulation aging, mechanical damage, overload, short circuit, poor joints, etc.
Other Issues
What is the flame retardant performance of KVVR cables? Some KVVR cables have flame retardant properties, but not all KVVR cables have flame retardant properties. If flame retardant properties are required, flame retardant KVVR cables should be selected.
How long is the life of KVVR cables? The life of KVVR cables is related to factors such as the use environment, load current, and laying method. Generally, the normal service life is 15-20 years.
More Frequently Asked Questions.
Related Products
Copper Cores, XLPE Insulated, PVC Sheathed and Copper Taped ScreenedControl Cable
KVVP2-22 cable is a copper core PVC insulated PVC sheathed, copper tape shielded, steel tape armored control cable, suitable for various control, monitoring circuits and protection lines with AC rated voltage of 450V/750V and below. Its structure includes PVC insulation, copper tape shielding and steel tape armoring, with good shielding performance, and is widely used in fixed occasions such as power plants and power stations that need to withstand large mechanical tension.
Read More
Copper Cores, XLPE Insulated, PVC Sheathed, Control Cable
Shenxing KYJV cross-linked power control cable is an advanced integrated intelligent high-voltage cable designed for real-time monitoring of cable operating parameters.
Read More
Copper Conductor, PVC Insulated and Sheathed, Steel-tape Armoured Control Cable
KVV22 steel belt armored control cable is a high-strength industrial control cable launched by Shenxing Cable Group. It is designed for complex and harsh environments and has excellent mechanical strength and anti-interference capabilities.
Read More

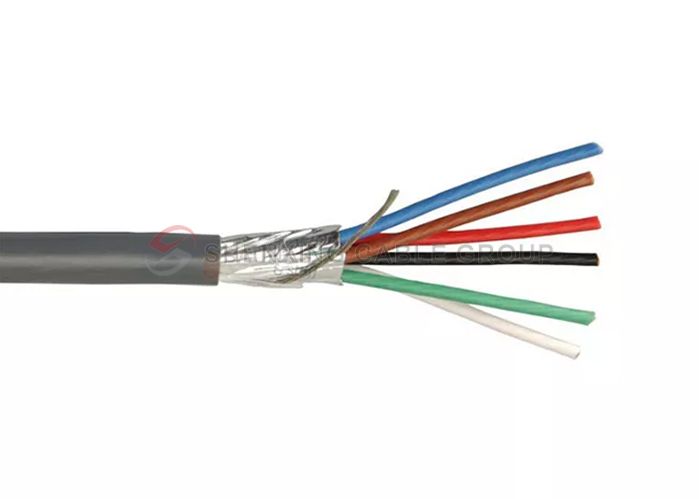

Copper Cores, PVC Insulated, PVC Sheathed and Braided ScreenFlexible Control Cable
