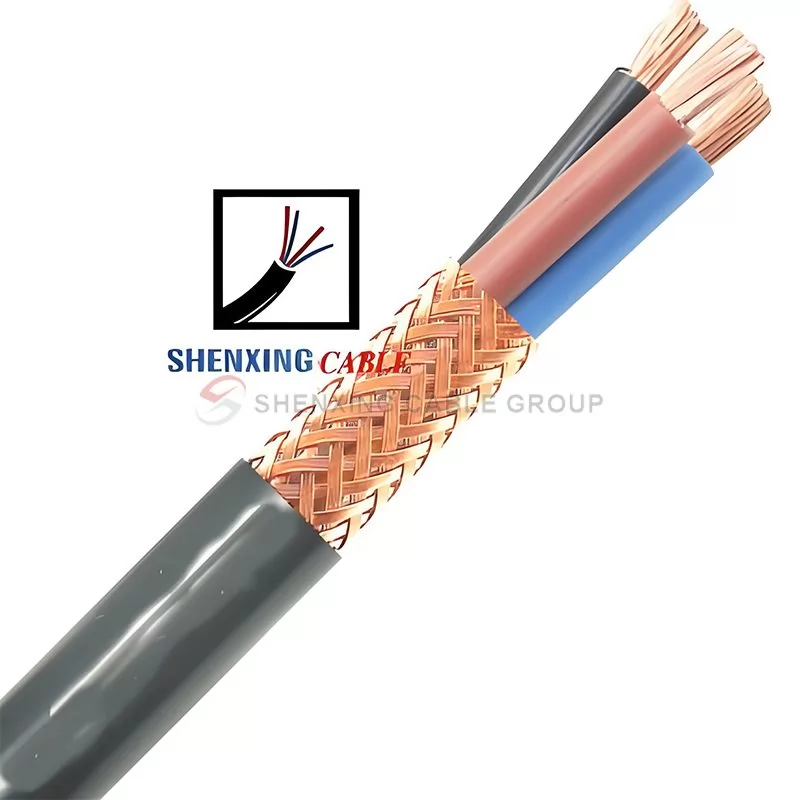

Control Cable-KVVRP
Flame-retardant PVC control cable, copper wire shielded flexible cable ZR-KVVRP is a copper core PVC insulated PVC sheathed braided shielded flexible control cable, laid indoors. It is suitable for occasions such as control and monitoring circuits and protection circuits for AC rated voltages of 450/750V and below, and places where mobile signal interference is required. The product complies with the GB/T9330-2008 standard.
Share:
Widely Use:
Industrial automation and robotics cables: dedicated to power and control transmission of high-frequency motion production lines and robotic equipment.
Elevator and lifting equipment cables: suitable for elevators, cranes and other equipment, wear-resistant, bending-resistant, and extended service life.
Rail transit cables: used for signal and power transmission of transportation systems such as trains and subways, and can withstand vibration and outdoor environments.
Petrochemical and mining cables: suitable for petroleum, chemical and mining equipment, with corrosion resistance and mechanical stress resistance.
Marine engineering cables: used in ships and port equipment, adapted to high salt and high humidity environments.
Aerospace cables: meet the high temperature and low pressure conditions of spacecraft and aircraft, and have strong adaptability.
Fire protection system cables: used for fire alarm and control equipment, with fireproof and high temperature resistance.
Advantage:
Compared with ordinary PVC sheathed cables on the market, Shenxing's KVVRP cables use a double-layer PVC protection design, which allows the cables to have a longer service life in outdoor or harsh industrial environments and reduce operating costs caused by frequent replacement.
The shielding layer of peer products uses a simple aluminum foil shield, while our KVVRP cables use a high-density braided shielding layer to more effectively block electromagnetic interference.
KVVRP cables are specially designed with a high-flexibility structure, which is easy to flexibly wire in a small and complex equipment environment, reduce bending loss, avoid breakage, and extend the life of the cable.
Unlike many similar cables that are only suitable for environments above 0℃, Shenxing's KVVRP cables can operate stably in a temperature range of **-20℃ to +70℃**, adapting to more stringent climatic conditions.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure
Control Cable-KVVRP
Features
Features
High-purity copper core
Adopt high-quality oxygen-free copper core, excellent conductivity and low resistance.
PVC double-layer protection
The cable adopts PVC insulation layer and sheath layer, with excellent high temperature resistance, waterproof and anti-aging properties.

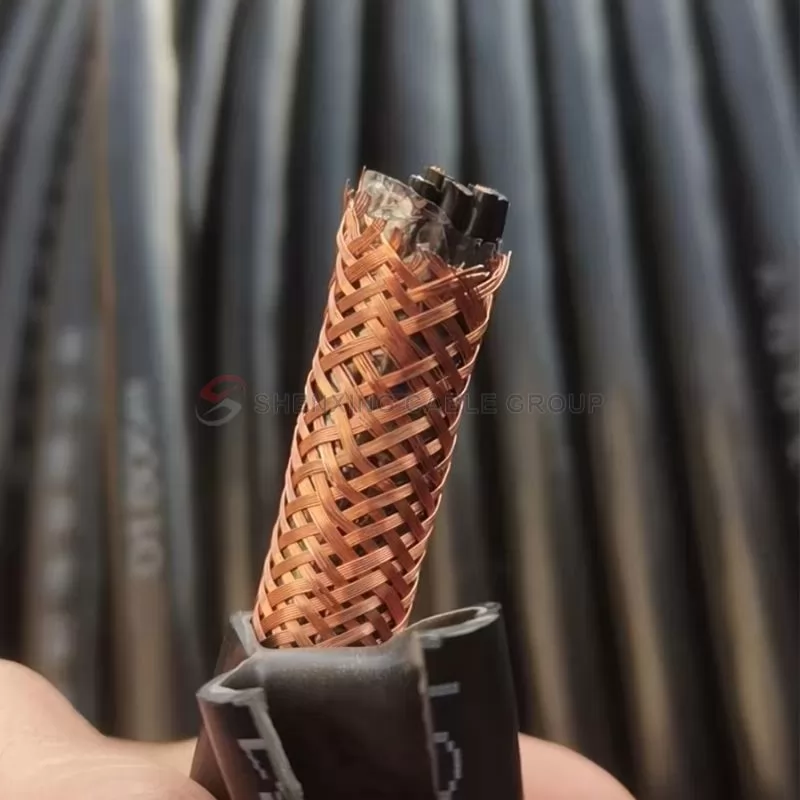

Braided shielding structure
The high-density braided shielding layer design can effectively shield electromagnetic interference and ensure stable signal transmission.
Flexible structure
The design is particularly flexible, suitable for occasions with frequent bending and flexible wiring, reducing the risk of cable wear and breakage.
Wide temperature range and durability
The product has a wide applicable temperature range and can operate stably between -20℃ and +70℃, suitable for long-term outdoor use.
Usage Characteristics
The maximum rated operating temperature of the conductor is 90℃
The maximum short-circuit temperature of the conductor shall not exceed 250℃
The maximum time shall not exceed 5 seconds
The installation and laying temperature of the cable shall not be lower than 0℃
The laying temperature in the air shall be 40℃
The laying temperature in the soil shall be 25℃.
Minimum bending radius (D is the outer diameter of the cable)
Single-core cable: 20(D+d) ±5%
Multi-core cable: 15(D+d) ±5%
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
Can KVVRP cable be used in high-frequency bending environments?
Yes. The flexible design of this cable is specifically designed for high-frequency movement scenarios, such as automation equipment and industrial robots. In these applications, the flexible structure of the cable reduces the risk of breakage and wear.
What are the benefits of braided shielding? Can it effectively prevent signal interference?
Yes. KVVRP cable adopts high-density braided shielding, which can effectively isolate external electromagnetic interference and ensure stable signal transmission. It is especially suitable for industrial automation and control systems with high requirements for signal accuracy and anti-interference.
What is the applicable temperature range of this cable?
The applicable temperature range of KVVRP cable is -20℃ to +70℃. This wide temperature adaptability enables it to operate stably in different environments such as outdoors, extreme weather or factories.
Does the cable require special installation conditions in the application?
No, the flexible design of KVVRP cable makes it very convenient to install and is suitable for small or complex wiring environments. In order to extend the service life, it is recommended to avoid sharp bends or direct exposure to extreme conditions during installation.
What are the main application industries of KVVRP cable?
This cable is widely used in industries such as industrial automation, robotic systems, elevators and lifting equipment, rail transportation, petrochemicals, marine engineering and fire protection systems, and is applicable to occasions with high requirements for signal stability and anti-interference.
What are the advantages of KVVRP cable compared with other control cables?
KVVRP cables have higher durability, signal anti-interference performance and flexibility, especially in complex industrial environments. Compared with traditional control cables, KVVRP cables are more suitable for scenes with frequent movement, large temperature changes or a lot of interference.
