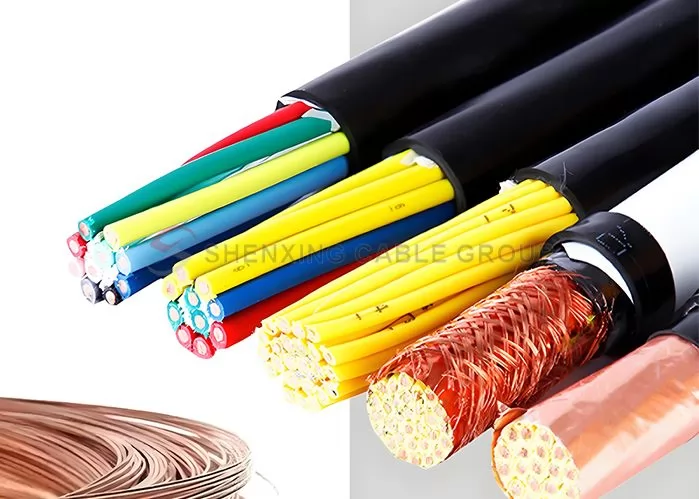

Control Cable-KVVP2-22

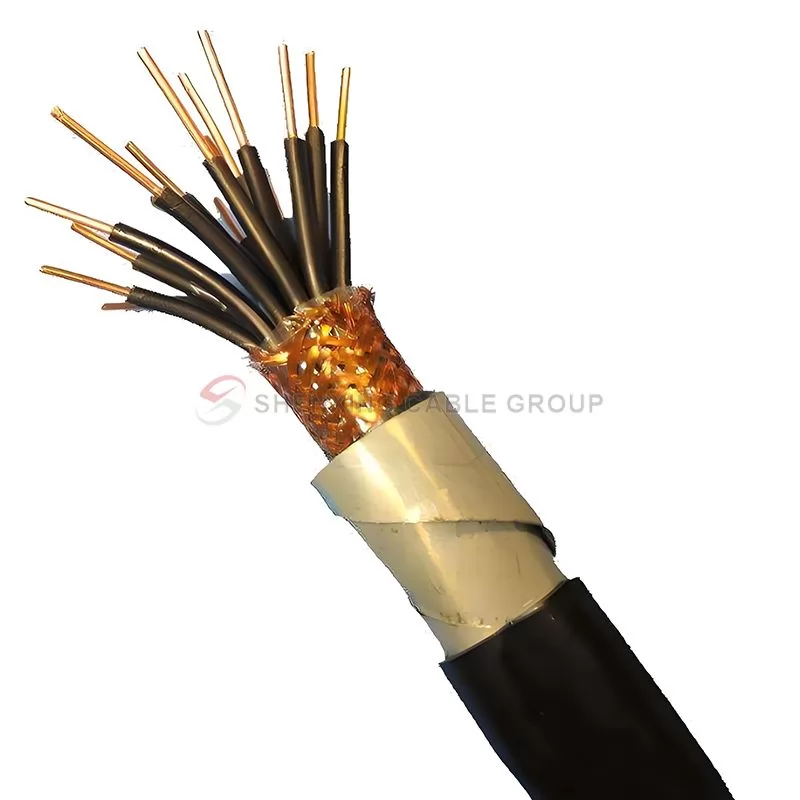

KVVP2-22 cable is a copper core PVC insulated PVC sheathed, copper tape shielded, steel tape armored control cable, suitable for various control, monitoring circuits and protection lines with AC rated voltage of 450V/750V and below. Its structure includes PVC insulation, copper tape shielding and steel tape armoring, with good shielding performance, and is widely used in fixed occasions such as power plants and power stations that need to withstand large mechanical tension.
Share:
Widely used:
Industrial Automation Cables: Suitable for connecting control panels and machinery in automation systems.
Signal Transmission Cables: Ideal for transmitting signals in various industrial environments, ensuring accurate and reliable communication.
Power Distribution Cables: Suitable for power distribution applications, effectively handling power and control signals.
Advantage:
High-quality insulation material
KVVP2-22 cable is equipped with cross-linked polyethylene (XLPE) insulation material, which ensures optimal performance and service life in a variety of industrial applications.
Flexible and durable design
KVVP2-22 cable is designed to be flexible and able to withstand dynamic movement and installation in compact spaces. Its rugged PVC jacket protects the inner conductor from environmental factors such as moisture and chemicals.
Versatile application
This control cable is widely used in industrial automation, mechanical control, and power distribution systems. KVVP2-22 cable is ideal for connecting sensors, actuators, and control panels, and is an important component of modern industrial processes.
Safety and compliance
KVVP2-22 control cable complies with international safety standards: GB/T, IEC, BS, UL.
Convenient installation
KVVP2-22 cable is designed for easy installation, and its flexible structure makes it easy to handle and route in complex layouts. This reduces installation time and labor costs, and improves overall project efficiency.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

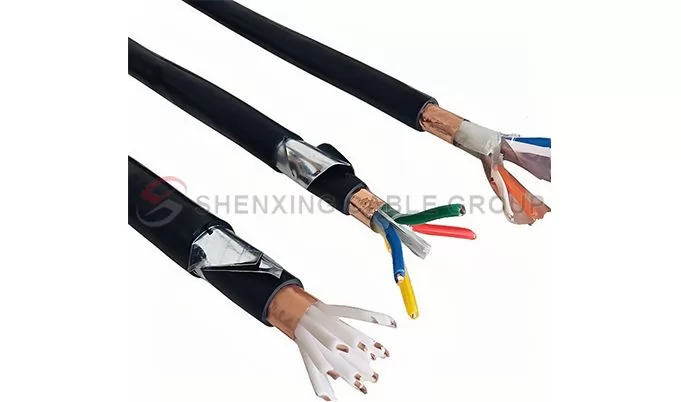

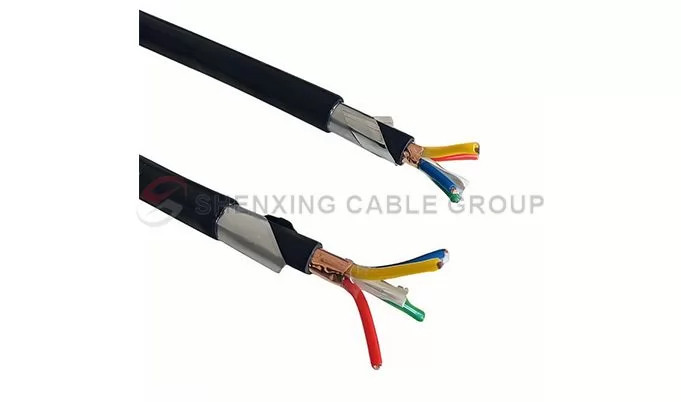

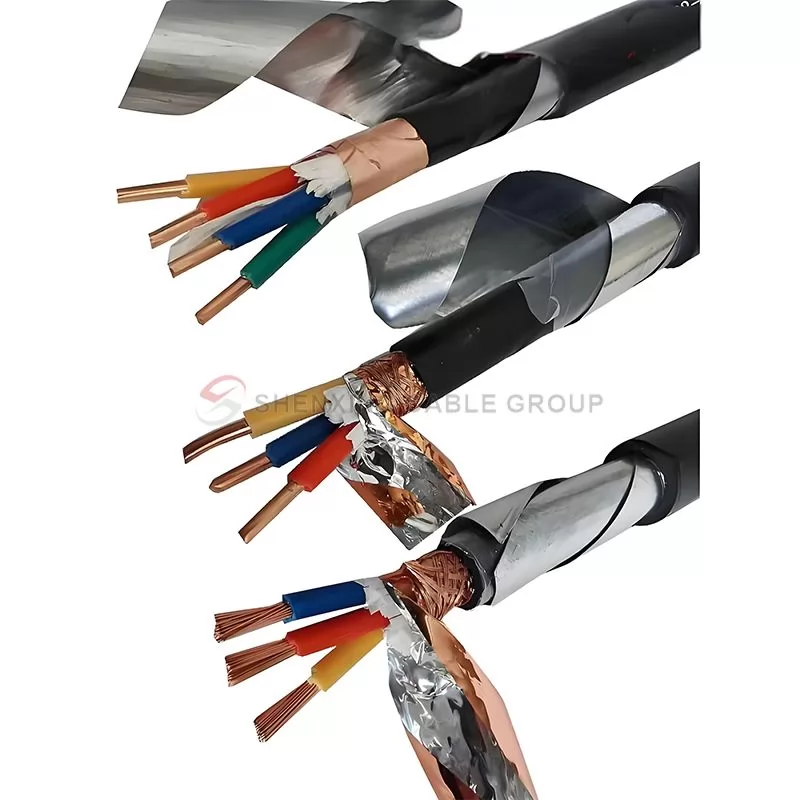

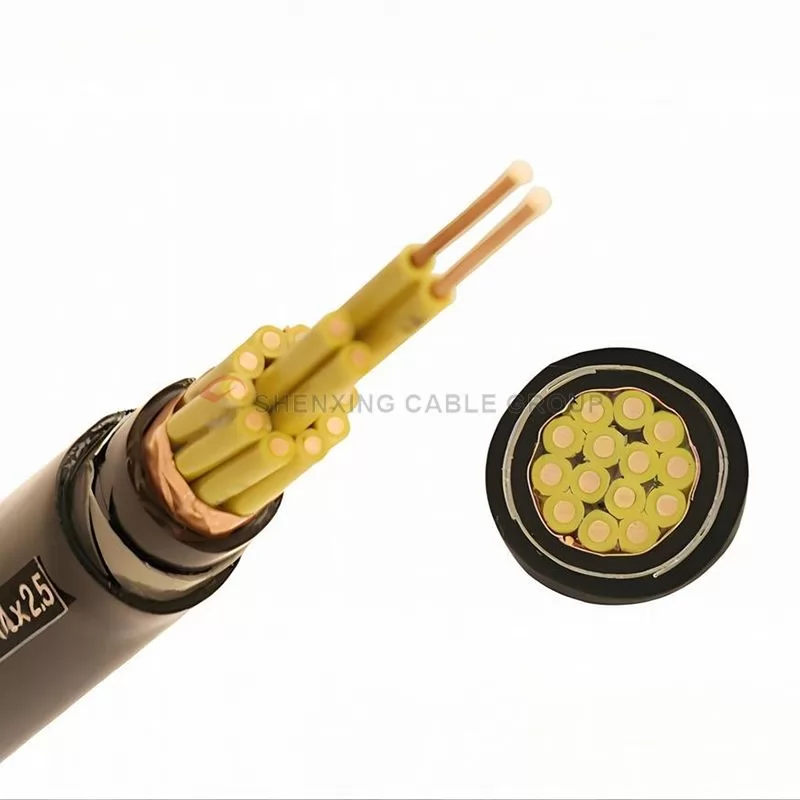

Cable Structure
Control Cable-KVVP2-22
Usage Characteristics
Usage Characteristics
Maximum rated operating temperature of conductor: 70°C or 90°C
Maximum short-circuit temperature of conductor: 160°C or 250°C, with a maximum duration of 5 seconds.
Installation and laying temperature: The minimum installation and laying temperature shall not be lower than 0°C.
Laying temperature: The laying temperature in air is 40°C, and the laying temperature in soil is 25°C.
Minimum bending radius:
Single-core cable: 20(D+d) ±5%
Multi-core cable: 15(D+d) ±5%
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What applications are KVVP2-22 control cables suitable for?
KVVP2-22 control cables are widely used in industrial automation, mechanical control, power distribution systems, signal transmission and other fields. It is very suitable for connecting sensors, actuators and control panels to ensure stable and reliable operation in various industrial environments.
What are the main features of KVVP2-22 cables?
KVVP2-22 cables have high-quality cross-linked polyethylene (XLPE) insulation, high flexibility design, low smoke and halogen-free properties, and chemically resistant polyvinyl chloride (PVC) outer sheath. These features allow it to operate safely in high temperature, humidity and other harsh environments.
What international standards does this cable comply with?
KVVP2-22 control cables comply with a number of international standards, such as GB/T 12706-2008, IEC 60502-1, IEC 60332-1, etc. These standards ensure the reliability of the cables in terms of electrical performance and safety, and are suitable for various industrial applications.
What is the voltage level of KVVP2-22 cables?
The KVVP2-22 control cable is rated at 0.6/1kV and is suitable for use in medium and low voltage power systems. It ensures that it can safely and effectively transmit power and control signals in most industrial environments.
What should I pay attention to when installing the KVVP2-22 cable?
When installing the KVVP2-22 cable, ensure that the bending radius of the cable meets the manufacturer's recommended standards and avoid excessive tension on the cable. At the same time, avoid exposing the cable to high temperatures or corrosive environments to extend the service life of the cable.
How to maintain the KVVP2-22 control cable to ensure its performance?
To ensure the best performance of the KVVP2-22 cable, regularly check the appearance of the cable to ensure that there is no damage or wear. In addition, it is recommended to conduct electrical performance tests regularly to detect potential problems early and reduce downtime and maintenance costs.
More Frequently Asked Questions.
