Multi-Core Armored Flexible Control Cable - High Performance Cable Solutions

We strictly follow the dual certification system:

Chinese standard: GB/T 9330-2020, GB/T 19666-2019 flame retardant standard

International standard:

✓ IEC 60502 (EU) ✓ UL 1277 (North America)

✓ BS 5308 (UK) ✓ AS/NZS 5000 (Australia and New Zealand)

Specially provide RoHS/REACH environmental certification version, in line with EU import requirements

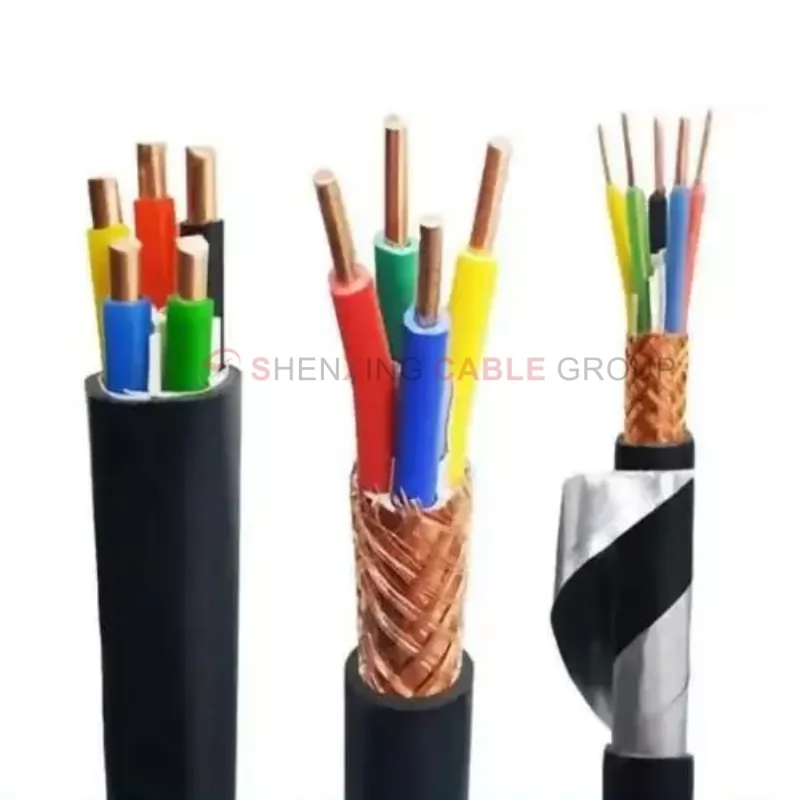

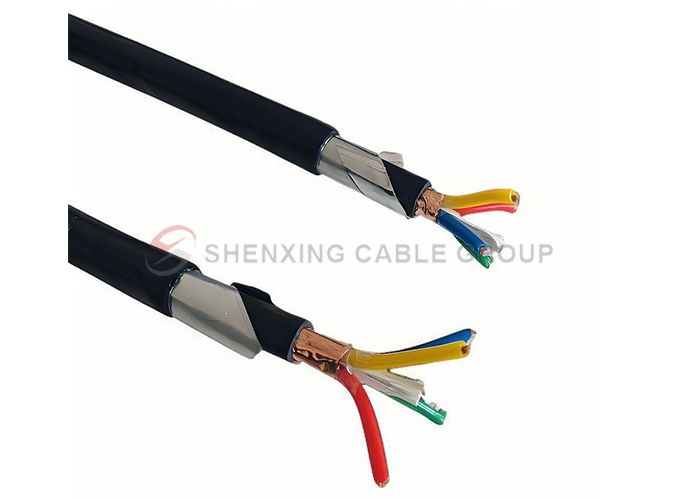

Multi-core armored control flexible cable

Application areas：

Industrial automation and control systems: used to connect various sensors, actuators and control equipment to ensure stable signal transmission.

Power stations and substations: used to monitor and control power equipment to ensure the safe operation of the power system.

Machinery manufacturing and processing equipment: used for internal control lines of mechanical equipment to improve equipment reliability.

Petrochemical industry: suitable for control systems with corrosive environments to ensure the stability of signal transmission.

Building automation systems: used for signal control and transmission in building automation systems to improve the level of building intelligence.

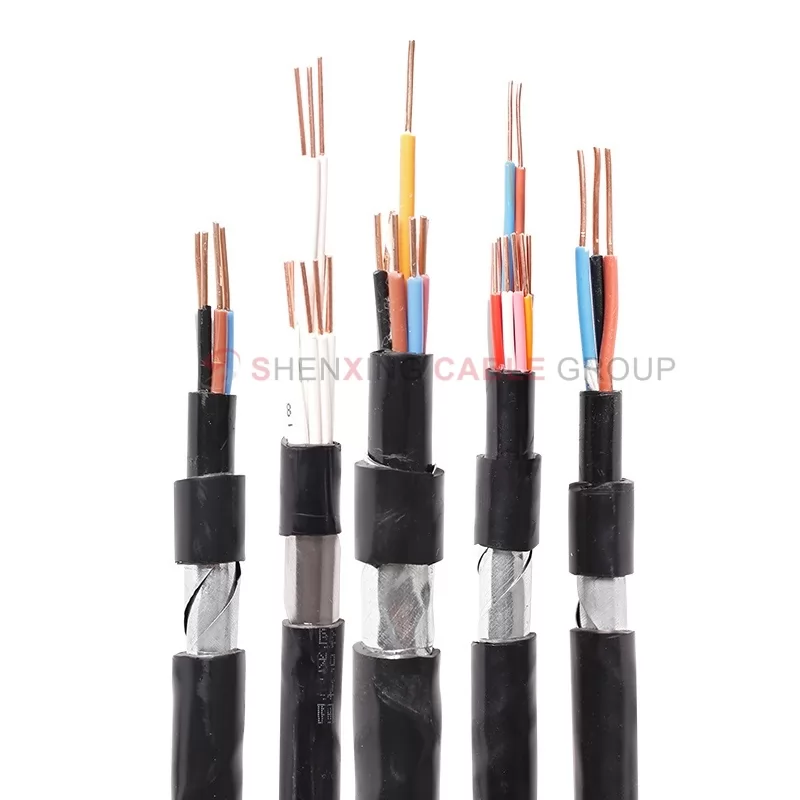

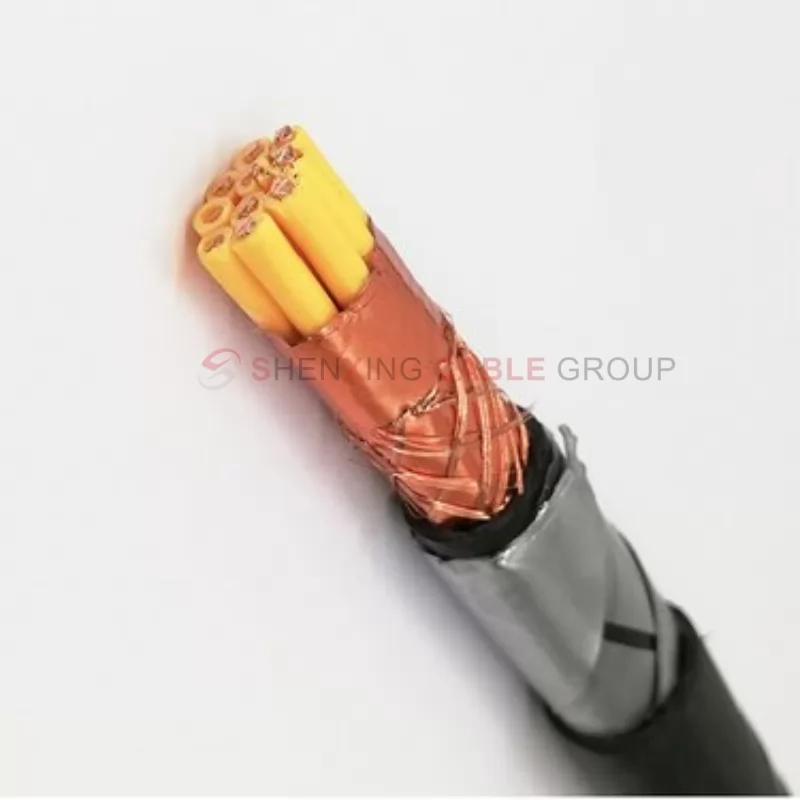

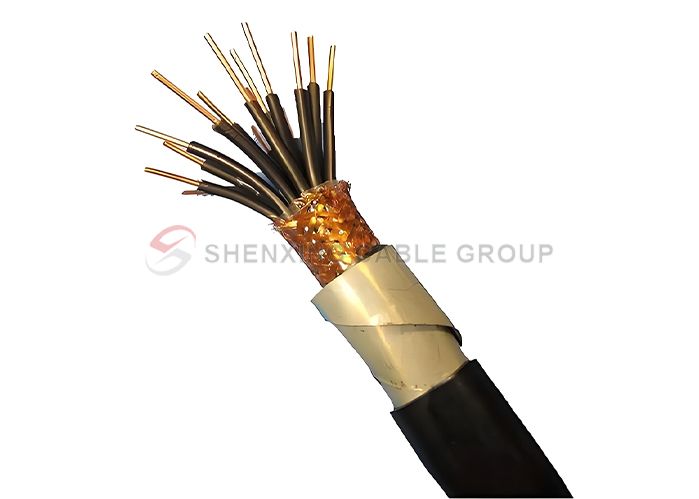

Multi-core armored control flexible cable

Product structure：

Conductor: Made of high-quality multi-strand copper wire, with strong conductivity, in line with IEC 60228 standard

Insulation layer: Use high-performance PVC, XLPE and other materials to ensure excellent electrical performance and heat resistance

Split screen layer (optional): Meet the requirements of anti-interference performance in some scenarios

Armor layer: Optional forms include:

Galvanized steel tape armor (STA)

Galvanized steel wire armor (SWA)

Aluminum tape armor

Stainless steel tape armor (suitable for corrosive environments)

Outer sheath: Use flame-retardant PVC or PE materials to provide additional environmental protection

Technical Data

Cable Model	Structural Features			Conductor nominal cross-sectional area （mm²）
	Shielding Type	Armor Type	Flexible cable	0.5	0.75	1	1.5	2.5	4	6	10
	Shielding Type	Armor Type	Flexible cable	Number of Cores
KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP	No or copper wire	None	No	—	2-61				2-19		2-10
KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4	Metal Strip	Steel belt	No	—	4-61				4-19		4-10
KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23	None or copper tape	Steel belt	No	—	7-61		4-61		4-19		4-10
KVV32、KYJV32、KYJY33	None	Steel Wire	No	—	19-61		7-61		4-19		4-10
KVVR	None	None	Yes	2-16					—	—	—
KVVRP	Copper wire	None	Yes	2-61			2-48		—	—	—

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

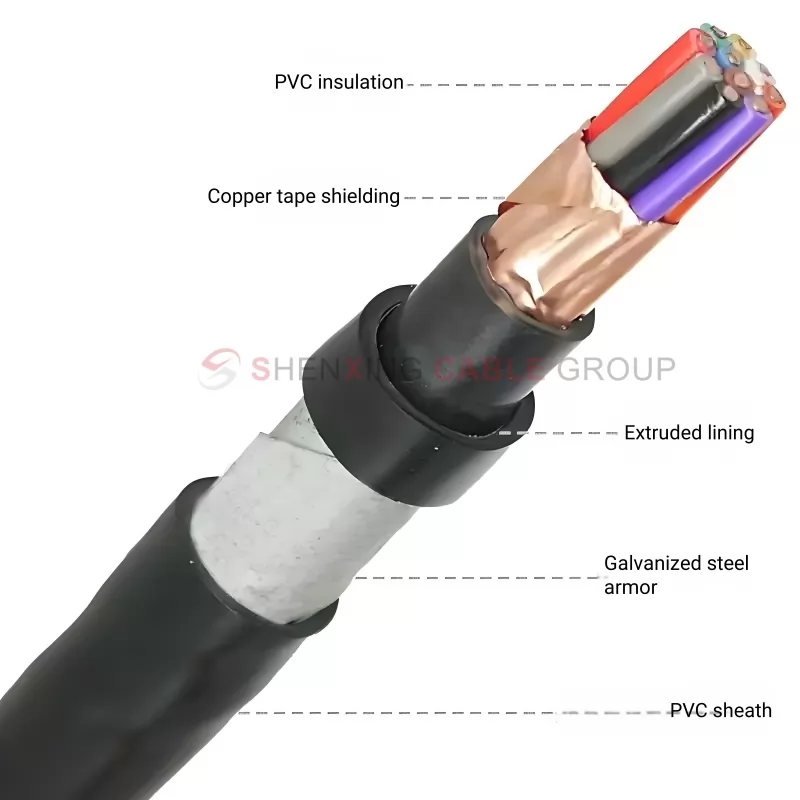

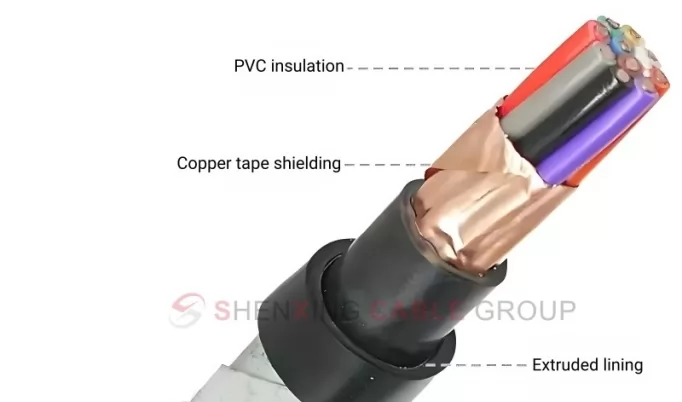

Cable Structure

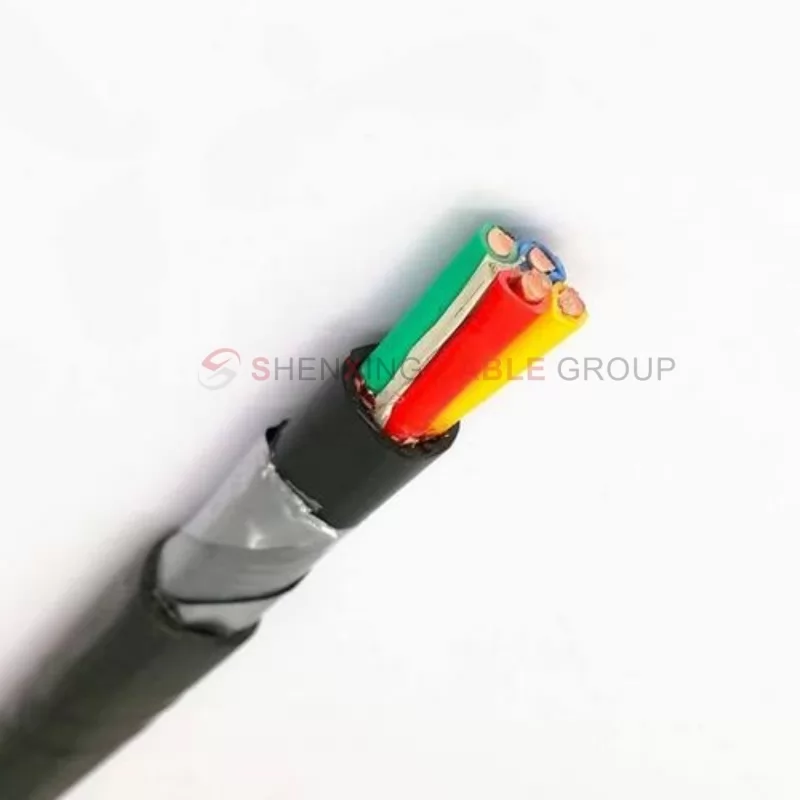

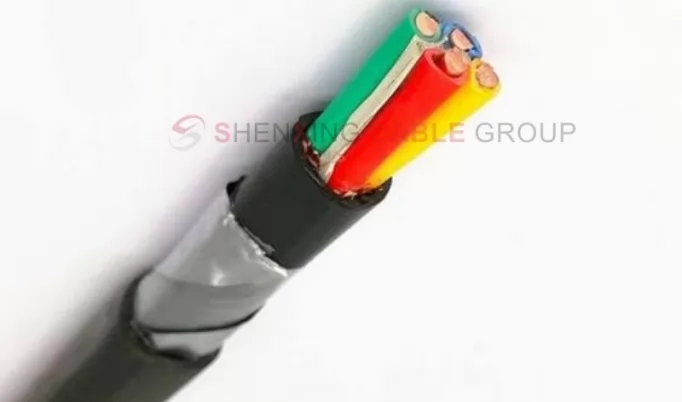

Multi-core armored control flexible cable

Features

Product advantages

Product advantages：

Excellent mechanical protection performance: The armor layer provides excellent compression, tension and impact resistance, and is suitable for various installation methods such as underground direct burial and bridge laying.

Excellent electrical performance: High-quality conductors and insulating materials are used to ensure low resistance and high insulation performance to meet the needs of long-term stable operation.

Strong environmental resistance: It has the characteristics of oil resistance, chemical corrosion resistance, UV resistance, etc., and is suitable for various harsh environments.

Comply with international standards: The product complies with international standards such as IEC, BS, UL, etc., ensuring global applicability and safety.

Usage Characteristics

Performance characteristics：

Rated voltage: 0.6/1kV, suitable for low-voltage control systems.

Operating temperature range: -40℃ to 90℃, suitable for extreme environmental conditions.

Bending radius: not less than 6 times the outer diameter of the cable when fixedly laid, ensuring installation flexibility.

Flame retardant performance: in accordance with IEC 60332-3 standard, with excellent flame retardant properties to ensure safety.

Oil and chemical corrosion resistance: suitable for special environments such as petrochemicals, ensuring long-term and stable operation of the cable.

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Intelligent Upgrade of Luxury Cruise Ships

An internationally renowned luxury cruise company plans to carry out comprehensive intelligent upgrades on several of its cruise ships to improve passenger experience and operational efficiency. Read More

Automobile Production Line Automation Transformation

Shenxing Cable Helps Automakers Achieve a 20% Increase in Production Efficiency Read More

Cable Application for Offshore Wind Farms

An international energy giant constructed a large offshore wind farm in the North Sea region. Due to the harsh sea conditions, strong winds, high waves, and severe salt fog corrosion in the North Sea, extremely high requirements were placed on the performance of the cables. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine Project Background

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Chemical Plant Cable Upgrade

During its production process, a large chemical enterprise has extremely high requirements for the corrosion resistance, high temperature resistance and electrical safety of cables due to the particularity of the production environment. Read More

Empowering Green Energy: Shenxing Cable Group Supports 50MW Wind Power Project

Recently, the Shanxi Loufan Shejiaqu and Matoushan 50MW Wind Power Project, undertaken by China Power Construction Ningxia Engineering Co., Ltd., has made significant progress. As a leading cable manufacturer in China, Shenxing Cable Group supplied 26,632 meters of high-quality cables, ensuring efficient operations and stable power transmission for this landmark green energy project. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the application scenarios for KVVP2 cable?

KVVP2 cable is widely used in industrial automation, mechanical equipment, building electrical, transportation, ship engineering and new energy, and is particularly suitable for occasions that require high anti-interference and flexibility.

What is the operating temperature range of KVVP2 cable?

KVVP2 cable can work stably in the temperature range of -40°C to +90°C, and can adapt to a variety of extreme environments.

What is the anti-interference performance of this cable?

KVVP2 cable adopts metal shielding design to effectively resist electromagnetic and radio frequency interference, ensure stable signal transmission, and is suitable for environments with large electrical noise.

Is KVVP2 cable waterproof and moisture-proof?

Yes, KVVP2 cable has good waterproof and moisture-proof performance, suitable for humid environments, and ensures long-term reliable operation.

Can this cable withstand frequent movement and bending?

KVVP2 cable has high flexibility and uses soft insulation material, which is suitable for flexible installation in small spaces and can withstand frequent movement and bending.

Does KVVP2 cable meet environmental protection standards?

Yes, the materials used in KVVP2 cables comply with international environmental standards (such as ROHS), do not contain harmful substances, and meet the sustainable development requirements of modern enterprises.

How to choose the appropriate KVVP2 cable specifications?

When choosing the appropriate KVVP2 cable specifications, please choose according to the specific current requirements, working environment, temperature range and installation space. If you need help, please consult our professional team.
