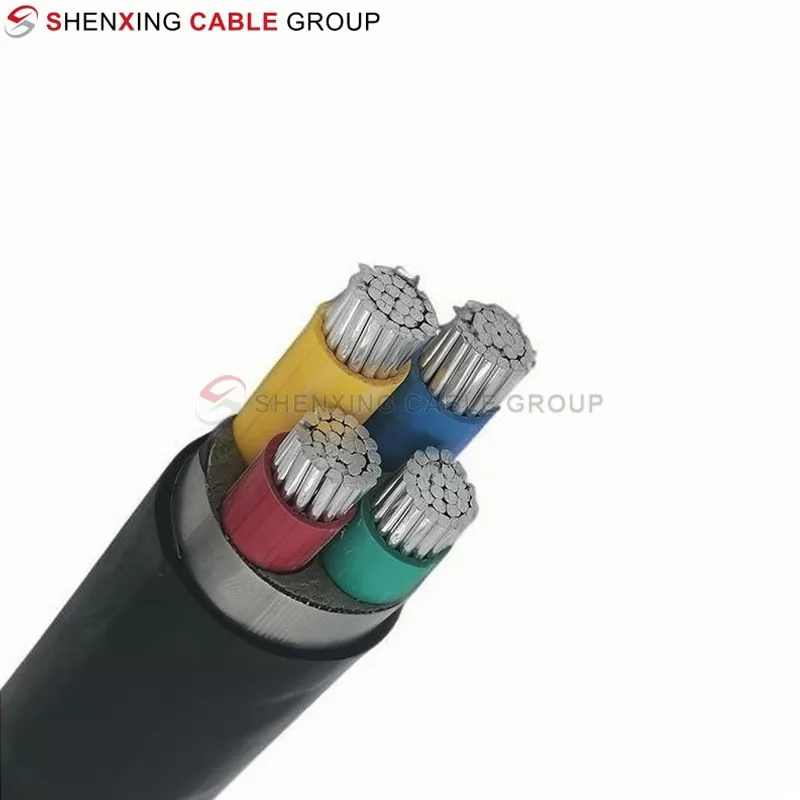

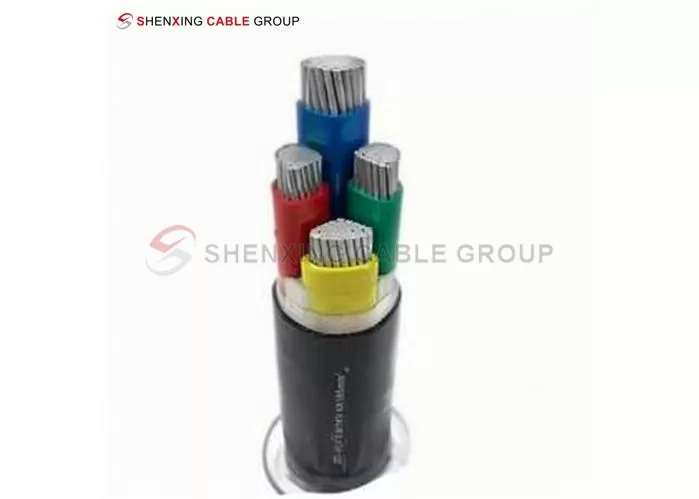

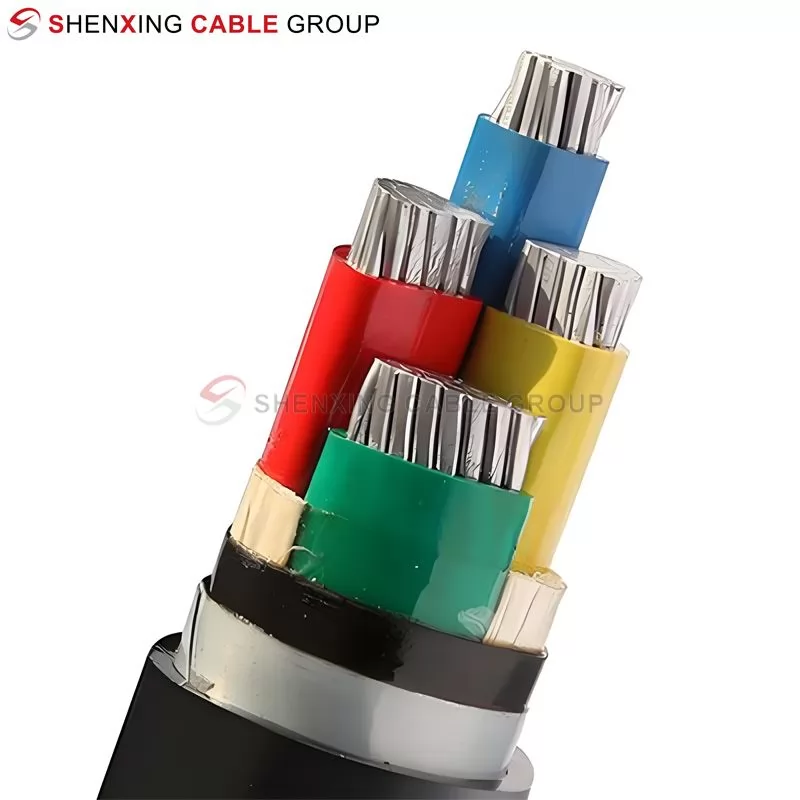

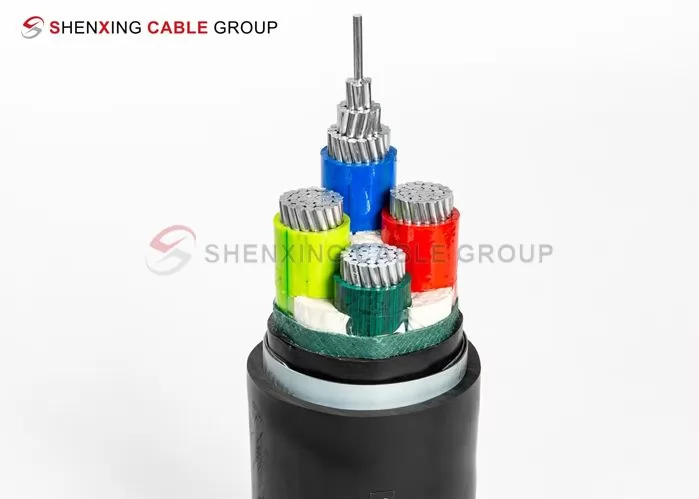

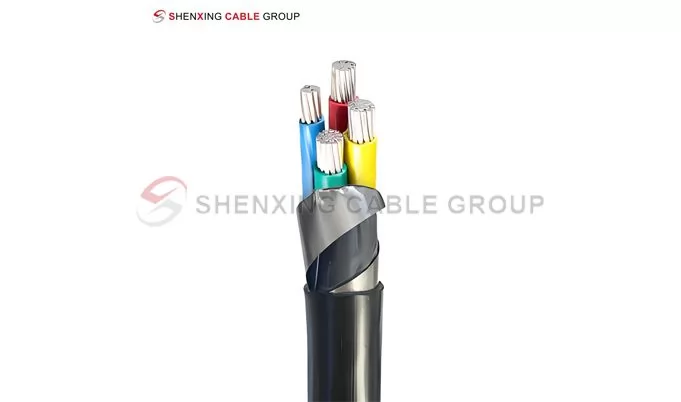

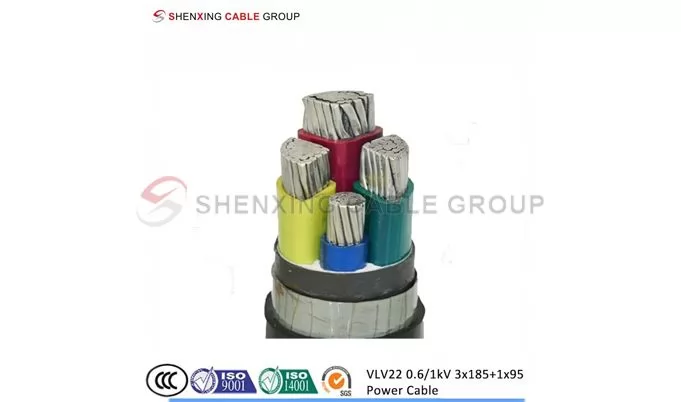

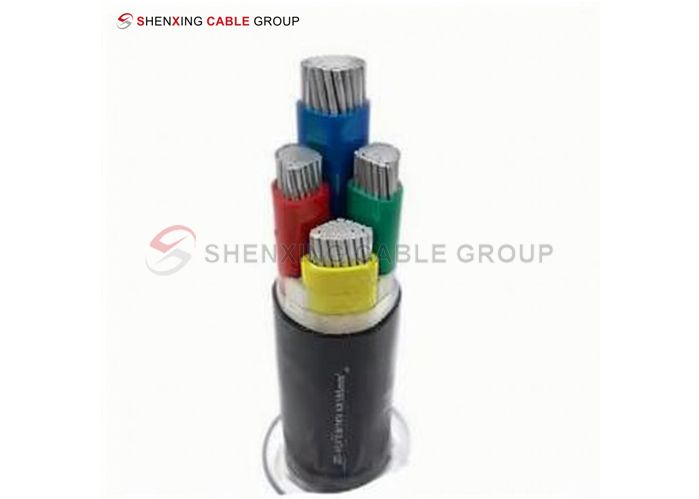

Low Smoke Halogen-free Flame Retardant Power Cable-WD-ZN-VLV22

Low smoke halogen-free flame retardant aluminum core PVC insulated steel belt armored power cable is suitable for all kinds of places requiring high safety, especially in environments with strict fire protection, explosion protection and environmental protection requirements.

Specific application areas include:

High-rise buildings and commercial facilities: used to provide safe and stable power supply to avoid damage to buildings and personnel in case of fire.

Hospitals and medical equipment: to ensure the continuous operation of life support equipment and power systems in emergency situations, and ensure the safety of patients and staff.

Subways, airports and railway systems: to ensure the power supply of public transportation systems and meet the needs of power safety and evacuation time in crowded places.

Industry and manufacturing: especially suitable for production environments with high mechanical protection requirements, such as chemical plants, power plants, etc.

Material properties

Conductor (aluminum core):

High-purity aluminum is used as the conductor. Aluminum has good conductivity and low cost.

Insulation layer (polyvinyl chloride LSZH):

The insulation layer of the cable adopts low-smoke halogen-free polyvinyl chloride (LSZH), which provides excellent electrical insulation performance. In addition, LSZH material can reduce the release of toxic gases in the event of a fire and reduce the impact of fire on the environment.

Armor layer (steel belt):

The steel belt armor provides excellent mechanical protection for the cable. It enhances the tensile, compressive and collision resistance of the cable, enabling it to operate stably for a long time in underground, humid or high-pressure environments.

Outer sheath (PVC):

The outer sheath of the cable is made of polyvinyl chloride (PVC), which has the characteristics of chemical corrosion resistance, high temperature resistance and UV resistance, providing strong external protection for the cable.

Technical Data

Number of cores	Conductor diameter	Conductor Diameter	Insulation Thickness	Resistance	Current carrying capacity	Steel belt armor
						Sheath thickness	Armor thickness	Cable outer diameter	weight
						Sheath thickness	Armor thickness	Cable outer diameter	weight	（mm）	（mm²）	（mm）	（Ω/km）	（A）	（mm）	（mm）	（mm）	（kg/km）
	Single core	1.8	2.5	0.8	12.1	27/19
2.3		4	1	7.41	35/26
2.8		6	1	4.61	46/34
3.6		10	1	3.08	58/44
4.5		16	1	1.91	76/59
6		25	1.2	1.2	98/76
7		35	1.2	0.868	115/90
8.3		50	1.4	0.641	140/110
9.8		70	1.4	0.443	170/140
11.5		95	1.6	0.32	205/175
12.9		120	1.6	0.253	235/200
14.5		150	1.8	0.206	265/230
16		185	2	0.164	300/270
18.3		240	2.2	0.125	350/320
Two cores	20.5	300	2.4	0.1	395/370
	1.8	2.5	0.8	12.1	26/18
	2.3	4	1	7.41	35/24	1.8	0.2x2	14.7	255
	2.8	6	1	4.61	45/32	1.8	0.2x2	15.7	293
	3.6	10	1	3.08	59/42	1.8	0.2x2	18.3	368
	4.5	16	1	1.91	77/55	1.8	0.2x2	20.4	454
	6	25	1.2	1.2	100/70	1.8	0.2x2	23.8	610
	7	35	1.2	0.868	120/86	1.8	0.2X2	26.1	729
	8.3	50	1.4	0.641	145/105	1.8	0.5x2	29.6	918
	9.8	70	1.4	0.443	175/130	2	0.5x2	35.4	1510
	11.5	95	1.6	0.32	210/165	2.1	0.5x2	40.2	1903
	12.9	120	1.6	0.253	245/190	2.2	0.5x2	43.6	2212
	14.5	150	1.8	0.206	275/215	2.3	0.5x2	47.7	2605
	16	185	2	0.164	310/250	2.5	0.5x2	52.7	3108
	18.3	240	2.2	0.125	350/295
Three cores	1.8	2.5	0.8	12.1	23/15
	2.3	4	1	7.41	30/20
	2.8	6	1	4.61	39/26
	3.6	10	1	3.08	50/35	1.8	0.2x2	21.2	559
	4.5	16	1	1.91	65/47	1.8	0.2x2	23.5	740
	6	25	1.2	1.2	84/60	1.8	0.2x2	27.2	976
	7	35	1.2	0.868	100/74	1.9	0.2X2	30.7	1372
	8.3	50	1.4	0.641	120/90	2	0.5x2	31.4	1486
	9.8	70	1.4	0.443	150/115	2.2	0.5x2	33.6	1763
	11.5	95	1.6	0.32	185/140	2.4	0.5x2	38.3	2216
	12.9	120	1.6	0.253	205/165	2.5	0.5x2	41.9	2609
	14.5	150	1.8	0.206	230/190	2.6	0.5x2	47.1	3174
	16	185	2	0.164	260/215	2.8	0.5x2	50.9	3721
	18.3	240	2.2	0.125	300/260	3	0.5x2	57	4590
	20.5	300	2.4	0.1	340/295	3.2	0.5x2	64	5760
Four cores	1.8	2.5	0.8	12.1	23/15
	2.3	4	1	7.41	30/20	1.8	0.2x2	16.5	336
	2.8	6	1	4.61	39/26	1.8	0.2x2	17.7	393
	3.6	10	1	3.08	50/35	1.8	0.2x2	20.8	510
	4.5	16	1	1.91	65/47	1.8	0.2x2	23.4	645
	6	25	1.2	1.2	84/60	1.8	0.2x2	27.5	891
	7	35	1.2	0.868	100/74	1.8	0.2X2	30.3	1084
	8.3	50	1.4	0.641	120/90	1.9	0.5x2	36.7	1762
	9.8	70	1.4	0.443	150/115	2.1	0.5x2	41.3	2223
	11.5	95	1.6	0.32	185/140	2.2	0.5x2	47.2	2871
	12.9	120	1.6	0.253	205/165	2.4	0.5x2	51.3	3367
	14.5	150	1.8	0.206	230/190	2.6	0.5x2	56.4	4028
	16	185	2	0.164	260/215	2.8	0.5x2	62.4	4846
	18.3	240	2.2	0.125	300/260	3	0.5x2	70.1	6059
	20.5	300	2.4	0.1	340/295	3.2	0.5x2	77.3	7331
Five cores	1.8	2.5	0.8	12.1	23/15
	2.3	4	1	7.41	30/20	1.8	0.2x2	17.6	385
	2.8	6	1	4.61	39/26	1.8	0.2x2	19.1	465
	3.6	10	1	3.08	50/35	1.8	0.2x2	22.5	607
	4.5	16	1	1.91	65/47	1.8	0.2x2	25.4	772
	6	25	1.2	1.2	84/60	1.8	0.2x2	30.3	1073
	7	35	1.2	0.868	100/74	2	0.2x2	35.3	1649
	8.3	50	1.4	0.641	120/90	2.1	0.5x2	40.2	2089
	9.8	70	1.4	0.443	150/115	2.3	0.5x2	45.5	2669
	11.5	95	1.6	0.32	185/140	2.5	0.5x2	52.1	3456
	12.9	120	1.6	0.253	205/165	2.6	0.5x2	56.6	4062
	14.5	150	1.8	0.206	230/190	2.8	0.5x2	62.2	4866
	16	185	2	0.164	260/215	2.9	0.5x2	68.6	5836
	18.3	240	2.2	0.125	300/260	3.2	0.5x2	77.4	7349
	20.5	300	2.4	0.1	340/295	3.4	0.5x2	85.4	8906

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

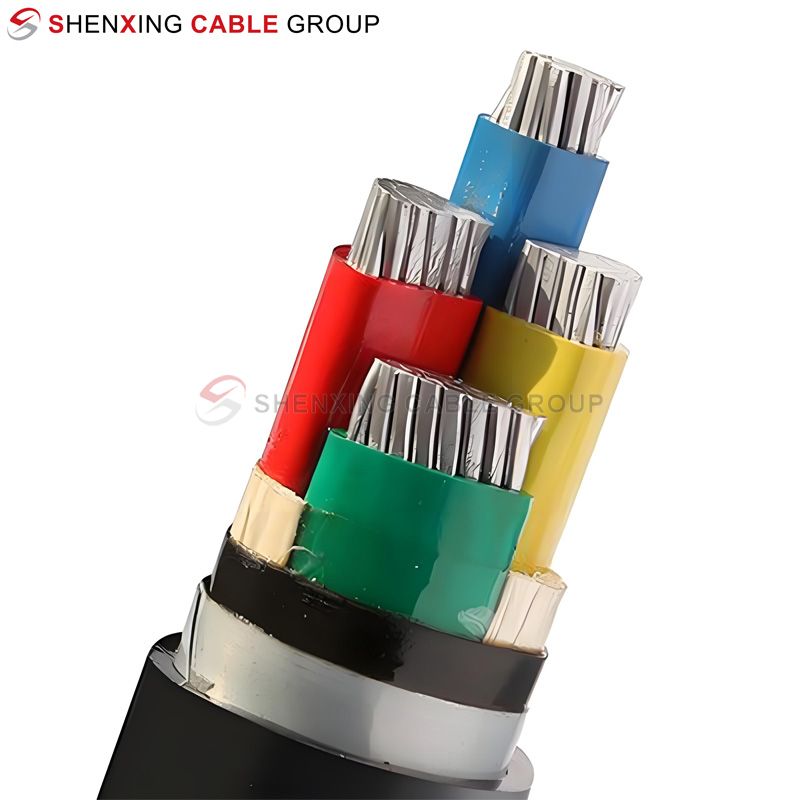

Low Smoke Halogen-free Flame Retardant Power Cable-WD-ZN-VLV22

Low Smoke Halogen-free Flame Retardant Aluminum Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Features

Safety Features

Low Smoke Zero Halogen (LSZH) Performance:

The cable uses low smoke zero halogen materials, which greatly reduces the generation of smoke and does not release toxic halogen gases when a fire occurs. This is essential for ensuring personnel safety, avoiding poisoning and increasing escape time.

Flame retardant performance:

The cable adopts a special flame retardant design and complies with international standards such as IEC 60332-1. It can effectively suppress the spread of flames, ensure the integrity of power lines in the event of a fire, and reduce the speed of fire spread.

Steel Belt Armor Protection:

The steel belt armor layer of the cable provides strong mechanical protection, which can effectively prevent the cable from external force damage such as extrusion, collision, stretching, etc. underground or in harsh environments, and extend the service life of the cable.

Temperature resistance:

The cable adapts to a wide range of operating temperatures, from **-15℃ to +90℃**, and can operate stably in various extreme environments.

Industry standards

Shenxing's low-smoke, halogen-free, flame-retardant aluminum core PVC insulated steel-belt armored power cables strictly follow international standards and industry specifications to ensure product quality and safety. The main standards met include:

IEC 60332-1:Flame-retardant performance standard for cables when burning, ensuring that fire will not intensify the spread of fire.

IEC 60754: Low-smoke, halogen-free standard, ensuring that cables will not release harmful halogen gases when burning.

UL 1581: Testing and certification standard for electrical cables in the United States.

BS 6387: Fire resistance and impact resistance test of cables in fire conditions, ensuring that cables can still maintain power supply in extreme environments.

GB/T 12706: China's national power cable standard, ensuring that the cable meets the safety and performance requirements of China's power system.

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

Cable Solutions for Offshore Wind Farms

A coastal area plans to build offshore wind farms on a large scale to meet the growing demand for clean energy. However, the harsh offshore environment, high salt spray, strong winds and other factors have placed extremely high demands on the performance of cables. Read More

Application Case of Shenxing Cable in Data Center Room

Located on the edge of the city, a large data center room is the core data processing center for many enterprises and government agencies. Read More

Automobile Production Line Automation Transformation

Shenxing Cable Helps Automakers Achieve a 20% Increase in Production Efficiency Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What is low-smoke halogen-free flame-retardant aluminum core PVC insulated steel-belt armored power cable?

Answer: Low-smoke halogen-free flame-retardant aluminum core PVC insulated steel-belt armored power cable is a power cable that combines aluminum core conductor, low-smoke halogen-free (LSZH) insulation and steel-belt armor, and uses polyvinyl chloride (PVC) sheath. This cable has good electrical properties, flame retardant properties and environmental protection, and is suitable for applications requiring high safety and long life, such as high-rise buildings, hospitals, subways, industrial areas, etc.

What is the difference between low-smoke halogen-free cable and traditional PVC cable?

Answer: The biggest difference between low-smoke halogen-free cable (LSZH) and traditional PVC cable is the smoke and toxic gas emissions during fire. Low-smoke halogen-free cable produces very little smoke when burning, does not contain harmful halogen gas, meets environmental protection requirements, and is particularly suitable for environments with high safety requirements such as public places, medical facilities and underground facilities. Traditional PVC cables may release toxic halogen gas in fires, which is harmful to health.

What are the environmental advantages of low-smoke halogen-free cable?

Answer: The LSZH material used in low-smoke halogen-free cables does not contain halogens, and does not produce toxic gases when burned, reducing harm to the environment and human body. It complies with environmental protection standards such as the EU RoHS directive and IEC 60754, and is widely used in green buildings, environmental protection projects and fields requiring low pollution. Its environmental performance makes it the first choice for sustainable development projects.

How is the flame retardant performance of this cable?

Answer: The cable uses flame-retardant PVC insulation material and complies with the IEC 60332-1 standard, which can effectively suppress the spread of flames and prevent the cable from becoming a source of fire spread during a fire. The cable can maintain line integrity in a fire and reduce the threat of fire to personnel and equipment. Its flame retardant performance is very suitable for places with strict fire protection requirements, such as high-rise buildings, data centers and hospitals.

What environments are low-smoke halogen-free cables suitable for?

Answer: Low-smoke halogen-free flame-retardant aluminum core power cables are suitable for places with high fire risks, especially in crowded environments or environments with strict safety requirements. Common application areas include:

High-rise buildings: Ensure the safety of the power system in the building.

Hospitals and medical equipment: protect life safety equipment and ensure the continuous operation of the power system.

Subways, railway stations and airports: avoid power outages in the event of fire accidents and ensure the safety of passengers.

Industrial facilities and chemical plants: adapt to power supply requirements in complex environments.

What is the role of the steel belt armor layer of the cable?

Answer: The steel belt armor layer provides strong mechanical protection for the cable to prevent the cable from being damaged by external physical pressure, friction, extrusion or stretching. This makes the cable very suitable for use underground, in tunnels or in harsh environments. The additional protection of the armor layer greatly improves the tensile and compressive properties of the cable, extends the service life of the cable, and enhances the cable's ability to resist electromagnetic interference.

What is the temperature adaptation range of low-smoke halogen-free cable?

Answer: The maximum operating temperature of the cable is 70°C. In the case of a short circuit, the maximum short-circuit temperature of the cable conductor can reach 160°C, but the short circuit duration shall not exceed 5 seconds. The installation temperature is required to be no less than 0°C, and the laying ambient temperature should be a maximum of 40°C in the air and a maximum of 25°C in the soil. These temperature characteristics enable the cable to operate safely in a variety of environments, ensuring long-term power transmission stability.

What is the minimum bending radius of the cable?

Answer: The minimum bending radius requirements for the cable are as follows:

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Where D is the outer diameter of the cable, and d is the diameter of the cable conductor. Ensuring that the cable is not overstretched or damaged when bent helps protect the electrical performance and mechanical integrity of the cable.

What types of power systems are this cable suitable for?

Answer: This cable is suitable for low-voltage power systems with a rated voltage of 0.6/1kV and is widely used in construction, power, industrial control, automation equipment and other fields. It can provide stable and efficient power support in high-load power transmission and is an ideal choice for low-voltage power distribution systems and equipment connections.

How to correctly install low-smoke halogen-free flame-retardant cables?

Answer: The following points should be noted during installation:

Ensure that the cable is not subjected to excessive tension during installation, especially the bending radius must meet the requirements.

When installing in a humid environment, ensure the waterproofness of the cable.

Before laying, check whether the outer sheath of the cable is intact to avoid damage.

Steel belt armored cable is suitable for underground or ground laying. During installation, avoid contact with sharp objects to prevent damage to the armor layer.
