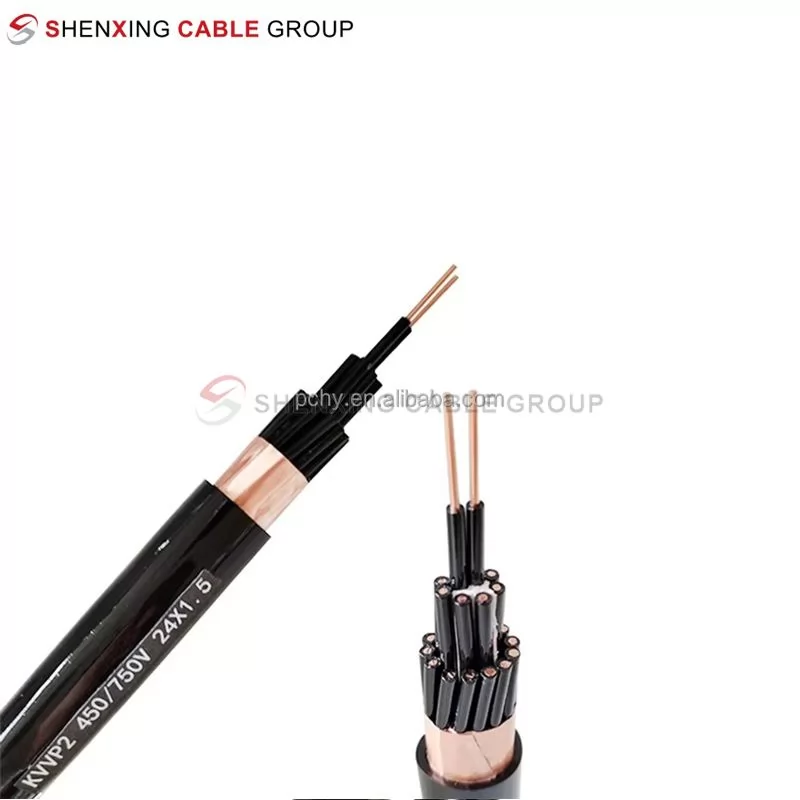

WDZA-KVVP2

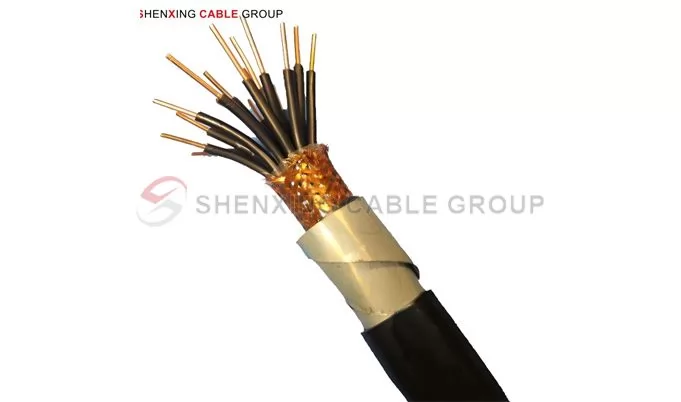

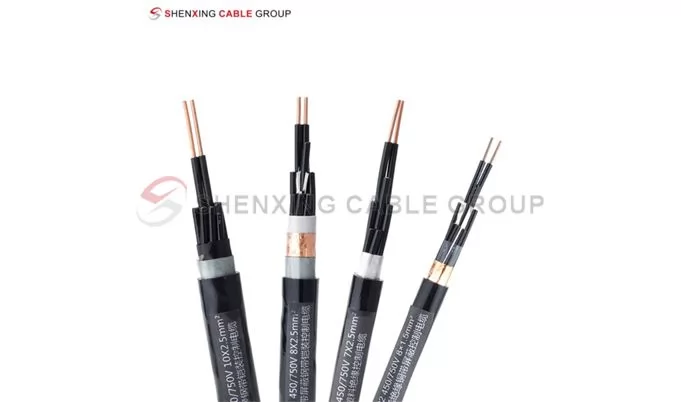

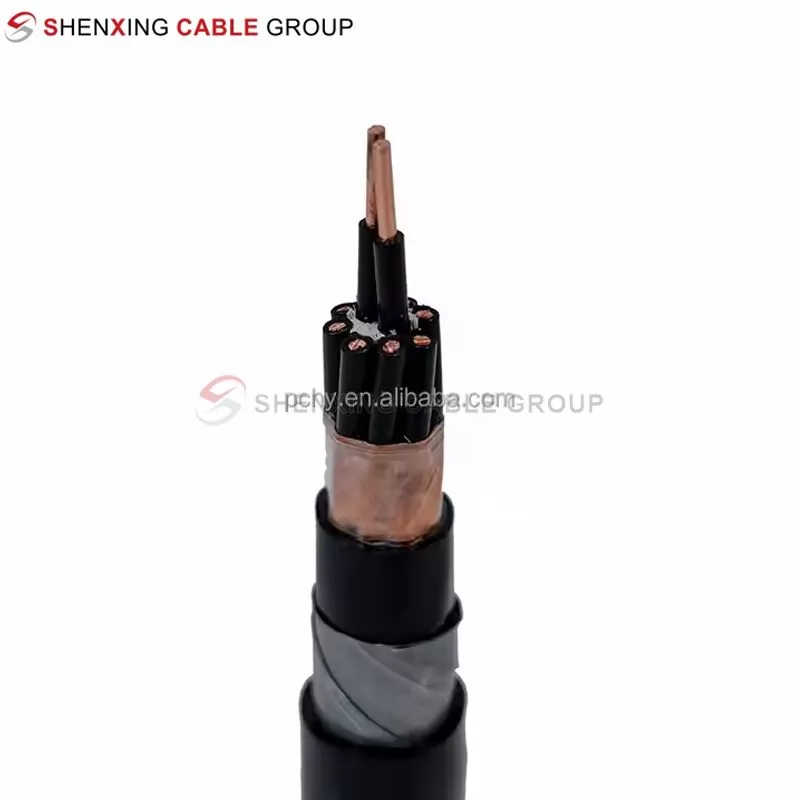

Low smoke zero halogen flame retardant copper core PVC insulated armored shielded control cable (KVVRP cable) is a high-performance control cable that integrates flame retardancy, low smoke zero halogen, copper tape shielding and high flexibility design. This cable is mainly used to transmit power, signals and measurement signals, and is widely used in places with extremely high safety requirements, such as industrial automation, building electrical, energy, transportation and other fields. Its low smoke zero halogen flame retardant properties enable it to minimize the release of smoke and toxic gases when a fire occurs, ensure personnel safety, and prevent the spread of fire.
Share:
Application fields
Low smoke halogen-free flame retardant copper core PVC insulated armored shielded control cable is widely used in environments that require high safety, stability and anti-interference. Its main application areas include:
Industrial automation system
Used for cable connection of PLC controllers, sensors, inverters, actuators and other equipment to ensure the stable operation of automation equipment, especially in dangerous environments such as high temperature, high humidity and flammable.
Building electrical and safety system
Used for electrical control systems in buildings, such as elevator control, fire alarm system, lighting control system, etc.
Power and energy system
Used for signal transmission and control lines in power facilities such as power plants, substations, and distribution systems.
Transportation system
In transportation systems such as railways, subways, and road monitoring, the low smoke halogen-free flame retardant characteristics can ensure the safety of personnel and system reliability of the transportation system in emergency situations.
Advantage:
Low smoke halogen-free flame retardant properties
The cable uses low smoke halogen-free materials. In the event of a fire, the cable will not release toxic halogenated gases and will produce very little smoke, thereby reducing the risk of injury to personnel and the spread of fire.
Copper tape braided shielding protection
The cable uses a copper tape braided shielding layer, which is particularly suitable for systems such as power, communications, and automation that have strict requirements on electromagnetic interference to avoid the impact of external interference on system performance.
Excellent anti-interference ability
The cable's shielding layer has a high density and can effectively resist electromagnetic interference, especially when used in industrial environments, to ensure stable signal transmission.
Highly flexible design
The cable has a soft structure and its high flexibility reduces damage caused by frequent bending. It is suitable for mobile devices and control systems that require frequent operations, extending the service life of the cable.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

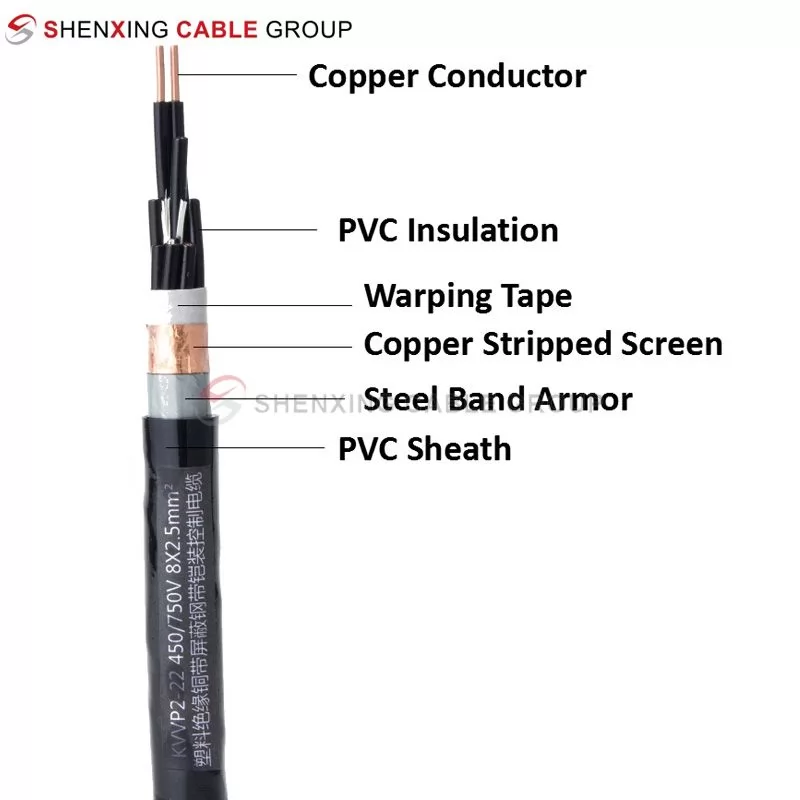

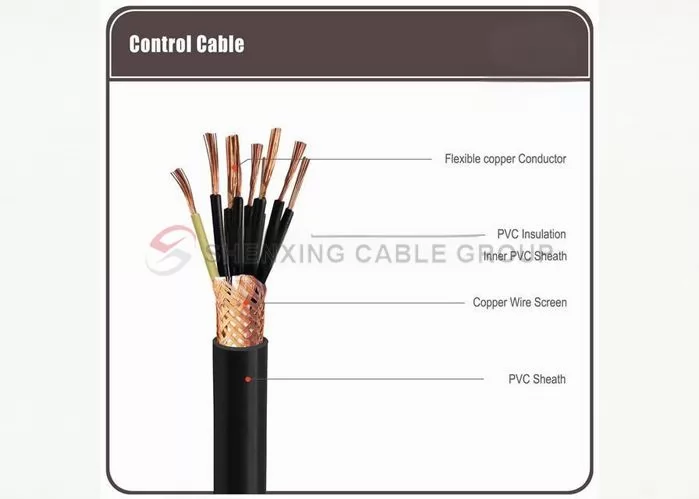

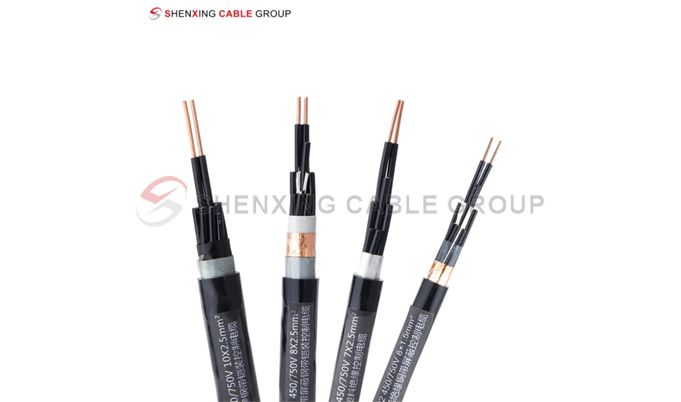

Cable Structure
Control Cable-KVVP2
Features
Features
Wide temperature adaptability
This cable can work stably in the temperature range of -20℃ to +70℃, and can adapt to various harsh environmental conditions. It is not only suitable for indoor places, but also can operate normally under extreme temperatures to ensure continuous and reliable operation of the equipment.
Oil and chemical corrosion resistance
The cable outer sheath material has good resistance to oil pollution and chemical corrosion, and is suitable for various industrial environments, reducing corrosion caused by environmental factors, thereby extending the service life of the cable.
Environmentally friendly materials
The use of environmentally friendly halogen-free materials meets international environmental standards, reduces the release of harmful gases, helps to reduce the burden on the environment, and also meets the requirements of modern environmentally friendly production.
Usage characteristics
The maximum rated operating temperature of the conductor is 90℃
The maximum short-circuit temperature of the conductor shall not exceed 250℃
The maximum time shall not exceed 5 seconds
The installation and laying temperature of the cable shall not be lower than 0℃
The laying temperature in the air shall be 40℃
The laying temperature in the soil shall be 25℃.
Minimum bending radius (D is the outer diameter of the cable)
Single-core cable: 20(D+d) ±5%
Multi-core cable: 15(D+d) ±5%
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is low-smoke halogen-free flame-retardant copper core PVC insulated steel tape shielded PVC sheathed control cable?
Low-smoke halogen-free flame-retardant copper core PVC insulated steel tape shielded PVC sheathed control cable (referred to as KVV/S cable) is a high-performance cable with copper conductor, low-smoke halogen-free PVC insulation material, steel tape shielding and PVC sheathing. Its low-smoke halogen-free flame-retardant properties can ensure that the release of toxic gases and smoke is reduced in the event of a fire, and effectively prevent the spread of flames, providing additional safety protection.
What is the flame retardant performance of this cable?
This cable has excellent flame retardant properties and meets international flame retardant standards. In the event of a fire, the cable can effectively prevent the spread of flames and can quickly extinguish the fire after the fire source is removed, minimizing the harm of the fire to equipment and personnel.
What are the application areas of low-smoke halogen-free flame-retardant copper core PVC insulated steel tape shielded control cable?
This type of cable is widely used in fields with extremely high safety requirements, such as industrial automation, building electrical, energy distribution, traffic control, marine engineering and new energy systems, especially in flammable and explosive environments, crowded environments and environments sensitive to electromagnetic interference.
How does the cable shielding layer provide electromagnetic interference (EMI) protection?
The cable's steel tape shielding layer can effectively isolate external electromagnetic interference and prevent high-frequency noise or electromagnetic waves from affecting the stable transmission of the cable's internal signals. This shielding design is particularly suitable for control systems with high signal stability requirements to ensure the normal operation of the equipment.
Is this cable suitable for outdoor use?
Low-smoke, halogen-free, flame-retardant copper core PVC insulated steel tape shielded control cable can be used in outdoor environments, but it should be ensured that the cable's outer sheath material meets the requirements of UV resistance and corrosion resistance. When installed outdoors, it is recommended to use models with additional waterproof and anti-aging properties.
What is the operating temperature range of the cable?
The long-term operating temperature of this cable is generally 70℃, but some models can withstand working environments up to 90℃ or 105℃. In addition, its short-circuit temperature can reach 250℃, and the short-circuit time does not exceed 5 seconds, which can withstand sudden high temperature conditions.
What material is the conductor of the cable made of?
The cable uses high-precision oxygen-free copper conductors with good conductivity and low resistance, which can ensure the stable transmission of signals and power, reduce energy loss, and extend the service life of the cable.
What are the advantages of low-smoke, halogen-free, flame-retardant copper core PVC insulated steel tape shielded control cable in the event of a fire?
Compared with traditional PVC cables, this cable uses low-smoke, halogen-free materials, which can effectively reduce the release of toxic gases and smoke in the event of a fire and protect personnel safety. In addition, the flame retardant properties can effectively suppress the spread of flames and avoid the spread of fire, which is especially important in public places and high-risk environments.
What is the minimum bending radius of the cable?
The minimum bending radius of the cable depends on the structure of the cable:
Single-core cable: The minimum bending radius is 20 (D+d) ±5%.
Multi-core cable: The minimum bending radius is 15 (D+d) ±5%. Where D is the outer diamete
How to correctly install low-smoke, halogen-free, flame-retardant copper core PVC insulated steel tape shielded control cable?
When installing the cable, ensure that its laying environment meets the relevant standards to avoid excessive mechanical tension or bending of the cable. The bending radius of the unarmored cable shall not be less than 6 times the outer diameter of the cable, and the armored cable shall meet higher bending requirements. In addition, the shielding layer should be grounded to maximize the anti-interference effect and ensure stable signal transmission.
