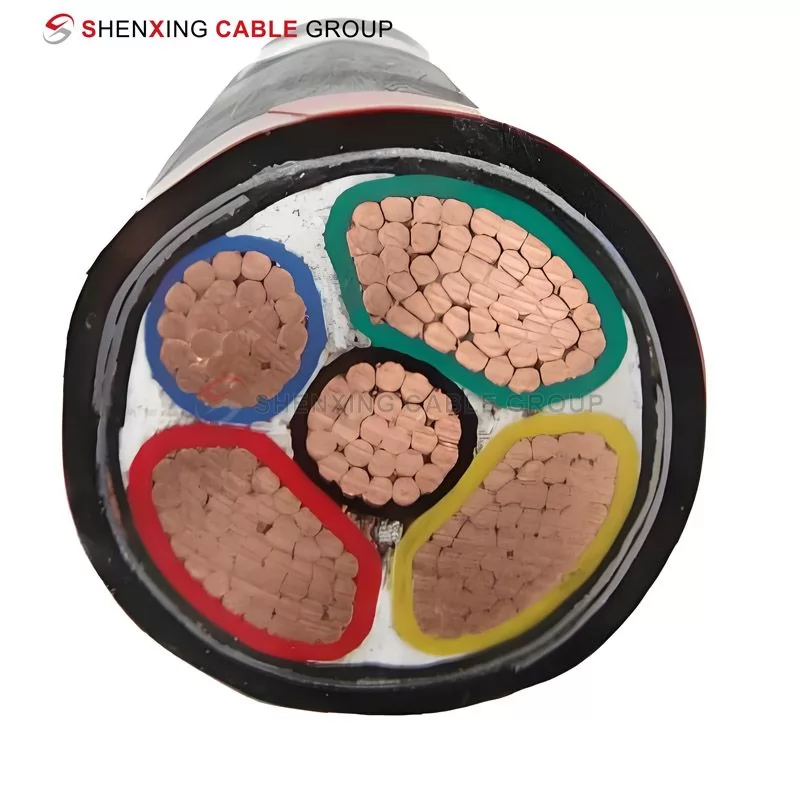

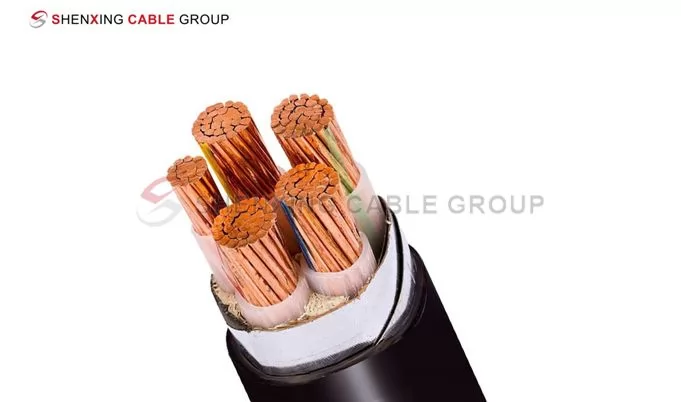

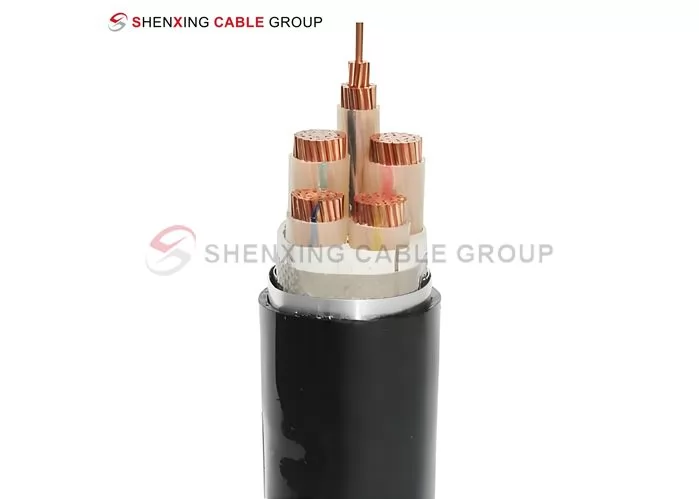

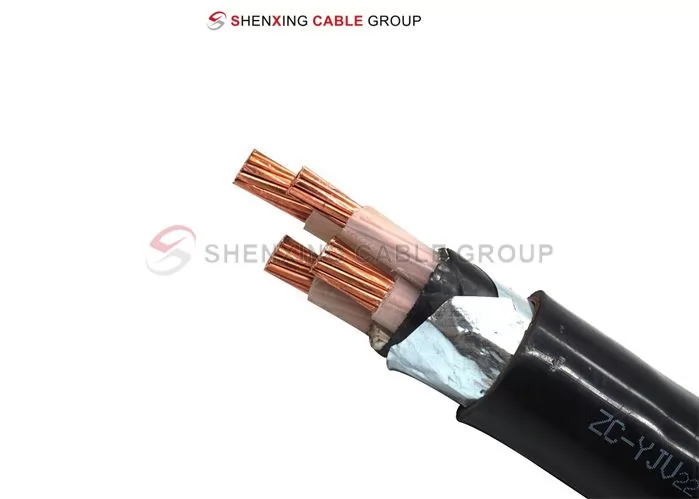

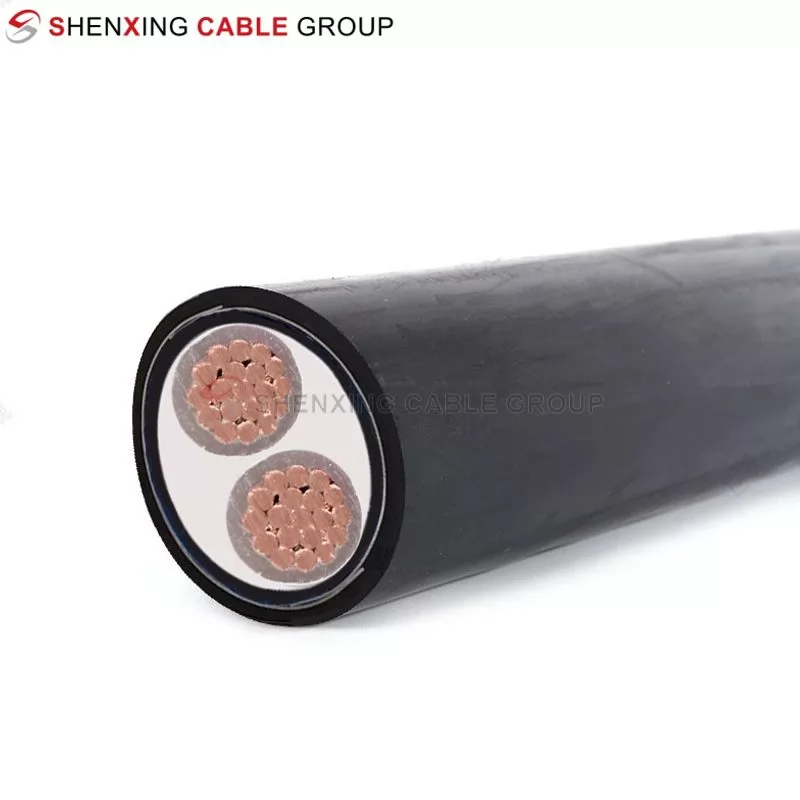

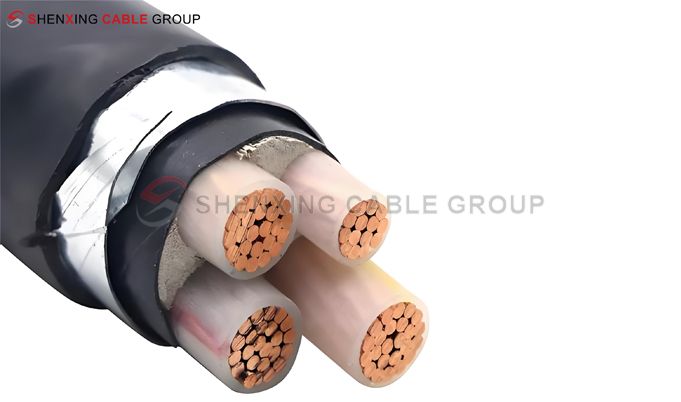

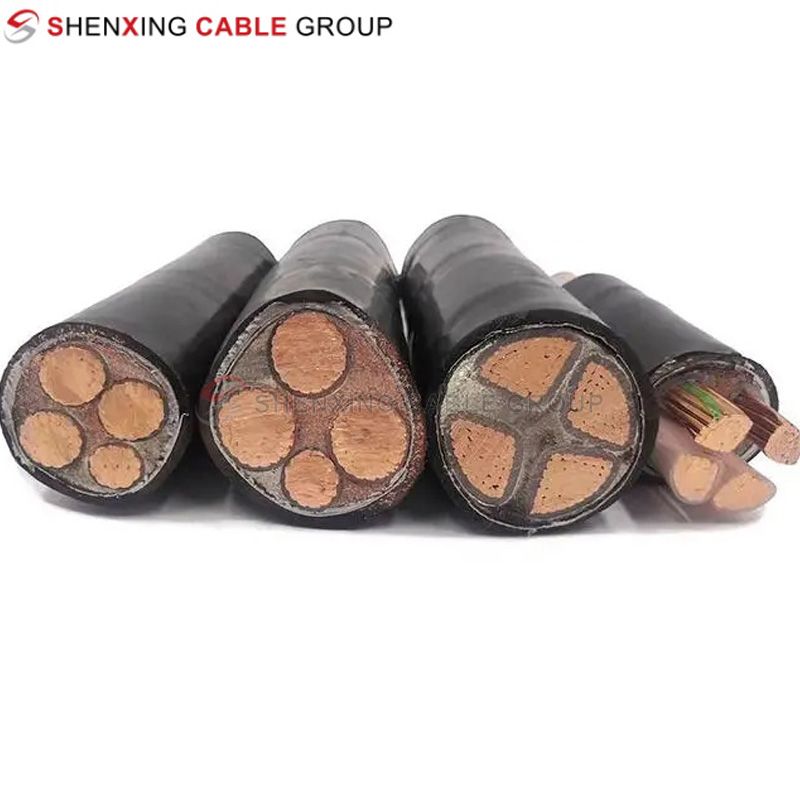

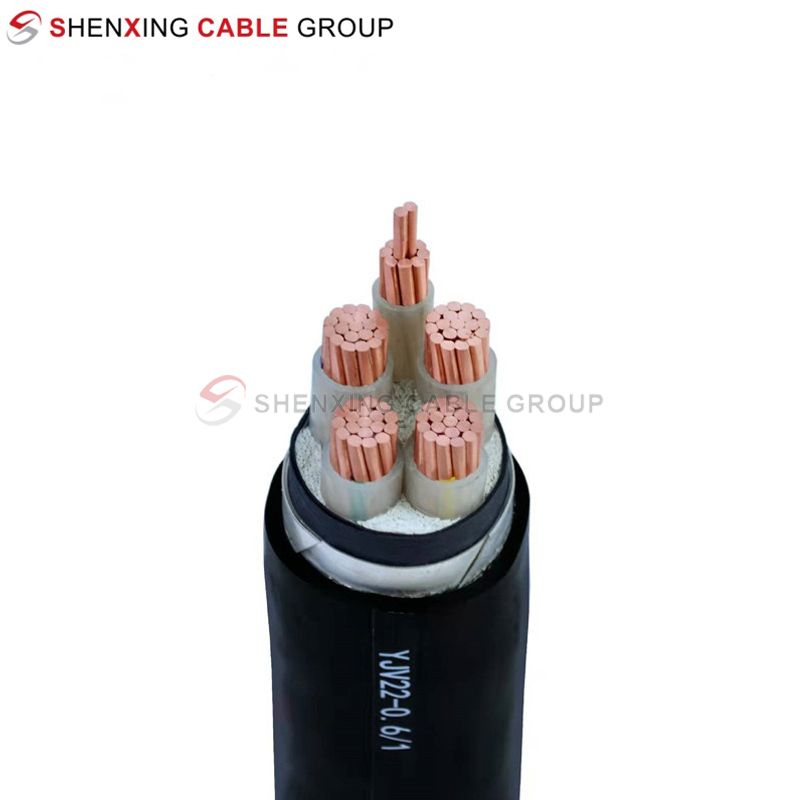

Low Smoke Halogen-free Flame Retardant Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Low smoke halogen-free flame retardant cable (Low Smoke Halogen-Free Flame Retardant Cable) uses halogen-free materials. When a fire occurs, it can produce very little smoke and will not release toxic gases (such as chlorine, fluorine, etc.), which greatly reduces the harm of toxic gases in the fire to personnel. In addition, it has good flame retardancy, which can effectively delay the spread of fire and ensure safety.

XLPE (cross-linked polyethylene) is a polyethylene material treated by a cross-linking process, which has excellent high temperature resistance, voltage breakdown resistance, corrosion resistance and mechanical strength. It can effectively extend the service life of the cable and can work normally in a high temperature environment. It can usually withstand a long-term operating temperature of 70℃ to 90℃.

Steel belt armored cable has extremely strong mechanical protection, which can effectively prevent the cable from external force impact, stretching or compression underground, in tunnels or exposed to the external environment. In addition, steel tape armor can also provide better electromagnetic shielding, reduce electromagnetic interference, and ensure the stable operation of the power system.

The rated voltage of Low smoke halogen-free flame retardant copper core XLPE insulated steel tape armored PVC sheathed power cable is 0.6/1kV, which is suitable for low-voltage power systems such as distribution lines, power transmission, power supply to factories and buildings, etc.

This cable is widely used in environments that require high safety, low smoke, and halogen-free, such as high-rise buildings, subways, railway stations, airports, large commercial buildings, data centers, hospitals, mining areas, and other places with high requirements for power transmission. In the event of a fire, it can effectively reduce the release of toxic gases, protect the lives of personnel, and prevent the spread of fire.

Operating temperature: The operating temperature range of this cable is **-15℃ to +90℃**, which is suitable for a variety of ambient temperatures.

Short-circuit temperature: The maximum short-circuit temperature is 160°C, and the short-circuit duration does not exceed 5 seconds.

This cable is particularly suitable for harsh environments such as underground pipelines, power tunnels, mining areas, tunnels, high-rise buildings, and industrial areas where equipment requires additional protection. The mechanical protection provided by the steel belt armor layer makes it have excellent pressure resistance and impact resistance in these environments.

Single-core cable: The minimum bending radius is 20 times the outer diameter.

Multi-core cable: The minimum bending radius is 15 times the outer diameter.

Ensuring that this bending radius requirement is followed during installation can avoid mechanical damage to the cable and ensure the long-term stable use of the cable.

This cable complies with the IEC 60332 standard and has excellent flame-retardant properties. In the event of a fire, the cable can effectively slow down the spread of the flame, prevent the fire from further spreading, ensure uninterrupted power supply, and provide more time for personnel evacuation. Flame-retardant properties are essential for high-rise buildings, subway stations, airports and other places.

The cable adopts the design concept of low smoke, halogen-free and flame retardant to ensure that the cable will not produce toxic smoke and harmful gases in a fire, and protect the lives of personnel to the greatest extent. The steel belt armor layer provides strong protection against external forces, allowing the cable to work stably for a long time in harsh environments. At the same time, the XLPE insulation layer provides excellent electrical safety performance, which can effectively prevent the occurrence of electrical faults and ensure the safe operation of the power system.
