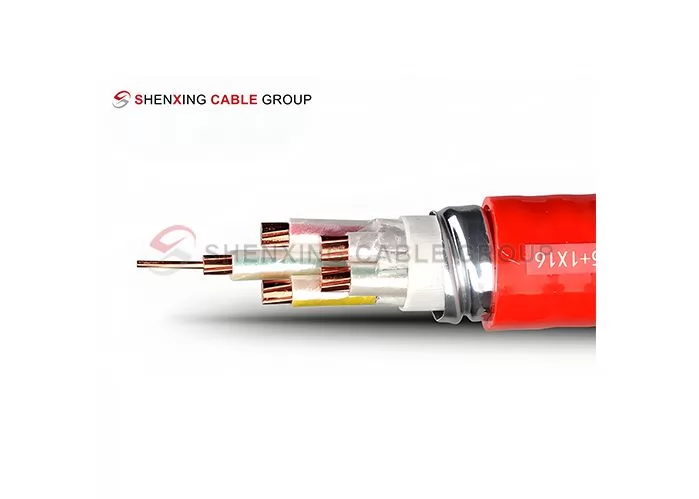

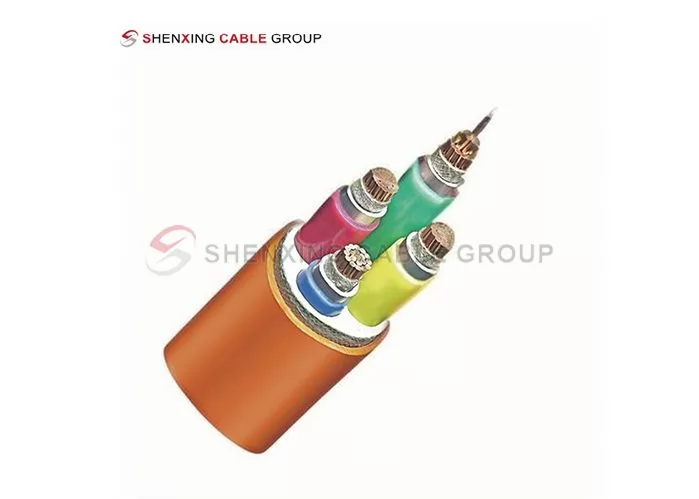

Fireproof Cable-NG-A (BTLY)
NG-A (BTLY) model flexible fireproof cable can be used in emergency after installation, and can also be used as 125℃ temperature-resistant halogen-free flame-retardant cable and fire-resistant cable in normal times. This series of cables has a wide coverage, which not only overcomes the defects of rigid fireproof cables, but also gives full play to the advantages of flexible fireproof cables. It also provides practical products for key projects, so that modern projects can achieve the effect of short circuit without burning and burning without short circuit in electrical lines. It can not only be successfully applied in fire protection performance such as fire alarm and emergency life-saving circuits, but also can be promoted and applied in high-density current and other special performance requirements.
Share:
Structural features
The structure of NG-A (BTLY) mineral insulated fireproof cable includes the following parts:
Conductor: It adopts high temperature resistant, non-combustible inorganic mineral insulation material (such as mica tape/ceramic silicone rubber tape), which can be the first or second type of copper conductor1.
Fireproof insulation layer: It adopts high temperature resistant, non-combustible inorganic mineral insulation material to ensure that the cable will not burn in a fire.
Metal sheath: The aluminum sheath is continuously extruded with good bending properties.
Isolation layer: Polyethylene isolation layer, with waterproof and color separation functions.
Fireproof mud: Inorganic mineral material is extruded around the cable gap and the cable, which has the same fireproof performance as magnesium oxide.
Low smoke halogen-free outer sheath: It adopts low smoke halogen-free plastic material with good flame retardant and protective effects.
Application areas：
Buildings and public facilities
NG-A (BTLY) fireproof cable has excellent fireproof performance and reliability, ensuring that fire elevators, emergency lighting, fire pumps and tunnel lighting systems can continue to operate in the event of a fire or emergency, protecting life and property.
Industrial and energy facilities
This cable is an ideal choice for fields such as petrochemicals, power stations and industrial automation. Its excellent fire resistance and corrosion resistance provide high safety and reliability for chemical plants, power transmission and industrial control systems.
Medical and data centers
In scenarios such as hospitals and data centers that require extremely high power continuity, NG-A (BTLY) cables ensure that they can still operate normally under extreme conditions such as fire, effectively preventing equipment damage and data loss.
Transportation and airport facilities
In airports and transportation infrastructure, its durability and fireproof performance ensure the stable operation of emergency facilities and monitoring equipment, and improve the safety and reliability of public transportation and aviation facilities.

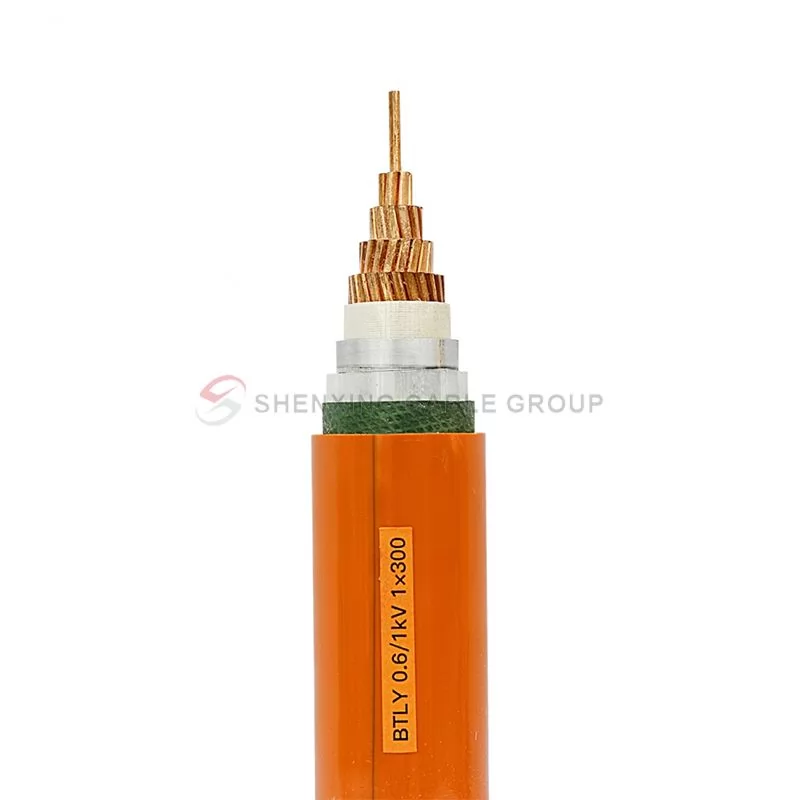

Cable Structure
Fireproof cable-NG-A (BTLY)
Features
Features
Excellent fireproof performance
NG-A (BTLY) cable adopts multi-layer mica tape insulation and magnesium oxide fireproof layer design to ensure continuous power supply in fire, in line with IEC 60331 standard.
Efficient transmission and energy saving
Adopt high-purity oxygen-free copper conductor with conductivity up to 99.99%, long-term stability, and excellent conductivity even in high temperature environment, adapting to various complex power supply environments.
Durability and environmental adaptability
The aluminum sheath and XLPE layer design provide the cable with excellent compression and impact resistance. The aluminum sheath has strong corrosion resistance and effectively resists moisture and chemical erosion. The product service life is more than 30 years, reducing maintenance and replacement costs.
Easy installation
The cable provides a variety of core configurations and adopts a lightweight aluminum sheath design with flexibility and toughness, which is convenient for complex wiring needs while reducing construction difficulty and cost.
Fire Rating and Certification
Fire Rating:
NG-A (BTLY) fire-resistant cables comply with international fire protection standards (such as IEC 60331) and have a Class A fire rating. They exhibit excellent performance in fire environments and ensure the continuous and stable operation of power systems.
Certification:
NG-A (BTLY) fire-resistant cables have obtained a number of international certifications, including CE, ROHS and UL certifications. The product quality meets global safety standards and is suitable for high-safety power transmission needs.
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is the main purpose of NG-A (BTLY) fireproof cable?
NG-A (BTLY) fireproof cable is mainly used in places such as construction, transportation, industry and medical treatment that require high-safety power supply, especially power transmission of key equipment such as fire protection systems, emergency lighting, elevator power supply and data centers.
What is the fire resistance of this cable?
NG-A (BTLY) fireproof cable complies with the IEC 60331 international standard and has a Class A fireproof rating. Under high temperature or open flame conditions, the cable can maintain power transmission for more than 90 minutes to ensure continuous operation of the system.
What are the advantages of NG-A (BTLY) compared with traditional fireproof cables?
NG-A (BTLY) uses aluminum sheath and magnesium oxide fireproof layer, which has higher fire resistance and stronger resistance to mechanical damage. At the same time, the low smoke and halogen-free design is more environmentally friendly and safe.
What environments are NG-A (BTLY) cables suitable for?
This cable is suitable for environments with high temperature, moisture resistance, corrosion resistance and high mechanical strength requirements, such as petrochemical plants, subway tunnels, nuclear power plants and commercial complexes.
What is the voltage range of NG-A (BTLY) cable?
The rated voltage of NG-A (BTLY) fireproof cable is 0.6/1kV, which is suitable for most low-voltage power systems.
Does this cable meet environmental standards?
Yes, the outer sheath of NG-A (BTLY) cable adopts low-smoke halogen-free flame-retardant material, which will not release toxic gases in fire and meets ROHS environmental certification standards.
How long is the service life of the cable?
The design life of NG-A (BTLY) cable is more than 30 years, with high anti-aging performance, which can greatly reduce replacement and maintenance costs.
Can the cable specifications be customized according to needs?
Shenxing Cable provides multi-core configuration (such as 1 core, 2 cores, 3 cores, 4 cores, 3+1 cores, etc.) and length customization services to meet the special needs of different customers.
What are the certifications of NG-A (BTLY) fireproof cable?
The cable has passed international certifications such as CE, ROHS, UL, etc., meets the safety standards of the global market, and has reliable quality.
How to ensure the safety of cables during transportation and storage?
NG-A (BTLY) fireproof cables undergo strict quality inspection before leaving the factory and are protected by sturdy packaging materials. It is recommended to store them in a dry and ventilated environment and avoid contact with corrosive substances or moisture.
More Frequently Asked Questions.
Related Products

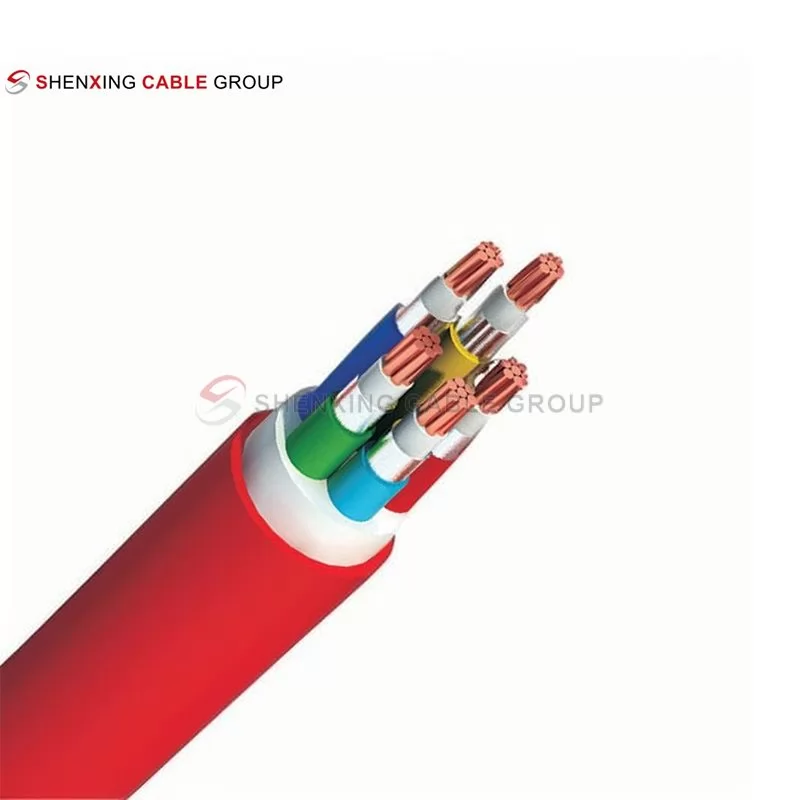

Ultra-Flexible Mineral Fire-Resistant Cable
YTSY fireproof cable is a high-quality, flexible and durable cable designed to provide excellent fire resistance and electrical performance in extreme environments. It is ideal for applications that require reliable power transmission and fire safety. YTSY cable uses advanced inorganic mineral insulation and is equipped with a corrosion-resistant metal sheath.
Read More

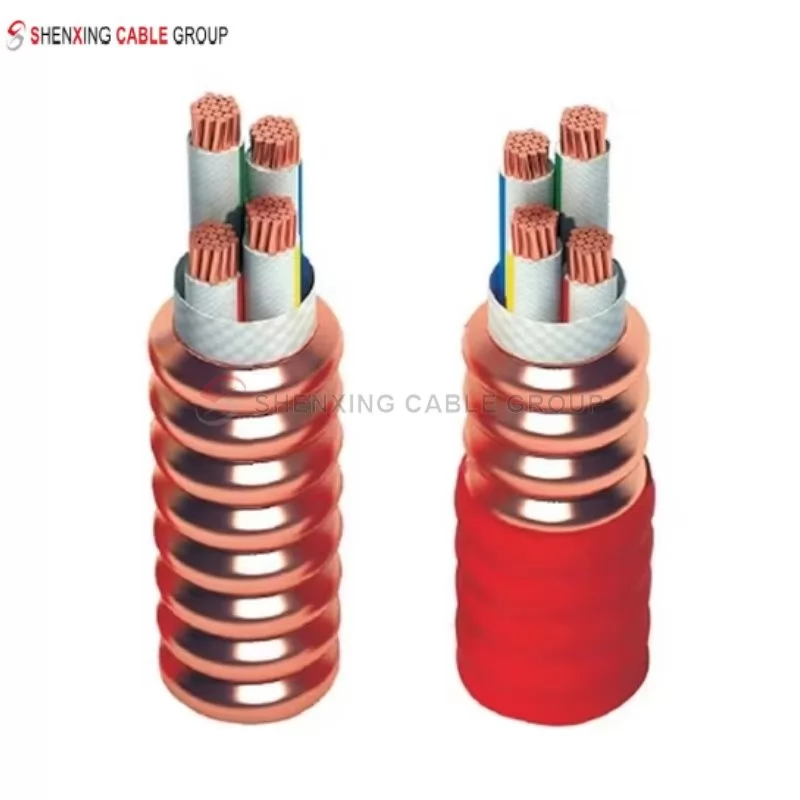

The full name of BTTRZ cable is copper core inorganic mineral insulation tape wrapped insulated copper sheathed flexible fireproof cable. This is called mineral insulated cable, also known as flexible structure fireproof cable. Its production process is very similar to BTTZ type cable. This type of cable is flexible and flame retardant, has good bending performance, is very convenient to transport, and is safer and more secure to use.
Read More
Flexible Fireproof Metal Sheathed Inorganic Mineral Insulated Cable
YTTW flexible fireproof cable, also known as copper sheathed armored inorganic insulated cable, is a newly upgraded fireproof cable designed to solve the problems of traditional mineral insulated cables being susceptible to moisture and complex joints during production and installation.
Read More

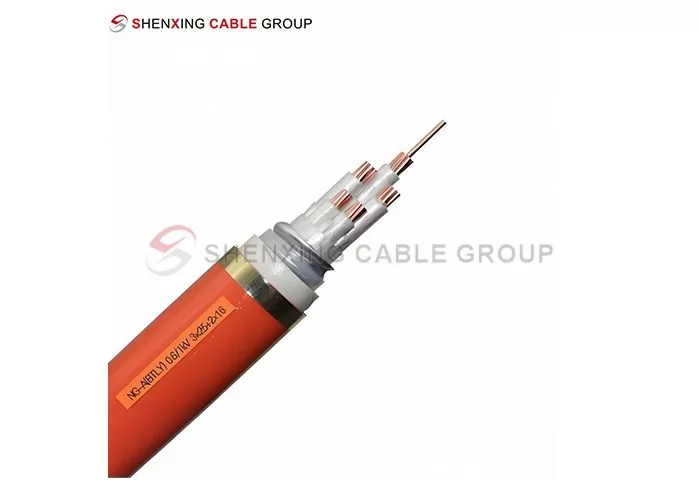

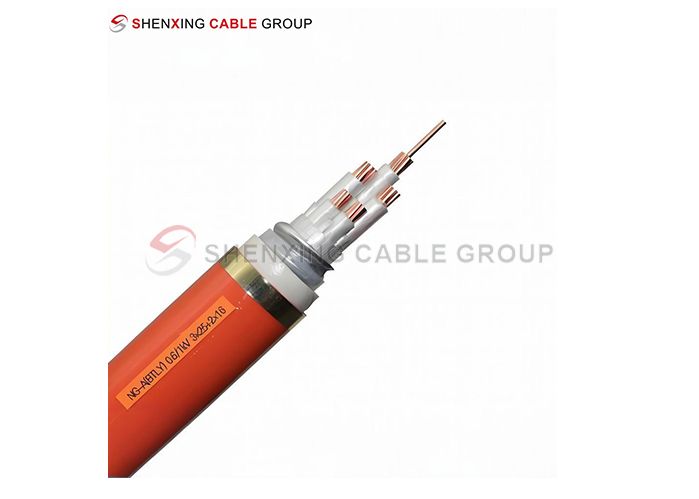

Aluminum Sheathed Flexible Isolation Type Fireproof Cable
NG-A (BTLY) model flexible fireproof cable can be used in emergency after installation, and can also be used as 125℃ temperature-resistant halogen-free flame-retardant cable and fire-resistant cable in normal times.
Read More

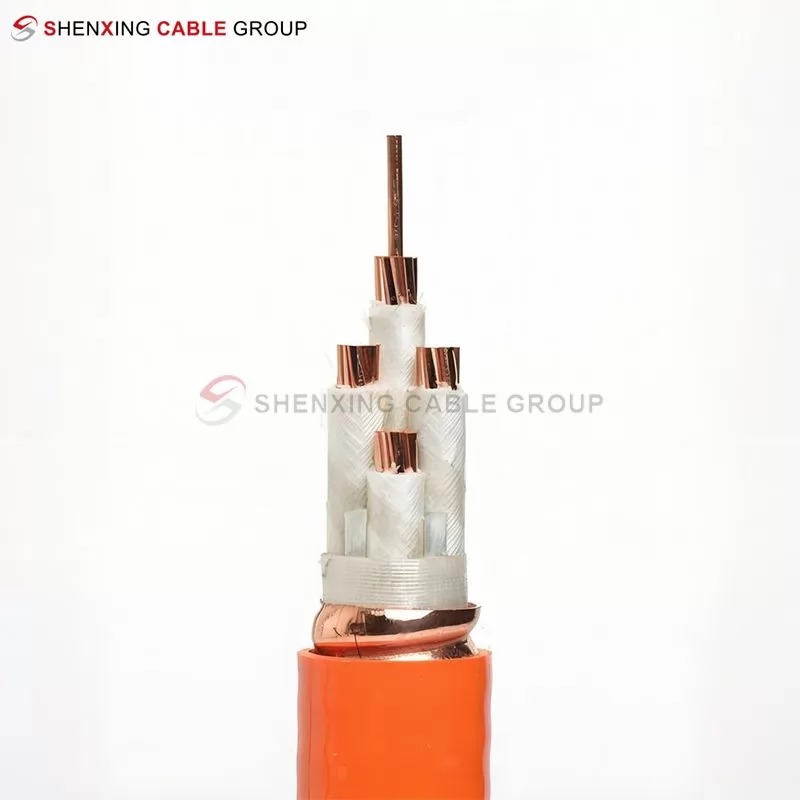

Flexible Magnesium Hydroxide Mineral Insulated Fire Resistant Cable
Conductor: high-purity oxygen-free copper. Insulation: multi-layer mica tape
Read More

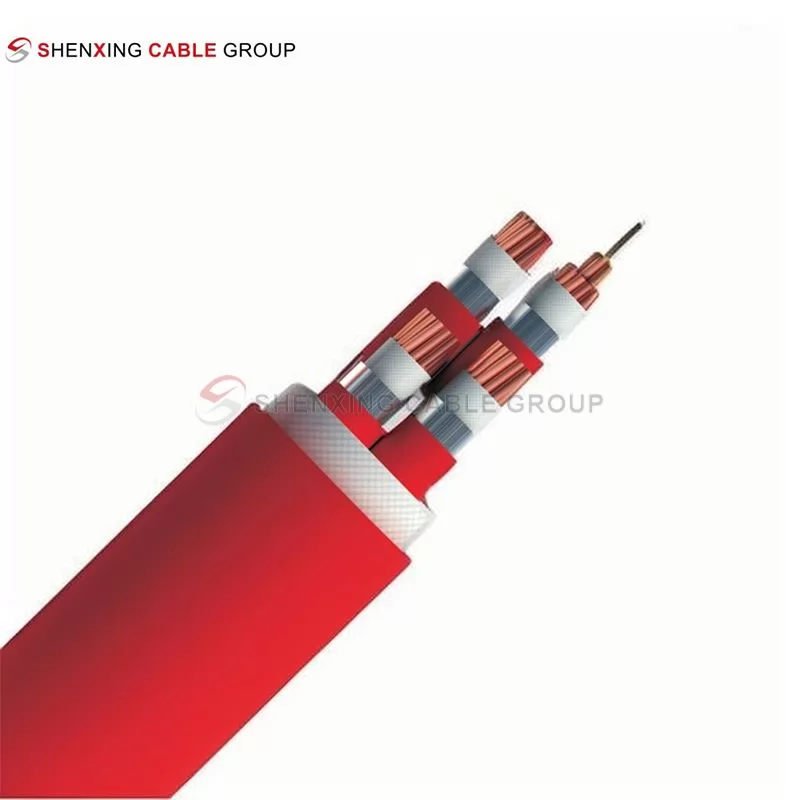

As a company with 60 years of experience in cable manufacturing, Shenxing Cable is committed to providing high-quality and high-reliability power transmission solutions to customers around the world. Our BTTVZ fireproof cables combine advanced technology and high-quality materials in design and manufacturing, and are particularly suitable for occasions that require high-strength fire protection and high-temperature resistance, ensuring that your power system remains stable in extreme environment
Read More

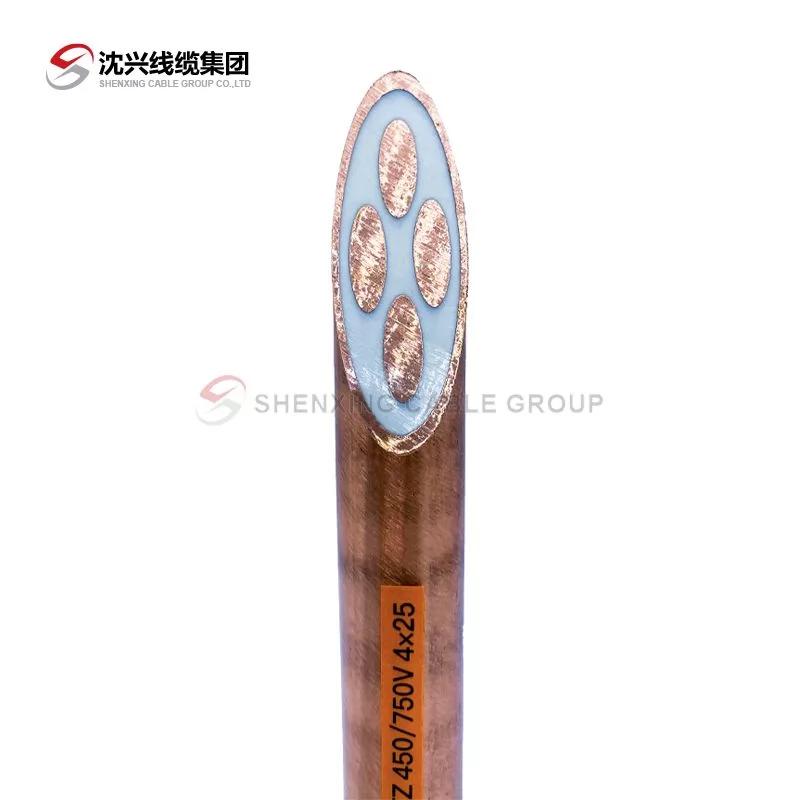

Copper Core Copper Sheathed Magnesium Oxide Mineral Insulated Cable (Rigid Fire-Resistant Cable)
