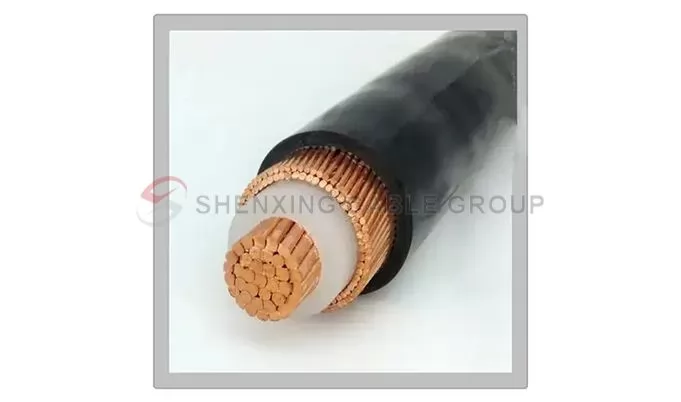

110kv Copper Core XLPE Insulated Lead Sheathed PE Sheathed Power Cable

Widely Use:

Industrial production: YJQ cables are favored for their good electrical properties and corrosion resistance in production lines and equipment in industries such as electricity, metallurgy, and chemical industry.

Construction field: YJQ cables also play an important role in power transmission and signal transmission systems in high-rise buildings, bridges, tunnels, and other buildings.

Transportation: YJQ cables are also commonly used in power transmission and signal transmission systems in transportation fields such as subways, light rails, and railways.

Petrochemical: Due to its excellent corrosion resistance and flame retardant properties, YJQ cables are also suitable for power transmission and signal transmission in fields such as petroleum and chemical industries.

Advantage:

Copper core conductor: High-purity oxygen-free copper is used, which has excellent conductivity, low resistance and durability, minimizing energy consumption.

Cross-linked polyethylene (XLPE) insulation: Through advanced cross-linking technology, the XLPE insulation layer has higher resistance to electric field strength, thermal aging and high temperature.

Longitudinal water-blocking design: For humid environments, special water-blocking materials and processes are used to effectively prevent moisture from diffusing along the longitudinal direction of the cable, ensuring the long-term operation stability of the cable.

Lead sheath shielding layer: The lead sheath design has excellent mechanical protection and corrosion resistance, provides good electromagnetic shielding effect, and adapts to complex industrial environments and high safety requirements.

Polyethylene outer sheath: wear-resistant, UV-resistant, and resistant to environmental stress cracking, providing additional physical protection for the cable and extending its service life.

Technical Data

Number of Cores	Conductor Diameter	Nominal Cross Section	Insulation Thickness	Sheath Thickness	Lead Sheath Armor Thickness	Cable Outer Diameter	Cable Reference Weight	Maximum DC Resistance at 20℃
	(mm)	(mm²)	(mm)	(mm)	(mm)	(mm)	（kg/km）	（Ω/km）
Single core	18.4	240	19	4	2.6	88	11712	0.0754
	20.6	300	18.5	4	2.6	91	12481	0.0601
	23.8	400	17.5	4	2.7	93	13612	0.047
	26.6	500	17	4	2.7	96	14920	0.0366
	30	630	16.5	4.5	2.8	100	16781	0.0283
	34.8	800	16	4.5	2.9	104	19157	0.0221
	38.8	1000	16	4.5	3	111	22277	0.0176
	42	1200	16	5	3.1	115	25275	0.0151
	45.2	1400	16	5	3.2	118	27951	0.0129
	48	1600	16	5	3.2	121	30569	0.0113
	50.8	1800	16	5	3.3	123	33297	0.0101
	54	2000	16	5	3.4	127	36026	0.009

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

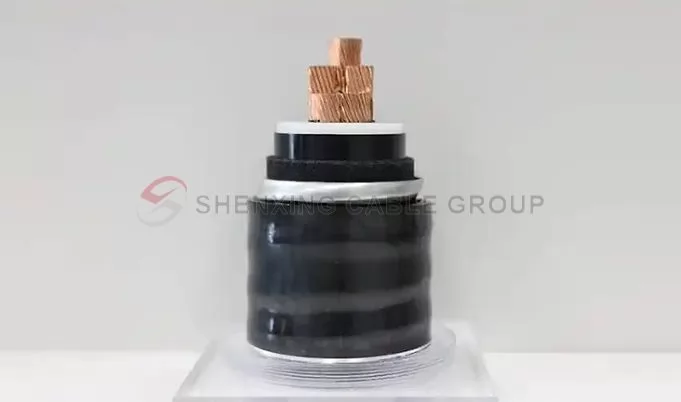

110kv Copper core XLPE insulated lead sheathed PE sheathed power cable

110kv Copper Core XLPE Insulated Lead Sheathed PE Sheathed Power Cable

Features

Moisture and corrosion resistance: The longitudinal water-blocking and lead sheath structure is particularly suitable for high humidity, underground water accumulation and corrosive environments, providing protection for long-distance power transmission.

Mechanical stress resistance: The double protective layer design of lead sheath and polyethylene sheath can effectively resist external mechanical impact, extrusion and bending.

High temperature and short circuit tolerance: The normal operating temperature of the cable is 90℃, and it can withstand a high temperature of 250℃ under short-circuit conditions to ensure safe operation.

Usage Characteristics

Experimental performance

Rated voltage Uo/U: 38/66kV, 48/66kV, 64/110kV

Maximum operating temperature: 90℃

Maximum conductor temperature during short circuit (no more than 5 seconds): 250℃

Laying temperature not less than: 0℃

Cable bending radius: 20D±5%

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What is YJQ copper core cross-linked polyethylene insulated lead sheathed polyethylene sheathed power cable?

YJQ cable is a high-performance power transmission cable, using high-purity copper core as conductor, cross-linked polyethylene (XLPE) as insulation layer, covered with lead sheath and polyethylene sheath, with excellent conductivity, insulation performance, corrosion resistance and water barrier properties, widely used in underground power transmission, industrial projects and power plant power transmission and other fields.

What are the main advantages of YJQ cable?

High conductivity: using high-purity oxygen-free copper core to reduce power loss.

Superior insulation performance: XLPE insulation layer is resistant to high temperature, high electric field strength and long service life.

Moisture-proof and water-blocking: The longitudinal water-blocking structure effectively prevents moisture diffusion and adapts to humid environments.

Strong corrosion resistance: The lead sheath design prevents chemical corrosion and is suitable for industrial and coastal environments.

Strong environmental adaptability: The outer sheath is wear-resistant, UV-resistant and mechanically impact-resistant.

What scenarios are YJQ cables suitable for?

YJQ cables are widely used in the following scenarios:

Underground power transmission and distribution projects: suitable for laying underground cables in cities with high humidity and deep water levels.

Connection between power plants and substations: Provide reliable transmission guarantee in high-voltage power transmission trunks.

Industrial projects: Complex environments such as chemical plants, mining areas and metallurgical plants.

Coastal and tunnel projects: Coping with challenges such as moisture, corrosion and mechanical stress.

What is the rated voltage level of YJQ cables?

According to the specific design, YJQ cables support a variety of voltage levels, usually 10kV to 110kV, which is suitable for the needs of medium and high voltage power transmission and distribution systems.

What is the water-blocking performance of YJQ cables?

YJQ cables adopt a longitudinal water-blocking design. Through special water-blocking materials and sealing technology, they effectively prevent moisture from diffusing along the cable. They are particularly suitable for underground laying, humid and high water level environments, ensuring long-term operation reliability.

What is the operating temperature range that YJQ cables can withstand?

Long-term operating temperature: up to 90℃.

Short-circuit temperature: In the case of a short circuit, it can withstand a high temperature of 250°C (for no more than 5 seconds).

This makes it suitable for complex working conditions under high temperature and short circuit conditions.

Why choose lead sheath as the shielding layer of YJQ cable?

The lead sheath provides the following unique advantages for the cable:

Electromagnetic shielding: Reduce electromagnetic interference and ensure the stability of signal and power transmission.

Strong corrosion resistance: Good corrosion resistance to acid and alkali environment and salt spray.

Mechanical protection: Resist external mechanical pressure and impact and enhance the physical strength of the cable.

What is the service life of YJQ cable?

Under standard operating conditions, the design life of YJQ cable can reach more than 30 years. This is due to its high-quality conductor, aging-resistant XLPE insulation layer and sturdy lead sheath and polyethylene sheath.

How to lay YJQ cable to ensure optimal performance?

Underground laying: It is recommended to use waterproof casing protection to avoid direct exposure to stagnant water.

Bending radius: When laying, it should meet the specified multiples of the cable diameter to avoid damage caused by excessive bending.

Mechanical protection: In high-voltage areas or scenarios with mechanical pressure, external protection measures should be added.

Installation consultation: Shenxing Cable provides professional technical guidance and on-site support to ensure installation specifications.

Why choose Shenxing Cable as the supplier of YJQ cables?

As a professional power cable manufacturer and service provider, Shenxing Cable has the following advantages:

Industry experience: Many years of deep cultivation in cable manufacturing, with rich project experience.

Excellent quality: Products comply with international standards such as IEC 60502 and GB/T 12706.

Technological innovation: Support special specifications customization to meet the needs of different projects.

Comprehensive service: Provide one-stop solutions from selection to installation to ensure customers worry-free use.
