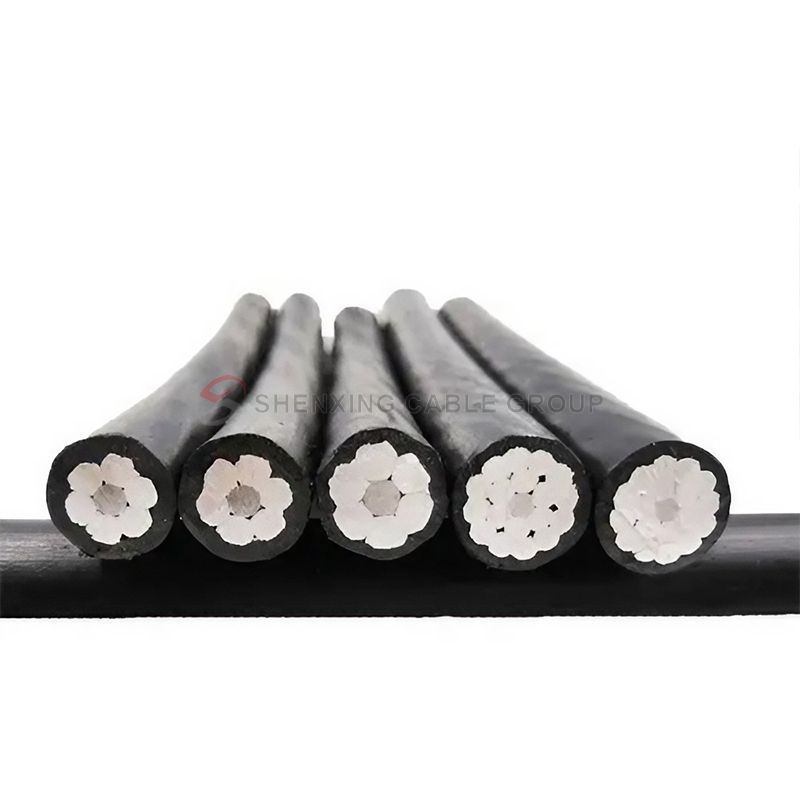

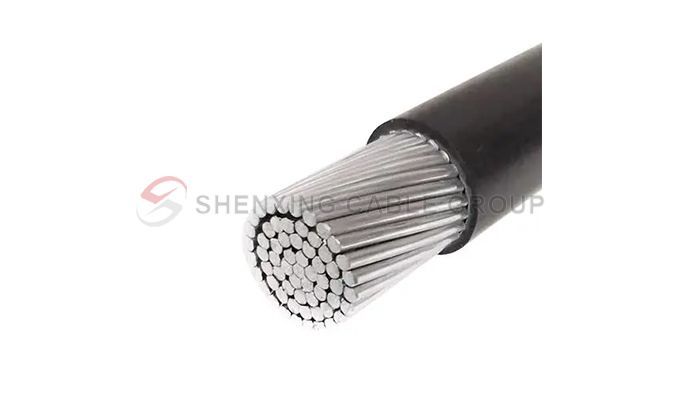

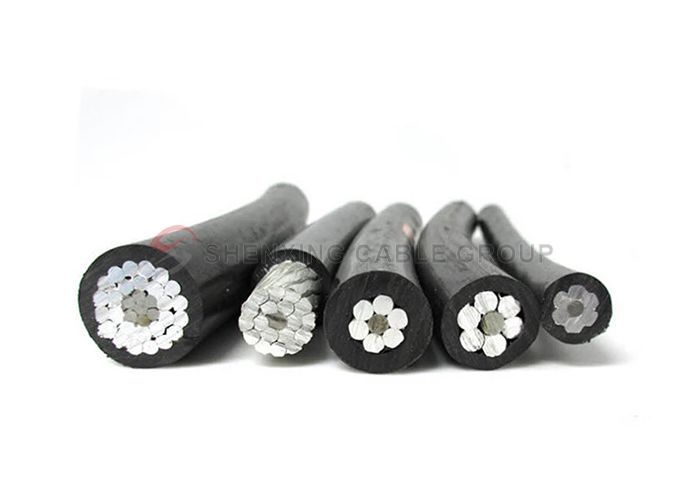

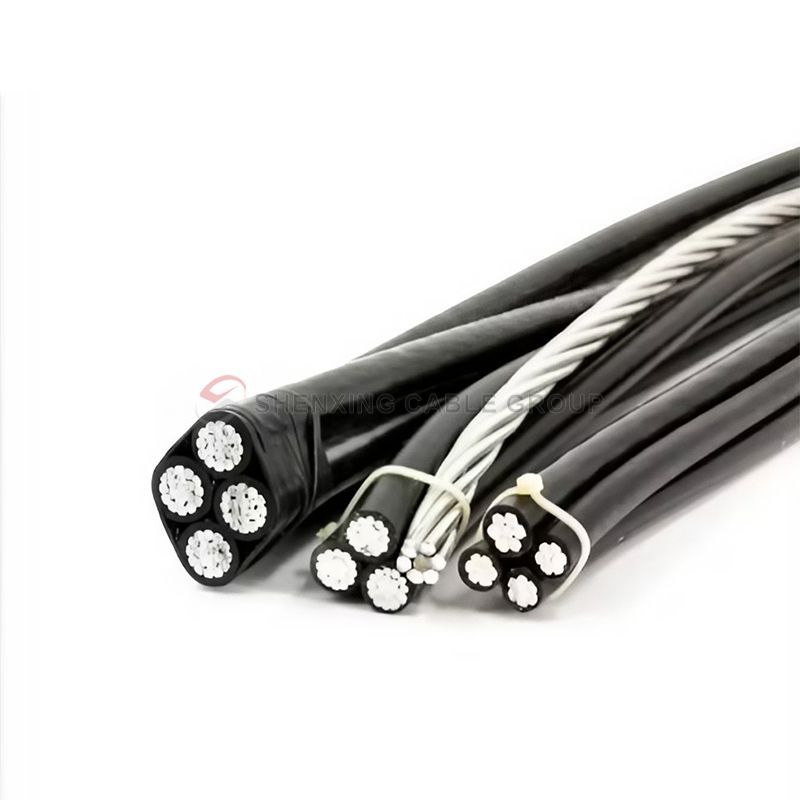

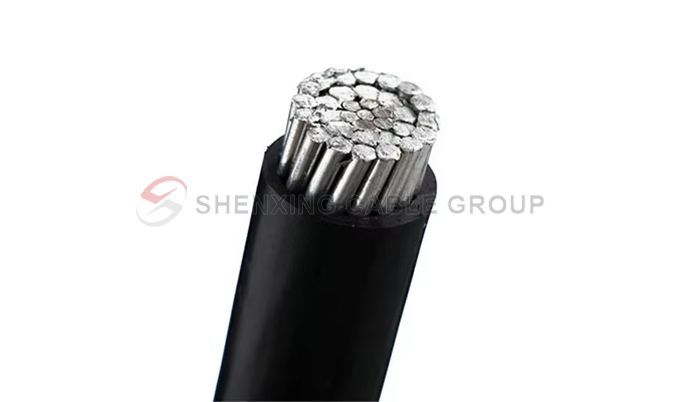

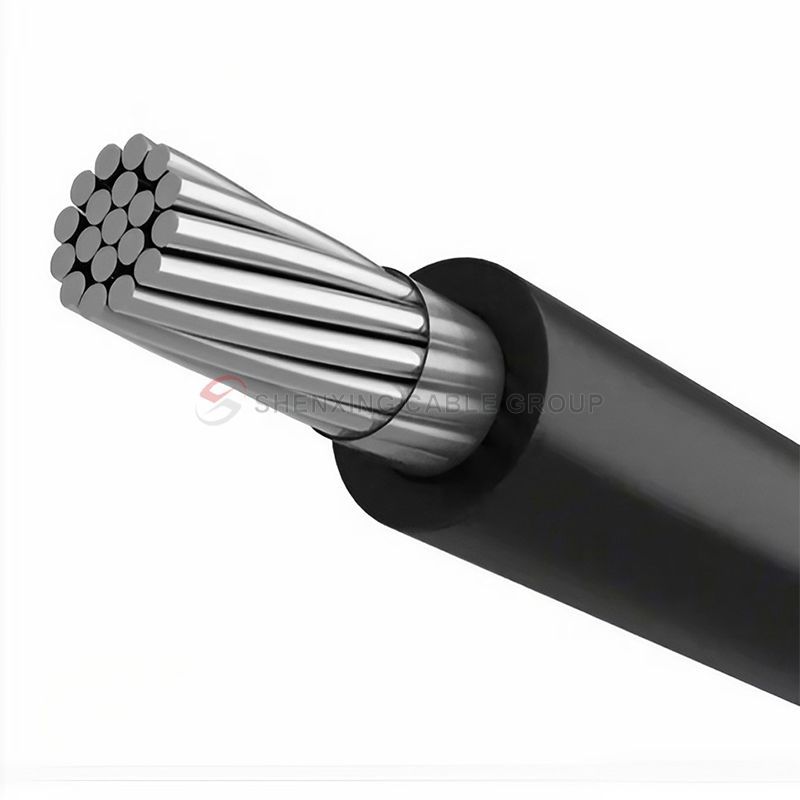

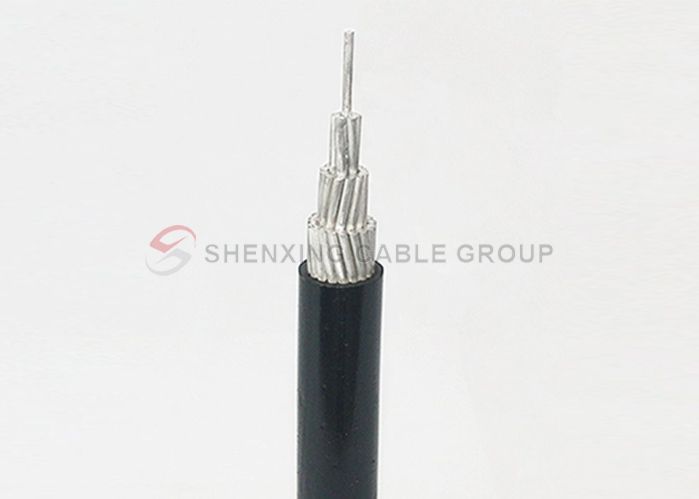

Aluminum conductor steel reinforced (ascr)Overhead Cable‌

Widely Use:

Power transmission:

Widely used in urban and rural power transmission networks, especially high-altitude power lines.

Industrial Park and Distribution System:

Applicable to industrial parks, commercial areas, large enterprises or other regional power systems that require power distribution.

Wind and Solar Power Projects:

In renewable energy projects such as wind power generation and solar power systems, aluminum core polyethylene insulated overhead cables also perform well.

Urban Infrastructure:

Used for power supply of infrastructure such as urban traffic lighting, telecommunications base stations, street lights, etc., to ensure the stable operation of the power system.

Advantage:

Lightweight design:

Aluminum core is much lighter than copper core cable, which reduces the weight of the cable itself, facilitates transportation and installation, and reduces construction difficulty and cost.

Good conductivity:

Aluminum conductor has good conductivity, ensuring good conductivity and low resistivity, which can effectively reduce energy loss.

Excellent weather resistance:

Polyethylene insulation material has excellent UV resistance, aging resistance and waterproof performance, suitable for use in outdoor long-term exposure environment.

High safety:

Due to the design of aluminum core cable with high tensile strength and voltage resistance, it can effectively avoid power outages caused by overload or environmental factors.

Technical Data

Number of conductors	Conductor diameter	Nominal area	Insulation thickness	Cable outer diameter	Cable weight				Cable Breaking Force			Maximum resistance of conductor （20℃）				Current Carrying Capacity(A)
	(mm)	(mm²)	(mm)	(mm)	(kg/km)				(N)			Ω/km				Copper Core			Aluminum Core、Aluminum alloy core
					JKV	JKY JKYJ	JKLV JKLHV	JKLY JKLYJ JKLHY JKLHYJ	Hard copper	Aluminum	Aluminum Alloy	Hard copper	Soft copper	Aluminum	Aluminum Alloy	PVC	PE	XLPE	PVC	PE	XLPE
Single core	3.8	10	1	5.8	114	108	51	45	3471	1650	2514	1.906	1.83	3.08	2.574	65	65	85	50	50	65
	4.8	16	1.2	7.2	181	172	79	70	5486	2517	4022	1.198	1.15	1.91	2.217	89	90	122	69	70	95
	6.2	25	1.2	8.4	260	251	109	97	8465	3763	6284	0.749	0.727	1.2	1.393	120	124	166	93	97	128
	7.2	35	1.4	9.8	377	352	151	136	11731	5177	8800	0.54	0.524	0.868	1.007	148	152	204	115	118	158
	8.5	50	1.4	11.1	485	469	194	176	16502	7011	12569	0.399	0.387	0.641	0.744	182	188	252	141	146	196
	10.2	70	1.4	12.8	668	650	267	237	23461	10354	17596	0.276	0.268	0.443	0.514	231	239	320	180	210	249
	11.8	95	1.6	14.9	941	917	368	331	31759	13727	23880	0.199	0.193	0.32	0.371	289	299	400	224	232	310
	13.2	120	1.6	16.2	1174	1149	436	408	39911	17339	30164	0.158	0.153	0.253	0.294	334	348	467	260	271	362
	14.8	150	1.8	17.7	1477	1450	549	513	49505	21033	37706	0.128	0.124	0.206	0.239	385	399	633	298	310	412
	16.4	185	2	20.2	1768	1748	660	616	61846	26732	46503	0.1021	0.0991	0.164	0.19	448	466	622	247	362	483
	18.6	240	2	22.8	2305	2255	854	798	79823	34679	60329	0.0777	0.0754	0.125	0.145	535	558	746	414	432	578
	20.6	300	2.4	24.4	2946	2886	1084	1016	99898	43400	75451	0.0619	0.0601	0.1	0.11	615	630	865	480	490	630
Two cores	3.8	10	1	11.6	228	216	102	89	6890	3140	5028	1.906	1.83	3.08	2.574	60	60	78	46	46	60
	4.8	16	1.2	14.4	362	343	158	140	10972	5024	8044	1.198	1.15	1.91	2.217	82	83	112	63	64	87
	6.2	25	1.2	16.8	521	500	217	195	16930	7524	12568	0.749	0.727	1.2	1.393	110	114	153	86	89	118
	7.2	35	1.4	19.6	733	704	302	272	23462	10354	17600	0.54	0.524	0.868	1.007	136	140	188	106	109	145
	8.5	50	1.4	22.2	969	937	387	352	33004	14202	25138	0.399	0.387	0.641	0.744	167	173	232	130	134	180
	10.2	70	1.4	25.2	1336	1300	513	483	46922	20708	35192	0.276	0.268	0.443	0.514	213	220	194	166	193	229
	11.8	95	1.6	29.4	1882	1835	715	662	63518	27454	47760	0.199	0.193	0.32	0.371	266	275	368	206	213	285
	13.2	120	1.6	32.2	2348	2297	872	815	79822	34678	60328	0.158	0.153	0.253	0.294	307	320	430	239	249	333
	14.8	150	1.8	36.2	2954	2889	1098	1025	99010	42066	75412	0.128	0.124	0.206	0.239	354	367	490	274	285	380
	16.4	185	2	40	3536	3456	1320	1231	123692	53466	93006	0.1021	0.0991	0.164	0.19	412	429	572	319	333	444
	18.6	240	2	45.4	4609	4510	1709	1597	159646	69356	120658	0.0777	0.0754	0.125	0.145	492	513	686	381	397	532
	20.6	300	2.4	50.6	5891	5771	2168	2032	199576	86698	150822	0.0619	0.0601	0.1	0.11	566	580	730	442	451	580
Three cores	3.8	10	1	12.5			153	134		4950				3.08	2.574				41	41	53
	4.8	16	1.2	15.5			237	209		7536				1.91	2.217				57	57	78
	6.2	25	1.2	18.1			325	292		11286				1.2	1.393				76	80	105
	7.2	35	1.4	21.1			453	408		15531				0.868	1.007				94	97	130
	8.5	50	1.4	23.9			580	528		21033				0.641	0.744				116	120	161
	10.2	70	1.4	27.1			769	710		31062				0.443	0.514				148	172	204
	11.8	95	1.6	31.7			1072	993		41181				0.32	0.371				184	190	254
	13.2	120	1.6	34.7			1308	1222		52017				0.253	0.294				213	222	297
	14.8	150	1.8	39			1647	1538		63099				0.206	0.239				244	254	339
	16.4	185	2	43.1			1981	1846		81960				0.164	0.19				285	297	396
	18.6	240	2	48.9			2563	2395		104037				0.125	0.145				339	354	474
	20.6	300	2.4	54.5			3252	3047		130047				0.1	0.11				394	402	517
Four cores	3.8	10	1	13	456	434	204	179	13384	6600	10056	1.906	1.83	3.08	2.574	53	53	70	41	41	53
	4.8	16	1.2	16.2	721	687	316	280	21944	10048	16088	1.198	1.15	1.91	2.217	73	74	100	57	57	78
	6.2	25	1.2	19.6	1040	1001	433	390	33860	15048	25136	0.749	0.727	1.2	1.393	98	102	136	76	80	105
	7.2	35	1.4	22.7	1464	1410	604	546	46924	20708	35200	0.54	0.524	0.868	1.007	121	125	167	94	97	130
	8.5	50	1.4	25.9	1936	1876	773	706	66008	28044	50276	0.399	0.387	0.641	0.744	149	154	207	116	120	161
	10.2	70	1.4	30	2669	2601	1025	948	93844	41416	70384	0.276	0.268	0.443	0.514	189	196	262	148	172	204
	11.8	95	1.6	34.6	3761	3672	1429	1327	127036	54908	95520	0.199	0.193	0.32	0.371	237	245	328	184	190	254
	13.2	120	1.6	38	4692	4597	1744	1632	159644	69356	120656	0.158	0.153	0.253	0.294	274	285	383	213	222	297
	14.8	150	1.8	42.6	5903	5782	2197	2054	198020	84132	150824	0.128	0.124	0.206	0.239	316	327	437	244	254	339
	16.4	185	2	47.2	7065	6916	2641	2466	247684	106928	186012	0.1021	0.0991	0.164	0.19	367	382	505	285	297	396
	18.6	240	2	52.6	9210	9026	3418	3199	319292	138716	241316	0.0777	0.0754	0.125	0.145	439	458	612	339	354	474
	20.6	300	2.4	58.9	11770	11549	4335	4070	399152	173396	301644	0.0619	0.0601	0.1	0.11	504	517	710	394	402	517

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

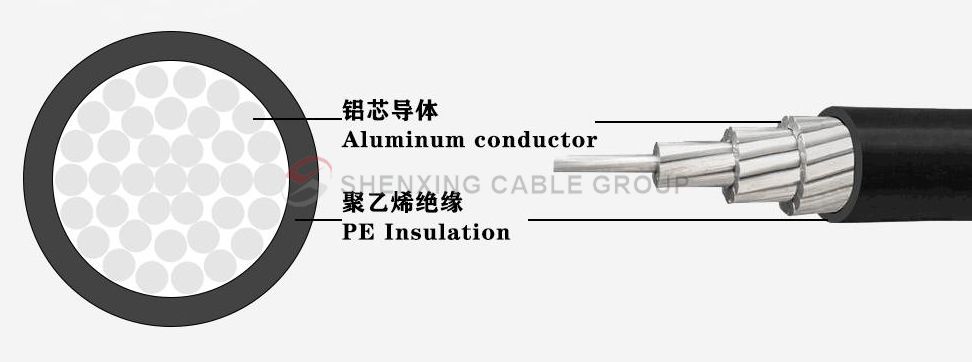

Cable Structure

Copper core polyethylene insulated overhead cable

Installation Guide

When installing aluminum core polyethylene insulated overhead cables, please pay attention to the following points:

1. Select the appropriate specifications and models according to actual needs;

2. Use special tools to tighten and fix to avoid damage caused by over-tightening or over-loosening;

3. The joints must be sealed and waterproofed to prevent moisture intrusion and affect the service life;

4. Regularly inspect and maintain, and replace defective parts in time to ensure the normal operation of the entire system.

Experimental Performance

Conductor material: steel core aluminum

Insulation material: cross-linked polyethylene (XLPE)

Rated voltage: 10kV

Maximum operating temperature 90℃

Conductor maximum temperature 250℃ during short circuit (no more than 5 seconds)

Laying temperature not less than -20℃

Standard certification: IEC, BS, GB

Minimum bending radius:

When the outer diameter is less than 25mm: 4D

When the outer diameter is greater than or equal to 25mm: 6D

Test voltage:

Rated voltage is 10kV, withstand 18kV (12kV for light type) for 1 minute.

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More

Automobile Production Line Automation Transformation

Shenxing Cable Helps Automakers Achieve a 20% Increase in Production Efficiency Read More

Cable use Cases in Crude Oil Depots

A large crude oil depot is located in the coastal area of my country and undertakes the important task of crude oil storage and transshipment. The crude oil depot not only has a large group of storage tanks, but also complex transmission pipelines and supporting equipment. Read More

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Power Cables Help Upgrade Smart Grids

In order to realize intelligent management of the power grid, improve power supply reliability and reduce energy loss, a coastal city decided to comprehensively upgrade the original power grid. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the applicable occasions for aluminum core polyethylene insulated overhead cables?

Aluminum core polyethylene insulated overhead cables are suitable for overhead power lines with AC rated voltage of 35KV and below, especially in places with high safety requirements such as towns, high-rise buildings and forest areas.

What is the operating temperature limit of aluminum core polyethylene insulated overhead cables?

The long-term operating temperature of the cable, polyvinyl chloride (PVC) and polyethylene (PE) insulation should not exceed 70℃. In the case of short circuit (long duration not exceeding 5 seconds), the maximum temperature of the cable conductor shall not exceed 250℃ (cross-linked polyethylene insulation). The cable laying temperature should not be lower than -20℃.

Will the insulation layer of aluminum core polyethylene insulated overhead cables age or corrode?

Yes, the insulation layer may age or corrode due to environmental pollution, acid rain and other factors. In particular, rainwater in chemical areas may be acidic and produce an oxidation reaction with aluminum to form white powder. This type of oxide will accelerate the corrosion of the wire under the action of the electric field, reduce the strength of the wire, cause the insulation layer to swell, and even cause wire breakage.

What safety issues should be paid attention to during the installation and use of aluminum core polyethylene insulated overhead cables?

During installation and use, the following safety issues should be paid attention to:

Strictly follow the design and acceptance of regulations to ensure that the waterproof sealing work is in place to prevent water ingress and lead to corrosion of the wires.

Use special hardware for insulated wires, such as insulated wire tension clamps, puncture clamps, etc., to avoid damage to the insulation layer.

When laying cables, it should be considered that the cables and trees are kept at a certain distance to avoid frequent contact and wear of the insulation layer.

Strengthen operation monitoring, and immediately organize random inspections and treatment when abnormal phenomena such as bulging of wires are found.

What are the main causes of wire disconnection accidents of aluminum core polyethylene insulated overhead cables?

Wire disconnection accidents are mainly caused by the following reasons:

Wire breakage and falling off caused by lightning strikes.

Reduced wire strength caused by aging or corrosion of the insulation layer.

Wire damage caused by improper operation during installation and use.

How to prevent wire disconnection accidents of aluminum core polyethylene insulated overhead cables?

To prevent line disconnection accidents, the following measures can be taken:

Strengthen lightning protection of transmission lines, such as installing lightning protection devices and extending insulation creepage distance.

Develop and use water-blocking overhead insulated wires to prevent moisture from entering the wires and causing corrosion.

Strictly follow the regulations for design and acceptance to ensure installation quality.

Strengthen operation monitoring and maintenance, and promptly discover and deal with abnormal phenomena such as wire bulging.
