Low voltage YJHLV82 power cable | Cast XLPE insulation aluminum alloy interlocking armored PVC sheath

The production of aluminum alloy cables needs to strictly comply with relevant international and domestic standards, such as ASTM (American Society for Testing and Materials), IEC (International Electrotechnical Commission), BSEN (British Standard), DIN (German Standard), GB/T (Chinese National Standard), etc.

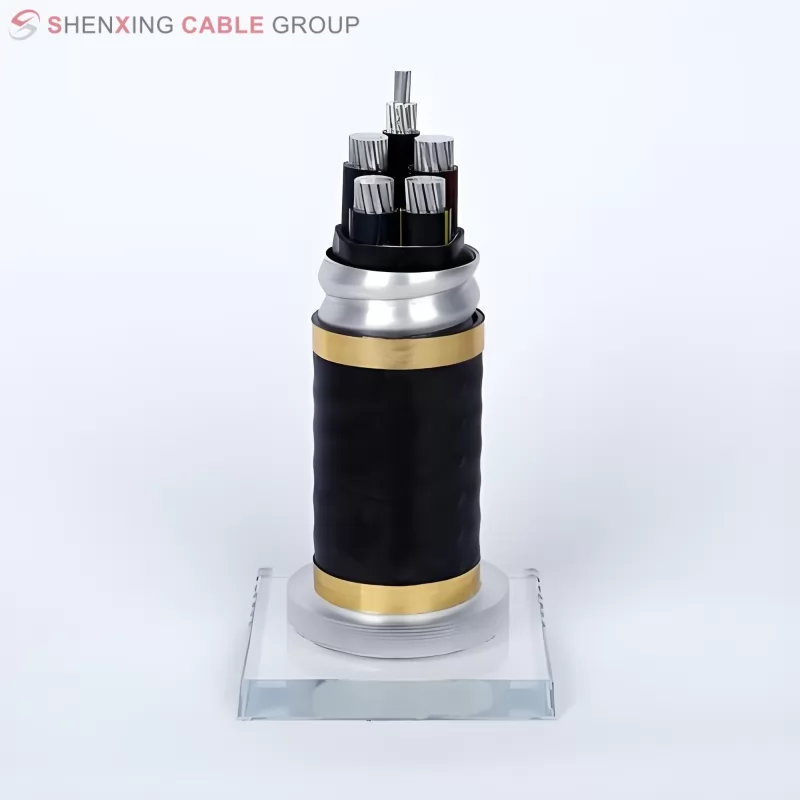

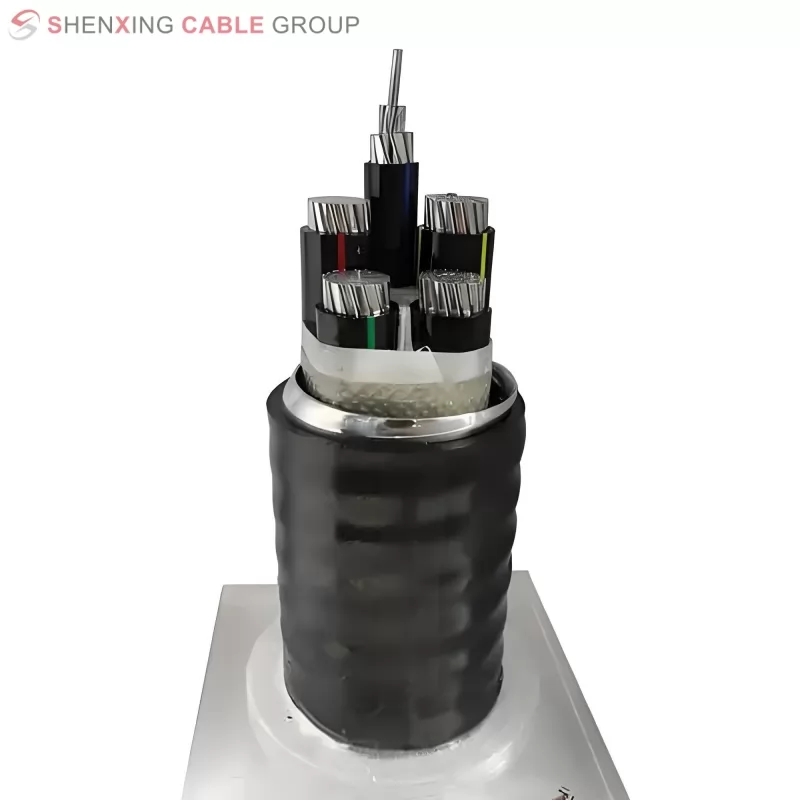

0.6/1kV Aluminum Alloy Conductor XLPE Insulated Aluminum Alloy Interlocking Armored PVC Sheathed Power Cable

Application areas:

Civil buildings: Its light weight and easy installation can reduce construction difficulty and cost while meeting the power transmission needs inside the building.

Industrial field: Aluminum alloy cables can provide reliable power supply for various industrial equipment, and their good corrosion resistance and mechanical properties enable them to adapt to harsh industrial environments.

Transportation facilities: Aluminum alloy has better corrosion resistance than copper. Therefore, it is widely used in the power systems of transportation infrastructure such as railways, subways, airports, and bridges.

New energy field: In new energy projects such as solar power generation and wind power generation, aluminum alloy cables can be used for power transmission between photovoltaic panels, wind turbines and other equipment and substations.

5.Municipal Engineering: It can be used for power wiring of municipal facilities such as urban road lighting, underground pipe corridors, municipal squares, etc., to provide power guarantee for the normal operation of the city.

0.6/1kV Aluminum Alloy Conductor XLPE Insulated Aluminum Alloy Interlocking Armored PVC Sheathed Power Cable

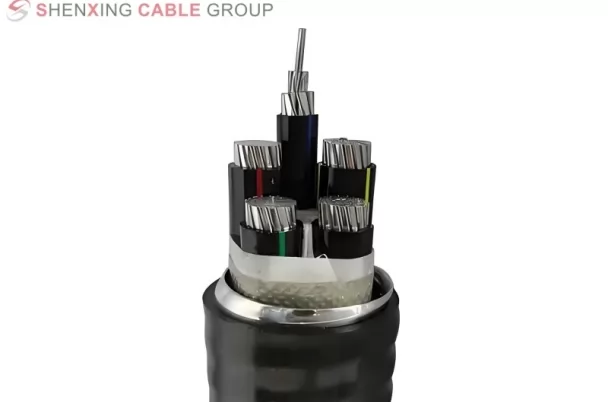

Armoring structure (optional):

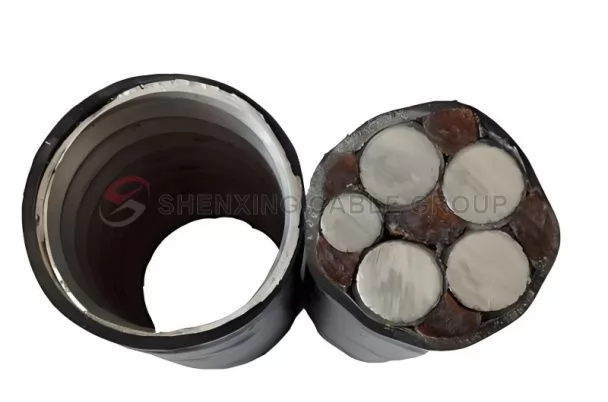

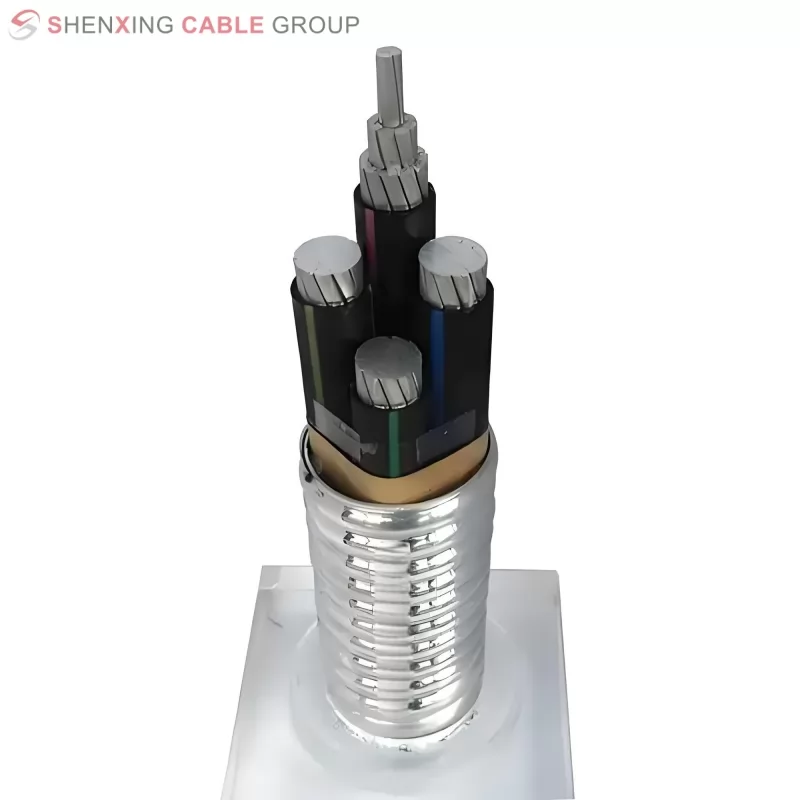

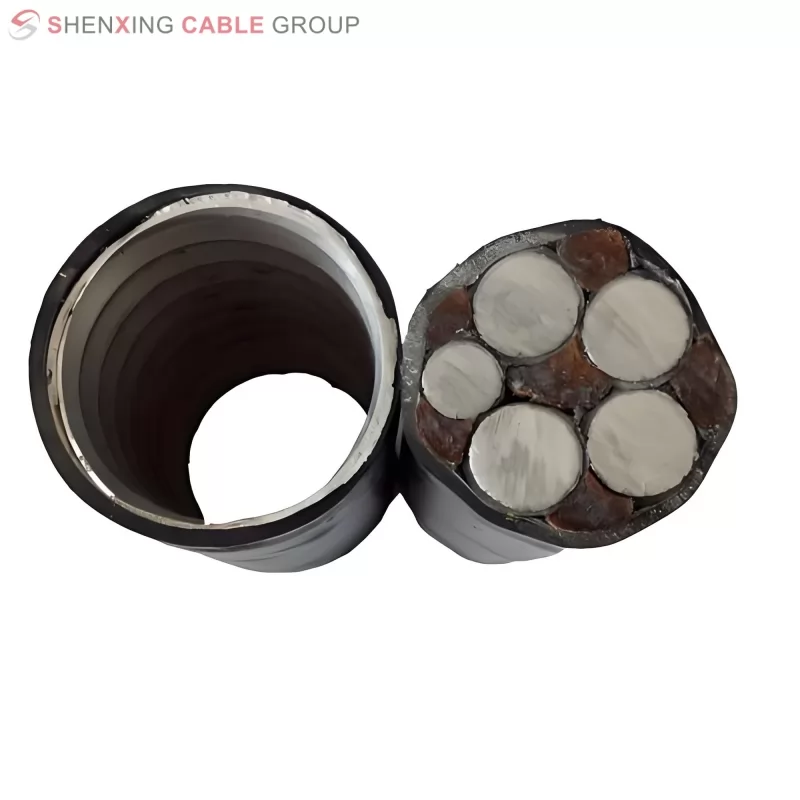

Some aluminum alloy cables have an armoring structure. The common armoring method is aluminum alloy interlocked armor. This armoring structure can enhance the mechanical strength of the cable and improve the cable's resistance to external forces. Even when subjected to large pressures and impacts, the cable is not easily punctured.

The armor layer can also play a certain shielding role, reducing the interference of external electromagnetic signals on the internal signals of the cable and improving the signal transmission quality of the cable.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Cable Outer Diameter	Weight
Number of Cores	(mm)	(mm²)	(mm)	(Ω/km)	(A)	(mm)	(mm)	(kg/km)
Single Core	2.3	4	0.7	7.41	61/44	1.4	6.4	63
	2.8	6	0.7	4.61	79/57	1.4	7.9	70
	3.6	10	0.7	3.08	100/75	1.4	8.3	95
	4.5	16	0.7	1.91	135/99	1.4	9.3	122
	6	25	0.9	1.2	170/125	1.5	11.2	176
	7	35	0.9	0.868	205/155	1.5	12.4	212
	8.3	50	1	0.641	245/190	1.6	14.1	279
	9.8	70	1.1	0.443	305/240	1.6	16.1	363
	11.5	95	1.1	0.32	370/290	1.7	18.2	467
	12.9	120	1.2	0.253	420/340	1.7	20.5	566
	14.5	150	1.4	0.206	475/390	1.7	22	678
	16	185	1.6	0.164	540/450	1.7	24.2	813
	18.3	240	1.7	0.125	630/535	1.7	27.1	1018
	20.5	300	1.8	0.1	710/615	1.7	29.1	1232
Two Cores	1.8	2.5	0.7	12.1	32/25	1.8	10.8	96
	2.3	4	0.7	7.41	45/32	1.8	11.7	115
	2.8	6	0.7	4.61	50/42	1.8	12.7	139
	3.6	10	0.7	3.08	70/55	1.8	15.3	196
	4.5	16	0.7	1.91	90/75	1.8	17.4	358
	6	25	0.9	1.2	120/100	1.8	20.8	369
	7	35	0.9	0.868	140/130	1.8	23.1	461
	8.3	50	1	0.641	160/150	1.8	26.2	589
	9.8	70	1.1	0.443	200/190	1.8	30.6	797
	11.5	95	1.1	0.32	230/240	2	34.8	2052
	12.9	120	1.2	0.253	260/290	2.1	38.6	1299
	14.5	150	1.4	0.206	300/330	2.2	42.7	1589
	16	185	1.6	0.164	340/370	2.3	47.5	1945
	18.3	240	1.7	0.125	400/440	2.5	53.5	2532
	20.5	300	1.8	0.1	510/560	2.7	59.2	3037
Three Cores	1.8	2.5	0.7	12.1	27/20	1.8	11.3	111
	2.3	4	0.7	7.41	36/27	1.8	12.2	136
	2.8	6	0.7	4.61	46/35	1.8	13.4	167
	3.6	10	0.7	3.08	59/47	1.8	16.1	238
	4.5	16	0.7	1.91	80/64	1.8	4.18	318
	6	25	0.9	1.2	100/82	1.8	22.1	464
	7	35	0.9	0.868	120/100	1.8	24.6	584
	8.3	50	1	0.641	145/125	1.8	27.9	752
	9.8	70	1.1	0.443	175/155	1.9	32.8	1041
	11.5	95	1.1	0.32	210/200	2	37.1	1359
	12.9	120	1.2	0.253	245/220	2.1	41.2	1684
	14.5	150	1.4	0.206	270/250	2.3	45.8	2084
	16	185	1.6	0.164	305/295	2.4	50.9	2561
	18.3	240	1.7	0.125	355/345	2.6	57.4	3284
	20.5	300	1.8	0.1	400/395	2.8	63.4	4049
Four Cores	1.8	2.5	0.7	12.1	27/20	1.8	12.1	132
	2.3	4	0.7	7.41	36/27	1.8	13.2	162
	2.8	6	0.7	4.61	46/35	1.8	14.5	202
	3.6	10	0.7	3.08	59/47	1.8	17.6	291
	4.5	16	0.7	1.91	80/64	1.8	20.1	392
	6	25	0.9	1.2	100/82	1.8	24.3	578
	7	35	0.9	0.868	120/100	1.8	27.1	732
	8.3	50	1	0.641	145/125	1.8	31	961
	9.8	70	1.1	0.443	175/155	1.9	36.4	1331
	11.5	95	1.1	0.32	210/200	2	41.2	1740
	12.9	120	1.2	0.253	245/220	2.1	46	2178
	14.5	150	1.4	0.206	270/250	2.3	50.9	2669
	16	185	1.6	0.164	305/295	2.4	56.8	3310
	18.3	240	1.7	0.125	355/345	2.6	64	4242
	20.5	300	1.8	0.1	400/395
Five Cores	1.8	2.5	0.8	12.1	27/20	1.8	13	153
	2.3	4	1	7.41	36/27	1.8	14.2	190
	2.8	6	1	4.61	46/35	1.8	15.6	238
	3.6	10	1	3.08	59/47	1.8	19.1	346
	4.5	16	1	1.91	80/64	1.8	22	470
	6	25	1.2	1.2	100/82	1.8	26.6	697
	7	35	1.2	0.868	120/100	1.8	29.7	887
	8.3	50	1.4	0.641	145/125	2	34.2	1183
	9.8	70	1.4	0.443	175/155	2.1	40.2	1683
	11.5	95	1.6	0.32	210/200	2.3	45.8	2163
	12.9	120	1.6	0.253	245/220	2.4	50.8	2681
	14.5	150	1.8	0.206	270/250	2.6	56.5	3312
	16	185	2	0.164	305/295	2.8	63.1	4104
	18.3	240	2.2	0.125	355/345	3	71.1	5257
	20.5	300	2.4	0.1	400/395	3.2	78.6	6476

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

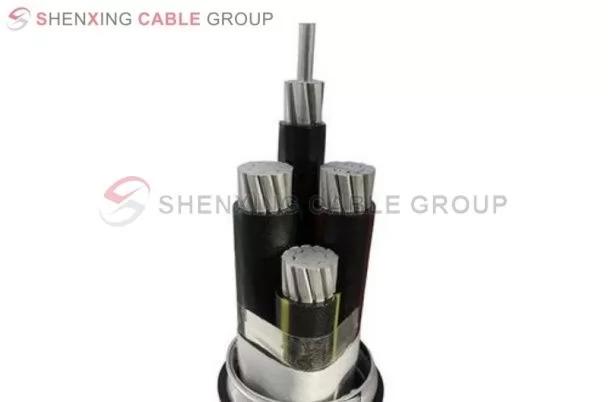

Cable Structure

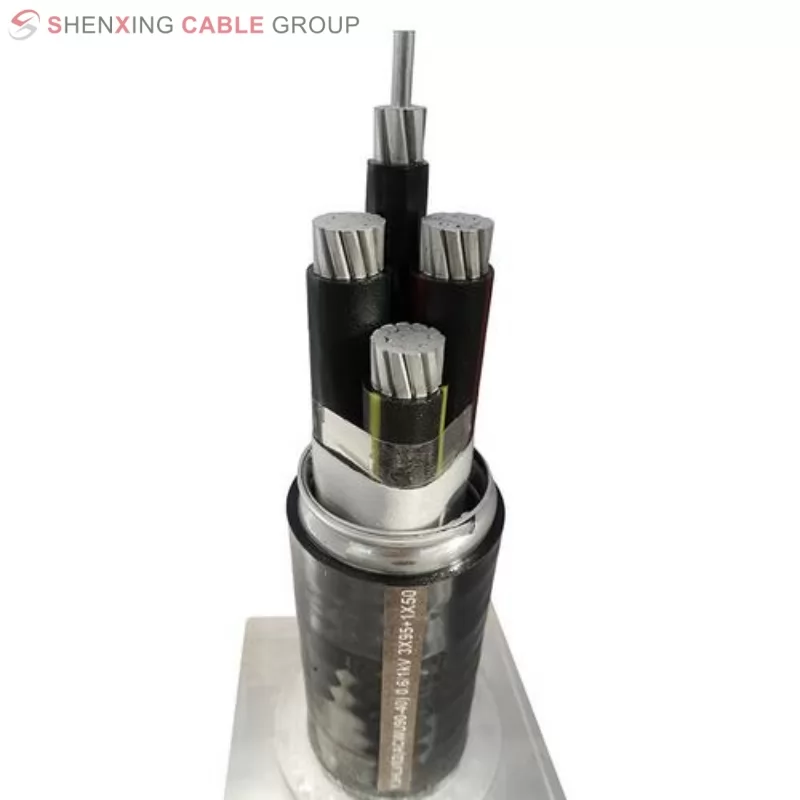

0.6/1kV Aluminum Alloy Conductor XLPE Insulated Aluminum Alloy Interlocking Armored PVC Sheathed Power Cable

LV, HL, XLPE/ PVC /aluminum alloy interlocked armor

Features

0.6/1kV Aluminum Alloy Conductor XLPE Insulated Aluminum Alloy Interlocking Armored PVC Sheathed Power Cable

Features

Performance Characteristics：

Excellent conductivity: The current carrying capacity can meet the needs of most power transmission. In some cost-sensitive projects, aluminum alloy cables have a higher cost-effectiveness.

Good mechanical properties: The elongation of aluminum alloy conductors is increased by about 30%, which enables them to withstand greater tension without breaking easily, facilitating the laying and installation of cables.

Good flexibility: The bending radius is only 7 times the outer diameter of the cable, which is convenient for various narrow spaces or complex wiring environments.

Low elasticity: It is not easy to rebound after being subjected to external force, maintaining good shape stability, which is conducive to the connection and fixation of cables.

Excellent corrosion resistance: The addition of chemical elements such as rare earth improves the electrochemical corrosion resistance of aluminum alloys, solving the problem of electrochemical corrosion at the joints of pure aluminum after long-term use.

Usage Characteristics

Usage characteristics:

Suitable for 600V-35KV voltage level, suitable for dry or humid places below 90℃, can be installed indoors or outdoors, can be installed vertically, can be installed on brackets or along walls, or can be directly buried underground;

The minimum bending radius is 7 times the outer diameter, and it can also be bent 360 degrees;

Suitable for environments without mechanical damage, such as civil, office buildings, schools, hotels, commercial, shopping centers, factories and large venues.

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Shenxing Cable: Providing Reliable Arteries for High-Speed Trains

As an important part of modern transportation, high-speed trains have extremely strict requirements on cable performance. Read More

Application Case of Shenxing Cable in Data Center Room

Located on the edge of the city, a large data center room is the core data processing center for many enterprises and government agencies. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

New Energy Power Plant Grid-Connected Cable Solution Case

A large photovoltaic power plant was newly built in a certain place. Since the power plant is located in a remote area and is exposed to the sun for a long time, it places extremely high requirements on the performance of the cables connecting the photovoltaic modules and inverters. Read More

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More
