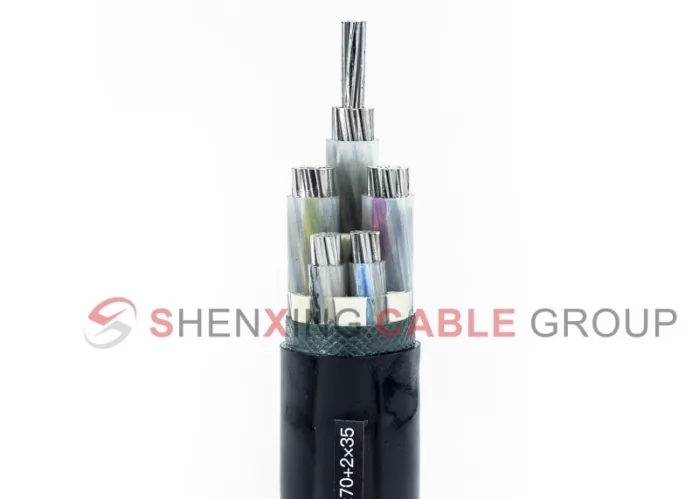

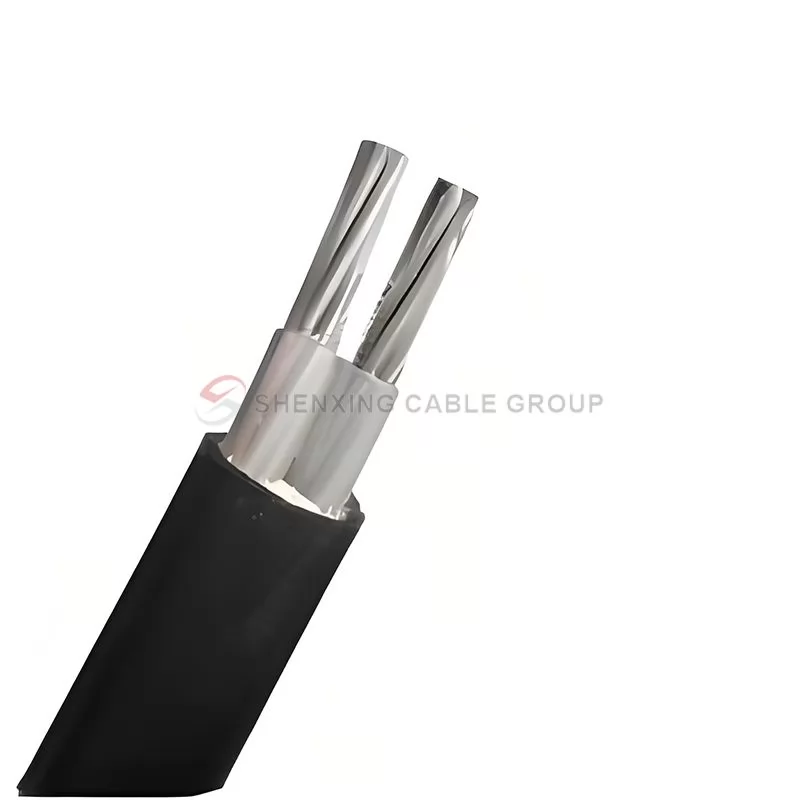

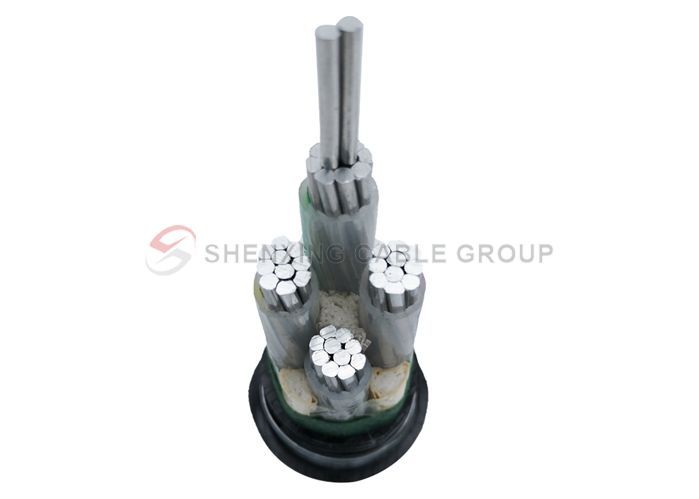

Aluminum Core Cross-Linked Polyethylene Insulated PVC Sheathed Power Cable

Conductor:

High purity electrolytic aluminum

Low cost

Light weight

Easy to construct

Widely Use:

Power system: especially suitable for medium and long distance power transmission.

Construction engineering: light weight and easy installation, reducing building load.

Industrial enterprise: strong corrosion resistance, suitable for harsh environment.

Transportation: light weight, reducing vehicle load.

Advantage:

Lightweight: The density of aluminum core is lower than that of copper, which reduces the weight of the cable and facilitates transportation and installation.

Economic and environmentally friendly: Aluminum resources are abundant, the price is relatively low, and it can be recycled.

Corrosion resistance: Both the aluminum core and the PVC sheath have good corrosion resistance and are suitable for humid environments.

Long service life: Excellent electrical and mechanical properties ensure long-term safe and reliable operation of the cable.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Cable Outer Diameter	Weight
Number of Cores	(mm)	(mm²)	(mm)	(Ω/km)	(A)	(mm)	(mm)	(kg/km)
Single Core	2.3	4	0.7	7.41	61/44	1.4	6.4	63
	2.8	6	0.7	4.61	79/57	1.4	7.9	70
	3.6	10	0.7	3.08	100/75	1.4	8.3	95
	4.5	16	0.7	1.91	135/99	1.4	9.3	122
	6	25	0.9	1.2	170/125	1.5	11.2	176
	7	35	0.9	0.868	205/155	1.5	12.4	212
	8.3	50	1	0.641	245/190	1.6	14.1	279
	9.8	70	1.1	0.443	305/240	1.6	16.1	363
	11.5	95	1.1	0.32	370/290	1.7	18.2	467
	12.9	120	1.2	0.253	420/340	1.7	20.5	566
	14.5	150	1.4	0.206	475/390	1.7	22	678
	16	185	1.6	0.164	540/450	1.7	24.2	813
	18.3	240	1.7	0.125	630/535	1.7	27.1	1018
	20.5	300	1.8	0.1	710/615	1.7	29.1	1232
Two Cores	1.8	2.5	0.7	12.1	32/25	1.8	10.8	96
	2.3	4	0.7	7.41	45/32	1.8	11.7	115
	2.8	6	0.7	4.61	50/42	1.8	12.7	139
	3.6	10	0.7	3.08	70/55	1.8	15.3	196
	4.5	16	0.7	1.91	90/75	1.8	17.4	358
	6	25	0.9	1.2	120/100	1.8	20.8	369
	7	35	0.9	0.868	140/130	1.8	23.1	461
	8.3	50	1	0.641	160/150	1.8	26.2	589
	9.8	70	1.1	0.443	200/190	1.8	30.6	797
	11.5	95	1.1	0.32	230/240	2	34.8	2052
	12.9	120	1.2	0.253	260/290	2.1	38.6	1299
	14.5	150	1.4	0.206	300/330	2.2	42.7	1589
	16	185	1.6	0.164	340/370	2.3	47.5	1945
	18.3	240	1.7	0.125	400/440	2.5	53.5	2532
	20.5	300	1.8	0.1	510/560	2.7	59.2	3037
Three Cores	1.8	2.5	0.7	12.1	27/20	1.8	11.3	111
	2.3	4	0.7	7.41	36/27	1.8	12.2	136
	2.8	6	0.7	4.61	46/35	1.8	13.4	167
	3.6	10	0.7	3.08	59/47	1.8	16.1	238
	4.5	16	0.7	1.91	80/64	1.8	4.18	318
	6	25	0.9	1.2	100/82	1.8	22.1	464
	7	35	0.9	0.868	120/100	1.8	24.6	584
	8.3	50	1	0.641	145/125	1.8	27.9	752
	9.8	70	1.1	0.443	175/155	1.9	32.8	1041
	11.5	95	1.1	0.32	210/200	2	37.1	1359
	12.9	120	1.2	0.253	245/220	2.1	41.2	1684
	14.5	150	1.4	0.206	270/250	2.3	45.8	2084
	16	185	1.6	0.164	305/295	2.4	50.9	2561
	18.3	240	1.7	0.125	355/345	2.6	57.4	3284
	20.5	300	1.8	0.1	400/395	2.8	63.4	4049
Four Cores	1.8	2.5	0.7	12.1	27/20	1.8	12.1	132
	2.3	4	0.7	7.41	36/27	1.8	13.2	162
	2.8	6	0.7	4.61	46/35	1.8	14.5	202
	3.6	10	0.7	3.08	59/47	1.8	17.6	291
	4.5	16	0.7	1.91	80/64	1.8	20.1	392
	6	25	0.9	1.2	100/82	1.8	24.3	578
	7	35	0.9	0.868	120/100	1.8	27.1	732
	8.3	50	1	0.641	145/125	1.8	31	961
	9.8	70	1.1	0.443	175/155	1.9	36.4	1331
	11.5	95	1.1	0.32	210/200	2	41.2	1740
	12.9	120	1.2	0.253	245/220	2.1	46	2178
	14.5	150	1.4	0.206	270/250	2.3	50.9	2669
	16	185	1.6	0.164	305/295	2.4	56.8	3310
	18.3	240	1.7	0.125	355/345	2.6	64	4242
	20.5	300	1.8	0.1	400/395
Five Cores	1.8	2.5	0.8	12.1	27/20	1.8	13	153
	2.3	4	1	7.41	36/27	1.8	14.2	190
	2.8	6	1	4.61	46/35	1.8	15.6	238
	3.6	10	1	3.08	59/47	1.8	19.1	346
	4.5	16	1	1.91	80/64	1.8	22	470
	6	25	1.2	1.2	100/82	1.8	26.6	697
	7	35	1.2	0.868	120/100	1.8	29.7	887
	8.3	50	1.4	0.641	145/125	2	34.2	1183
	9.8	70	1.4	0.443	175/155	2.1	40.2	1683
	11.5	95	1.6	0.32	210/200	2.3	45.8	2163
	12.9	120	1.6	0.253	245/220	2.4	50.8	2681
	14.5	150	1.8	0.206	270/250	2.6	56.5	3312
	16	185	2	0.164	305/295	2.8	63.1	4104
	18.3	240	2.2	0.125	355/345	3	71.1	5257
	20.5	300	2.4	0.1	400/395	3.2	78.6	6476

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

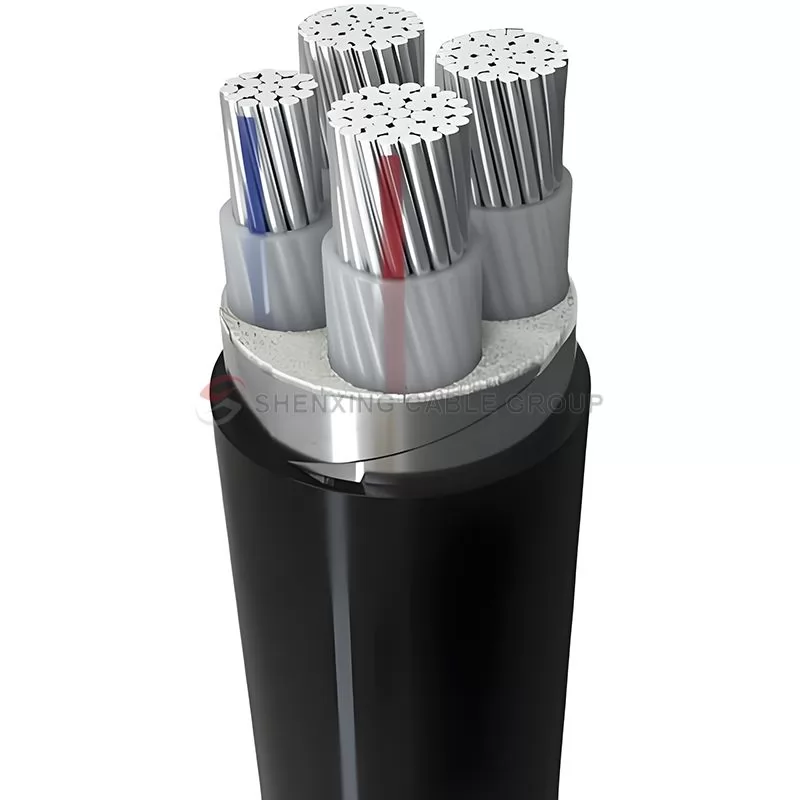

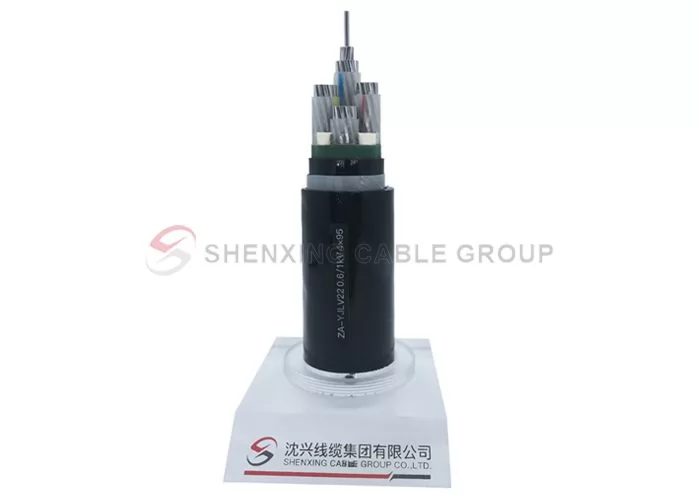

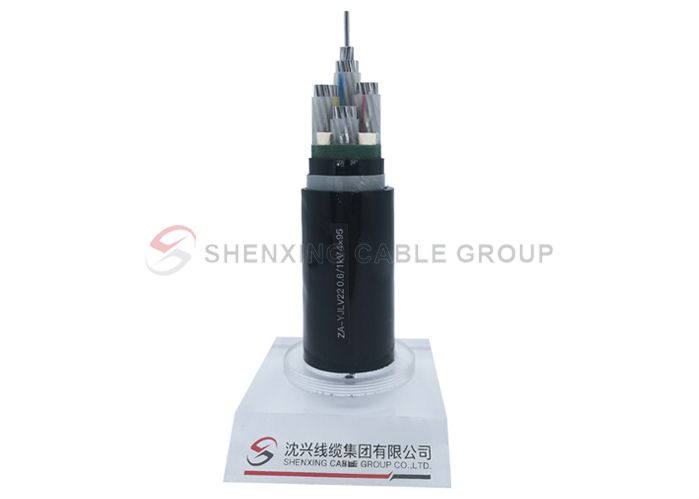

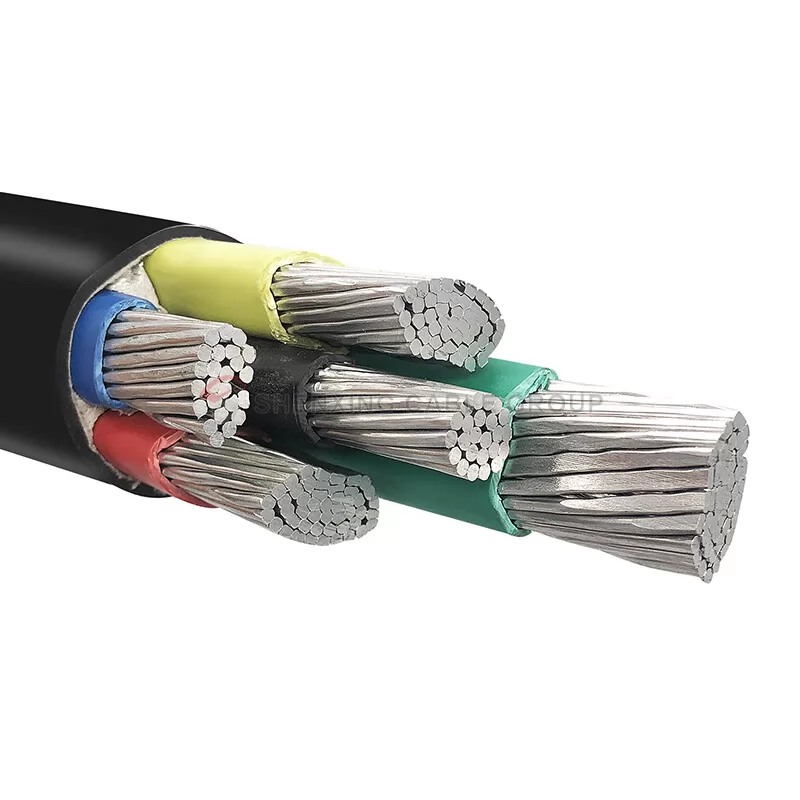

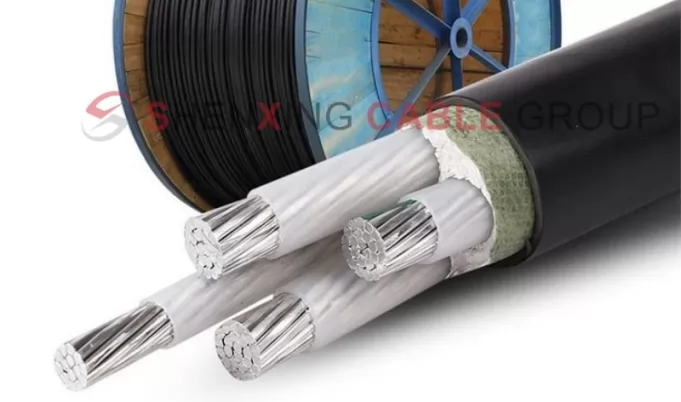

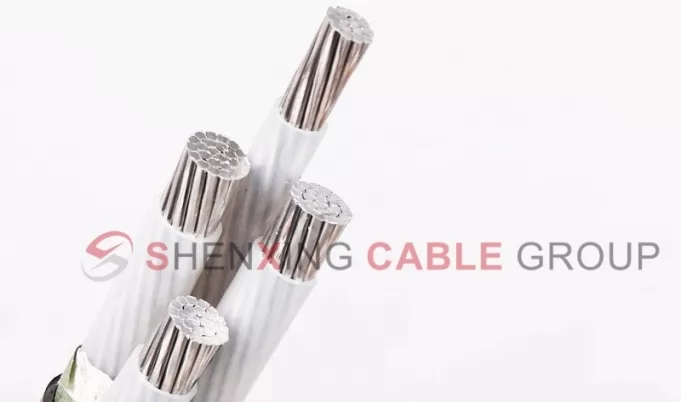

Cable Structure

0.6-1kv Aluminum Core XLPE Insulated PVC Sheathed Power Cable

Aluminum Core Cross-Linked Polyethylene Insulated PVC Sheathed Power Cable

Features

Lightweight design: The density of aluminum is lower than that of copper, which reduces the weight of the cable, facilitates transportation and installation, and reduces construction costs.

Excellent electrical performance: The high-purity electrolytic aluminum conductor ensures excellent conductivity, and the cross-linked polyethylene insulation layer provides reliable insulation protection.

Strong corrosion resistance: Both the aluminum core and the polyvinyl chloride sheath have good corrosion resistance and are suitable for various complex environments.

Safety and environmental protection: Low-smoke halogen-free materials are used, with excellent flame retardant properties to ensure the safety of personnel and equipment.

Usage Characteristics

The maximum rated operating temperature of the conductor is 90℃

The maximum short-circuit temperature of the conductor shall not exceed 250℃

The maximum time shall not exceed 5 seconds

The installation and laying temperature of the cable shall not be lower than 0℃

The laying temperature in the air shall be 40℃

The laying temperature in the soil shall be 25℃.

Minimum bending radius (D is the outer diameter of the cable)

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%
