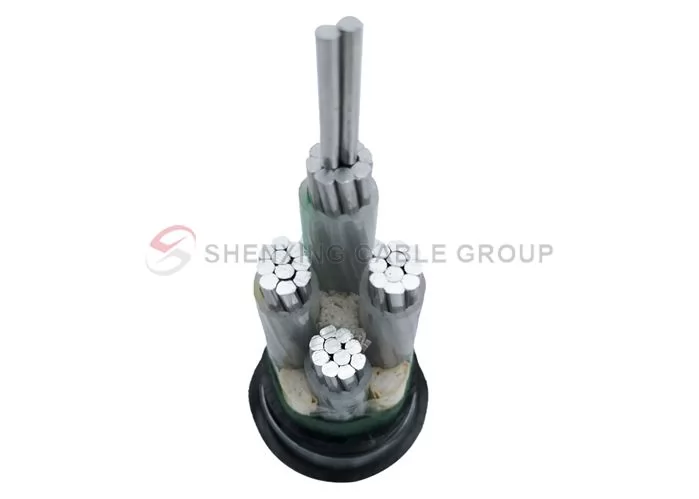

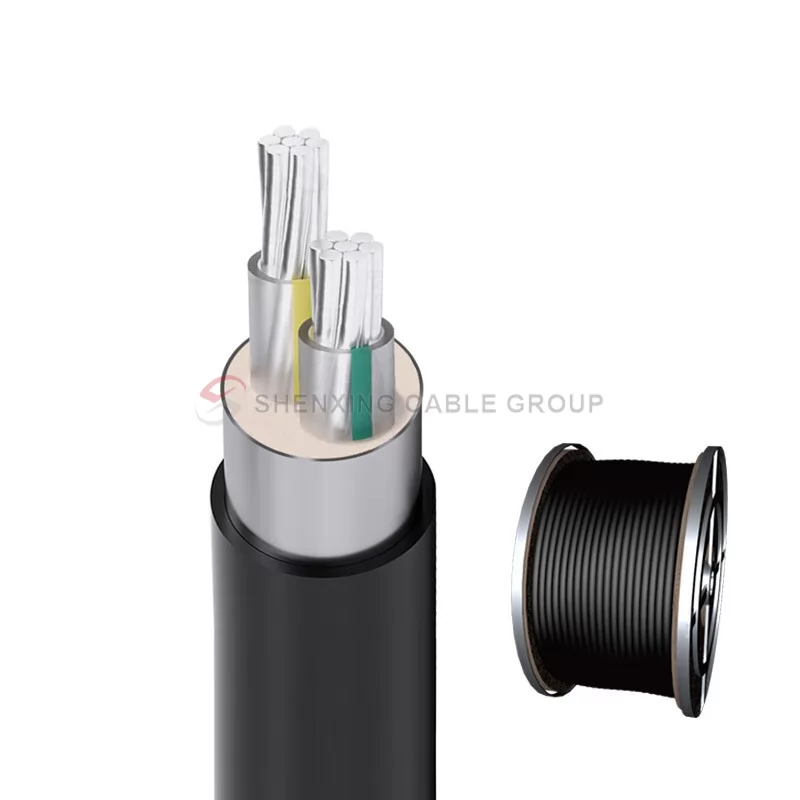

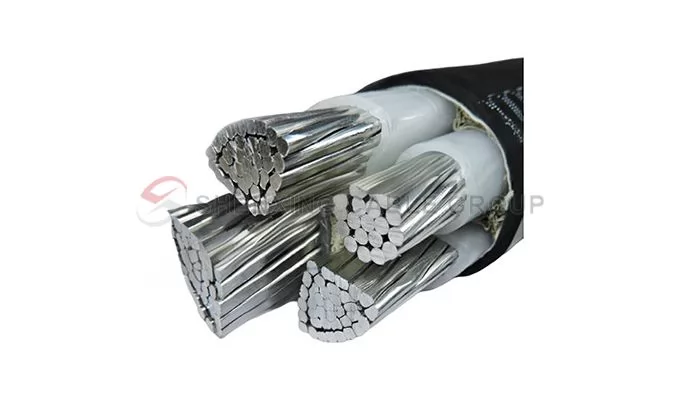

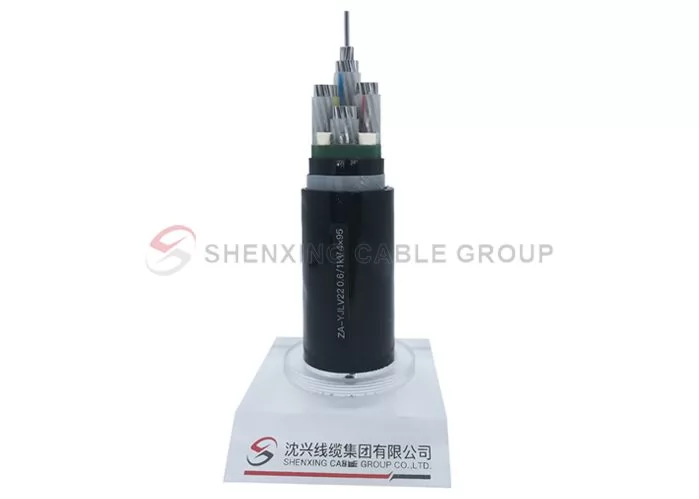

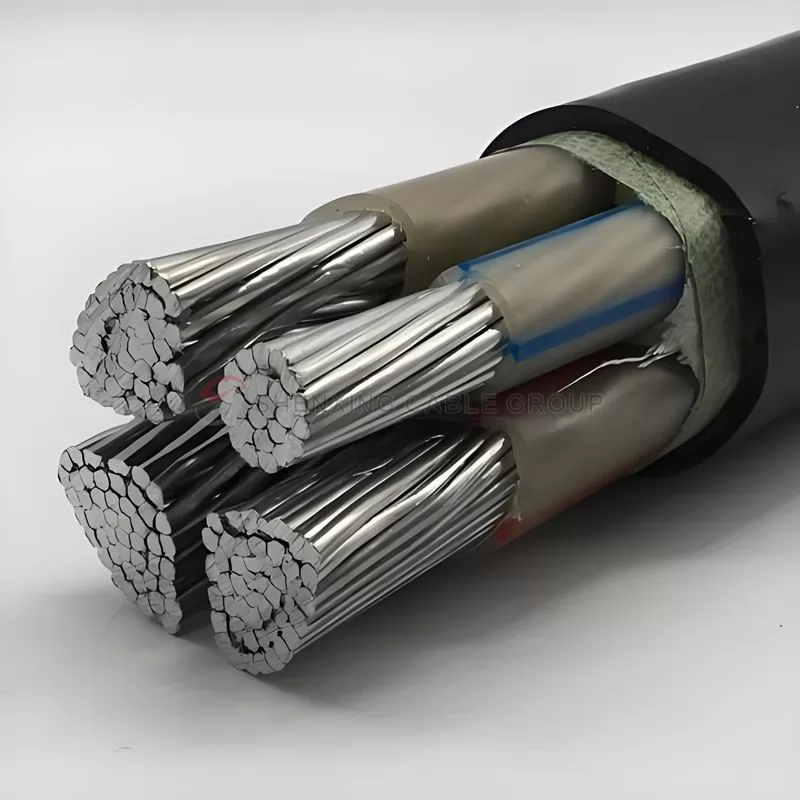

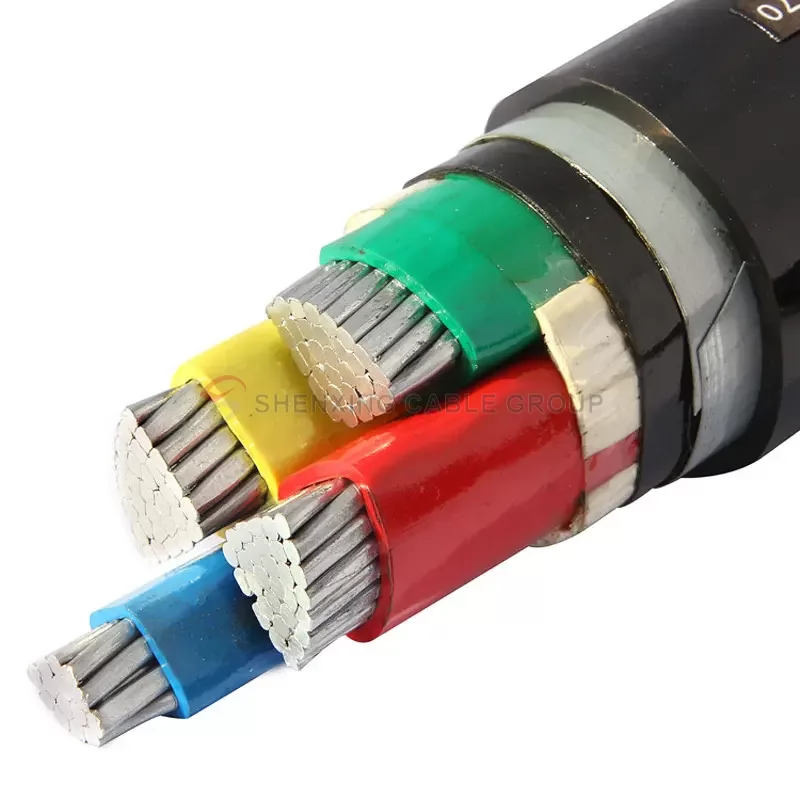

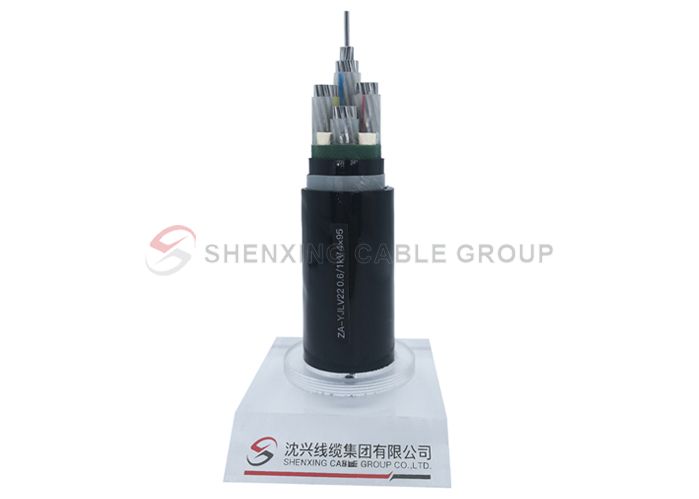

Aluminum Core PVC Insulated PVC Sheathed Power Cable

International Product Name

DIN standard) Alu-Leiter PVC-isolierte PVC-Ummantelte Stromkabel, EN standard) PVC Isolated Aluminum Conductor Power Cable, Aluminum Core PVC Insulated PVC Sheathed Cable, IEC standard) Aluminum Conductor PVC Insulated Power Cable, ISO) Aluminum Core Power Cable with PVC Insulation,

Experimental Requirements

Working temperature: Normal working temperature can reach 90℃

Short circuit temperature: Can withstand up to 250℃ in short circuit state, and the duration does not exceed 5 seconds

Installation temperature: The installation temperature should not be lower than 0℃

Voltage level: Suitable for low voltage to medium voltage cables (1kV to 35kV, depending on the design)

Compliance with standards: Comply with international standards such as IEC, BS, EN, etc.

Advantage:

Reduce installation costs: Lightweight design reduces transportation and installation costs, suitable for large projects.

Strong durability: The combination of PVC sheath and aluminum core makes the cable have excellent wear resistance, which can be used reliably for a long time in both indoor and outdoor environments.

Safety guarantee: Excellent insulation performance and flame-retardant PVC material provide safety guarantee for various electrical installations.

Environmentally friendly choice: Aluminum is easy to recycle and is suitable for environmentally conscious construction and power distribution projects.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Resistance	Sheath Thickness	Cable Outer Diameter	Weight
Number of Cores	（mm）	（mm²）	（mm）	（Ω/km）	（Ω/km）	(mm)	(mm)	(kg/km)
Single Core	1.8	2.5	0.8	12.1	27/19	1.4	6.2	55
	2.3	4	1	7.41	35/26	1.4	7	71
	2.8	6	1	4.61	46/34	1.4	7.6	83
	3.6	10	1	3.08	58/44	1.4	8.9	111
	4.5	16	1	1.91	76/59	1.4	9.9	141
	6	25	1.2	1.2	98/76	1.5	11.8	201
	7	35	1.2	0.868	115/90	1.5	13	244
	8.3	50	1.4	0.641	140/110	1.6	14.9	319
	9.8	70	1.4	0.443	170/140	1.6	16.7	407
	11.5	95	1.6	0.32	205/175	1.7	19.2	540
	12.9	120	1.6	0.253	235/200	1.7	20.8	636
	14.5	150	1.8	0.206	265/230	1.7	22.8	761
	16	185	2	0.164	300/270	1.7	25	913
	18.3	240	2.2	0.125	350/320	1.7	28.1	1149
Two Cores	20.5	300	2.4	0.1	395/370	1.7	30.9	1397
	1.8	2.5	0.8	12.1	26/18	1.8	11.2	107
	2.3	4	1	7.41	35/24	1.8	12.9	143
	2.8	6	1	4.61	45/32	1.8	13.9	170
	3.6	10	1	3.08	59/42	1.8	16.5	236
	4.5	16	1	1.91	77/55	1.8	18.6	304
	6	25	1.2	1.2	100/70	1.8	22	429
	7	35	1.2	0.868	120/86	1.8	24.3	529
	8.3	50	1.4	0.641	145/105	1.8	27.8	687
	9.8	70	1.4	0.443	175/130	1.9	32	912
	11.5	95	1.6	0.32	210/165	2	36.8	1215
	12.9	120	1.6	0.253	245/190	2.1	40.2	1461
	14.5	150	1.8	0.206	275/215	2.2	44.3	1778
	16	185	2	0.164	310/250	2.4	49.3	2193
	18.3	240	2.2	0.125	350/295	2.6	55.7	2816
Three Cores	1.8	2.5	0.8	12.1	23/15	1.8	11.8	139
	2.3	4	1	7.41	30/20	1.8	13.7	189
	2.8	6	1	4.61	39/26	1.8	14.8	227
	3.6	10	1	3.08	50/35	1.8	17.6	290
	4.5	16	1	1.91	65/47	1.8	19.8	419
	6	25	1.2	1.2	84/60	1.8	23.6	596
	7	35	1.2	0.868	100/74	1.8	26.1	745
	8.3	50	1.4	0.641	120/90	1.8	26.5	834
	9.8	70	1.4	0.443	150/115	1.9	28.8	1061
	11.5	95	1.6	0.32	185/140	2.1	33.7	1418
	12.9	120	1.6	0.253	205/165	2.2	37.1	1716
	14.5	150	1.8	0.206	230/190	2.3	41.9	2127
	16	185	2	0.164	260/215	2.5	45.9	2602
	18.3	240	2.2	0.125	300/260	2.7	51.7	3308
	20.5	300	2.4	0.1	340/295
Four Cores	1.8	2.5	0.8	12.1	23/15	1.8	12.6	149
	2.3	4	1	7.41	30/20	1.8	14.7	206
	2.8	6	1	4.61	39/26	1.8	15.9	251
	3.6	10	1	3.08	50/35	1.8	19	356
	4.5	16	1	1.91	65/47	1.8	21.6	469
	6	25	1.2	1.2	84/60	1.8	25.7	678
	7	35	1.2	0.868	100/74	1.8	28.5	847
	8.3	50	1.4	0.641	120/90	1.9	32.9	1129
	9.8	70	1.4	0.443	150/115	2.1	38.1	1532
	11.5	95	1.6	0.32	185/140	2.2	43.8	2053
	12.9	120	1.6	0.253	205/165	2.4	48.1	2494
	14.5	150	1.8	0.206	230/190	2.5	53	3041
	16	185	2	0.164	260/215	2.7	59	3752
	18.3	240	2.2	0.125	300/260	2.9	61.9	4832
	20.5	300	2.4	0.1	340/295
Five Cores	1.8	2.5	0.8	12.1	23/15	1.8	13.5	174
	2.3	4	1	7.41	30/20	1.8	15.8	244
	2.8	6	1	4.61	39/26	1.8	17.3	298
	3.6	10	1	3.08	50/35	1.8	20.7	425
	4.5	16	1	1.91	65/47	1.8	23.6	564
	6	25	1.2	1.2	84/60	1.8	28.2	822
	7	35	1.2	0.868	100/74	1.9	31.5	1043
	8.3	50	1.4	0.641	120/90	2	36.4	1391
	9.8	70	1.4	0.443	150/115	2.2	42.1	1886
	11.5	95	1.6	0.32	185/140	2.4	48.7	2551
	12.9	120	1.6	0.253	205/165	2.5	53.2	3071
	14.5	150	1.8	0.206	230/190	2.7	58.8	3772
	16	185	2	0.164	260/215	2.9	65.4	4653
	18.3	240	2.2	0.125	300/260	3.1	74	5978
	20.5	300	2.4	0.1	340/295	3.3	82	7368

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

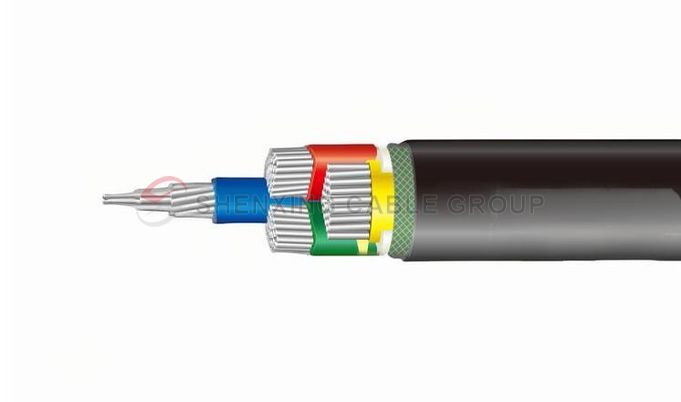

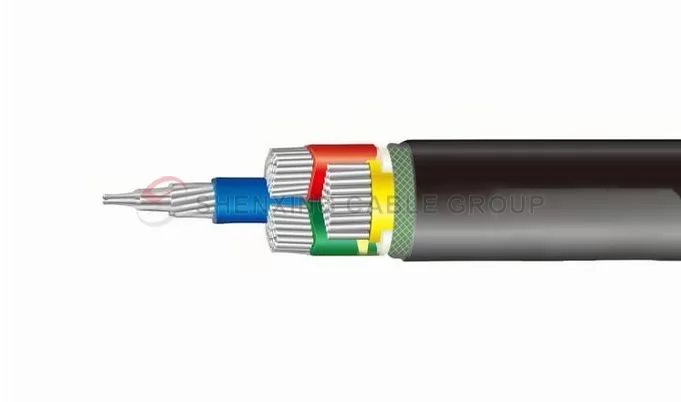

Cable Structure

0.6-1kv Aluminum Core PVC Insulated PVC Sheathed Power Cable

Aluminum Core PVC Insulated PVC Sheathed Power Cable

Features

Widely Use:

Building power distribution: residential, commercial, industrial buildings.

Industrial facilities: factories, mines and other industrial environments.

Power transmission: substations, distribution networks.

Infrastructure: roads, bridges, tunnels, etc.

Mechanical equipment: various motors, pumps, fans and other mechanical equipment.

Usage Characteristics

Maximum operating temperature of conductor: 70℃

Maximum short-circuit temperature of conductor: 160℃, with a maximum duration of 5 seconds.

Installation and laying temperature: The minimum installation and laying temperature shall not be lower than 0℃.

Ambient laying temperature: When laid in air, the ambient temperature should be 40℃, and when laid in soil, the ambient temperature should be 25℃.

Minimum Bending Radius:

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

Power Cables Help Upgrade Smart Grids

In order to realize intelligent management of the power grid, improve power supply reliability and reduce energy loss, a coastal city decided to comprehensively upgrade the original power grid. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine Project Background

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Application Case of Shenxing Cable in Data Center Room

Located on the edge of the city, a large data center room is the core data processing center for many enterprises and government agencies. Read More

Cable Solutions for Offshore Wind Farms

A coastal area plans to build offshore wind farms on a large scale to meet the growing demand for clean energy. However, the harsh offshore environment, high salt spray, strong winds and other factors have placed extremely high demands on the performance of cables. Read More

Chemical Plant Cable Upgrade

During its production process, a large chemical enterprise has extremely high requirements for the corrosion resistance, high temperature resistance and electrical safety of cables due to the particularity of the production environment. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What role does the shielding structure play in marine inverter cables?

Shielding structures (such as copper wire braiding and aluminum foil shielding) can effectively reduce electromagnetic interference (EMI), ensure stable signal transmission and reduce motor noise when the variable frequency speed regulation system is running.

Are marine inverter cables flame retardant?

Yes, marine inverter cables are made of low smoke zero halogen (LSZH) materials, meet the IEC 60332-3-22 flame retardant standard, and have high efficiency flame retardant and environmental protection performance.

What is the rated voltage range of marine inverter cables?

Common rated voltages are 0.6/1kV and 1.8/3kV. The specific selection needs to be determined according to the voltage level of the ship power system.

How is the marine inverter cable different from ordinary cables?

Marine inverter cables have higher voltage shock resistance and anti-electromagnetic interference capabilities. They are specially designed for ship frequency converter power systems and can meet the needs of harsh marine environments, such as high humidity, salt spray, vibration and other conditions.

What are the requirements for marine data cables when laying?

The laying temperature should not be lower than 0℃.

The static bending radius is 6 times the outer diameter of the cable, and the dynamic bending radius is 8 times.

Avoid excessive stretching or squeezing of the cable.
