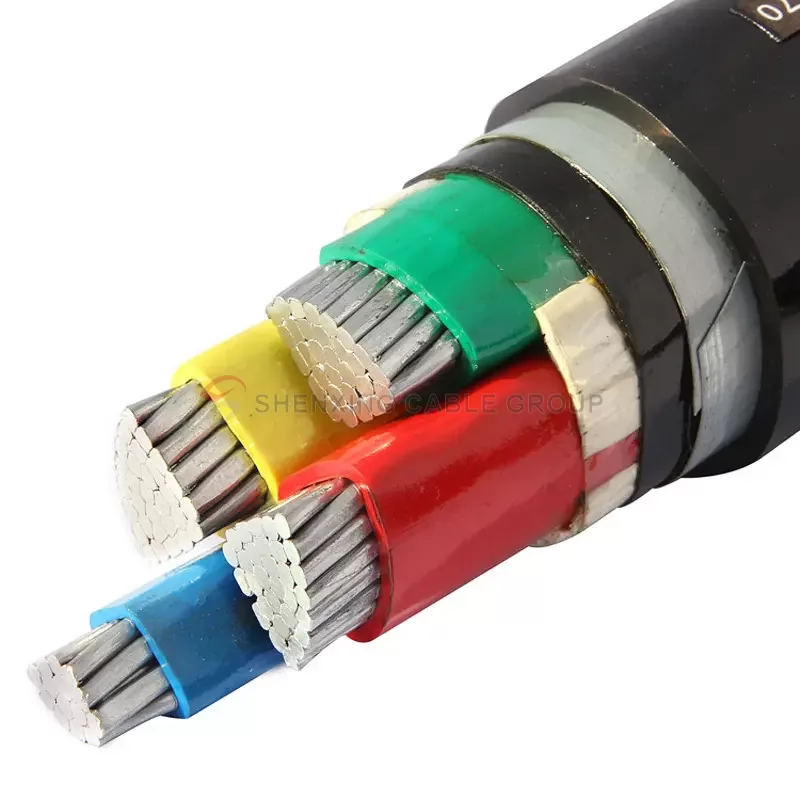

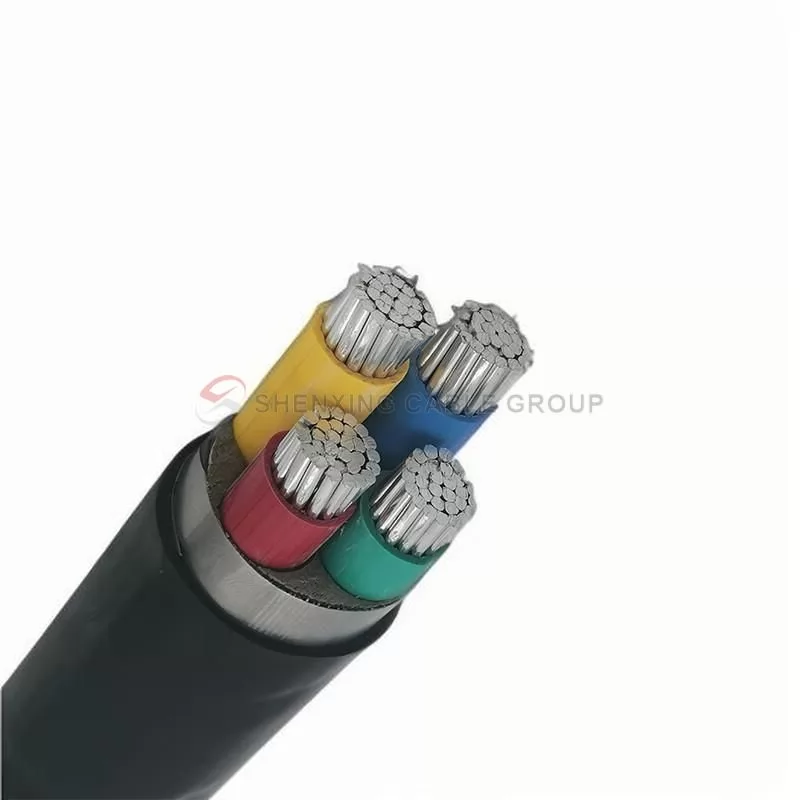

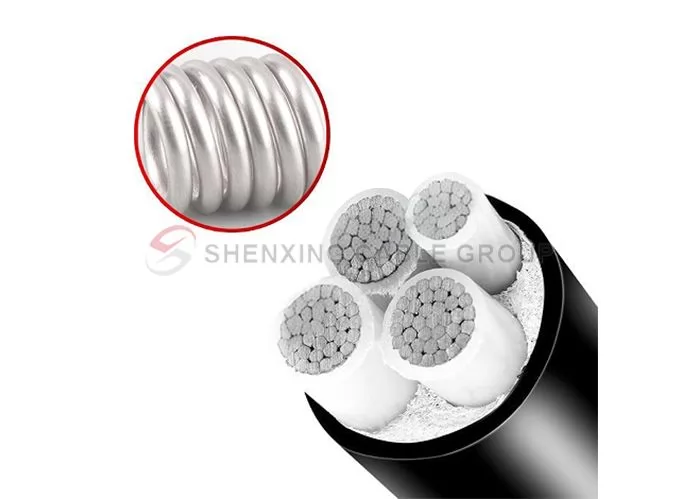

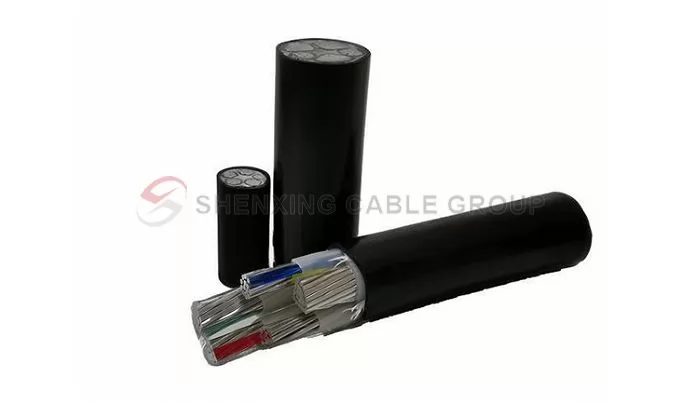

Aluminum Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

International Product Name

1. IEC: Power Cables with Extruded Insulation and Their Accessories

2. BS: BS 5467 - Armoured Cables with Thermoplastic Insulation and Thermoplastic Sheath

3. EN: EN 50525 - Electric Cables - Low Voltage Energy Cables

4. UL:

UL 83 - Thermoplastic-Insulated Wires and Cables

UL 1569 - Metal-Clad Cables (Type MC Cable)

5. GB: GB/T 12706 - Power Cables with Extruded Insulation and Their Accessories

6. DIN VDE: DIN VDE 0276 - Power Cables with Extruded Insulation and Their Accessories

7. CSA:

CSA C22.2 No. 131 - Type TECK90 Cables

CSA C22.2 No. 239 - Control and Instrumentation Cables

Widely Used:

Underground power distribution: Designed for underground installation, it provides protection against physical damage and moisture.

Industrial power networks: Suitable for heavy-duty applications in industrial facilities such as factories and refineries, and can maintain stable operation in harsh environments.

Power stations and substations: Suitable for power transmission and distribution in energy infrastructure, ensuring reliable performance in low-voltage and medium-voltage applications.

Advantage:

Excellent durability: Our cables are designed to withstand harsh environments, moisture, mechanical stress and chemical corrosion, and have a longer service life.

Cost-effective: The aluminum core is more economical than copper core, but it also guarantees performance and safety.

Wide application: Suitable for underground and above-ground installation, suitable for multiple industries such as energy, construction and manufacturing.

Compliant with international standards: Certified by IEC, BS and GB standards, ensuring safety and reliability worldwide.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Armor Thickness	Cable Outer Diameter	Weight
Number of Cores	（mm）	（mm²）	（mm）	（Ω/km）	（A）	(mm)	(mm)	(mm)	(kg/km)
Single Core	1.8	2.5	0.8	12.1	27/19
	2.3	4	1	7.41	35/26
	2.8	6	1	4.61	46/34
	3.6	10	1	3.08	58/44
	4.5	16	1	1.91	76/59
	6	25	1.2	1.2	98/76
	7	35	1.2	0.868	115/90
	8.3	50	1.4	0.641	140/110
	9.8	70	1.4	0.443	170/140
	11.5	95	1.6	0.32	205/175
	12.9	120	1.6	0.253	235/200
	14.5	150	1.8	0.206	265/230
	16	185	2	0.164	300/270
	18.3	240	2.2	0.125	350/320
Two Cores	20.5	300	2.4	0.1	395/370
	1.8	2.5	0.8	12.1	26/18
	2.3	4	1	7.41	35/24	1.8	0.2x2	14.7	255
	2.8	6	1	4.61	45/32	1.8	0.2x2	15.7	293
	3.6	10	1	3.08	59/42	1.8	0.2x2	18.3	368
	4.5	16	1	1.91	77/55	1.8	0.2x2	20.4	454
	6	25	1.2	1.2	100/70	1.8	0.2x2	23.8	610
	7	35	1.2	0.868	120/86	1.8	0.2X2	26.1	729
	8.3	50	1.4	0.641	145/105	1.8	0.5x2	29.6	918
	9.8	70	1.4	0.443	175/130	2	0.5x2	35.4	1510
	11.5	95	1.6	0.32	210/165	2.1	0.5x2	40.2	1903
	12.9	120	1.6	0.253	245/190	2.2	0.5x2	43.6	2212
	14.5	150	1.8	0.206	275/215	2.3	0.5x2	47.7	2605
	16	185	2	0.164	310/250	2.5	0.5x2	52.7	3108
	18.3	240	2.2	0.125	350/295
Three Cores	1.8	2.5	0.8	12.1	23/15
	2.3	4	1	7.41	30/20
	2.8	6	1	4.61	39/26
	3.6	10	1	3.08	50/35	1.8	0.2x2	21.2	559
	4.5	16	1	1.91	65/47	1.8	0.2x2	23.5	740
	6	25	1.2	1.2	84/60	1.8	0.2x2	27.2	976
	7	35	1.2	0.868	100/74	1.9	0.2X2	30.7	1372
	8.3	50	1.4	0.641	120/90	2	0.5x2	31.4	1486
	9.8	70	1.4	0.443	150/115	2.2	0.5x2	33.6	1763
	11.5	95	1.6	0.32	185/140	2.4	0.5x2	38.3	2216
	12.9	120	1.6	0.253	205/165	2.5	0.5x2	41.9	2609
	14.5	150	1.8	0.206	230/190	2.6	0.5x2	47.1	3174
	16	185	2	0.164	260/215	2.8	0.5x2	50.9	3721
	18.3	240	2.2	0.125	300/260	3	0.5x2	57	4590
	20.5	300	2.4	0.1	340/295	3.2	0.5x2	64	5760
Four Cores	1.8	2.5	0.8	12.1	23/15
	2.3	4	1	7.41	30/20	1.8	0.2x2	16.5	336
	2.8	6	1	4.61	39/26	1.8	0.2x2	17.7	393
	3.6	10	1	3.08	50/35	1.8	0.2x2	20.8	510
	4.5	16	1	1.91	65/47	1.8	0.2x2	23.4	645
	6	25	1.2	1.2	84/60	1.8	0.2x2	27.5	891
	7	35	1.2	0.868	100/74	1.8	0.2X2	30.3	1084
	8.3	50	1.4	0.641	120/90	1.9	0.5x2	36.7	1762
	9.8	70	1.4	0.443	150/115	2.1	0.5x2	41.3	2223
	11.5	95	1.6	0.32	185/140	2.2	0.5x2	47.2	2871
	12.9	120	1.6	0.253	205/165	2.4	0.5x2	51.3	3367
	14.5	150	1.8	0.206	230/190	2.6	0.5x2	56.4	4028
	16	185	2	0.164	260/215	2.8	0.5x2	62.4	4846
	18.3	240	2.2	0.125	300/260	3	0.5x2	70.1	6059
	20.5	300	2.4	0.1	340/295	3.2	0.5x2	77.3	7331
Five Cores	1.8	2.5	0.8	12.1	23/15
	2.3	4	1	7.41	30/20	1.8	0.2x2	17.6	385
	2.8	6	1	4.61	39/26	1.8	0.2x2	19.1	465
	3.6	10	1	3.08	50/35	1.8	0.2x2	22.5	607
	4.5	16	1	1.91	65/47	1.8	0.2x2	25.4	772
	6	25	1.2	1.2	84/60	1.8	0.2x2	30.3	1073
	7	35	1.2	0.868	100/74	2	0.2x2	35.3	1649
	8.3	50	1.4	0.641	120/90	2.1	0.5x2	40.2	2089
	9.8	70	1.4	0.443	150/115	2.3	0.5x2	45.5	2669
	11.5	95	1.6	0.32	185/140	2.5	0.5x2	52.1	3456
	12.9	120	1.6	0.253	205/165	2.6	0.5x2	56.6	4062
	14.5	150	1.8	0.206	230/190	2.8	0.5x2	62.2	4866
	16	185	2	0.164	260/215	2.9	0.5x2	68.6	5836
	18.3	240	2.2	0.125	300/260	3.2	0.5x2	77.4	7349
	20.5	300	2.4	0.1	340/295	3.4	0.5x2	85.4	8906

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

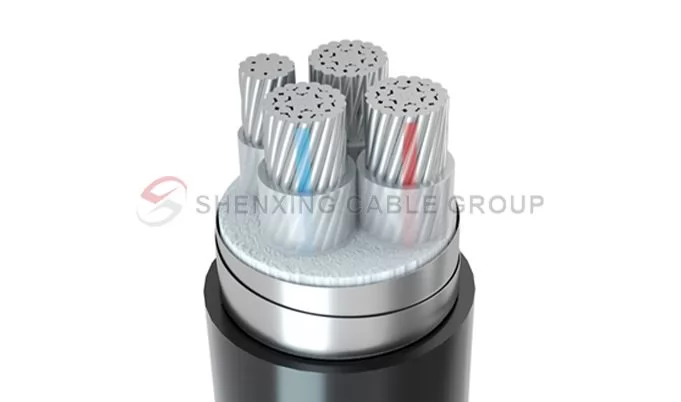

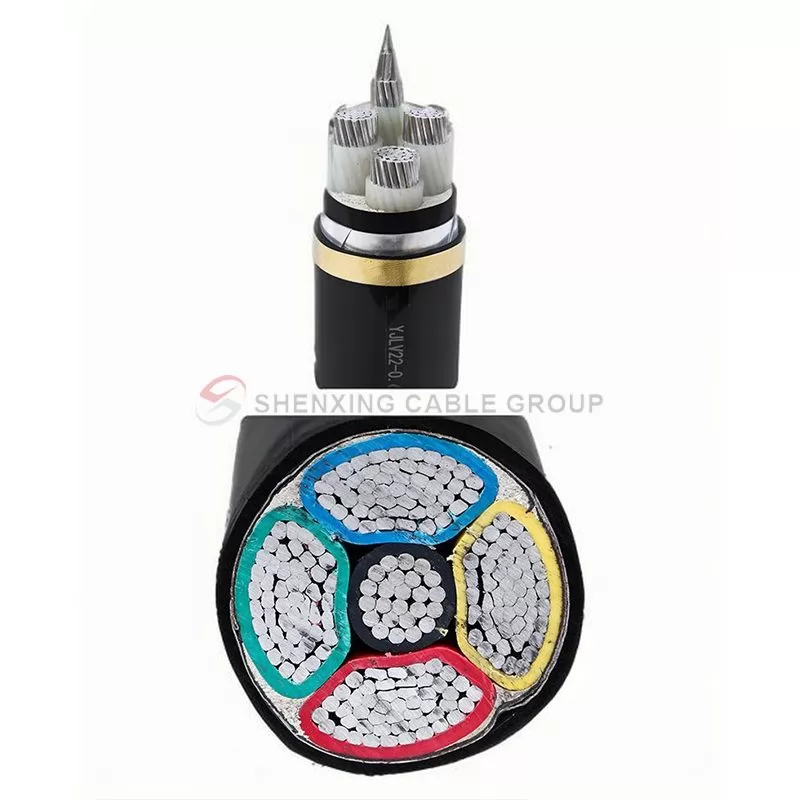

Cable Structure

Aluminum Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Aluminum Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Features

Technical Specifications

Voltage level: Up to 0.6/1 kV

Conductor material: Aluminum

Insulation material: Polyvinyl chloride (PVC)

Armor type: Galvanized steel tape for additional mechanical protection

Sheath material: PVC outer sheath for enhanced durability

Compliance with standards: Products comply with international standards IEC 60502, BS 5467 and GB/T 12706.

Usage Characteristics

Maximum operating temperature of conductor: 70℃

Maximum short-circuit temperature of conductor: 160℃, maximum duration 5 seconds

Installation and laying temperature: minimum installation and laying temperature is not less than 0℃

Laying environment temperature: when laid in air, the environment temperature is 40℃

Laying environment temperature in soil: 25℃

Minimum Bending Radius:

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Offshore Drilling Platform Cable Solutions

An internationally renowned oil exploration company has constructed a new offshore drilling platform in the North Sea region. Read More

Cable Solutions for Offshore Wind Farms

A coastal area plans to build offshore wind farms on a large scale to meet the growing demand for clean energy. However, the harsh offshore environment, high salt spray, strong winds and other factors have placed extremely high demands on the performance of cables. Read More

Cable Application in a Public Charging Station in a City

In order to promote the development of new energy vehicles, a city built a number of charging stations in public areas. Due to the special working environment of the charging station, the performance requirements for the cable are extremely high. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Shenxing Cable: Providing Reliable Arteries for High-Speed Trains

As an important part of modern transportation, high-speed trains have extremely strict requirements on cable performance. Read More

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What applications is this cable suitable for?

This cable is mainly suitable for underground power transmission, industrial power distribution, construction projects and energy facilities, especially in environments that require protection and resistance to mechanical damage.

What is the maximum operating temperature of this cable?

The maximum operating temperature of the cable conductor is 70℃, and the maximum temperature of the conductor can reach 160℃ during short circuit, but the duration shall not exceed 5 seconds.

Can this cable be installed in extreme climate conditions?

Yes, the minimum installation and laying temperature of the cable is 0℃. Therefore, it can be installed in low temperature environments, but special protection measures are required when installed in extremely cold environments.

Can the cable be used in water or humid environments?

Yes, the cable has a PVC sheath and steel belt armor, which is waterproof and moisture-proof, and is suitable for buried or humid environments, such as underground cable ducts or moist soil.

What are the temperature requirements for laying the cable in the air and underground?

When laying in the air, the recommended ambient temperature is 40℃; when buried in the soil, the ambient temperature should be 25℃ to ensure the best working performance of the cable.

What are the advantages of using aluminum core instead of copper core?

Aluminum core cable is lighter and less expensive than copper core, suitable for long-distance power transmission projects, and can also meet most industrial and commercial uses in terms of conductivity.

What is the bending radius of the cable?

The bending radius of the cable is usually 15 times its outer diameter. During installation, make sure not to exceed this limit to avoid damaging the internal structure of the cable.

How is the fire resistance of the cable?

The PVC sheath of this cable has a certain degree of fire resistance and flame retardancy under normal conditions, but it is not suitable for use in occasions that require strict fire protection requirements. If there are special fire protection requirements, special fire-resistant cables can be selected.

How long is the life of the cable?

Under standard installation and working conditions, the service life of this cable is generally 25-30 years, depending on environmental conditions and maintenance.

What should be paid attention to during cable construction?

During construction and installation, make sure that the temperature is not lower than 0℃, and comply with the bending radius and mechanical load limits of the cable to avoid damage to the cable during transportation and laying.
