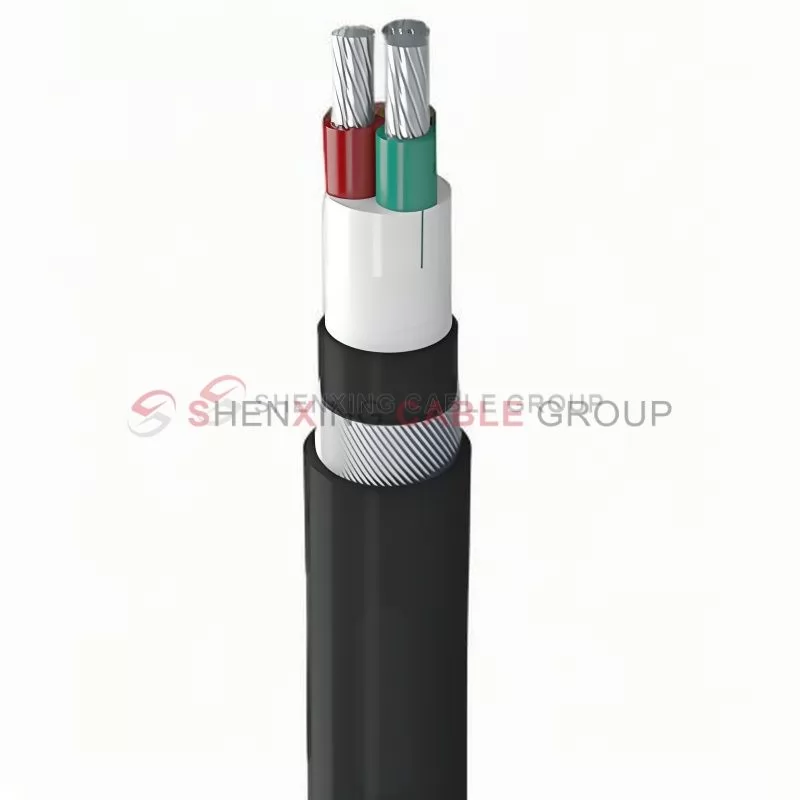

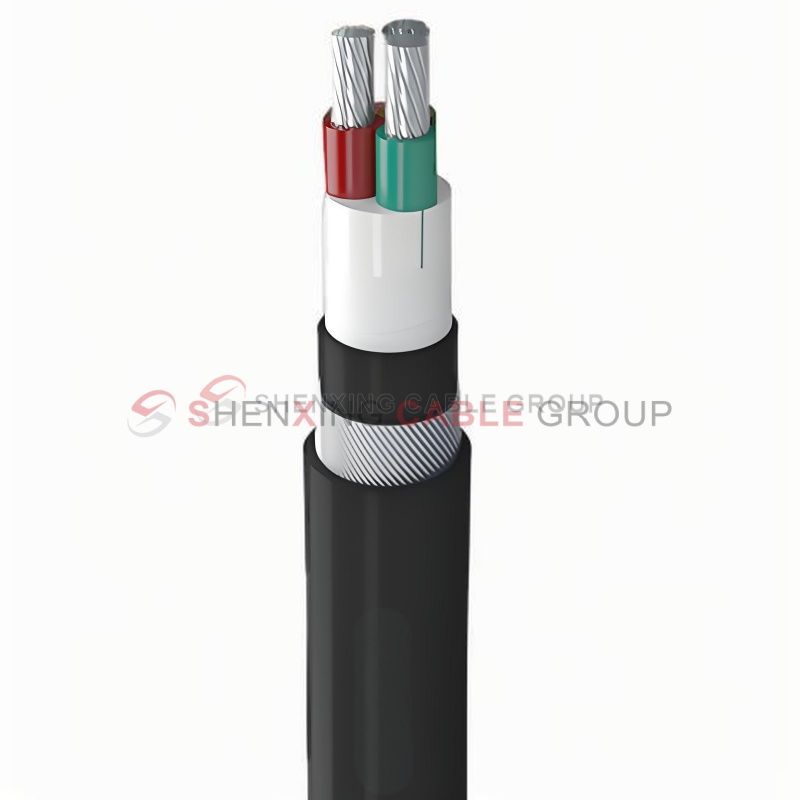

Aluminum core, PVC/ PVC / steel wire armor

Our VLV32 cables strictly comply with the following international standards:

VLV32 cables fully comply with international and national standards such as IEC 60502-2 and GB/T 12706.2-2020, ensuring that they can meet the power transmission needs of the global market. Whether you are in the European, American or Asian market, you can choose our cables with confidence to meet local power transmission standards.

VLV32 application areas

Civil buildings and commercial facilities: provide safe and reliable power connections for homes, office buildings and commercial centers;

Industrial automation and control systems: meet the precise transmission requirements of industrial equipment and automation control systems;

Low-voltage power distribution system: suitable for cable laying of low-voltage systems such as distribution boxes and control cabinets;

Municipal engineering: covers power wiring of roads, bridges and public facilities to ensure long-term safe operation.

Product advantages

Cost-effective advantage

VLV32 cable uses high-conductivity aluminum core (or pure copper conductor as required). For large-scale projects, the use of aluminum core cable can effectively reduce the overall cost while ensuring long-term stable power transmission.

Stable quality and high product reliability

The 99.99% pure aluminum conductor has excellent electrical conductivity, and the steel belt armor makes the cable have excellent resistance to external physical damage, especially suitable for use underground or in high-pressure environments.

Ultra-long service life and low maintenance cost

High durability: wear resistance, acid and alkali corrosion resistance, and mechanical damage resistance, so that the cable still maintains excellent performance in harsh environments, suitable for various high-demand places.

4. On-time delivery and flexible supply

In order to meet the needs of contractors and dealers, Shenxing Cable Group has efficient production and supply chain management to ensure on-time delivery of products.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Cable Outer Diameter	Weight
	(mm)	(mm²)	(mm)	(Ω/km)	(A)	(mm)	(mm)	(kg/km)
Single Core	2.3	4	0.7	4.61	77/56	1.4	6.4	83
	2.8	6	0.7	3.08	97/70	1.4	7.9	107
	3.6	10	0.7	1.83	130/97	1.4	8.3	158
	4.5	16	0.7	1.15	170/125	1.4	9.3	222
	6	25	0.9	0.727	220/165	1.5	11.2	335
	7	35	0.9	0.524	265/200	1.5	12.4	436
	8.3	50	1	0.387	320/245	1.6	14.1	577
	9.8	70	1.1	0.268	395/305	1.6	16.1	794
	11.5	95	1.1	0.193	475/375	1.7	18.2	1066
	12.9	120	1.2	0.153	545/435	1.7	20.5	1321
	14.5	150	1.4	0.124	610/500	1.7	22	1606
	16	185	1.6	0.0991	695/580	1.7	24.2	1977
	18.3	240	1.7	0.0754	810/685	1.7	27.1	2548
	20.5	300	1.8	0.0601	910/795	1.7	29.1	3151
Two Cores	1.8	2.5	0.7	7.41	40/30	1.8	10.8	127
	2.3	4	0.7	4.61	55/42	1.8	11.7	165
	2.8	6	0.7	3.08	65/35	1.8	12.7	215
	3.6	10	0.7	1.83	90/70	1.8	15.3	324
	4.5	16	0.7	1.15	110/92	1.8	17.4	461
	6	25	0.9	0.727	140/128	1.8	20.8	692
	7	35	0.9	0.524	180/160	1.8	23.1	907
	8.3	50	1	0.387	210/190	1.8	26.2	1194
	9.8	70	1.1	0.268	250/250	1.8	30.6	1972
	11.5	95	1.1	0.193	285/300	2	34.8	2265
	12.9	120	1.2	0.153	330/350	2.1	38.6	2832
	14.5	150	1.4	0.124	375/400	2.2	42.7	3472
	16	185	1.6	0.0991	420/460	2.3	47.5	4307
	18.3	240	1.7	0.0754	500/550	2.5	53.5	5637
	20.5	300	1.8	0.0601	580/600	2.7	59.2	6932
Three Cores	1.8	2.5	0.7	7.41	35/26	1.8	11.3	159
	2.3	4	0.7	4.61	45/34	1.8	12.2	210
	2.8	6	0.7	3.08	57/43	1.8	13.4	280
	3.6	10	0.7	1.83	77/60	1.8	16.1	431
	4.5	16	0.7	1.15	105/83	1.8	4.18	624
	6	25	0.9	0.727	125/105	1.8	22.1	947
	7	35	0.9	0.524	155/125	1.8	24.6	1254
	8.3	50	1	0.387	185/160	1.8	27.9	1660
	9.8	70	1.1	0.268	225/200	1.9	32.8	2353
	11.5	95	1.1	0.193	270/245	2	37.1	3179
	12.9	120	1.2	0.153	310/285	2.1	41.2	3983
	14.5	150	1.4	0.124	345/325	2.3	45.8	4909
	16	185	1.6	0.0991	390/375	2.4	50.9	6104
	18.3	240	1.7	0.0754	450/440	2.6	57.4	7941
	20.5	300	1.8	0.0601	515/505	2.8	63.4	9890
Four Cores	1.8	2.5	0.7	7.41	35/26	1.8	12.1	194
	2.3	4	0.7	4.61	45/34	1.8	13.2	262
	2.8	6	0.7	3.08	57/43	1.8	14.5	352
	3.6	10	0.7	1.83	77/60	1.8	17.6	547
	4.5	16	0.7	1.15	105/83	1.8	20.1	799
	6	25	0.9	0.727	125/105	1.8	24.3	1222
	7	35	0.9	0.524	155/125	1.8	27.1	1626
	8.3	50	1	0.387	185/160	1.8	31	2172
	9.8	70	1.1	0.268	225/200	1.9	36.4	3080
	11.5	95	1.1	0.193	270/245	2	41.2	4166
	12.9	120	1.2	0.153	310/285	2.1	46	5244
	14.5	150	1.4	0.124	345/325	2.3	50.9	6435
	16	185	1.6	0.0991	390/375	2.4	56.8	8034
	18.3	240	1.7	0.0754	450/440	2.6	64	10452
	20.5	300	1.8	0.0601	515/505
Five Cores	1.8	2.5	0.8	7.41	35/26	1.8	13	231
	2.3	4	1	4.61	45/34	1.8	14.2	314
	2.8	6	1	3.08	57/43	1.8	15.6	426
	3.6	10	1	1.83	77/60	1.8	19.1	667
	4.5	16	1	1.15	105/83	1.8	22	979
	6	25	1.2	0.727	125/105	1.8	26.6	1503
	7	35	1.2	0.524	155/125	1.8	29.7	2004
	8.3	50	1.4	0.387	185/160	2	34.2	2696
	9.8	70	1.4	0.268	225/200	2.1	40.2	3825
	11.5	95	1.6	0.193	270/245	2.3	45.8	5196
	12.9	120	1.6	0.153	310/285	2.4	50.8	6513
	14.5	150	1.8	0.124	345/325	2.6	56.5	8020
	16	185	2	0.0991	390/375	2.8	63.1	10010
	18.3	240	2.2	0.0754	450/440	3	71.1	13019
	20.5	300	2.4	0.0601	515/505	3.2	78.6	16213

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

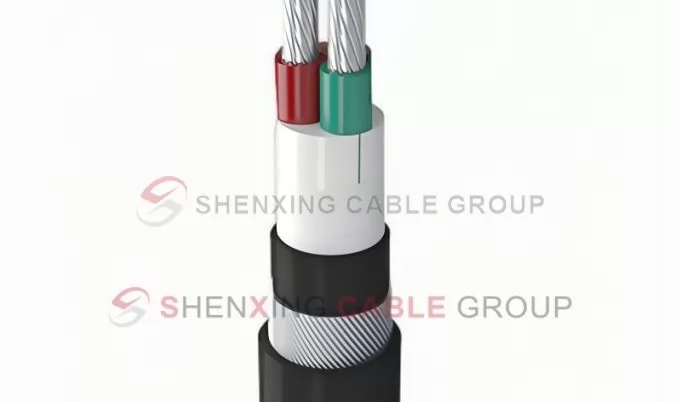

Cable Structure

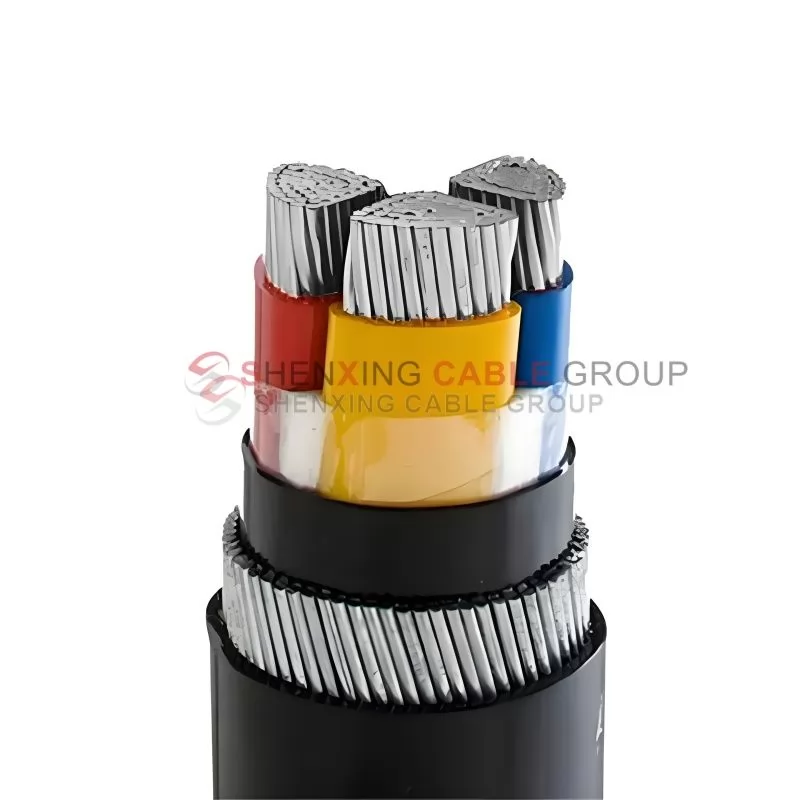

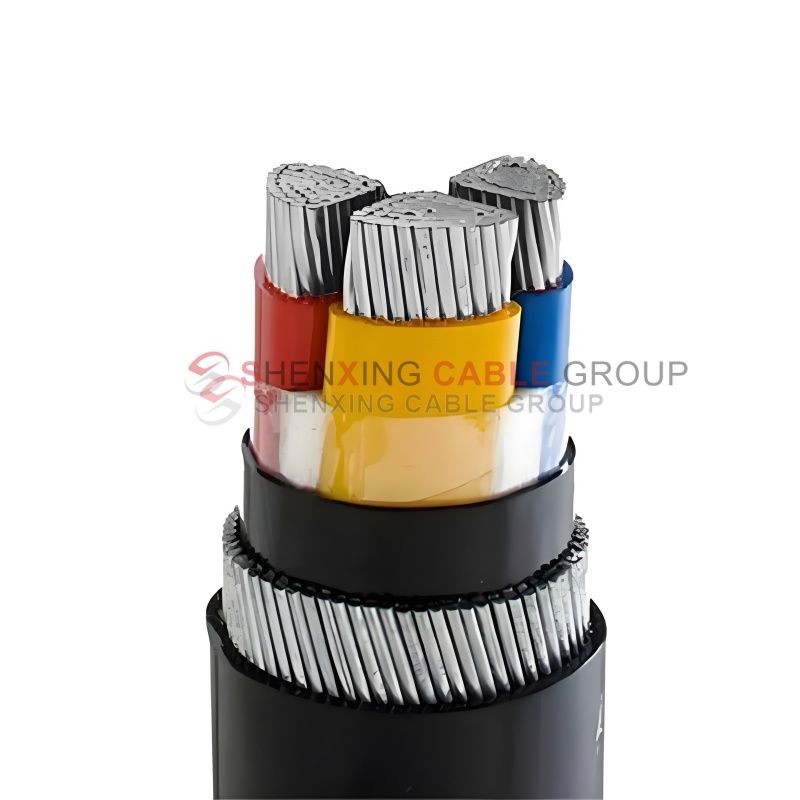

0.6-1kv Aluminum core PVC insulation PVC sheath steel wire armor Power Cable

Aluminum core, PVC/ PVC / steel wire armor

Features

Product Features

Voltage Rating: 6kV to 35kV

Conductor Material: High-purity stranded aluminum

Insulation Material: Cross-linked polyethylene (XLPE) for superior electrical performance

Armor: Steel Tape Armored (STA) for mechanical reinforcement

Outer Sheath: PVC or PE jacket for enhanced durability

Temperature Resistance: Operates within -15°C to +90°C

Short Circuit Tolerance: Withstands short circuit temperatures up to 250°C for 5 seconds

Experimental Performance

Experimental Performance

Rated voltage (U0/U): 1/35kV

Temperature level

Conductor maximum operating temperature: +70℃

Ambient operating temperature: -15℃~+90℃

Cable laying temperature: not less than 0℃ (when the ambient temperature is below 0℃, the cable should be preheated)

Minimum bending radius

Single-core cable: 15D

Multi-core cable: 12D

Note: D is the actual outer diameter of the cable

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

New Energy Power Plant Grid-Connected Cable Solution Case

A large photovoltaic power plant was newly built in a certain place. Since the power plant is located in a remote area and is exposed to the sun for a long time, it places extremely high requirements on the performance of the cables connecting the photovoltaic modules and inverters. Read More

Power Cables Help Upgrade Smart Grids

In order to realize intelligent management of the power grid, improve power supply reliability and reduce energy loss, a coastal city decided to comprehensively upgrade the original power grid. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

How low a temperature can marine flexible cables withstand?

Marine flexible cables can usually operate normally within an operating temperature range of -40°C to +90°C, and some specially designed cables can withstand more extreme temperature conditions.

What scenarios are marine flexible cables suitable for?

They are mainly used for ship power systems, lighting systems, communication and navigation equipment, drag chain systems, deck equipment connections, and power and signal transmission in offshore platforms that require frequent movement or special environments.

What is the difference between marine flexible cables and ordinary cables?

Marine flexible cables are designed for ships and marine environments. They have higher flexibility, corrosion resistance and flame retardancy. They can operate stably in harsh environments and meet the certification requirements of international classification societies.

What are the functions of the shielding structure of marine inverter cables?

The shielding layer can prevent the cable from being affected by external electromagnetic waves, while suppressing the interference of the cable's own electromagnetic radiation on other equipment, ensuring the stability of the signal transmission of the frequency conversion system.

How does marine inverter cable resist electromagnetic interference?

By adopting a double-layer copper foil wrapping or copper wire braided shielding structure, it can effectively shield the interference of external low-frequency and high-frequency signals, while reducing the interference of the frequency conversion system to other equipment.

Related Products

YJV32 Low Voltage Steel Wire Armored Power Cable

The YJV32 is a 0.6/1 kV low-voltage power cable designed for fixed installations requiring robust mechanical protection and environmental resilience. It features a copper conductor, XLPE insulation, galvanized steel wire armor, and a flame-retardant PVC outer sheath, ensuring reliable performance in demanding conditions.

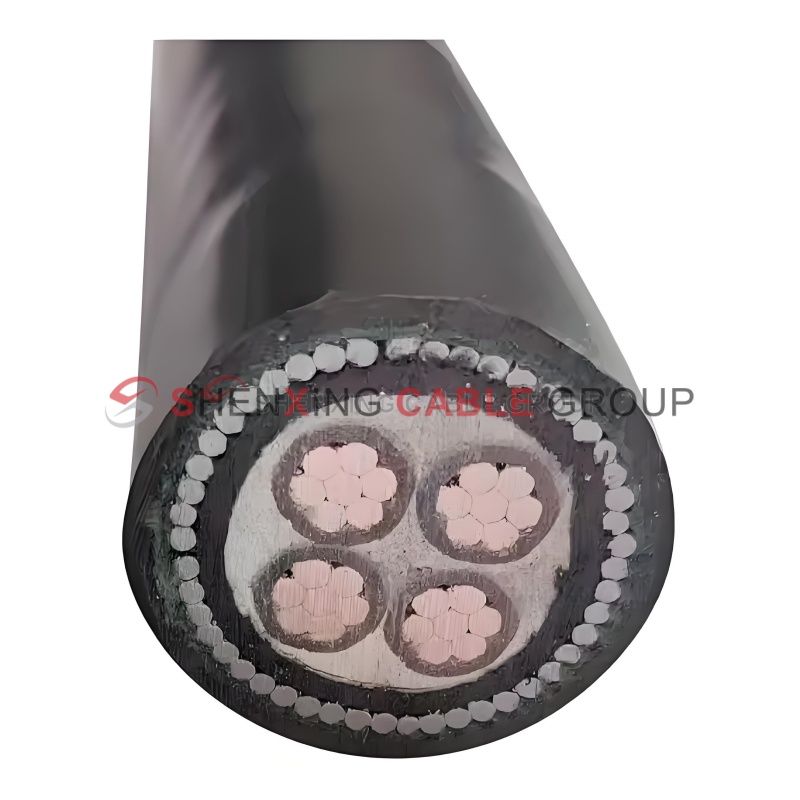

Copper Core XLPE Insulated PVC Sheathed Power Cable
