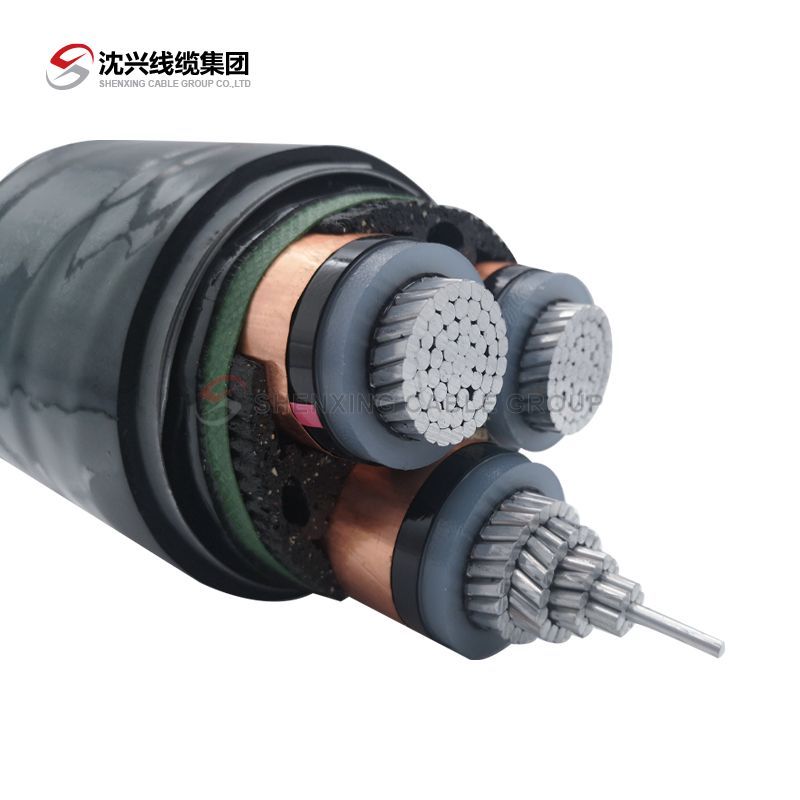

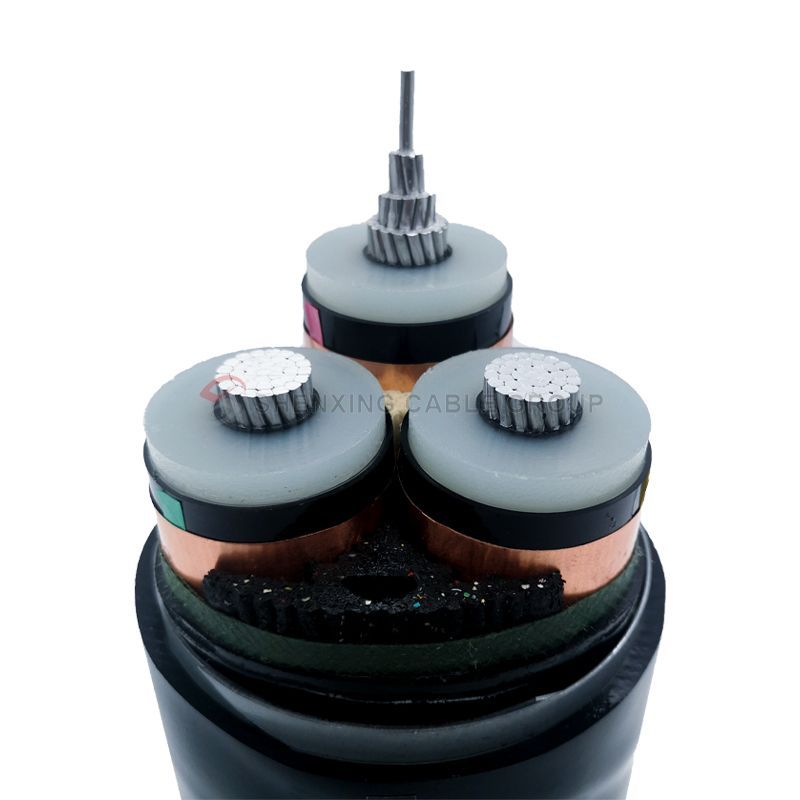

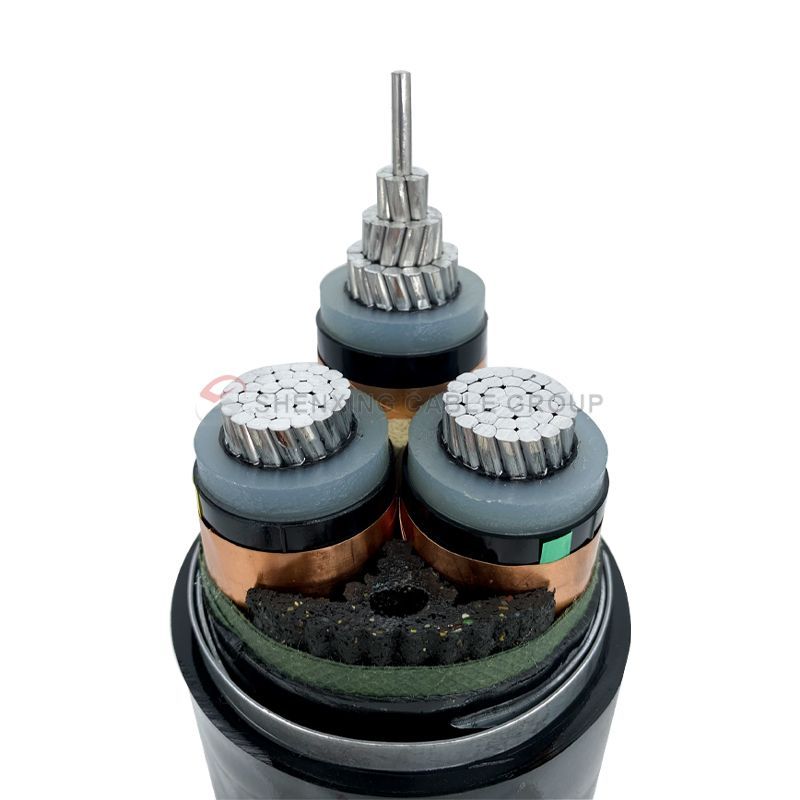

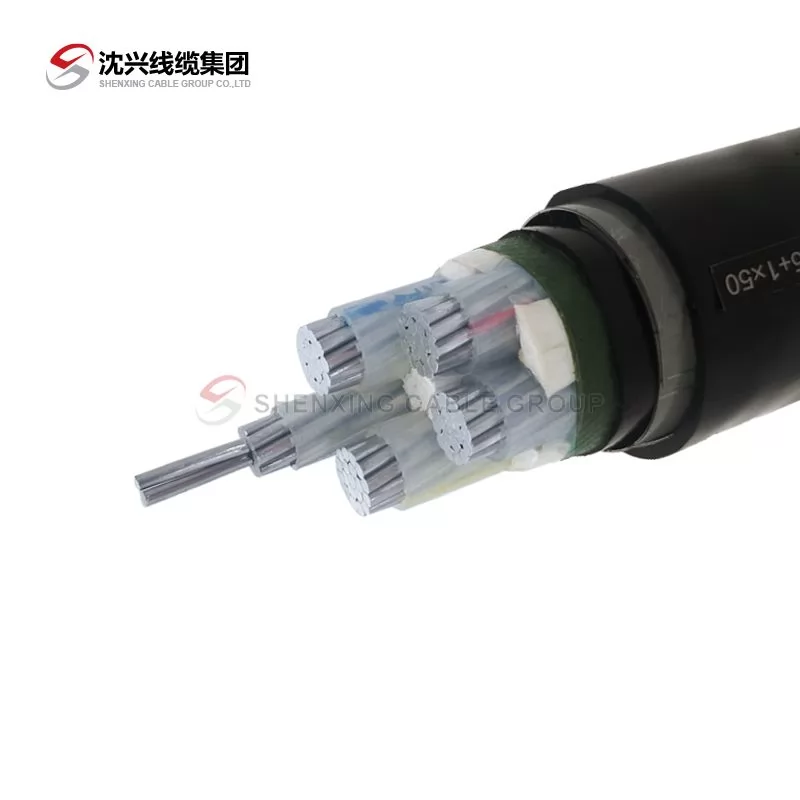

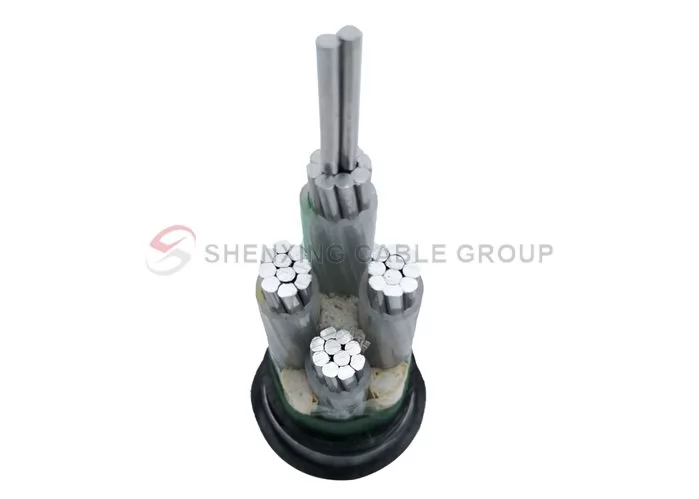

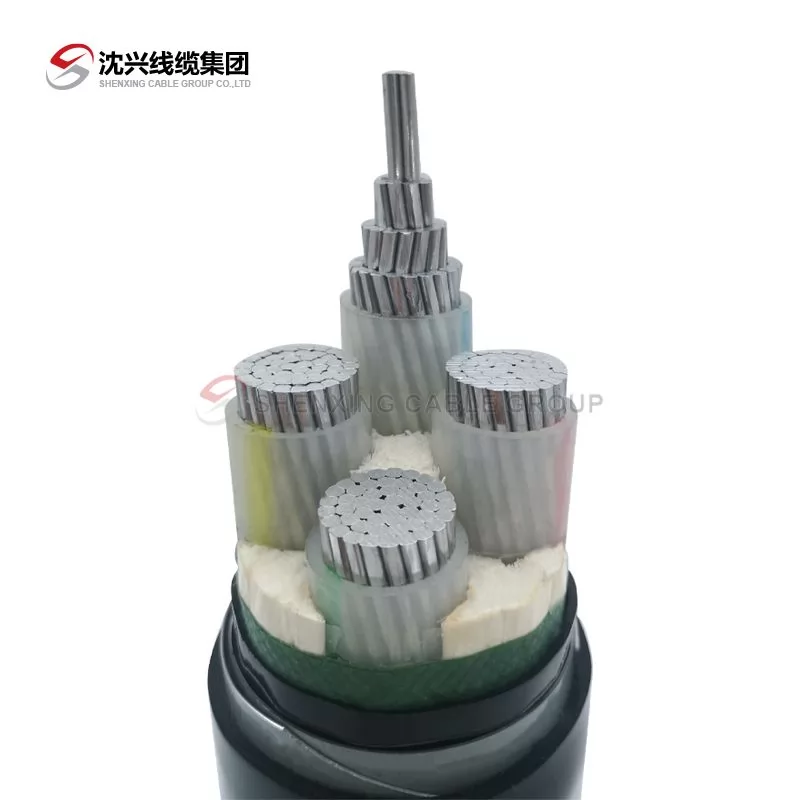

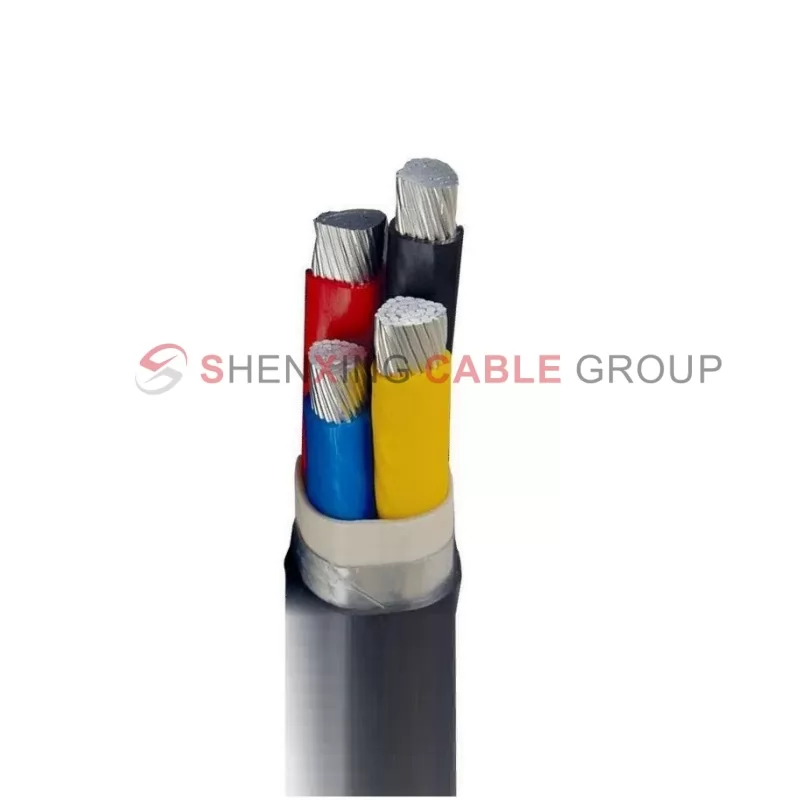

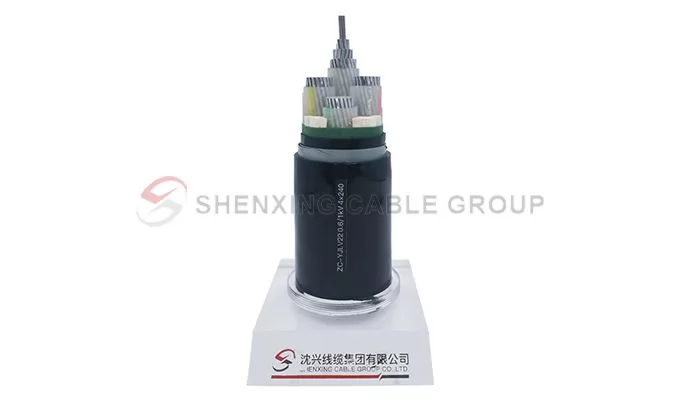

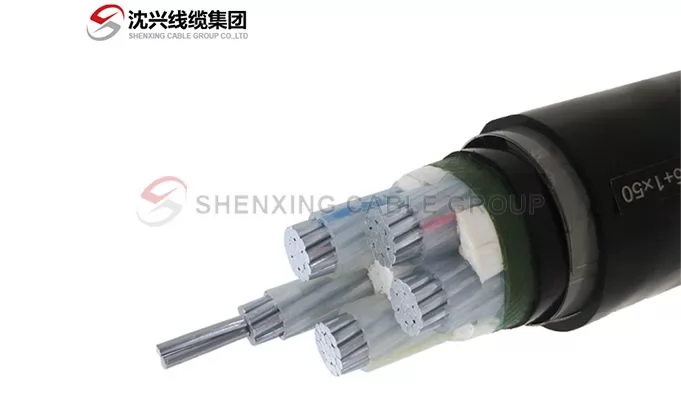

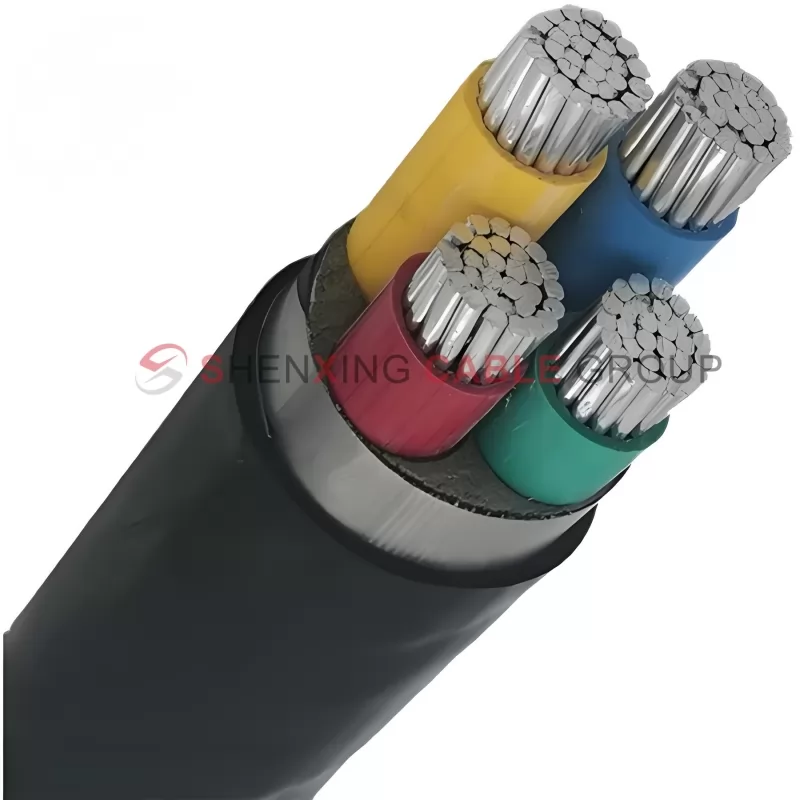

Aluminum Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

International Product Name

Europe: Armorclad cable with aluminum conductor and XLPE insulation Aluminum conductor, XLPE insulated, steel wire armoured, PVC sheathed cable

United States: Aluminum conductor, XLPE insulated, steel tape armored, PVC jacketed power cable

Experimental requirements

Electrical performance test: insulation resistance, withstand voltage, partial discharge, etc.

Mechanical performance test: tensile, bending, impact, etc.

Environmental test: heat resistance, cold resistance, moisture resistance, oil resistance, etc.

Widely Use:

Power system: power plants, substations, distribution lines, etc.

Construction engineering: high-rise buildings, underground projects, etc.

Petrochemical industry: petrochemical plants, pipelines, etc.

Transportation: subways, railways, tunnels, etc.

Advantage:

Safe and reliable: cross-linked polyethylene insulation is used, which is resistant to voltage shock and short circuit, and reduces the failure rate.

Corrosion resistance: The aluminum core and PVC sheath are corrosion-resistant and suitable for harsh environments, such as acid, alkali, and salt environments, humid areas, etc.

Excellent mechanical properties: The steel belt armor enhances the mechanical strength of the cable, has high tensile strength, is resistant to bending and impact, and is suitable for various laying environments.

Easy installation: The cable is light in weight and flexible, reducing construction time.

Good electromagnetic compatibility: Reduce electromagnetic interference and improve system stability.

Low smoke and halogen-free: It produces less smoke and no harmful gases during combustion, which meets environmental protection requirements.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Armor Thickness	Cable Outer Diameter	Weight
Number of Cores	(mm)	(mm²)	(mm)	(ω/km)	(A)	(mm)	(mm)	(mm)	(kg/km)
Single Core	2.3	4	0.7	7.41	61/44
	2.8	6	0.7	4.61	79/57
	3.6	10	0.7	3.08	100/75
	4.5	16	0.7	1.91	135/99
	6	25	0.9	1.2	170/125
	7	35	0.9	0.868	205/155
	8.3	50	1	0.641	245/190
	9.8	70	1.1	0.443	305/240
	11.5	95	1.1	0.32	370/290
	12.9	120	1.2	0.253	420/340
	14.5	150	1.4	0.206	475/390
	16	185	1.6	0.164	540/450
	18.3	240	1.7	0.125	630/535
	20.5	300	1.8	0.1	710/615
Two Cores	1.8	2.5	0.7	12.1	32/25	1.8	0.2x2	12.6	188
	2.3	4	0.7	7.41	45/32	1.8	0.2x2	13.5	216
	2.8	6	0.7	4.61	50/42	1.8	0.2x2	14.5	250
	3.6	10	0.7	3.08	70/55	1.8	0.2x2	17.1	319
	4.5	16	0.7	1.91	90/75	1.8	0.2x2	19.2	399
	6	25	0.9	1.2	120/100	1.8	0.2x2	22.6	541
	7	35	0.9	0.868	140/130	1.8	0.2X2	24.9	652
	8.3	50	1	0.641	160/150	1.8	0.5x2	28	807
	9.8	70	1.1	0.443	200/190	1.9	0.5x2	32.5	709
	11.5	95	1.1	0.32	230/240	2	0.5x2	38	1685
	12.9	120	1.2	0.253	260/290	2.1	0.5x2	41.8	2001
	14.5	150	1.4	0.206	300/330	2.2	0.5x2	46.1	2385
	16	185	1.6	0.164	340/370	2.3	0.5x2	50.9	2828
	18.3	240	1.7	0.125	400/440	2.5	0.5x2	56.9	3483
	20.5	300	1.8	0.1	510/560	2.7	0.5x2	62	5101
Three Cores	1.8	2.5	0.7	12.1	27/20	1.8	0.2x2	13.1	208
	2.3	4	0.7	7.41	36/27	1.8	0.2x2	14	242
	2.8	6	0.7	4.61	46/35	1.8	0.2x2	15.2	284
	3.6	10	0.7	3.08	59/47	1.8	0.2x2	17.9	369
	4.5	16	0.7	1.91	80/64	1.8	0.2x2	20.2	469
	6	25	0.9	1.2	100/82	1.8	0.2x2	23.9	646
	7	35	0.9	0.868	120/100	1.8	0.2X2	26.4	788
	8.3	50	1	0.641	145/125	1.8	0.5x2	29.7	985
	9.8	70	1.1	0.443	175/155	2	0.5x2	36.2	1655
	11.5	95	1.1	0.32	210/200	2	0.5x2	40.5	2053
	12.9	120	1.2	0.253	245/220	2.1	0.5x2	44.6	2454
	14.5	150	1.4	0.206	270/250	2.3	0.5x2	49.2	2937
	16	185	1.6	0.164	305/295	2.4	0.5x2	54.3	3507
	18.3	240	1.7	0.125	355/345	2.6	0.5x2	60.8	4349
	20.5	300	1.8	0.1	400/395	2.7	0.5x2	66.8	5225
Four Cores	1.8	2.5	0.7	12.1	27/20
	2.3	4	0.7	7.41	36/27	1.8	0.2x2	15	278
	2.8	6	0.7	4.61	46/35	1.8	0.2x2	16.3	329
	3.6	10	0.7	3.08	59/47	1.8	0.2x2	19.4	434
	4.5	16	0.7	1.91	80/64	1.8	0.2x2	21.9	557
	6	25	0.9	1.2	100/82	1.8	0.2x2	26.1	779
	7	35	0.9	0.868	120/100	1.8	0.2x2	28.9	957
	8.3	50	1	0.641	145/125	1.8	0.5X2	34.8	1561
	9.8	70	1.1	0.443	175/155	1.9	0.5x2	39.8	2012
	11.5	95	1.1	0.32	210/200	2	0.5x2	44.6	2510
	12.9	120	1.2	0.253	245/220	2.1	0.5x2	49.4	3035
	14.5	150	1.4	0.206	270/250	2.3	0.5x2	54.3	3618
	16	185	1.6	0.164	305/295	2.4	0.5x2	60.2	4365
	18.3	240	1.7	0.125	355/345	2.6	0.5x2	67.2	5401
	20.5	300	1.8	0.1	400/395	2.8	0.5x2	74.2	6541
Five Cores	1.8	2.5	0.8	12.1	27/20
	2.3	4	1	7.41	36/27	1.8	0.2x2	16	316
	2.8	6	1	4.61	46/35	1.8	0.2x2	17.4	377
	3.6	10	1	3.08	59/47	1.8	0.2x2	20.9	519
	4.5	16	1	1.91	80/64	1.8	0.2x2	23.8	671
	6	25	1.2	1.2	100/82	1.8	0.2x2	28.4	944
	7	35	1.2	0.868	120/100	2	0.5x2	32.5	1201
	8.3	50	1.4	0.641	145/125	2.1	0.5x2	38	1929
	9.8	70	1.4	0.443	175/155	2.2	0.5x2	43.6	2487
	11.5	95	1.6	0.32	210/200	2.4	0.5x2	49.2	3127
	12.9	120	1.6	0.253	245/220	2.5	0.5x2	54.2	3753
	14.5	150	1.8	0.206	270/250	2.7	0.5x2	59.9	4500
	16	185	2	0.164	305/295	2.9	0.5x2	66.5	5427
	18.3	240	2.2	0.125	355/345	3.1	0.5x2	74.5	6747
	20.5	300	2.4	0.1	400/395	3.3	0.5x2	82	8123

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

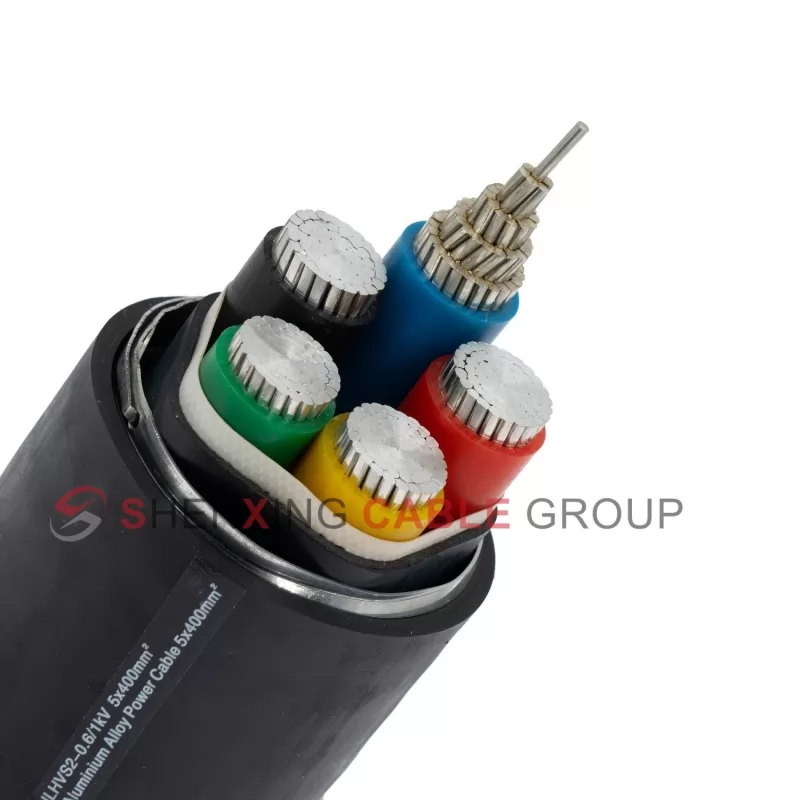

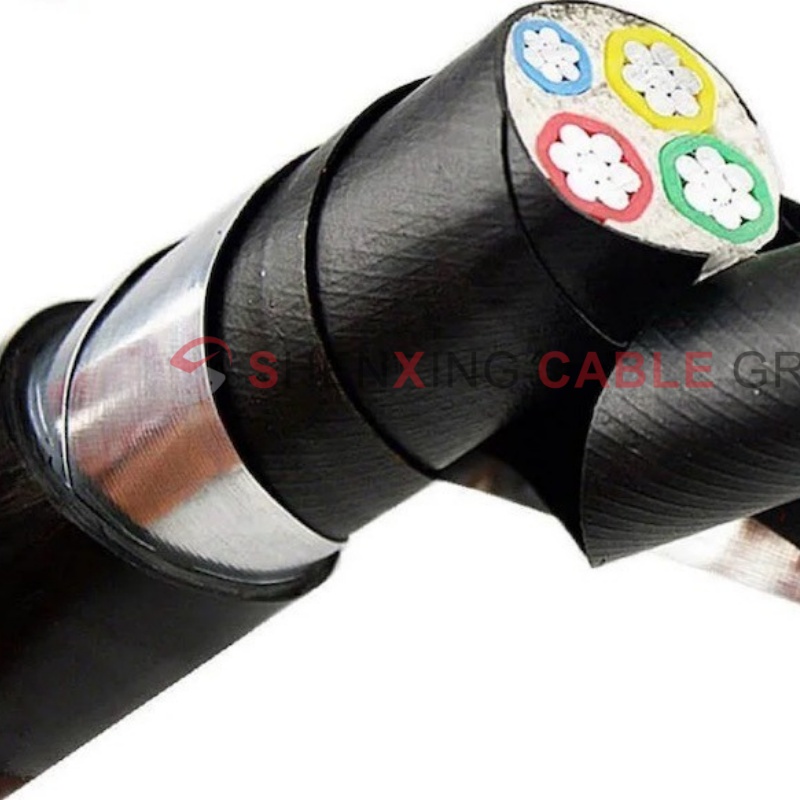

Cable Structure

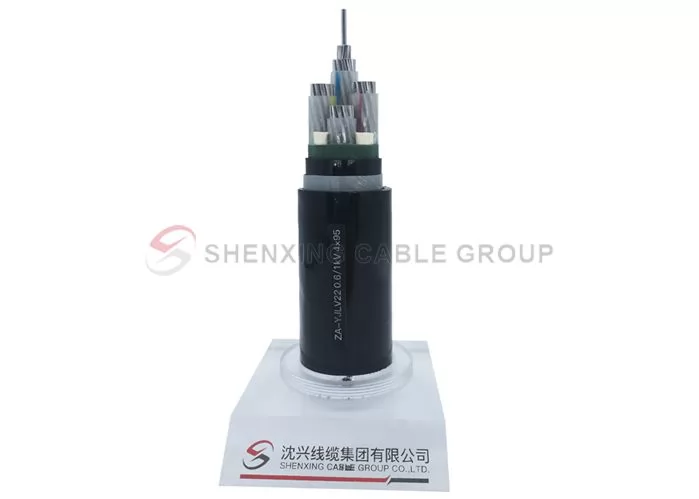

0.6-1kv Aluminum Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Features

Lightweight design: The density of aluminum is lower than that of copper, which reduces the weight of the cable, facilitates transportation and installation, and reduces construction costs.

Excellent electrical performance: The high-purity electrolytic aluminum conductor ensures excellent conductivity, and the cross-linked polyethylene insulation layer provides reliable insulation protection.

Strong corrosion resistance: Both the aluminum core and the polyvinyl chloride sheath have good corrosion resistance and are suitable for various complex environments.

Safety and environmental protection: Low-smoke halogen-free materials are used, with excellent flame retardant properties to ensure the safety of personnel and equipment.

Usage Characteristics

The maximum rated operating temperature of the conductor is 90℃

The maximum short-circuit temperature of the conductor shall not exceed 250℃

The maximum time shall not exceed 5 seconds

The installation and laying temperature of the cable shall not be lower than 0℃

The laying temperature in the air shall be 40℃

The laying temperature in the soil shall be 25℃.

Minimum bending radius (D is the outer diameter of the cable)

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Application Case of Shenxing Cable in Data Center Room

Located on the edge of the city, a large data center room is the core data processing center for many enterprises and government agencies. Read More

Cable Application for Offshore Wind Farms

An international energy giant constructed a large offshore wind farm in the North Sea region. Due to the harsh sea conditions, strong winds, high waves, and severe salt fog corrosion in the North Sea, extremely high requirements were placed on the performance of the cables. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What scenarios is this cable suitable for?

This aluminum core XLPE insulated steel tape armored PVC sheathed power cable is suitable for underground laying, building power transmission, industrial equipment power distribution, and power transmission systems. Due to its steel tape armor design, it can resist mechanical stress, making it particularly suitable for environments that require high-strength protection, such as construction sites, underground laying, or humid environments.

What are the advantages of XLPE insulation?

XLPE (cross-linked polyethylene) insulation has excellent electrical properties and heat resistance, and can withstand operating temperatures up to 90°C, and instantaneous heat resistance temperatures can reach 250°C. In addition, XLPE has excellent anti-aging, chemical corrosion resistance, and moisture resistance, which extends the service life of the cable.

What is the role of steel tape armor in the cable?

Steel tape armor provides additional mechanical protection to prevent the cable from being damaged by external mechanical damage during transportation, installation, or use. This armor design makes the cable particularly suitable for laying in environments where it may be subject to impact, pressure, or external damage, such as underground or inside walls.

What is the role of the PVC sheath?

The PVC (polyvinyl chloride) sheath provides outer protection for the cable and has good wear resistance, moisture resistance and chemical corrosion resistance. It helps the cable resist moisture, acid and alkali and other corrosive substances in harsh environments, thereby ensuring the long-term stable operation of the cable.

What are the advantages of aluminum core cable compared with copper core cable?

Aluminum core cable has the following advantages over copper core cable:

Lighter weight: The density of aluminum is about one-third of that of copper, which reduces the overall weight of the cable and facilitates installation and transportation.

Lower cost: The cost of aluminum is low, which can effectively reduce the project budget.

Better conductivity: Although the conductivity of aluminum is not as good as copper, the same current carrying capacity can be achieved through proper design. Aluminum core cable is very suitable for use in scenarios that do not require extremely high conductivity but have requirements for cost and weight.

Can this cable be used outdoors?

Yes, this cable can be used outdoors. Because its PVC sheath is waterproof and moisture-proof, and the steel belt armor provides good mechanical protection, it is very suitable for outdoor environments, including direct underground laying or exposure to severe weather.

What are the standards and certifications for the cable?

This cable usually complies with international and domestic cable standards such as IEC, GB/T, etc., depending on the manufacturer. In addition, it may also comply with ISO quality management system certification, etc. It is recommended to check whether the cable meets the standards and requirements of your country or region before purchasing.

What are the operating voltage and operating temperature of the cable?

This aluminum core XLPE insulated cable usually supports medium and high voltage power transmission, and the common rated voltage range is 1kV to 35kV. The operating temperature range is usually -15℃ to 90℃, and it can operate normally in hot or cold environments.

What should be paid attention to during installation?

During installation, care should be taken to avoid excessive bending and maintain a suitable bending radius to prevent damage to the internal structure of the cable. In addition, try to avoid external impact or scratches on the cable, and follow the relevant cable laying specifications to ensure safe and stable operation of the cable.

What is the service life of this cable?

Under normal operating conditions, the service life of this cable can reach more than 30 years. Its high temperature resistant and anti-aging XLPE insulation material and PVC sheath design with excellent protective performance greatly extend the service life of the cable. However, the actual service life also depends on the specific use environment and maintenance conditions.
