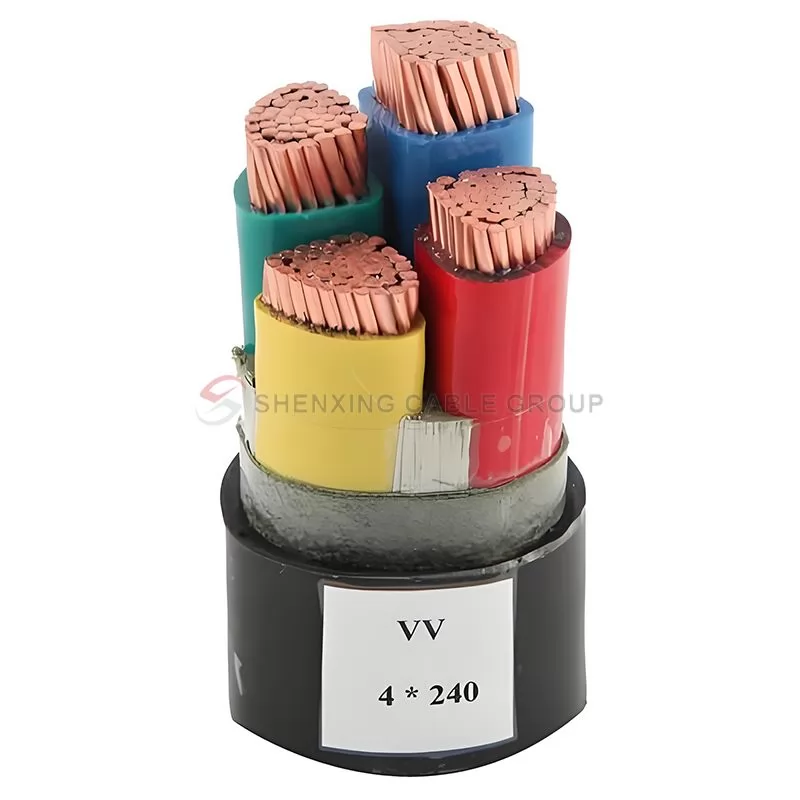

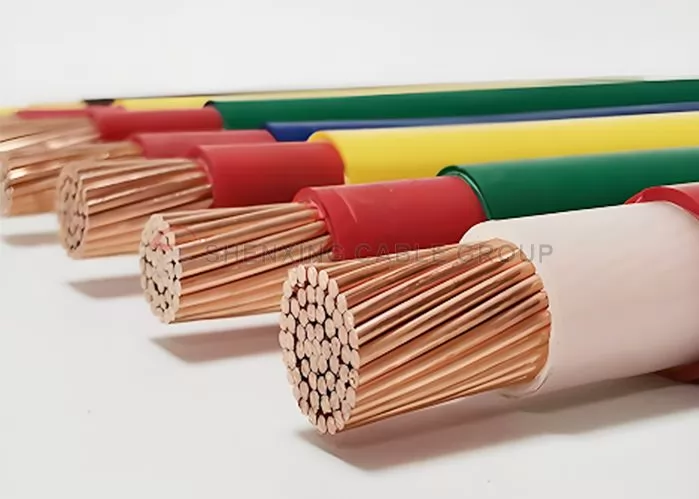

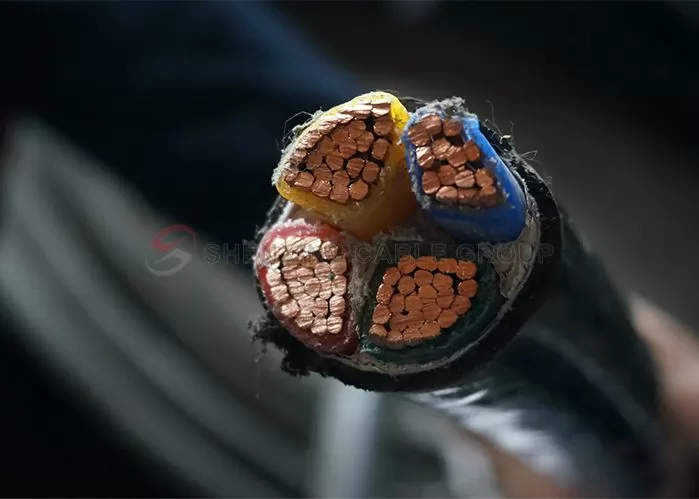

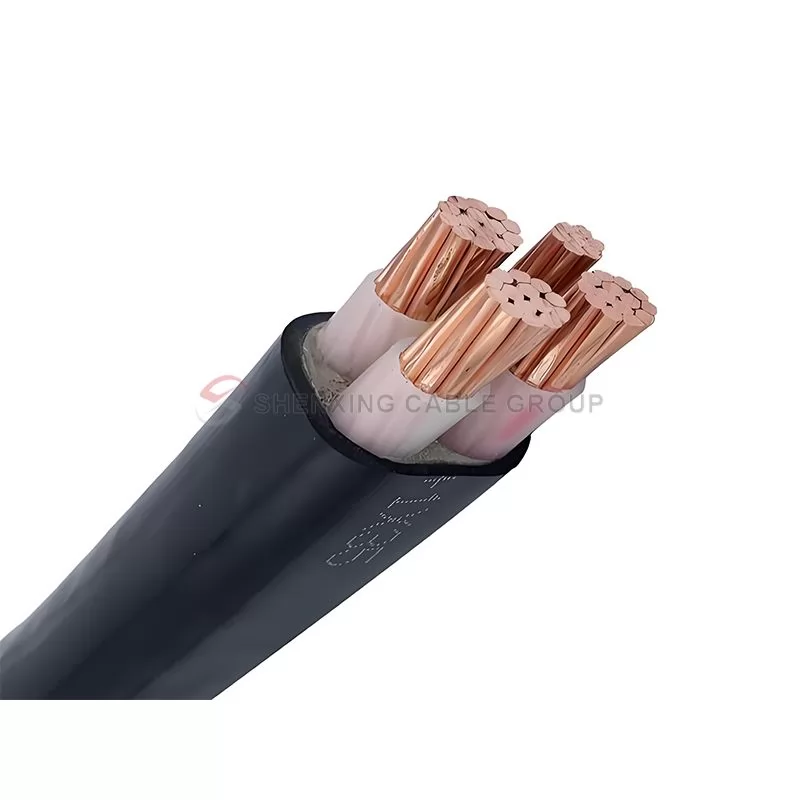

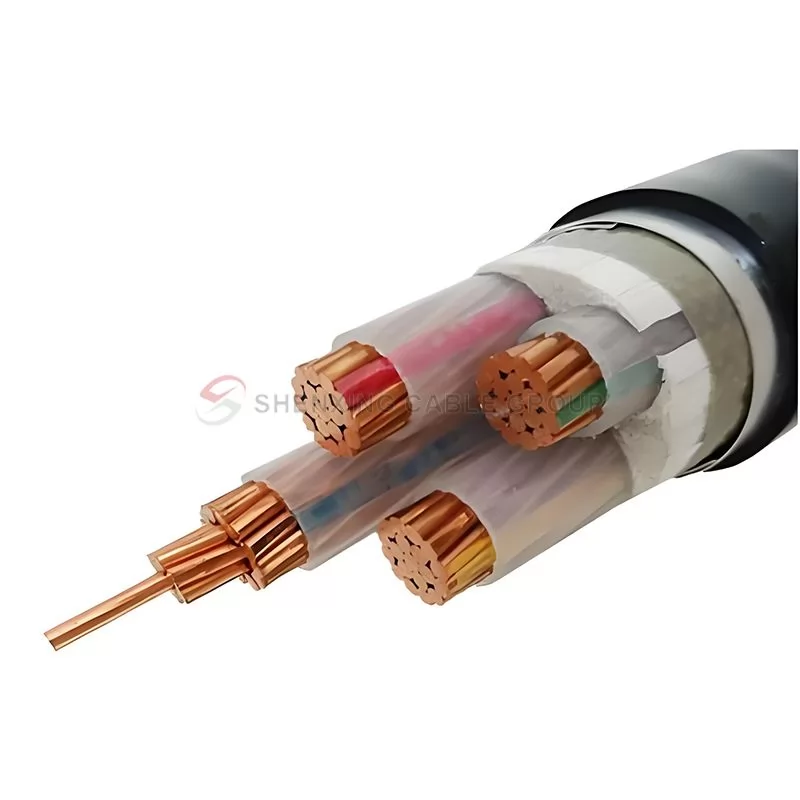

Copper Core PVC Insulated PVC Sheathed Power Cable

International Product Name

This cable is known in many different ways in the international market, depending on the region and standard.

In Europe, common names include NYY cable, which is particularly suitable for fixed installation and underground laying.

According to British standards, it is called 6181Y cable, which is widely used in building and industrial power distribution.

In addition, according to the Harmonized Cable Code (HAR), this cable may be named H07V-U (solid copper conductor) or H07V-R (stranded copper conductor), which is suitable for fixed installation.

Experimental requirements

Maximum operating temperature 70℃

Maximum conductor temperature during short circuit (no more than 5 seconds):

Conductor cross-sectional area <300mm²——160℃

Conductor cross-sectional area ≥ 300mm²——140℃

Rated voltage UO/U0.6/10KV

Laying temperature not less than 0℃

Cable bending radius ≥10D

Tensile strength ≥12.5N/mm²

Widely Use:

Residential electrical distribution and lighting.

Electrical installations in commercial buildings.

Mechanical and equipment connections in industrial facilities.

Electrical power generation and distribution systems.

Advantage:

Energy-efficient: Copper's high conductivity ensures efficient power transmission and reduces energy loss.

Durable and long-lasting: PVC insulation and jacket provide wear resistance and durability, ensuring the long service life of the cable in harsh environments.

Safe and reliable: Meets strict international safety standards to ensure safety when used in residential and industrial areas.

Versatile: Suitable for a variety of power distribution needs from small-scale installations to heavy industrial applications.

Low smoke and halogen-free: It produces less smoke and no harmful gases during combustion, which meets environmental protection requirements.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Resistance	Sheath Thickness	Cable Outer Diameter	Weight
Number of Cores	(mm)	(mm²)	(mm)	(Ω/km)	(Ω/km)	(mm)	(mm)	(kg/km)
Single Core	1.8	2.5	0.8	7.41	36/25	1.4	6.2	70
	2.3	4	1	4.61	47/33	1.4	7	95
	2.8	6	1	3.08	58/41	1.4	7.6	119
	3.6	10	1	1.83	78/58	1.4	8.9	174
	4.5	16	1	1.15	100/76	1.4	9.9	240
	6	25	1.2	0.727	130/98	1.5	11.8	358
	7	35	1.2	0.524	155/115	1.5	13	461
	8.3	50	1.4	0.387	185/145	1.6	14.9	614
	9.8	70	1.4	0.268	225/180	1.6	16.7	834
	11.5	95	1.6	0.193	270/225	1.7	19.2	1132
	12.9	120	1.6	0.153	310/260	1.7	20.8	1384
	14.5	150	1.8	0.124	350/300	1.7	22.8	1679
	16	185	2	0.0991	395/345	1.7	25	2065
	18.3	240	2.2	0.0754	455/410	1.7	28.1	2663
Two Cores	20.5	300	2.4	0.0601	515/475	1.7	30.9	3296
	1.8	2.5	0.8	7.41	34/23	1.8	11.2	138
	2.3	4	1	4.61	44/31	1.8	12.9	192
	2.8	6	1	3.08	56/38	1.8	13.9	245
	3.6	10	1	1.83	76/53	1.8	16.5	363
	4.5	16	1	1.15	100/71	1.8	18.6	505
	6	25	1.2	0.727	125/90	1.8	22	749
	7	35	1.2	0.524	155/110	1.8	24.3	971
	8.3	50	1.4	0.387	185/135	1.8	27.8	1287
	9.8	70	1.4	0.268	230/165	1.9	32	1778
	11.5	95	1.6	0.193	275/210	2	36.8	2417
	12.9	120	1.6	0.153	310/245	2.1	40.2	2979
	14.5	150	1.8	0.124	350/280	2.2	44.3	3643
	16	185	2	0.0991	395/320	2.4	49.3	4532
	18.3	240	2.2	0.0754	455/375	2.6	55.7	5890
Three Cores	1.8	2.5	0.8	7.41	29/19	1.8	11.8	187
	2.3	4	1	4.61	38/26	1.8	13.7	265
	2.8	6	1	3.08	47/32	1.8	14.8	335
	3.6	10	1	1.83	65/46	1.8	17.6	514
	4.5	16	1	1.15	84/60	1.8	19.8	728
	6	25	1.2	0.727	110/77	1.8	23.6	1081
	7	35	1.2	0.524	130/95	1.8	26.1	1422
	8.3	50	1.4	0.387	155/115	1.8	26.5	1801
	9.8	70	1.4	0.268	195/145	1.9	28.8	2415
	11.5	95	1.6	0.193	230/185	2.1	33.7	3255
	12.9	120	1.6	0.153	260/210	2.2	37.1	4037
	14.5	150	1.8	0.124	300/245	2.3	41.9	5028
	16	185	2	0.0991	335/280	2.5	45.9	6180
	18.3	240	2.2	0.0754	390/335	2.7	51.7	7947
	20.5	300	2.4	0.0601	435/375
Four Cores	1.8	2.5	0.8	7.41	29/19	1.8	12.6	211
	2.3	4	1	4.61	38/26	1.8	14.7	305
	2.8	6	1	3.08	47/32	1.8	15.9	400
	3.6	10	1	1.83	65/46	1.8	19	610
	4.5	16	1	1.15	84/60	1.8	21.6	871
	6	25	1.2	0.727	110/77	1.8	25.7	1316
	7	35	1.2	0.524	130/95	1.8	28.5	1732
	8.3	50	1.4	0.387	155/115	1.9	32.9	2327
	9.8	70	1.4	0.268	195/145	2.1	38.1	3264
	11.5	95	1.6	0.193	230/185	2.2	43.8	4455
	12.9	120	1.6	0.153	260/210	2.4	48.1	5530
	14.5	150	1.8	0.124	300/245	2.5	53	6266
	16	185	2	0.0991	335/280	2.7	59	8431
	18.3	240	2.2	0.0754	390/335	2.9	61.9	10972
	20.5	300	2.4	0.0601	435/375
Five Cores	1.8	2.5	0.8	7.41	29/19	1.8	13.5	252
	2.3	4	1	4.61	38/26	1.8	15.8	367
	2.8	6	1	3.08	47/32	1.8	17.3	485
	3.6	10	1	1.83	65/46	1.8	20.7	743
	4.5	16	1	1.15	84/60	1.8	23.6	1068
	6	25	1.2	0.727	110/77	1.8	28.2	1619
	7	35	1.2	0.524	130/95	1.9	31.5	2150
	8.3	50	1.4	0.387	155/115	2	36.4	2889
	9.8	70	1.4	0.268	195/145	2.2	42.1	4051
	11.5	95	1.6	0.193	230/185	2.4	48.7	5553
	12.9	120	1.6	0.153	260/210	2.5	53.2	6866
	14.5	150	1.8	0.124	300/245	2.7	58.8	8434
	16	185	2	0.0991	335/280	2.9	65.4	10500
	18.3	240	2.2	0.0754	390/335	3.1	74	13663
	20.5	300	2.4	0.0601	435/375	3.3	82	17027

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

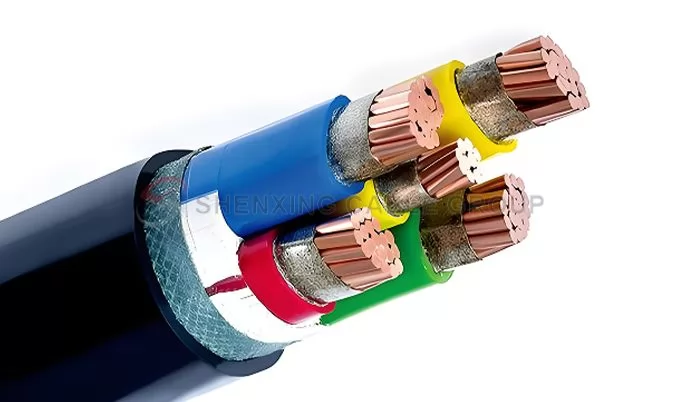

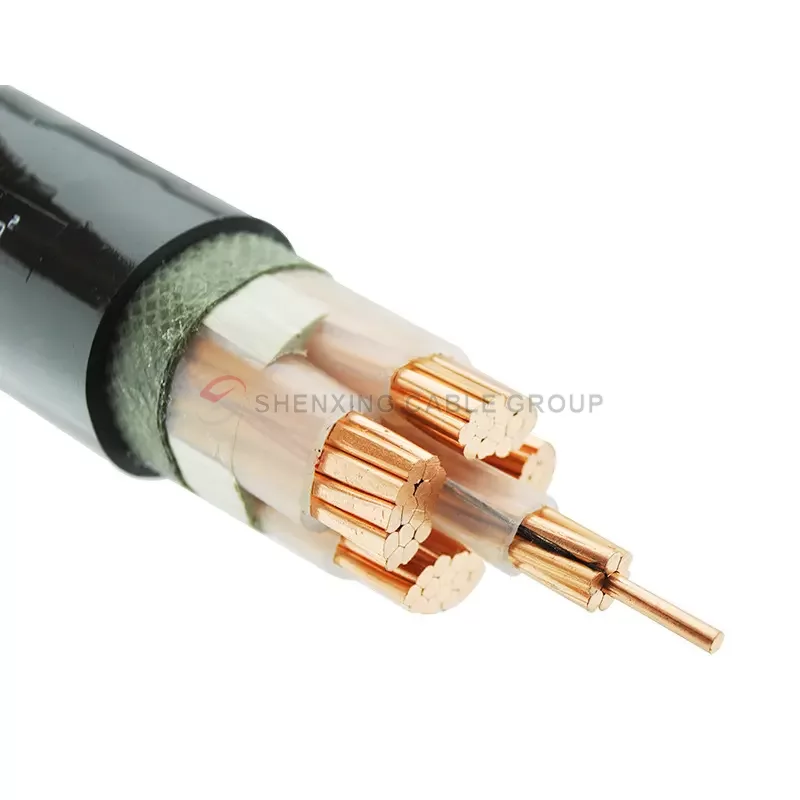

Cable Structure

0.6-1kv Copper Core PVC Insulated PVC Sheathed Power Cable

Features

Highly Conductive Copper Core:

The cable uses copper conductors to ensure excellent electrical conductivity, reduce energy loss and ensure efficient power transmission.

PVC Insulation:

The inner PVC insulation provides excellent protection for the cable, preventing electrical leakage and short circuits.

PVC Jacket Extra Protection:

The outer PVC jacket adds a second layer of protection to protect the cable from physical damage, abrasion, and environmental factors such as UV rays and chemicals.

Temperature and Voltage Rating:

The cable can operate normally in a temperature range of -15°C to +70°C, adapting to different climate conditions.

Usage Characteristics

Conductor maximum rated operating temperature: 90℃

Conductor maximum short-circuit temperature: 250℃, maximum duration is 5 seconds.

Installation and laying temperature: The minimum installation and laying temperature shall not be lower than 0℃.

Laying temperature: The laying temperature in air is 40℃, and the laying temperature in soil is 25℃.

Minimum bending radius:

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Power Cables Help Upgrade Smart Grids

In order to realize intelligent management of the power grid, improve power supply reliability and reduce energy loss, a coastal city decided to comprehensively upgrade the original power grid. Read More

Application Case of Shenxing Cable in Data Center Room

Located on the edge of the city, a large data center room is the core data processing center for many enterprises and government agencies. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What is the main purpose of copper core PVC insulated PVC sheathed power cable?

This cable is widely used in construction, industry, power distribution and power transmission, and is suitable for fixed installation, especially indoors, tunnels and underground laying.

What is the maximum operating temperature of this cable?

The maximum rated operating temperature of copper core PVC insulated PVC sheathed power cable is 90℃. In the case of short circuit, the temperature of the conductor can reach 250℃, but the duration shall not exceed 5 seconds.

What is the minimum bending radius of the cable?

The minimum bending radius of single-core cable is 20(D+d) ±5%, while the minimum bending radius of multi-core cable is 15(D+d) ±5%, where D is the outer diameter of the cable and d is the diameter of the conductor.

Can this cable be installed normally under low temperature conditions?

The minimum temperature requirement for cable installation and laying is 0℃. Installation in an environment below this temperature may cause damage to the cable.

What is the fire resistance of copper core PVC insulated PVC sheathed power cable?

The cable has undergone the corresponding fire resistance test, meets national and international fire protection standards, and has certain flame retardant properties.

What is the insulation material of the cable?

This cable uses PVC as the insulation material, which has good insulation performance and chemical corrosion resistance.

What are the installation requirements of this cable?

During installation, the minimum bending radius requirements must be followed to ensure that the ambient temperature is within the specified range and avoid installation in extreme environments.

Can this cable be used outdoors?

Yes, the cable can be used outdoors, but environmental factors such as direct sunlight need to be considered to ensure the weather resistance of its PVC sheath.

How to choose the appropriate cable specifications?

When selecting cable specifications, comprehensive consideration should be given to factors such as load current, laying method, installation environment, and cable length.

Does the copper core PVC insulated PVC sheathed power cable meet international standards?

Yes, the cable meets a number of international standards, such as IEC and BS standards, ensuring its safety and reliability in global use.
