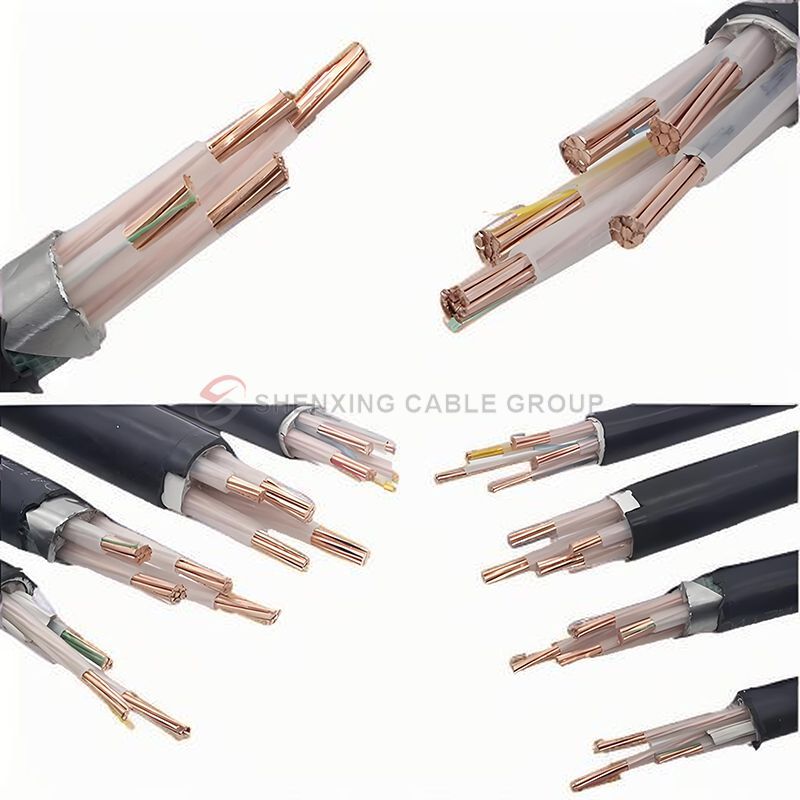

Low Voltage(0.6/1KV) Power Cable-VV22
Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable is a high-performance power cable designed for reliable and secure power transmission in demanding environments. Featuring a copper core, this cable offers superior electrical conductivity, making it ideal for heavy-duty applications and long-distance power transmission.
Share:
International Product Name
IEC Standard
Name: Copper Conductor, PVC Insulated, Steel Tape Armored, PVC Sheathed Power Cable
BS Standard
Name: CU/PVC/SWA/PVC Power Cable (Copper Conductor, PVC Insulated, Steel Wire Armored, PVC Sheathed)
DIN Standard
Name: Cable closure, PVC-isolation, cable protection, PVC-mantel
UL and NEC Standard
Name: Copper Conductor, PVC Insulated, Armored Power Cable
EN Standard
Name: Copper Conductor, PVC Insulated, Steel Tape Armored, PVC Sheathed Power Cable
Experimental Requirements
Operating temperature: up to 90°C
Short circuit temperature: up to 250°C for a short circuit duration of no more than 5 seconds
Voltage level: suitable for low voltage to medium voltage applications, typically 1kV to 35kV
Standards: in compliance with international standards such as IEC, BS and EN
Widely Use:
Underground installations
Electricity distribution networks
Factories and industrial facilities
Public infrastructure
Advantage:
Enhanced durability: Steel tape armor extends the life of the cable and protects against external mechanical damage, making it an excellent performer in demanding environments.
High safety standards: Flame retardant properties and high-quality insulation reduce electrical failures and fire hazards.
Low maintenance costs: Rugged PVC jacket and armor reduce the need for frequent maintenance, reducing long-term operating costs.
Versatile installation: Suitable for indoor and outdoor installations, including direct underground burial or installation in cable troughs and trays.
Technical Data
| Number of Cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Sheath Thickness | Armor Thickness | Cable Outer Diameter | Weight |
| (mm) | (mm²) | (mm) | (Ω/km) | (A) | (mm) | (mm) | (mm) | (kg/km) | |
| Single Core | 1.8 | 2.5 | 0.8 | 7.41 | 36/25 | ||||
| 2.3 | 4 | 1 | 4.61 | 47/33 | |||||
| 2.8 | 6 | 1 | 3.08 | 58/41 | |||||
| 3.6 | 10 | 1 | 1.83 | 78/58 | |||||
| 4.5 | 16 | 1 | 1.15 | 100/76 | |||||
| 6 | 25 | 1.2 | 0.727 | 130/98 | |||||
| 7 | 35 | 1.2 | 0.524 | 155/115 | |||||
| 8.3 | 50 | 1.4 | 0.387 | 185/145 | |||||
| 9.8 | 70 | 1.4 | 0.268 | 225/180 | |||||
| 11.5 | 95 | 1.6 | 0.193 | 270/225 | |||||
| 12.9 | 120 | 1.6 | 0.153 | 310/260 | |||||
| 14.5 | 150 | 1.8 | 0.124 | 350/300 | |||||
| 16 | 185 | 2 | 0.0991 | 395/345 | |||||
| 18.3 | 240 | 2.2 | 0.0754 | 455/410 | |||||
| Two Cores | 20.5 | 300 | 2.4 | 0.0601 | 515/475 | ||||
| 1.8 | 2.5 | 0.8 | 7.41 | 34/23 | |||||
| 2.3 | 4 | 1 | 4.61 | 44/31 | 1.8 | 0.2x2 | 14.7 | 305 | |
| 2.8 | 6 | 1 | 3.08 | 56/38 | 1.8 | 0.2x2 | 15.7 | 367 | |
| 3.6 | 10 | 1 | 1.83 | 76/53 | 1.8 | 0.2x2 | 18.3 | 495 | |
| 4.5 | 16 | 1 | 1.15 | 100/71 | 1.8 | 0.2x2 | 20.4 | 656 | |
| 6 | 25 | 1.2 | 0.727 | 125/90 | 1.8 | 0.2x2 | 23.8 | 929 | |
| 7 | 35 | 1.2 | 0.524 | 155/110 | 1.8 | 0.2X2 | 26.1 | 1172 | |
| 8.3 | 50 | 1.4 | 0.387 | 185/135 | 1.8 | 0.5x2 | 29.6 | 1517 | |
| 9.8 | 70 | 1.4 | 0.268 | 230/165 | 2 | 0.5x2 | 35.4 | 2376 | |
| 11.5 | 95 | 1.6 | 0.193 | 275/210 | 2.1 | 0.5x2 | 40.2 | 3104 | |
| 12.9 | 120 | 1.6 | 0.153 | 310/245 | 2.2 | 0.5x2 | 43.6 | 3730 | |
| 14.5 | 150 | 1.8 | 0.124 | 350/280 | 2.3 | 0.5x2 | 47.7 | 4470 | |
| 16 | 185 | 2 | 0.0991 | 395/320 | 2.5 | 0.5x2 | 52.7 | 5447 | |
| 18.3 | 240 | 2.2 | 0.0754 | 455/375 | |||||
| Three Cores | 1.8 | 2.5 | 0.8 | 7.41 | 29/19 | ||||
| 2.3 | 4 | 1 | 4.61 | 38/26 | |||||
| 2.8 | 6 | 1 | 3.08 | 47/32 | |||||
| 3.6 | 10 | 1 | 1.83 | 65/46 | 1.8 | 0.2x2 | 21.2 | 800 | |
| 4.5 | 16 | 1 | 1.15 | 84/60 | 1.8 | 0.2x2 | 23.5 | 1050 | |
| 6 | 25 | 1.2 | 0.727 | 110/77 | 1.8 | 0.2x2 | 27.2 | 1465 | |
| 7 | 35 | 1.2 | 0.524 | 130/95 | 1.9 | 0.2X2 | 30.7 | 2150 | |
| 8.3 | 50 | 1.4 | 0.387 | 155/115 | 2 | 0.5x2 | 31.4 | 2453 | |
| 9.8 | 70 | 1.4 | 0.268 | 195/145 | 2.2 | 0.5x2 | 33.6 | 3116 | |
| 11.5 | 95 | 1.6 | 0.193 | 230/185 | 2.4 | 0.5x2 | 38.3 | 4053 | |
| 12.9 | 120 | 1.6 | 0.153 | 260/210 | 2.5 | 0.5x2 | 41.9 | 4930 | |
| 14.5 | 150 | 1.8 | 0.124 | 300/245 | 2.6 | 0.5x2 | 47.1 | 6075 | |
| 16 | 185 | 2 | 0.0991 | 335/280 | 2.8 | 0.5x2 | 50.9 | 7300 | |
| 18.3 | 240 | 2.2 | 0.0754 | 390/335 | 3 | 0.5x2 | 57 | 9231 | |
| 20.5 | 300 | 2.4 | 0.0601 | 435/375 | 3.2 | 0.5x2 | 64 | 11847 | |
| Four Cores | 1.8 | 2.5 | 0.8 | 7.41 | 29/19 | ||||
| 2.3 | 4 | 1 | 4.61 | 38/26 | 1.8 | 0.2x2 | 16.5 | 435 | |
| 2.8 | 6 | 1 | 3.08 | 47/32 | 1.8 | 0.2x2 | 17.7 | 542 | |
| 3.6 | 10 | 1 | 1.83 | 65/46 | 1.8 | 0.2x2 | 20.8 | 764 | |
| 4.5 | 16 | 1 | 1.15 | 84/60 | 1.8 | 0.2x2 | 23.4 | 1048 | |
| 6 | 25 | 1.2 | 0.727 | 110/77 | 1.8 | 0.2x2 | 27.5 | 1529 | |
| 7 | 35 | 1.2 | 0.524 | 130/95 | 1.8 | 0.2X2 | 30.3 | 1969 | |
| 8.3 | 50 | 1.4 | 0.387 | 155/115 | 1.9 | 0.5x2 | 36.7 | 2960 | |
| 9.8 | 70 | 1.4 | 0.268 | 195/145 | 2.1 | 0.5x2 | 41.3 | 3956 | |
| 11.5 | 95 | 1.6 | 0.193 | 230/185 | 2.2 | 0.5x2 | 47.2 | 5273 | |
| 12.9 | 120 | 1.6 | 0.153 | 260/210 | 2.4 | 0.5x2 | 51.3 | 6403 | |
| 14.5 | 150 | 1.8 | 0.124 | 300/245 | 2.6 | 0.5x2 | 56.4 | 7757 | |
| 16 | 185 | 2 | 0.0991 | 335/280 | 2.8 | 0.5x2 | 62.4 | 9524 | |
| 18.3 | 240 | 2.2 | 0.0754 | 390/335 | 3 | 0.5x2 | 70.1 | 12207 | |
| 20.5 | 300 | 2.4 | 0.0601 | 435/375 | 3.2 | 0.5x2 | 77.3 | 15044 | |
| Five Cores | 1.8 | 2.5 | 0.8 | 7.41 | 29/19 | ||||
| 2.3 | 4 | 1 | 4.61 | 38/26 | 1.8 | 0.2x2 | 17.6 | 508 | |
| 2.8 | 6 | 1 | 3.08 | 47/32 | 1.8 | 0.2x2 | 19.1 | 652 | |
| 3.6 | 10 | 1 | 1.83 | 65/46 | 1.8 | 0.2x2 | 22.5 | 925 | |
| 4.5 | 16 | 1 | 1.15 | 84/60 | 1.8 | 0.2x2 | 25.4 | 1276 | |
| 6 | 25 | 1.2 | 0.727 | 110/77 | 1.8 | 0.2x2 | 30.3 | 1871 | |
| 7 | 35 | 1.2 | 0.524 | 130/95 | 2 | 0.2x2 | 35.3 | 2755 | |
| 8.3 | 50 | 1.4 | 0.387 | 155/115 | 2.1 | 0.5x2 | 40.2 | 3588 | |
| 9.8 | 70 | 1.4 | 0.268 | 195/145 | 2.3 | 0.5x2 | 45.5 | 4835 | |
| 11.5 | 95 | 1.6 | 0.193 | 230/185 | 2.5 | 0.5x2 | 52.1 | 6459 | |
| 12.9 | 120 | 1.6 | 0.153 | 260/210 | 2.6 | 0.5x2 | 56.6 | 7856 | |
| 14.5 | 150 | 1.8 | 0.124 | 300/245 | 2.8 | 0.5x2 | 62.2 | 9528 | |
| 16 | 185 | 2 | 0.0991 | 335/280 | 2.9 | 0.5x2 | 68.6 | 11683 | |
| 18.3 | 240 | 2.2 | 0.0754 | 390/335 | 3.2 | 0.5x2 | 77.4 | 15034 | |
| 20.5 | 300 | 2.4 | 0.0601 | 435/375 | 3.4 | 0.5x2 | 85.4 | 18546 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

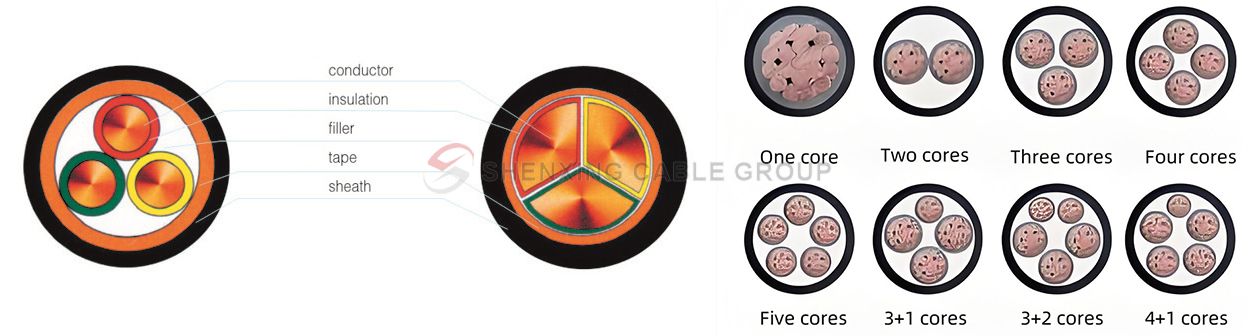

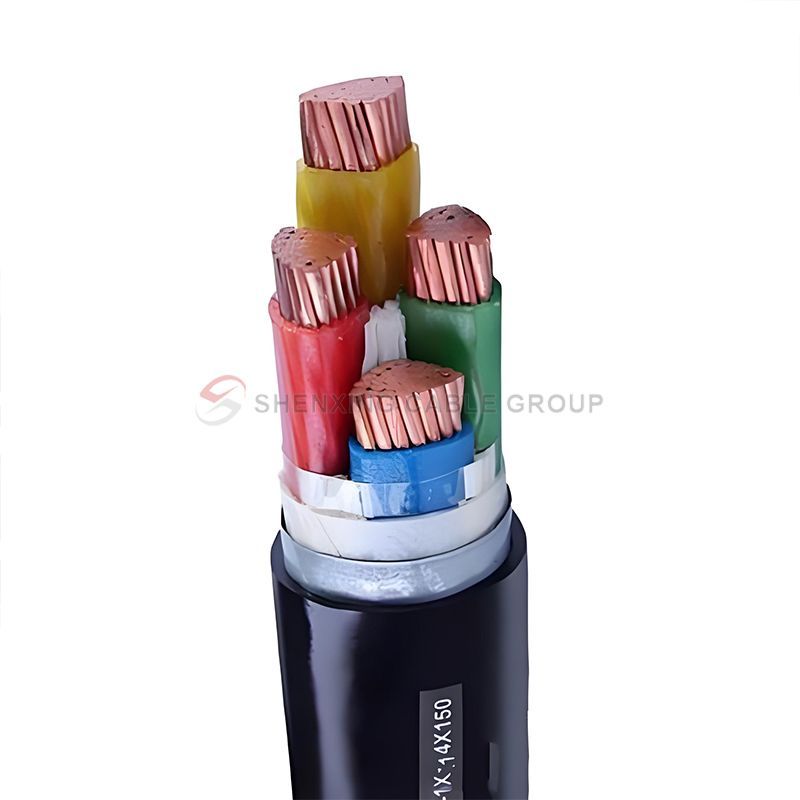

Cable Structure
0.6-1kv Copper Core PVC Insulated Steel Tape Armored PVC sheathed Power Cable
Features
Features
High conductivity: The copper core provides excellent conductivity, ideal for critical infrastructure and high-demand applications.
Steel tape armor: The steel tape armor provides excellent mechanical protection against external impact, pressure and mechanical abrasion.
PVC insulation and jacket: Excellent resistance to moisture, chemicals and abrasion.
Flame retardant properties: PVC material is flame retardant, improving overall safety in high-risk areas such as factories, tunnels and residential buildings.
Application range: Used in low and medium voltage distribution networks, commonly used in power plants, power substations and other industrial infrastructure.
Usage Characteristics
Maximum rated operating temperature of conductor: 70°C or 90°C
Maximum short-circuit temperature of conductor: 160°C or 250°C, with a maximum duration of 5 seconds.
Installation and laying temperature: The minimum installation and laying temperature shall not be lower than 0°C.
Laying temperature: The laying temperature in air is 40°C, and the laying temperature in soil is 25°C.
Minimum Bending Radius:
Single-core cable: 20(D+d) ±5%
Multi-core cable: 15(D+d) ±5%
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is the main purpose of copper core PVC insulated PVC sheathed power cable?
This cable is widely used in construction, industry, power distribution and power transmission, and is suitable for fixed installation, especially indoors, tunnels and underground laying.
What is the maximum operating temperature of this cable?
The maximum rated operating temperature of copper core PVC insulated PVC sheathed power cable is 90℃. In the case of short circuit, the temperature of the conductor can reach 250℃, but the duration shall not exceed 5 seconds.
What is the minimum bending radius of the cable?
The minimum bending radius of single-core cable is 20(D+d) ±5%, while the minimum bending radius of multi-core cable is 15(D+d) ±5%, where D is the outer diameter of the cable and d is the diameter of the conductor.
Can this cable be installed normally under low temperature conditions?
The minimum temperature requirement for cable installation and laying is 0℃. Installation in an environment below this temperature may cause damage to the cable.
What is the fire resistance of copper core PVC insulated PVC sheathed power cable?
The cable has undergone the corresponding fire resistance test, meets national and international fire protection standards, and has certain flame retardant properties.
What is the insulation material of the cable?
This cable uses PVC as the insulation material, which has good insulation performance and chemical corrosion resistance.
What are the installation requirements of this cable?
During installation, the minimum bending radius requirements must be followed to ensure that the ambient temperature is within the specified range and avoid installation in extreme environments.
Can this cable be used outdoors?
Yes, the cable can be used outdoors, but environmental factors such as direct sunlight need to be considered to ensure the weather resistance of its PVC sheath.
How to choose the appropriate cable specifications?
When selecting cable specifications, comprehensive consideration should be given to factors such as load current, laying method, installation environment, and cable length.
Does the copper core PVC insulated PVC sheathed power cable meet international standards?
Yes, the cable meets a number of international standards, such as IEC and BS standards, ensuring its safety and reliability in global use.
More Frequently Asked Questions.
