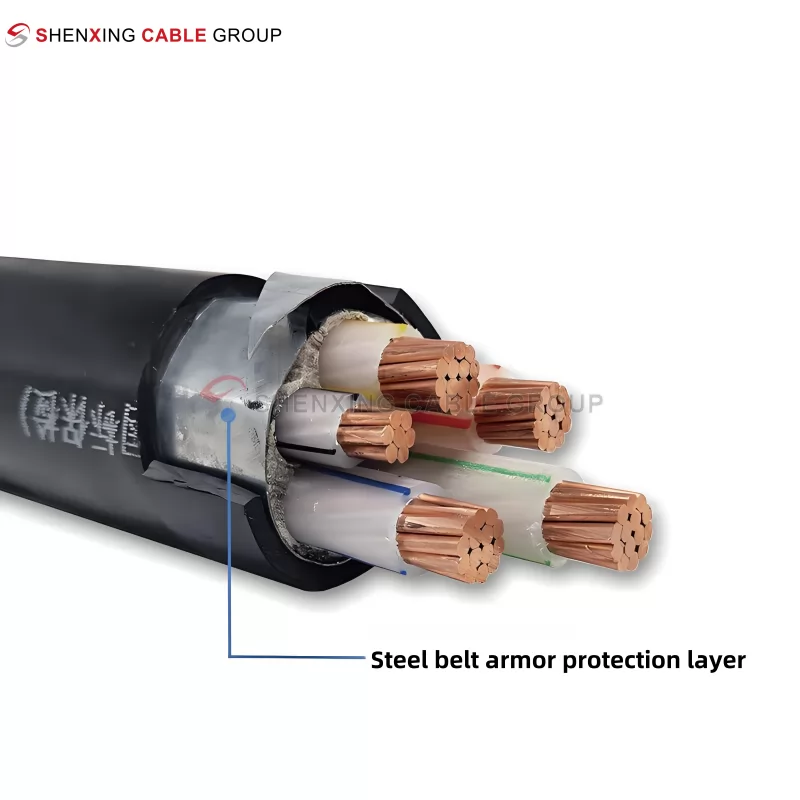

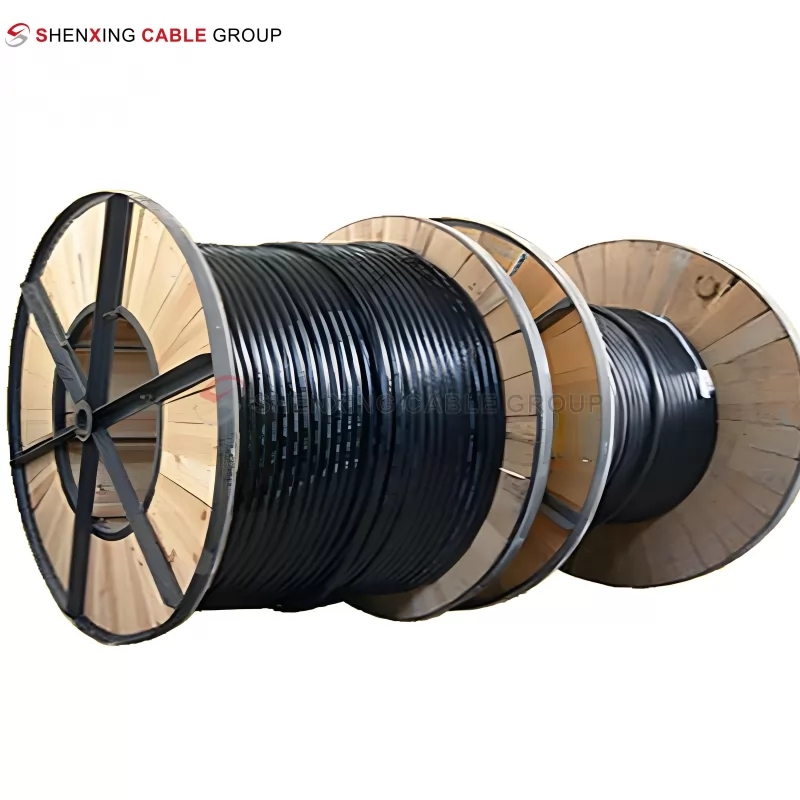

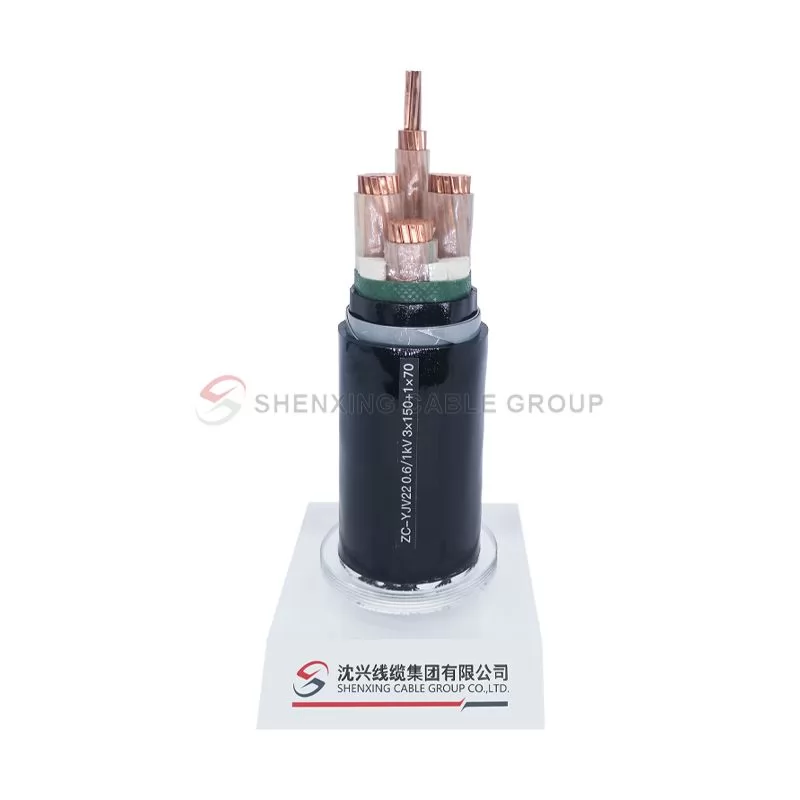

Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Conductor:

High purity oxygen-free copper

High conductivity

Low loss

Stable transmission performance

Widely Use:

Power system: power plants, substations, distribution rooms, factories, etc.

Construction projects: residential buildings, commercial buildings, industrial plants, etc.

Industrial enterprises: petrochemicals, metallurgy, mining, electronics, etc.

Transportation: subways, railways, tunnels, etc.

Advantage:

1. The identification mark of the insulated wire core is distinguished by color separation tape or color masterbatch.

2. The multi-core cable adopts a compact fan-shaped design, which has a stable structure, light weight and small outer diameter.

3. It has excellent electrical properties and high breakdown electric field strength.

4. The dielectric loss tangent value tanδ is small and the insulation resistance is high.

5. It has high heat resistance and aging resistance, allows high operating temperature and large current carrying capacity.

6. The cable can withstand large mechanical external forces and tensile forces, and is easy to lay and maintain.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Armor Thickness	Cable Outer Diameter	Weight
	（mm）	（mm²）	（mm）	（Ω/km）	（A)	(mm)	(mm)	(mm)	(kg/km)
Single Core	1.8	2.5	0.8	7.41	36/25
	2.3	4	1	4.61	47/33
	2.8	6	1	3.08	58/41
	3.6	10	1	1.83	78/58
	4.5	16	1	1.15	100/76
	6	25	1.2	0.727	130/98
	7	35	1.2	0.524	155/115
	8.3	50	1.4	0.387	185/145
	9.8	70	1.4	0.268	225/180
	11.5	95	1.6	0.193	270/225
	12.9	120	1.6	0.153	310/260
	14.5	150	1.8	0.124	350/300
	16	185	2	0.0991	395/345
	18.3	240	2.2	0.0754	455/410
Two Cores	20.5	300	2.4	0.0601	515/475
	1.8	2.5	0.8	7.41	34/23
	2.3	4	1	4.61	44/31	1.8	0.2x2	14.7	305
	2.8	6	1	3.08	56/38	1.8	0.2x2	15.7	367
	3.6	10	1	1.83	76/53	1.8	0.2x2	18.3	495
	4.5	16	1	1.15	100/71	1.8	0.2x2	20.4	656
	6	25	1.2	0.727	125/90	1.8	0.2x2	23.8	929
	7	35	1.2	0.524	155/110	1.8	0.2X2	26.1	1172
	8.3	50	1.4	0.387	185/135	1.8	0.5x2	29.6	1517
	9.8	70	1.4	0.268	230/165	2	0.5x2	35.4	2376
	11.5	95	1.6	0.193	275/210	2.1	0.5x2	40.2	3104
	12.9	120	1.6	0.153	310/245	2.2	0.5x2	43.6	3730
	14.5	150	1.8	0.124	350/280	2.3	0.5x2	47.7	4470
	16	185	2	0.0991	395/320	2.5	0.5x2	52.7	5447
	18.3	240	2.2	0.0754	455/375
Three Cores	1.8	2.5	0.8	7.41	29/19
	2.3	4	1	4.61	38/26
	2.8	6	1	3.08	47/32
	3.6	10	1	1.83	65/46	1.8	0.2x2	21.2	800
	4.5	16	1	1.15	84/60	1.8	0.2x2	23.5	1050
	6	25	1.2	0.727	110/77	1.8	0.2x2	27.2	1465
	7	35	1.2	0.524	130/95	1.9	0.2X2	30.7	2150
	8.3	50	1.4	0.387	155/115	2	0.5x2	31.4	2453
	9.8	70	1.4	0.268	195/145	2.2	0.5x2	33.6	3116
	11.5	95	1.6	0.193	230/185	2.4	0.5x2	38.3	4053
	12.9	120	1.6	0.153	260/210	2.5	0.5x2	41.9	4930
	14.5	150	1.8	0.124	300/245	2.6	0.5x2	47.1	6075
	16	185	2	0.0991	335/280	2.8	0.5x2	50.9	7300
	18.3	240	2.2	0.0754	390/335	3	0.5x2	57	9231
	20.5	300	2.4	0.0601	435/375	3.2	0.5x2	64	11847
Four Cores	1.8	2.5	0.8	7.41	29/19
	2.3	4	1	4.61	38/26	1.8	0.2x2	16.5	435
	2.8	6	1	3.08	47/32	1.8	0.2x2	17.7	542
	3.6	10	1	1.83	65/46	1.8	0.2x2	20.8	764
	4.5	16	1	1.15	84/60	1.8	0.2x2	23.4	1048
	6	25	1.2	0.727	110/77	1.8	0.2x2	27.5	1529
	7	35	1.2	0.524	130/95	1.8	0.2X2	30.3	1969
	8.3	50	1.4	0.387	155/115	1.9	0.5x2	36.7	2960
	9.8	70	1.4	0.268	195/145	2.1	0.5x2	41.3	3956
	11.5	95	1.6	0.193	230/185	2.2	0.5x2	47.2	5273
	12.9	120	1.6	0.153	260/210	2.4	0.5x2	51.3	6403
	14.5	150	1.8	0.124	300/245	2.6	0.5x2	56.4	7757
	16	185	2	0.0991	335/280	2.8	0.5x2	62.4	9524
	18.3	240	2.2	0.0754	390/335	3	0.5x2	70.1	12207
	20.5	300	2.4	0.0601	435/375	3.2	0.5x2	77.3	15044
Five Cores	1.8	2.5	0.8	7.41	29/19
	2.3	4	1	4.61	38/26	1.8	0.2x2	17.6	508
	2.8	6	1	3.08	47/32	1.8	0.2x2	19.1	652
	3.6	10	1	1.83	65/46	1.8	0.2x2	22.5	925
	4.5	16	1	1.15	84/60	1.8	0.2x2	25.4	1276
	6	25	1.2	0.727	110/77	1.8	0.2x2	30.3	1871
	7	35	1.2	0.524	130/95	2	0.2x2	35.3	2755
	8.3	50	1.4	0.387	155/115	2.1	0.5x2	40.2	3588
	9.8	70	1.4	0.268	195/145	2.3	0.5x2	45.5	4835
	11.5	95	1.6	0.193	230/185	2.5	0.5x2	52.1	6459
	12.9	120	1.6	0.153	260/210	2.6	0.5x2	56.6	7856
	14.5	150	1.8	0.124	300/245	2.8	0.5x2	62.2	9528
	16	185	2	0.0991	335/280	2.9	0.5x2	68.6	11683
	18.3	240	2.2	0.0754	390/335	3.2	0.5x2	77.4	15034
	20.5	300	2.4	0.0601	435/375	3.4	0.5x2	85.4	18546

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

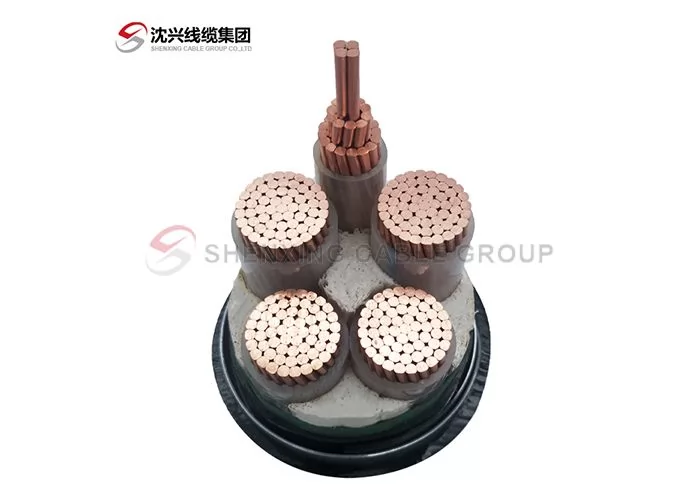

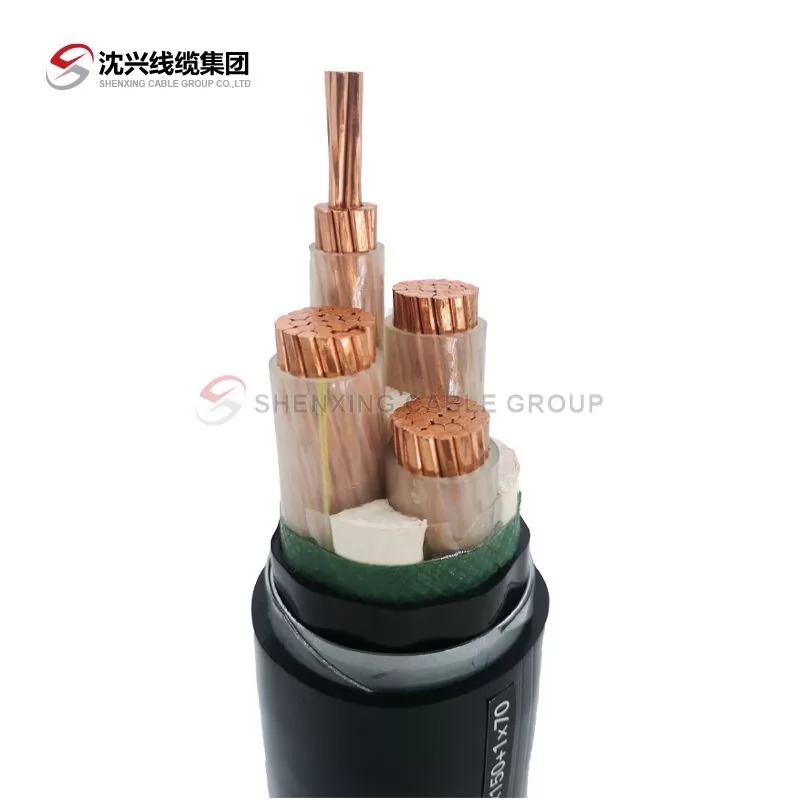

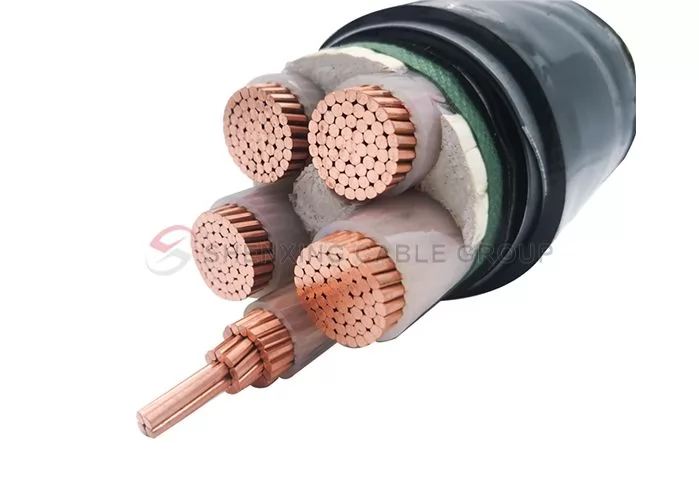

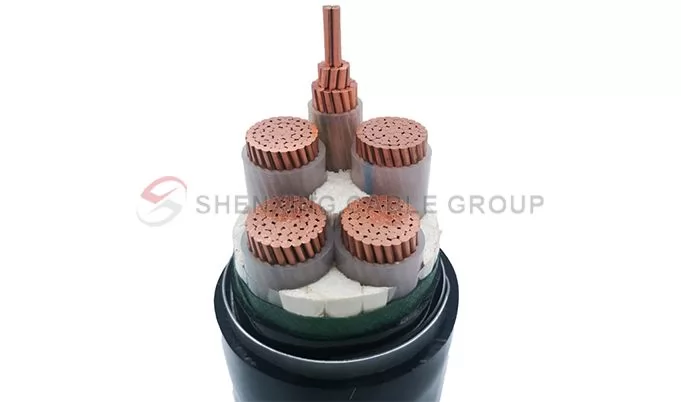

Cable Structure

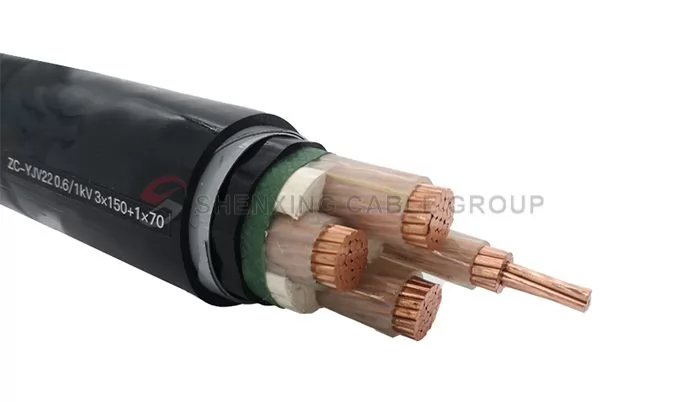

0.6-1kv Copper core XLPE Insulated armoured cable

Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Features

Conductor: High-purity annealed copper with low resistivity is used to reduce the loss during power transmission.

Insulation layer: XLPE material is used, which has excellent electrical and mechanical properties.

Sheath layer: PVC material is used, which has the characteristics of wear resistance, weather resistance, and aging resistance, protecting the internal structure of the cable.

Low smoke and halogen-free: Low smoke and halogen-free materials are used, which produces less smoke and no halogenated hydrogen gas in the event of a fire, ensuring the safety of personnel.

Flame retardant performance: Flame retardant grades A, B, and C can effectively delay the spread of fire.

Vibration resistance: Suitable for dynamic environments.

Usage Characteristics

Long-term allowable operating temperature: The long-term operating temperature of the conductor should not exceed 90℃,

The maximum operating temperature during short circuit should not exceed 250℃ (the longest duration should not exceed 5s);

The cable laying temperature should not be lower than 0℃;

Minimum bending radius (D is the outer diameter of the cable)

Single-core cable: 20(D+d) ±5%

Multi-core cable: 15(D+d) ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Intelligent Upgrade of Luxury Cruise Ships

An internationally renowned luxury cruise company plans to carry out comprehensive intelligent upgrades on several of its cruise ships to improve passenger experience and operational efficiency. Read More

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Cable Application for Offshore Wind Farms

An international energy giant constructed a large offshore wind farm in the North Sea region. Due to the harsh sea conditions, strong winds, high waves, and severe salt fog corrosion in the North Sea, extremely high requirements were placed on the performance of the cables. Read More

Cable Application in a Public Charging Station in a City

In order to promote the development of new energy vehicles, a city built a number of charging stations in public areas. Due to the special working environment of the charging station, the performance requirements for the cable are extremely high. Read More
