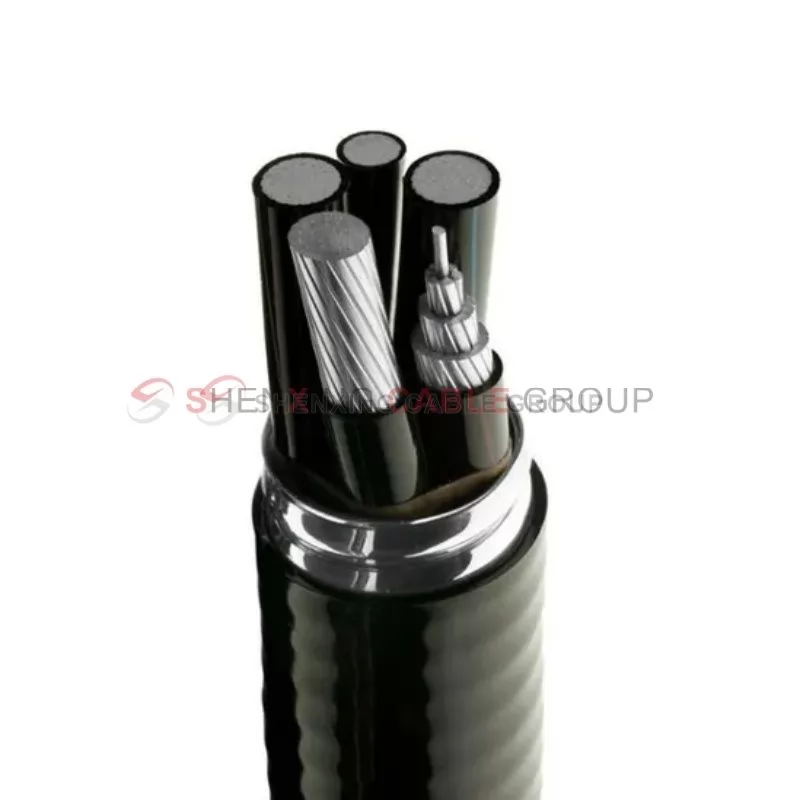

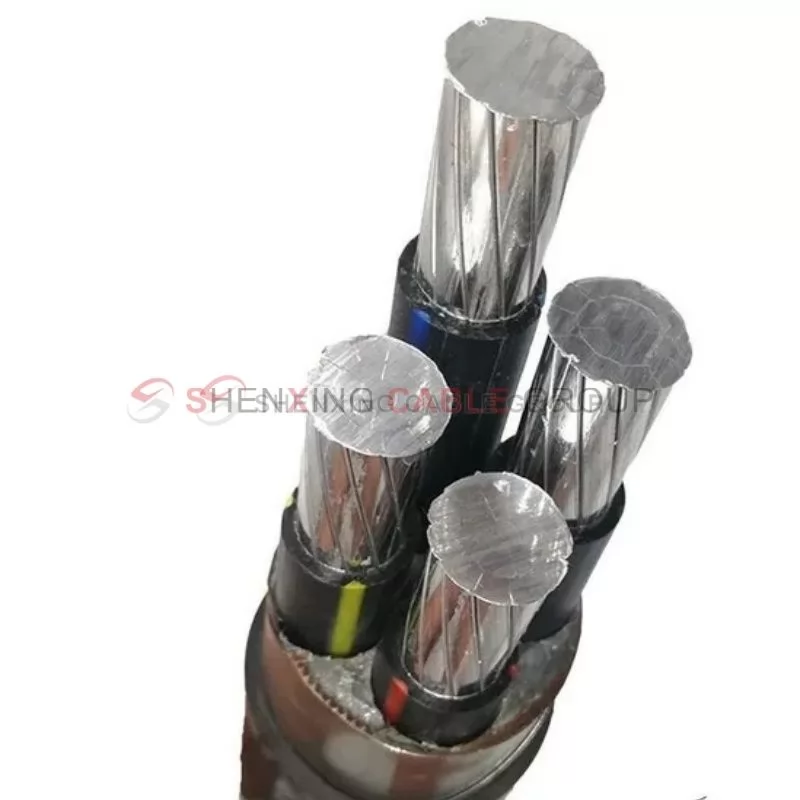

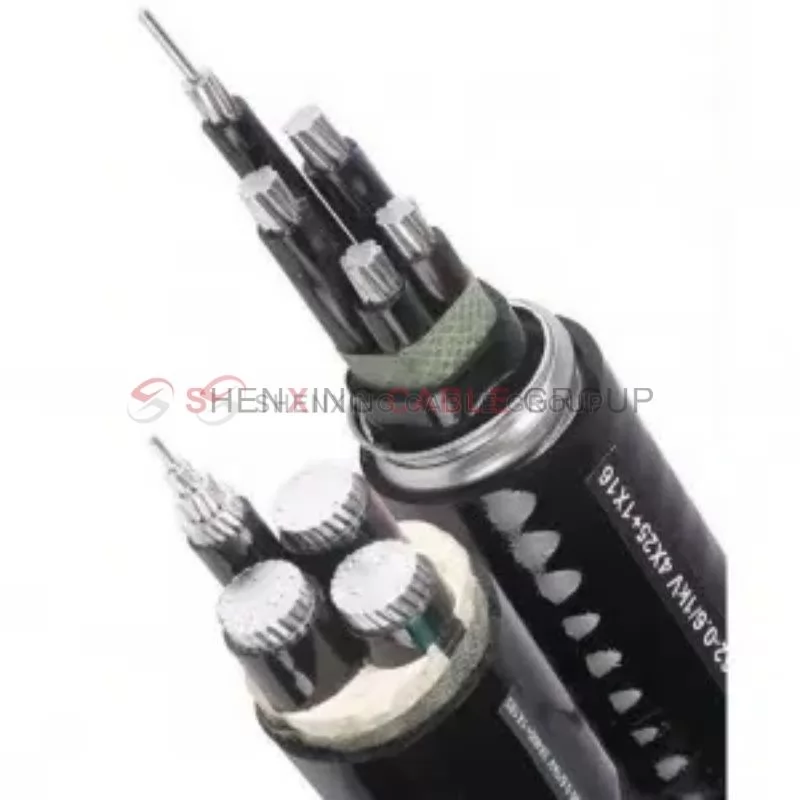

low Voltage(0.6/1KV) Power Cable-YJHLV22
YJHLV22 Aluminum Alloy Conductor XLPE Insulated PVC Armored Power Cable – Low Voltage (0.6/1KV) is specially designed for high-voltage power transmission and distribution systems. It adopts rare earth high-iron alloy conductor and double-layer armor structure, and has copper cable-level conductivity and excellent mechanical strength. It is suitable for scenes such as urban and rural power grid transformation, commercial complexes and industrial plants, and meets the requirements of direct burial in 90℃ humid environment. It has passed CE/IEC international certification.
Share:
Application areas:
Industrial field: power transmission and distribution in power plants, power supply for mining equipment, power system for oil platforms
Commercial buildings: data center trunk lines, power supply for super high-rise shafts, connection of shopping mall ring network cabinets
Infrastructure projects: subway tunnel lighting systems, power distribution networks for expressways, power supply for airport ground services
Municipal projects: smart city power grid transformation, wiring of new energy charging piles, power supply for sewage treatment stations
Product advantages:
High conductivity: The conductivity of aluminum alloy conductors reaches 61.5% IACS, which is higher than the traditional electrical aluminum standard, ensuring efficient transmission of electrical energy.
High creep resistance: The creep resistance of aluminum alloy conductors is 3 times that of ordinary aluminum and is equivalent to copper, ensuring the stability of electrical connections in long-term use.
Excellent mechanical protection: The steel belt armor structure enhances the tensile and compressive resistance of the cable, and is suitable for direct burial, pipeline laying and other occasions that require mechanical external forces.
Technical Data
| Number of Cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Sheath Thickness | Armor Thickness | Cable Outer Diameter | Weight |
| （mm） | （mm²） | （mm） | （Ω/km） | （A） | (mm) | (mm) | (mm) | (kg/km) | |
| Single Core | 1.8 | 2.5 | 0.8 | 12.1 | 27/19 | ||||
| 2.3 | 4 | 1 | 7.41 | 35/26 | |||||
| 2.8 | 6 | 1 | 4.61 | 46/34 | |||||
| 3.6 | 10 | 1 | 3.08 | 58/44 | |||||
| 4.5 | 16 | 1 | 1.91 | 76/59 | |||||
| 6 | 25 | 1.2 | 1.2 | 98/76 | |||||
| 7 | 35 | 1.2 | 0.868 | 115/90 | |||||
| 8.3 | 50 | 1.4 | 0.641 | 140/110 | |||||
| 9.8 | 70 | 1.4 | 0.443 | 170/140 | |||||
| 11.5 | 95 | 1.6 | 0.32 | 205/175 | |||||
| 12.9 | 120 | 1.6 | 0.253 | 235/200 | |||||
| 14.5 | 150 | 1.8 | 0.206 | 265/230 | |||||
| 16 | 185 | 2 | 0.164 | 300/270 | |||||
| 18.3 | 240 | 2.2 | 0.125 | 350/320 | |||||
| Two Cores | 20.5 | 300 | 2.4 | 0.1 | 395/370 | ||||
| 1.8 | 2.5 | 0.8 | 12.1 | 26/18 | |||||
| 2.3 | 4 | 1 | 7.41 | 35/24 | 1.8 | 0.2x2 | 14.7 | 255 | |
| 2.8 | 6 | 1 | 4.61 | 45/32 | 1.8 | 0.2x2 | 15.7 | 293 | |
| 3.6 | 10 | 1 | 3.08 | 59/42 | 1.8 | 0.2x2 | 18.3 | 368 | |
| 4.5 | 16 | 1 | 1.91 | 77/55 | 1.8 | 0.2x2 | 20.4 | 454 | |
| 6 | 25 | 1.2 | 1.2 | 100/70 | 1.8 | 0.2x2 | 23.8 | 610 | |
| 7 | 35 | 1.2 | 0.868 | 120/86 | 1.8 | 0.2X2 | 26.1 | 729 | |
| 8.3 | 50 | 1.4 | 0.641 | 145/105 | 1.8 | 0.5x2 | 29.6 | 918 | |
| 9.8 | 70 | 1.4 | 0.443 | 175/130 | 2 | 0.5x2 | 35.4 | 1510 | |
| 11.5 | 95 | 1.6 | 0.32 | 210/165 | 2.1 | 0.5x2 | 40.2 | 1903 | |
| 12.9 | 120 | 1.6 | 0.253 | 245/190 | 2.2 | 0.5x2 | 43.6 | 2212 | |
| 14.5 | 150 | 1.8 | 0.206 | 275/215 | 2.3 | 0.5x2 | 47.7 | 2605 | |
| 16 | 185 | 2 | 0.164 | 310/250 | 2.5 | 0.5x2 | 52.7 | 3108 | |
| 18.3 | 240 | 2.2 | 0.125 | 350/295 | |||||
| Three Cores | 1.8 | 2.5 | 0.8 | 12.1 | 23/15 | ||||
| 2.3 | 4 | 1 | 7.41 | 30/20 | |||||
| 2.8 | 6 | 1 | 4.61 | 39/26 | |||||
| 3.6 | 10 | 1 | 3.08 | 50/35 | 1.8 | 0.2x2 | 21.2 | 559 | |
| 4.5 | 16 | 1 | 1.91 | 65/47 | 1.8 | 0.2x2 | 23.5 | 740 | |
| 6 | 25 | 1.2 | 1.2 | 84/60 | 1.8 | 0.2x2 | 27.2 | 976 | |
| 7 | 35 | 1.2 | 0.868 | 100/74 | 1.9 | 0.2X2 | 30.7 | 1372 | |
| 8.3 | 50 | 1.4 | 0.641 | 120/90 | 2 | 0.5x2 | 31.4 | 1486 | |
| 9.8 | 70 | 1.4 | 0.443 | 150/115 | 2.2 | 0.5x2 | 33.6 | 1763 | |
| 11.5 | 95 | 1.6 | 0.32 | 185/140 | 2.4 | 0.5x2 | 38.3 | 2216 | |
| 12.9 | 120 | 1.6 | 0.253 | 205/165 | 2.5 | 0.5x2 | 41.9 | 2609 | |
| 14.5 | 150 | 1.8 | 0.206 | 230/190 | 2.6 | 0.5x2 | 47.1 | 3174 | |
| 16 | 185 | 2 | 0.164 | 260/215 | 2.8 | 0.5x2 | 50.9 | 3721 | |
| 18.3 | 240 | 2.2 | 0.125 | 300/260 | 3 | 0.5x2 | 57 | 4590 | |
| 20.5 | 300 | 2.4 | 0.1 | 340/295 | 3.2 | 0.5x2 | 64 | 5760 | |
| Four Cores | 1.8 | 2.5 | 0.8 | 12.1 | 23/15 | ||||
| 2.3 | 4 | 1 | 7.41 | 30/20 | 1.8 | 0.2x2 | 16.5 | 336 | |
| 2.8 | 6 | 1 | 4.61 | 39/26 | 1.8 | 0.2x2 | 17.7 | 393 | |
| 3.6 | 10 | 1 | 3.08 | 50/35 | 1.8 | 0.2x2 | 20.8 | 510 | |
| 4.5 | 16 | 1 | 1.91 | 65/47 | 1.8 | 0.2x2 | 23.4 | 645 | |
| 6 | 25 | 1.2 | 1.2 | 84/60 | 1.8 | 0.2x2 | 27.5 | 891 | |
| 7 | 35 | 1.2 | 0.868 | 100/74 | 1.8 | 0.2X2 | 30.3 | 1084 | |
| 8.3 | 50 | 1.4 | 0.641 | 120/90 | 1.9 | 0.5x2 | 36.7 | 1762 | |
| 9.8 | 70 | 1.4 | 0.443 | 150/115 | 2.1 | 0.5x2 | 41.3 | 2223 | |
| 11.5 | 95 | 1.6 | 0.32 | 185/140 | 2.2 | 0.5x2 | 47.2 | 2871 | |
| 12.9 | 120 | 1.6 | 0.253 | 205/165 | 2.4 | 0.5x2 | 51.3 | 3367 | |
| 14.5 | 150 | 1.8 | 0.206 | 230/190 | 2.6 | 0.5x2 | 56.4 | 4028 | |
| 16 | 185 | 2 | 0.164 | 260/215 | 2.8 | 0.5x2 | 62.4 | 4846 | |
| 18.3 | 240 | 2.2 | 0.125 | 300/260 | 3 | 0.5x2 | 70.1 | 6059 | |
| 20.5 | 300 | 2.4 | 0.1 | 340/295 | 3.2 | 0.5x2 | 77.3 | 7331 | |
| Five Cores | 1.8 | 2.5 | 0.8 | 12.1 | 23/15 | ||||
| 2.3 | 4 | 1 | 7.41 | 30/20 | 1.8 | 0.2x2 | 17.6 | 385 | |
| 2.8 | 6 | 1 | 4.61 | 39/26 | 1.8 | 0.2x2 | 19.1 | 465 | |
| 3.6 | 10 | 1 | 3.08 | 50/35 | 1.8 | 0.2x2 | 22.5 | 607 | |
| 4.5 | 16 | 1 | 1.91 | 65/47 | 1.8 | 0.2x2 | 25.4 | 772 | |
| 6 | 25 | 1.2 | 1.2 | 84/60 | 1.8 | 0.2x2 | 30.3 | 1073 | |
| 7 | 35 | 1.2 | 0.868 | 100/74 | 2 | 0.2x2 | 35.3 | 1649 | |
| 8.3 | 50 | 1.4 | 0.641 | 120/90 | 2.1 | 0.5x2 | 40.2 | 2089 | |
| 9.8 | 70 | 1.4 | 0.443 | 150/115 | 2.3 | 0.5x2 | 45.5 | 2669 | |
| 11.5 | 95 | 1.6 | 0.32 | 185/140 | 2.5 | 0.5x2 | 52.1 | 3456 | |
| 12.9 | 120 | 1.6 | 0.253 | 205/165 | 2.6 | 0.5x2 | 56.6 | 4062 | |
| 14.5 | 150 | 1.8 | 0.206 | 230/190 | 2.8 | 0.5x2 | 62.2 | 4866 | |
| 16 | 185 | 2 | 0.164 | 260/215 | 2.9 | 0.5x2 | 68.6 | 5836 | |
| 18.3 | 240 | 2.2 | 0.125 | 300/260 | 3.2 | 0.5x2 | 77.4 | 7349 | |
| 20.5 | 300 | 2.4 | 0.1 | 340/295 | 3.4 | 0.5x2 | 85.4 | 8906 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

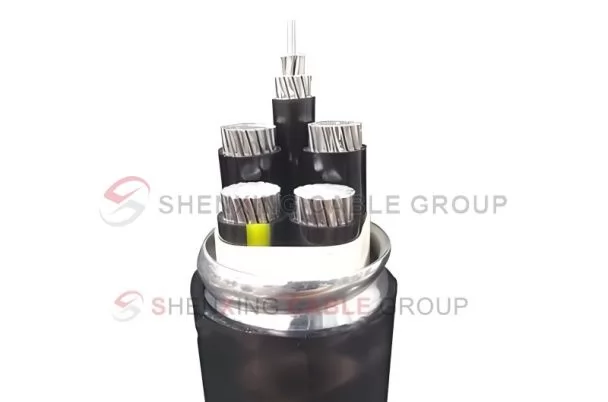

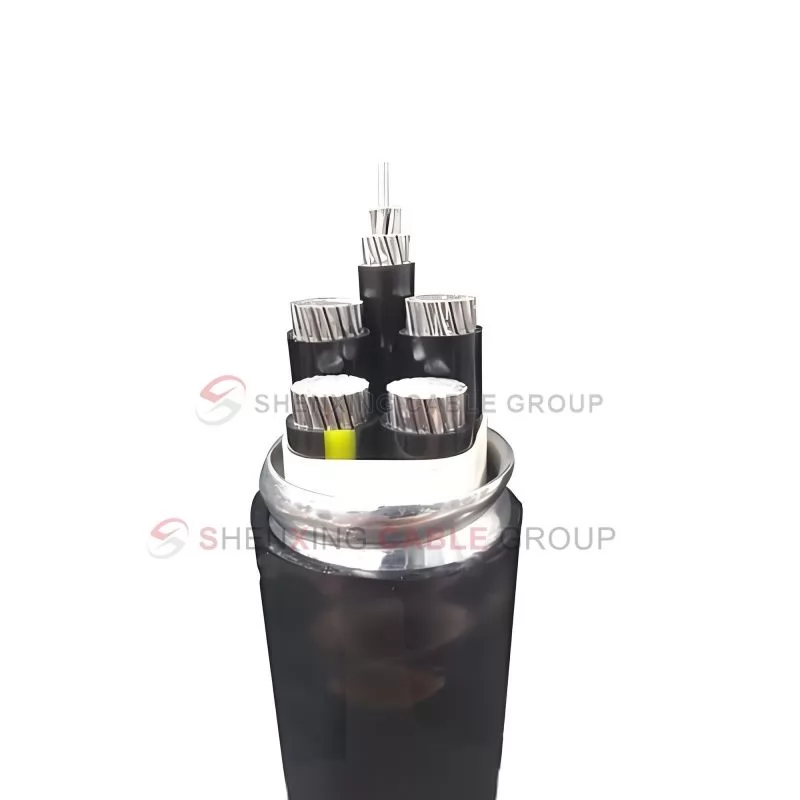

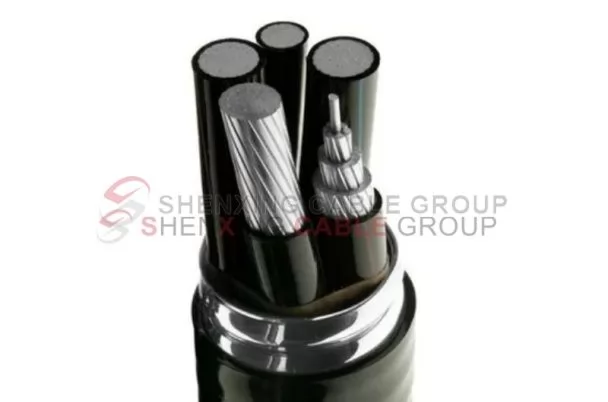

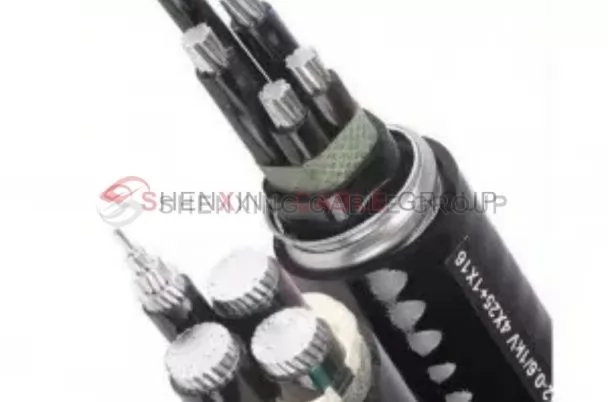

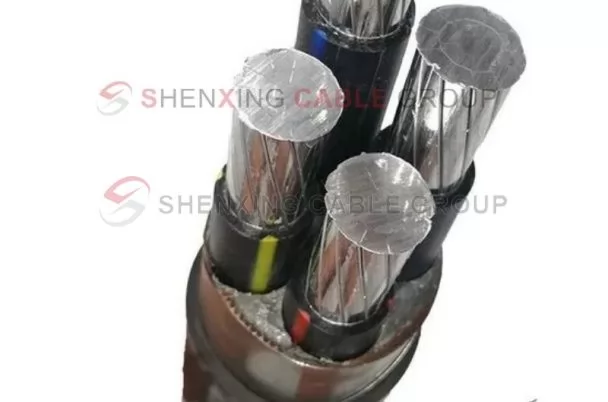

Cable Structure
YJHLV22 Aluminum Alloy Conductor XLPE Insulated PVC Armored Power Cable – Low Voltage (0.6/1KV)
Features
Technical Specifications
Mechanical properties:
The elongation of aluminum alloy conductor is as high as 30%
Compared with pure aluminum, the creep resistance is improved by 300%
The flexibility of aluminum alloy cable is 30% higher than that of copper cable
The rebound performance of aluminum alloy cable is 40% smaller than that of copper cable
The bending radius of aluminum alloy cable is only 7 times the outer diameter of cable YJHLV22 cable
Usage Characteristics
Usage characteristics:
Suitable for 600V-35KV voltage level, suitable for dry or humid places below 90℃, can be installed indoors or outdoors, can be installed vertically, can be installed on brackets or along walls, or can be directly buried underground;
The minimum bending radius is 7 times the outer diameter, and it can also be bent 360 degrees;
Suitable for environments without mechanical damage, such as civil, office buildings, schools, hotels, commercial, shopping centers, factories and large venues.
Production
Production Equipment
Projects
Building a Solid Neural Network for Smart Campuses
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What applications is this cable suitable for?
This cable is mainly suitable for underground power transmission, industrial power distribution, construction projects and energy facilities, especially in environments that require protection and resistance to mechanical damage.
What is the maximum operating temperature of this cable?
The maximum operating temperature of the cable conductor is 70℃, and the maximum temperature of the conductor can reach 160℃ during short circuit, but the duration shall not exceed 5 seconds.
Can this cable be installed in extreme climate conditions?
Yes, the minimum installation and laying temperature of the cable is 0℃. Therefore, it can be installed in low temperature environments, but special protection measures are required when installed in extremely cold environments.
Can the cable be used in water or humid environments?
Yes, the cable has a PVC sheath and steel belt armor, which is waterproof and moisture-proof, and is suitable for buried or humid environments, such as underground cable ducts or moist soil.
What are the temperature requirements for laying the cable in the air and underground?
When laying in the air, the recommended ambient temperature is 40℃; when buried in the soil, the ambient temperature should be 25℃ to ensure the best working performance of the cable.
What are the advantages of using aluminum core instead of copper core?
Aluminum core cable is lighter and less expensive than copper core, suitable for long-distance power transmission projects, and can also meet most industrial and commercial uses in terms of conductivity.
What is the bending radius of the cable?
The bending radius of the cable is usually 15 times its outer diameter. During installation, make sure not to exceed this limit to avoid damaging the internal structure of the cable.
How is the fire resistance of the cable?
The PVC sheath of this cable has a certain degree of fire resistance and flame retardancy under normal conditions, but it is not suitable for use in occasions that require strict fire protection requirements. If there are special fire protection requirements, special fire-resistant cables can be selected.
How long is the life of the cable?
Under standard installation and working conditions, the service life of this cable is generally 25-30 years, depending on environmental conditions and maintenance.
What should be paid attention to during cable construction?
During construction and installation, make sure that the temperature is not lower than 0℃, and comply with the bending radius and mechanical load limits of the cable to avoid damage to the cable during transportation and laying.
