Low Voltage(0.6/1KV) Power Cable-YJLV32
YJLV32 cable uses aluminum conductors, which are light and cost-effective. The cross-linked polyethylene insulation layer gives the cable excellent electrical properties and heat resistance, and the long-term operating temperature can reach 90°C. The fine steel wire armor layer provides excellent mechanical protection, enabling the cable to withstand external mechanical stress and tension. The outer PVC sheath enhances the cable's weather resistance and chemical corrosion resistance, ensuring its stable operation under various environmental conditions.
Share:
Comply with international standards
GB/T12706.2-2008, IEC60502-2:2005
Application areas:
Wide range of application scenarios: According to different usage scenarios, YJLV32 cable can be laid indoors, in tunnels, cable trenches and pipelines, or buried in loose soil. Under certain specific conditions, such as vertical occasions such as shafts or underwater, the cable can withstand considerable axial tension.
Indoor and tunnel: Suitable for laying in indoor, tunnel, cable trench and other environments, able to withstand certain mechanical external forces and considerable tensile force.
Mine: In environments such as mines that require high mechanical strength and durability, YJLV32 cable performs well and ensures the reliability of power transmission.
Advantages：
Strong tensile strength: Due to the use of fine steel wire armor, YJLV32 cable has stronger tensile strength and is suitable for occasions that need to withstand large mechanical external forces.
Corrosion resistance: Both the insulation layer and the sheath layer of the cable have good corrosion resistance and can be used for a long time in harsh environments.
Long service life: Due to the use of high-quality materials and advanced production processes, the YJLV32 cable has a long service life, which can reduce the cost and frequency of cable replacement.
Wide application scenarios: As mentioned above, YJLV32 cable can be widely used in various occasions to meet different power transmission and distribution needs.
Technical Data
| Number of Cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Resistance | Sheath Thickness | Cable Outer Diameter | Weight |
| （mm） | （mm²） | （mm） | （Ω/km） | （Ω/km） | (mm) | (mm) | (kg/km) | |
| Single Core | 1.8 | 2.5 | 0.8 | 12.1 | 27/19 | 1.4 | 6.2 | 55 |
| 2.3 | 4 | 1 | 7.41 | 35/26 | 1.4 | 7 | 71 | |
| 2.8 | 6 | 1 | 4.61 | 46/34 | 1.4 | 7.6 | 83 | |
| 3.6 | 10 | 1 | 3.08 | 58/44 | 1.4 | 8.9 | 111 | |
| 4.5 | 16 | 1 | 1.91 | 76/59 | 1.4 | 9.9 | 141 | |
| 6 | 25 | 1.2 | 1.2 | 98/76 | 1.5 | 11.8 | 201 | |
| 7 | 35 | 1.2 | 0.868 | 115/90 | 1.5 | 13 | 244 | |
| 8.3 | 50 | 1.4 | 0.641 | 140/110 | 1.6 | 14.9 | 319 | |
| 9.8 | 70 | 1.4 | 0.443 | 170/140 | 1.6 | 16.7 | 407 | |
| 11.5 | 95 | 1.6 | 0.32 | 205/175 | 1.7 | 19.2 | 540 | |
| 12.9 | 120 | 1.6 | 0.253 | 235/200 | 1.7 | 20.8 | 636 | |
| 14.5 | 150 | 1.8 | 0.206 | 265/230 | 1.7 | 22.8 | 761 | |
| 16 | 185 | 2 | 0.164 | 300/270 | 1.7 | 25 | 913 | |
| 18.3 | 240 | 2.2 | 0.125 | 350/320 | 1.7 | 28.1 | 1149 | |
| Two Cores | 20.5 | 300 | 2.4 | 0.1 | 395/370 | 1.7 | 30.9 | 1397 |
| 1.8 | 2.5 | 0.8 | 12.1 | 26/18 | 1.8 | 11.2 | 107 | |
| 2.3 | 4 | 1 | 7.41 | 35/24 | 1.8 | 12.9 | 143 | |
| 2.8 | 6 | 1 | 4.61 | 45/32 | 1.8 | 13.9 | 170 | |
| 3.6 | 10 | 1 | 3.08 | 59/42 | 1.8 | 16.5 | 236 | |
| 4.5 | 16 | 1 | 1.91 | 77/55 | 1.8 | 18.6 | 304 | |
| 6 | 25 | 1.2 | 1.2 | 100/70 | 1.8 | 22 | 429 | |
| 7 | 35 | 1.2 | 0.868 | 120/86 | 1.8 | 24.3 | 529 | |
| 8.3 | 50 | 1.4 | 0.641 | 145/105 | 1.8 | 27.8 | 687 | |
| 9.8 | 70 | 1.4 | 0.443 | 175/130 | 1.9 | 32 | 912 | |
| 11.5 | 95 | 1.6 | 0.32 | 210/165 | 2 | 36.8 | 1215 | |
| 12.9 | 120 | 1.6 | 0.253 | 245/190 | 2.1 | 40.2 | 1461 | |
| 14.5 | 150 | 1.8 | 0.206 | 275/215 | 2.2 | 44.3 | 1778 | |
| 16 | 185 | 2 | 0.164 | 310/250 | 2.4 | 49.3 | 2193 | |
| 18.3 | 240 | 2.2 | 0.125 | 350/295 | 2.6 | 55.7 | 2816 | |
| Three Cores | 1.8 | 2.5 | 0.8 | 12.1 | 23/15 | 1.8 | 11.8 | 139 |
| 2.3 | 4 | 1 | 7.41 | 30/20 | 1.8 | 13.7 | 189 | |
| 2.8 | 6 | 1 | 4.61 | 39/26 | 1.8 | 14.8 | 227 | |
| 3.6 | 10 | 1 | 3.08 | 50/35 | 1.8 | 17.6 | 290 | |
| 4.5 | 16 | 1 | 1.91 | 65/47 | 1.8 | 19.8 | 419 | |
| 6 | 25 | 1.2 | 1.2 | 84/60 | 1.8 | 23.6 | 596 | |
| 7 | 35 | 1.2 | 0.868 | 100/74 | 1.8 | 26.1 | 745 | |
| 8.3 | 50 | 1.4 | 0.641 | 120/90 | 1.8 | 26.5 | 834 | |
| 9.8 | 70 | 1.4 | 0.443 | 150/115 | 1.9 | 28.8 | 1061 | |
| 11.5 | 95 | 1.6 | 0.32 | 185/140 | 2.1 | 33.7 | 1418 | |
| 12.9 | 120 | 1.6 | 0.253 | 205/165 | 2.2 | 37.1 | 1716 | |
| 14.5 | 150 | 1.8 | 0.206 | 230/190 | 2.3 | 41.9 | 2127 | |
| 16 | 185 | 2 | 0.164 | 260/215 | 2.5 | 45.9 | 2602 | |
| 18.3 | 240 | 2.2 | 0.125 | 300/260 | 2.7 | 51.7 | 3308 | |
| 20.5 | 300 | 2.4 | 0.1 | 340/295 | ||||
| Four Cores | 1.8 | 2.5 | 0.8 | 12.1 | 23/15 | 1.8 | 12.6 | 149 |
| 2.3 | 4 | 1 | 7.41 | 30/20 | 1.8 | 14.7 | 206 | |
| 2.8 | 6 | 1 | 4.61 | 39/26 | 1.8 | 15.9 | 251 | |
| 3.6 | 10 | 1 | 3.08 | 50/35 | 1.8 | 19 | 356 | |
| 4.5 | 16 | 1 | 1.91 | 65/47 | 1.8 | 21.6 | 469 | |
| 6 | 25 | 1.2 | 1.2 | 84/60 | 1.8 | 25.7 | 678 | |
| 7 | 35 | 1.2 | 0.868 | 100/74 | 1.8 | 28.5 | 847 | |
| 8.3 | 50 | 1.4 | 0.641 | 120/90 | 1.9 | 32.9 | 1129 | |
| 9.8 | 70 | 1.4 | 0.443 | 150/115 | 2.1 | 38.1 | 1532 | |
| 11.5 | 95 | 1.6 | 0.32 | 185/140 | 2.2 | 43.8 | 2053 | |
| 12.9 | 120 | 1.6 | 0.253 | 205/165 | 2.4 | 48.1 | 2494 | |
| 14.5 | 150 | 1.8 | 0.206 | 230/190 | 2.5 | 53 | 3041 | |
| 16 | 185 | 2 | 0.164 | 260/215 | 2.7 | 59 | 3752 | |
| 18.3 | 240 | 2.2 | 0.125 | 300/260 | 2.9 | 61.9 | 4832 | |
| 20.5 | 300 | 2.4 | 0.1 | 340/295 | ||||
| Five Cores | 1.8 | 2.5 | 0.8 | 12.1 | 23/15 | 1.8 | 13.5 | 174 |
| 2.3 | 4 | 1 | 7.41 | 30/20 | 1.8 | 15.8 | 244 | |
| 2.8 | 6 | 1 | 4.61 | 39/26 | 1.8 | 17.3 | 298 | |
| 3.6 | 10 | 1 | 3.08 | 50/35 | 1.8 | 20.7 | 425 | |
| 4.5 | 16 | 1 | 1.91 | 65/47 | 1.8 | 23.6 | 564 | |
| 6 | 25 | 1.2 | 1.2 | 84/60 | 1.8 | 28.2 | 822 | |
| 7 | 35 | 1.2 | 0.868 | 100/74 | 1.9 | 31.5 | 1043 | |
| 8.3 | 50 | 1.4 | 0.641 | 120/90 | 2 | 36.4 | 1391 | |
| 9.8 | 70 | 1.4 | 0.443 | 150/115 | 2.2 | 42.1 | 1886 | |
| 11.5 | 95 | 1.6 | 0.32 | 185/140 | 2.4 | 48.7 | 2551 | |
| 12.9 | 120 | 1.6 | 0.253 | 205/165 | 2.5 | 53.2 | 3071 | |
| 14.5 | 150 | 1.8 | 0.206 | 230/190 | 2.7 | 58.8 | 3772 | |
| 16 | 185 | 2 | 0.164 | 260/215 | 2.9 | 65.4 | 4653 | |
| 18.3 | 240 | 2.2 | 0.125 | 300/260 | 3.1 | 74 | 5978 | |
| 20.5 | 300 | 2.4 | 0.1 | 340/295 | 3.3 | 82 | 7368 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure

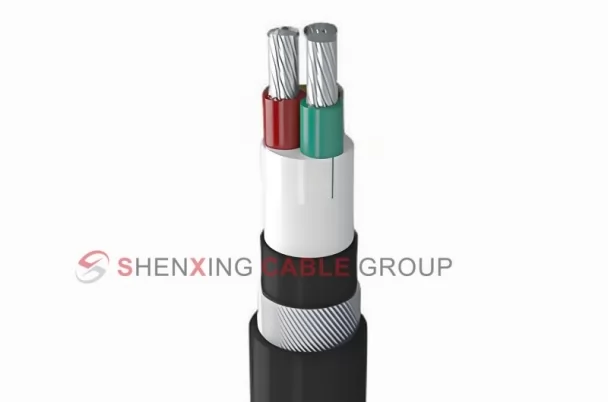

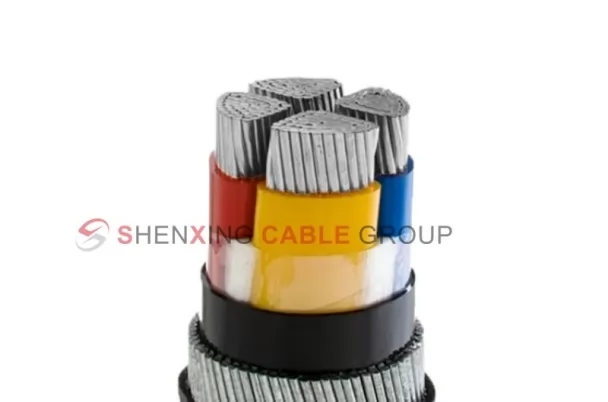

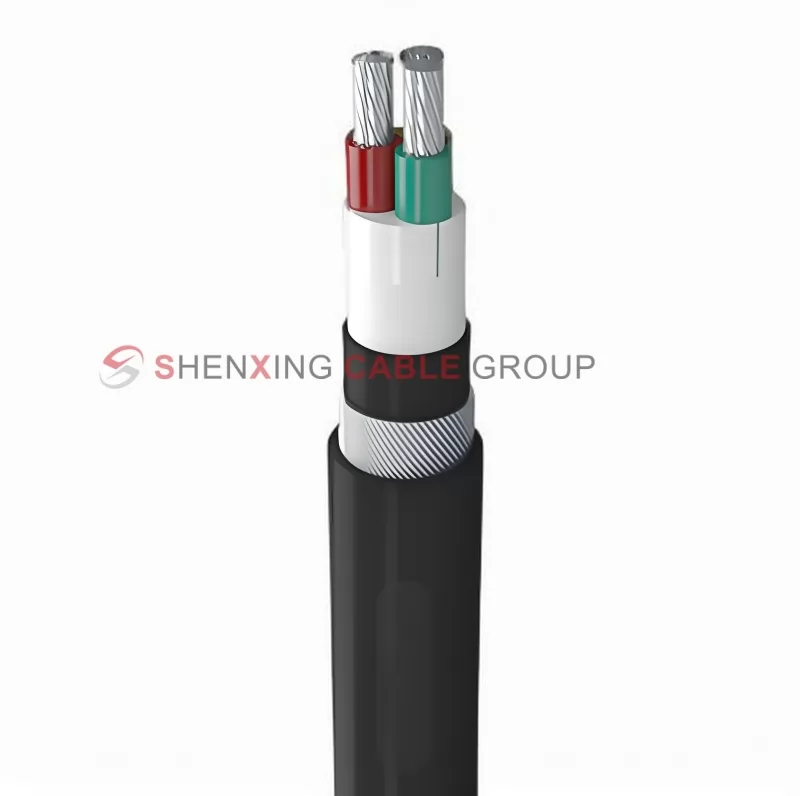

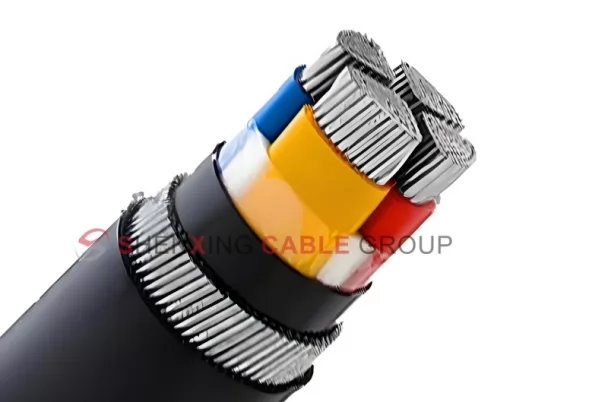

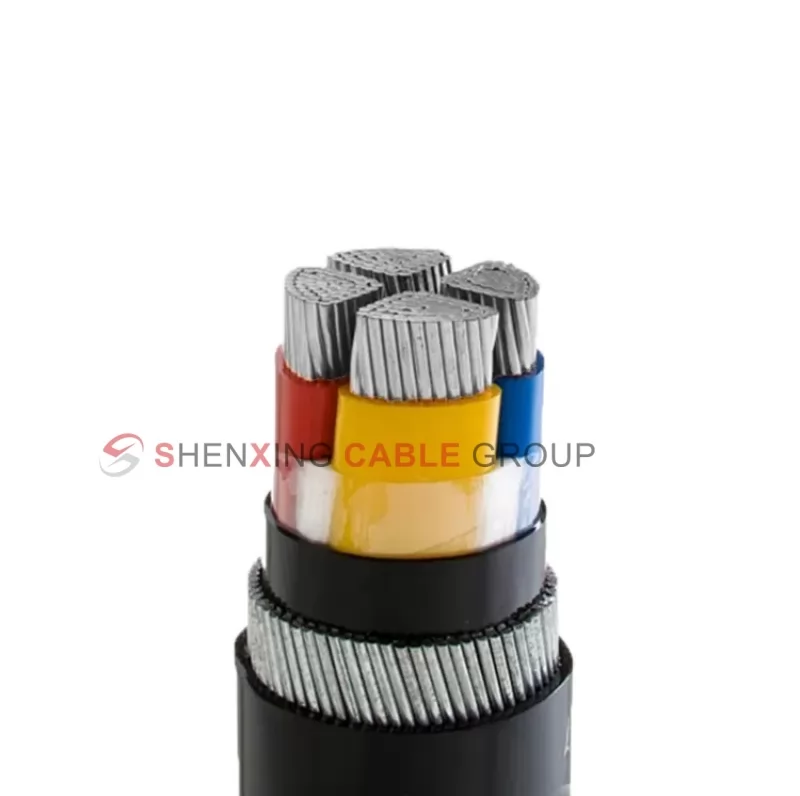

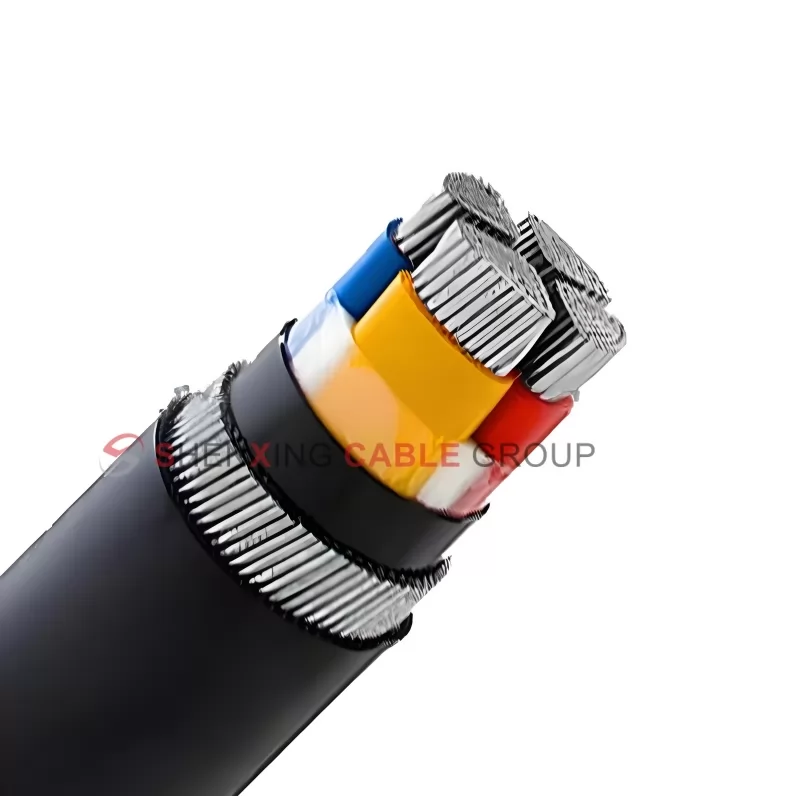

0.6-1kv Aluminum core XLPE insulation PVC sheathed steel wire armored power cable
Features
Features
Product Features:
Conductor material: Aluminum core, with good conductivity and mechanical properties
Insulation layer: Made of cross-linked polyethylene material, with good electrical properties and heat resistance, ensuring the stability and safety of the cable during long-term use
Armor layer: Made of fine steel wire armor, this armoring method enables the cable to withstand certain mechanical external forces and tension, improving the cable's compressive strength and service life
Sheath layer: Polyvinyl chloride sheath, providing good protection to prevent the cable from being damaged by the external environment during use
Usage Characteristics
Safety of use:
The rated temperature of the cable conductor is 90°C, and the maximum temperature of the cable conductor does not exceed 250°C when short-circuited (maximum duration does not exceed 5 seconds).
The ambient temperature when laying the cable should not be lower than 0°C.
The allowable bending radius during laying: single-core cable is not less than 15 times the outer diameter of the cable; multi-core cable is not less than 10 times the outer diameter of the cable.
