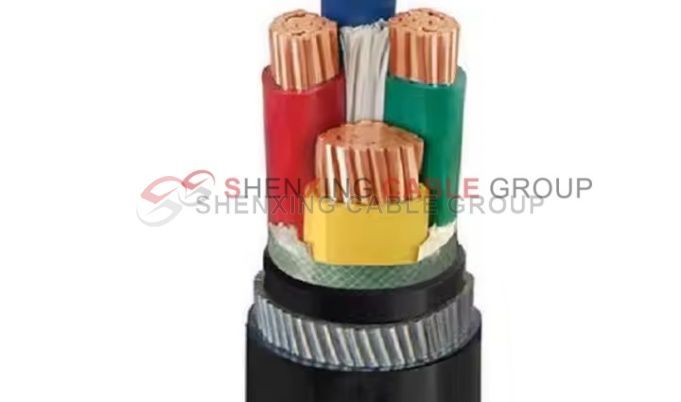

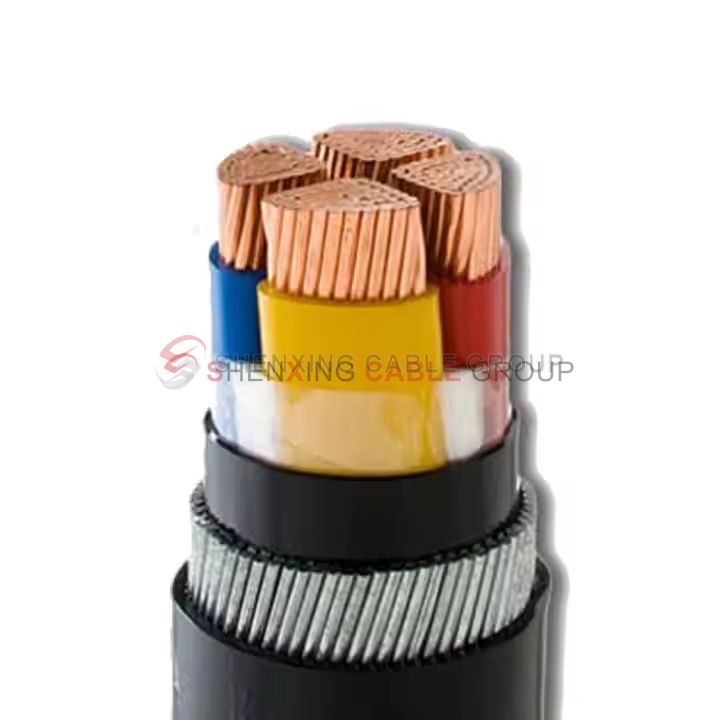

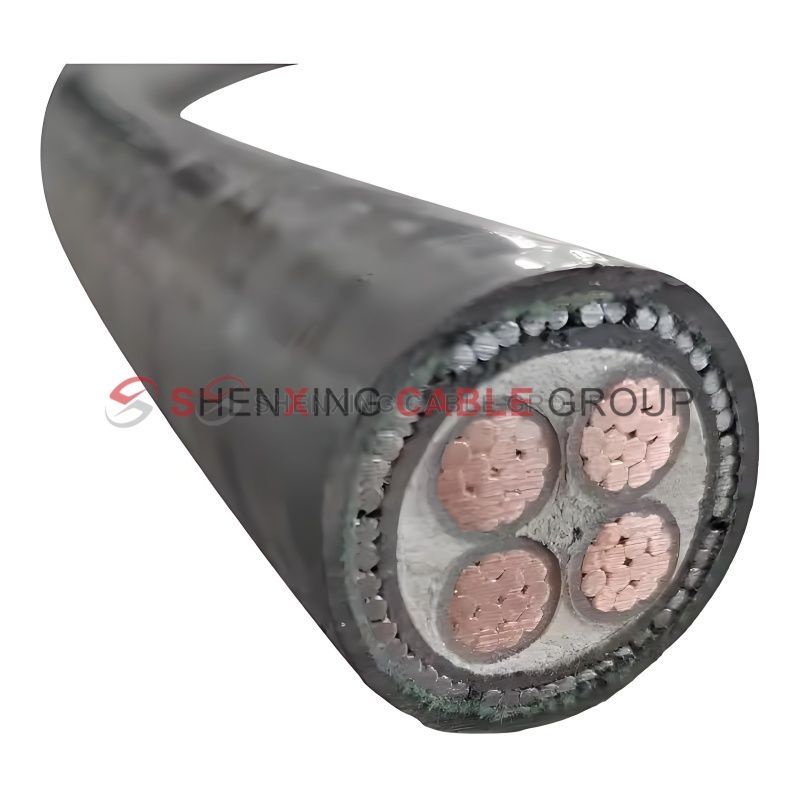

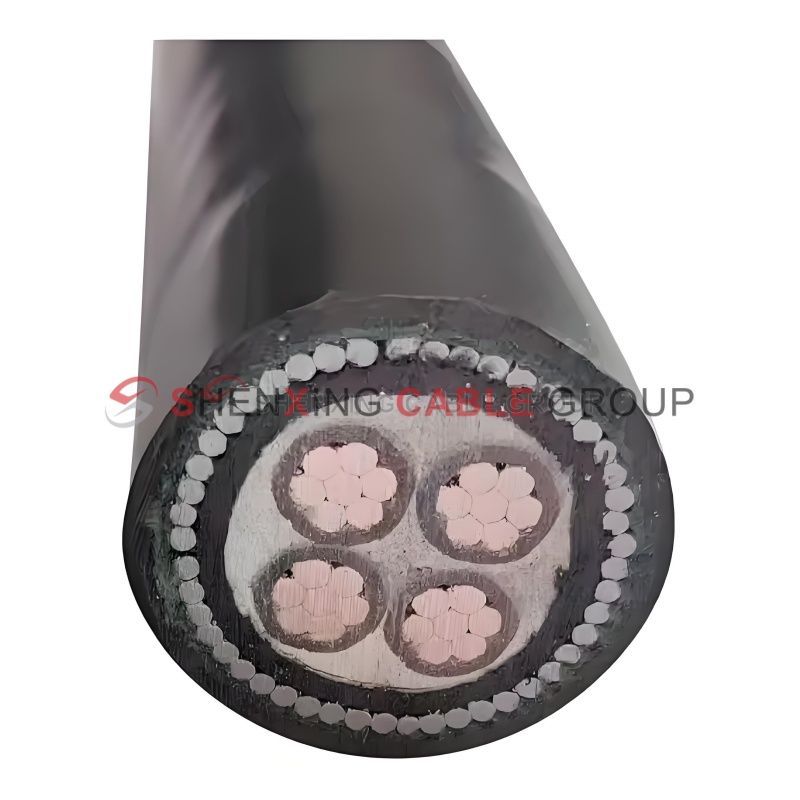

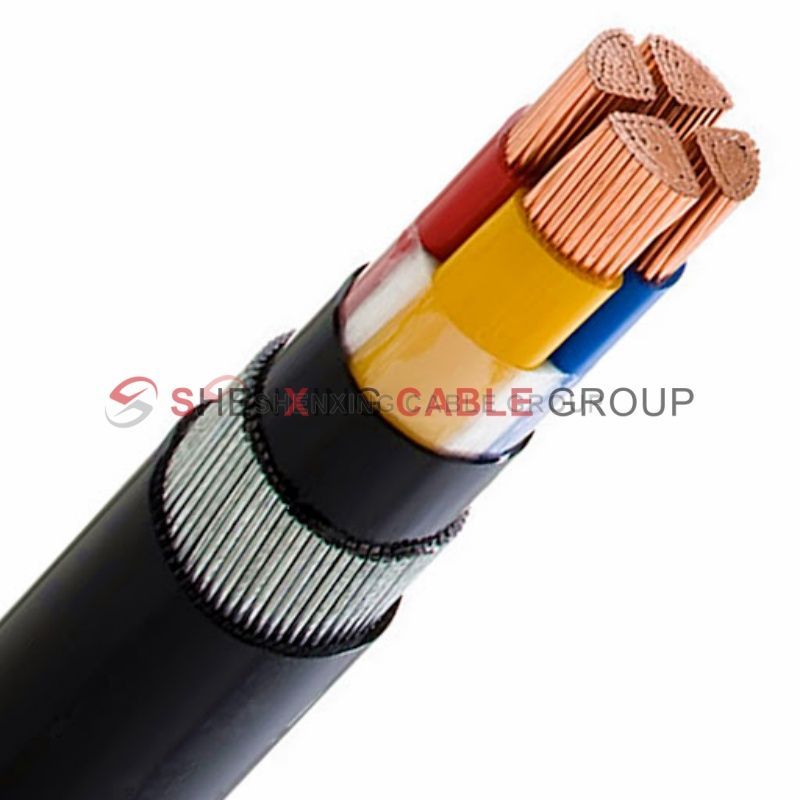

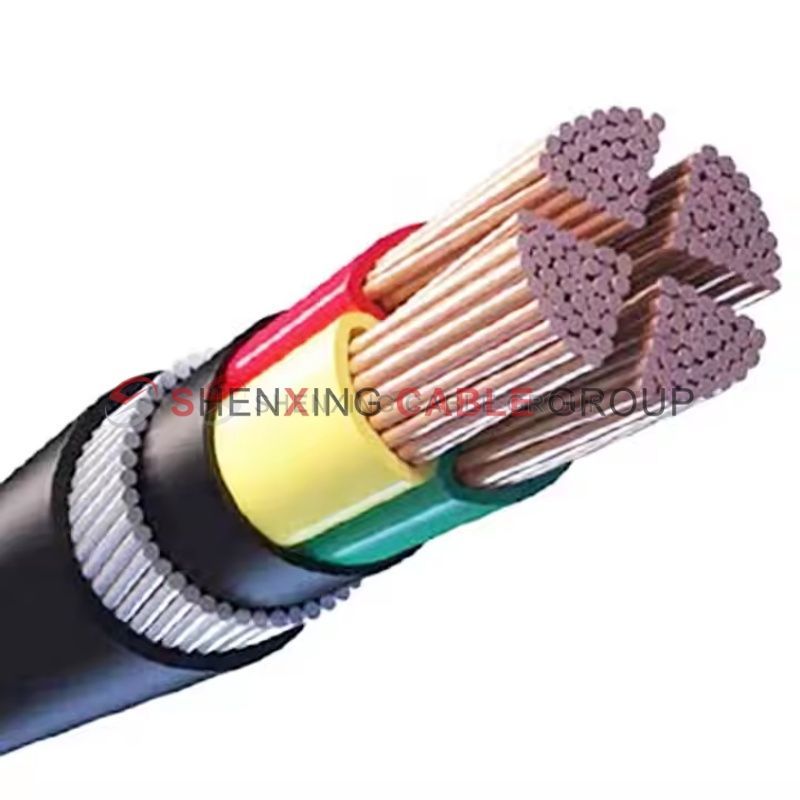

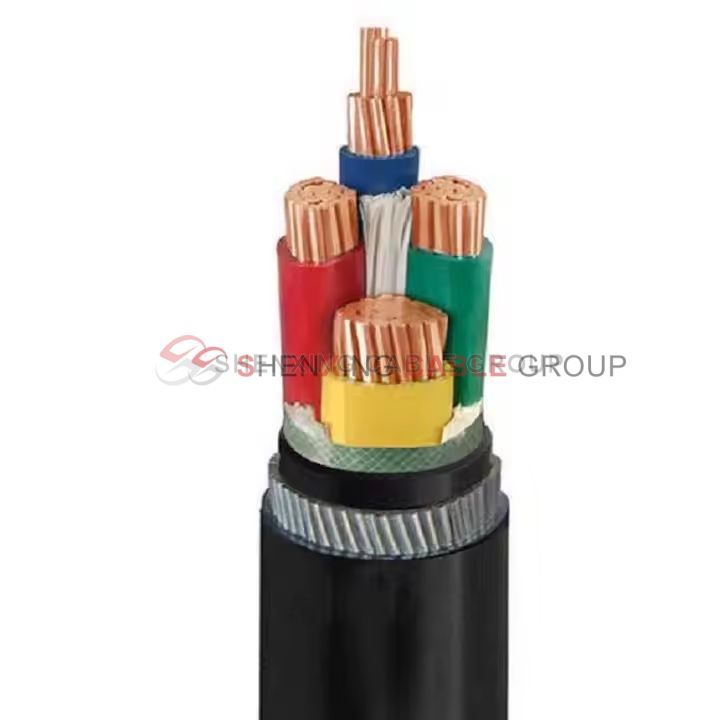

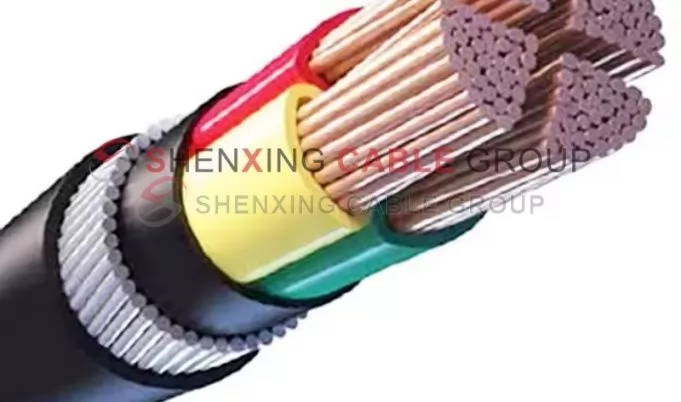

low Voltage(0.6/1KV) Power Cable-YJV32
The YJV32 is a 0.6/1 kV low-voltage power cable designed for fixed installations requiring robust mechanical protection and environmental resilience. It features a copper conductor, XLPE insulation, galvanized steel wire armor, and a flame-retardant PVC outer sheath, ensuring reliable performance in demanding conditions.
Share:
Certifications & Compliance
YJV32 is rigorously certified for global markets:
CE &: Compliant with EU and UK safety directives for unrestricted distribution.
RoHS Compliance: Ensures hazardous substance-free materials (lead, cadmium, etc.).
TÜV SÜD Verified: Independently tested for electrical safety and durability.
ISO 9001:2015: Guarantees consistent quality across production and testing processes.
Designed to exceed IEC 60502-1, BS 5467, and ASTM BICC specifications for low-voltage applications.
Core Structure Breakdown:
Conductor: Stranded copper (IEC 60228 Class 2), balancing conductivity and flexibility.
Insulation: XLPE material, rated for 90°C continuous operation and 250°C short-circuit tolerance (≤5 seconds).
Armor: Double-layer galvanized steel wire (IEC 60502-1 compliant), with crush resistance ≥1200 N/cm.
Sheath: Black PVC (orange LSZH optional), passing IEC 60332-1 flame retardancy tests.
Key Applications
Designed for low-voltage distribution systems in:
Industrial Facilities: Power supply for machinery, lighting, and control systems in dry or humid environments.
Commercial Buildings: Cable trays or conduits in shopping malls, hospitals, and schools.
Infrastructure Projects: Subways, tunnels, and underground parking lots requiring mechanical protection.
Renewable Energy: DC/AC connections between solar inverters and distribution panels.
Ports & Marine: Shore power systems and corrosion-resistant fixed wiring in shipbuilding.
Technical Data
| Number of Cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Sheath Thickness | Cable Outer Diameter | Weight |
| (mm) | (mm²) | (mm) | (Ω/km) | (A) | (mm) | (mm) | (kg/km) | |
| Single Core | 2.3 | 4 | 0.7 | 4.61 | 77/56 | 1.4 | 6.4 | 83 |
| 2.8 | 6 | 0.7 | 3.08 | 97/70 | 1.4 | 7.9 | 107 | |
| 3.6 | 10 | 0.7 | 1.83 | 130/97 | 1.4 | 8.3 | 158 | |
| 4.5 | 16 | 0.7 | 1.15 | 170/125 | 1.4 | 9.3 | 222 | |
| 6 | 25 | 0.9 | 0.727 | 220/165 | 1.5 | 11.2 | 335 | |
| 7 | 35 | 0.9 | 0.524 | 265/200 | 1.5 | 12.4 | 436 | |
| 8.3 | 50 | 1 | 0.387 | 320/245 | 1.6 | 14.1 | 577 | |
| 9.8 | 70 | 1.1 | 0.268 | 395/305 | 1.6 | 16.1 | 794 | |
| 11.5 | 95 | 1.1 | 0.193 | 475/375 | 1.7 | 18.2 | 1066 | |
| 12.9 | 120 | 1.2 | 0.153 | 545/435 | 1.7 | 20.5 | 1321 | |
| 14.5 | 150 | 1.4 | 0.124 | 610/500 | 1.7 | 22 | 1606 | |
| 16 | 185 | 1.6 | 0.0991 | 695/580 | 1.7 | 24.2 | 1977 | |
| 18.3 | 240 | 1.7 | 0.0754 | 810/685 | 1.7 | 27.1 | 2548 | |
| 20.5 | 300 | 1.8 | 0.0601 | 910/795 | 1.7 | 29.1 | 3151 | |
| Two Cores | 1.8 | 2.5 | 0.7 | 7.41 | 40/30 | 1.8 | 10.8 | 127 |
| 2.3 | 4 | 0.7 | 4.61 | 55/42 | 1.8 | 11.7 | 165 | |
| 2.8 | 6 | 0.7 | 3.08 | 65/35 | 1.8 | 12.7 | 215 | |
| 3.6 | 10 | 0.7 | 1.83 | 90/70 | 1.8 | 15.3 | 324 | |
| 4.5 | 16 | 0.7 | 1.15 | 110/92 | 1.8 | 17.4 | 461 | |
| 6 | 25 | 0.9 | 0.727 | 140/128 | 1.8 | 20.8 | 692 | |
| 7 | 35 | 0.9 | 0.524 | 180/160 | 1.8 | 23.1 | 907 | |
| 8.3 | 50 | 1 | 0.387 | 210/190 | 1.8 | 26.2 | 1194 | |
| 9.8 | 70 | 1.1 | 0.268 | 250/250 | 1.8 | 30.6 | 1972 | |
| 11.5 | 95 | 1.1 | 0.193 | 285/300 | 2 | 34.8 | 2265 | |
| 12.9 | 120 | 1.2 | 0.153 | 330/350 | 2.1 | 38.6 | 2832 | |
| 14.5 | 150 | 1.4 | 0.124 | 375/400 | 2.2 | 42.7 | 3472 | |
| 16 | 185 | 1.6 | 0.0991 | 420/460 | 2.3 | 47.5 | 4307 | |
| 18.3 | 240 | 1.7 | 0.0754 | 500/550 | 2.5 | 53.5 | 5637 | |
| 20.5 | 300 | 1.8 | 0.0601 | 580/600 | 2.7 | 59.2 | 6932 | |
| Three Cores | 1.8 | 2.5 | 0.7 | 7.41 | 35/26 | 1.8 | 11.3 | 159 |
| 2.3 | 4 | 0.7 | 4.61 | 45/34 | 1.8 | 12.2 | 210 | |
| 2.8 | 6 | 0.7 | 3.08 | 57/43 | 1.8 | 13.4 | 280 | |
| 3.6 | 10 | 0.7 | 1.83 | 77/60 | 1.8 | 16.1 | 431 | |
| 4.5 | 16 | 0.7 | 1.15 | 105/83 | 1.8 | 4.18 | 624 | |
| 6 | 25 | 0.9 | 0.727 | 125/105 | 1.8 | 22.1 | 947 | |
| 7 | 35 | 0.9 | 0.524 | 155/125 | 1.8 | 24.6 | 1254 | |
| 8.3 | 50 | 1 | 0.387 | 185/160 | 1.8 | 27.9 | 1660 | |
| 9.8 | 70 | 1.1 | 0.268 | 225/200 | 1.9 | 32.8 | 2353 | |
| 11.5 | 95 | 1.1 | 0.193 | 270/245 | 2 | 37.1 | 3179 | |
| 12.9 | 120 | 1.2 | 0.153 | 310/285 | 2.1 | 41.2 | 3983 | |
| 14.5 | 150 | 1.4 | 0.124 | 345/325 | 2.3 | 45.8 | 4909 | |
| 16 | 185 | 1.6 | 0.0991 | 390/375 | 2.4 | 50.9 | 6104 | |
| 18.3 | 240 | 1.7 | 0.0754 | 450/440 | 2.6 | 57.4 | 7941 | |
| 20.5 | 300 | 1.8 | 0.0601 | 515/505 | 2.8 | 63.4 | 9890 | |
| Four Cores | 1.8 | 2.5 | 0.7 | 7.41 | 35/26 | 1.8 | 12.1 | 194 |
| 2.3 | 4 | 0.7 | 4.61 | 45/34 | 1.8 | 13.2 | 262 | |
| 2.8 | 6 | 0.7 | 3.08 | 57/43 | 1.8 | 14.5 | 352 | |
| 3.6 | 10 | 0.7 | 1.83 | 77/60 | 1.8 | 17.6 | 547 | |
| 4.5 | 16 | 0.7 | 1.15 | 105/83 | 1.8 | 20.1 | 799 | |
| 6 | 25 | 0.9 | 0.727 | 125/105 | 1.8 | 24.3 | 1222 | |
| 7 | 35 | 0.9 | 0.524 | 155/125 | 1.8 | 27.1 | 1626 | |
| 8.3 | 50 | 1 | 0.387 | 185/160 | 1.8 | 31 | 2172 | |
| 9.8 | 70 | 1.1 | 0.268 | 225/200 | 1.9 | 36.4 | 3080 | |
| 11.5 | 95 | 1.1 | 0.193 | 270/245 | 2 | 41.2 | 4166 | |
| 12.9 | 120 | 1.2 | 0.153 | 310/285 | 2.1 | 46 | 5244 | |
| 14.5 | 150 | 1.4 | 0.124 | 345/325 | 2.3 | 50.9 | 6435 | |
| 16 | 185 | 1.6 | 0.0991 | 390/375 | 2.4 | 56.8 | 8034 | |
| 18.3 | 240 | 1.7 | 0.0754 | 450/440 | 2.6 | 64 | 10452 | |
| 20.5 | 300 | 1.8 | 0.0601 | 515/505 | ||||
| Five Cores | 1.8 | 2.5 | 0.8 | 7.41 | 35/26 | 1.8 | 13 | 231 |
| 2.3 | 4 | 1 | 4.61 | 45/34 | 1.8 | 14.2 | 314 | |
| 2.8 | 6 | 1 | 3.08 | 57/43 | 1.8 | 15.6 | 426 | |
| 3.6 | 10 | 1 | 1.83 | 77/60 | 1.8 | 19.1 | 667 | |
| 4.5 | 16 | 1 | 1.15 | 105/83 | 1.8 | 22 | 979 | |
| 6 | 25 | 1.2 | 0.727 | 125/105 | 1.8 | 26.6 | 1503 | |
| 7 | 35 | 1.2 | 0.524 | 155/125 | 1.8 | 29.7 | 2004 | |
| 8.3 | 50 | 1.4 | 0.387 | 185/160 | 2 | 34.2 | 2696 | |
| 9.8 | 70 | 1.4 | 0.268 | 225/200 | 2.1 | 40.2 | 3825 | |
| 11.5 | 95 | 1.6 | 0.193 | 270/245 | 2.3 | 45.8 | 5196 | |
| 12.9 | 120 | 1.6 | 0.153 | 310/285 | 2.4 | 50.8 | 6513 | |
| 14.5 | 150 | 1.8 | 0.124 | 345/325 | 2.6 | 56.5 | 8020 | |
| 16 | 185 | 2 | 0.0991 | 390/375 | 2.8 | 63.1 | 10010 | |
| 18.3 | 240 | 2.2 | 0.0754 | 450/440 | 3 | 71.1 | 13019 | |
| 20.5 | 300 | 2.4 | 0.0601 | 515/505 | 3.2 | 78.6 | 16213 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

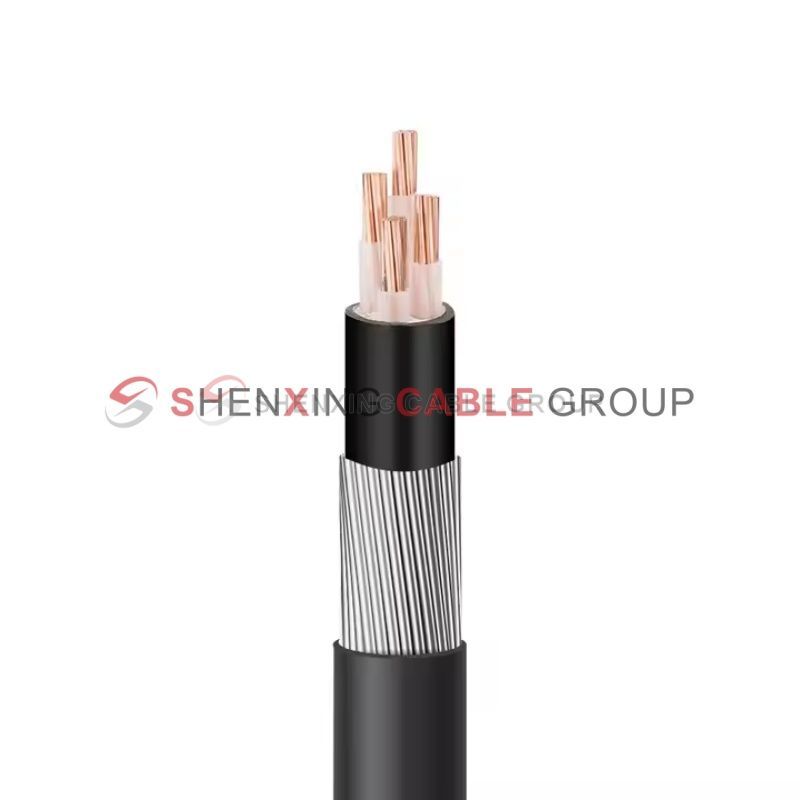

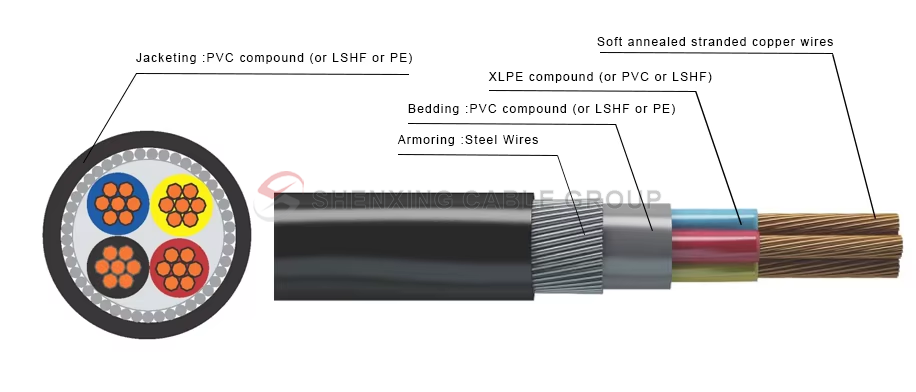

Cable Structure

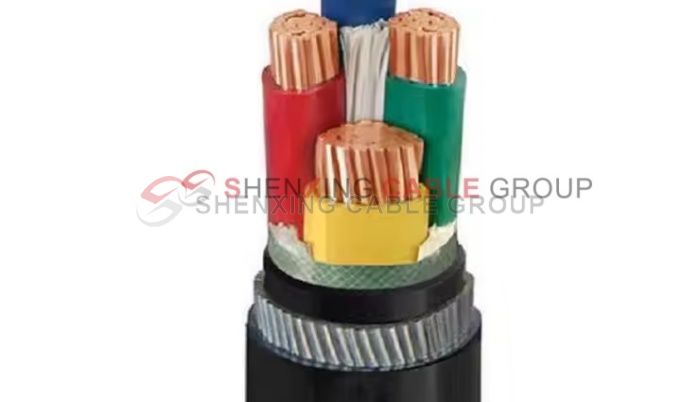

0.6-1kv YJV32 Low Voltage Steel Wire Armored Power Cable
Features
Features
Competitive Advantages
Voltage-Specific Design: Optimized for 0.6/1 kV systems to eliminate over-engineering costs.
Dual Protection: XLPE insulation + steel armor, validated by IEC 60502-1 impact tests.
Environmental Resilience: Oil-resistant (IEC 60811-201) and UV-resistant (ISO 4892-2) sheath.
Easy Installation: Minimum bending radius of 12× cable diameter (exceeds IEC standards).
Global Compliance: Pre-certified for CE, UKCA, RoHS, and ACCC (Australia), with ASTM/BICC customization options.
Experimental Performance
AC withstand voltage: 3.5 kV for 5 minutes (IEC 60502-1 Clause 16.3).
Insulation resistance: ≥100 MΩ·km at 20°C (IEC 60885-2).
Mechanical Tests
Armor tensile strength: ≥1370 N/mm² (ASTM A856/A856M galvanizing standard).
Sheath compression test: 2000 N/100mm width for 1 minute (EN 50265-2-1).
Environmental Tests
Oil resistance: Immersion in IRM 902 oil (70°C×4 days), tensile retention ≥80%.
Cold bend test: No cracks at -15°C on 3D mandrel (IEC 60811-504).
Production
Production Equipment
Projects
Empowering Green Energy: Shenxing Cable Group Supports 50MW Wind Power Project
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the main factors to consider when selecting low-voltage power cables?
When selecting low-voltage power cables, the following factors should be considered:
Rated voltage: It should be selected according to the rated voltage of the load equipment.
Conductor cross-section: Select according to the load current and line length to ensure that the conductor has sufficient current-carrying capacity.
Number of cores: Select according to the number of phases and grounding requirements of the line.
Insulating material: Select appropriate insulating material according to the temperature, humidity, corrosiveness, etc. of the laying environment.
Laying method: Select appropriate cable structure according to the laying method (buried, overhead, etc.).
What are the common faults of low-voltage power cables?
Common faults of low-voltage power cables are:
Insulation aging: Long-term use or environmental influences cause aging and cracking of the insulation layer, resulting in short circuit or leakage.
Mechanical damage: External force causes the cable to break and cause a short circuit.
Overload operation: Long-term overload operation causes the conductor to heat up and the insulation layer to be damaged.
Poor joints: The cable joints are not made in a standardized manner or are damp, resulting in poor contact or short circuit.
How to extend the service life of low-voltage power cables?
Correct selection: Select the appropriate cable according to the load conditions and environmental conditions.
Standard installation: Lay according to the specifications to avoid mechanical damage.
Regular inspection: Regularly check the appearance, joints and other parts of the cable to detect and deal with problems in a timely manner.
Avoid overload: Control the load current to prevent overload operation.
Good ventilation: Keep the environment around the cable well ventilated to prevent overheating.
What is the difference between low-voltage power cables and other cables?
Compared with high-voltage power cables, control cables, etc., the main difference between low-voltage power cables is that the rated voltage is lower and the structure is relatively simple. In addition, the insulation layer materials, sheath materials, etc. of low-voltage power cables may also be different to adapt to different application environments.
