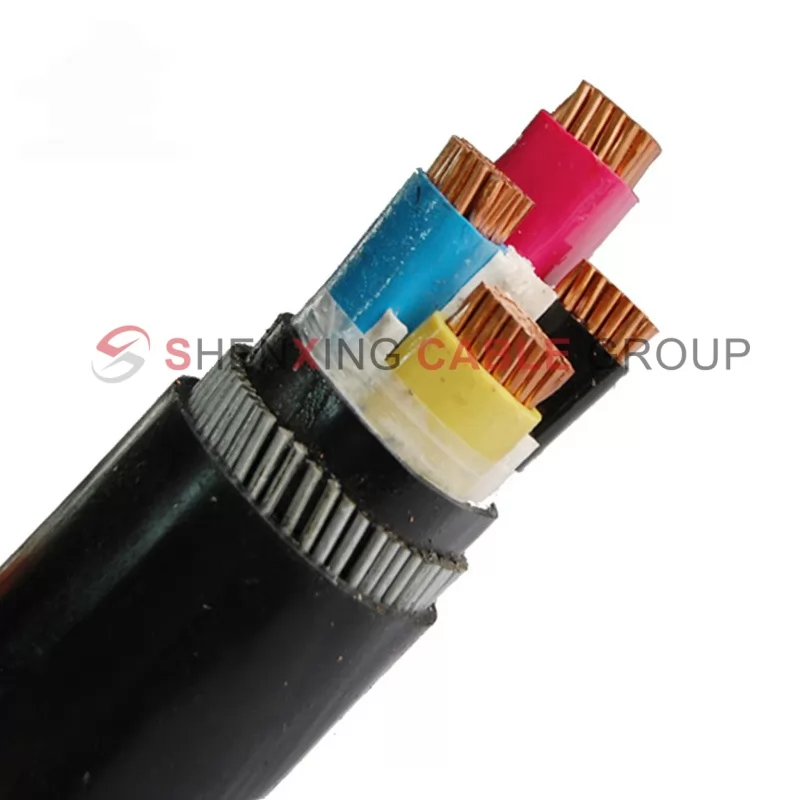

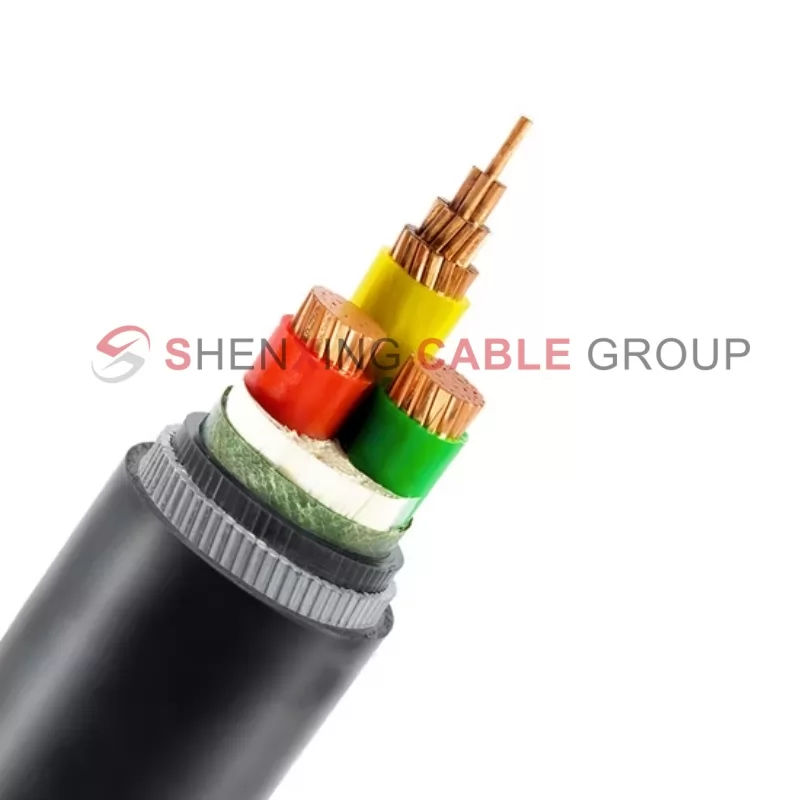

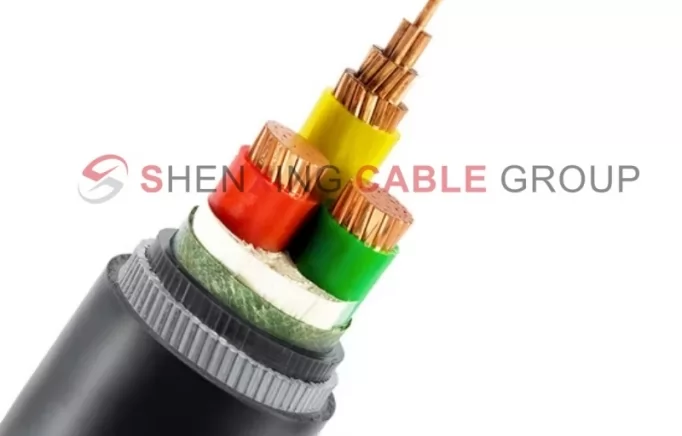

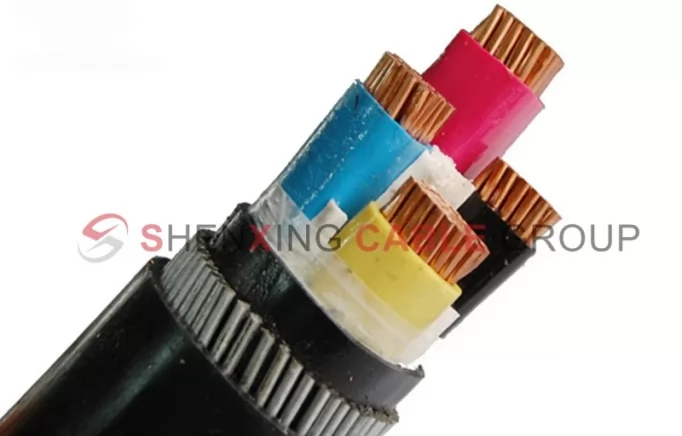

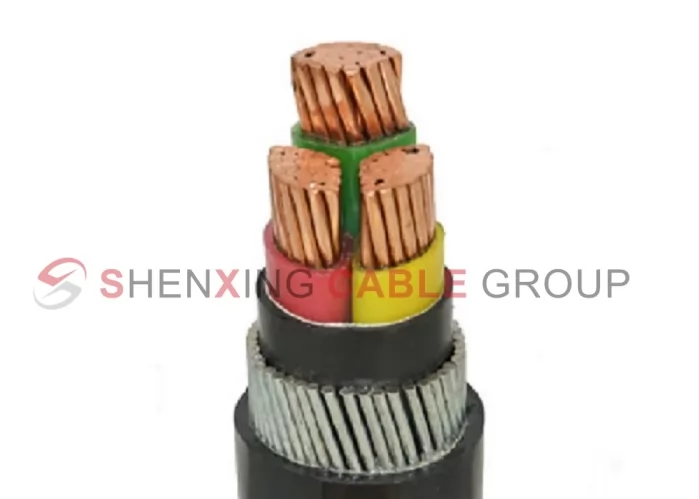

Low Voltage VV32 Cable | 0.6/1kV Steel Wire Armored Power Cable Manufacturer-SHENXING CABLE

Application areas

Intelligent building system: used for low-voltage power supply of residential, office and commercial facilities to ensure stable operation of intelligent control systems.

Industrial automation: supports efficient equipment linkage and data transmission to meet the dual requirements of industrial sites for power quality and safety.

Public infrastructure: suitable for public facilities such as bridges, roads and municipal engineering to ensure long-term power supply safety.

Special control system: provides stable power supply for security monitoring and emergency systems to ensure reliability at critical moments.

Product advantages

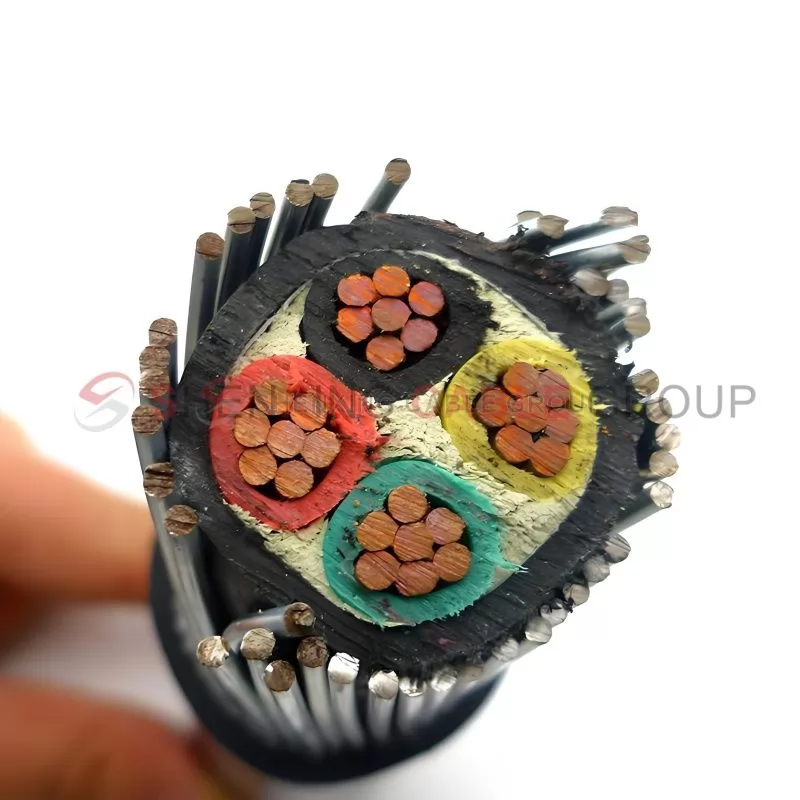

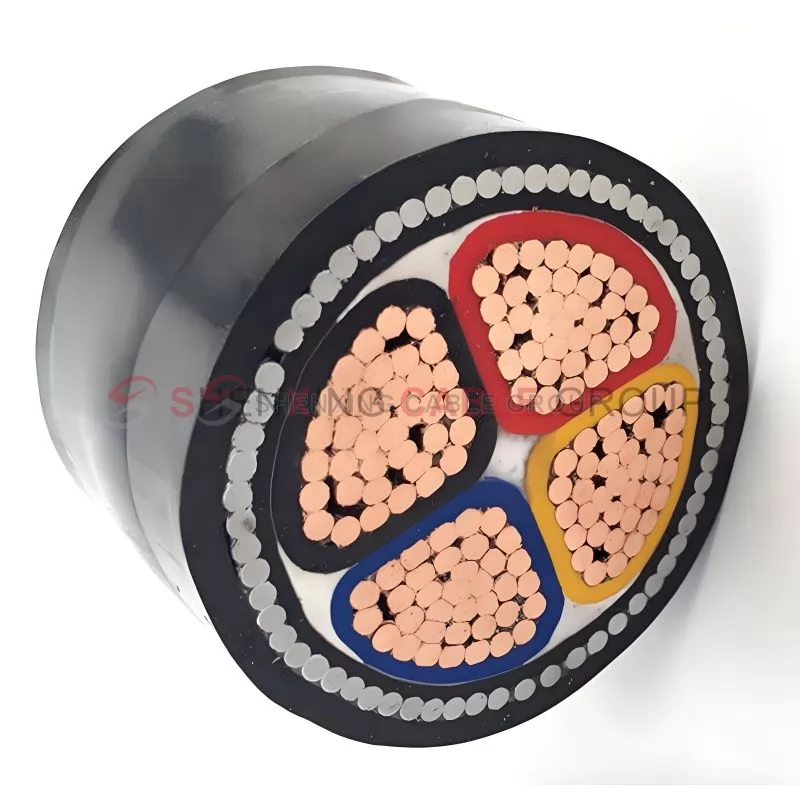

Strong resistance to mechanical damage - The steel wire armor structure enhances the mechanical strength of the cable, can resist external damage, and is suitable for underground and harsh environments.

99.9% copper core conductor - using high conductivity oxygen-free copper to improve power transmission efficiency and reduce energy consumption.

Durable PVC insulation and sheath - with excellent heat resistance, corrosion resistance, and moisture resistance, extending the service life of the cable.

Adapt to a variety of laying methods - can be used in underground, tunnel, bridge, indoor and outdoor scenes, suitable for industrial and building power distribution systems.

Technical Data

Number of Cores	Conductor Diameter	Conductor Diameter	Insulation Thickness	Resistance	Current Carrying Capacity	Sheath Thickness	Cable Outer Diameter	Weight
	(mm)	(mm²)	(mm)	(Ω/km)	(A)	(mm)	(mm)	(kg/km)

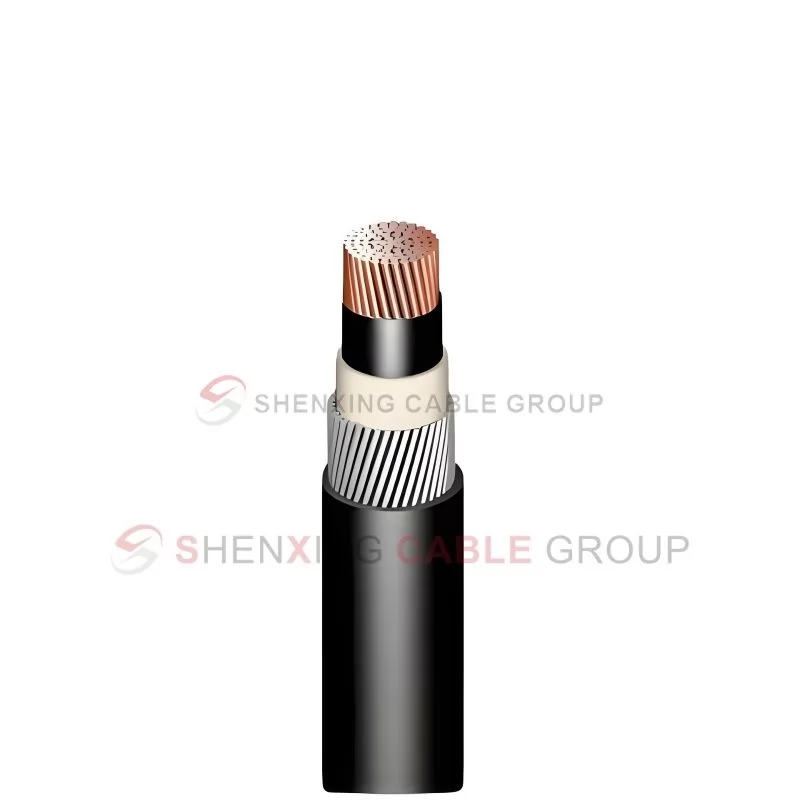

Single Core	2.3	4	0.7	4.61	77/56	1.4	6.4	83
	2.8	6	0.7	3.08	97/70	1.4	7.9	107
	3.6	10	0.7	1.83	130/97	1.4	8.3	158
	4.5	16	0.7	1.15	170/125	1.4	9.3	222
	6	25	0.9	0.727	220/165	1.5	11.2	335
	7	35	0.9	0.524	265/200	1.5	12.4	436
	8.3	50	1	0.387	320/245	1.6	14.1	577
	9.8	70	1.1	0.268	395/305	1.6	16.1	794
	11.5	95	1.1	0.193	475/375	1.7	18.2	1066
	12.9	120	1.2	0.153	545/435	1.7	20.5	1321
	14.5	150	1.4	0.124	610/500	1.7	22	1606
	16	185	1.6	0.0991	695/580	1.7	24.2	1977
	18.3	240	1.7	0.0754	810/685	1.7	27.1	2548
	20.5	300	1.8	0.0601	910/795	1.7	29.1	3151
Two Cores	1.8	2.5	0.7	7.41	40/30	1.8	10.8	127
	2.3	4	0.7	4.61	55/42	1.8	11.7	165
	2.8	6	0.7	3.08	65/35	1.8	12.7	215
	3.6	10	0.7	1.83	90/70	1.8	15.3	324
	4.5	16	0.7	1.15	110/92	1.8	17.4	461
	6	25	0.9	0.727	140/128	1.8	20.8	692
	7	35	0.9	0.524	180/160	1.8	23.1	907
	8.3	50	1	0.387	210/190	1.8	26.2	1194
	9.8	70	1.1	0.268	250/250	1.8	30.6	1972
	11.5	95	1.1	0.193	285/300	2	34.8	2265
	12.9	120	1.2	0.153	330/350	2.1	38.6	2832
	14.5	150	1.4	0.124	375/400	2.2	42.7	3472
	16	185	1.6	0.0991	420/460	2.3	47.5	4307
	18.3	240	1.7	0.0754	500/550	2.5	53.5	5637
	20.5	300	1.8	0.0601	580/600	2.7	59.2	6932
Three Cores	1.8	2.5	0.7	7.41	35/26	1.8	11.3	159
	2.3	4	0.7	4.61	45/34	1.8	12.2	210
	2.8	6	0.7	3.08	57/43	1.8	13.4	280
	3.6	10	0.7	1.83	77/60	1.8	16.1	431
	4.5	16	0.7	1.15	105/83	1.8	4.18	624
	6	25	0.9	0.727	125/105	1.8	22.1	947
	7	35	0.9	0.524	155/125	1.8	24.6	1254
	8.3	50	1	0.387	185/160	1.8	27.9	1660
	9.8	70	1.1	0.268	225/200	1.9	32.8	2353
	11.5	95	1.1	0.193	270/245	2	37.1	3179
	12.9	120	1.2	0.153	310/285	2.1	41.2	3983
	14.5	150	1.4	0.124	345/325	2.3	45.8	4909
	16	185	1.6	0.0991	390/375	2.4	50.9	6104
	18.3	240	1.7	0.0754	450/440	2.6	57.4	7941
	20.5	300	1.8	0.0601	515/505	2.8	63.4	9890
Four Cores	1.8	2.5	0.7	7.41	35/26	1.8	12.1	194
	2.3	4	0.7	4.61	45/34	1.8	13.2	262
	2.8	6	0.7	3.08	57/43	1.8	14.5	352
	3.6	10	0.7	1.83	77/60	1.8	17.6	547
	4.5	16	0.7	1.15	105/83	1.8	20.1	799
	6	25	0.9	0.727	125/105	1.8	24.3	1222
	7	35	0.9	0.524	155/125	1.8	27.1	1626
	8.3	50	1	0.387	185/160	1.8	31	2172
	9.8	70	1.1	0.268	225/200	1.9	36.4	3080
	11.5	95	1.1	0.193	270/245	2	41.2	4166
	12.9	120	1.2	0.153	310/285	2.1	46	5244
	14.5	150	1.4	0.124	345/325	2.3	50.9	6435
	16	185	1.6	0.0991	390/375	2.4	56.8	8034
	18.3	240	1.7	0.0754	450/440	2.6	64	10452
	20.5	300	1.8	0.0601	515/505
Five Cores	1.8	2.5	0.8	7.41	35/26	1.8	13	231
	2.3	4	1	4.61	45/34	1.8	14.2	314
	2.8	6	1	3.08	57/43	1.8	15.6	426
	3.6	10	1	1.83	77/60	1.8	19.1	667
	4.5	16	1	1.15	105/83	1.8	22	979
	6	25	1.2	0.727	125/105	1.8	26.6	1503
	7	35	1.2	0.524	155/125	1.8	29.7	2004
	8.3	50	1.4	0.387	185/160	2	34.2	2696
	9.8	70	1.4	0.268	225/200	2.1	40.2	3825
	11.5	95	1.6	0.193	270/245	2.3	45.8	5196
	12.9	120	1.6	0.153	310/285	2.4	50.8	6513
	14.5	150	1.8	0.124	345/325	2.6	56.5	8020
	16	185	2	0.0991	390/375	2.8	63.1	10010
	18.3	240	2.2	0.0754	450/440	3	71.1	13019
	20.5	300	2.4	0.0601	515/505	3.2	78.6	16213

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

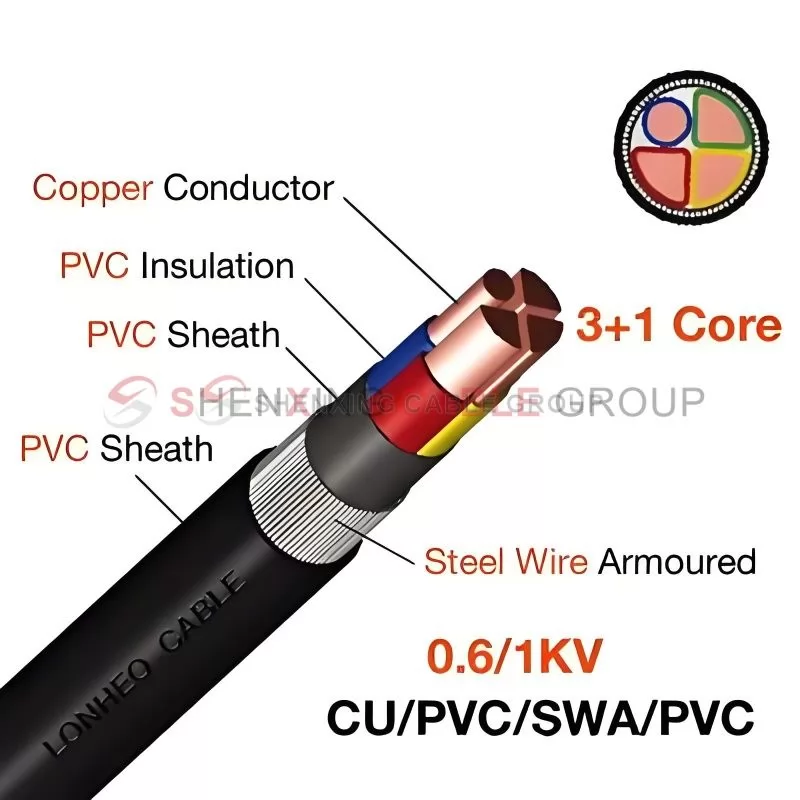

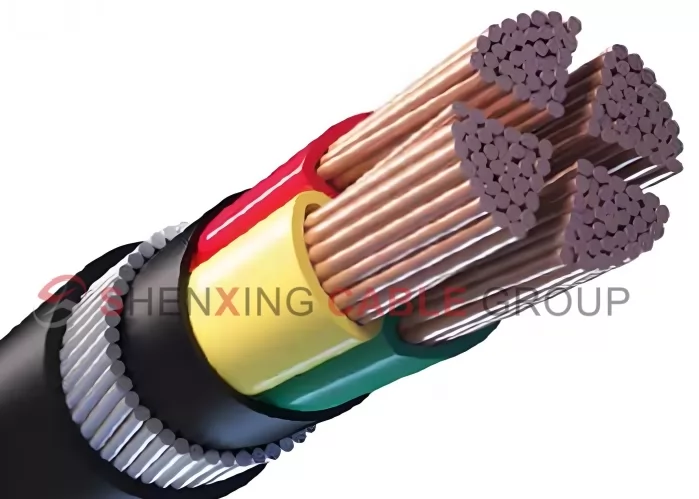

Cable Structure

low Voltage(0.6/1KV) Power Cable-VV32

LV, CU, PVC/ PVC / steel wire armor power cable

Features

Features

Product Features

High conductivity copper core – uses high-quality oxygen-free copper conductors to ensure efficient power transmission, reduce power consumption, and improve power system stability.

Strong steel wire armor – has excellent mechanical protection capabilities, can effectively resist external mechanical pressure, impact and tension, and is suitable for underground and complex environment laying.

High-quality PVC insulation – The insulation layer uses high-performance polyvinyl chloride (PVC), which has good voltage resistance, aging resistance and moisture resistance to ensure long-term safe operation.

Wear-resistant and corrosion-resistant sheath – The PVC sheath has excellent wear resistance and chemical corrosion resistance, and is suitable for various industrial and outdoor harsh environments.

Excellent weather resistance – It can maintain stable performance under different temperature and humidity conditions, and is suitable for humid, dry or high temperature environments.

Safe flame retardant performance – It meets relevant flame retardant standards and can effectively reduce flame propagation in fire situations, improving cable safety.

Experimental Performance

Experimental Performance

Rated Voltage：U₀/U 0.6/1kV

Maximum Operating Temperature：70℃

Maximum Conductor Temperature During Short Circuit, no more than 5 seconds：160℃

Laying Temperature: not lower than 0℃

Tensile Strength: ≥12.5N/mm²

Cable Bending Radius:

Single Core: 20D ±5%

Multi-core Without Armor: 15D ±5%

Multi-core With Armor：12D ±5%

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Intelligent Upgrade of Luxury Cruise Ships

An internationally renowned luxury cruise company plans to carry out comprehensive intelligent upgrades on several of its cruise ships to improve passenger experience and operational efficiency. Read More

Intelligent Gold Mine Data Transmission Cable Solution

An intelligent gold mine is committed to achieving real-time monitoring and control of the production process through a highly automated control system to improve production efficiency and safety. Read More

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Offshore Drilling Platform Cable Solutions

An internationally renowned oil exploration company has constructed a new offshore drilling platform in the North Sea region. Read More

Cable use Cases in Crude Oil Depots

A large crude oil depot is located in the coastal area of my country and undertakes the important task of crude oil storage and transshipment. The crude oil depot not only has a large group of storage tanks, but also complex transmission pipelines and supporting equipment. Read More

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the main factors to consider when selecting low-voltage power cables?

When selecting low-voltage power cables, the following factors should be considered:

Rated voltage: It should be selected according to the rated voltage of the load equipment.

Conductor cross-section: Select according to the load current and line length to ensure that the conductor has sufficient current-carrying capacity.

Number of cores: Select according to the number of phases and grounding requirements of the line.

Insulating material: Select appropriate insulating material according to the temperature, humidity, corrosiveness, etc. of the laying environment.

Laying method: Select appropriate cable structure according to the laying method (buried, overhead, etc.).

What are the common faults of low-voltage power cables?

Common faults of low-voltage power cables are:

Insulation aging: Long-term use or environmental influences cause aging and cracking of the insulation layer, resulting in short circuit or leakage.

Mechanical damage: External force causes the cable to break and cause a short circuit.

Overload operation: Long-term overload operation causes the conductor to heat up and the insulation layer to be damaged.

Poor joints: The cable joints are not made in a standardized manner or are damp, resulting in poor contact or short circuit.

How to extend the service life of low-voltage power cables?

Correct selection: Select the appropriate cable according to the load conditions and environmental conditions.

Standard installation: Lay according to the specifications to avoid mechanical damage.

Regular inspection: Regularly check the appearance, joints and other parts of the cable to detect and deal with problems in a timely manner.

Avoid overload: Control the load current to prevent overload operation.

Good ventilation: Keep the environment around the cable well ventilated to prevent overheating.

What is the difference between low-voltage power cables and other cables?

Compared with high-voltage power cables, control cables, etc., the main difference between low-voltage power cables is that the rated voltage is lower and the structure is relatively simple. In addition, the insulation layer materials, sheath materials, etc. of low-voltage power cables may also be different to adapt to different application environments.
