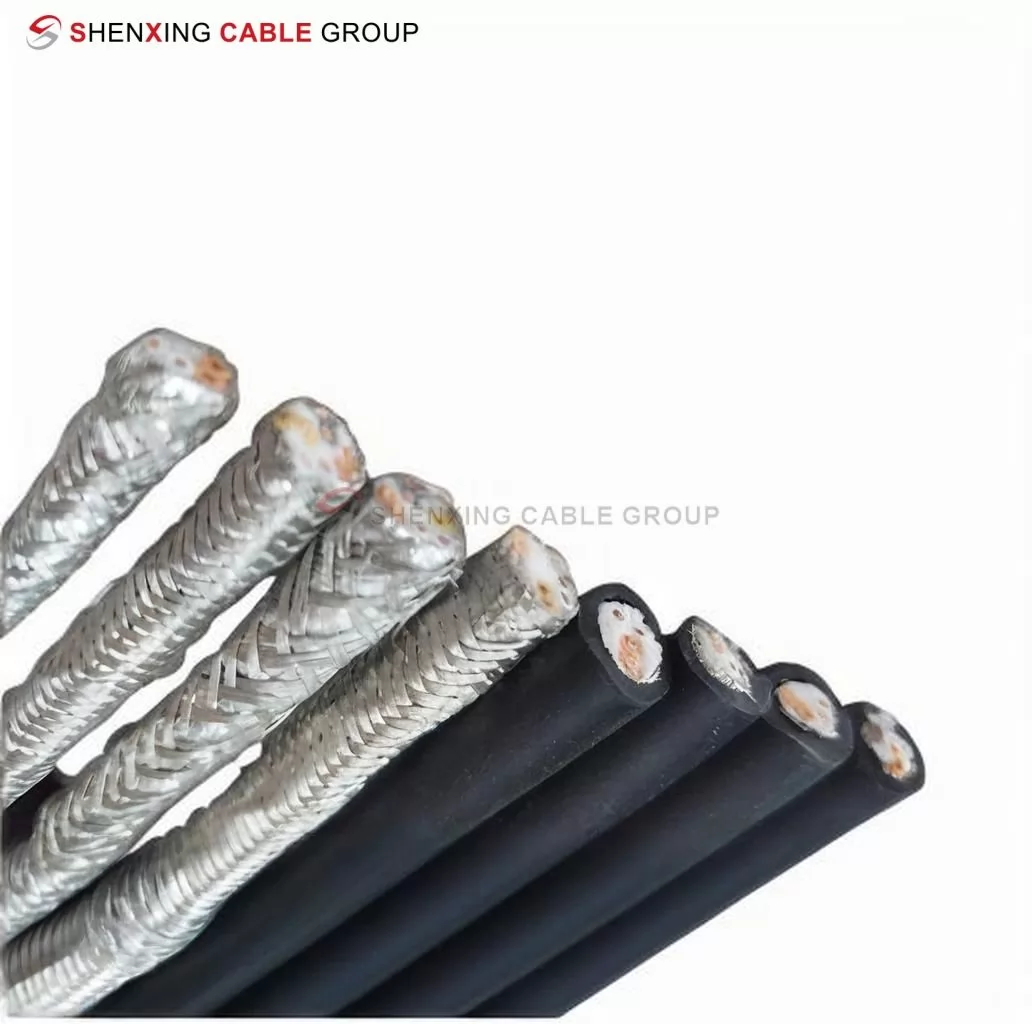

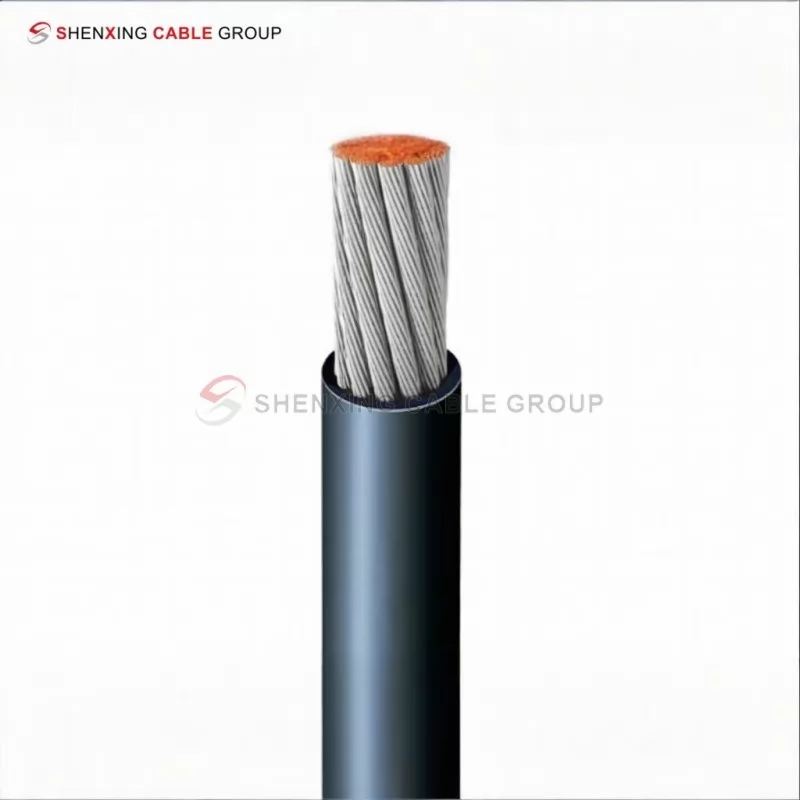

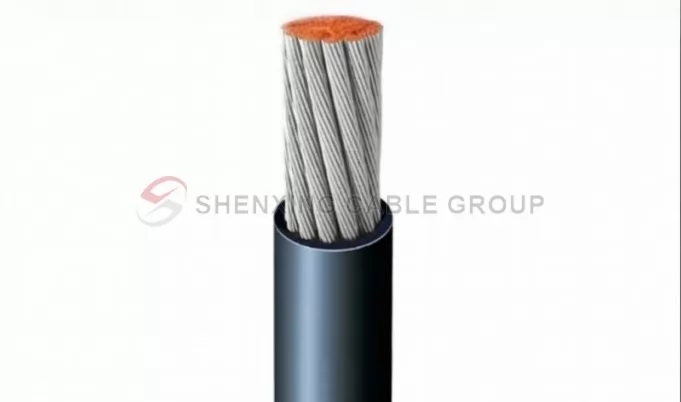

Flexible Marine Wire

Application areas

Ship power system: used for power transmission of main propulsion system and auxiliary equipment.

Lighting system: ensure power connection for ship interior and deck lighting.

Communication and navigation equipment: supports stable signal transmission, suitable for communication and navigation systems.

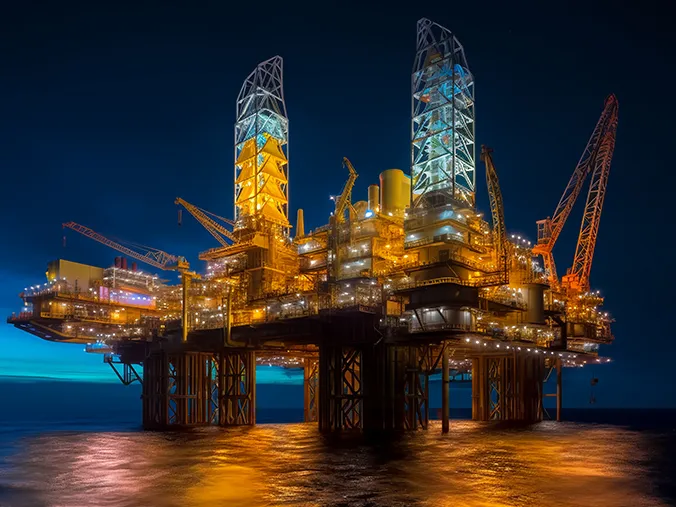

Marine engineering: widely used in power wiring needs in offshore oil platforms, water buildings and other fields.

Special use: especially suitable for scenarios that require frequent bending, cable retraction or mobile equipment connection, such as drag chain systems.

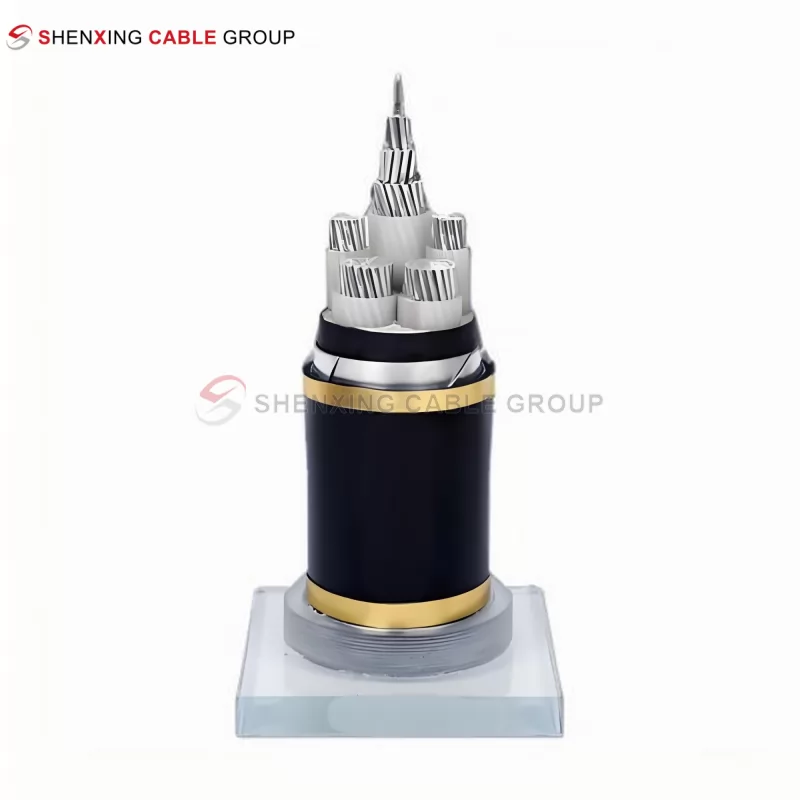

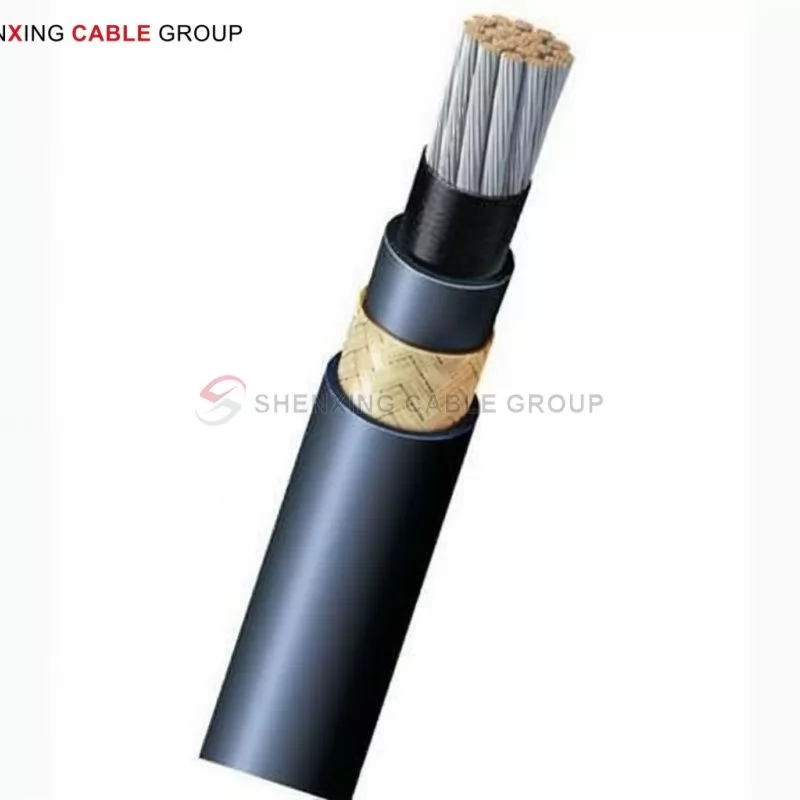

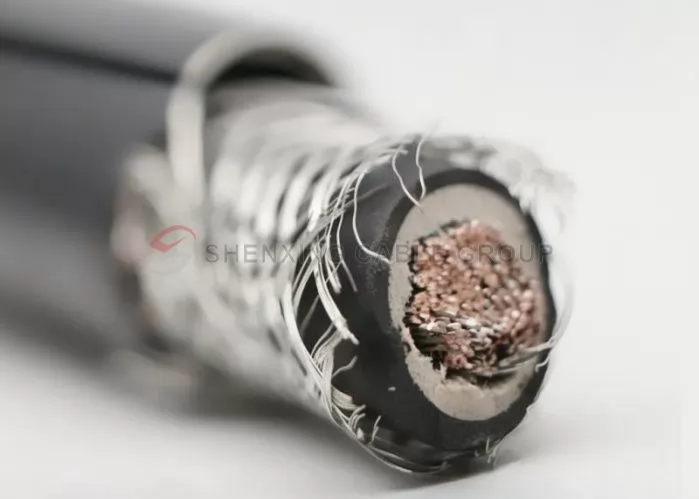

Product structure

Conductor: high-purity annealed tinned copper or bare copper, in accordance with IEC 60228 standard, with high conductivity and corrosion resistance.

Insulation layer: cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC), providing excellent heat resistance and insulation performance.

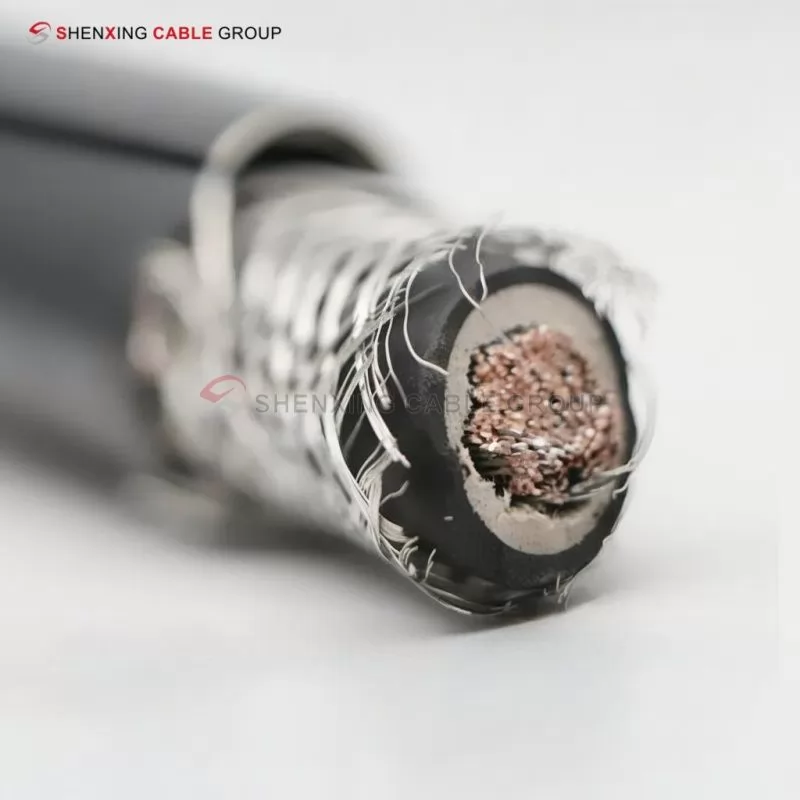

Shielding layer: copper foil wrapping or copper wire braiding double-layer shielding structure, effectively preventing electromagnetic interference.

Armor layer (optional): tinned copper wire or galvanized steel wire braiding, enhanced resistance to mechanical damage.

Outer sheath: low smoke halogen-free (LSOH) polyolefin material, environmentally friendly and wear-resistant and corrosion-resistant.

Technical Data

Voltage level：0.6/1kV
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	No armor				With Steel Armor					Steel Wire Armor
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	Sheath Thickness (mm)	Cable outer diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Strip Thickness (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Wire Diameter (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)
Three cores	1.8	2.5	0.8	7.41	1.8	11.8	187	29/19
	2.3	4	1	4.61	1.8	13.7	265	38/26	1.8	0.2×2	17.3	489	38/26
	2.8	6	1	3.08	1.8	15.7	380	47/32	1.8	0.2×2	18.4	577	47/32
	3.8	10	1	1.83	1.8	17.6	514	65/46	1.8	0.2×2	21.2	800	65/46	1.8	0.8	23	1172	65/46
	4.8	16	1	1.15	1.8	19.8	728	84/60	1.8	0.2×2	23.5	1050	84/60	1.8	0.8	25.3	1457	84/60
	6	25	1.2	0.727	1.8	23.6	1084	110/77	1.8	0.2×2	27.2	1465	110/77	1.8	1.6	29	1936	110/77
	7	35	1.2	0.524	1.8	26.1	1422	130/95	1.9	0.2×2	30.7	2150	130/95	1.9	1.6	31.7	2359	130/95
	8.3	50	1.4	0.387	1.8	26.5	1801	155/115	2	0.5×2	31.4	2453	155/115	2	1.6	36.4	3216	155/115
	9.8	70	1.4	0.268	1.9	28.8	2415	195/145	2.2	0.5×2	33.6	3116	195/145	2.2	2	41.1	4164	195/145
	11.5	95	1.6	0.193	2.1	33.7	3255	230/185	2.4	0.5×2	38.2	4053	230/185	2.4	2	47.4	5498	230/185
	12.9	120	1.6	0.153	2.2	37.1	4037	260/210	2.5	0.5×2	41.9	4930	260/210	2.5	2	51.3	6836	260/210
	14.5	150	1.8	0.124	2.3	41.9	5028	300/245	2.6	0.5×2	47.1	6075	300/245	2.6	2.5	55.9	8061	300/245
	16	185	2	0.0991	2.5	45.9	6180	335/280	2.8	0.5×2	50.9	7300	335/280	2.8	2.5	61.4	9640	335/280
	18.3	240	2.2	0.0754	2.7	51.7	7947	390/335	3	0.5×2	57	9231	390/335	3	2.5	68.5	12002	390/335
	20.5	300	2.4	0.0601					3.2	0.5×2	61.8	11277	435/375	3.2	2.5	75.2	14489	435/375

Voltage level：6/6 6/10kV
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	No armor				With Steel Armor
					Sheath Thickness (mm)	Cable outer diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Strip Thickness (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)
Four cores
	1.8	2.5	0.8	7.41	1.8	12.6	211	29/19
	2.3	4	1	4.61	1.8	14.7	305	38/26	1.8	0.2×2	16.5	435	38/26
	2.8	6	1	3.08	1.8	15.9	400	47/32	1.8	0.2×2	17.7	542	47/32
	3.8	10	1	1.83	1.8	19	610	65/46	1.8	0.2×2	20.8	764	65/46
	4.8	16	1	1.15	1.8	21.6	871	84/60	1.8	0.2×2	23.4	1048	84/60
	6	25	1.2	0.727	1.8	26.7	1316	110/77	1.8	0.2×2	27.5	1529	110/77
	7	35	1.2	0.524	1.8	28.5	1732	130/95	1.8	0.2×2	30.3	1968	130/95
	8.3	50	1.4	0.387	1.9	32.9	2327	155/115	1.9	0.5×2	36.7	2960	155/115
	9.8	70	1.4	0.268	2.1	38.1	3264	195/145	2.1	0.5×2	41.3	3956	195/145
	11.5	95	1.6	0.193	2.2	43.8	4455	230/185	2.2	0.5×2	47.2	5273	230/185
	12.9	120	1.6	0.153	2.4	48.1	5530	260/210	2.4	0.5×2	51.3	6403	260/210
	14.5	150	1.8	0.124	2.5	53	6266	300/245	2.6	0.5×2	56.4	7757	300/245
	16	185	2	0.0991	2.7	59	8431	335/280	2.8	0.5×2	62.4	9524	335/280
	18.3	240	2.2	0.0754	2.9	61.9	10972	390/335	3	0.5×2	70.1	12207	390/335
	20.5	300	2.4	0.0601					3.2	0.5×2	77.3	15044	435/375
3+1cores	2.3	4	1	4.61	1.8	14.1	281	38/26	1.8	0.2×2	16.9	521	38/26
	1.8	2.5	0.8	7.41
	2.8	6	1	3.08	1.8	15.6	376	47/32	1.8	0.2×2	18.4	710	47/32
	2.3	4	1	4.61
	3.8	10	1	1.83	1.8	18.2	555	65/46	1.8	0.2×2	21	982	65/46
	2.8	6	1	3.08
	4.8	16	1	1.15	1.8	20.9	804	84/60	1.8	0.2×2	23.7	1412	84/60
	3.8	10	1	1.83
	6	25	1.2	0.727	1.8	24.6	1202	110/77	1.8	0.2×2	27.4	1740	110/77
	4.8	16	1	1.15
	7	35	1.2	0.524	1.8	26.7	1511	130/95	1.8	0.2×2	29.5	2214	130/95
	4.8	16	1	1.15
	8.3	50	1.4	0.387	1.9	31.1	2071	155/115	1.9	0.5×2	33.9	2864	155/115
	6	25	1.2	0.727
	9.8	70	1.4	0.268	2	35.6	2868	195/145	2.1	0.5×2	39.3	3539	195/145
	7	35	1.2	0.524
	11.5	95	1.6	0.193	2.2	37.8	3859	230/185	2.2	0.5×2	44.7	4679	230/185
	8.3	50	1.4	0.387
	12.9	120	1.6	0.153	2.4	39	4851	260/210	2.4	0.5×2	49.1	5797	260/210
	9.8	70	1.4	0.268
	14.5	150	1.8	0.124	2.6	41	5746	300/245	2.5	0.5×2	52.8	6971	300/245
	9.8	70	1.4	0.268
	16	185	2	0.0991	2.8	42.3	7160	335/280	2.6	0.5×2	58.5	8495	335/280
	11.5	95	1.6	0.193
	18.3	240	2.2	0.0754					2.8	0.5×2	65.3	10702	390/335
	12.9	120	1.6	0.2193
4+1cores					1.8	15.4	343	38/26	1.8	0.2×2	17.2	480	38/26
	1.8	2.5	0.8	7.41
	2.8	6	1	3.08	1.8	17	461	47/32	1.8	0.2×2	18.8	613	47/32
	2.3	4	1	4.61
	3.8	10	1	1.83	1.8	20	690	65/46	1.8	0.2×2	21.8	853	65/46
	2.8	6	1	3.08
	4.8	16	1	1.15	1.8	23	1002	84/60	1.8	0.2×2	24.8	1191	84/60
	3.8	10	1	1.83
	6	25	1.2	0.727	1.8	27.3	1508	110/77	1.8	0.2×2	29.1	1734	110/77
	4.8	16	1	1.15
	7	35	1.2	0.524	1.8	29.7	1919	130/95	1.9	0.5×2	31.7	2180	130/95
	4.8	16	1	1.15
	8.3	50	1.4	0.387	2	35.2	2652	155/115	2	0.5×2	38.5	3291	155/115
	6	25	1.2	0.727
	9.8	70	1.4	0.268	2.1	39.9	3657	195/145	2.2	0.5×2	43.3	4403	195/145
	7	35	1.2	0.524
	11.5	95	1.6	0.193	2.3	43.5	4562	230/185	2.4	0.5×2	49.6	5869	230/185
	8.3	50	1.4	0.387
	12.9	120	1.6	0.153	2.5	51.1	6380	260/210	2.5	0.5×2	54.3	7234	260/210
	9.8	70	1.4	0.268
	14.5	150	1.8	0.124	2.6	55.5	7538	300/245	2.7	0.5×2	58.9	8570	300/245
	9.8	70	1.4	0.268
	16	185	2	0.0991	2.8	62.1	9488	335/285	2.9	0.5×2	65.5	10638	335/280
	11.5	95	1.6	0.193
	18.3	240	2.2	0.0754	3	69.8	12277	390/335	3.1	0.5×2	73.2	13571	390/335
	12.9	120	1.6	0.193

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Flexible Marine Wire

Features

Product Features

Excellent softness and durability

High flexibility: Special materials and optimized design ensure that the cable is easy to route and install in a small space.

Bending resistance: Adapt to high-frequency bending and dynamic operation, not easy to break, and improve the service life of the equipment.

Excellent electrical and shielding performance

Stable transmission: The conductor resistance meets the IEC 60228 standard to ensure efficient and stable power and signal transmission.

Anti-interference ability: The double-layer shielding structure effectively blocks electromagnetic interference and protects signal integrity.

Excellent mechanical and environmental performance

Wear and tear resistance: The outer sheath is designed with wear-resistant and tear-resistant materials and can withstand long-term mechanical stress.

Corrosion resistance and weather resistance: Adapt to harsh marine environments such as salt spray and high humidity to ensure long-term stable operation.

Low smoke and halogen-free: It produces very little smoke during combustion, no toxic gas emissions, meets environmental protection requirements, and is suitable for crowded places.

High safety and long life

Flame retardant performance: meets the flame retardant standards of IEC 60332-1-2 and IEC 60332-3, reducing the risk of fire.

Long life design: heat resistant and aging resistant, with a service life of more than 25 years, reducing the frequency of replacement.

Production

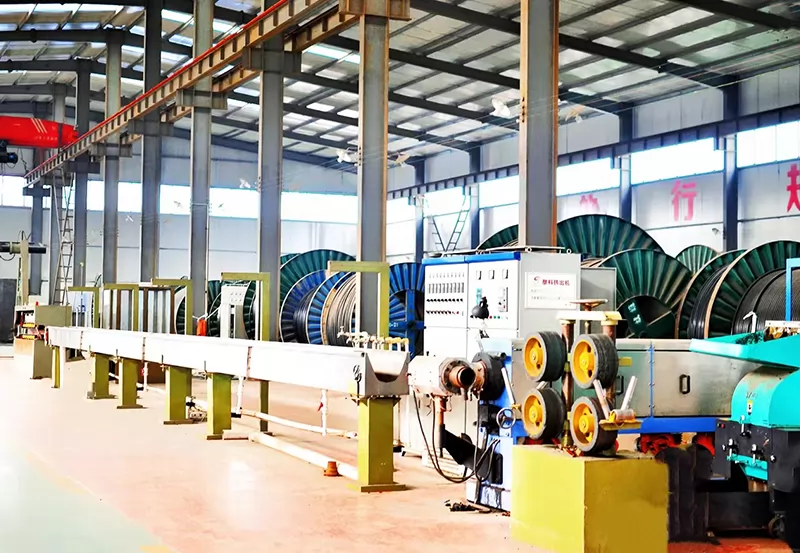

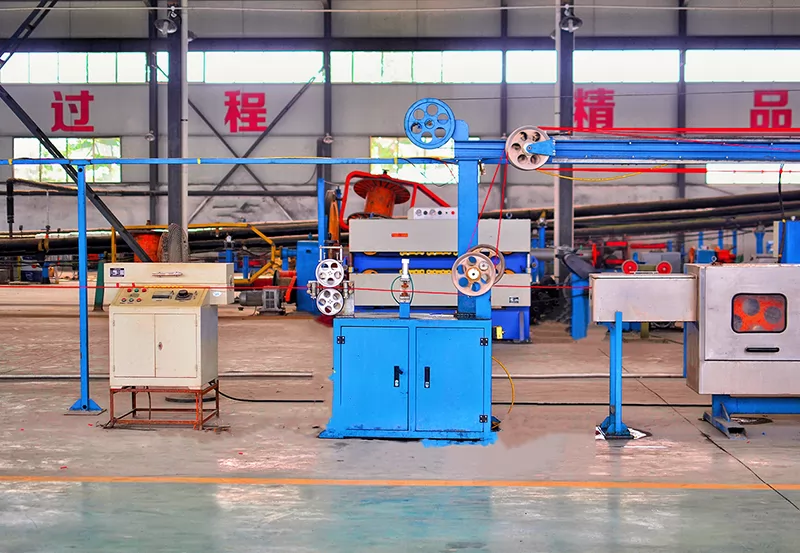

Production Equipment

Cantilever Single Twister

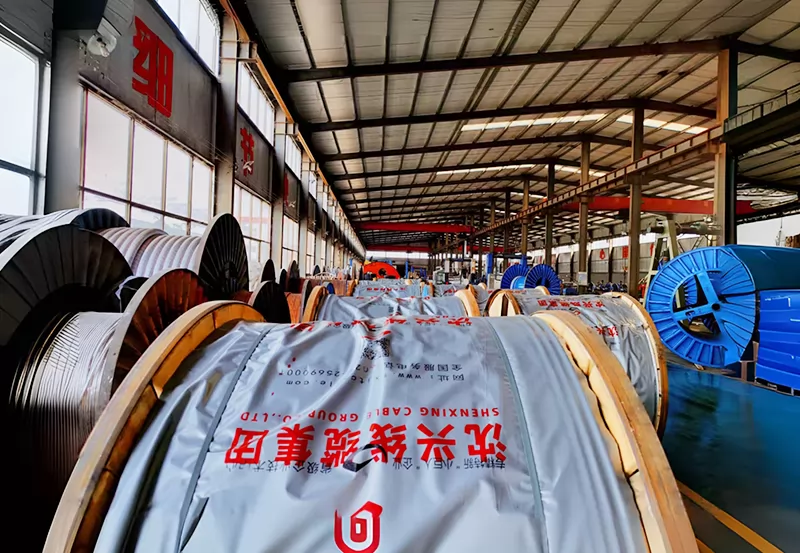

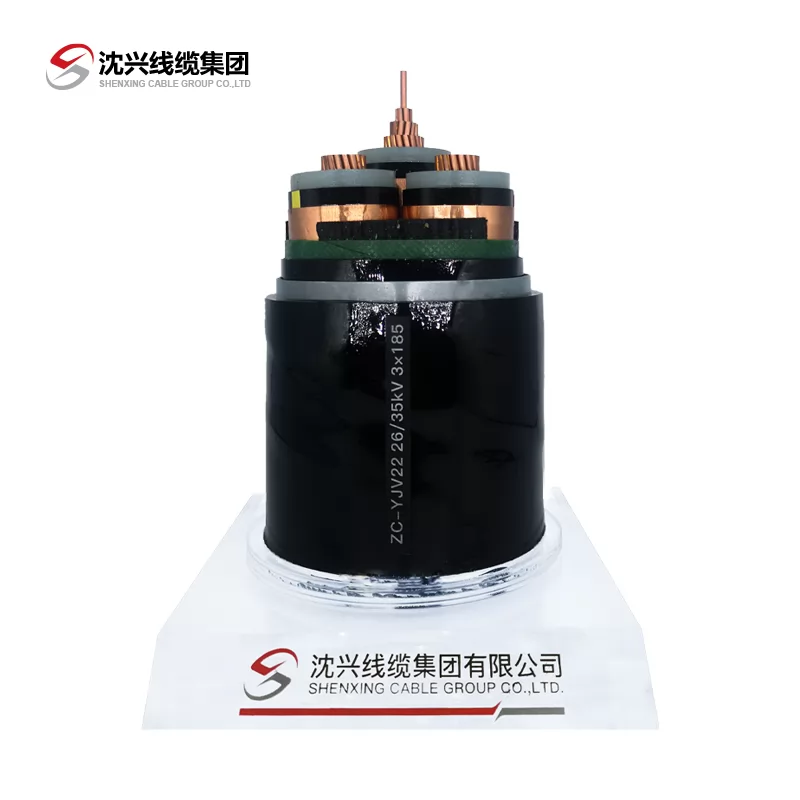

Finished Cables

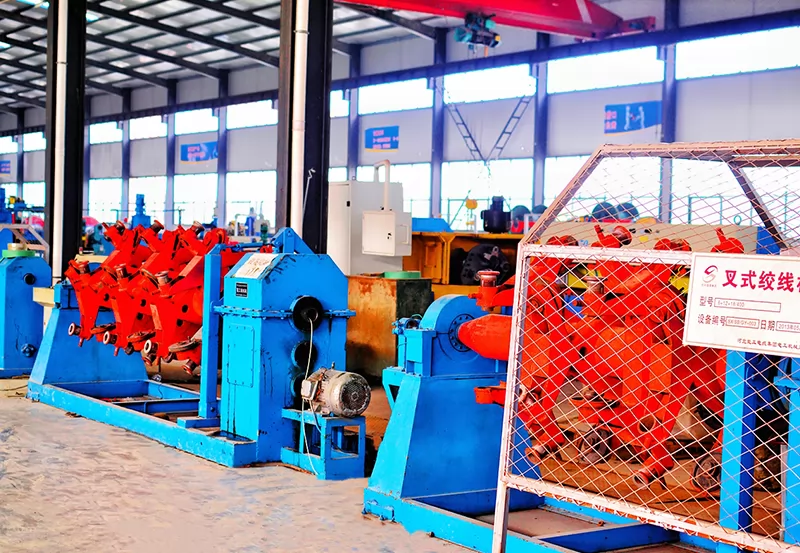

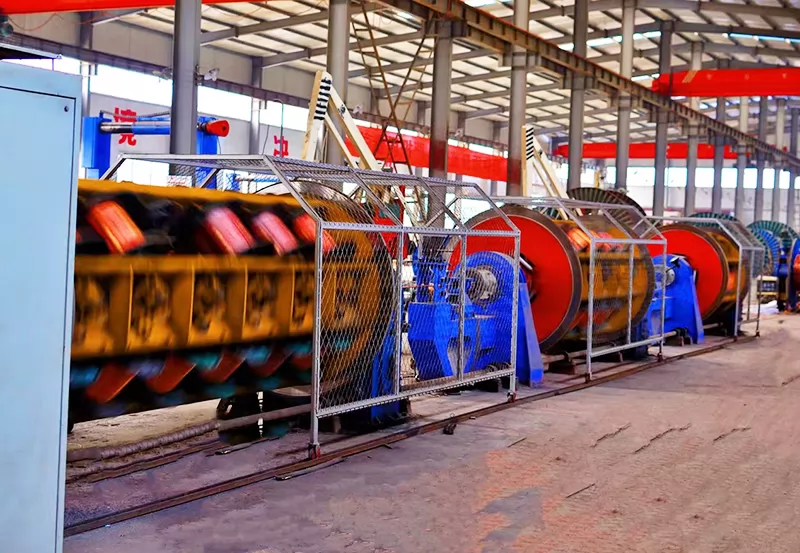

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

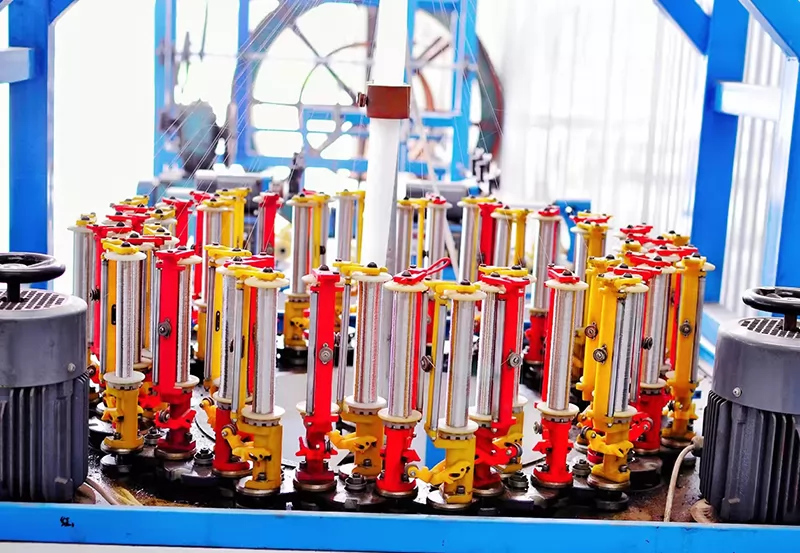

Wire Braiding Machine

Wire Storage Device

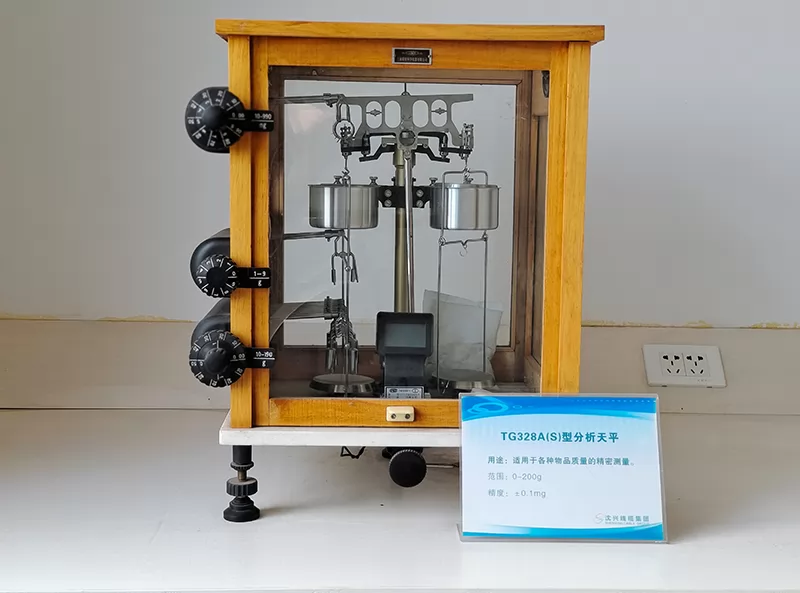

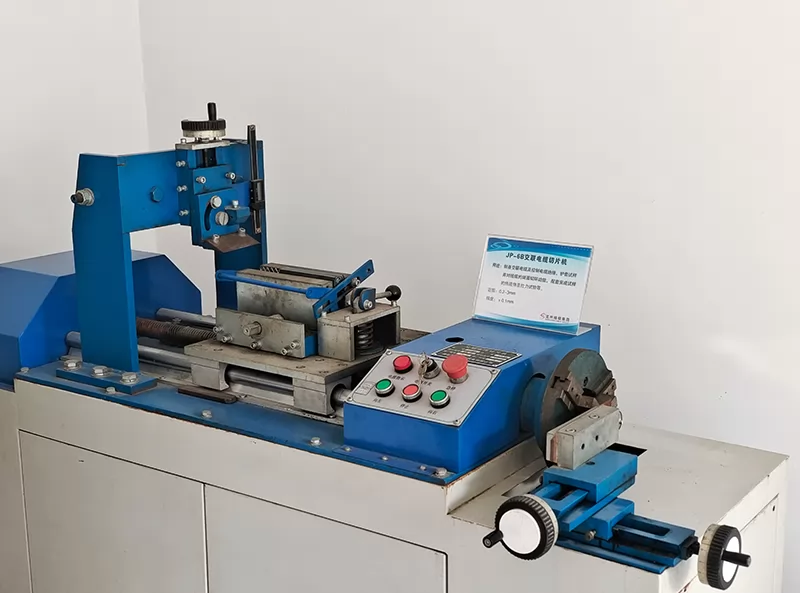

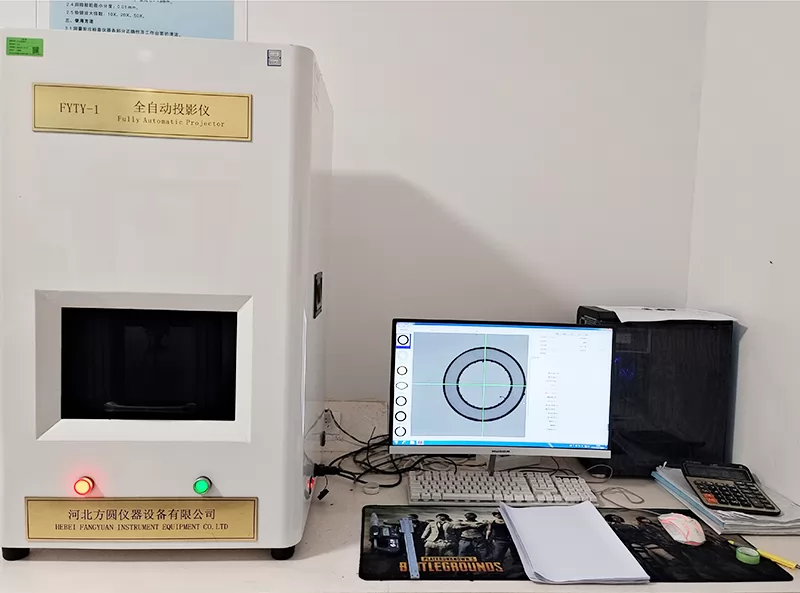

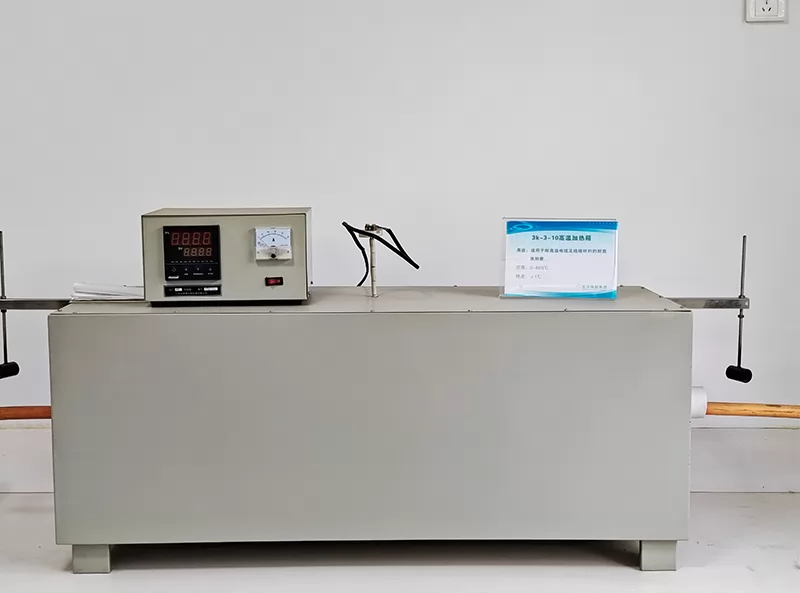

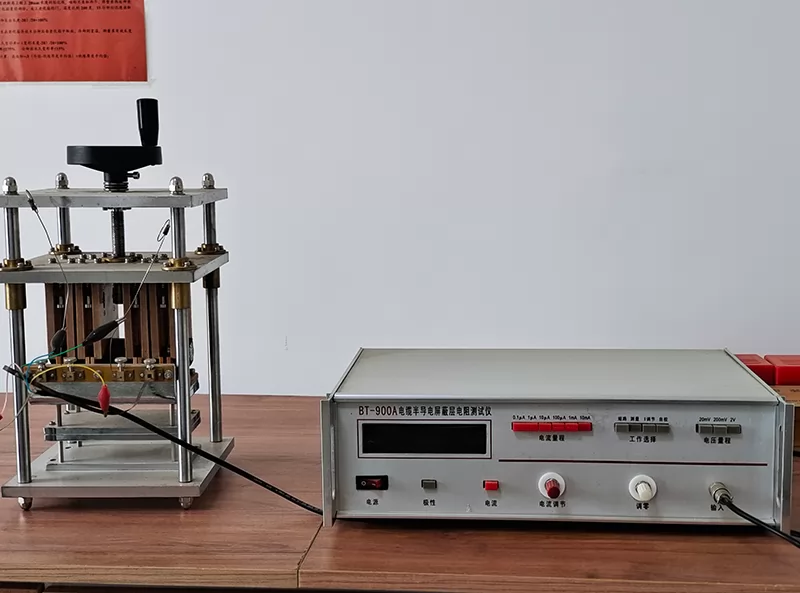

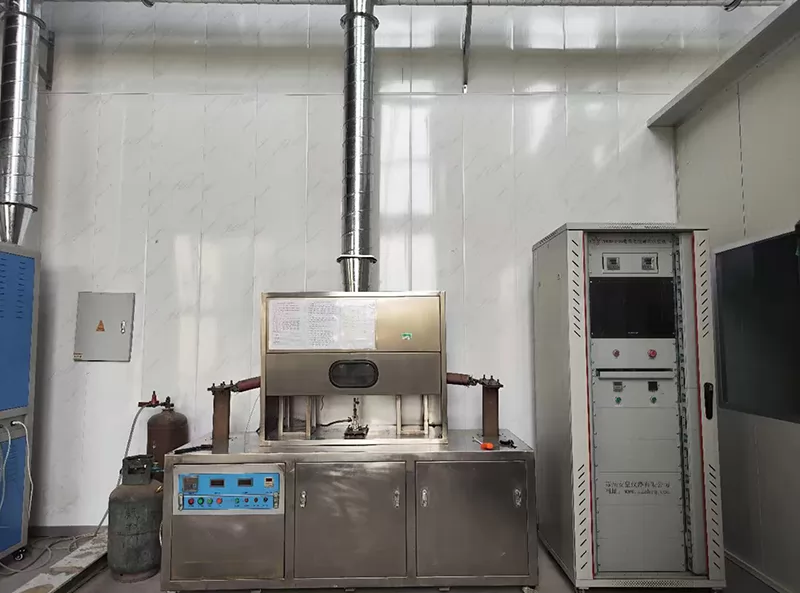

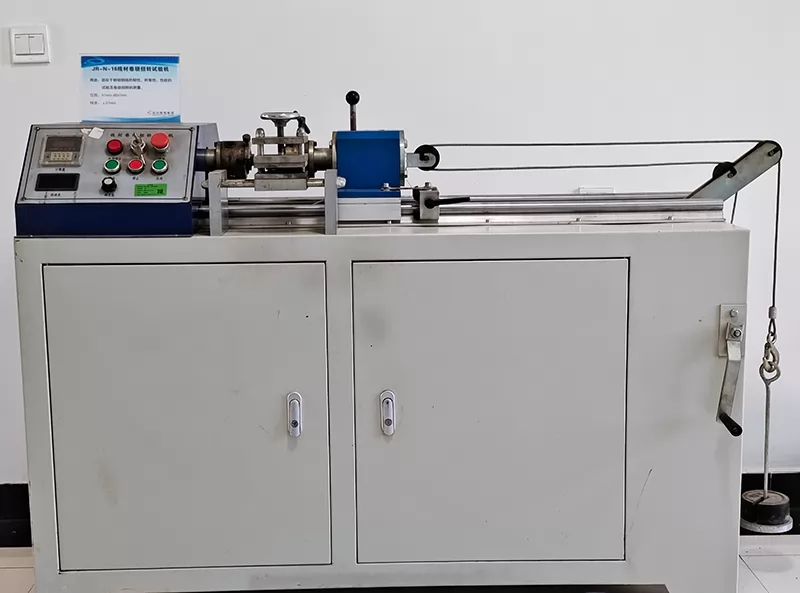

Experimental Equipment

Projects

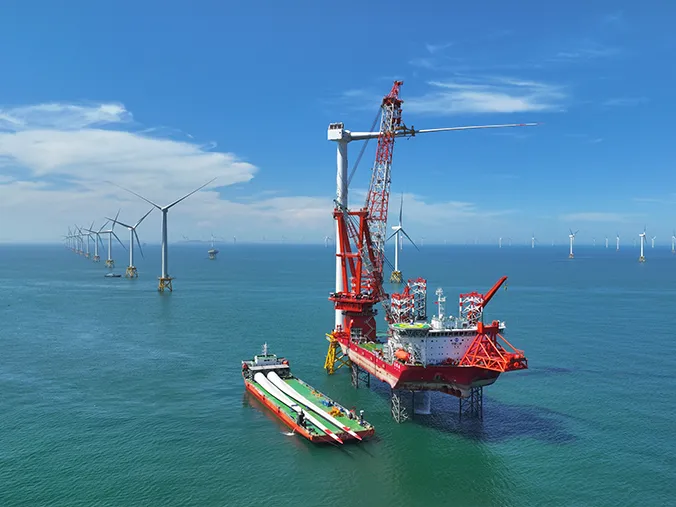

Cable Application for Offshore Wind Farms

An international energy giant constructed a large offshore wind farm in the North Sea region. Due to the harsh sea conditions, strong winds, high waves, and severe salt fog corrosion in the North Sea, extremely high requirements were placed on the performance of the cables. Read More

Chemical Plant Cable Upgrade

During its production process, a large chemical enterprise has extremely high requirements for the corrosion resistance, high temperature resistance and electrical safety of cables due to the particularity of the production environment. Read More

Case Study on Optimization of Mobile Equipment Cable Solution in Open-Pit Mine

The mobile equipment cables in an open-pit coal mine are often damaged due to frequent bending, dragging, and rolling, resulting in frequent equipment shutdowns, which seriously affects production efficiency. Read More

Cable Application in a Public Charging Station in a City

In order to promote the development of new energy vehicles, a city built a number of charging stations in public areas. Due to the special working environment of the charging station, the performance requirements for the cable are extremely high. Read More

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What is the flame retardant performance of marine flexible cables?

The cable complies with the flame retardant standards of IEC 60332-1-2 and IEC 60332-3, which can effectively prevent the spread of flames and buy time for personnel evacuation and fire extinguishing in the event of a fire.

How low a temperature can marine flexible cables withstand?

Marine flexible cables can usually operate normally within an operating temperature range of -40°C to +90°C, and some specially designed cables can withstand more extreme temperature conditions.

What material is the conductor of marine flexible cable made of?

The conductor is generally made of high-purity annealed tinned copper or bare copper to ensure excellent conductivity and corrosion resistance.

What scenarios are marine flexible cables suitable for?

They are mainly used for ship power systems, lighting systems, communication and navigation equipment, drag chain systems, deck equipment connections, and power and signal transmission in offshore platforms that require frequent movement or special environments.

What is the difference between marine flexible cables and ordinary cables?

Marine flexible cables are designed for ships and marine environments. They have higher flexibility, corrosion resistance and flame retardancy. They can operate stably in harsh environments and meet the certification requirements of international classification societies.
