Shenxing marine control cables are designed for power lighting and general control devices of water structures such as river and sea vessels and offshore oil platforms, and are an indispensable part of the ship's power system. The cable has excellent conductivity, heat resistance, flame retardancy and anti-interference capabilities, ensuring long-term stable operation in harsh marine environments. Shenxing marine control cables have been widely used in various types of ships and offshore platforms around the world with their excellent quality and high reliability, providing safety for power and signal transmission.
Share:
Shenxing marine control cables are mainly used in:
Various river and sea vessels
used for power and signal transmission of power systems, lighting equipment and control devices.
Offshore oil platforms
as an important part of the power supply and control system, they ensure the safety and stability of offshore oil exploration and production.
Water buildings
such as water docks and floating facilities, etc., provide reliable transmission of power and control signals.
Other marine projects
meet the power needs of various water equipment and projects.

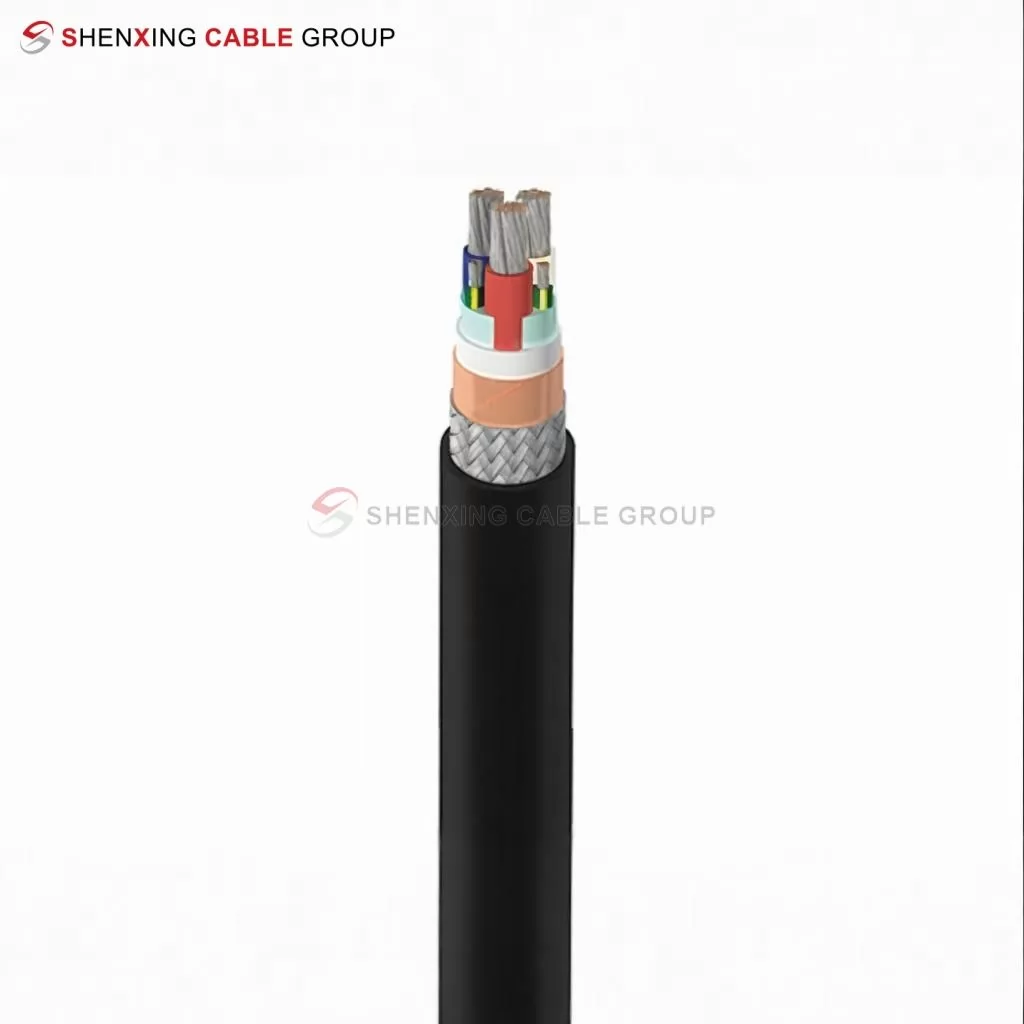

Product structure
Conductor: Multiple strands of fine oxygen-free tinned copper wire bundled together, with excellent conductivity and corrosion resistance.
Insulation layer: Cross-linked polyethylene or EPDM, providing excellent electrical properties, heat resistance and long-term stability.
Inner sheath: Special mixed material to enhance the mechanical strength and durability of the cable.
Torsion layer: Aramid wire braided layer, providing additional tensile strength and torsion resistance.
Outer sheath: Low-smoke halogen-free PVC or PUR material, with good flame retardancy and environmental aging resistance.
Color: Commonly black, other colors can also be customized according to customer needs.
Technical Data
| Cable Model | Structural Features | Conductor nominal cross-sectional area （mm²） | |||||||||
| Shielding Type | Armor Type | Flexible cable | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | |||||||||||
| KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP | No or copper wire | None | No | — | 2-61 | 2-19 | 2-10 | ||||
| KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4 | Metal Strip | Steel belt | No | — | 4-61 | 4-19 | 4-10 | ||||
| KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23 | None or copper tape | Steel belt | No | — | 7-61 | 4-61 | 4-19 | 4-10 | |||
| KVV32、KYJV32、KYJY33 | None | Steel Wire | No | — | 19-61 | 7-61 | 4-19 | 4-10 | |||
| KVVR | None | None | Yes | 2-16 | — | — | — | ||||
| KVVRP | Copper wire | None | Yes | 2-61 | 2-48 | — | — | — | |||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Marine Control Cable
Features
Product Features
Conductor: Tinned soft copper conductor, with excellent conductivity and corrosion resistance, suitable for salt spray environment.
Insulation: Cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) insulation material, providing excellent electrical performance and heat resistance, ensuring stability in long-term use.
Sheath: Low smoke halogen-free (LSHF) thermosetting or thermoplastic materials (such as PJ and PF) are used, which have good flame retardant properties and environmental protection characteristics, and can effectively reduce the release of smoke and toxic gases in the event of a fire.
Shielding: Optional tinned copper wire braided shielding layer can significantly enhance the cable's anti-electromagnetic interference ability and ensure signal transmission quality.
Product parameters
Rated voltage: 150/250V.
The rated voltage of high-performance models such as CKJPJP80/SC and CKJPJP90/SC is 0.45/0.75KV.
Operating temperature: The maximum operating temperature of the conductor is 90℃.
Ambient temperature: -40℃ to +50℃ (for some models, such as CKJPJ85/SC, the laying temperature is not less than -20℃).
Bending radius:
When the cable outer diameter (D) is ≤25mm, the minimum bending radius is 4D.
When the cable outer diameter (D) is >25mm, the minimum bending radius is 6D.
Certain models (such as CKJPJ85/SC) require that any bending radius must not be less than 6D.
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the bending radius requirements for marine control cables?
The minimum bending radius of the cable depends on the actual outer diameter (D). Generally, when D≤25mm, the minimum bending radius is 4D; when D>25mm, the minimum bending radius is 6D.
What is the operating temperature range of marine control cables?
The maximum operating temperature of the conductor is 90℃, and the ambient temperature range is -40℃ to +50℃. The laying temperature is usually required to be no less than 0℃, and some models need to be preheated when used in cold environments.
What is the rated voltage of marine control cables?
In general, the rated voltage of marine control cables is 150/250V, and some models such as CKJPJP80/SC and CKJPJP90/SC have a rated voltage of 0.45/0.75KV.
Marine control cables are designed for water structures such as ships and offshore oil platforms. They are used for power transmission and signal control of power, lighting and general control systems to ensure the normal operation and safety of equipment
This cable is suitable for various river and sea ships, offshore oil platforms and other water structures. They can work stably in complex environments such as high humidity, salt spray and low temperature.
What are the main uses of marine control cables?
Marine control cables are designed for water structures such as ships and offshore oil platforms. They are used for power transmission and signal control of power, lighting and general control systems to ensure the normal operation and safety of equipment.
More Frequently Asked Questions.
Download
Related Products

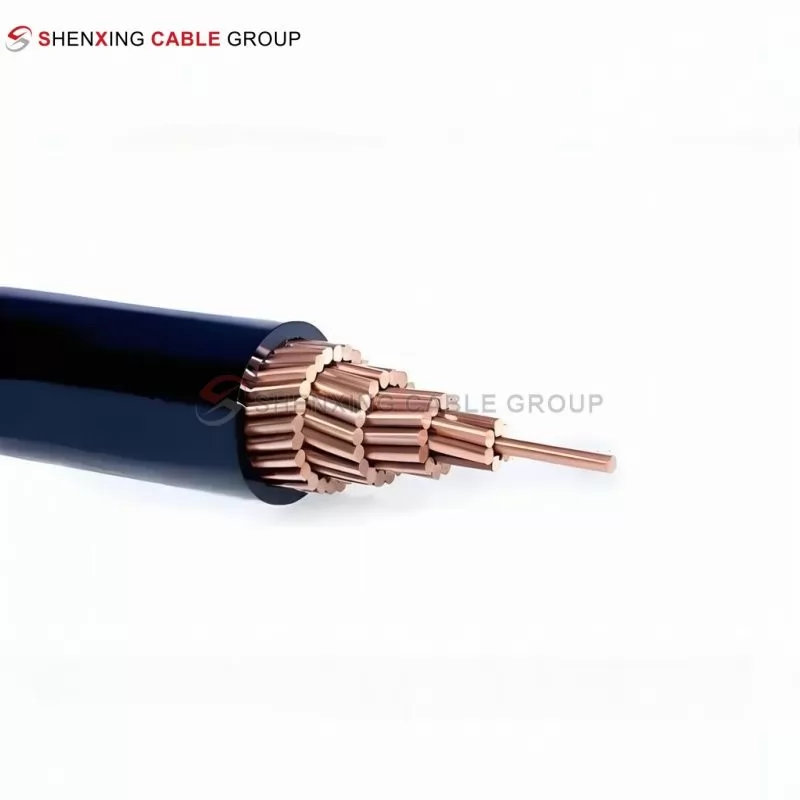

Copper Core Polyethylene Insulated Overhead Cable
