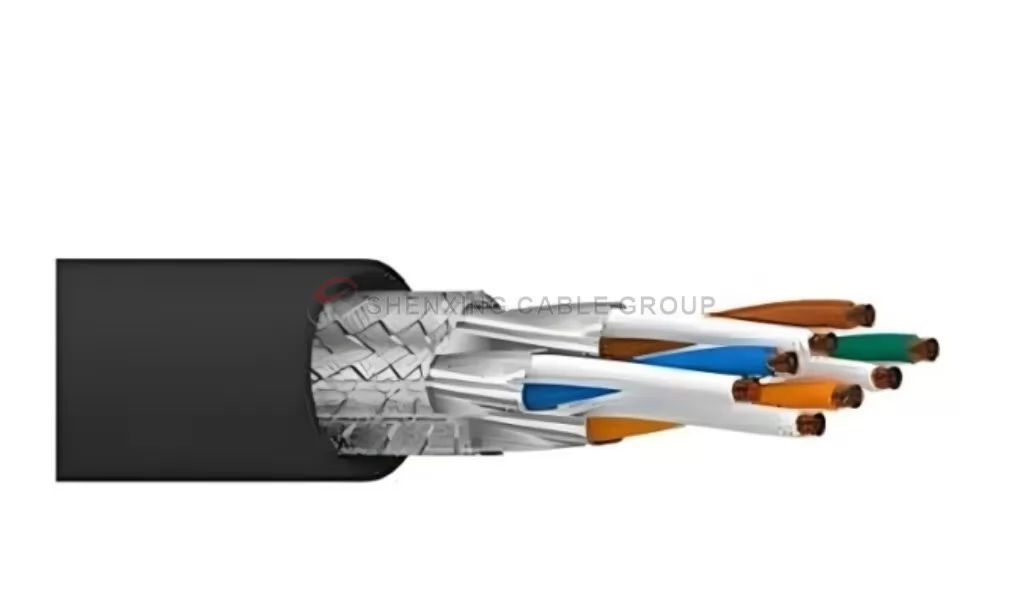

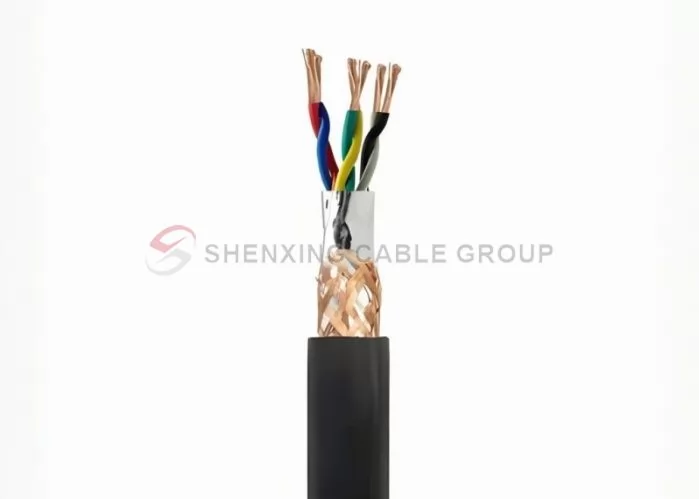

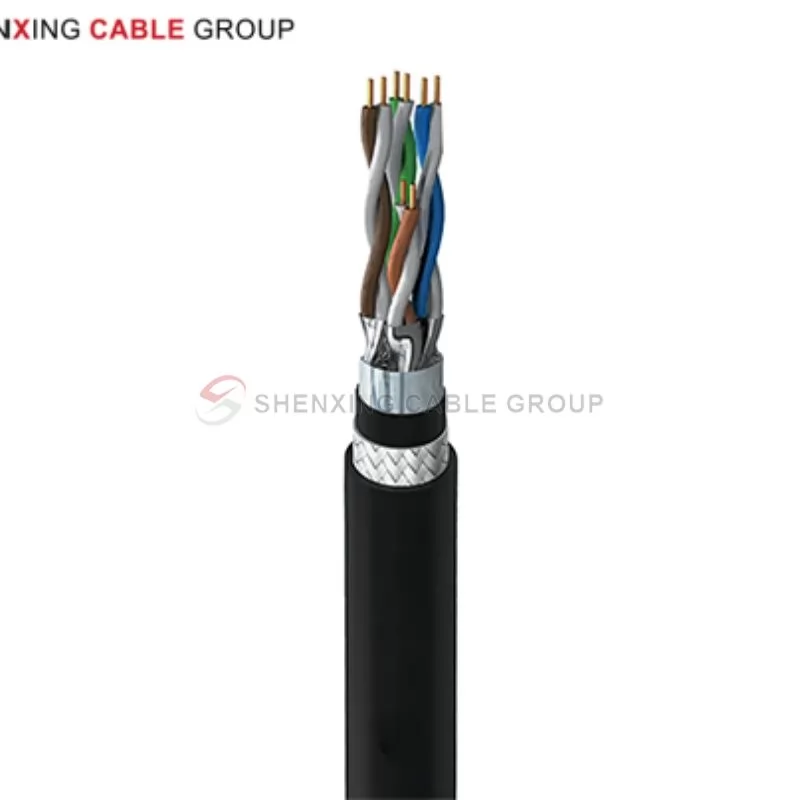

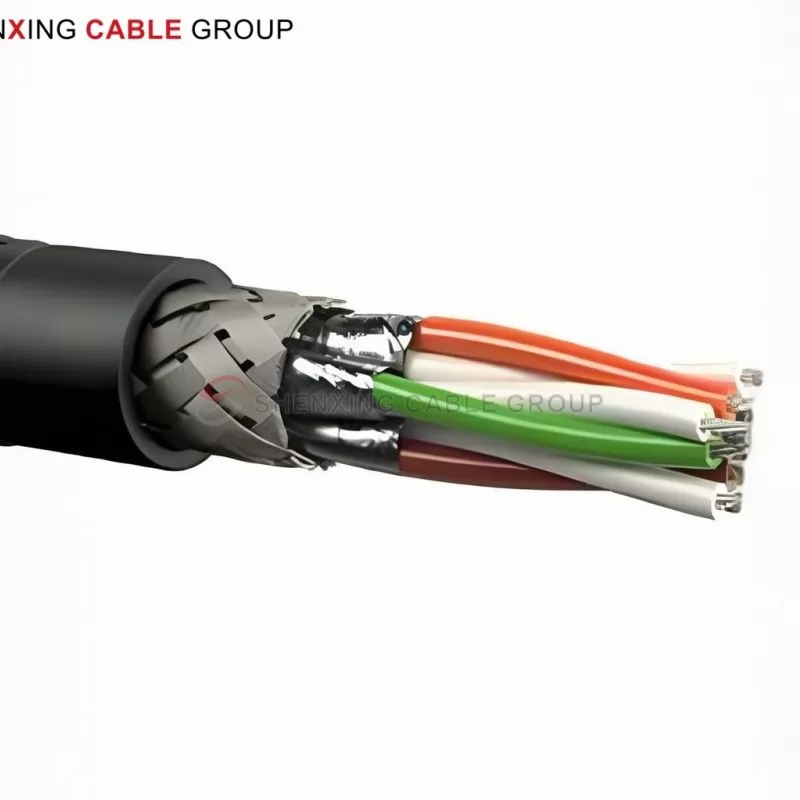

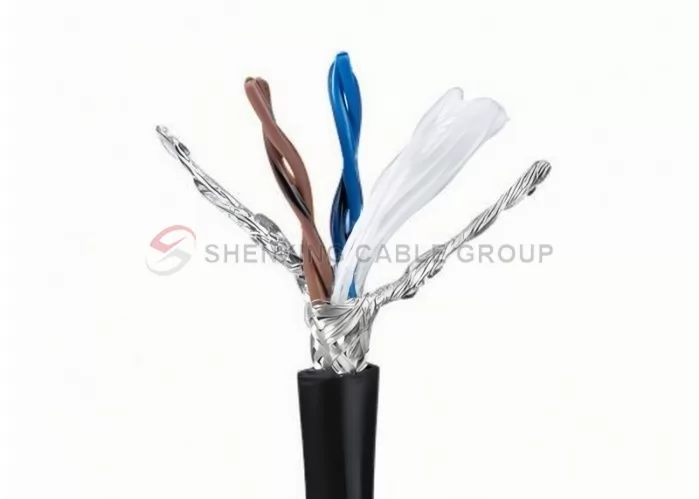

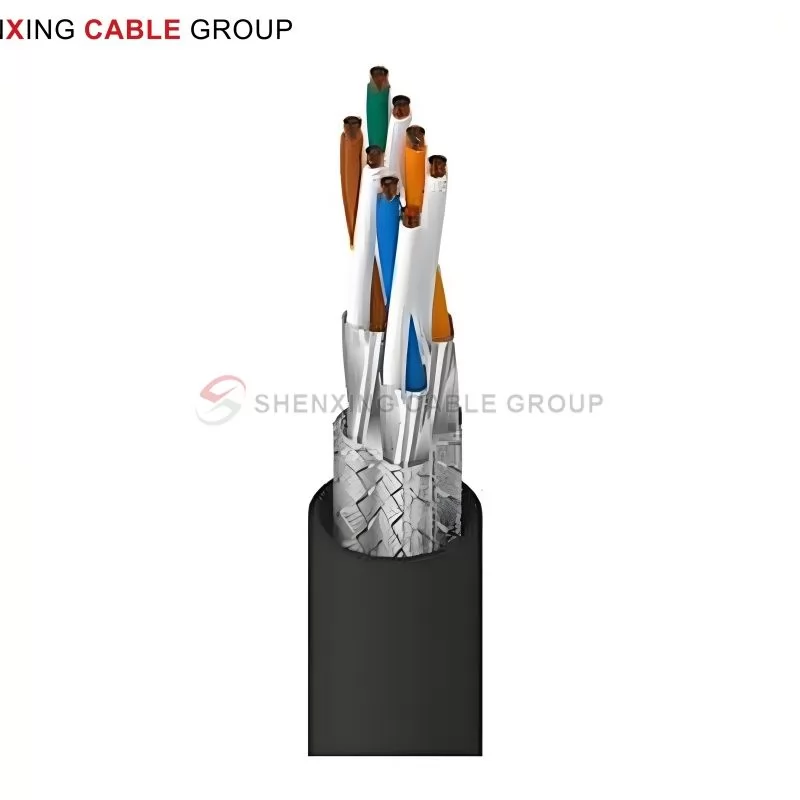

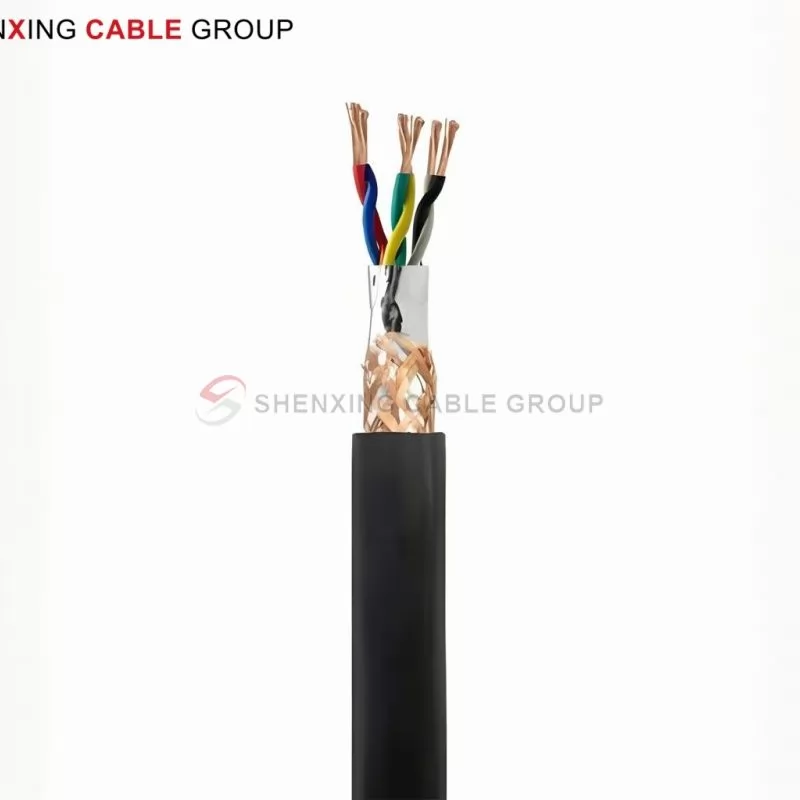

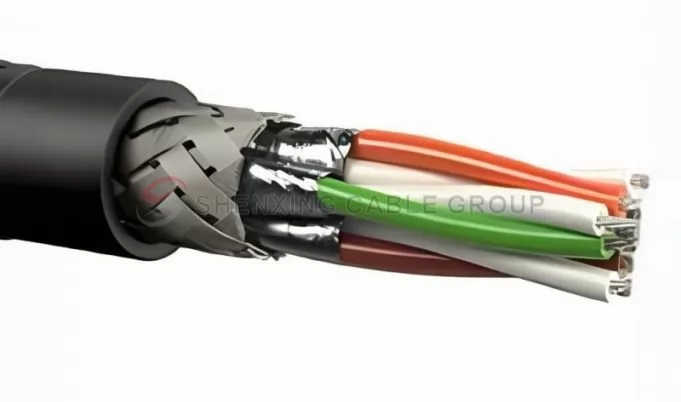

Marine Data Cable

Application areas：

Ship navigation system and communication network.

Ship data monitoring system and automatic control.

Data transmission and video monitoring of offshore oil platforms.

Networking and remote communication between ships and shore systems.

Applicable to humid, salt spray environments, high vibration and frequent movement.

Product structure

Conductor: high-purity tinned copper, strong conductivity, excellent corrosion resistance.

Insulation layer: cross-linked polyethylene (XLPE) or EPDM rubber, providing high insulation and heat resistance.

Filling material: glass fiber rope or other materials to enhance the roundness and mechanical strength of the cable.

Shielding layer: aluminum foil and tinned copper braided to ensure anti-electromagnetic interference ability.

Sheath layer: neoprene, chlorosulfonated rubber or low-smoke halogen-free material, providing excellent oil resistance, flame resistance and cold resistance.

Technical Data

Cable Model	Structural Features			Conductor nominal cross-sectional area （mm²）
	Shielding Type	Armor Type	Flexible cable	0.5	0.75	1	1.5	2.5	4	6	10
				Number of Cores
KVV、KVVP、KYJV、 KYJVP、KYJY、KYJTYP	No or copper wire	None	No	—	2-61				2-19		2-10
KVVP2、KVVP3、KVVP4、 KYJVP2、KYJVP3、KYJVP4、 KYJYP2、KYJYP3、KYJYP4	Metal Strip	Steel belt	No	—	4-61				4-19		4-10
KVV22、KYJV22、KYJY23、 KVVP2-22、KYJVP2-22、 KYJYP2-23	None or copper tape	Steel belt	No	—	7-61		4-61		4-19		4-10
KVV32、KYJV32、KYJY33	None	Steel Wire	No	—	19-61		7-61		4-19		4-10
KVVR	None	None	Yes	2-16					—	—	—
KVVRP	Copper wire	None	Yes	2-61			2-48		—	—	—

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

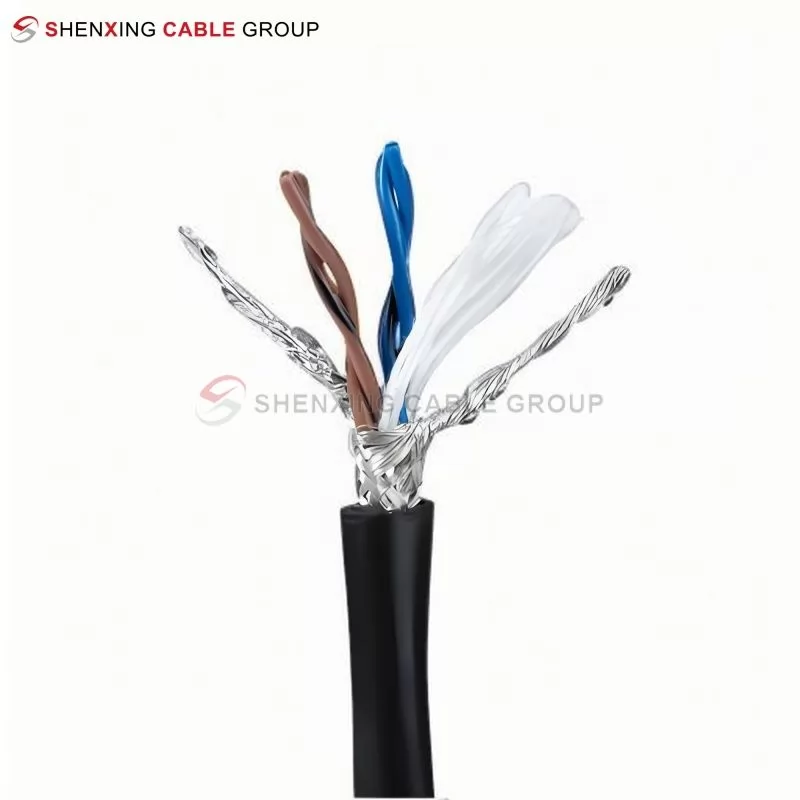

Cable Structure

Marine Data Cable

Features

Product Features

High-performance data transmission: supports high-speed Ethernet communication, suitable for complex ship network structures.

Excellent corrosion resistance: uses tinned copper conductors to ensure long-term stable operation in humid salt spray environments.

Flame-retardant low-smoke zero-halogen (LSZH) sheath: environmentally friendly material, non-toxic gas release during combustion, suitable for crowded environments.

Strong anti-interference ability: shielding design (S/FTP) effectively prevents electromagnetic interference and ensures signal clarity.

Durability and flexibility: The sheath material is oil-resistant, cold-resistant, flame-resistant and wear-resistant, suitable for complex wiring scenarios.

Performance parameters

Rated voltage: Applicable to 0.6/1kV and below systems.

Working temperature: -40℃ to +90℃, short-term temperature can reach 250℃ (short-circuit condition).

Laying temperature: not less than 0℃, to ensure installation quality.

Bending radius: 6 times the outer diameter of the cable when statically laid, 8 times when dynamically used.

Shielding performance: Excellent electromagnetic compatibility, supporting high-speed and stable data transmission.

Classification society certification: ABS, BV, CCS, DNV GL, LR, NK, etc.

Production

Production Equipment

Cantilever Single Twister

Finished Cables

Fork Type Stranding Machine

Frame Type Stranding Machine

Plastic Extruder

Wire Braiding Machine

Wire Storage Device

Experimental Equipment

Projects

Upgrade of Cable Solutions for Deep Mine Hoisting Systems

The cables of the hoisting system of a deep copper mine have been aging and experiencing insulation degradation under long-term high-load operation, resulting in frequent tripping, which seriously affects the production efficiency of the mine. Read More

Building a Solid Neural Network for Smart Campuses

A newly built smart campus aims to create a digital and intelligent learning environment. In order to meet the needs of teaching buildings, dormitories, libraries and other buildings on campus for power, data transmission, security monitoring and other aspects, the school decided to use high-quality and high-performance cable products. Read More

Shenxing Cable: Laying the Foundation for Smart Highways

In order to achieve intelligent management and improve traffic efficiency and safety, a certain highway decided to build a complete intelligent transportation system. Read More

Shenxing Cable Group assisted Guangdong Zhanjiang Donghai Island Dingrui 52MW fishery-solar complementary photovoltaic power station project

The Dingrui 52MW fishery-photovoltaic complementary power station project on Donghai Island in Zhanjiang, Guangdong is progressing smoothly. As one of the important projects in the field of clean energy, the project not only promotes regional sustainable development, but also sets a benchmark for the efficient combination of fisheries and photovoltaic power generation. Shenxing Cable Group provided high-performance cable solutions for the project, supplying a total of 20,000 meters of cables, ensuring efficient operation of the project and long-term stable power supply. Read More

Intelligent Upgrade of Luxury Cruise Ships

An internationally renowned luxury cruise company plans to carry out comprehensive intelligent upgrades on several of its cruise ships to improve passenger experience and operational efficiency. Read More

Application Cases of Shenxing Cables in Smart Buildings

A high-rise smart building is located in the city center. It is equipped with advanced central air-conditioning system, intelligent lighting system and security monitoring system. Read More

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What are the requirements for marine data cables when laying?

The laying temperature should not be lower than 0℃.

The static bending radius is 6 times the outer diameter of the cable, and the dynamic bending radius is 8 times.

Avoid excessive stretching or squeezing of the cable.

What is the shielding performance of this cable?

Marine data cables adopt a double-layer shielding structure (S/FTP), including aluminum foil shielding and tinned copper braided shielding, which has excellent anti-electromagnetic interference ability and ensures signal stability and clarity.

What data transmission standards do marine data cables support?

Depending on the model, it can support Cat 5E, Cat 6A and Cat 7 standards, providing high-speed Ethernet data transmission with a maximum bandwidth of up to 10 Gbps.

What data transmission applications are marine data cables suitable for?

Marine data cables are suitable for scenarios that require efficient data transmission, such as ship navigation systems, communication networks, automated control systems, video surveillance, and ship-to-shore communications.

What is the difference between marine data cables and ordinary data cables?

Marine data cables are designed for offshore applications and have corrosion resistance, flame retardancy, anti-interference and low smoke zero halogen (LSZH) characteristics. They can work for a long time in harsh environments such as humidity and salt spray, while ordinary data cables do not have these characteristics.
