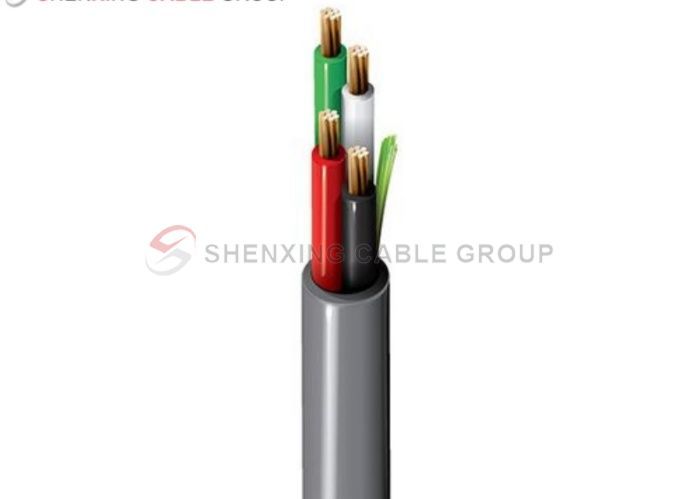

Marine Variable Frequency Drive Cable (VFD Cable)

Application areas

Ship power distribution system: suitable for power transmission of power and lighting systems.

Marine equipment and platforms: electric drive devices for offshore oil platforms and water buildings.

Variable frequency drive system: connects AC drives and AC motors to ensure efficient power transmission.

Special ship systems: control systems such as oil tankers, chemical tankers, fishing boats and luxury cruise ships.

Application scenarios of Type W flexible portable cables:

Industrial equipment power connection: Provides safe and reliable power transmission for various industrial machinery and equipment.

Light to medium intensity mining operations: Suitable for power supply of mining equipment, including mobile and fixed applications.

Heavy-duty power supply system: Supports high-load power distribution and transmission needs.

AC power system (AC): Can be used for power distribution of three-phase AC system.

Portable devices and mobile electrical devices: Provide power support for various mobile devices that require high flexibility and durability.

Motor and battery connection cable: Suitable for motor power connection and power transmission of battery equipment.

Technical Data

Voltage level：0.6/1kV
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	No armor				With Steel Armor					Steel Wire Armor
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	Sheath Thickness (mm)	Cable outer diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Strip Thickness (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Wire Diameter (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)
Three cores	1.8	2.5	0.8	7.41	1.8	11.8	187	29/19
	2.3	4	1	4.61	1.8	13.7	265	38/26	1.8	0.2×2	17.3	489	38/26
	2.8	6	1	3.08	1.8	15.7	380	47/32	1.8	0.2×2	18.4	577	47/32
	3.8	10	1	1.83	1.8	17.6	514	65/46	1.8	0.2×2	21.2	800	65/46	1.8	0.8	23	1172	65/46
	4.8	16	1	1.15	1.8	19.8	728	84/60	1.8	0.2×2	23.5	1050	84/60	1.8	0.8	25.3	1457	84/60
	6	25	1.2	0.727	1.8	23.6	1084	110/77	1.8	0.2×2	27.2	1465	110/77	1.8	1.6	29	1936	110/77
	7	35	1.2	0.524	1.8	26.1	1422	130/95	1.9	0.2×2	30.7	2150	130/95	1.9	1.6	31.7	2359	130/95
	8.3	50	1.4	0.387	1.8	26.5	1801	155/115	2	0.5×2	31.4	2453	155/115	2	1.6	36.4	3216	155/115
	9.8	70	1.4	0.268	1.9	28.8	2415	195/145	2.2	0.5×2	33.6	3116	195/145	2.2	2	41.1	4164	195/145
	11.5	95	1.6	0.193	2.1	33.7	3255	230/185	2.4	0.5×2	38.2	4053	230/185	2.4	2	47.4	5498	230/185
	12.9	120	1.6	0.153	2.2	37.1	4037	260/210	2.5	0.5×2	41.9	4930	260/210	2.5	2	51.3	6836	260/210
	14.5	150	1.8	0.124	2.3	41.9	5028	300/245	2.6	0.5×2	47.1	6075	300/245	2.6	2.5	55.9	8061	300/245
	16	185	2	0.0991	2.5	45.9	6180	335/280	2.8	0.5×2	50.9	7300	335/280	2.8	2.5	61.4	9640	335/280
	18.3	240	2.2	0.0754	2.7	51.7	7947	390/335	3	0.5×2	57	9231	390/335	3	2.5	68.5	12002	390/335
	20.5	300	2.4	0.0601					3.2	0.5×2	61.8	11277	435/375	3.2	2.5	75.2	14489	435/375

Voltage level：6/6 6/10kV
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	No armor				With Steel Armor
					Sheath Thickness (mm)	Cable outer diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Strip Thickness (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)
Four cores
	1.8	2.5	0.8	7.41	1.8	12.6	211	29/19
	2.3	4	1	4.61	1.8	14.7	305	38/26	1.8	0.2×2	16.5	435	38/26
	2.8	6	1	3.08	1.8	15.9	400	47/32	1.8	0.2×2	17.7	542	47/32
	3.8	10	1	1.83	1.8	19	610	65/46	1.8	0.2×2	20.8	764	65/46
	4.8	16	1	1.15	1.8	21.6	871	84/60	1.8	0.2×2	23.4	1048	84/60
	6	25	1.2	0.727	1.8	26.7	1316	110/77	1.8	0.2×2	27.5	1529	110/77
	7	35	1.2	0.524	1.8	28.5	1732	130/95	1.8	0.2×2	30.3	1968	130/95
	8.3	50	1.4	0.387	1.9	32.9	2327	155/115	1.9	0.5×2	36.7	2960	155/115
	9.8	70	1.4	0.268	2.1	38.1	3264	195/145	2.1	0.5×2	41.3	3956	195/145
	11.5	95	1.6	0.193	2.2	43.8	4455	230/185	2.2	0.5×2	47.2	5273	230/185
	12.9	120	1.6	0.153	2.4	48.1	5530	260/210	2.4	0.5×2	51.3	6403	260/210
	14.5	150	1.8	0.124	2.5	53	6266	300/245	2.6	0.5×2	56.4	7757	300/245
	16	185	2	0.0991	2.7	59	8431	335/280	2.8	0.5×2	62.4	9524	335/280
	18.3	240	2.2	0.0754	2.9	61.9	10972	390/335	3	0.5×2	70.1	12207	390/335
	20.5	300	2.4	0.0601					3.2	0.5×2	77.3	15044	435/375
3+1cores	2.3	4	1	4.61	1.8	14.1	281	38/26	1.8	0.2×2	16.9	521	38/26
	1.8	2.5	0.8	7.41
	2.8	6	1	3.08	1.8	15.6	376	47/32	1.8	0.2×2	18.4	710	47/32
	2.3	4	1	4.61
	3.8	10	1	1.83	1.8	18.2	555	65/46	1.8	0.2×2	21	982	65/46
	2.8	6	1	3.08
	4.8	16	1	1.15	1.8	20.9	804	84/60	1.8	0.2×2	23.7	1412	84/60
	3.8	10	1	1.83
	6	25	1.2	0.727	1.8	24.6	1202	110/77	1.8	0.2×2	27.4	1740	110/77
	4.8	16	1	1.15
	7	35	1.2	0.524	1.8	26.7	1511	130/95	1.8	0.2×2	29.5	2214	130/95
	4.8	16	1	1.15
	8.3	50	1.4	0.387	1.9	31.1	2071	155/115	1.9	0.5×2	33.9	2864	155/115
	6	25	1.2	0.727
	9.8	70	1.4	0.268	2	35.6	2868	195/145	2.1	0.5×2	39.3	3539	195/145
	7	35	1.2	0.524
	11.5	95	1.6	0.193	2.2	37.8	3859	230/185	2.2	0.5×2	44.7	4679	230/185
	8.3	50	1.4	0.387
	12.9	120	1.6	0.153	2.4	39	4851	260/210	2.4	0.5×2	49.1	5797	260/210
	9.8	70	1.4	0.268
	14.5	150	1.8	0.124	2.6	41	5746	300/245	2.5	0.5×2	52.8	6971	300/245
	9.8	70	1.4	0.268
	16	185	2	0.0991	2.8	42.3	7160	335/280	2.6	0.5×2	58.5	8495	335/280
	11.5	95	1.6	0.193
	18.3	240	2.2	0.0754					2.8	0.5×2	65.3	10702	390/335
	12.9	120	1.6	0.2193
4+1cores					1.8	15.4	343	38/26	1.8	0.2×2	17.2	480	38/26
	1.8	2.5	0.8	7.41
	2.8	6	1	3.08	1.8	17	461	47/32	1.8	0.2×2	18.8	613	47/32
	2.3	4	1	4.61
	3.8	10	1	1.83	1.8	20	690	65/46	1.8	0.2×2	21.8	853	65/46
	2.8	6	1	3.08
	4.8	16	1	1.15	1.8	23	1002	84/60	1.8	0.2×2	24.8	1191	84/60
	3.8	10	1	1.83
	6	25	1.2	0.727	1.8	27.3	1508	110/77	1.8	0.2×2	29.1	1734	110/77
	4.8	16	1	1.15
	7	35	1.2	0.524	1.8	29.7	1919	130/95	1.9	0.5×2	31.7	2180	130/95
	4.8	16	1	1.15
	8.3	50	1.4	0.387	2	35.2	2652	155/115	2	0.5×2	38.5	3291	155/115
	6	25	1.2	0.727
	9.8	70	1.4	0.268	2.1	39.9	3657	195/145	2.2	0.5×2	43.3	4403	195/145
	7	35	1.2	0.524
	11.5	95	1.6	0.193	2.3	43.5	4562	230/185	2.4	0.5×2	49.6	5869	230/185
	8.3	50	1.4	0.387
	12.9	120	1.6	0.153	2.5	51.1	6380	260/210	2.5	0.5×2	54.3	7234	260/210
	9.8	70	1.4	0.268
	14.5	150	1.8	0.124	2.6	55.5	7538	300/245	2.7	0.5×2	58.9	8570	300/245
	9.8	70	1.4	0.268
	16	185	2	0.0991	2.8	62.1	9488	335/285	2.9	0.5×2	65.5	10638	335/280
	11.5	95	1.6	0.193
	18.3	240	2.2	0.0754	3	69.8	12277	390/335	3.1	0.5×2	73.2	13571	390/335
	12.9	120	1.6	0.193

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

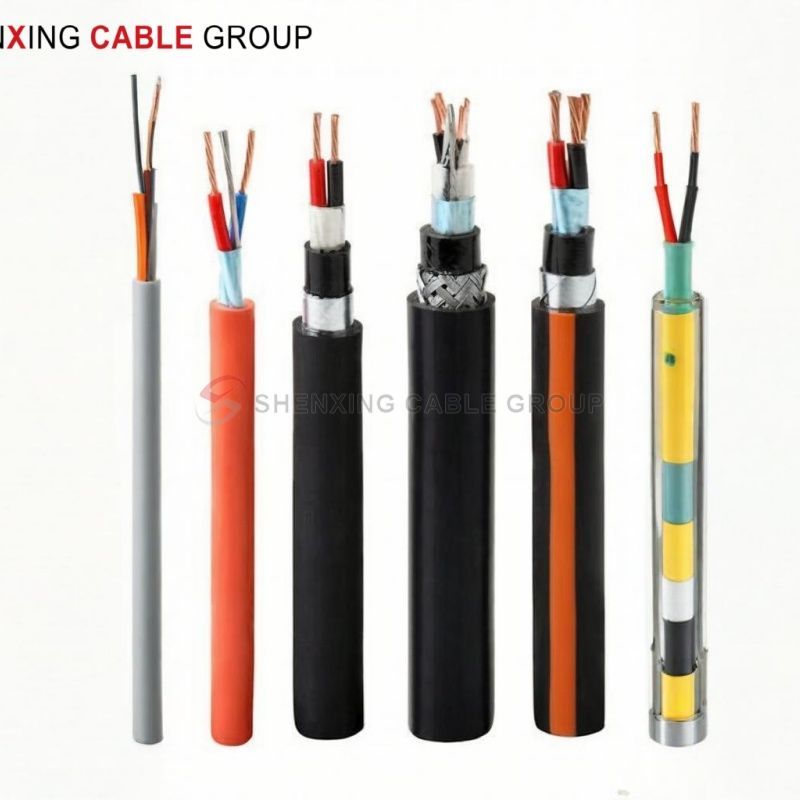

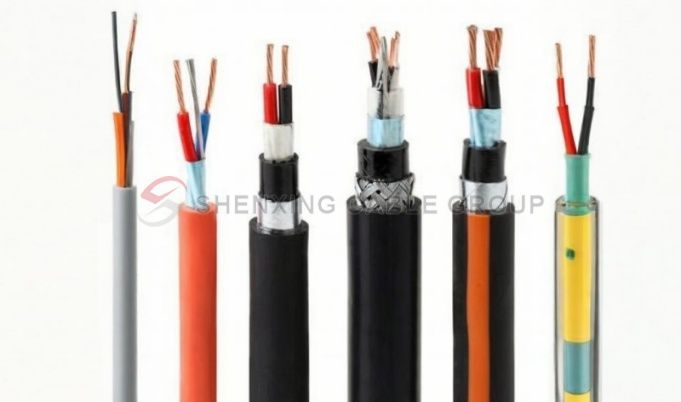

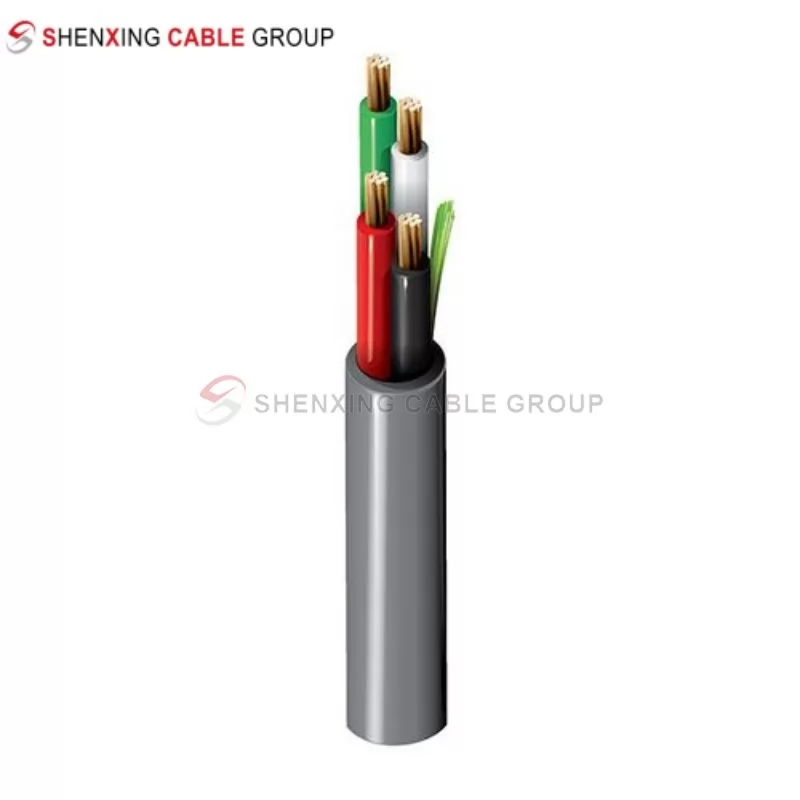

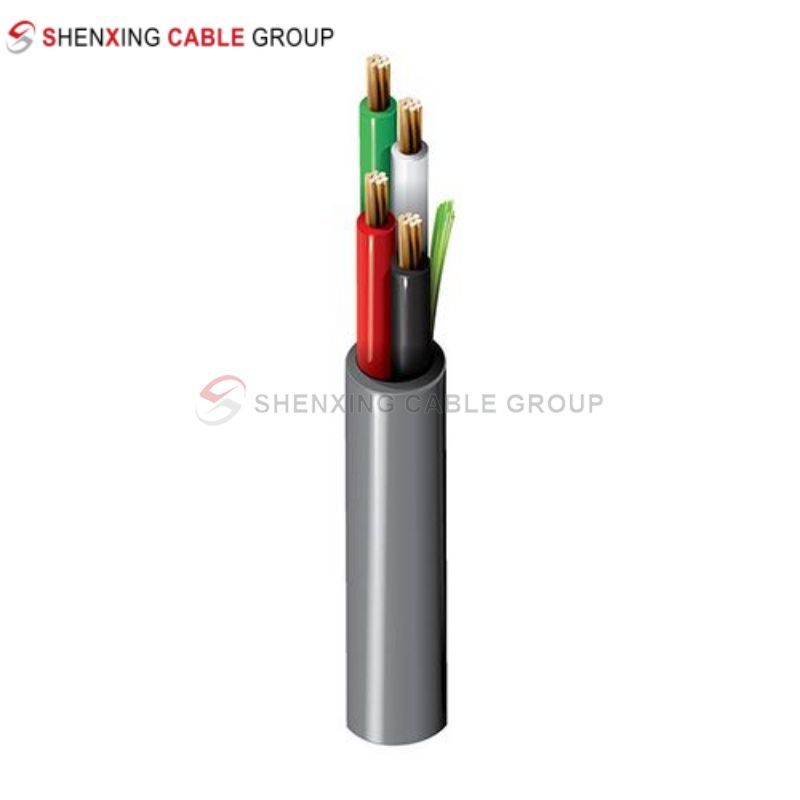

Marine VFD Cable

Features

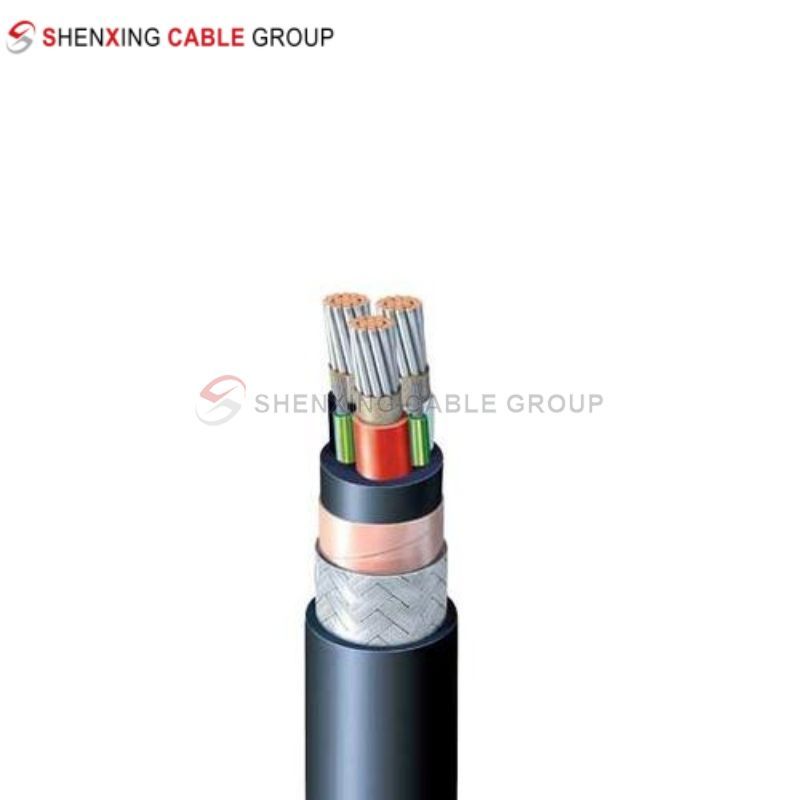

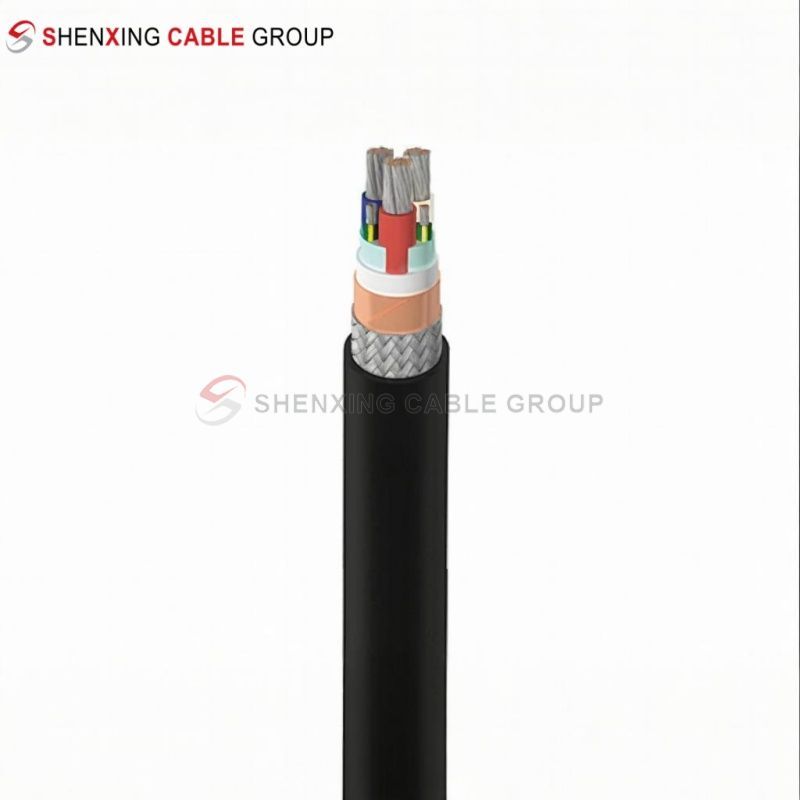

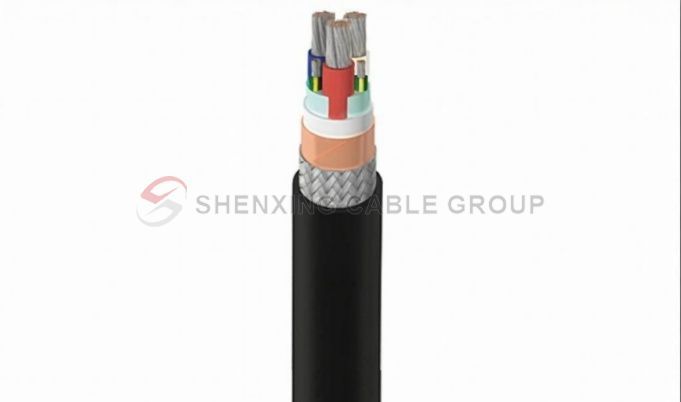

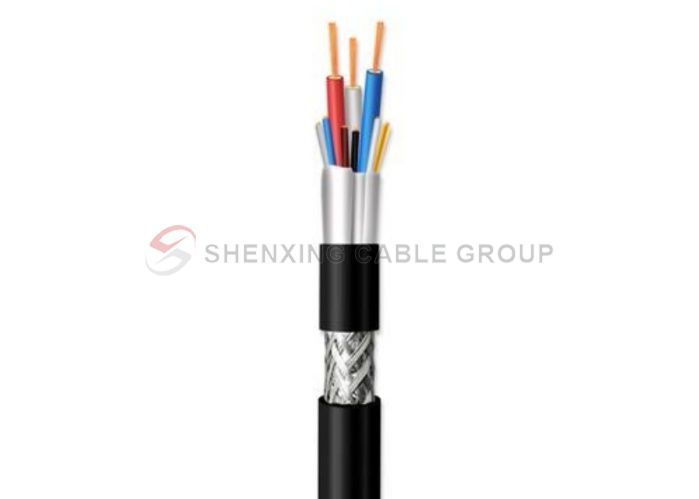

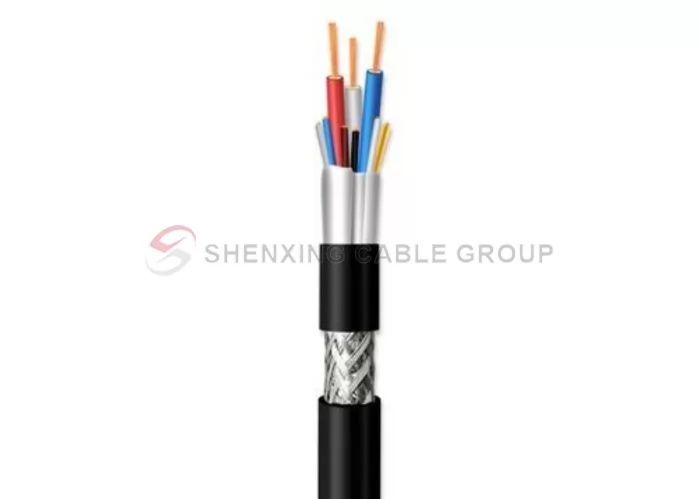

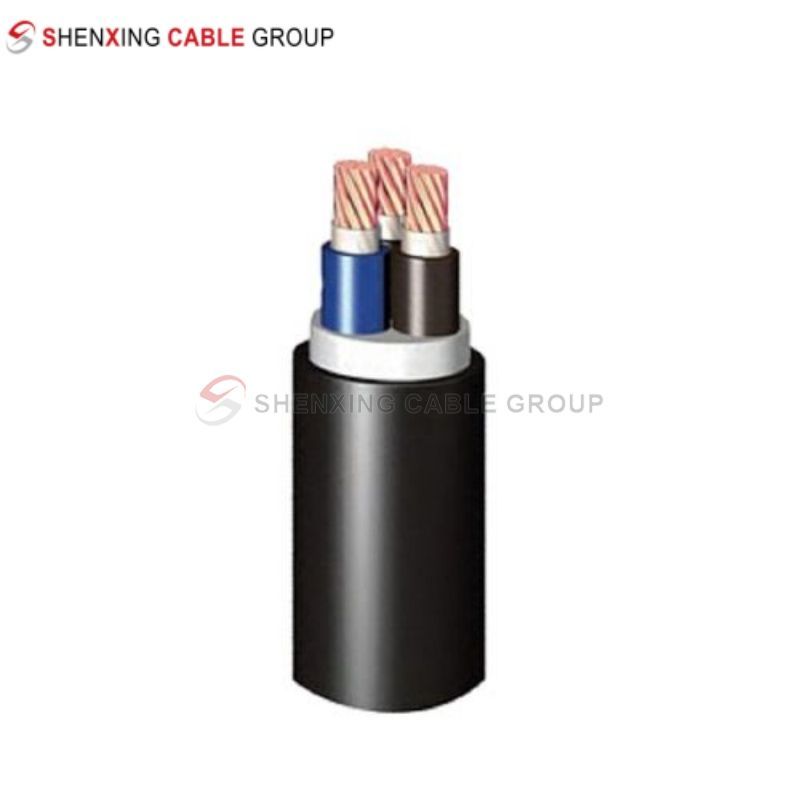

Product structure

Conductor: Tinned copper conductor is used, which has excellent conductivity and corrosion resistance.

Insulation layer: Cross-linked polyethylene (XLPE) or EPDM is used to ensure high heat resistance and insulation performance.

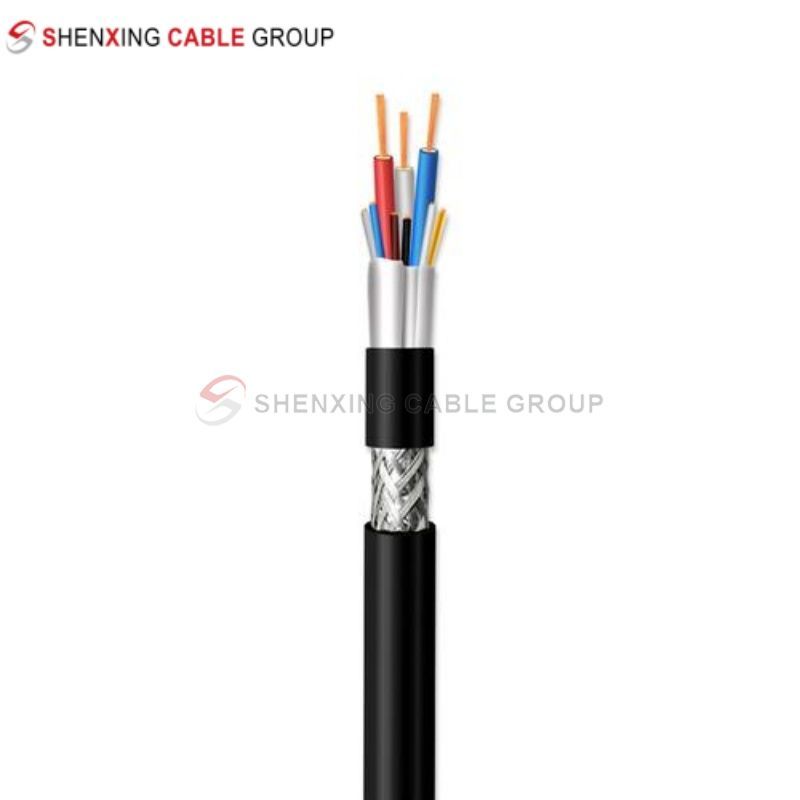

Shielding layer: Copper wire braided shielding to enhance anti-interference ability.

Aluminum foil shielding structure further reduces signal interference.

Sheath layer: Low smoke halogen-free material, with high flame retardancy, oil resistance and weather resistance, adapting to various challenges in the marine environment.

Structural form: Commonly used symmetrical 3+3E layout to optimize cable performance.

Product parameters

Product parameters

Rated voltage: 0.6/1kV or 1.8/3kV.

Working temperature: The maximum long-term working temperature of the conductor is 90℃, and the short-circuit temperature can reach up to 250℃ (duration ≤5 seconds).

Bending radius: The static bending radius is 6 times the outer diameter of the cable, and the dynamic bending radius is 8 times the outer diameter of the cable.

Voltage resistance: AC voltage 3.5kV/5 minutes without breakdown.

Anti-external magnetic field interference: In an external magnetic field of 400A/m, 50Hz, the induced voltage is not greater than 0.1V.

International Names and Appellations:

VFD Cable: Marine cable for AC variable frequency drive system.

Marine Frequency Converter Cable: Marine frequency converter cable.

Marine EMC Cable: Marine cable with electromagnetic compatibility.

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What role does the shielding structure play in marine inverter cables?

Shielding structures (such as copper wire braiding and aluminum foil shielding) can effectively reduce electromagnetic interference (EMI), ensure stable signal transmission and reduce motor noise when the variable frequency speed regulation system is running.

Are marine inverter cables flame retardant?

Yes, marine inverter cables are made of low smoke zero halogen (LSZH) materials, meet the IEC 60332-3-22 flame retardant standard, and have high efficiency flame retardant and environmental protection performance.

What certifications are there for marine inverter cables?

Certified by international classification societies such as ABS, BV, LR, DNV-GL, RS, RINA, and CCS to ensure compliance with quality and safety standards in the shipbuilding industry.

What is the rated voltage range of marine inverter cables?

Common rated voltages are 0.6/1kV and 1.8/3kV. The specific selection needs to be determined according to the voltage level of the ship power system.

How is the marine inverter cable different from ordinary cables?

Marine inverter cables have higher voltage shock resistance and anti-electromagnetic interference capabilities. They are specially designed for ship frequency converter power systems and can meet the needs of harsh marine environments, such as high humidity, salt spray, vibration and other conditions.
