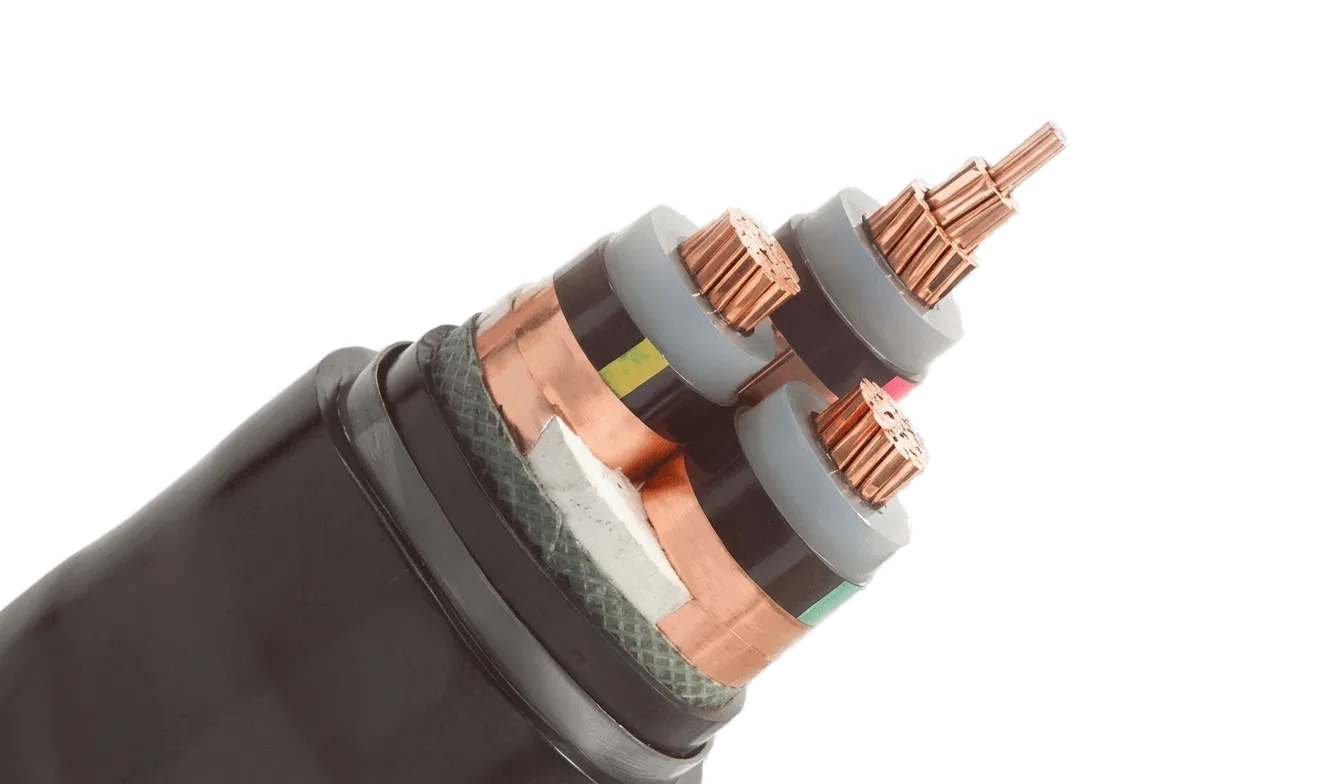

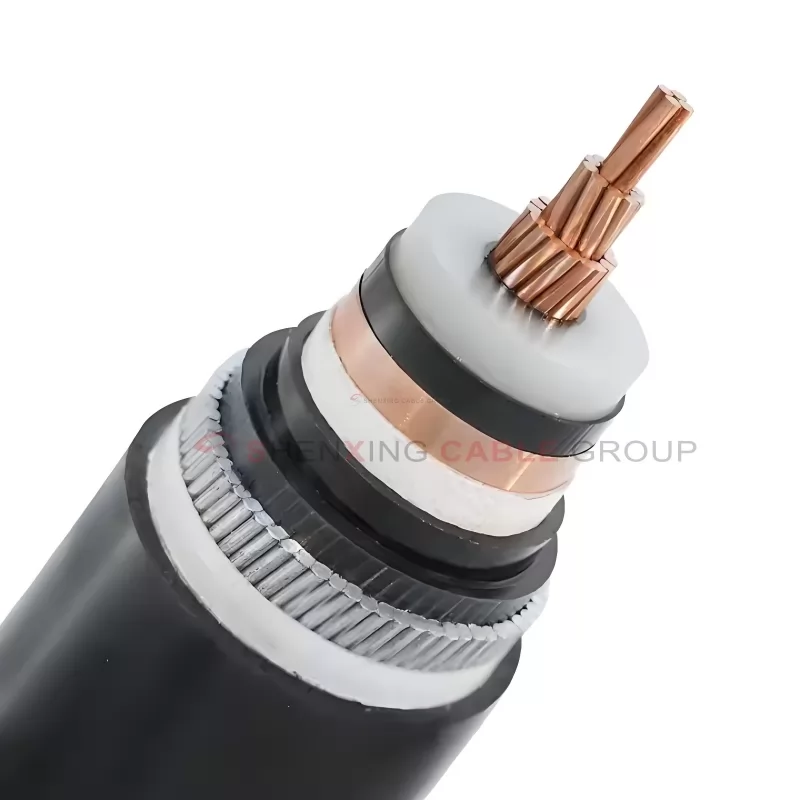

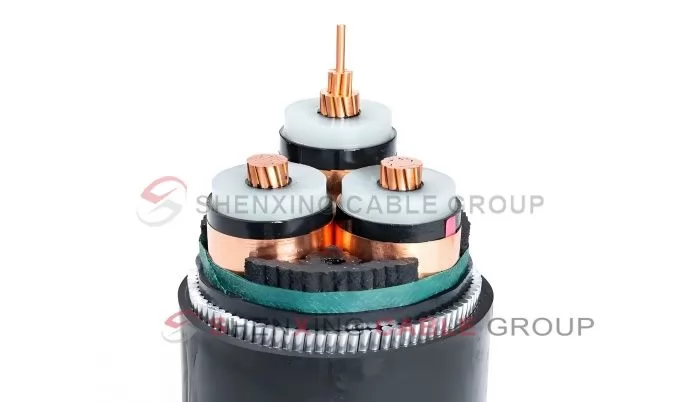

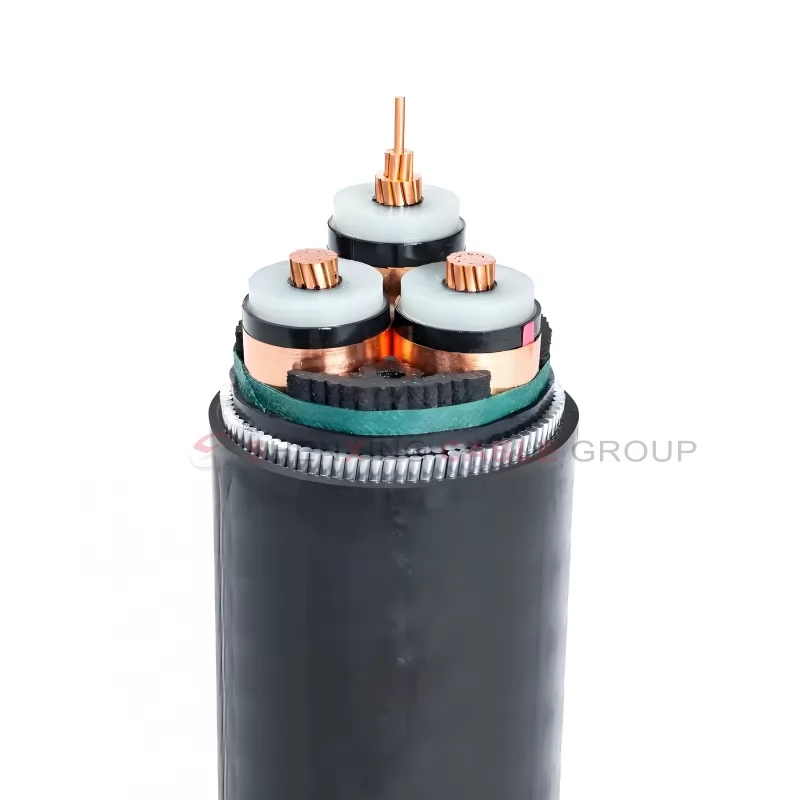

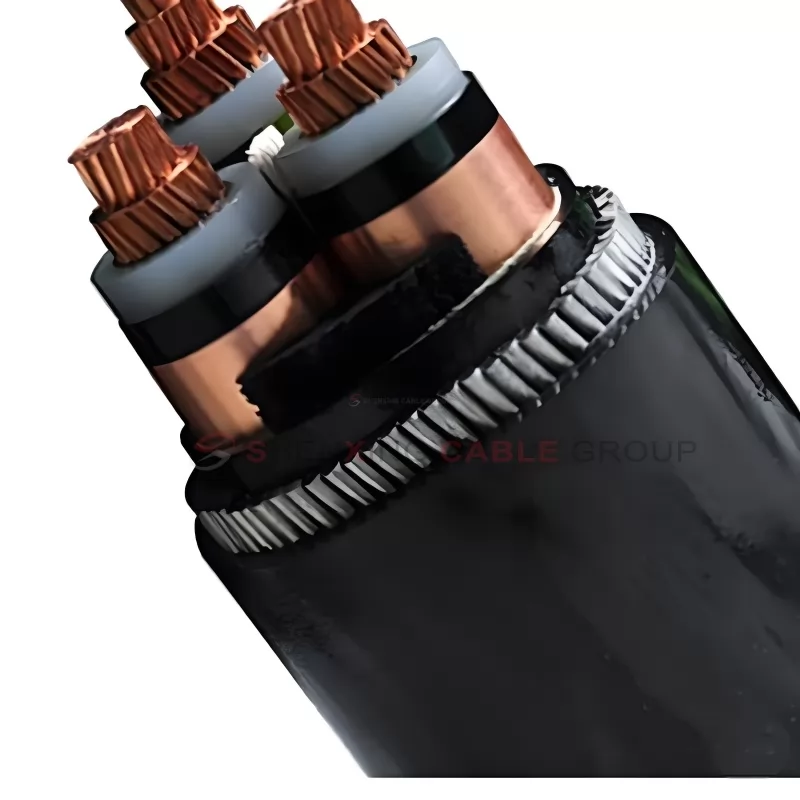

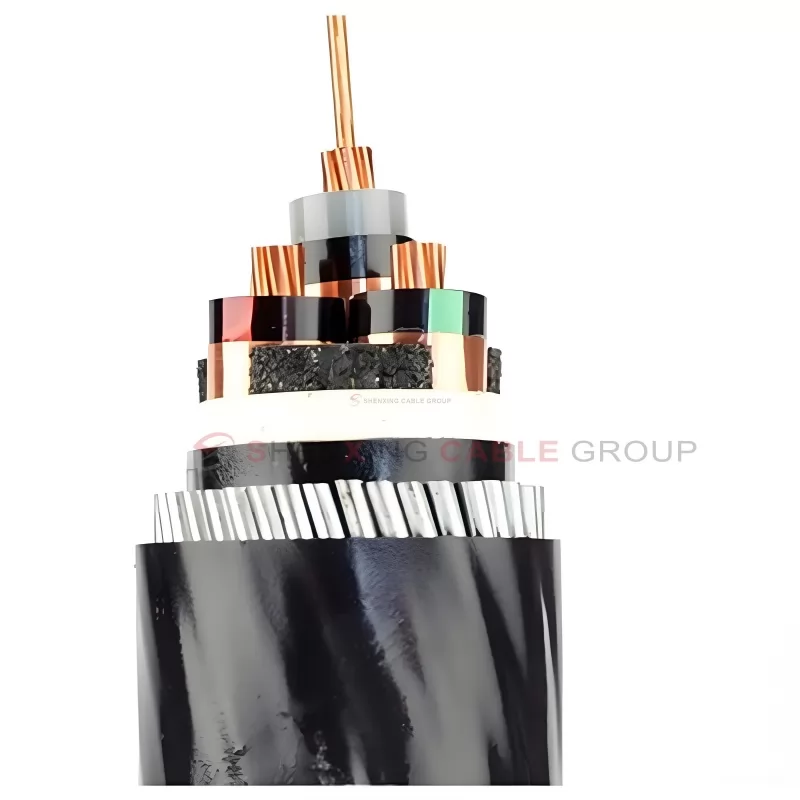

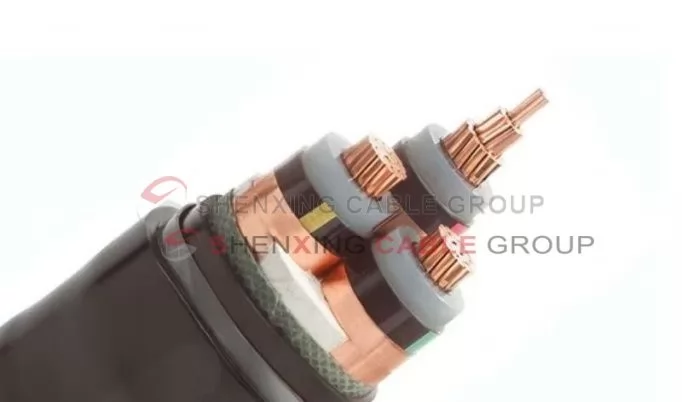

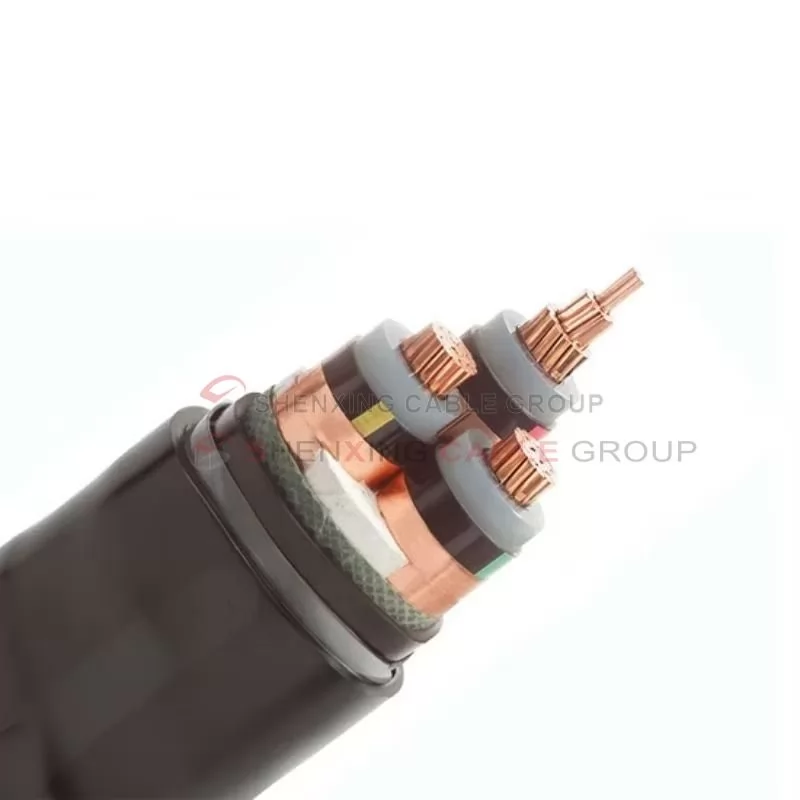

Medium Voltage(1/35KV) Power Cable-YJV32
YJV32 is a high-performance cable widely used in low-voltage power systems. It uses cross-linked polyethylene (XLPE) insulation, copper conductor, polyvinyl chloride (PVC) sheath on the outer layer, and is equipped with steel wire armor to enhance mechanical protection. This cable is suitable for environments that require high-strength compression and tensile performance, such as underground laying, tunnels, mines, etc., to ensure the stable operation of the power system.
Share:
YJV32 cables comply with the following international standards, ensuring applicability and safety in the global market:
GB/T 12706.1-2020 /IEC 60502-1 /ASTM D2843/D2863 /IEC 60332-1/IEC 61034
Key Applications:
Industrial power supply: factories, power stations, mines and other heavy industrial environments
Commercial buildings: office buildings, shopping malls, hospitals, schools, etc.
Underground power transmission: suitable for pipeline laying and direct burial
Transportation infrastructure: subways, highways, tunnels, etc.
Marine and dock applications: suitable for humid and high salt fog environments
Advantages:
Excellent conductivity: High-purity copper conductors are used, which have better conductivity and reduce power loss.
Excellent mechanical protection: The steel wire armor layer provides excellent pressure and impact resistance and can withstand high mechanical stress.
Heat resistance: XLPE insulation material ensures long-term stable operation of the cable at 90℃, and can withstand temperatures up to 250℃ during short circuit.
Corrosion and moisture resistance: PVC sheath provides additional protection and is suitable for humid and corrosive environments.Flame retardant and safe: Complies with IEC 60332-1 standards, effectively reducing fire hazards and improving system safety.
Environmentally friendly and low smoke: Complies with RoHS standards, reduces harmful emissions, and ensures environmental protection requirements.
Technical Data
| Voltage Level: 6/6kv & 6/10kv | |||||||||
| Number of Cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Sheath Thickness | Armor Thickness | Cable Outer Diameter | Weight |
| (mm) | (mm²) | (mm) | (Ω/Km) | (A) | (mm) | (mm) | (mm) | (kg/km) | |
| Single Core | 6 | 25 | 3.4 | 0.727 | 160/165 | ||||
| 7 | 35 | 3.4 | 0.524 | 190/205 | |||||
| 8.3 | 50 | 3.4 | 0.387 | 225/245 | |||||
| 9.8 | 70 | 3.4 | 0.268 | 275/305 | |||||
| 11.5 | 95 | 3.4 | 0.193 | 330/370 | |||||
| 12.9 | 120 | 3.4 | 0.153 | 375/430 | |||||
| 14.5 | 150 | 3.4 | 0.124 | 425/490 | |||||
| 16 | 185 | 3.4 | 0.0991 | 480/560 | |||||
| 18.3 | 240 | 3.4 | 0.0754 | 555/665 | |||||
| 20.5 | 300 | 3.4 | 0.0601 | 630/765 | |||||
| Three Cores | 6 | 25 | 3.4 | 0.727 | 125/120 | 2.4 | 0.2x2 | 47.3 | 3155 |
| 7 | 35 | 3.4 | 0.524 | 155/140 | 2.5 | 0.2X2 | 49.7 | 3610 | |
| 8.3 | 50 | 3.4 | 0.387 | 180/165 | 2.6 | 0.2x2 | 52.7 | 4252 | |
| 9.8 | 70 | 3.4 | 0.268 | 220/210 | 2.7 | 0.2X2 | 56.6 | 5102 | |
| 11.5 | 95 | 3.4 | 0.193 | 265/255 | 2.8 | 0.2x2 | 60.2 | 6073 | |
| 12.9 | 120 | 3.4 | 0.153 | 300/290 | 2.9 | 0.2X2 | 63.4 | 7016 | |
| 14.5 | 150 | 3.4 | 0.124 | 340/330 | 3.1 | 0.2x2 | 67.1 | 8137 | |
| 16 | 185 | 3.4 | 0.0991 | 380/375 | 3.2 | 0.2X2 | 70.7 | 9395 | |
| 18.3 | 240 | 3.4 | 0.0754 | 435/435 | 3.4 | 0.5x2 | 76.9 | 11521 | |
| 20.5 | 300 | 3.4 | 0.0601 | 485/495 | 3.6 | 0.5x2 | 82 | 13626 | |
| Voltage level：12/20kV | |||||||||
| Single Core | 7 | 35 | 5.5 | 0.524 | 190/205 | ||||
| 8.3 | 50 | 5.5 | 0.387 | 225/245 | |||||
| 9.8 | 70 | 5.5 | 0.268 | 275/305 | |||||
| 11.5 | 95 | 5.5 | 0.193 | 330/370 | |||||
| 12.9 | 120 | 5.5 | 0.153 | 375/430 | |||||
| 14.5 | 150 | 5.5 | 0.124 | 425/490 | |||||
| 16 | 185 | 5.5 | 0.0991 | 480/560 | |||||
| 18.3 | 240 | 5.5 | 0.0754 | 555/665 | |||||
| 20.5 | 300 | 5.5 | 0.0601 | 630/765 | |||||
| 23.5 | 400 | 5.5 | 0.074 | 725/890 | |||||
| Three Cores | 7 | 35 | 5.5 | 0.524 | 155/140 | 2.8 | 0.2x2 | 60.9 | 4714 |
| 8.3 | 50 | 5.5 | 0.387 | 180/165 | 2.9 | 0.2x2 | 63.9 | 5401 | |
| 9.8 | 70 | 5.5 | 0.268 | 220/210 | 3.1 | 0.2x2 | 67.9 | 6334 | |
| 11.5 | 95 | 5.5 | 0.193 | 265/255 | 3.2 | 0.2x2 | 71.6 | 7365 | |
| 12.9 | 120 | 5.5 | 0.153 | 300/290 | 3.3 | 0.2x2 | 75.8 | 8530 | |
| 14.5 | 150 | 5.5 | 0.124 | 340/330 | 3.4 | 0.5x2 | 79.4 | 9711 | |
| 16 | 185 | 5.5 | 0.0991 | 380/375 | 3.5 | 0.5x2 | 83.3 | 11885 | |
| 18.3 | 240 | 5.5 | 0.0754 | 435/435 | 3.7 | 0.5x2 | 88.4 | 13972 | |
| 20.5 | 300 | 5.5 | 0.0601 | 485/495 | 3.9 | 0.5x2 | 93.4 | 16175 | |
| 23.5 | 400 | 5.5 | 0.074 | 555/565 | 4.2 | 0.5x2 | 102 | 19759 | |
| Voltage level：3.6/6kV | |||||||||||||||||
| Number of cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Steel Tape Armoured | Fine steel wire armor | Thick steel wire armor | |||||||||
| (mm) | (mm²) | (mm) | (Ω/Km) | (A) | Sheath Thickness（mm） | Armor Thickness (mm) | Cable Outer Diameter (mm) | Weight （kg/km） | Sheath Thickness (mm) | Wire diameter (mm) | Cable Outer Diametermm | Weight kg/km | Sheath Thicknessmm | Wire Diameter mm | Cable Outer Diametermm | Weight kg/km | |
| Single Core | 6 | 25 | 2.5 | 0.727 | 160/165 | 1.8 | 1.6 | 26.2 | 1565 | ||||||||
| 7 | 35 | 2.5 | 0.524 | 190/205 | 1.8 | 1.6 | 27.2 | 1727 | |||||||||
| 8.3 | 50 | 2.5 | 0.387 | 225/245 | 1.8 | 1.6 | 28.5 | 1955 | |||||||||
| 9.8 | 70 | 2.5 | 0.268 | 275/305 | 1.9 | 1.6 | 30.4 | 2269 | |||||||||
| 11.5 | 95 | 2.5 | 0.193 | 330/370 | 1.9 | 1.6 | 32 | 2609 | |||||||||
| 12.9 | 120 | 2.5 | 0.153 | 375/430 | 2 | 2 | 33.6 | 2948 | |||||||||
| 14.5 | 150 | 2.5 | 0.124 | 425/490 | 2.1 | 2 | 36.4 | 3670 | |||||||||
| 16 | 185 | 2.5 | 0.0991 | 480/560 | 2.1 | 2 | 38 | 4115 | |||||||||
| 18.3 | 240 | 2.6 | 0.0754 | 555/665 | 2.2 | 2 | 40.6 | 4828 | |||||||||
| 20.5 | 300 | 2.8 | 0.0601 | 630/765 | 2.3 | 2 | 43.5 | 5616 | |||||||||
| Three Cores | 6 | 25 | 2.5 | 0.727 | 125/120 | 2.3 | 0.2x2 | 42.8 | 2769 | 2.3 | 4 | 49.2 | 5289 | ||||
| 7 | 35 | 2.5 | 0.524 | 155/140 | 2.3 | 0.2X2 | 45.2 | 3210 | 2.4 | 4 | 51.6 | 6798 | |||||
| 8.3 | 50 | 2.5 | 0.387 | 180/165 | 2.4 | 0.5x2 | 48.2 | 3833 | 2.6 | 4 | 54.6 | 6685 | |||||
| 9.8 | 70 | 2.5 | 0.268 | 220/210 | 2.6 | 0.5x2 | 52 | 4656 | 2.7 | 4 | 58.4 | 7681 | |||||
| 11.5 | 95 | 2.5 | 0.193 | 265/255 | 2.7 | 0.5x2 | 55.9 | 5632 | 2.8 | 4 | 62.3 | 8887 | |||||
| 12.9 | 120 | 2.5 | 0.153 | 300/290 | 2.8 | 0.5x2 | 59.1 | 6557 | 2.9 | 4 | 65.5 | 9969 | |||||
| 14.5 | 150 | 2.5 | 0.124 | 340/330 | 2.9 | 0.5x2 | 62.7 | 7653 | 3 | 4 | 69.1 | 11320 | |||||
| 16 | 185 | 2.5 | 0.0991 | 380/375 | 3.1 | 0.5x2 | 66.4 | 8895 | 3.2 | 4 | 72.8 | 12700 | |||||
| 18.3 | 240 | 2.6 | 0.0754 | 435/435 | 3.2 | 0.5x2 | 72 | 10865 | 3.4 | 4 | 78.4 | 15010 | |||||
| 20.5 | 300 | 2.8 | 0.0601 | 485/495 | 3.4 | 0.5x2 | 79 | 13230 | 3.6 | 4 | 86.4 | 17783 | |||||
| Voltage level：8.7/10kV & 8.7/15kV | |||||||||||||||||
| Single Core | 6 | 25 | 4.5 | 0.727 | 160/165 | ||||||||||||
| 7 | 35 | 4.5 | 0.524 | 190/205 | |||||||||||||
| 8.3 | 50 | 4.5 | 0.387 | 225/245 | |||||||||||||
| 9.8 | 70 | 4.5 | 0.268 | 275/305 | |||||||||||||
| 11.5 | 95 | 4.5 | 0.193 | 330/370 | |||||||||||||
| 12.9 | 120 | 4.5 | 0.153 | 375/430 | |||||||||||||
| 14.5 | 150 | 4.5 | 0.124 | 425/490 | |||||||||||||
| 16 | 185 | 4.5 | 0.0991 | 480/560 | |||||||||||||
| 18.3 | 240 | 4.5 | 0.0754 | 555/665 | |||||||||||||
| 20.5 | 300 | 4.5 | 0.0601 | 630/765 | |||||||||||||
| 23.5 | 400 | 4.5 | 0.074 | 725/890 | |||||||||||||
| Three Cores | 6 | 25 | 4.5 | 0.727 | 125/120 | 2.6 | 0.2x2 | 52.8 | 3660 | 2.7 | 2.5 | 57.3 | 5840 | 4 | 2.7 | 59.2 | 6755 |
| 7 | 35 | 4.5 | 0.524 | 155/140 | 2.6 | 0.2X2 | 55 | 4109 | 2.8 | 2.5 | 59.7 | 6404 | 4 | 2.8 | 61.6 | 7296 | |
| 8.3 | 50 | 4.5 | 0.387 | 180/165 | 2.8 | 0.2x2 | 58 | 4771 | 2.9 | 2.5 | 62.7 | 7213 | 4 | 2.9 | 64.6 | 8122 | |
| 9.8 | 70 | 4.5 | 0.268 | 220/210 | 2.9 | 0.2X2 | 62 | 5670 | 3 | 2.5 | 66.5 | 8218 | 4 | 3 | 68.4 | 9247 | |
| 11.5 | 95 | 4.5 | 0.193 | 265/255 | 3 | 0.2x2 | 65.7 | 6672 | 3.1 | 2.5 | 70.2 | 9352 | 4 | 3.1 | 72.1 | 10500 | |
| 12.9 | 120 | 4.5 | 0.153 | 300/290 | 3.1 | 0.2X2 | 68.9 | 7639 | 3.2 | 3.15 | 73.4 | 10460 | 4 | 3.2 | 75.3 | 11624 | |
| 14.5 | 150 | 4.5 | 0.124 | 340/330 | 3.2 | 0.2x2 | 72.6 | 8787 | 3.3 | 3.15 | 77.3 | 11838 | 4 | 3.3 | 79 | 13024 | |
| 16 | 185 | 4.5 | 0.0991 | 380/375 | 3.4 | 0.5x2 | 77.2 | 10247 | 3.5 | 3.15 | 81.9 | 13482 | 4 | 3.5 | 83.8 | 14758 | |
| 18.3 | 240 | 4.5 | 0.0754 | 435/435 | 3.5 | 0.5X2 | 82.3 | 13045 | 3.7 | 3.15 | 4 | 3.7 | 88.7 | 16951 | |||
| 20.5 | 300 | 4.5 | 0.0601 | 485/495 | 3.8 | 0.5x2 | 87.5 | 15244 | 4 | 3.9 | 93.9 | 19346 | |||||
| Voltage level：18/20kV & 18/30kV | |||||||||||||
| Single Core | 8.3 | 50 | 0.387 | 225/245 | |||||||||
| 9.8 | 70 | 0.268 | 275/305 | ||||||||||
| 11.5 | 95 | 0.193 | 330/370 | ||||||||||
| 12.9 | 120 | 0.153 | 375/430 | ||||||||||
| 14.5 | 150 | 0.124 | 425/490 | ||||||||||
| 16 | 185 | 0.0991 | 480/560 | ||||||||||
| 18.3 | 240 | 0.0754 | 555/665 | ||||||||||
| 20.5 | 300 | 0.0601 | 630/765 | ||||||||||
| Three Cores | 8.3 | 50 | 8 | 0.387 | 180/165 | 3.3 | 0.2x2 | 75.1 | 7200 | 3.5 | 31.5 | 79.7 | 9790 |
| 9.8 | 70 | 8 | 0.268 | 220/210 | 3.5 | 0.5x2 | 78.7 | 8230 | 3.6 | 31.5 | 83.3 | 10900 | |
| 11.5 | 95 | 8 | 0.193 | 265/255 | 3.6 | 0.5x2 | 84 | 9410 | 3.7 | 31.5 | 87.4 | 12220 | |
| 12.9 | 120 | 8 | 0.153 | 300/290 | 3.8 | 0.5X2 | 87.5 | 11120 | 3.9 | 31.5 | 90.8 | 13440 | |
| 14.5 | 150 | 8 | 0.124 | 340/330 | 3.9 | 0.5x2 | 91.3 | 12400 | 4 | 31.5 | 94.6 | 14880 | |
| 16 | 185 | 8 | 0.0991 | 380/375 | 4 | 0.5x2 | 94.9 | 13910 | 4.1 | 31.5 | 98.2 | 16420 | |
| 18.3 | 240 | 8 | 0.0754 | 435/435 | 4.2 | 0.5x2 | 100.3 | 16080 | 4.3 | 31.5 | 103.7 | 18770 | |
| 20.5 | 300 | 8 | 0.0601 | 485/495 | 4.3 | 0.5X2 | 105.6 | 18500 | |||||
| 23.5 | 400 | 8 | 0.074 | 555/565 | 4.6 | 0.5x2 | 112.8 | 21920 | |||||
| Voltage level：21/35kV | |||||||||||||
| Single Core | 8.3 | 50 | 9.3 | 0.387 | 225/245 | 2.3 | 2.5 | 46.9 | 4065 | ||||
| 9.8 | 70 | 9.3 | 0.268 | 275/305 | 2.4 | 2.5 | 48.8 | 4449 | |||||
| 11.5 | 95 | 9.3 | 0.193 | 330/370 | 2.5 | 2.5 | 51.9 | 5473 | |||||
| 12.9 | 120 | 9.3 | 0.153 | 375/430 | 2.5 | 2.5 | 53.3 | 5667 | |||||
| 14.5 | 150 | 9.3 | 0.124 | 425/490 | 2.6 | 2.5 | 55.1 | 6354 | |||||
| 16 | 185 | 9.3 | 0.0991 | 480/560 | 2.6 | 2.5 | 56.9 | 6886 | |||||
| 18.3 | 240 | 9.3 | 0.0754 | 555/665 | 2.7 | 2.5 | 59.1 | 7645 | |||||
| 20.5 | 300 | 9.3 | 0.0601 | 630/765 | 2.8 | 2.5 | 61.5 | 8476 | |||||
| Three Cores | 8.3 | 50 | 9.3 | 0.387 | 180/165 | 3.6 | 0.5x2 | 82.7 | 8260 | ||||
| 9.8 | 70 | 9.3 | 0.268 | 220/210 | 3.7 | 0.5x2 | 86.3 | 9280 | |||||
| 11.5 | 95 | 9.3 | 0.193 | 265/255 | 3.8 | 0.5X2 | 90.4 | 10500 | |||||
| 12.9 | 120 | 9.3 | 0.153 | 300/290 | 4 | 0.5x2 | 93.7 | 11630 | |||||
| 14.5 | 150 | 9.3 | 0.124 | 340/330 | 4.1 | 0.5x2 | 97.5 | 12970 | |||||
| 16 | 185 | 9.3 | 0.0991 | 380/375 | 4.2 | 0.5x2 | 101.1 | 14420 | |||||
| 18.3 | 240 | 9.3 | 0.0754 | 435/435 | 4.4 | 0.5X2 | 106.6 | 16690 | |||||
| 20.5 | 300 | 9.3 | 0.0601 | 485/495 | |||||||||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure

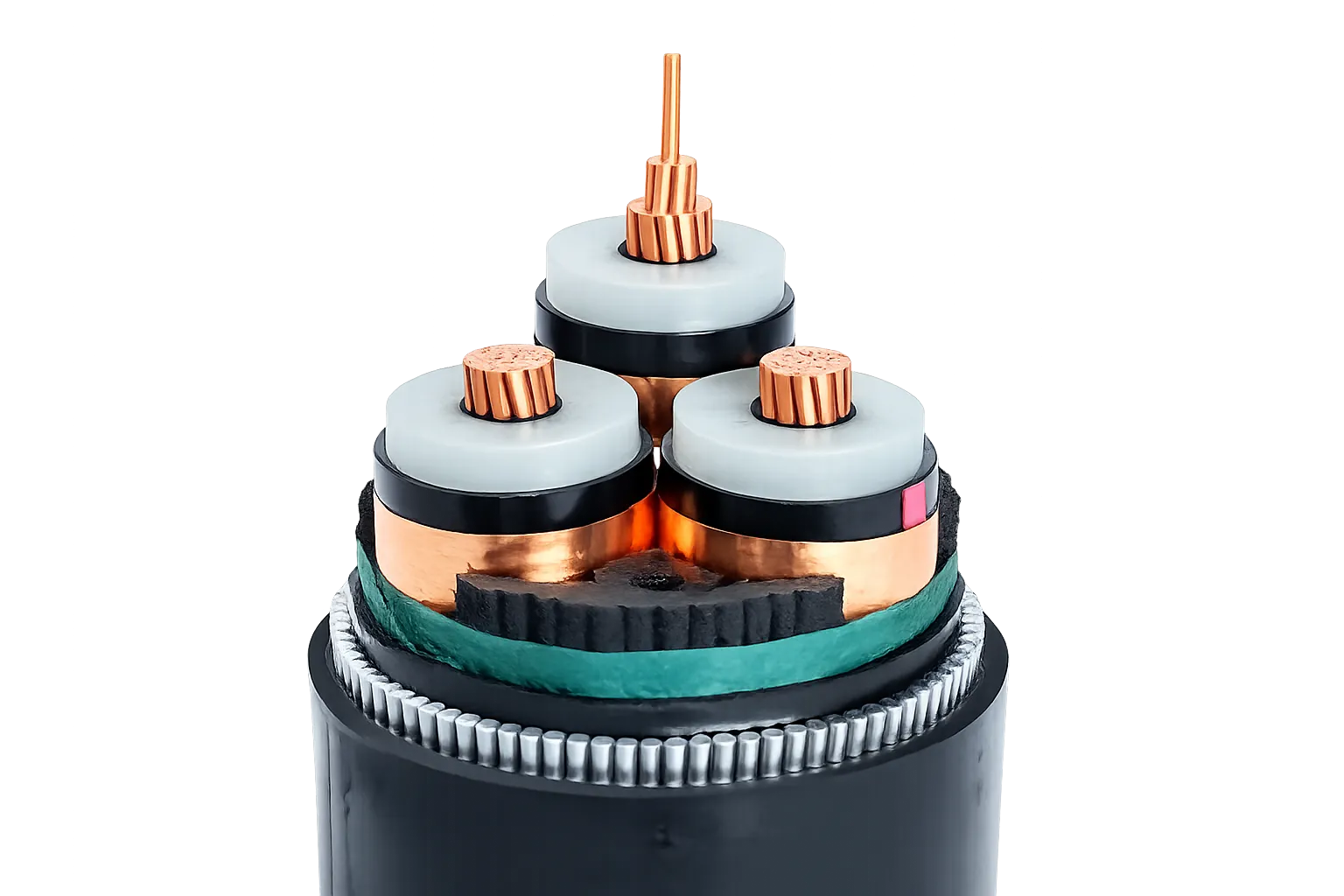

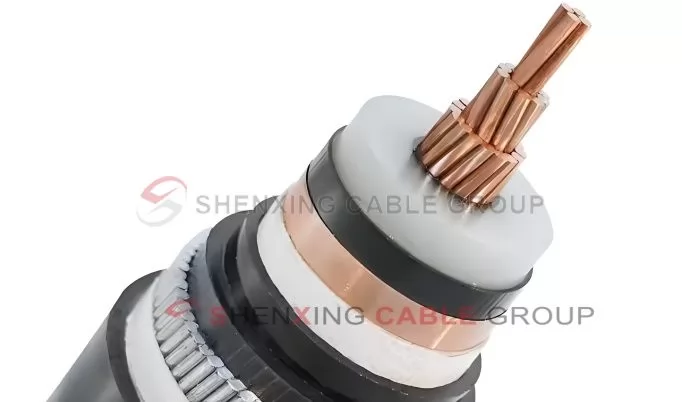

1-35kv Medium Voltage Copper core XLPE insulated thin round steel wire armored PVC sheathed power cable
Features
Features
Product Features
Rated voltage: 6/10kV, 8.7/15kV, 12/20kV, 18/30kV, 21/35kV
Conductor material: 99.99% copper
Insulation material: XLPE (cross-linked polyethylene)
Sheath material: PVC (polyvinyl chloride)
Armor type: steel wire armor
Maximum operating temperature: 90℃
Short circuit temperature: 250℃ (duration not exceeding 5 seconds)
Laying method: suitable for direct burial, pipeline and bridge laying
Experimental Performance
Performance Testing
Conductor resistance test: in accordance with IEC 60228 standard, for example, the maximum DC resistance of a 70mm² copper conductor should be ≤ 0.268 Ω/km (20℃).
Insulation resistance test: According to IEC 60502-1 standard, the minimum insulation resistance of XLPE insulated cable with a rated voltage of 1kV should be ≥ 36.7 MΩ·km (20℃).
Fire resistance test: in accordance with IEC 60332-1 flame retardant standard, improving fire resistance.
Corrosion and moisture resistance test: suitable for humid and corrosive environments to ensure long-term stable operation.
Compression and impact resistance test: steel wire armored cable should comply with IEC 60229 regulations and can withstand a longitudinal pressure test of ≥ 3000N.
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is the maximum operating temperature of this cable?
The cable can withstand an operating temperature of 90°C under normal conditions and 250°C in short circuit (no more than 5 seconds).
What environments are suitable for use?
The cable is suitable for use in humid, corrosive and high-voltage environments, especially underground and industrial applications.
How protective is the cable?
The steel belt armor provides excellent mechanical protection, which can resist external pressure and impact and extend the service life of the cable.
Is it easy to install?
Yes, the cable is designed to be flexible and suitable for complex installation environments. The minimum bending radius is 15 times the cable diameter, which is convenient for construction.
Does the cable comply with international standards?
Yes, it complies with international standards such as IEC 60502 and GB/T 12706 to ensure the safety and reliability of the product.
More Frequently Asked Questions.
Download
Related Products
110kv XLPE Insulated Metal Composite PE Sheathed (Longitudinal Water Blocking) Power Cable
In the field of power transmission, reliability, safety and durability are the core requirements of cable products. The copper core/aluminum core cross-linked polyethylene insulated metal composite polyethylene sheathed (longitudinal water-blocking) power cable provided by Shenxing Cable combines advanced design concepts with excellent manufacturing processes to provide efficient and stable power transmission solutions for global customers.
Read More
110kv Copper Core XLPE Insulated Lead Sheathed PE Sheathed Power Cable
Shenxing Cable has been deeply involved in the cable industry for many years and is well-known in the industry for its technological innovation and high-quality products. As a leader in the field of power cables, we are committed to providing high-performance cables that meet the needs of global customers.
Read More
110kv Copper Core XLPE Insulated Corrugated Aluminum Sheathed Power Cable
YJLW high voltage cross-linked polyethylene cable is a high-quality cable product for high voltage power transmission. It adopts high-quality copper core, aluminum core and cross-linked polyethylene insulation materials to ensure the high efficiency and reliability of power transmission.
Read More
Copper Core XLPE Insulated PE Sheathed Power Cable with Steel Tape Armor
Our copper core XLPE insulated PE sheathed power cables with steel belt armor are designed for high-performance power transmission and are suitable for a variety of industrial and commercial applications.
Read More
Copper core XLPE insulated PE Sheathed Power Cable
Our copper core XLPE insulated PE sheathed power cables have obtained the following certifications: Rhein Certification, ISO 9001 certification, CE certification, RoHS certification, CCC certification.
Read More
Medium Voltage Copper Core XLPE Insulated PVC Sheathed Power Cable
Our medium voltage (1-35kV) copper core XLPE insulated PVC sheathed power cable is a cable solution tailored for high load, high temperature and complex installation environments, with excellent conductivity, heat resistance and environmental adaptability.
Read More
Medium Voltage Copper Core XLPE Power Cable with Steel Tape Armor
Our medium voltage copper core XLPE power cables are specially designed to meet the high standard power transmission requirements in modern industry, construction, energy and other fields. The 99.99% high purity annealed copper conductor is used to ensure ultra-low resistance and excellent conductivity, effectively reducing transmission losses and improving energy efficiency.
Read More
Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable is a high-performance power cable designed for reliable and secure power transmission in demanding environments. Featuring a copper core, this cable offers superior electrical conductivity, making it ideal for heavy-duty applications and long-distance power transmission.
Read More
PVC insulated PVC sheathed 0.6/1KV VV Cable
The VV Cable features a copper core conductor, PVC insulation and a PVC jacket. The cable has passed multiple certifications such as ISO, CE, IEC, and TUV. Whether you are looking for a reliable wiring solution for a home, office, or industrial facility, this cable can provide you with the security and efficient power transmission you need.
Read More
Copper Core XLPE Insulated PVC Sheathed Power Cable
Copper core cross-linked polyethylene insulated power cable is a power cable product with excellent performance, safety, reliability and wide application. It complies with international and domestic standards such as IEC 60502, IEC 60228, GB/T 12706.1-2008, and has passed CE, CCC and other certifications. It is one of the commonly used cables in power engineering.
Read More
Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
This product is a copper core XLPE insulated armored power cable with excellent conductivity, insulation and mechanical properties. It is produced strictly in accordance with GB/T12706-2008 standard, and can be customized according to customer needs to meet international standards such as IEC, BS, DIN, ANSI, etc. to meet different application scenarios.
Read More
Request Your Free Electrical Cable Quote Today
