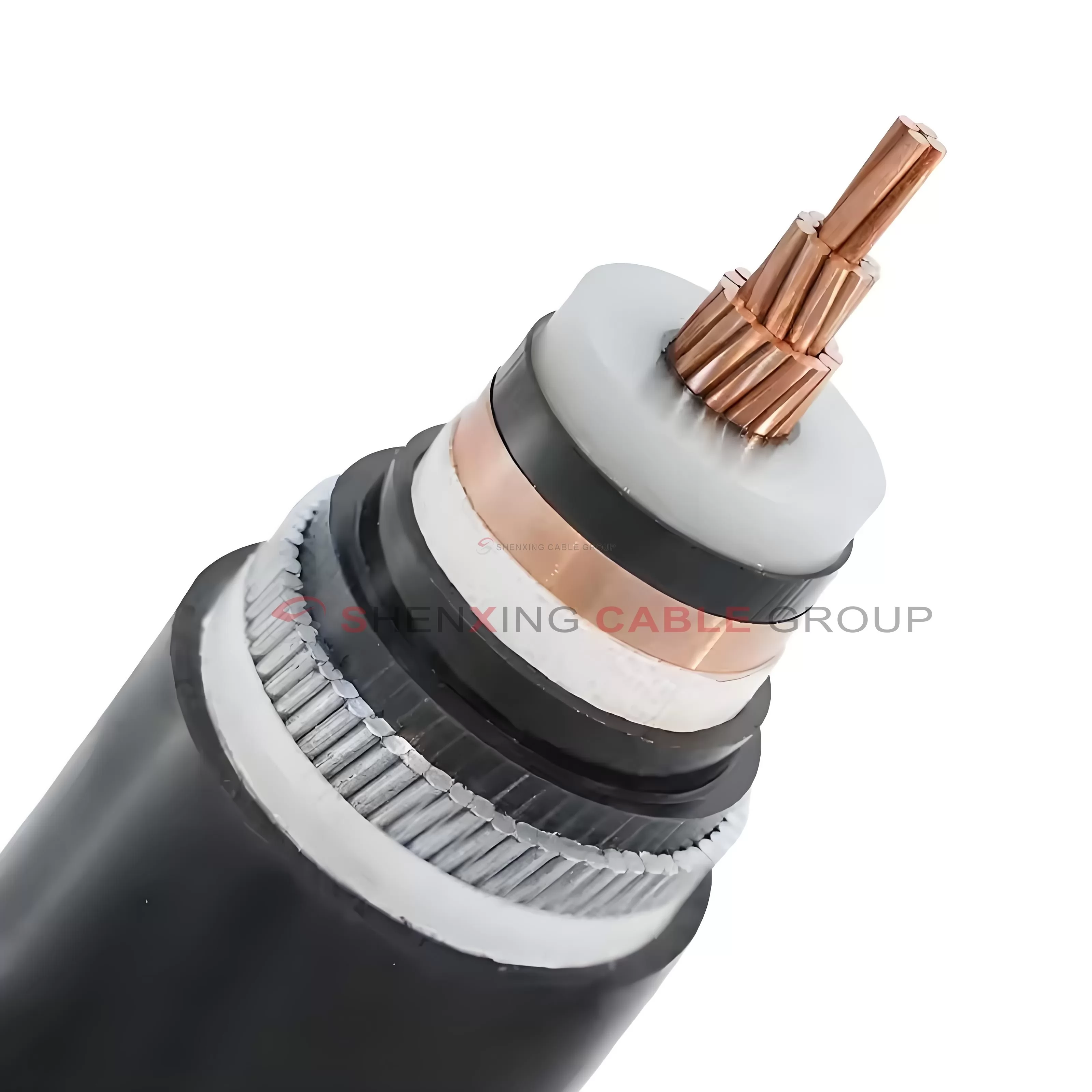

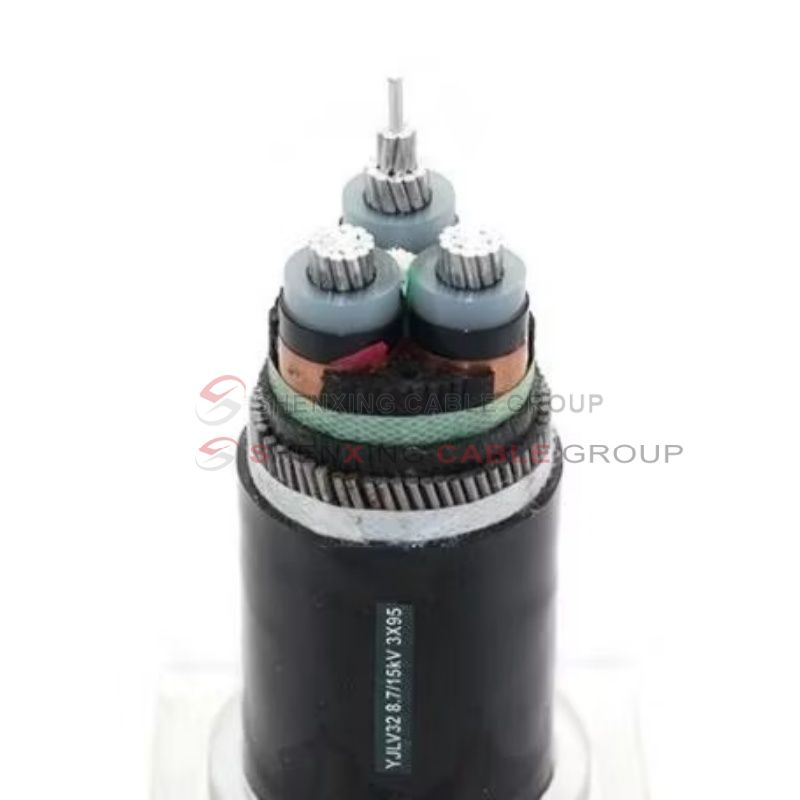

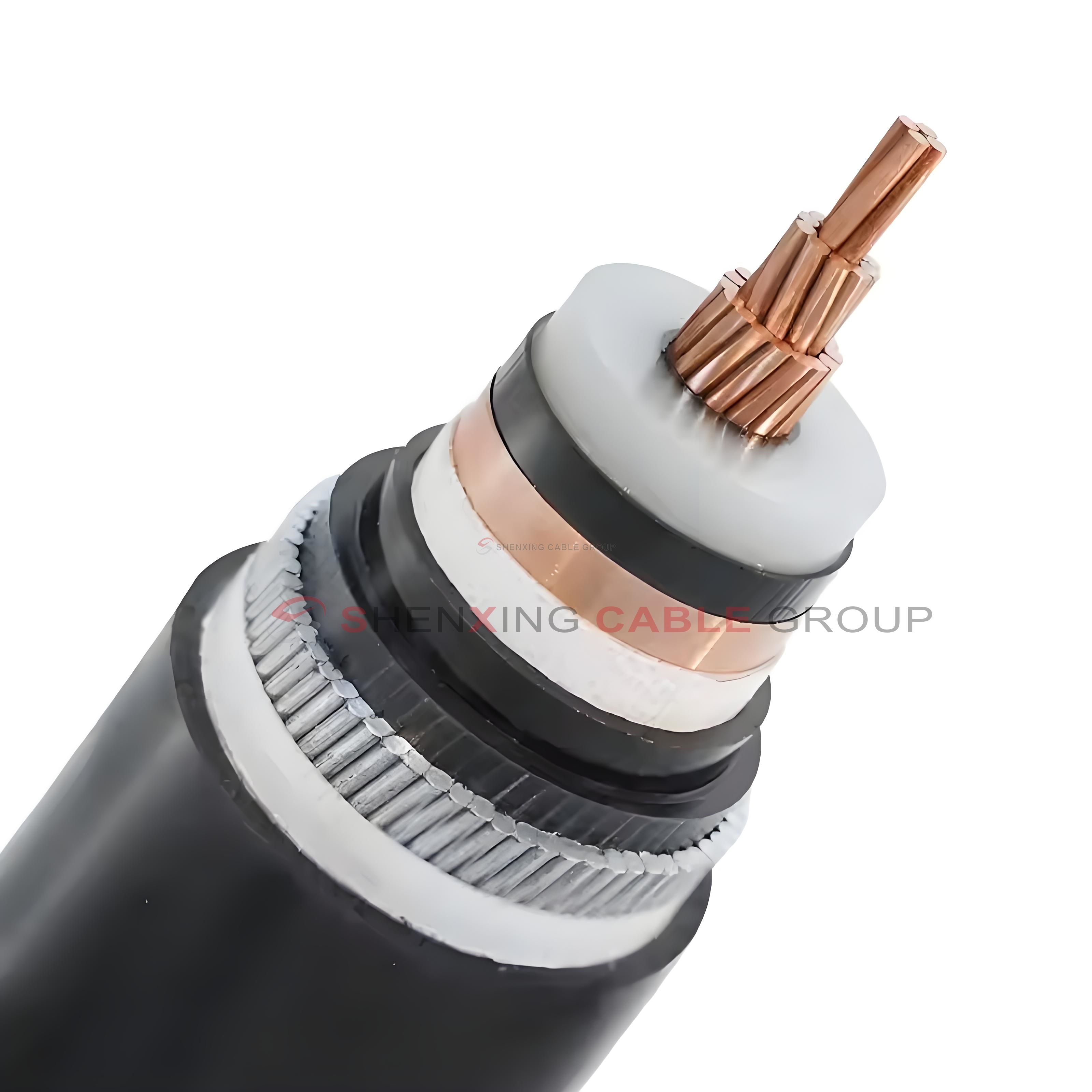

Medium Voltage(1/35KV) Power Cable-YJY32
YJY32 medium voltage cable is carefully developed by Shenxing Cable Group. It is a high-performance industrial cable designed for 1 kV to 35 kV medium voltage transmission systems. Relying on 45 years of technical accumulation and rich engineering experience, Shenxing Cable Group is committed to providing high-quality medium voltage cable solutions to the global market. YJY32 uses high-quality raw materials and advanced manufacturing processes to ensure excellent durability, reliability and safety in complex and harsh medium voltage environments.
Share:
YJY32 medium voltage cables are manufactured in strict accordance with the following international and regional standards to ensure their safety and reliability worldwide:
IEC 60228: International standard for copper and aluminum conductors.
IEC 60502: Standard for extruded insulated power cables, applicable to medium voltage cables.
UL and CSA: Meet the strict safety and performance requirements of the North American market for medium voltage cables.
RoHS Compliant: The materials do not contain harmful substances and meet environmental standards.
Application areas：
Industrial power distribution: Suitable for medium-voltage power transmission in factory production lines, heavy machinery and high-power equipment.
Buildings and infrastructure: Medium-voltage power supply systems for commercial buildings, subways, light rails and urban infrastructure.
New energy systems: Provide stable and reliable medium-voltage power transmission solutions in solar, wind and other distributed energy projects.
Power grid construction: Suitable for the transformation of urban and rural distribution networks and the construction of new medium-voltage lines.
Offshore and special environments: Designed for special environments such as offshore platforms and offshore wind power, it has excellent corrosion resistance and environmental adaptability.
Advantages:
Excellent durability: The use of advanced insulation and sheath materials can effectively resist mechanical wear, chemical corrosion and ultraviolet radiation, and maintain excellent performance during long-term operation.
Efficient electrical performance: The optimized low-resistance conductor and strictly controlled voltage drop ensure stable and efficient power transmission even during long-distance power transmission.
Strict safety standards: The product design strictly follows the international medium-voltage cable standards and is equipped with high-efficiency flame-retardant materials to greatly improve operational safety.
Flexible specification selection: A variety of conductor cross-sectional areas are provided to flexibly cope with various medium-voltage application scenarios such as industry, construction, energy and power grid construction.
Comprehensive quality control: Each batch of products undergoes high-voltage withstand test (test voltage can reach more than 2.5 times the rated voltage), bending test (more than 10,000 cycles) and tensile test to ensure excellent performance in actual applications.
Technical Data
| Voltage Level: 6/6kv & 6/10kv | |||||||||
| Number of Cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Sheath Thickness | Armor Thickness | Cable Outer Diameter | Weight |
| (mm) | (mm²) | (mm) | (Ω/Km) | (A) | (mm) | (mm) | (mm) | (kg/km) | |
| Single Core | 6 | 25 | 3.4 | 0.727 | 160/165 | ||||
| 7 | 35 | 3.4 | 0.524 | 190/205 | |||||
| 8.3 | 50 | 3.4 | 0.387 | 225/245 | |||||
| 9.8 | 70 | 3.4 | 0.268 | 275/305 | |||||
| 11.5 | 95 | 3.4 | 0.193 | 330/370 | |||||
| 12.9 | 120 | 3.4 | 0.153 | 375/430 | |||||
| 14.5 | 150 | 3.4 | 0.124 | 425/490 | |||||
| 16 | 185 | 3.4 | 0.0991 | 480/560 | |||||
| 18.3 | 240 | 3.4 | 0.0754 | 555/665 | |||||
| 20.5 | 300 | 3.4 | 0.0601 | 630/765 | |||||
| Three Cores | 6 | 25 | 3.4 | 0.727 | 125/120 | 2.4 | 0.2x2 | 47.3 | 3155 |
| 7 | 35 | 3.4 | 0.524 | 155/140 | 2.5 | 0.2X2 | 49.7 | 3610 | |
| 8.3 | 50 | 3.4 | 0.387 | 180/165 | 2.6 | 0.2x2 | 52.7 | 4252 | |
| 9.8 | 70 | 3.4 | 0.268 | 220/210 | 2.7 | 0.2X2 | 56.6 | 5102 | |
| 11.5 | 95 | 3.4 | 0.193 | 265/255 | 2.8 | 0.2x2 | 60.2 | 6073 | |
| 12.9 | 120 | 3.4 | 0.153 | 300/290 | 2.9 | 0.2X2 | 63.4 | 7016 | |
| 14.5 | 150 | 3.4 | 0.124 | 340/330 | 3.1 | 0.2x2 | 67.1 | 8137 | |
| 16 | 185 | 3.4 | 0.0991 | 380/375 | 3.2 | 0.2X2 | 70.7 | 9395 | |
| 18.3 | 240 | 3.4 | 0.0754 | 435/435 | 3.4 | 0.5x2 | 76.9 | 11521 | |
| 20.5 | 300 | 3.4 | 0.0601 | 485/495 | 3.6 | 0.5x2 | 82 | 13626 | |
| Voltage level：12/20kV | |||||||||
| Single Core | 7 | 35 | 5.5 | 0.524 | 190/205 | ||||
| 8.3 | 50 | 5.5 | 0.387 | 225/245 | |||||
| 9.8 | 70 | 5.5 | 0.268 | 275/305 | |||||
| 11.5 | 95 | 5.5 | 0.193 | 330/370 | |||||
| 12.9 | 120 | 5.5 | 0.153 | 375/430 | |||||
| 14.5 | 150 | 5.5 | 0.124 | 425/490 | |||||
| 16 | 185 | 5.5 | 0.0991 | 480/560 | |||||
| 18.3 | 240 | 5.5 | 0.0754 | 555/665 | |||||
| 20.5 | 300 | 5.5 | 0.0601 | 630/765 | |||||
| 23.5 | 400 | 5.5 | 0.074 | 725/890 | |||||
| Three Cores | 7 | 35 | 5.5 | 0.524 | 155/140 | 2.8 | 0.2x2 | 60.9 | 4714 |
| 8.3 | 50 | 5.5 | 0.387 | 180/165 | 2.9 | 0.2x2 | 63.9 | 5401 | |
| 9.8 | 70 | 5.5 | 0.268 | 220/210 | 3.1 | 0.2x2 | 67.9 | 6334 | |
| 11.5 | 95 | 5.5 | 0.193 | 265/255 | 3.2 | 0.2x2 | 71.6 | 7365 | |
| 12.9 | 120 | 5.5 | 0.153 | 300/290 | 3.3 | 0.2x2 | 75.8 | 8530 | |
| 14.5 | 150 | 5.5 | 0.124 | 340/330 | 3.4 | 0.5x2 | 79.4 | 9711 | |
| 16 | 185 | 5.5 | 0.0991 | 380/375 | 3.5 | 0.5x2 | 83.3 | 11885 | |
| 18.3 | 240 | 5.5 | 0.0754 | 435/435 | 3.7 | 0.5x2 | 88.4 | 13972 | |
| 20.5 | 300 | 5.5 | 0.0601 | 485/495 | 3.9 | 0.5x2 | 93.4 | 16175 | |
| 23.5 | 400 | 5.5 | 0.074 | 555/565 | 4.2 | 0.5x2 | 102 | 19759 | |
| Voltage level：3.6/6kV | |||||||||||||||||
| Number of cores | Conductor Diameter | Conductor Diameter | Insulation Thickness | Resistance | Current Carrying Capacity | Steel Tape Armoured | Fine steel wire armor | Thick steel wire armor | |||||||||
| (mm) | (mm²) | (mm) | (Ω/Km) | (A) | Sheath Thickness（mm） | Armor Thickness (mm) | Cable Outer Diameter (mm) | Weight （kg/km） | Sheath Thickness (mm) | Wire diameter (mm) | Cable Outer Diametermm | Weight kg/km | Sheath Thicknessmm | Wire Diameter mm | Cable Outer Diametermm | Weight kg/km | |
| Single Core | 6 | 25 | 2.5 | 0.727 | 160/165 | 1.8 | 1.6 | 26.2 | 1565 | ||||||||
| 7 | 35 | 2.5 | 0.524 | 190/205 | 1.8 | 1.6 | 27.2 | 1727 | |||||||||
| 8.3 | 50 | 2.5 | 0.387 | 225/245 | 1.8 | 1.6 | 28.5 | 1955 | |||||||||
| 9.8 | 70 | 2.5 | 0.268 | 275/305 | 1.9 | 1.6 | 30.4 | 2269 | |||||||||
| 11.5 | 95 | 2.5 | 0.193 | 330/370 | 1.9 | 1.6 | 32 | 2609 | |||||||||
| 12.9 | 120 | 2.5 | 0.153 | 375/430 | 2 | 2 | 33.6 | 2948 | |||||||||
| 14.5 | 150 | 2.5 | 0.124 | 425/490 | 2.1 | 2 | 36.4 | 3670 | |||||||||
| 16 | 185 | 2.5 | 0.0991 | 480/560 | 2.1 | 2 | 38 | 4115 | |||||||||
| 18.3 | 240 | 2.6 | 0.0754 | 555/665 | 2.2 | 2 | 40.6 | 4828 | |||||||||
| 20.5 | 300 | 2.8 | 0.0601 | 630/765 | 2.3 | 2 | 43.5 | 5616 | |||||||||
| Three Cores | 6 | 25 | 2.5 | 0.727 | 125/120 | 2.3 | 0.2x2 | 42.8 | 2769 | 2.3 | 4 | 49.2 | 5289 | ||||
| 7 | 35 | 2.5 | 0.524 | 155/140 | 2.3 | 0.2X2 | 45.2 | 3210 | 2.4 | 4 | 51.6 | 6798 | |||||
| 8.3 | 50 | 2.5 | 0.387 | 180/165 | 2.4 | 0.5x2 | 48.2 | 3833 | 2.6 | 4 | 54.6 | 6685 | |||||
| 9.8 | 70 | 2.5 | 0.268 | 220/210 | 2.6 | 0.5x2 | 52 | 4656 | 2.7 | 4 | 58.4 | 7681 | |||||
| 11.5 | 95 | 2.5 | 0.193 | 265/255 | 2.7 | 0.5x2 | 55.9 | 5632 | 2.8 | 4 | 62.3 | 8887 | |||||
| 12.9 | 120 | 2.5 | 0.153 | 300/290 | 2.8 | 0.5x2 | 59.1 | 6557 | 2.9 | 4 | 65.5 | 9969 | |||||
| 14.5 | 150 | 2.5 | 0.124 | 340/330 | 2.9 | 0.5x2 | 62.7 | 7653 | 3 | 4 | 69.1 | 11320 | |||||
| 16 | 185 | 2.5 | 0.0991 | 380/375 | 3.1 | 0.5x2 | 66.4 | 8895 | 3.2 | 4 | 72.8 | 12700 | |||||
| 18.3 | 240 | 2.6 | 0.0754 | 435/435 | 3.2 | 0.5x2 | 72 | 10865 | 3.4 | 4 | 78.4 | 15010 | |||||
| 20.5 | 300 | 2.8 | 0.0601 | 485/495 | 3.4 | 0.5x2 | 79 | 13230 | 3.6 | 4 | 86.4 | 17783 | |||||
| Voltage level：8.7/10kV & 8.7/15kV | |||||||||||||||||
| Single Core | 6 | 25 | 4.5 | 0.727 | 160/165 | ||||||||||||
| 7 | 35 | 4.5 | 0.524 | 190/205 | |||||||||||||
| 8.3 | 50 | 4.5 | 0.387 | 225/245 | |||||||||||||
| 9.8 | 70 | 4.5 | 0.268 | 275/305 | |||||||||||||
| 11.5 | 95 | 4.5 | 0.193 | 330/370 | |||||||||||||
| 12.9 | 120 | 4.5 | 0.153 | 375/430 | |||||||||||||
| 14.5 | 150 | 4.5 | 0.124 | 425/490 | |||||||||||||
| 16 | 185 | 4.5 | 0.0991 | 480/560 | |||||||||||||
| 18.3 | 240 | 4.5 | 0.0754 | 555/665 | |||||||||||||
| 20.5 | 300 | 4.5 | 0.0601 | 630/765 | |||||||||||||
| 23.5 | 400 | 4.5 | 0.074 | 725/890 | |||||||||||||
| Three Cores | 6 | 25 | 4.5 | 0.727 | 125/120 | 2.6 | 0.2x2 | 52.8 | 3660 | 2.7 | 2.5 | 57.3 | 5840 | 4 | 2.7 | 59.2 | 6755 |
| 7 | 35 | 4.5 | 0.524 | 155/140 | 2.6 | 0.2X2 | 55 | 4109 | 2.8 | 2.5 | 59.7 | 6404 | 4 | 2.8 | 61.6 | 7296 | |
| 8.3 | 50 | 4.5 | 0.387 | 180/165 | 2.8 | 0.2x2 | 58 | 4771 | 2.9 | 2.5 | 62.7 | 7213 | 4 | 2.9 | 64.6 | 8122 | |
| 9.8 | 70 | 4.5 | 0.268 | 220/210 | 2.9 | 0.2X2 | 62 | 5670 | 3 | 2.5 | 66.5 | 8218 | 4 | 3 | 68.4 | 9247 | |
| 11.5 | 95 | 4.5 | 0.193 | 265/255 | 3 | 0.2x2 | 65.7 | 6672 | 3.1 | 2.5 | 70.2 | 9352 | 4 | 3.1 | 72.1 | 10500 | |
| 12.9 | 120 | 4.5 | 0.153 | 300/290 | 3.1 | 0.2X2 | 68.9 | 7639 | 3.2 | 3.15 | 73.4 | 10460 | 4 | 3.2 | 75.3 | 11624 | |
| 14.5 | 150 | 4.5 | 0.124 | 340/330 | 3.2 | 0.2x2 | 72.6 | 8787 | 3.3 | 3.15 | 77.3 | 11838 | 4 | 3.3 | 79 | 13024 | |
| 16 | 185 | 4.5 | 0.0991 | 380/375 | 3.4 | 0.5x2 | 77.2 | 10247 | 3.5 | 3.15 | 81.9 | 13482 | 4 | 3.5 | 83.8 | 14758 | |
| 18.3 | 240 | 4.5 | 0.0754 | 435/435 | 3.5 | 0.5X2 | 82.3 | 13045 | 3.7 | 3.15 | 4 | 3.7 | 88.7 | 16951 | |||
| 20.5 | 300 | 4.5 | 0.0601 | 485/495 | 3.8 | 0.5x2 | 87.5 | 15244 | 4 | 3.9 | 93.9 | 19346 | |||||
| Voltage level：18/20kV & 18/30kV | |||||||||||||
| Single Core | 8.3 | 50 | 0.387 | 225/245 | |||||||||
| 9.8 | 70 | 0.268 | 275/305 | ||||||||||
| 11.5 | 95 | 0.193 | 330/370 | ||||||||||
| 12.9 | 120 | 0.153 | 375/430 | ||||||||||
| 14.5 | 150 | 0.124 | 425/490 | ||||||||||
| 16 | 185 | 0.0991 | 480/560 | ||||||||||
| 18.3 | 240 | 0.0754 | 555/665 | ||||||||||
| 20.5 | 300 | 0.0601 | 630/765 | ||||||||||
| Three Cores | 8.3 | 50 | 8 | 0.387 | 180/165 | 3.3 | 0.2x2 | 75.1 | 7200 | 3.5 | 31.5 | 79.7 | 9790 |
| 9.8 | 70 | 8 | 0.268 | 220/210 | 3.5 | 0.5x2 | 78.7 | 8230 | 3.6 | 31.5 | 83.3 | 10900 | |
| 11.5 | 95 | 8 | 0.193 | 265/255 | 3.6 | 0.5x2 | 84 | 9410 | 3.7 | 31.5 | 87.4 | 12220 | |
| 12.9 | 120 | 8 | 0.153 | 300/290 | 3.8 | 0.5X2 | 87.5 | 11120 | 3.9 | 31.5 | 90.8 | 13440 | |
| 14.5 | 150 | 8 | 0.124 | 340/330 | 3.9 | 0.5x2 | 91.3 | 12400 | 4 | 31.5 | 94.6 | 14880 | |
| 16 | 185 | 8 | 0.0991 | 380/375 | 4 | 0.5x2 | 94.9 | 13910 | 4.1 | 31.5 | 98.2 | 16420 | |
| 18.3 | 240 | 8 | 0.0754 | 435/435 | 4.2 | 0.5x2 | 100.3 | 16080 | 4.3 | 31.5 | 103.7 | 18770 | |
| 20.5 | 300 | 8 | 0.0601 | 485/495 | 4.3 | 0.5X2 | 105.6 | 18500 | |||||
| 23.5 | 400 | 8 | 0.074 | 555/565 | 4.6 | 0.5x2 | 112.8 | 21920 | |||||
| Voltage level：21/35kV | |||||||||||||
| Single Core | 8.3 | 50 | 9.3 | 0.387 | 225/245 | 2.3 | 2.5 | 46.9 | 4065 | ||||
| 9.8 | 70 | 9.3 | 0.268 | 275/305 | 2.4 | 2.5 | 48.8 | 4449 | |||||
| 11.5 | 95 | 9.3 | 0.193 | 330/370 | 2.5 | 2.5 | 51.9 | 5473 | |||||
| 12.9 | 120 | 9.3 | 0.153 | 375/430 | 2.5 | 2.5 | 53.3 | 5667 | |||||
| 14.5 | 150 | 9.3 | 0.124 | 425/490 | 2.6 | 2.5 | 55.1 | 6354 | |||||
| 16 | 185 | 9.3 | 0.0991 | 480/560 | 2.6 | 2.5 | 56.9 | 6886 | |||||
| 18.3 | 240 | 9.3 | 0.0754 | 555/665 | 2.7 | 2.5 | 59.1 | 7645 | |||||
| 20.5 | 300 | 9.3 | 0.0601 | 630/765 | 2.8 | 2.5 | 61.5 | 8476 | |||||
| Three Cores | 8.3 | 50 | 9.3 | 0.387 | 180/165 | 3.6 | 0.5x2 | 82.7 | 8260 | ||||
| 9.8 | 70 | 9.3 | 0.268 | 220/210 | 3.7 | 0.5x2 | 86.3 | 9280 | |||||
| 11.5 | 95 | 9.3 | 0.193 | 265/255 | 3.8 | 0.5X2 | 90.4 | 10500 | |||||
| 12.9 | 120 | 9.3 | 0.153 | 300/290 | 4 | 0.5x2 | 93.7 | 11630 | |||||
| 14.5 | 150 | 9.3 | 0.124 | 340/330 | 4.1 | 0.5x2 | 97.5 | 12970 | |||||
| 16 | 185 | 9.3 | 0.0991 | 380/375 | 4.2 | 0.5x2 | 101.1 | 14420 | |||||
| 18.3 | 240 | 9.3 | 0.0754 | 435/435 | 4.4 | 0.5X2 | 106.6 | 16690 | |||||
| 20.5 | 300 | 9.3 | 0.0601 | 485/495 | |||||||||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure

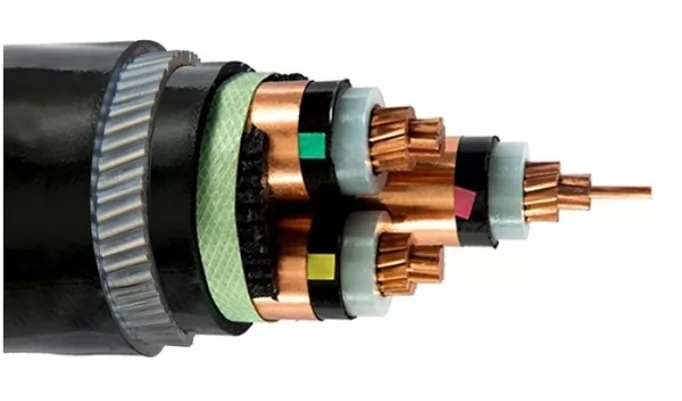

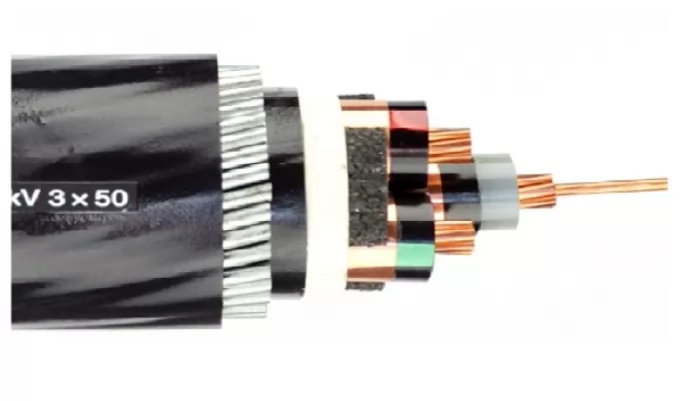

1-35kv Medium Voltage Copper core XLPE insulated PE sheathed fine steel wire armored power cable
Features
Features
Technical specifications:
Rated voltage: 1/35 kV
Conductor material: High-purity copper (99.9% purity) to ensure excellent conductivity
Conductor cross-sectional area: Multiple specifications are available, usually ranging from 10 mm² to 400 mm² to meet different load requirements
Insulation material: Cross-linked polyethylene (XLPE), with excellent heat resistance, oil resistance and chemical corrosion resistance
Operating temperature range: –40°C to +90°C
Flame retardant performance: Equipped with a highly efficient flame-retardant sheath that meets medium voltage requirements to ensure rapid self-extinguishing in the event of an electrical fault
Experimental Performance
Performance Testing：
Bending test: The product can maintain the integrity of the insulation layer without cracks or peeling after more than 10,000 bending cycles.
Tensile strength: The cable can withstand a tensile force of at least 1.5 kN under the specified load, ensuring stability during installation and operation.
Conductor resistance: The optimized design makes the conductor resistance less than 0.02 Ω/km, effectively reducing transmission losses.
Voltage drop control: Under rated load, the voltage drop within the standard distance is controlled within 3% to ensure stable power supply.
Temperature adaptability: It can operate stably in a wide operating temperature range of –40°C to +90°C, adapting to various climatic conditions.
Insulation stability: The XLPE insulation layer has excellent heat resistance and long-term electrical stability.
Flame retardant performance: The use of high-efficiency flame retardant sheath ensures rapid self-extinguishing in the event of electrical faults, reducing the risk of fire.
Chemical and UV resistance: The reinforced sheath material can effectively resist corrosion from chemical substances and aging caused by long-term UV exposure.
Production
Production Equipment
Projects
Empowering Green Energy: Shenxing Cable Group Supports 50MW Wind Power Project
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is the maximum operating temperature of this cable?
The cable can withstand an operating temperature of 90°C under normal conditions and 250°C in short circuit (no more than 5 seconds).
What environments are suitable for use?
The cable is suitable for use in humid, corrosive and high-voltage environments, especially underground and industrial applications.
How protective is the cable?
The steel belt armor provides excellent mechanical protection, which can resist external pressure and impact and extend the service life of the cable.
Is it easy to install?
Yes, the cable is designed to be flexible and suitable for complex installation environments. The minimum bending radius is 15 times the cable diameter, which is convenient for construction.
Does the cable comply with international standards?
Yes, it complies with international standards such as IEC 60502 and GB/T 12706 to ensure the safety and reliability of the product.
More Frequently Asked Questions.
Download
Related Products
110kv XLPE Insulated Metal Composite PE Sheathed (Longitudinal Water Blocking) Power Cable
In the field of power transmission, reliability, safety and durability are the core requirements of cable products. The copper core/aluminum core cross-linked polyethylene insulated metal composite polyethylene sheathed (longitudinal water-blocking) power cable provided by Shenxing Cable combines advanced design concepts with excellent manufacturing processes to provide efficient and stable power transmission solutions for global customers.
Read More
110kv Copper Core XLPE Insulated Lead Sheathed PE Sheathed Power Cable
Shenxing Cable has been deeply involved in the cable industry for many years and is well-known in the industry for its technological innovation and high-quality products. As a leader in the field of power cables, we are committed to providing high-performance cables that meet the needs of global customers.
Read More
110kv Copper Core XLPE Insulated Corrugated Aluminum Sheathed Power Cable
YJLW high voltage cross-linked polyethylene cable is a high-quality cable product for high voltage power transmission. It adopts high-quality copper core, aluminum core and cross-linked polyethylene insulation materials to ensure the high efficiency and reliability of power transmission.
Read More
Copper Core XLPE Insulated PE Sheathed Power Cable with Steel Tape Armor
Our copper core XLPE insulated PE sheathed power cables with steel belt armor are designed for high-performance power transmission and are suitable for a variety of industrial and commercial applications.
Read More
Copper core XLPE insulated PE Sheathed Power Cable
Our copper core XLPE insulated PE sheathed power cables have obtained the following certifications: Rhein Certification, ISO 9001 certification, CE certification, RoHS certification, CCC certification.
Read More
Medium Voltage Copper Core XLPE Insulated PVC Sheathed Power Cable
Our medium voltage (1-35kV) copper core XLPE insulated PVC sheathed power cable is a cable solution tailored for high load, high temperature and complex installation environments, with excellent conductivity, heat resistance and environmental adaptability.
Read More
Medium Voltage Copper Core XLPE insulation with Steel Tape Armor Power cable
Our medium voltage copper core XLPE power cables are specially designed to meet the high standard power transmission requirements in modern industry, construction, energy and other fields. The 99.99% high purity annealed copper conductor is used to ensure ultra-low resistance and excellent conductivity, effectively reducing transmission losses and improving energy efficiency.
Read More
Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable is a high-performance power cable designed for reliable and secure power transmission in demanding environments. Featuring a copper core, this cable offers superior electrical conductivity, making it ideal for heavy-duty applications and long-distance power transmission.
Read More
PVC insulated PVC sheathed 0.6/1KV VV Cable
The VV Cable features a copper core conductor, PVC insulation and a PVC jacket. The cable has passed multiple certifications such as ISO, CE, IEC, and TUV. Whether you are looking for a reliable wiring solution for a home, office, or industrial facility, this cable can provide you with the security and efficient power transmission you need.
Read More
Copper Core XLPE Insulated PVC Sheathed Power Cable
Copper core cross-linked polyethylene insulated power cable is a power cable product with excellent performance, safety, reliability and wide application. It complies with international and domestic standards such as IEC 60502, IEC 60228, GB/T 12706.1-2008, and has passed CE, CCC and other certifications. It is one of the commonly used cables in power engineering.
Read More
Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
This product is a copper core XLPE insulated armored power cable with excellent conductivity, insulation and mechanical properties. It is produced strictly in accordance with GB/T12706-2008 standard, and can be customized according to customer needs to meet international standards such as IEC, BS, DIN, ANSI, etc. to meet different application scenarios.
Read More
Request Your Free Electrical Cable Quote Today
