Mining Cable-Type G
Type G mining power cable is designed for industrial and mining equipment and mobile power systems, and is widely used in mining, petroleum, chemical, power and construction. It has excellent tensile strength, abrasion resistance and good electrical properties, and is an ideal choice for mining equipment and heavy power equipment such as coal mining machines, coal cutters, loaders, conveyor belts, etc.
Share:
Product models and specifications
Type G mining power cables have a variety of models to meet the needs of different equipment and usage environments. The following are several common models:

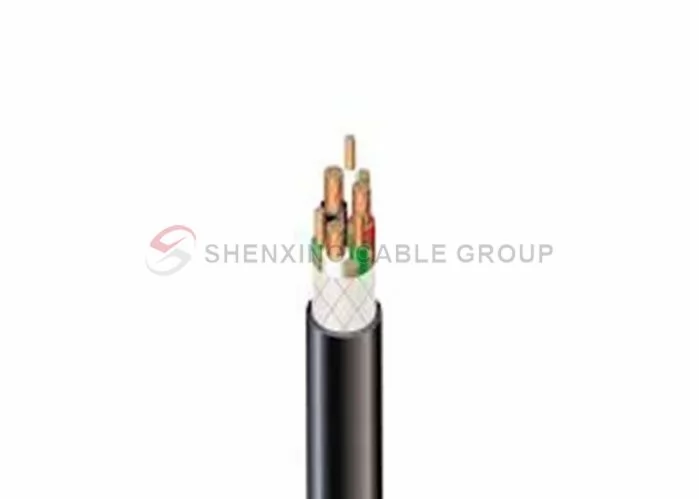

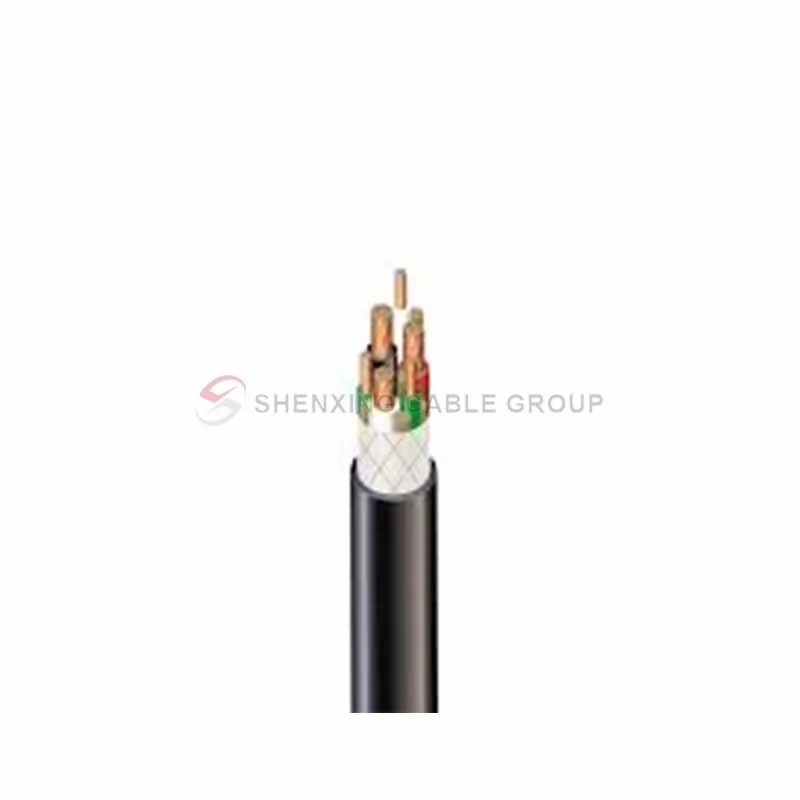

Type G three-core round mobile power cable 2kV
Applicable to mining power equipment that requires three-phase power, such as continuous coal miners, coal cutters, loaders, etc.

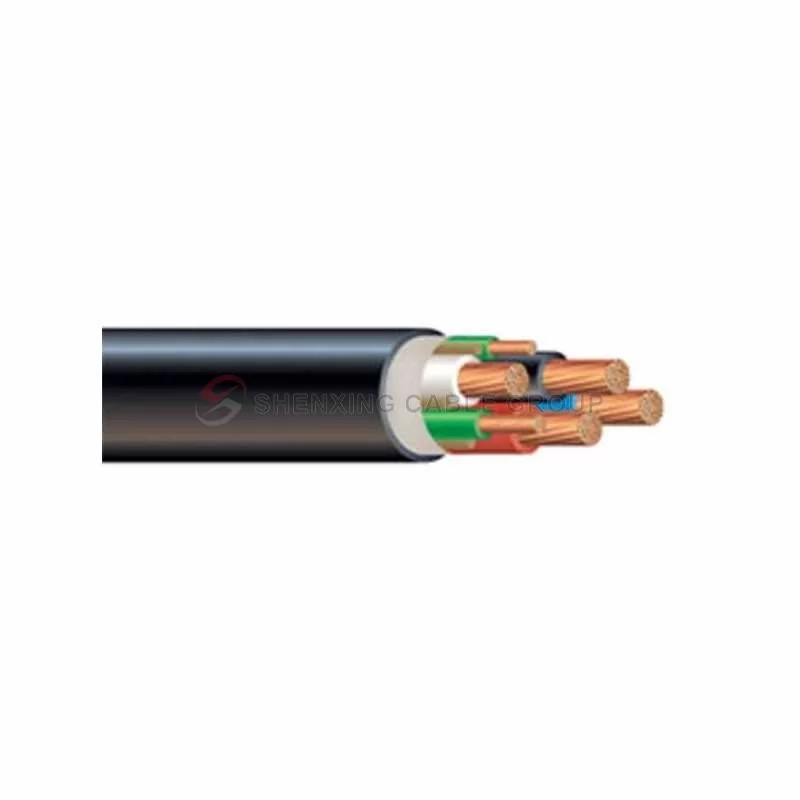

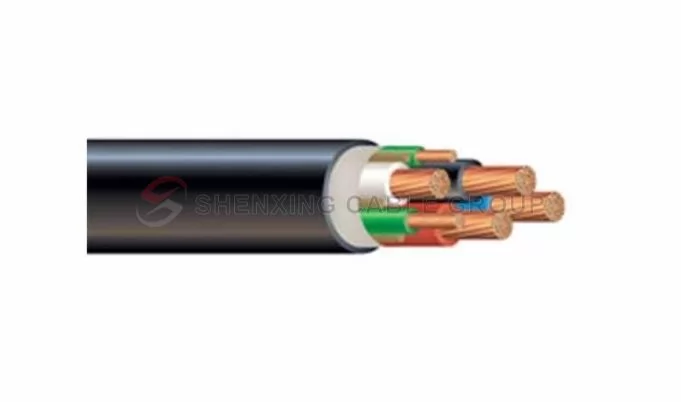

Type G four-core round mobile power cable 2kV
Applicable to more complex power needs, supports four-core conductors, can transmit different signals and power at the same time, and is widely used in complex mining equipment.

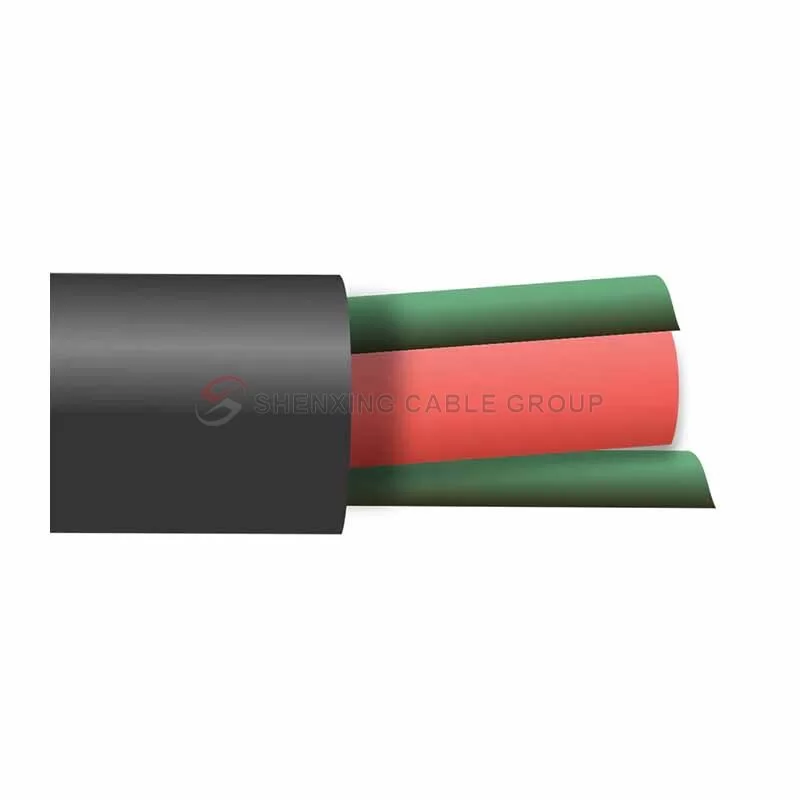

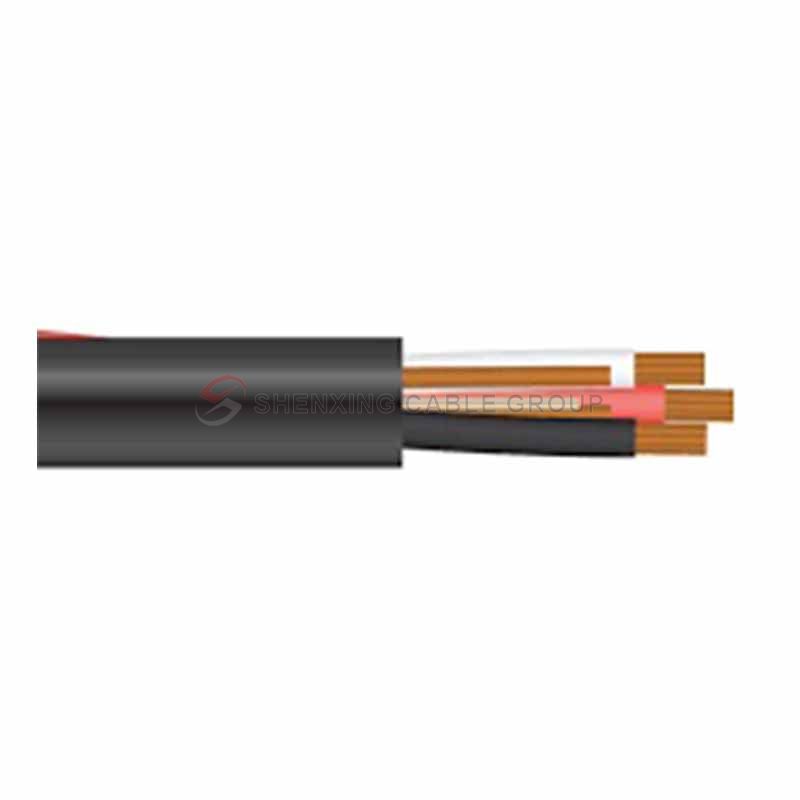

Type G two-core flat mobile power cable 2kV
Designed for DC equipment, commonly used in DC shuttle vehicles, drilling rigs and other DC power mining equipment.

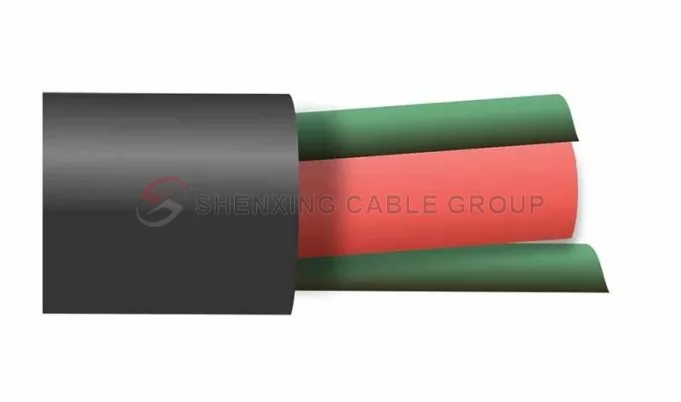

Type G two-core round mobile power cable 2kV
Applicable to heavy service and portable power equipment, supports two-core conductor power transmission, and is suitable for application scenarios that require flexible wiring.
Cable structure：
Each model of Type G mining power cable has a highly durable structural design, the specific structure is as follows:
Conductor: Multi-strand tinned annealed copper conductor, providing good conductivity and oxidation resistance.
Insulation layer: Ethylene propylene rubber (EPR) material is used, which has excellent high temperature resistance, chemical corrosion resistance and insulation performance.
Ground wire: The cable is equipped with a ground wire with a tinned copper conductor and a standard green sheath to ensure safe grounding.
Sheath: Black chlorinated polyethylene (CPE) sheath, which has excellent abrasion resistance, UV resistance and oil resistance. For cables with an outer diameter greater than 2 inches, an extra-heavy-duty sheath is used to enhance durability.
Technical Data
| Voltage level：0.6/1kV | ||||||||||||||||||
| Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | Steel Wire Armor | |||||||||||
| Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Wire Diameter (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
| Three cores | 1.4 | 1.5 | 0.7 | 12.1 | 1.8 | 10.4 | 121 | 27/20 | ||||||||||
| 1.8 | 2.5 | 0.7 | 7.41 | 1.8 | 11.3 | 159 | 35/26 | 1.8 | 0.2×2 | 13.1 | 255 | 35/26 | ||||||
| 2.3 | 4 | 0.7 | 4.61 | 1.8 | 12.2 | 210 | 45/34 | 1.8 | 0.2×2 | 14 | 317 | 45/34 | ||||||
| 2.8 | 6 | 0.7 | 3.08 | 1.8 | 13.4 | 280 | 57/43 | 1.8 | 0.2×2 | 15.2 | 397 | 57/43 | ||||||
| 3.8 | 10 | 0.7 | 1.83 | 1.8 | 16.1 | 431 | 77/60 | 1.8 | 0.2×2 | 17.9 | 561 | 77/60 | 1.8 | 0.8 | 21.7 | 1049 | 65/80 | |
| 4.8 | 16 | 0.7 | 1.15 | 1.8 | 18.4 | 634 | 105/83 | 1.8 | 0.2×2 | 20.2 | 773 | 105/83 | 1.8 | 0.8 | 24 | 1323 | 85/100 | |
| 6 | 25 | 0.9 | 0.727 | 1.8 | 22.1 | 947 | 125/105 | 1.8 | 0.2×2 | 23.9 | 1130 | 125/105 | 1.8 | 1.6 | 27.7 | 1779 | 115/130 | |
| 7 | 35 | 0.9 | 0.524 | 1.8 | 24.6 | 1254 | 155/125 | 1.8 | 0.2×2 | 26.4 | 1458 | 155/125 | 1.8 | 1.6 | 30.2 | 2174 | 145/155 | |
| 8.3 | 50 | 1 | 0.387 | 1.8 | 27.9 | 1660 | 185/160 | 1.8 | 0.5×2 | 29.7 | 1893 | 185/160 | 1.9 | 1.6 | 33.9 | 2729 | 175/185 | |
| 9.8 | 70 | 1.1 | 0.268 | 1.9 | 32.8 | 2353 | 225/200 | 2 | 0.5×2 | 36.2 | 2967 | 225/200 | 2 | 2 | 39.6 | 3854 | 220/225 | |
| 11.5 | 95 | 1.1 | 0.193 | 2 | 37.1 | 3179 | 270/245 | 2 | 0.5×2 | 40.5 | 3872 | 270/245 | 2.2 | 2 | 43.9 | 4862 | 270/270 | |
| 12.9 | 120 | 1.2 | 0.153 | 2.1 | 41.2 | 3983 | 310/285 | 2.1 | 0.5×2 | 44.6 | 4753 | 310/285 | 2.3 | 2 | 48 | 5840 | 315/305 | |
| 14.5 | 150 | 1.4 | 0.124 | 2.3 | 45.8 | 4909 | 345/325 | 2.3 | 0.5×2 | 49.2 | 5762 | 345/325 | 2.4 | 2.5 | 53.8 | 7498 | 360/345 | |
| 16 | 185 | 1.6 | 0.0991 | 2.4 | 50.9 | 6104 | 390/375 | 2.4 | 0.5×2 | 54.3 | 7051 | 390/375 | 2.6 | 2.5 | 59.3 | 9020 | 420/390 | |
| 18.3 | 240 | 1.7 | 0.0754 | 2.6 | 57.4 | 7941 | 450/440 | 2.6 | 0.5×2 | 60.8 | 9006 | 450/440 | 2.7 | 2.5 | 66 | 11237 | 500/455 | |
| 20.5 | 300 | 1.8 | 0.0601 | 2.8 | 63.4 | 9890 | 515/505 | 2.7 | 0.5×2 | 66.8 | 11067 | 515/505 | 2.9 | 2.5 | 72 | 13521 | 550/520 | |
| Voltage level：3.6/6kV | |||||||||||||
| Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | |||||||
| Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
| Three cores | 6 | 25 | 2.5 | 0.727 | 2.1 | 36.6 | 1745 | 160/165 | 2.3 | 0.5×2 | 42.8 | 2769 | 125/120 |
| 7 | 35 | 2.5 | 0.524 | 2.2 | 39 | 2125 | 190/205 | 2.3 | 0.5×2 | 45.2 | 3210 | 155/140 | |
| 8.3 | 50 | 2.5 | 0.387 | 2.3 | 42 | 2671 | 225/245 | 2.4 | 0.5×2 | 48.2 | 3833 | 180/165 | |
| 9.8 | 70 | 2.5 | 0.268 | 2.4 | 45.8 | 3395 | 275/305 | 2.6 | 0.5×2 | 52 | 4656 | 220/210 | |
| 11.5 | 95 | 2.5 | 0.193 | 2.5 | 49.5 | 4252 | 330/370 | 2.7 | 0.5×2 | 55.9 | 5632 | 265/255 | |
| 12.9 | 120 | 2.5 | 0.153 | 2.6 | 52.7 | 5093 | 375/430 | 2.8 | 0.5×2 | 59.1 | 6557 | 300/290 | |
| 14.5 | 150 | 2.5 | 0.124 | 2.8 | 56.5 | 6119 | 425/490 | 2.9 | 0.5×2 | 62.7 | 7653 | 340/330 | |
| 16 | 185 | 2.5 | 0.0991 | 2.9 | 60.2 | 7265 | 480/560 | 3.1 | 0.5×2 | 66.4 | 8895 | 380/375 | |
| 18.3 | 240 | 2.6 | 0.0754 | 3 | 65.8 | 9092 | 555/665 | 3.2 | 0.5×2 | 72 | 10865 | 435/435 | |
| 20.5 | 300 | 2.8 | 0.0601 | 3.2 | 71.8 | 11123 | 630/765 | 3.4 | 0.5×2 | 79 | 13230 | 485/495 | |
| Voltage level：6/6 6/10kV | |||||||||||||
| Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | |||||||
| Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
| Three cores | 6 | 25 | 3.4 | 0.727 | 2.2 | 41.1 | 2017 | 125/120 | 2.4 | 0.5×2 | 47.3 | 3155 | 150/135 |
| 7 | 35 | 3.4 | 0.524 | 2.3 | 43.3 | 2392 | 155/140 | 2.5 | 0.5×2 | 49.7 | 3610 | 175/165 | |
| 8.3 | 50 | 3.4 | 0.387 | 2.4 | 46.3 | 2956 | 180/165 | 2.6 | 0.5×2 | 52.7 | 4252 | 205/195 | |
| 9.8 | 70 | 3.4 | 0.268 | 2.5 | 50.4 | 3725 | 220/210 | 2.7 | 0.5×2 | 56.6 | 5102 | 255/245 | |
| 11.5 | 95 | 3.4 | 0.193 | 2.7 | 54 | 4603 | 265/255 | 2.8 | 0.5×2 | 60.2 | 6073 | 300/300 | |
| 12.9 | 120 | 3.4 | 0.153 | 2.8 | 57.2 | 5463 | 300/290 | 2.9 | 0.5×2 | 63.4 | 7016 | 345/345 | |
| 14.5 | 150 | 3.4 | 0.124 | 2.9 | 60.9 | 6489 | 340/330 | 3.1 | 0.5×2 | 67.1 | 8137 | 385/390 | |
| 16 | 185 | 3.4 | 0.0991 | 3 | 64.5 | 7654 | 380/375 | 3.2 | 0.5×2 | 70.7 | 9395 | 435/445 | |
| 18.3 | 240 | 3.4 | 0.0754 | 3.2 | 69.7 | 9471 | 435/435 | 3.4 | 0.5×2 | 76.9 | 11521 | 505/525 | |
| 20.5 | 300 | 3.4 | 0.0601 | 3.3 | 74.6 | 11404 | 485/495 | 3.6 | 0.5×2 | 82 | 13626 | 565/595 | |
| Voltage level：8.7/10kV | |||||||||||||
| Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | |||||||
| Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
| Three cores | 6 | 25 | 4.5 | 0.727 | 2.4 | 46.4 | 2361 | 125/120 | 2.6 | 0.5×2 | 52.8 | 3660 | 150/140 |
| 7 | 35 | 4.5 | 0.524 | 2.5 | 48.8 | 2772 | 155/140 | 2.6 | 0.5×2 | 55 | 4109 | 175/170 | |
| 8.3 | 50 | 4.5 | 0.387 | 2.6 | 51.8 | 3357 | 180/165 | 2.8 | 0.5×2 | 58 | 4771 | 210/205 | |
| 9.8 | 70 | 4.5 | 0.268 | 2.7 | 55.6 | 4131 | 220/210 | 2.9 | 0.5×2 | 62 | 5671 | 255/250 | |
| 11.5 | 95 | 4.5 | 0.193 | 2.8 | 59.3 | 5036 | 265/255 | 3 | 0.5×2 | 65.7 | 6871 | 305/310 | |
| 12.9 | 120 | 4.5 | 0.153 | 2.9 | 62.5 | 5919 | 300/290 | 3.1 | 0.5×2 | 68.9 | 7639 | 350/350 | |
| 14.5 | 150 | 4.5 | 0.124 | 3 | 66.4 | 6998 | 340/330 | 3.2 | 0.5×2 | 72.6 | 8787 | 390/400 | |
| 16 | 185 | 4.5 | 0.0991 | 3.2 | 70 | 8189 | 380/375 | 3.4 | 0.5×2 | 77.2 | 10247 | 440/450 | |
| 18.3 | 240 | 4.5 | 0.0754 | 3.3 | 75.1 | 10043 | 435/435 | 3.5 | 0.5×2 | 82.3 | 13045 | 510/530 | |
| 20.5 | 300 | 4.5 | 0.0601 | 3.5 | 80.1 | 12013 | 485/495 | 3.8 | 0.5×2 | 87.5 | 15244 | 565/605 | |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.
Cable Structure
Mining Cable-Type G
Features
Optional materials and customization options
Type G cables can be customized according to customer needs, including but not limited to:
Sheath material: Other sheath materials such as CSP, PCP, NBR, PVC, etc. are available.
Double-layer sheath: Suitable for more demanding environments, the double-layer sheath design can be customized to enhance the cable's compression resistance and mechanical strength.
Intermediate reinforcement fiber: Provides higher tensile strength, suitable for applications requiring additional durability.
Mechanical properties：
Type G mining power cable has excellent mechanical properties, ensuring long-term stable operation in dynamic environments:
Minimum bending radius: The minimum bending radius of the cable is 6 times the outer diameter of the cable, which is suitable for high-frequency bending and stretching.
Working temperature: The maximum working temperature of the cable conductor is 90℃, which is suitable for working in high temperature environments and adapts to the temperature range of -40℃ to 90℃.
Pressure resistance and impact resistance: The pressure resistance and impact resistance of the cable sheath material ensure that the cable is not easily damaged in harsh environments.
