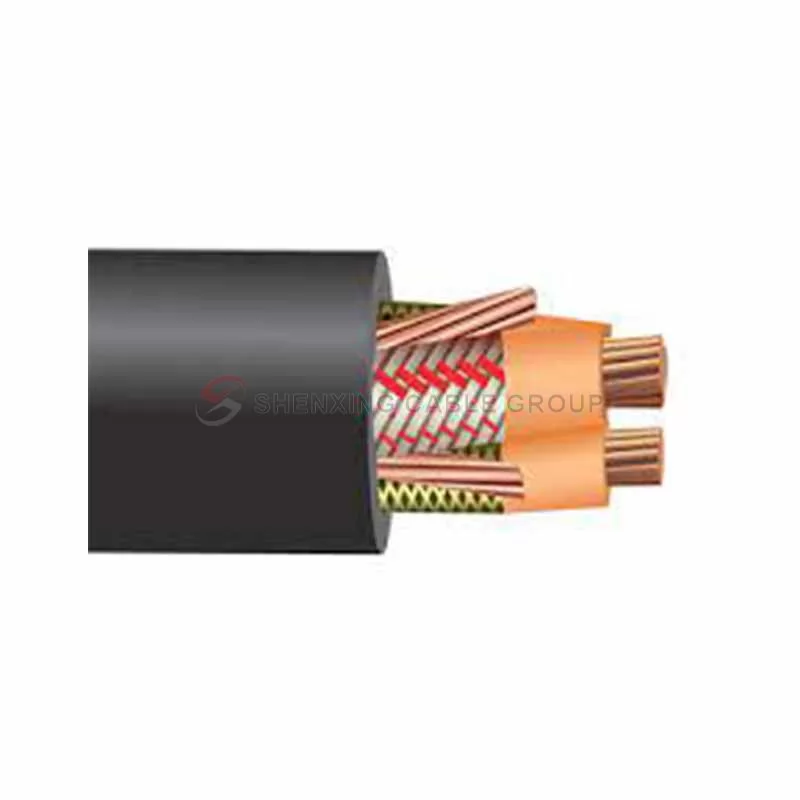

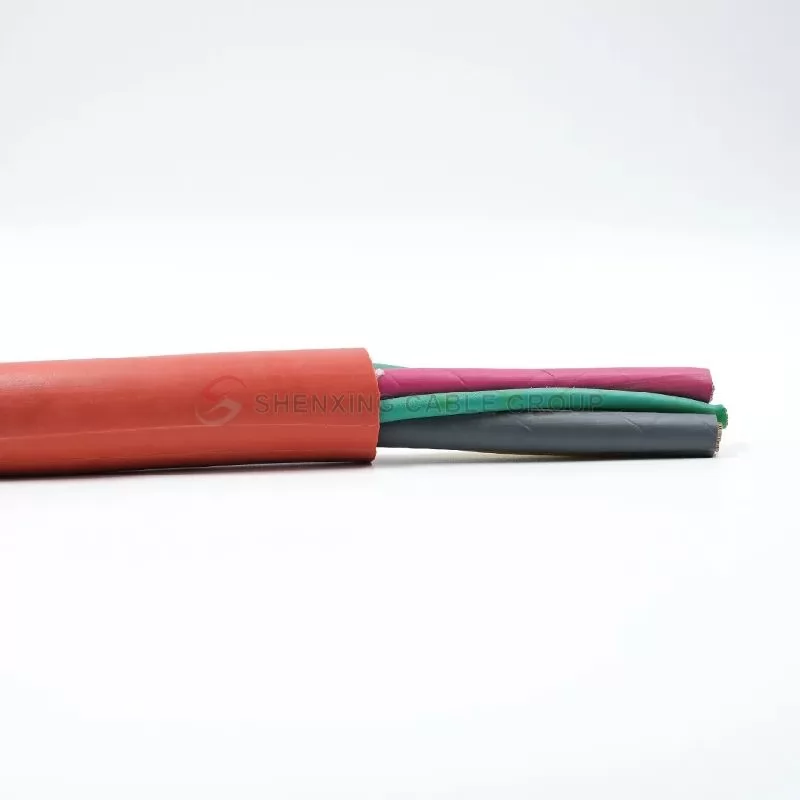

Type G-GC Mining Cable
The Type G-GC cables is designed for powering underground mining equipment. It features a ground check wire for monitoring the ground wire, in compliance with Mine Safety and Health Administration (MSHA) requirements. This cable consists of three separate phase conductors and two ground wires, all rated for operation up to 2,000 volts. It is protected by a durable chlorinated polyethylene (CPE) jacket. Approved by MSHA, this mining cable is engineered for superior impact and abrasion resistance, making it ideal for environments that require frequent flexing and tension.
Share:
Shenxing Cable Group offers a comprehensive range of mining cable products, covering a variety of types for different application needs, including:
Type G mining Cable: Suitable for various industrial equipment and mining power transmission.
Type G-GC mining Cable: Designed for mining power systems that require grounding, with higher durability and flexibility.
Type SHD-GC mining Cable: Reinforced mining cable, suitable for heavy load environments.
Type W Cable: Strong cable designed for mobile equipment and temporary power supply.
PVC insulated cable: Mining cable suitable for general power transmission, with excellent wear resistance.
XLPE insulated mining cable: With stronger resistance to high temperature and aging, suitable for high load environments.
Applications
Type G-GC Cable is an ideal choice for various industrial and mining power supplies. It is particularly prominent in the following areas:
Mining power supply: suitable for power transmission in mines, open-pit mines and other harsh environments.
Heavy-duty electrical equipment: provides stable power for mobile and portable electrical
equipment to ensure continuous and stable operation of the equipment under high load.
Marine and wet environment: meets the requirements of marine cables and can be safely used in wet marine or dock environments.
Technical Data of G-GC Mining Cables
Voltage level:0.6/1kV | ||||||||||||||||||
Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | Steel Wire Armor | |||||||||||
Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Wire Diameter (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
Three cores | 1.8 | 2.5 | 0.8 | 7.41 | 1.8 | 11.8 | 187 | 29/19 | ||||||||||
2.3 | 4 | 1 | 4.61 | 1.8 | 13.7 | 265 | 38/26 | 1.8 | 0.2×2 | 17.3 | 489 | 38/26 | ||||||
2.8 | 6 | 1 | 3.08 | 1.8 | 15.7 | 380 | 47/32 | 1.8 | 0.2×2 | 18.4 | 577 | 47/32 | ||||||
3.8 | 10 | 1 | 1.83 | 1.8 | 17.6 | 514 | 65/46 | 1.8 | 0.2×2 | 21.2 | 800 | 65/46 | 1.8 | 0.8 | 23 | 1172 | 65/46 | |
4.8 | 16 | 1 | 1.15 | 1.8 | 19.8 | 728 | 84/60 | 1.8 | 0.2×2 | 23.5 | 1050 | 84/60 | 1.8 | 0.8 | 25.3 | 1457 | 84/60 | |
6 | 25 | 1.2 | 0.727 | 1.8 | 23.6 | 1084 | 110/77 | 1.8 | 0.2×2 | 27.2 | 1465 | 110/77 | 1.8 | 1.6 | 29 | 1936 | 110/77 | |
7 | 35 | 1.2 | 0.524 | 1.8 | 26.1 | 1422 | 130/95 | 1.9 | 0.2×2 | 30.7 | 2150 | 130/95 | 1.9 | 1.6 | 31.7 | 2359 | 130/95 | |
8.3 | 50 | 1.4 | 0.387 | 1.8 | 26.5 | 1801 | 155/115 | 2 | 0.5×2 | 31.4 | 2453 | 155/115 | 2 | 1.6 | 36.4 | 3216 | 155/115 | |
9.8 | 70 | 1.4 | 0.268 | 1.9 | 28.8 | 2415 | 195/145 | 2.2 | 0.5×2 | 33.6 | 3116 | 195/145 | 2.2 | 2 | 41.1 | 4164 | 195/145 | |
11.5 | 95 | 1.6 | 0.193 | 2.1 | 33.7 | 3255 | 230/185 | 2.4 | 0.5×2 | 38.2 | 4053 | 230/185 | 2.4 | 2 | 47.4 | 5498 | 230/185 | |
12.9 | 120 | 1.6 | 0.153 | 2.2 | 37.1 | 4037 | 260/210 | 2.5 | 0.5×2 | 41.9 | 4930 | 260/210 | 2.5 | 2 | 51.3 | 6836 | 260/210 | |
14.5 | 150 | 1.8 | 0.124 | 2.3 | 41.9 | 5028 | 300/245 | 2.6 | 0.5×2 | 47.1 | 6075 | 300/245 | 2.6 | 2.5 | 55.9 | 8061 | 300/245 | |
16 | 185 | 2 | 0.0991 | 2.5 | 45.9 | 6180 | 335/280 | 2.8 | 0.5×2 | 50.9 | 7300 | 335/280 | 2.8 | 2.5 | 61.4 | 9640 | 335/280 | |
18.3 | 240 | 2.2 | 0.0754 | 2.7 | 51.7 | 7947 | 390/335 | 3 | 0.5×2 | 57 | 9231 | 390/335 | 3 | 2.5 | 68.5 | 12002 | 390/335 | |
20.5 | 300 | 2.4 | 0.0601 | 3.2 | 0.5×2 | 61.8 | 11277 | 435/375 | 3.2 | 2.5 | 75.2 | 14489 | 435/375 |
Voltage level:6/6 6/10kV | |||||||||||||
Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | |||||||
Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
Four cores | |||||||||||||
1.8 | 2.5 | 0.8 | 7.41 | 1.8 | 12.6 | 211 | 29/19 | ||||||
2.3 | 4 | 1 | 4.61 | 1.8 | 14.7 | 305 | 38/26 | 1.8 | 0.2×2 | 16.5 | 435 | 38/26 | |
2.8 | 6 | 1 | 3.08 | 1.8 | 15.9 | 400 | 47/32 | 1.8 | 0.2×2 | 17.7 | 542 | 47/32 | |
3.8 | 10 | 1 | 1.83 | 1.8 | 19 | 610 | 65/46 | 1.8 | 0.2×2 | 20.8 | 764 | 65/46 | |
4.8 | 16 | 1 | 1.15 | 1.8 | 21.6 | 871 | 84/60 | 1.8 | 0.2×2 | 23.4 | 1048 | 84/60 | |
6 | 25 | 1.2 | 0.727 | 1.8 | 26.7 | 1316 | 110/77 | 1.8 | 0.2×2 | 27.5 | 1529 | 110/77 | |
7 | 35 | 1.2 | 0.524 | 1.8 | 28.5 | 1732 | 130/95 | 1.8 | 0.2×2 | 30.3 | 1968 | 130/95 | |
8.3 | 50 | 1.4 | 0.387 | 1.9 | 32.9 | 2327 | 155/115 | 1.9 | 0.5×2 | 36.7 | 2960 | 155/115 | |
9.8 | 70 | 1.4 | 0.268 | 2.1 | 38.1 | 3264 | 195/145 | 2.1 | 0.5×2 | 41.3 | 3956 | 195/145 | |
11.5 | 95 | 1.6 | 0.193 | 2.2 | 43.8 | 4455 | 230/185 | 2.2 | 0.5×2 | 47.2 | 5273 | 230/185 | |
12.9 | 120 | 1.6 | 0.153 | 2.4 | 48.1 | 5530 | 260/210 | 2.4 | 0.5×2 | 51.3 | 6403 | 260/210 | |
14.5 | 150 | 1.8 | 0.124 | 2.5 | 53 | 6266 | 300/245 | 2.6 | 0.5×2 | 56.4 | 7757 | 300/245 | |
16 | 185 | 2 | 0.0991 | 2.7 | 59 | 8431 | 335/280 | 2.8 | 0.5×2 | 62.4 | 9524 | 335/280 | |
18.3 | 240 | 2.2 | 0.0754 | 2.9 | 61.9 | 10972 | 390/335 | 3 | 0.5×2 | 70.1 | 12207 | 390/335 | |
20.5 | 300 | 2.4 | 0.0601 | 3.2 | 0.5×2 | 77.3 | 15044 | 435/375 | |||||
3+1cores | 2.3 | 4 | 1 | 4.61 | 1.8 | 14.1 | 281 | 38/26 | 1.8 | 0.2×2 | 16.9 | 521 | 38/26 |
1.8 | 2.5 | 0.8 | 7.41 | ||||||||||
2.8 | 6 | 1 | 3.08 | 1.8 | 15.6 | 376 | 47/32 | 1.8 | 0.2×2 | 18.4 | 710 | 47/32 | |
2.3 | 4 | 1 | 4.61 | ||||||||||
3.8 | 10 | 1 | 1.83 | 1.8 | 18.2 | 555 | 65/46 | 1.8 | 0.2×2 | 21 | 982 | 65/46 | |
2.8 | 6 | 1 | 3.08 | ||||||||||
4.8 | 16 | 1 | 1.15 | 1.8 | 20.9 | 804 | 84/60 | 1.8 | 0.2×2 | 23.7 | 1412 | 84/60 | |
3.8 | 10 | 1 | 1.83 | ||||||||||
6 | 25 | 1.2 | 0.727 | 1.8 | 24.6 | 1202 | 110/77 | 1.8 | 0.2×2 | 27.4 | 1740 | 110/77 | |
4.8 | 16 | 1 | 1.15 | ||||||||||
7 | 35 | 1.2 | 0.524 | 1.8 | 26.7 | 1511 | 130/95 | 1.8 | 0.2×2 | 29.5 | 2214 | 130/95 | |
4.8 | 16 | 1 | 1.15 | ||||||||||
8.3 | 50 | 1.4 | 0.387 | 1.9 | 31.1 | 2071 | 155/115 | 1.9 | 0.5×2 | 33.9 | 2864 | 155/115 | |
6 | 25 | 1.2 | 0.727 | ||||||||||
9.8 | 70 | 1.4 | 0.268 | 2 | 35.6 | 2868 | 195/145 | 2.1 | 0.5×2 | 39.3 | 3539 | 195/145 | |
7 | 35 | 1.2 | 0.524 | ||||||||||
11.5 | 95 | 1.6 | 0.193 | 2.2 | 37.8 | 3859 | 230/185 | 2.2 | 0.5×2 | 44.7 | 4679 | 230/185 | |
8.3 | 50 | 1.4 | 0.387 | ||||||||||
12.9 | 120 | 1.6 | 0.153 | 2.4 | 39 | 4851 | 260/210 | 2.4 | 0.5×2 | 49.1 | 5797 | 260/210 | |
9.8 | 70 | 1.4 | 0.268 | ||||||||||
14.5 | 150 | 1.8 | 0.124 | 2.6 | 41 | 5746 | 300/245 | 2.5 | 0.5×2 | 52.8 | 6971 | 300/245 | |
9.8 | 70 | 1.4 | 0.268 | ||||||||||
16 | 185 | 2 | 0.0991 | 2.8 | 42.3 | 7160 | 335/280 | 2.6 | 0.5×2 | 58.5 | 8495 | 335/280 | |
11.5 | 95 | 1.6 | 0.193 | ||||||||||
18.3 | 240 | 2.2 | 0.0754 | 2.8 | 0.5×2 | 65.3 | 10702 | 390/335 | |||||
12.9 | 120 | 1.6 | 0.2193 | ||||||||||
4+1cores | 1.8 | 15.4 | 343 | 38/26 | 1.8 | 0.2×2 | 17.2 | 480 | 38/26 | ||||
1.8 | 2.5 | 0.8 | 7.41 | ||||||||||
2.8 | 6 | 1 | 3.08 | 1.8 | 17 | 461 | 47/32 | 1.8 | 0.2×2 | 18.8 | 613 | 47/32 | |
2.3 | 4 | 1 | 4.61 | ||||||||||
3.8 | 10 | 1 | 1.83 | 1.8 | 20 | 690 | 65/46 | 1.8 | 0.2×2 | 21.8 | 853 | 65/46 | |
2.8 | 6 | 1 | 3.08 | ||||||||||
4.8 | 16 | 1 | 1.15 | 1.8 | 23 | 1002 | 84/60 | 1.8 | 0.2×2 | 24.8 | 1191 | 84/60 | |
3.8 | 10 | 1 | 1.83 | ||||||||||
6 | 25 | 1.2 | 0.727 | 1.8 | 27.3 | 1508 | 110/77 | 1.8 | 0.2×2 | 29.1 | 1734 | 110/77 | |
4.8 | 16 | 1 | 1.15 | ||||||||||
7 | 35 | 1.2 | 0.524 | 1.8 | 29.7 | 1919 | 130/95 | 1.9 | 0.5×2 | 31.7 | 2180 | 130/95 | |
4.8 | 16 | 1 | 1.15 | ||||||||||
8.3 | 50 | 1.4 | 0.387 | 2 | 35.2 | 2652 | 155/115 | 2 | 0.5×2 | 38.5 | 3291 | 155/115 | |
6 | 25 | 1.2 | 0.727 | ||||||||||
9.8 | 70 | 1.4 | 0.268 | 2.1 | 39.9 | 3657 | 195/145 | 2.2 | 0.5×2 | 43.3 | 4403 | 195/145 | |
7 | 35 | 1.2 | 0.524 | ||||||||||
11.5 | 95 | 1.6 | 0.193 | 2.3 | 43.5 | 4562 | 230/185 | 2.4 | 0.5×2 | 49.6 | 5869 | 230/185 | |
8.3 | 50 | 1.4 | 0.387 | ||||||||||
12.9 | 120 | 1.6 | 0.153 | 2.5 | 51.1 | 6380 | 260/210 | 2.5 | 0.5×2 | 54.3 | 7234 | 260/210 | |
9.8 | 70 | 1.4 | 0.268 | ||||||||||
14.5 | 150 | 1.8 | 0.124 | 2.6 | 55.5 | 7538 | 300/245 | 2.7 | 0.5×2 | 58.9 | 8570 | 300/245 | |
9.8 | 70 | 1.4 | 0.268 | ||||||||||
16 | 185 | 2 | 0.0991 | 2.8 | 62.1 | 9488 | 335/285 | 2.9 | 0.5×2 | 65.5 | 10638 | 335/280 | |
11.5 | 95 | 1.6 | 0.193 | ||||||||||
18.3 | 240 | 2.2 | 0.0754 | 3 | 69.8 | 12277 | 390/335 | 3.1 | 0.5×2 | 73.2 | 13571 | 390/335 | |
12.9 | 120 | 1.6 | 0.193 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

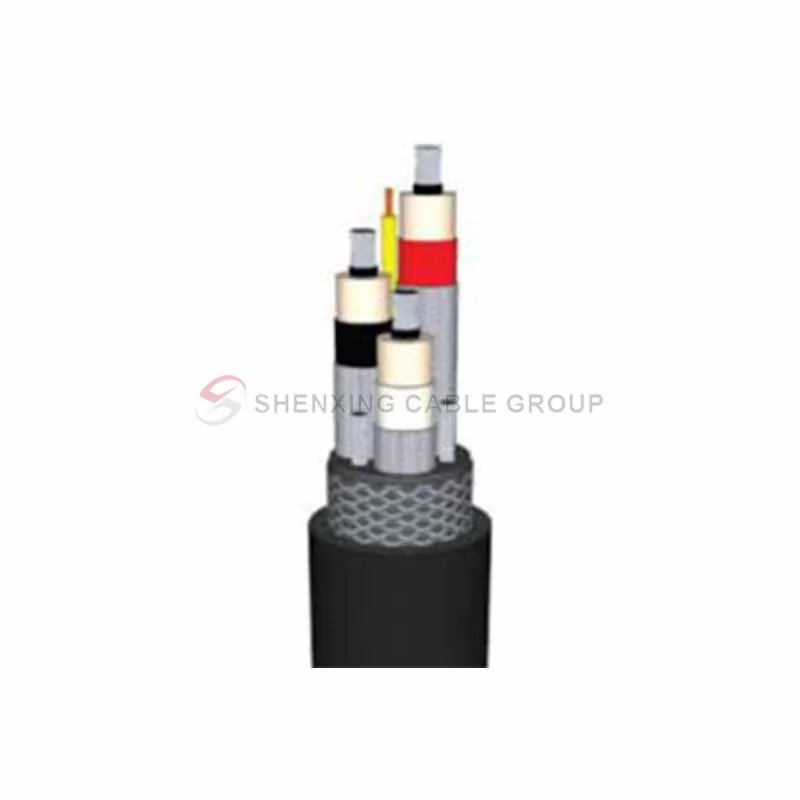

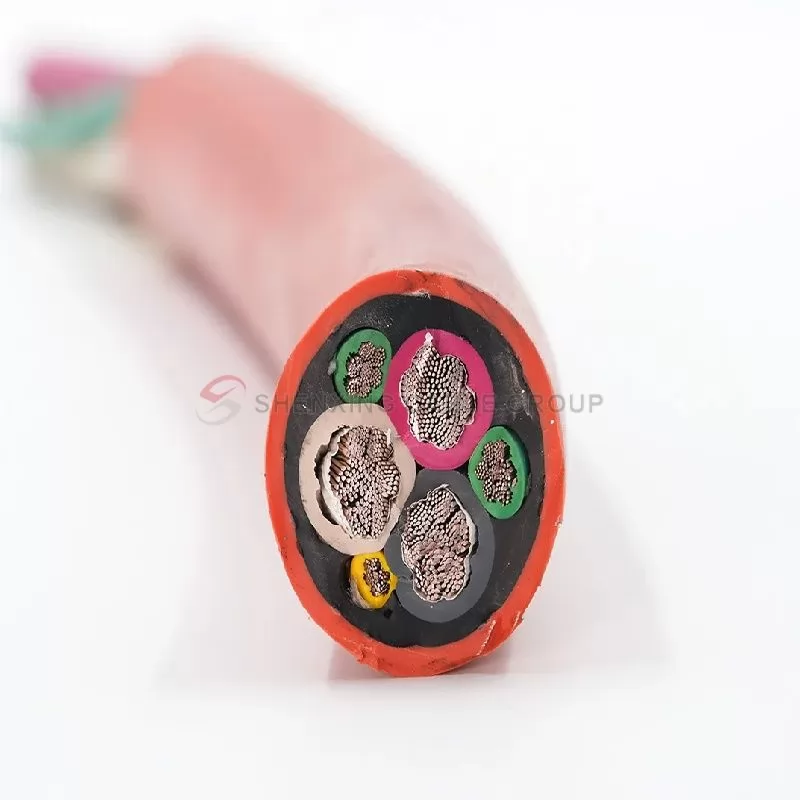

G-GC Mining Cables Structure

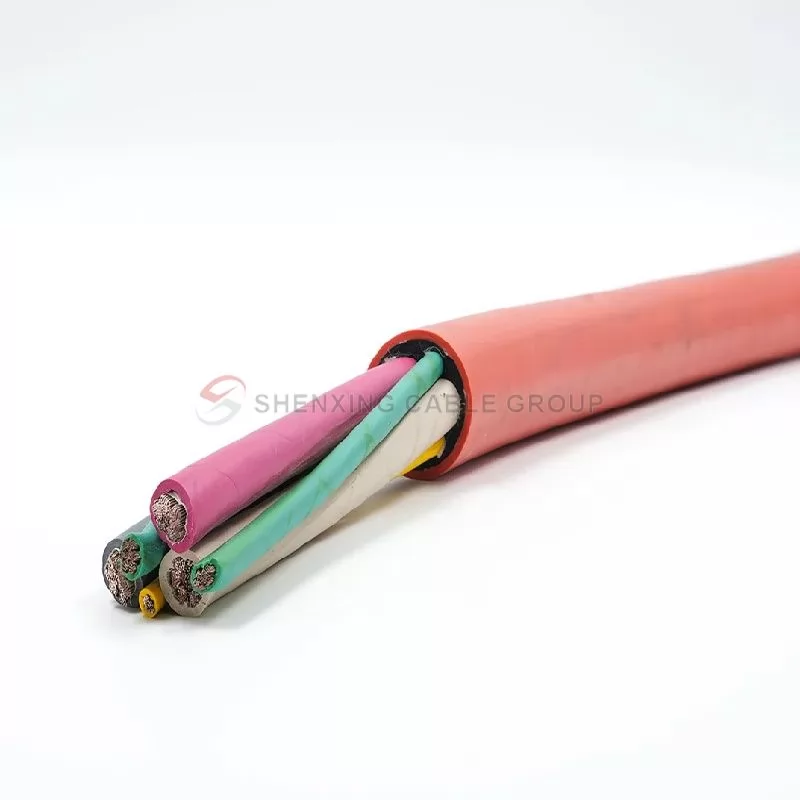

Type G-GC cables are designed with three main phase conductors, two smaller ground wires, and an additional ground check wire, all wrapped together in a circular arrangement and protected by a durable CPE (Chlorinated Polyethylene) jacket.
The cable consists of three phase conductors, typically color-coded red, white, and black. These conductors are made from fine strands of soft-drawn copper, which are arranged using a rope-lay stranding technique to enhance flexibility. The conductors are insulated with synthetic rubber, specifically ethylene propylene diene monomer (EPDM), which provides excellent durability.
Two ground wires are included in the cable, made from pure copper strands. These are smaller in diameter compared to the phase conductors and are insulated with green EPDM for easy identification.
The ground check wire is used for monitoring the integrity of the ground circuit. It is easily recognizable by its yellow insulation. This wire helps detect any issues in the ground system by passing a current through it and the ground wires. If a failure occurs, the ground check circuit is interrupted, causing the circuit breaker to trip and protect the system.
The entire cable is wrapped in a compression-molded chlorinated polyethylene (CPE) jacket after extrusion. CPE offers superior resistance to oil, water, abrasion, and crushing, making the cable highly durable in demanding environments. Additionally, non-wicking fillers and binders are used to ensure the cable maintains a consistent, uniform circular shape.
Features
Type G-GC Cable Structure and Materials
The production of Type G-GC Cable adopts advanced materials and processes to ensure that the product quality meets the industry's top standards. The specific structure is as follows:
Conductor: Adopt annealed copper stranded conductor, which has extremely high conductivity and flexibility.
Insulation layer: Use high-quality ethylene propylene rubber (EPR) for insulation, providing excellent impact resistance, aging resistance and abrasion resistance.
Grounding conductor: Adopt tinned copper material to enhance the flexibility and fatigue resistance of the cable, and equipped with polypropylene insulation to ensure the long-term stability of the grounding function.
Outer sheath: Adopt durable CPE rubber outer sheath, provide additional tensile strength, and have permanent gravure markings for easy on-site identification, with excellent torsion resistance.
Type G-GC cable standards and certifications
Rated voltage: 2000 volts, suitable for 90°C dry environment and 75°C wet environment
Operating temperature range: -40°C to 90°C, meeting the use requirements under extreme temperature conditions
Certification qualifications: UL and c(UL) certified, in compliance with the requirements of the Mine Safety and Health Administration (MSHA)
Flame retardant performance: Passed FT-5 flame retardant test and UL 1650 standard to ensure efficient fire safety
Environmental protection standards: Comply with RoHS environmental protection directives and meet green environmental protection requirements
Production
Production Equipment
Experimental Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
How is the durability of Type G-GC cable?
It has excellent abrasion resistance, oil resistance, solvent resistance and aging resistance, and can cope with harsh industrial and mining environments.
Does this cable pass the flame retardant test?
Yes, Type G-GC cable has passed the FT-5 flame retardant test and UL 1650 standard, and has excellent fire resistance.
What are the rated voltage and temperature range of Type G-GC cable?
The rated voltage is 2000 volts, the operating temperature range is -40°C to 90°C, and it is suitable for high temperature dry (90°C) and wet environments (75°C).
What systems can Type G-GC cable be used for?
It is suitable for three-phase AC systems and meets the needs of power applications that require 3-core or 4-core conductors and require grounding.
What are the main applications of Type G-GC Cable?
Type G-GC cable is suitable for power transmission in industrial equipment, light to medium mining scenarios, especially as power cables in mobile and portable electrical equipment. It is also suitable for wet environments such as ships and docks.
