High Performance Type SHD-GC Mining Cable

Technical Data

Voltage level：0.6/1kV
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	No armor				With Steel Armor					Steel Wire Armor
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	Sheath Thickness (mm)	Cable outer diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Strip Thickness (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Wire Diameter (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)
Three cores	1.8	2.5	0.8	7.41	1.8	11.8	187	29/19
	2.3	4	1	4.61	1.8	13.7	265	38/26	1.8	0.2×2	17.3	489	38/26
	2.8	6	1	3.08	1.8	15.7	380	47/32	1.8	0.2×2	18.4	577	47/32
	3.8	10	1	1.83	1.8	17.6	514	65/46	1.8	0.2×2	21.2	800	65/46	1.8	0.8	23	1172	65/46
	4.8	16	1	1.15	1.8	19.8	728	84/60	1.8	0.2×2	23.5	1050	84/60	1.8	0.8	25.3	1457	84/60
	6	25	1.2	0.727	1.8	23.6	1084	110/77	1.8	0.2×2	27.2	1465	110/77	1.8	1.6	29	1936	110/77
	7	35	1.2	0.524	1.8	26.1	1422	130/95	1.9	0.2×2	30.7	2150	130/95	1.9	1.6	31.7	2359	130/95
	8.3	50	1.4	0.387	1.8	26.5	1801	155/115	2	0.5×2	31.4	2453	155/115	2	1.6	36.4	3216	155/115
	9.8	70	1.4	0.268	1.9	28.8	2415	195/145	2.2	0.5×2	33.6	3116	195/145	2.2	2	41.1	4164	195/145
	11.5	95	1.6	0.193	2.1	33.7	3255	230/185	2.4	0.5×2	38.2	4053	230/185	2.4	2	47.4	5498	230/185
	12.9	120	1.6	0.153	2.2	37.1	4037	260/210	2.5	0.5×2	41.9	4930	260/210	2.5	2	51.3	6836	260/210
	14.5	150	1.8	0.124	2.3	41.9	5028	300/245	2.6	0.5×2	47.1	6075	300/245	2.6	2.5	55.9	8061	300/245
	16	185	2	0.0991	2.5	45.9	6180	335/280	2.8	0.5×2	50.9	7300	335/280	2.8	2.5	61.4	9640	335/280
	18.3	240	2.2	0.0754	2.7	51.7	7947	390/335	3	0.5×2	57	9231	390/335	3	2.5	68.5	12002	390/335
	20.5	300	2.4	0.0601					3.2	0.5×2	61.8	11277	435/375	3.2	2.5	75.2	14489	435/375

Voltage level：6/6 6/10kV
Number of cores	Conductor Diameter (mm)	Conductor cross section (mm2)	Insulation Thickness (mm)	Resistance (Ω/km)	No armor				With Steel Armor
					Sheath Thickness (mm)	Cable outer diameter (mm)	weight (kg/km)	Current (A)	Sheath Thickness (mm)	Strip Thickness (mm)	Cable Outer Diameter (mm)	weight (kg/km)	Current (A)
Four cores
	1.8	2.5	0.8	7.41	1.8	12.6	211	29/19
	2.3	4	1	4.61	1.8	14.7	305	38/26	1.8	0.2×2	16.5	435	38/26
	2.8	6	1	3.08	1.8	15.9	400	47/32	1.8	0.2×2	17.7	542	47/32
	3.8	10	1	1.83	1.8	19	610	65/46	1.8	0.2×2	20.8	764	65/46
	4.8	16	1	1.15	1.8	21.6	871	84/60	1.8	0.2×2	23.4	1048	84/60
	6	25	1.2	0.727	1.8	26.7	1316	110/77	1.8	0.2×2	27.5	1529	110/77
	7	35	1.2	0.524	1.8	28.5	1732	130/95	1.8	0.2×2	30.3	1968	130/95
	8.3	50	1.4	0.387	1.9	32.9	2327	155/115	1.9	0.5×2	36.7	2960	155/115
	9.8	70	1.4	0.268	2.1	38.1	3264	195/145	2.1	0.5×2	41.3	3956	195/145
	11.5	95	1.6	0.193	2.2	43.8	4455	230/185	2.2	0.5×2	47.2	5273	230/185
	12.9	120	1.6	0.153	2.4	48.1	5530	260/210	2.4	0.5×2	51.3	6403	260/210
	14.5	150	1.8	0.124	2.5	53	6266	300/245	2.6	0.5×2	56.4	7757	300/245
	16	185	2	0.0991	2.7	59	8431	335/280	2.8	0.5×2	62.4	9524	335/280
	18.3	240	2.2	0.0754	2.9	61.9	10972	390/335	3	0.5×2	70.1	12207	390/335
	20.5	300	2.4	0.0601					3.2	0.5×2	77.3	15044	435/375
3+1cores	2.3	4	1	4.61	1.8	14.1	281	38/26	1.8	0.2×2	16.9	521	38/26
	1.8	2.5	0.8	7.41
	2.8	6	1	3.08	1.8	15.6	376	47/32	1.8	0.2×2	18.4	710	47/32
	2.3	4	1	4.61
	3.8	10	1	1.83	1.8	18.2	555	65/46	1.8	0.2×2	21	982	65/46
	2.8	6	1	3.08
	4.8	16	1	1.15	1.8	20.9	804	84/60	1.8	0.2×2	23.7	1412	84/60
	3.8	10	1	1.83
	6	25	1.2	0.727	1.8	24.6	1202	110/77	1.8	0.2×2	27.4	1740	110/77
	4.8	16	1	1.15
	7	35	1.2	0.524	1.8	26.7	1511	130/95	1.8	0.2×2	29.5	2214	130/95
	4.8	16	1	1.15
	8.3	50	1.4	0.387	1.9	31.1	2071	155/115	1.9	0.5×2	33.9	2864	155/115
	6	25	1.2	0.727
	9.8	70	1.4	0.268	2	35.6	2868	195/145	2.1	0.5×2	39.3	3539	195/145
	7	35	1.2	0.524
	11.5	95	1.6	0.193	2.2	37.8	3859	230/185	2.2	0.5×2	44.7	4679	230/185
	8.3	50	1.4	0.387
	12.9	120	1.6	0.153	2.4	39	4851	260/210	2.4	0.5×2	49.1	5797	260/210
	9.8	70	1.4	0.268
	14.5	150	1.8	0.124	2.6	41	5746	300/245	2.5	0.5×2	52.8	6971	300/245
	9.8	70	1.4	0.268
	16	185	2	0.0991	2.8	42.3	7160	335/280	2.6	0.5×2	58.5	8495	335/280
	11.5	95	1.6	0.193
	18.3	240	2.2	0.0754					2.8	0.5×2	65.3	10702	390/335
	12.9	120	1.6	0.2193
4+1cores					1.8	15.4	343	38/26	1.8	0.2×2	17.2	480	38/26
	1.8	2.5	0.8	7.41
	2.8	6	1	3.08	1.8	17	461	47/32	1.8	0.2×2	18.8	613	47/32
	2.3	4	1	4.61
	3.8	10	1	1.83	1.8	20	690	65/46	1.8	0.2×2	21.8	853	65/46
	2.8	6	1	3.08
	4.8	16	1	1.15	1.8	23	1002	84/60	1.8	0.2×2	24.8	1191	84/60
	3.8	10	1	1.83
	6	25	1.2	0.727	1.8	27.3	1508	110/77	1.8	0.2×2	29.1	1734	110/77
	4.8	16	1	1.15
	7	35	1.2	0.524	1.8	29.7	1919	130/95	1.9	0.5×2	31.7	2180	130/95
	4.8	16	1	1.15
	8.3	50	1.4	0.387	2	35.2	2652	155/115	2	0.5×2	38.5	3291	155/115
	6	25	1.2	0.727
	9.8	70	1.4	0.268	2.1	39.9	3657	195/145	2.2	0.5×2	43.3	4403	195/145
	7	35	1.2	0.524
	11.5	95	1.6	0.193	2.3	43.5	4562	230/185	2.4	0.5×2	49.6	5869	230/185
	8.3	50	1.4	0.387
	12.9	120	1.6	0.153	2.5	51.1	6380	260/210	2.5	0.5×2	54.3	7234	260/210
	9.8	70	1.4	0.268
	14.5	150	1.8	0.124	2.6	55.5	7538	300/245	2.7	0.5×2	58.9	8570	300/245
	9.8	70	1.4	0.268
	16	185	2	0.0991	2.8	62.1	9488	335/285	2.9	0.5×2	65.5	10638	335/280
	11.5	95	1.6	0.193
	18.3	240	2.2	0.0754	3	69.8	12277	390/335	3.1	0.5×2	73.2	13571	390/335
	12.9	120	1.6	0.193

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

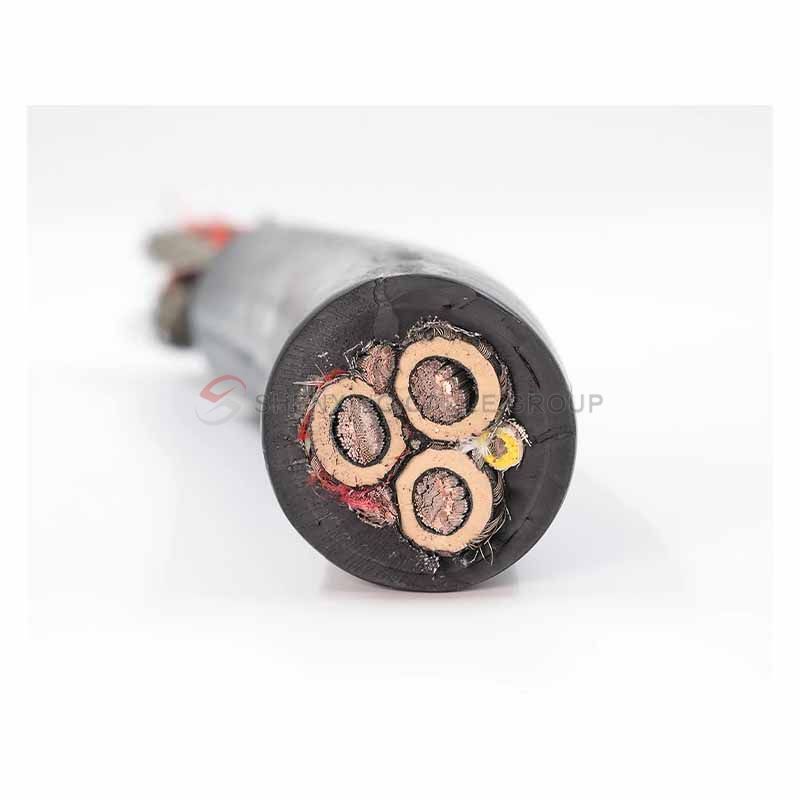

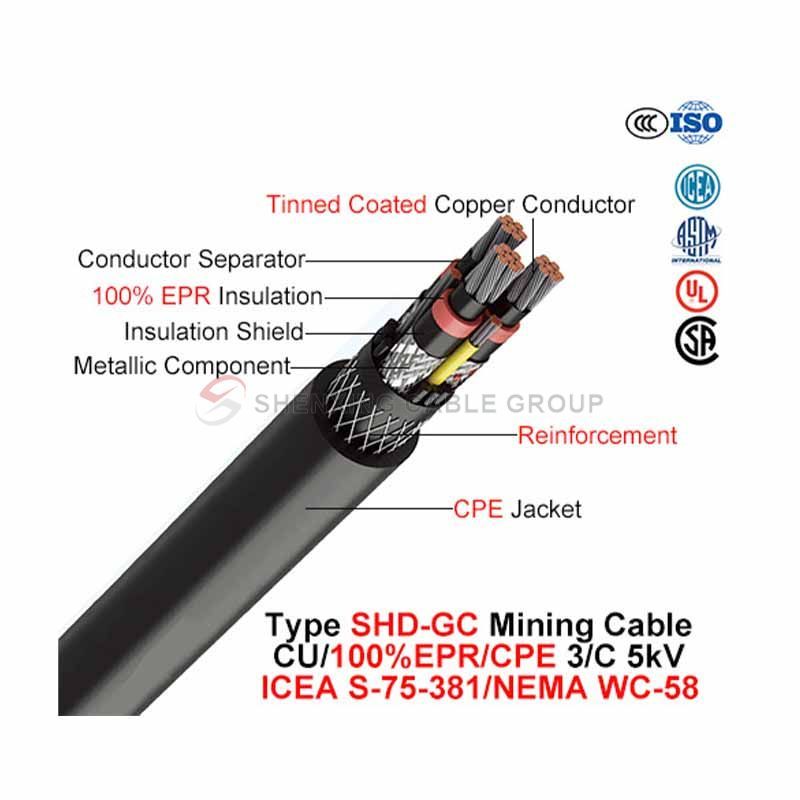

Type SHD-GC Mining Cable
High Performance Type SHD-GC Mining Cable

Features

Type SHD-GC Cable Features

Ground detection conductor: Flexible tinned copper conductor with polypropylene insulation layer to ensure efficient grounding function and long service life.

Insulation layer: Ethylene propylene rubber (EPR) material with a temperature resistance of up to 90°C is used, which has excellent impact resistance and abrasion resistance.

Insulation shield: Tinned copper and colored braided layer design are used to enhance the bending resistance and service life of the cable, while providing additional anti-interference ability.

Ground conductor: Made of flexible tinned copper, it increases the flexibility and fatigue resistance of the cable and adapts to frequently moving working environments.

Reinforced ground detection conductor: Made of heavy tinned copper and polypropylene insulation layer, it provides higher strength grounding function to meet the needs of harsh environments.

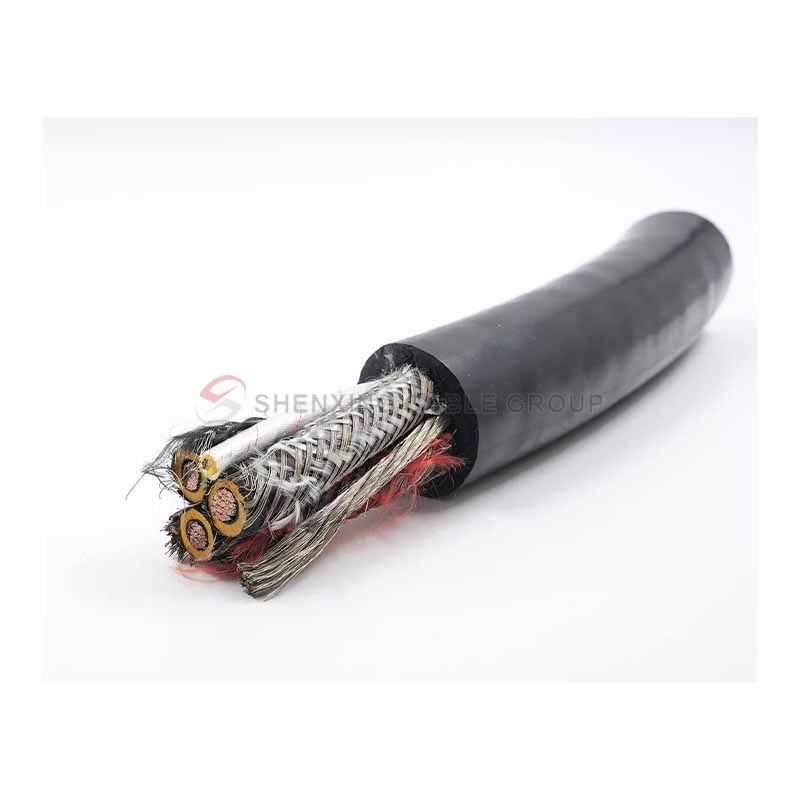

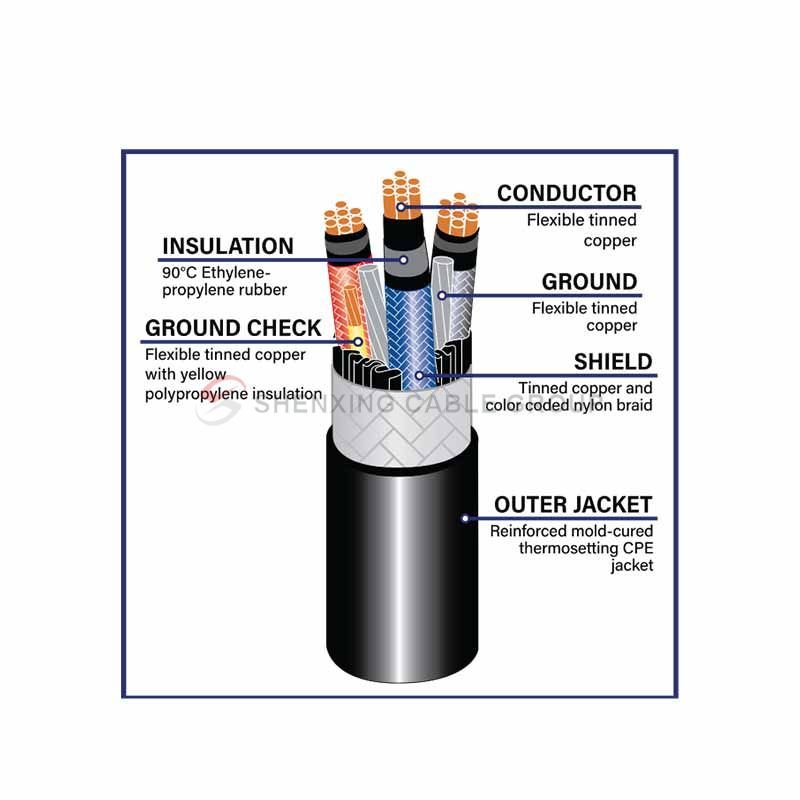

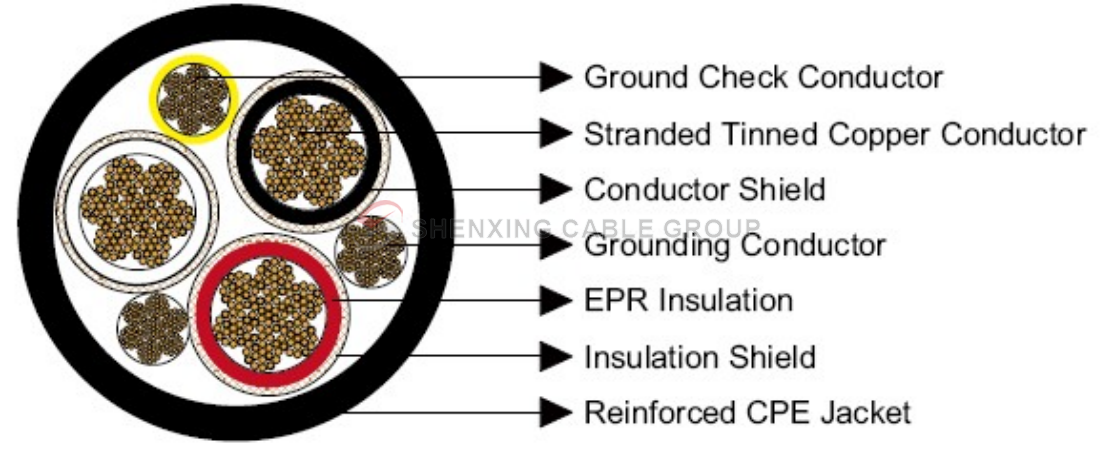

Type SHD-GC Cable Structure

Conductor: Made of twisted annealed tinned copper conductor, it has high conductivity and reliability.

Conductor shield: It adopts semi-conductive material layer design to improve conductor performance and reduce electrical interference.

Insulation layer: Ethylene propylene rubber (EPR) material is selected to provide excellent electrical insulation performance and high temperature resistance.

Insulation shield: It is composed of non-conductive tape and tinned copper/textile braided layer to enhance the anti-interference ability and durability of the cable.

Ground detection conductor: It is made of tinned copper with yellow polypropylene insulation layer to ensure the accuracy and durability of ground detection.

Ground conductor: It is composed of tinned copper conductor with good conductivity and flexibility.

Outer sheath: It uses reinforced extra-heavy chlorinated polyethylene (CPE) sheath, which is black in color. Other material options can be provided according to needs to adapt to different application scenarios.

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

How do I choose the right specifications for the SHD-GC mining cable?

To select the appropriate specification for the SHD-GC mining cable, you should consider factors such as the electrical load, equipment power requirements, and the length of the cable run. It is recommended to contact the cable manufacturer or supplier with specific details about your operating environment and electrical load to help determine the best cable model for your needs.

How durable is the SHD-GC mining cable?

This cable is made from high-strength materials and offers excellent resistance to pressure, tension, abrasion, and corrosion. It is highly resistant to common damage in mining environments, such as mechanical wear and chemical corrosion, ensuring long-term stable performance.

What is the operating temperature range of this mining cable?

The SHD-GC mining cable has an operating temperature range of typically -40°C to +90°C. It is designed to function reliably in extreme temperature conditions, making it suitable for harsh environmental conditions in mining areas.

Does the SHD-GC mining cable have fire-resistant properties?

Yes, the SHD-GC mining cable is typically made with fire-resistant and flame-retardant materials. It effectively slows the spread of flames in the event of a fire or high-temperature conditions, ensuring that the cable does not contribute to greater safety hazards. The fire-resistant performance complies with relevant national standards.

What is the main use of the SHD-GC mining cable?

The SHD-GC mining cable is primarily used for power transmission in underground or open-pit mining areas, including coal mines, metal mines, and quarries. It is designed to provide stable and safe power supply in environments with high humidity, corrosive gases, or potential mechanical damage.
