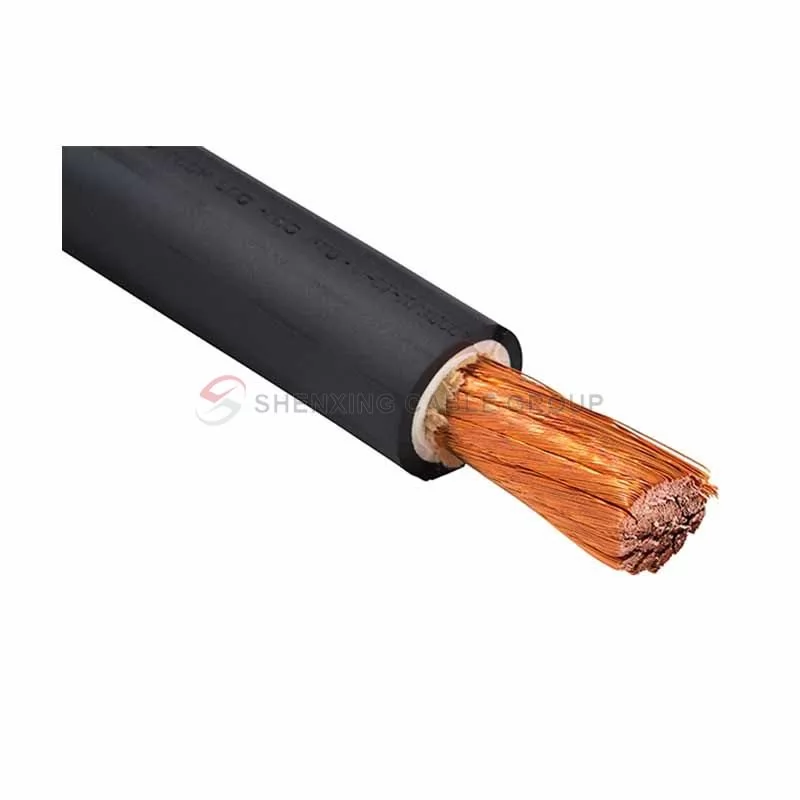

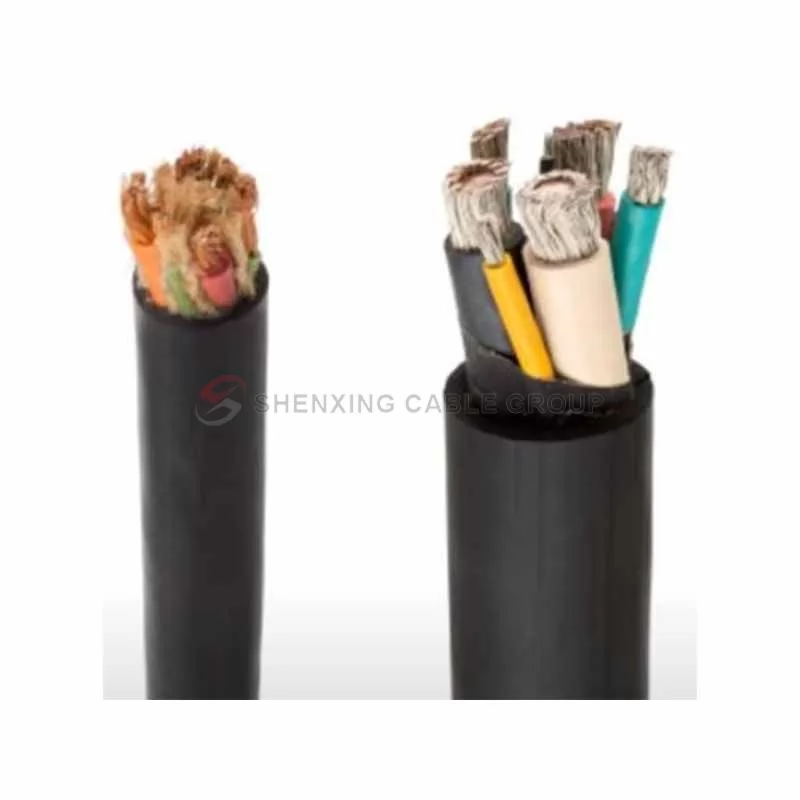

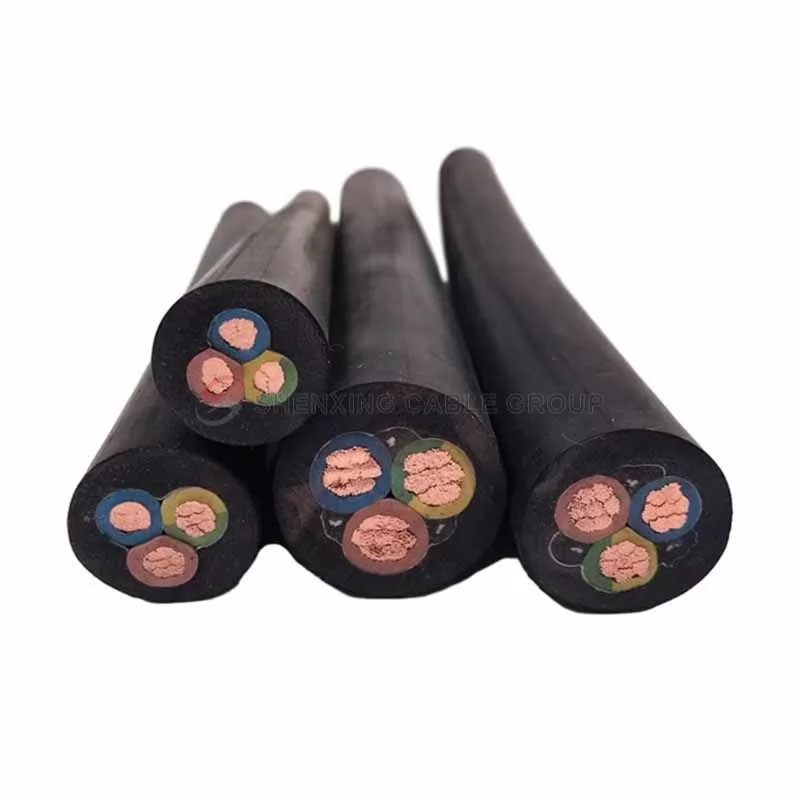

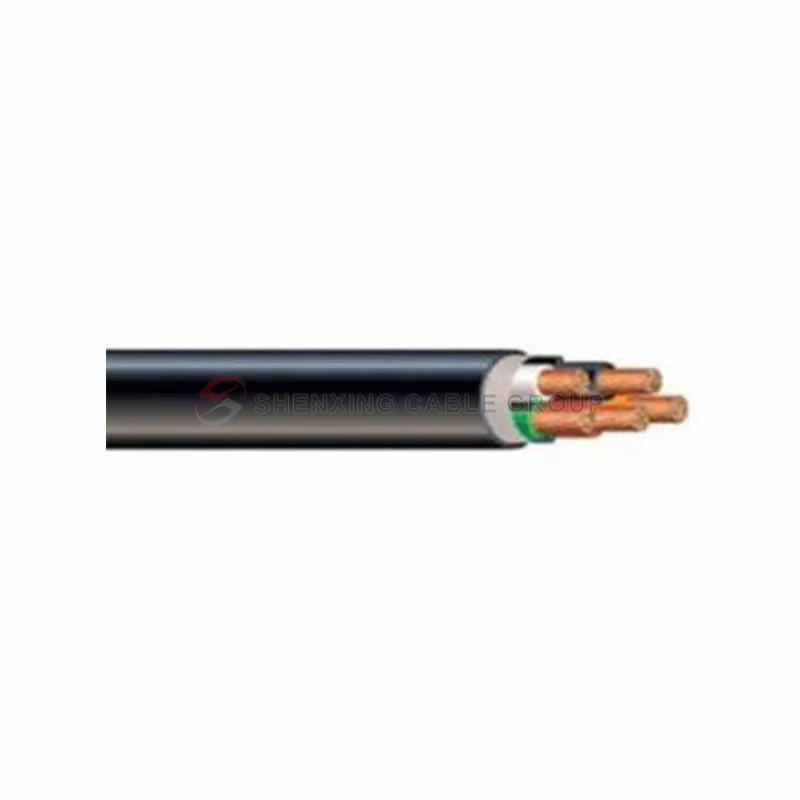

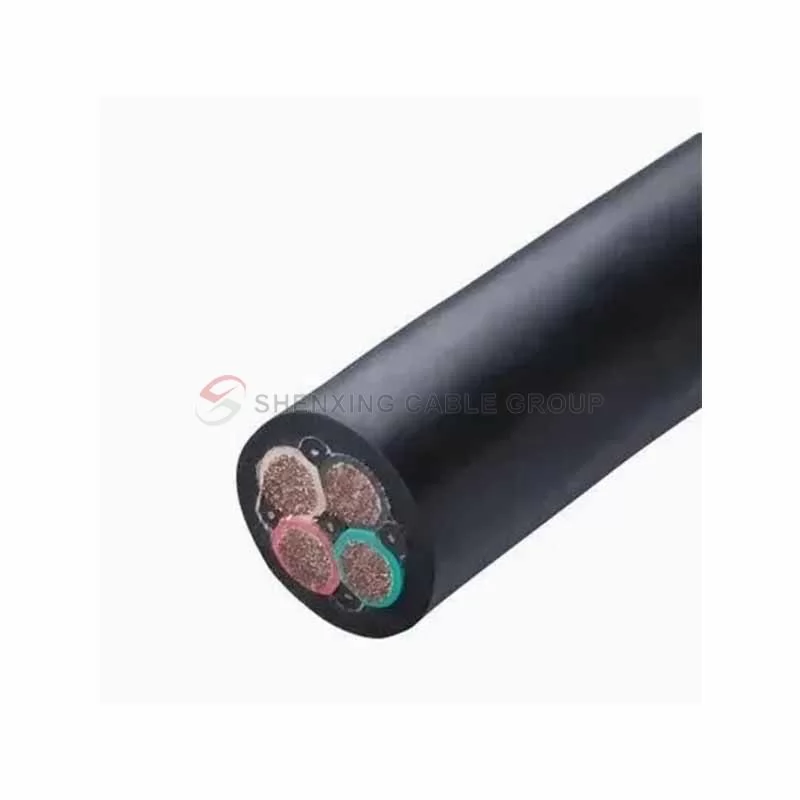

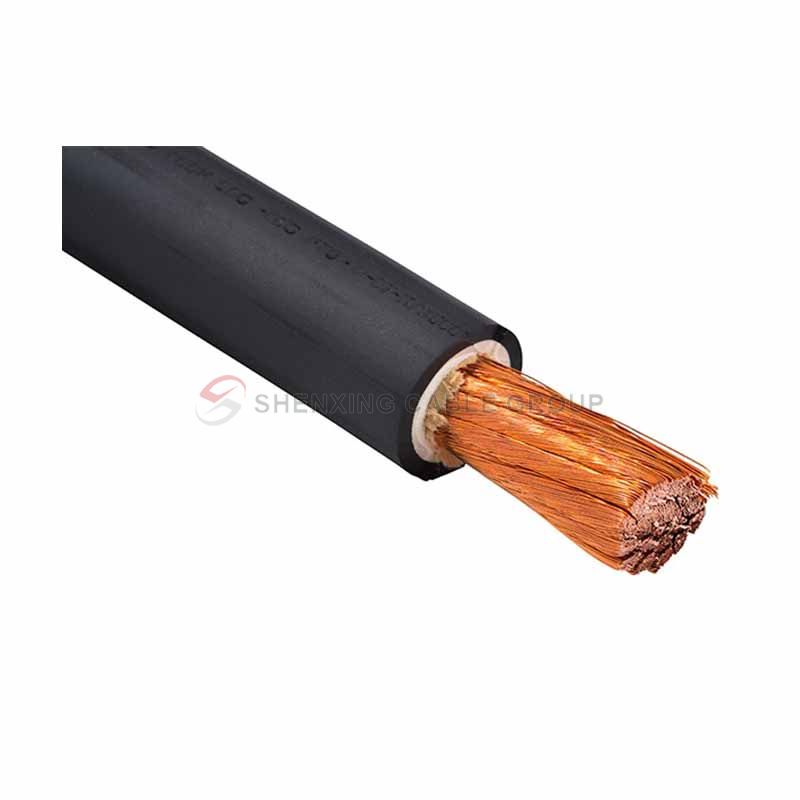

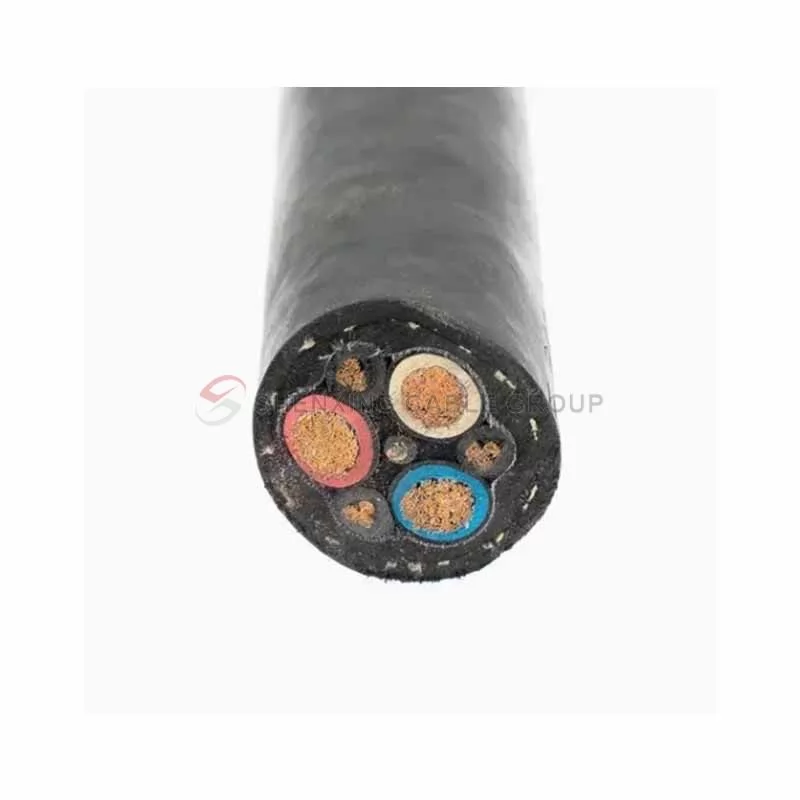

Mining Cable-Type W
Shenxing Cable's Type W flexible portable cable is rated up to 2000VAC and features a chlorinated polyethylene (CPE) sheath for superior durability and environmental adaptability.
Shenxing Cable's Type W cable is a reliable power solution for industrial and mining users with its superior performance and wide applicability, providing long-lasting support for equipment in harsh environments.
Share:
Our Mining Cable Series:
Shenxing Cable Group offers a comprehensive range of mining cable products, covering a variety of types for different application needs, including:
Type G Cable: Suitable for various industrial equipment and mining power transmission.
Type G-GC Cable: Designed for mining power systems that require grounding, with higher durability and flexibility.
Type SHD-GC Cable: Reinforced mining cable, suitable for heavy load environments.
Type W Cable: Strong cable designed for mobile equipment and temporary power supply.
PVC insulated cable: Mining cable suitable for general power transmission, with excellent wear resistance.
XLPE insulated mining cable: With stronger resistance to high temperature and aging, suitable for high load environments.
Application scenarios of Type W flexible portable cables:
Industrial equipment power connection: Provides safe and reliable power transmission for various industrial machinery and equipment.
Light to medium intensity mining operations: Suitable for power supply of mining equipment, including mobile and fixed applications.
Heavy-duty power supply system: Supports high-load power distribution and transmission needs.
AC power system (AC): Can be used for power distribution of three-phase AC system.
Portable devices and mobile electrical devices: Provide power support for various mobile devices that require high flexibility and durability.
Motor and battery connection cable: Suitable for motor power connection and power transmission of battery equipment.
Technical Data
| Voltage level：0.6/1kV | ||||||||||||||||||
| Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | Steel Wire Armor | |||||||||||
| Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Wire Diameter (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | |||||
| Three cores | 1.8 | 2.5 | 0.8 | 7.41 | 1.8 | 11.8 | 187 | 29/19 | ||||||||||
| 2.3 | 4 | 1 | 4.61 | 1.8 | 13.7 | 265 | 38/26 | 1.8 | 0.2×2 | 17.3 | 489 | 38/26 | ||||||
| 2.8 | 6 | 1 | 3.08 | 1.8 | 15.7 | 380 | 47/32 | 1.8 | 0.2×2 | 18.4 | 577 | 47/32 | ||||||
| 3.8 | 10 | 1 | 1.83 | 1.8 | 17.6 | 514 | 65/46 | 1.8 | 0.2×2 | 21.2 | 800 | 65/46 | 1.8 | 0.8 | 23 | 1172 | 65/46 | |
| 4.8 | 16 | 1 | 1.15 | 1.8 | 19.8 | 728 | 84/60 | 1.8 | 0.2×2 | 23.5 | 1050 | 84/60 | 1.8 | 0.8 | 25.3 | 1457 | 84/60 | |
| 6 | 25 | 1.2 | 0.727 | 1.8 | 23.6 | 1084 | 110/77 | 1.8 | 0.2×2 | 27.2 | 1465 | 110/77 | 1.8 | 1.6 | 29 | 1936 | 110/77 | |
| 7 | 35 | 1.2 | 0.524 | 1.8 | 26.1 | 1422 | 130/95 | 1.9 | 0.2×2 | 30.7 | 2150 | 130/95 | 1.9 | 1.6 | 31.7 | 2359 | 130/95 | |
| 8.3 | 50 | 1.4 | 0.387 | 1.8 | 26.5 | 1801 | 155/115 | 2 | 0.5×2 | 31.4 | 2453 | 155/115 | 2 | 1.6 | 36.4 | 3216 | 155/115 | |
| 9.8 | 70 | 1.4 | 0.268 | 1.9 | 28.8 | 2415 | 195/145 | 2.2 | 0.5×2 | 33.6 | 3116 | 195/145 | 2.2 | 2 | 41.1 | 4164 | 195/145 | |
| 11.5 | 95 | 1.6 | 0.193 | 2.1 | 33.7 | 3255 | 230/185 | 2.4 | 0.5×2 | 38.2 | 4053 | 230/185 | 2.4 | 2 | 47.4 | 5498 | 230/185 | |
| 12.9 | 120 | 1.6 | 0.153 | 2.2 | 37.1 | 4037 | 260/210 | 2.5 | 0.5×2 | 41.9 | 4930 | 260/210 | 2.5 | 2 | 51.3 | 6836 | 260/210 | |
| 14.5 | 150 | 1.8 | 0.124 | 2.3 | 41.9 | 5028 | 300/245 | 2.6 | 0.5×2 | 47.1 | 6075 | 300/245 | 2.6 | 2.5 | 55.9 | 8061 | 300/245 | |
| 16 | 185 | 2 | 0.0991 | 2.5 | 45.9 | 6180 | 335/280 | 2.8 | 0.5×2 | 50.9 | 7300 | 335/280 | 2.8 | 2.5 | 61.4 | 9640 | 335/280 | |
| 18.3 | 240 | 2.2 | 0.0754 | 2.7 | 51.7 | 7947 | 390/335 | 3 | 0.5×2 | 57 | 9231 | 390/335 | 3 | 2.5 | 68.5 | 12002 | 390/335 | |
| 20.5 | 300 | 2.4 | 0.0601 | 3.2 | 0.5×2 | 61.8 | 11277 | 435/375 | 3.2 | 2.5 | 75.2 | 14489 | 435/375 | |||||
| Voltage level：6/6 6/10kV | ||||||||||||||||||
| Number of cores | Conductor Diameter (mm) | Conductor cross section (mm2) | Insulation Thickness (mm) | Resistance (Ω/km) | No armor | With Steel Armor | ||||||||||||
| Sheath Thickness (mm) | Cable outer diameter (mm) | weight (kg/km) | Current (A) | Sheath Thickness (mm) | Strip Thickness (mm) | Cable Outer Diameter (mm) | weight (kg/km) | Current (A) | ||||||||||
| Four cores | ||||||||||||||||||
| 1.8 | 2.5 | 0.8 | 7.41 | 1.8 | 12.6 | 211 | 29/19 | |||||||||||
| 2.3 | 4 | 1 | 4.61 | 1.8 | 14.7 | 305 | 38/26 | 1.8 | 0.2×2 | 16.5 | 435 | 38/26 | ||||||
| 2.8 | 6 | 1 | 3.08 | 1.8 | 15.9 | 400 | 47/32 | 1.8 | 0.2×2 | 17.7 | 542 | 47/32 | ||||||
| 3.8 | 10 | 1 | 1.83 | 1.8 | 19 | 610 | 65/46 | 1.8 | 0.2×2 | 20.8 | 764 | 65/46 | ||||||
| 4.8 | 16 | 1 | 1.15 | 1.8 | 21.6 | 871 | 84/60 | 1.8 | 0.2×2 | 23.4 | 1048 | 84/60 | ||||||
| 6 | 25 | 1.2 | 0.727 | 1.8 | 26.7 | 1316 | 110/77 | 1.8 | 0.2×2 | 27.5 | 1529 | 110/77 | ||||||
| 7 | 35 | 1.2 | 0.524 | 1.8 | 28.5 | 1732 | 130/95 | 1.8 | 0.2×2 | 30.3 | 1968 | 130/95 | ||||||
| 8.3 | 50 | 1.4 | 0.387 | 1.9 | 32.9 | 2327 | 155/115 | 1.9 | 0.5×2 | 36.7 | 2960 | 155/115 | ||||||
| 9.8 | 70 | 1.4 | 0.268 | 2.1 | 38.1 | 3264 | 195/145 | 2.1 | 0.5×2 | 41.3 | 3956 | 195/145 | ||||||
| 11.5 | 95 | 1.6 | 0.193 | 2.2 | 43.8 | 4455 | 230/185 | 2.2 | 0.5×2 | 47.2 | 5273 | 230/185 | ||||||
| 12.9 | 120 | 1.6 | 0.153 | 2.4 | 48.1 | 5530 | 260/210 | 2.4 | 0.5×2 | 51.3 | 6403 | 260/210 | ||||||
| 14.5 | 150 | 1.8 | 0.124 | 2.5 | 53 | 6266 | 300/245 | 2.6 | 0.5×2 | 56.4 | 7757 | 300/245 | ||||||
| 16 | 185 | 2 | 0.0991 | 2.7 | 59 | 8431 | 335/280 | 2.8 | 0.5×2 | 62.4 | 9524 | 335/280 | ||||||
| 18.3 | 240 | 2.2 | 0.0754 | 2.9 | 61.9 | 10972 | 390/335 | 3 | 0.5×2 | 70.1 | 12207 | 390/335 | ||||||
| 20.5 | 300 | 2.4 | 0.0601 | 3.2 | 0.5×2 | 77.3 | 15044 | 435/375 | ||||||||||
| 3+1cores | 2.3 | 4 | 1 | 4.61 | 1.8 | 14.1 | 281 | 38/26 | 1.8 | 0.2×2 | 16.9 | 521 | 38/26 | |||||
| 1.8 | 2.5 | 0.8 | 7.41 | |||||||||||||||
| 2.8 | 6 | 1 | 3.08 | 1.8 | 15.6 | 376 | 47/32 | 1.8 | 0.2×2 | 18.4 | 710 | 47/32 | ||||||
| 2.3 | 4 | 1 | 4.61 | |||||||||||||||
| 3.8 | 10 | 1 | 1.83 | 1.8 | 18.2 | 555 | 65/46 | 1.8 | 0.2×2 | 21 | 982 | 65/46 | ||||||
| 2.8 | 6 | 1 | 3.08 | |||||||||||||||
| 4.8 | 16 | 1 | 1.15 | 1.8 | 20.9 | 804 | 84/60 | 1.8 | 0.2×2 | 23.7 | 1412 | 84/60 | ||||||
| 3.8 | 10 | 1 | 1.83 | |||||||||||||||
| 6 | 25 | 1.2 | 0.727 | 1.8 | 24.6 | 1202 | 110/77 | 1.8 | 0.2×2 | 27.4 | 1740 | 110/77 | ||||||
| 4.8 | 16 | 1 | 1.15 | |||||||||||||||
| 7 | 35 | 1.2 | 0.524 | 1.8 | 26.7 | 1511 | 130/95 | 1.8 | 0.2×2 | 29.5 | 2214 | 130/95 | ||||||
| 4.8 | 16 | 1 | 1.15 | |||||||||||||||
| 8.3 | 50 | 1.4 | 0.387 | 1.9 | 31.1 | 2071 | 155/115 | 1.9 | 0.5×2 | 33.9 | 2864 | 155/115 | ||||||
| 6 | 25 | 1.2 | 0.727 | |||||||||||||||
| 9.8 | 70 | 1.4 | 0.268 | 2 | 35.6 | 2868 | 195/145 | 2.1 | 0.5×2 | 39.3 | 3539 | 195/145 | ||||||
| 7 | 35 | 1.2 | 0.524 | |||||||||||||||
| 11.5 | 95 | 1.6 | 0.193 | 2.2 | 37.8 | 3859 | 230/185 | 2.2 | 0.5×2 | 44.7 | 4679 | 230/185 | ||||||
| 8.3 | 50 | 1.4 | 0.387 | |||||||||||||||
| 12.9 | 120 | 1.6 | 0.153 | 2.4 | 39 | 4851 | 260/210 | 2.4 | 0.5×2 | 49.1 | 5797 | 260/210 | ||||||
| 9.8 | 70 | 1.4 | 0.268 | |||||||||||||||
| 14.5 | 150 | 1.8 | 0.124 | 2.6 | 41 | 5746 | 300/245 | 2.5 | 0.5×2 | 52.8 | 6971 | 300/245 | ||||||
| 9.8 | 70 | 1.4 | 0.268 | |||||||||||||||
| 16 | 185 | 2 | 0.0991 | 2.8 | 42.3 | 7160 | 335/280 | 2.6 | 0.5×2 | 58.5 | 8495 | 335/280 | ||||||
| 11.5 | 95 | 1.6 | 0.193 | |||||||||||||||
| 18.3 | 240 | 2.2 | 0.0754 | 2.8 | 0.5×2 | 65.3 | 10702 | 390/335 | ||||||||||
| 12.9 | 120 | 1.6 | 0.2193 | |||||||||||||||
| 4+1cores | 1.8 | 15.4 | 343 | 38/26 | 1.8 | 0.2×2 | 17.2 | 480 | 38/26 | |||||||||
| 1.8 | 2.5 | 0.8 | 7.41 | |||||||||||||||
| 2.8 | 6 | 1 | 3.08 | 1.8 | 17 | 461 | 47/32 | 1.8 | 0.2×2 | 18.8 | 613 | 47/32 | ||||||
| 2.3 | 4 | 1 | 4.61 | |||||||||||||||
| 3.8 | 10 | 1 | 1.83 | 1.8 | 20 | 690 | 65/46 | 1.8 | 0.2×2 | 21.8 | 853 | 65/46 | ||||||
| 2.8 | 6 | 1 | 3.08 | |||||||||||||||
| 4.8 | 16 | 1 | 1.15 | 1.8 | 23 | 1002 | 84/60 | 1.8 | 0.2×2 | 24.8 | 1191 | 84/60 | ||||||
| 3.8 | 10 | 1 | 1.83 | |||||||||||||||
| 6 | 25 | 1.2 | 0.727 | 1.8 | 27.3 | 1508 | 110/77 | 1.8 | 0.2×2 | 29.1 | 1734 | 110/77 | ||||||
| 4.8 | 16 | 1 | 1.15 | |||||||||||||||
| 7 | 35 | 1.2 | 0.524 | 1.8 | 29.7 | 1919 | 130/95 | 1.9 | 0.5×2 | 31.7 | 2180 | 130/95 | ||||||
| 4.8 | 16 | 1 | 1.15 | |||||||||||||||
| 8.3 | 50 | 1.4 | 0.387 | 2 | 35.2 | 2652 | 155/115 | 2 | 0.5×2 | 38.5 | 3291 | 155/115 | ||||||
| 6 | 25 | 1.2 | 0.727 | |||||||||||||||
| 9.8 | 70 | 1.4 | 0.268 | 2.1 | 39.9 | 3657 | 195/145 | 2.2 | 0.5×2 | 43.3 | 4403 | 195/145 | ||||||
| 7 | 35 | 1.2 | 0.524 | |||||||||||||||
| 11.5 | 95 | 1.6 | 0.193 | 2.3 | 43.5 | 4562 | 230/185 | 2.4 | 0.5×2 | 49.6 | 5869 | 230/185 | ||||||
| 8.3 | 50 | 1.4 | 0.387 | |||||||||||||||
| 12.9 | 120 | 1.6 | 0.153 | 2.5 | 51.1 | 6380 | 260/210 | 2.5 | 0.5×2 | 54.3 | 7234 | 260/210 | ||||||
| 9.8 | 70 | 1.4 | 0.268 | |||||||||||||||
| 14.5 | 150 | 1.8 | 0.124 | 2.6 | 55.5 | 7538 | 300/245 | 2.7 | 0.5×2 | 58.9 | 8570 | 300/245 | ||||||
| 9.8 | 70 | 1.4 | 0.268 | |||||||||||||||
| 16 | 185 | 2 | 0.0991 | 2.8 | 62.1 | 9488 | 335/285 | 2.9 | 0.5×2 | 65.5 | 10638 | 335/280 | ||||||
| 11.5 | 95 | 1.6 | 0.193 | |||||||||||||||
| 18.3 | 240 | 2.2 | 0.0754 | 3 | 69.8 | 12277 | 390/335 | 3.1 | 0.5×2 | 73.2 | 13571 | 390/335 | ||||||
| 12.9 | 120 | 1.6 | 0.193 | |||||||||||||||
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

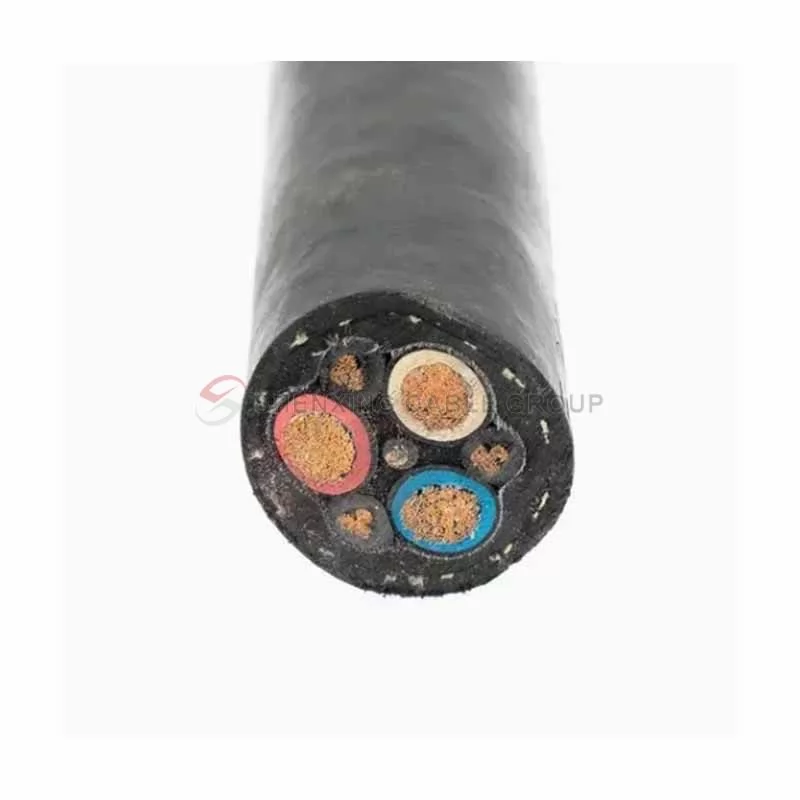

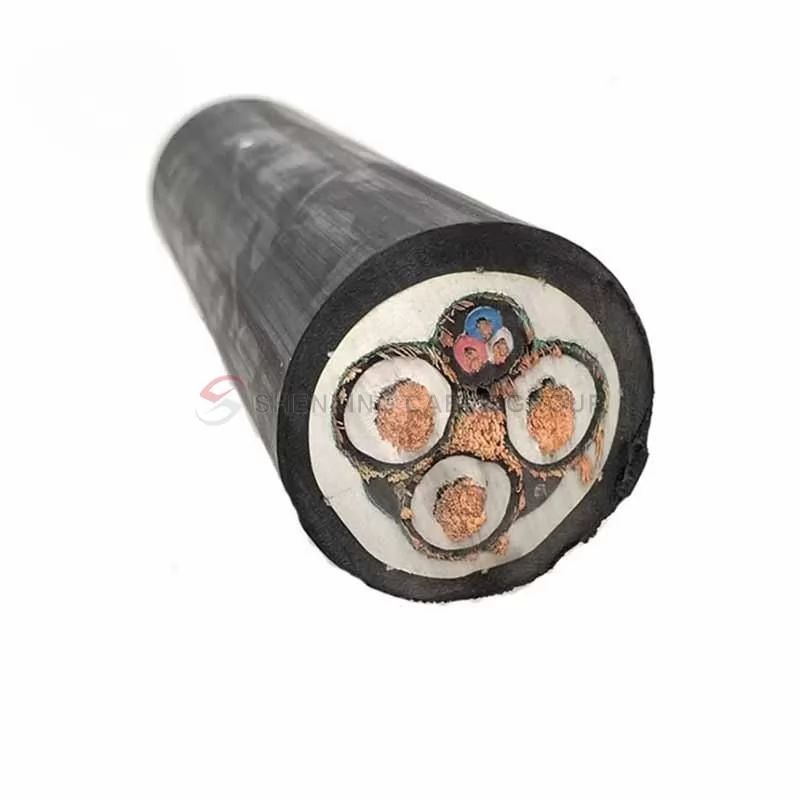

Cable Structure
Mining Cable-Type W
Features
Type W Cable Features
Sheath Material: Made of chlorinated polyethylene (CPE), temperature resistance up to 90°C (194°F), rated voltage up to 2000VAC, with excellent durability.Flexibility and impact resistance: The cable is designed with excellent flexibility and impact resistance to adapt to a variety of harsh application environments.
Chemical resistance: Excellent resistance to oils, acids and alkalines, heat, moisture and most chemicals, ensuring long-term reliable operation in complex environments.
Core Design: The cable core structure is reinforced to provide higher flexibility and toughness, suitable for frequent movement or vibration scenarios.
Conductor: Made of highly flexible annealed bare copper strands, it has excellent conductivity, good flexibility and fatigue resistance.
Insulation: Use high-quality, color-coded ethylene propylene rubber (EPDM) insulation with heat resistance up to 90°C (194°F).
Jacket design: The outer layer is made of black chlorinated polyethylene (CPE) material, which provides protection against high temperature, abrasion and environmental corrosion.
Temperature range: Suitable for working environments from -40°C to 90°C (-40°F to 194°F), and can cope with extreme temperature changes.
Type W Cable Circuit identification
3-core: Black, white, green
4-core: Black, white, red, green
5-core: Black, white, red, green, orange
6-core: Black, white, red, green, orange, blue
Production
Production Equipment
Projects
Building a Solid Neural Network for Smart Campuses
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What is the conductor of the cable made of?
The conductor is made of annealed bare copper and uses a highly flexible stranded wire design to ensure excellent conductivity and durability.
What is the rated voltage of Type W cables?
This cable is rated for voltages up to 2000VAC, which can meet the needs of high-voltage power supply in industry and mining.
What temperature range is this cable suitable for?
Type W cables have an operating temperature range of -40°C to 90°C (-40°F to 194°F), suitable for extremely cold or hot environments.
Is the Type W cable a single-core or multi-core design?
Type W cables can be single-core or multi-core designs, depending on the application requirements, such as single-core for high current loads and multi-core for scenarios where multi-way power distribution is required.
How do I choose the right specifications for the SHD-GC mining cable?
To select the appropriate specification for the SHD-GC mining cable, you should consider factors such as the electrical load, equipment power requirements, and the length of the cable run. It is recommended to contact the cable manufacturer or supplier with specific details about your operating environment and electrical load to help determine the best cable model for your needs.
