Types of Conductors Used in Overhead Power Lines

When designing and constructing overhead power lines, the choice of conductor material is crucial for both performance and cost-effectiveness. The ideal conductor should balance a range of properties including high electrical conductivity, strength to withstand mechanical stress, light weight, and reasonable cost. Let’s take a look at the key features and materials used in these conductors.Essential Properties of Conductors

A suitable conductor should have the following qualities:

• High electrical conductivity: To ensure minimal power loss.

• High tensile strength: To withstand mechanical stresses from wind, weight, and temperature changes.

• Cost-effectiveness: The conductor should be affordable without compromising on performance.

• Low weight per unit volume: This reduces the structural demands on poles and towers.

Key Conductor Materials

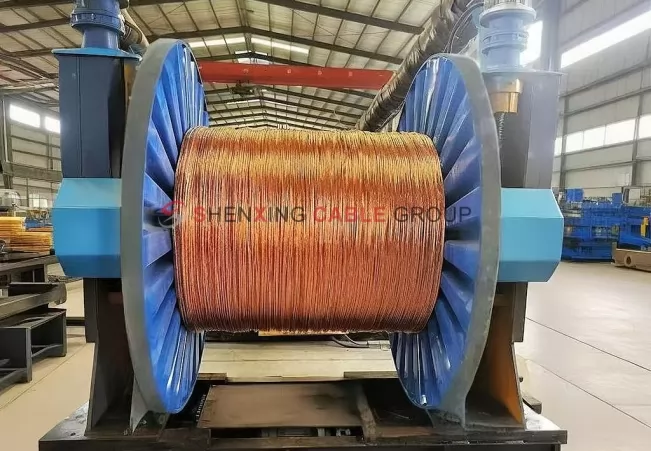

1. Copper: Copper has traditionally been favored for overhead conductors due to its high conductivity and strength. It offers a high current-carrying capacity for its size, which means copper conductors can have smaller cross-sectional areas. Additionally, copper is durable and has high scrap value. However, due to its high cost and limited availability, copper is now less commonly used in overhead power lines.

2. Aluminum: Aluminum has largely replaced copper in overhead lines because it is both more affordable and lighter. While it offers about 60% of the conductivity of copper, aluminum conductors are about 1.26 times thicker to provide the same resistance. Despite its lower conductivity, aluminum's lighter weight and cost make it an optimal choice for most overhead power lines. The main drawback of aluminum is its lower tensile strength compared to copper.

3. Cadmium-Copper: This alloy is composed of approximately 98-99% copper with up to 1.5% cadmium. The addition of cadmium increases tensile strength by up to 50%, with only a minor reduction in conductivity. However, the high cost of cadmium makes this material uneconomical for most applications, despite its potential for long-span use.

4. Other Materials

• Silver: While silver is more conductive than copper, its high cost makes it impractical for most overhead power lines.

• Galvanized Steel: Though steel offers excellent tensile strength, its poor conductivity and high resistance make it unsuitable for efficient power transmission.

• Phosphor-Bronze: In extreme conditions, high-strength alloys like phosphor-bronze may be used.

Types of Conductors

The four main types of conductors used on overhead lines are AACs (All Aluminium Conductors); AAACs (All Aluminium Alloy Conductors); ACARs (Alloy Reinforced Aluminium Conductors), and ACSRs (Steel Reinforced Aluminium Conductors).

The choice of conductor type depends on various factors such as the application, mechanical strength, and environmental conditions. Below are the four main types of overhead conductors:

1. AAC (All Aluminum Conductor): AAC is composed entirely of aluminum and is known for its excellent conductivity (around 61% IACS). However, due to its relatively low mechanical strength, it is mainly used for short-span applications in urban distribution networks where higher conductivity is needed. Its use is limited in areas requiring longer spans or higher strength.

2. AAAC (All Aluminum Alloy Conductor): AAAC uses aluminum alloy 6201, which includes elements like magnesium and silicon to enhance its strength. This makes AAAC conductors stronger than AAC and suitable for distribution purposes, particularly in coastal areas due to their resistance to corrosion. However, AAAC is not typically used for long-distance transmission.

3. ACSR (Aluminum Conductor, Steel Reinforced): ACSR conductors consist of a central steel core wrapped with layers of aluminum wire. The steel core provides additional mechanical strength, which reduces sag and improves the conductor’s ability to withstand tension. Available in various steel content (6%-40%), ACSR is commonly used in transmission lines, especially for long spans and crossings, where higher mechanical strength is necessary.

4. ACAR (Aluminum Conductor, Alloy Reinforced): ACAR conductors are similar to ACSR but use a core of high-strength aluminum alloy (6201) instead of steel. This offers better electrical and mechanical performance than ACSR. ACAR conductors can be used in both transmission and distribution lines, offering a balance of strength and conductivity.

Conclusion

While aluminum conductors have become the standard for most overhead power lines due to their cost-effectiveness and lighter weight, specialized alloys like cadmium-copper and materials such as ACSR and ACAR provide enhanced performance for specific applications. The right choice of conductor material and type depends on the balance between conductivity, mechanical strength, weight, and cost. With advancements in materials and manufacturing techniques, the efficiency and durability of overhead power lines continue to improve.
