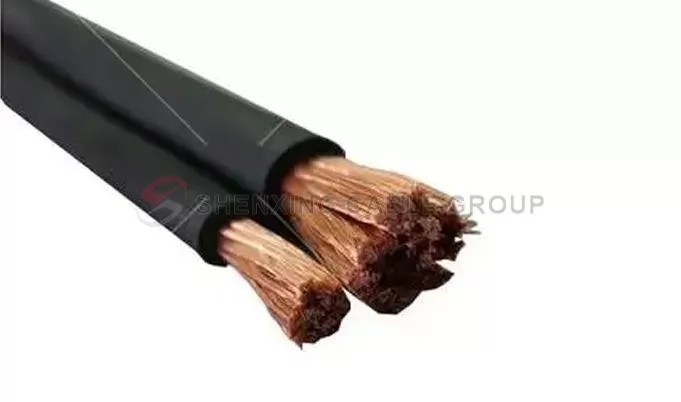

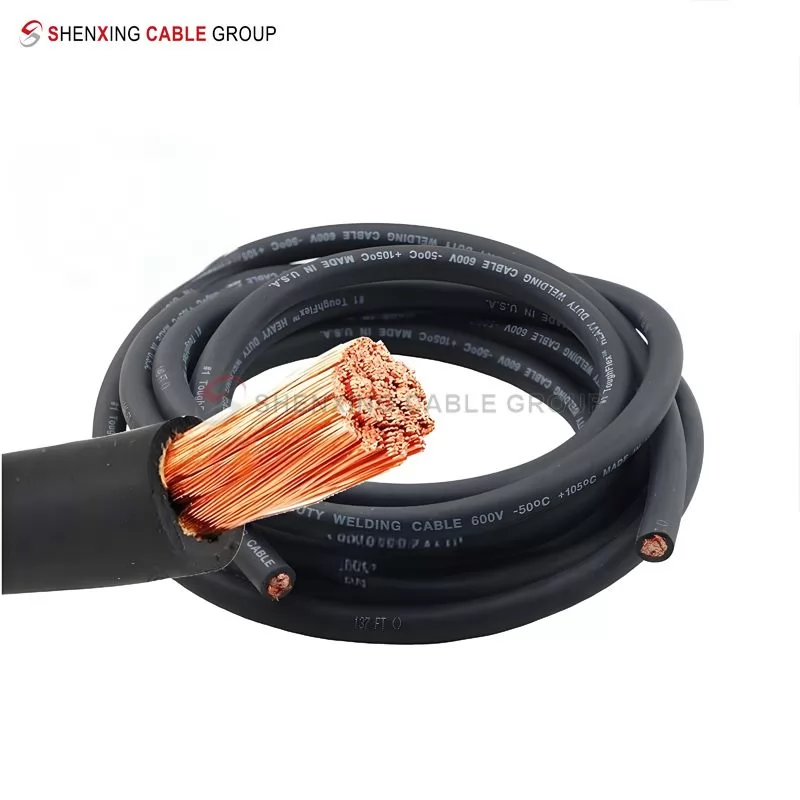

Electric Welding Machine Cable (Welding Wire)

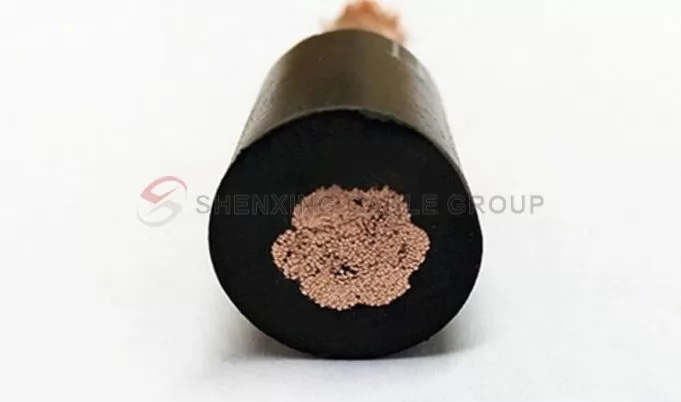

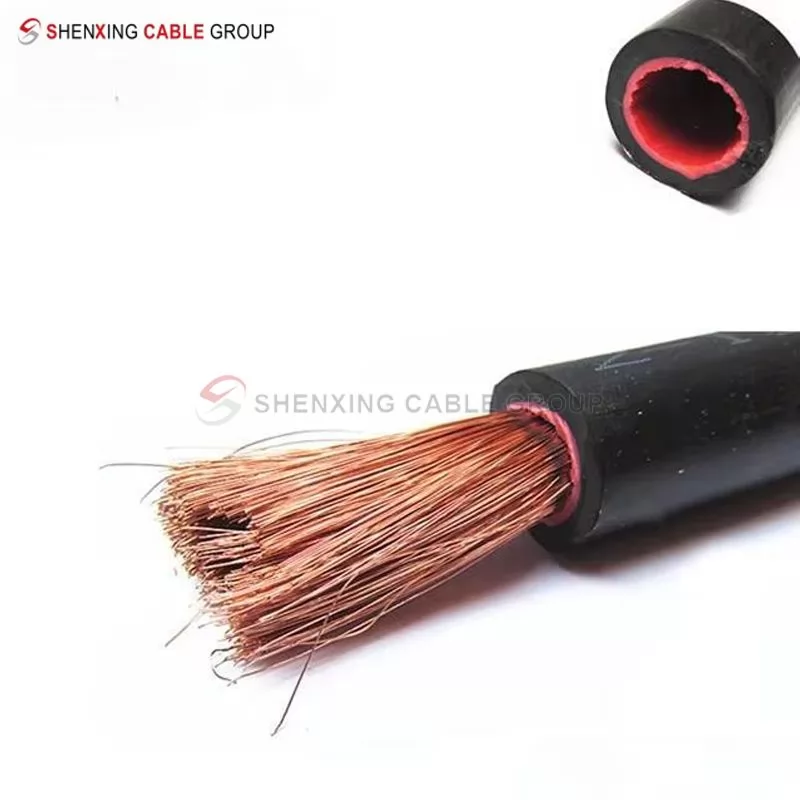

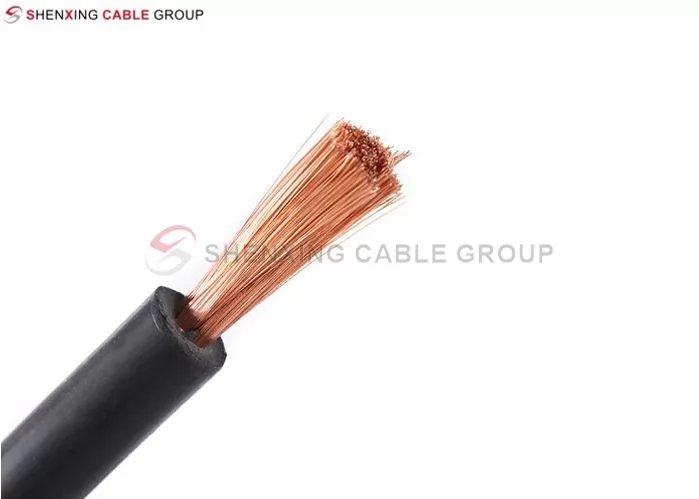

Cable structure:

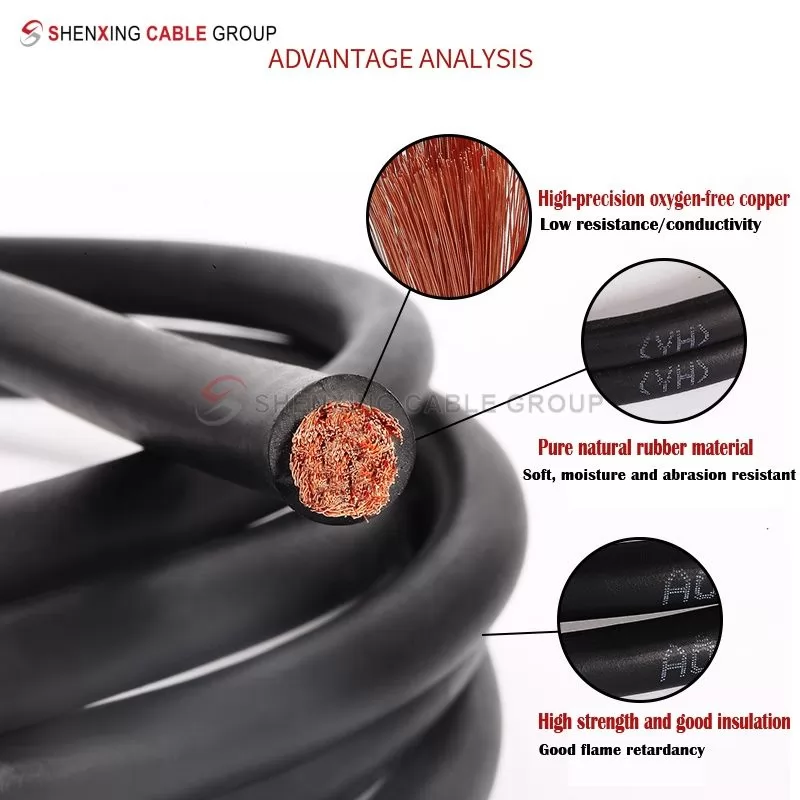

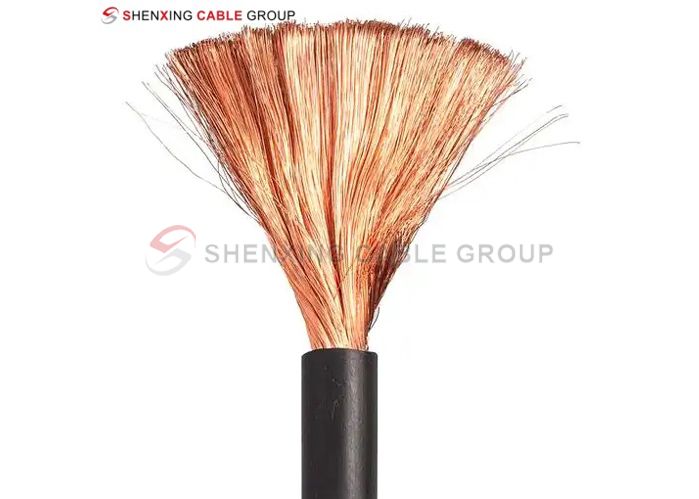

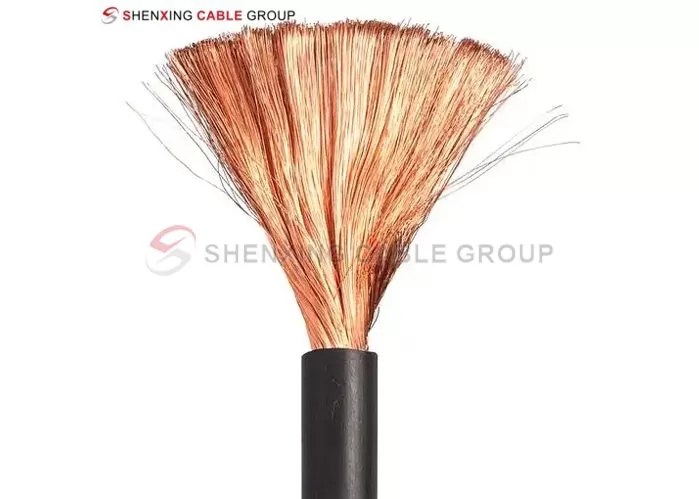

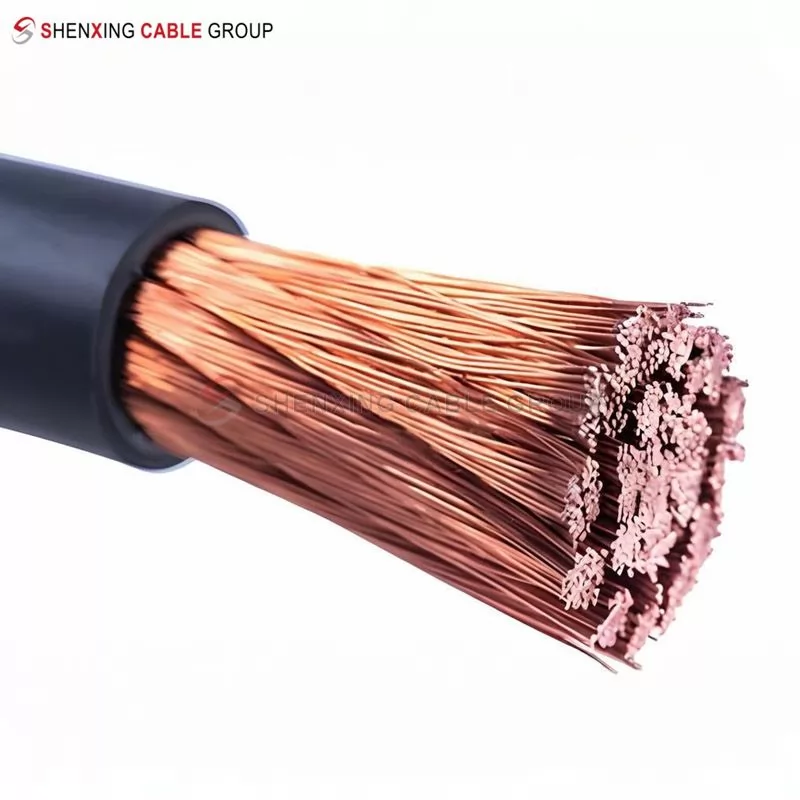

Conductor: Multi-strand soft copper wire is used to ensure low resistance and high conductivity during current transmission.

Insulation layer: High temperature resistant polyester film insulation tape is used to wrap the cable to increase the safety and durability of the cable.

Sheath: The outer layer is a mixture of natural rubber or chloroprene rubber, which has strong oil resistance, wear resistance, corrosion resistance and non-flammability, and is suitable for various complex working environments.

Common Application Areas:

Electric welding machine connection: used for secondary wiring of electric welding machines and connection of electric welding clamps, especially suitable for low voltage and high current welding operations.

Building and construction: widely used in welding operations such as construction sites and power installations, especially suitable for working environments that require frequent movement and high-strength bending.

Industrial production: in workshops and manufacturing industries, electric welding machine cables are used as electrical connections for welding equipment.

Automotive industry: widely used in automobile maintenance and manufacturing processes to ensure reliable connection between electric welding machines and electric welding clamps.

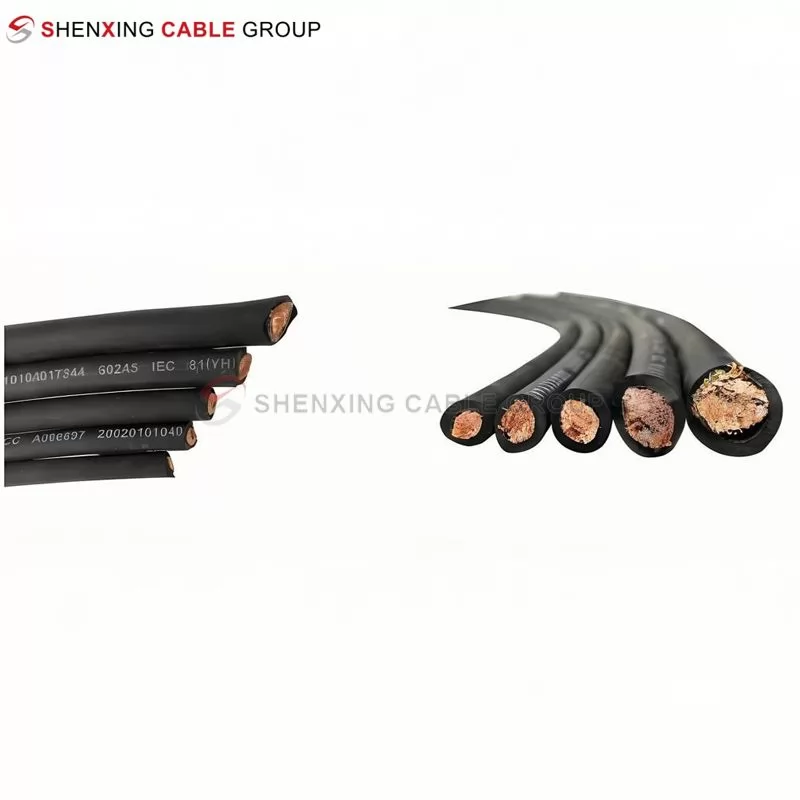

Technical Data

Number of cores	Conductor Diameter	Nominal Cross Section	Insulation Thickness	Sheath Thickness	Cable outer diameter		Cable Reference Weight	20℃Maximum DC resistance	25℃Rated Current Carrying Capacity
	Conductor Diameter	Nominal Cross Section	Insulation Thickness	Sheath Thickness	Minimum	Maximum	Cable Reference Weight	20℃Maximum DC resistance	25℃Rated Current Carrying Capacity
	（mm）	(mm2)	(mm)	（mm）	（mm）	（mm）	(kg/km)	( Ω/km)	(A)
Single core	3.6	10	2	1.3	8.9	9.5	146	1.91	151
	4.5	16	2	1.3	9.2	11.5	218	12.1	243
	6	25	2	1.3	10.5	13	316	0.78	343
	7	35	2	1.3	11.5	14.5	426	0.554	452
	8.3	50	2.2	1.5	13.5	17	593	0.386	630
	9.8	70	2.4	1.6	15.5	19.5	790	0.272	861
	11.5	95	2.6	1.7	18	22	1060	0.206	1137
	12.9	120	1.8	1.8	20	24	1348	0.161	1436
	14.5	150	3	1.9	21.3	26	1678	0.129	1782
	16	185	3.2	2	22.5	28.5	1980	0.106	冲

Expand all

Only some product parameters are displayed. For more product information, please contact us.

The above parameters are for reference only.

Cable Structure

Rubber sheathed cable-YH/YHF

Features

Models and Applications

YH type welding machine cable (rubber sheathed soft cable for mobile welding machine)

Working temperature: long-term working temperature <85°C.

Features: good bending performance and softness.

Application areas: low voltage, high current welding operations.

YHF type welding machine cable (rubber sheathed cable for DC welding machine)

Working temperature: long-term working temperature <65°C.

Features: strong oil resistance and non-flammability.

Application areas: welding equipment under high temperature and high pressure environment, especially suitable for DC welding machine and occasions requiring high safety protection.

Key Features

High wear resistance: The cable outer sheath has strong anti-friction ability and is not easily damaged even during repeated winding and stretching of the cable.

High tensile resistance: The welding machine cable can withstand large tensile forces to ensure that the cable will not be damaged or broken due to external forces during use.

Excellent bending resistance: The use of special bending-resistant materials allows the cable to maintain excellent performance during frequent bending and movement.

Weather resistance and corrosion resistance: It can withstand the erosion of ultraviolet rays, moisture, oil and other chemicals to ensure long-term stable operation.

COMMON QUESTIONS

SHENXING Cable Service FAQs

Want to learn more? Check out our electrical cable most frequently asked questions.

What environments are suitable for welding machine cables?

Welding machine cables are suitable for various complex environments, including places with high temperature, humidity, oil pollution, acid and alkali liquids, etc. It can withstand the high temperature and sparks generated during welding to ensure safe operation.

What is the operating temperature of welding machine cables?

The long-term allowable operating temperature of YH type cables does not exceed 65°C.

The long-term allowable operating temperature of YHF type cables does not exceed 70°C.

These cables are designed to work stably for a long time in high temperature environments to ensure safety during welding operations.

What is the minimum bending radius of welding machine cables?

The minimum bending radius of welding machine cables is 6 times the outer diameter of the cable. This design ensures that the cable is not easily broken or damaged during movement, twisting or bending.

What is the rated voltage of welding machine cables?

Welding machine cables are suitable for welding machine wiring with a rated voltage not exceeding 200V AC and a pulsating DC peak of 400V. Ensure that the cable works stably in a low voltage and high current environment.

How to choose the right welding machine cable model?

When selecting a welding machine cable, the following factors should be considered:

Working temperature requirements: Select a cable suitable for the working environment temperature.

Bending requirements: If the cable needs to be moved or bent frequently, select a cable with good flexibility.

Environmental conditions: If there is an oily or chemically corrosive environment, select a cable with oil resistance and corrosion resistance (such as YHF type).

Voltage and current requirements: Make sure that the rated voltage and current of the selected cable meet the working requirements of the welding machine.

Can welding machine cables be used outdoors?

Yes. Welding machine cables are particularly suitable for use in outdoor and open-air environments, especially on construction sites or maintenance sites. Its weather resistance and waterproof properties enable it to adapt to adverse weather conditions.

What is the difference between YH and YHF cables?

YH cables are suitable for secondary wiring of welding machines, have good bending performance and softness, and are suitable for frequently moving working environments.

YHF cables have strong oil resistance and non-flammable properties, suitable for welding equipment under high temperature and high pressure environments, especially for DC welding machines.

How to install and maintain welding machine cables?

During installation, ensure that the cable matches the model of the equipment to avoid damaging the cable sheath and insulation layer. During use, avoid scratching or over-stretching the cable with sharp objects, and regularly check whether the cable is damaged or aged. After shutdown, the cable should be fully inspected and problems should be dealt with in a timely manner.

What is the service life of the welding machine cable?

The service life of the welding machine cable is closely related to its working environment, frequency of use and maintenance. Under normal working conditions, the cable life can reach several years, but under high-intensity use or harsh environments, the cable may need to be replaced more frequently.

What are the main features of welding machine cables?

The main features of welding machine cables include:

Excellent flexibility and bending performance, suitable for working environments with frequent movement and high-intensity bending.

Heat-resistant, oil-resistant and non-flammable, especially suitable for high temperature, high pressure, oil pollution and chemical corrosion environments.

High wear resistance, can withstand long-term friction and pulling.
