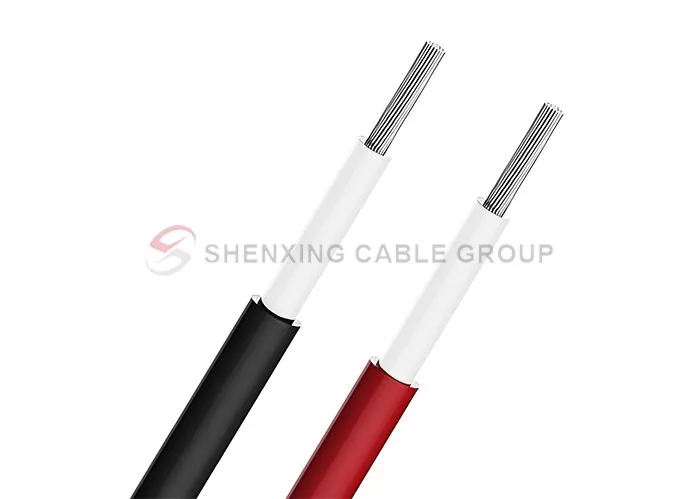

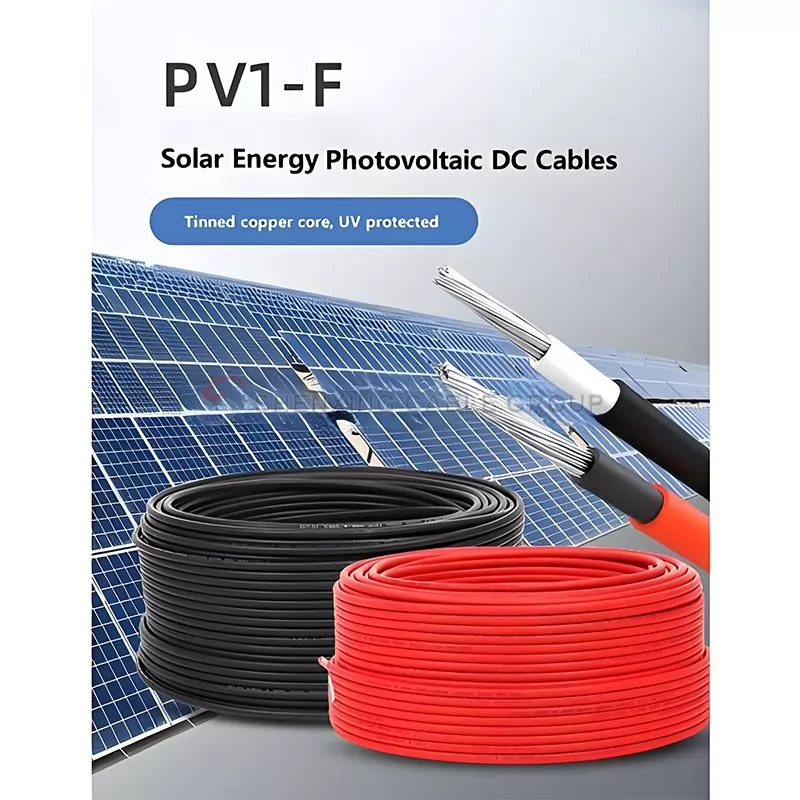

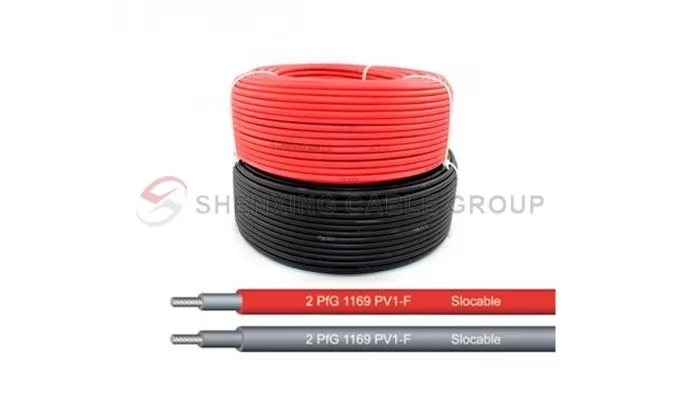

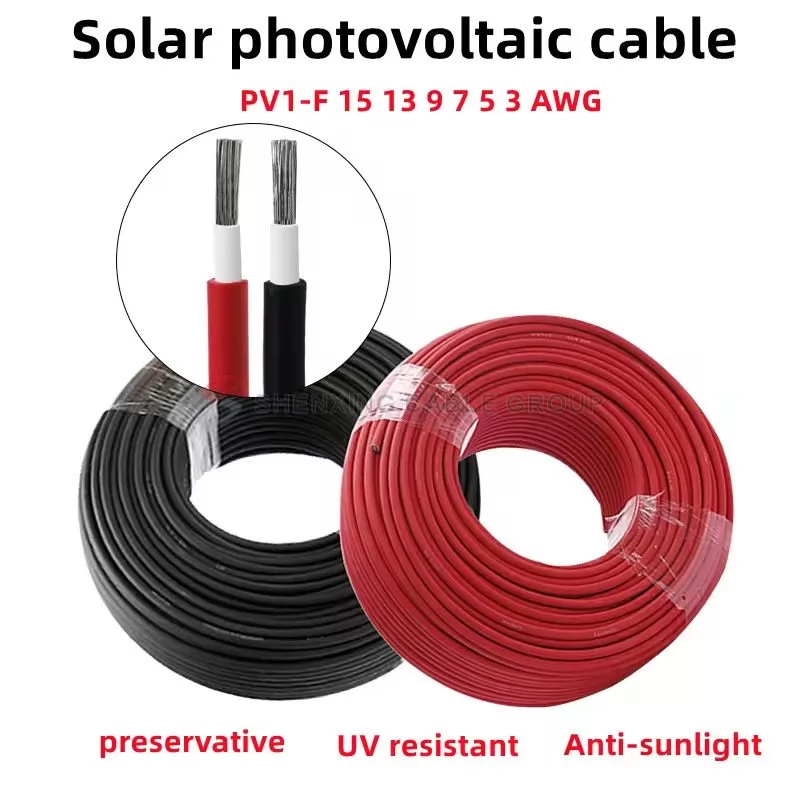

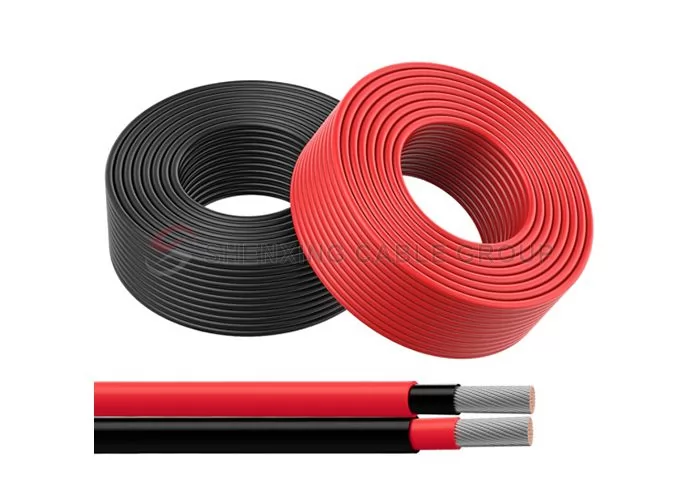

Tinned Copper PV1-F Solar Cable Manufacturer
Shenxing Photovoltaic Cable PV1-F is a high-performance cable designed for solar photovoltaic systems. It has excellent high temperature resistance, extrusion resistance, environmental cracking resistance and other characteristics, ensuring the long-term stable operation of photovoltaic power generation systems. As a leading global photovoltaic cable manufacturer and supplier, Shenxing Cable is committed to providing high-quality cable solutions to meet the needs of various photovoltaic installations such as rooftop photovoltaics, floating photovoltaics and large photovoltaic power stations.
Share:
Shenxing photovoltaic cable PV1-F is suitable for various photovoltaic power generation systems, including household rooftop photovoltaics, commercial photovoltaic power stations, large photovoltaic electric fields and other fields. It is widely used in power transmission, signal transmission and wiring of photovoltaic equipment.
Advantage:
Optimize energy output and improve efficiency
Shenxing PV1-F cable adopts advanced materials and technologies. Whether in hot summer or cold winter, PV1-F cable can maintain excellent power transmission performance, ensuring efficient and stable operation of your photovoltaic power generation system.
High temperature resistance and anti-extrusion performance
PV1-F cable is particularly suitable for long-term exposure to outdoor environments, whether it is rooftop photovoltaic installation, floating photovoltaic, or large-scale photovoltaic power stations, it can provide strong support.
Excellent flame retardancy and low smoke and halogen-free
PV1-F photovoltaic cable meets flame retardant standards and adopts low smoke and halogen-free (LSZH) materials. It releases very little smoke and non-toxic gases in the event of fire, meets environmental protection requirements, and is an ideal choice for sustainable development.
Environmentally friendly, safe, and in line with international standards
Whether in domestic or international markets, PV1-F cables can meet strict environmental protection and safety requirements to ensure that your photovoltaic system meets industry best practices.
Technical Data
| Number of cores | Conductor diameter | Nominal cross section | Insulation thickness | Sheath thickness | Cable outer diameter | Cable reference weight | Maximum DC resistance at 20℃ | Rated current carrying capacity at 60℃（A） | ||
| (mm) | （mm²） | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In the air | Surface | Two contact surfaces | |
| Single core | 1.6 | 1.5 | 0.7 | 0.7 | 4.6 | 36 | 13.7 | 30 | 29 | 24 |
| 2 | 2.5 | 0.7 | 0.7 | 5 | 46 | 8.21 | 41 | 39 | 33 | |
| 2.6 | 4 | 0.7 | 0.8 | 5.6 | 62 | 5.09 | 55 | 52 | 44 | |
| 3.2 | 6 | 0.8 | 0.8 | 6.1 | 82 | 3.39 | 70 | 67 | 57 | |
| 4.1 | 10 | 0.8 | 0.8 | 7.1 | 125 | 1.95 | 98 | 93 | 79 | |
| 5.5 | 16 | 0.9 | 0.9 | 8.5 | 190 | 1.24 | 132 | 125 | 107 | |
| 6.7 | 25 | 0.9 | 1 | 10.4 | 285 | 0.795 | 176 | 167 | 142 | |
| 8.2 | 35 | 0.9 | 1.1 | 11.5 | 385 | 0.565 | 218 | 207 | 176 | |
| 9 | 50 | 1 | 1.2 | 13.7 | 540 | 0.393 | 276 | 262 | 221 | |
| 10.8 | 70 | 1.1 | 1.2 | 15.8 | 740 | 0.277 | 347 | 330 | 278 | |
| 12.6 | 95 | 1.1 | 1.3 | 17.3 | 965 | 0.21 | 416 | 395 | 333 | |
| 14.3 | 120 | 1.2 | 1.3 | 19.1 | 1210 | 0.164 | 488 | 464 | 390 | |
| 15.9 | 150 | 1.4 | 1.4 | 21.4 | 1495 | 0.132 | 566 | 538 | 453 | |
| 17.5 | 185 | 1.6 | 1.6 | 24.9 | 1885 | 0.108 | 644 | 612 | 515 | |
| 20.5 | 240 | 1.7 | 1.7 | 27.3 | 2395 | 0.082 | 775 | 736 | 620 | |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

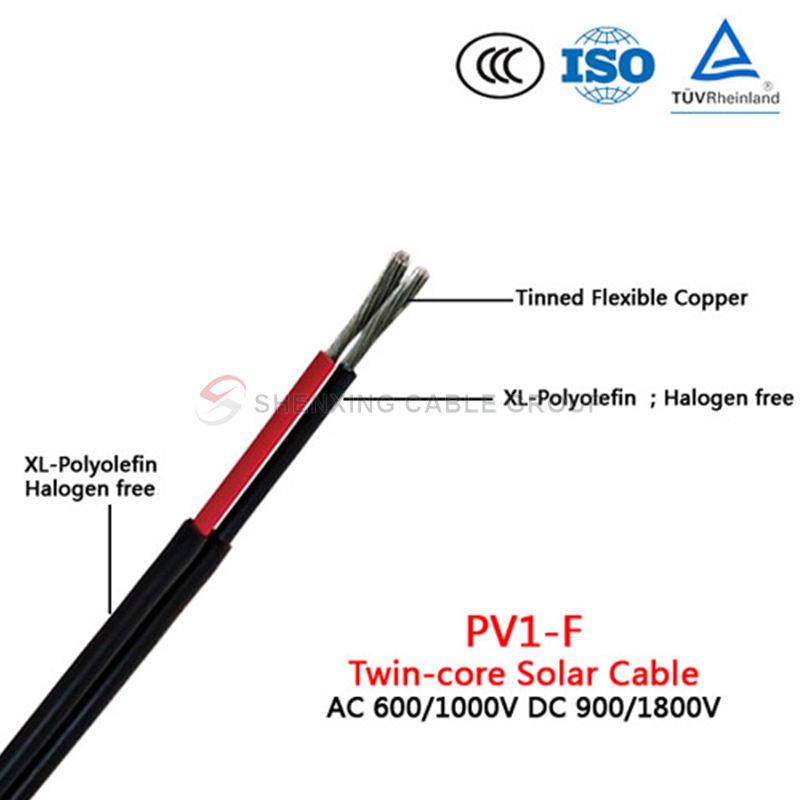

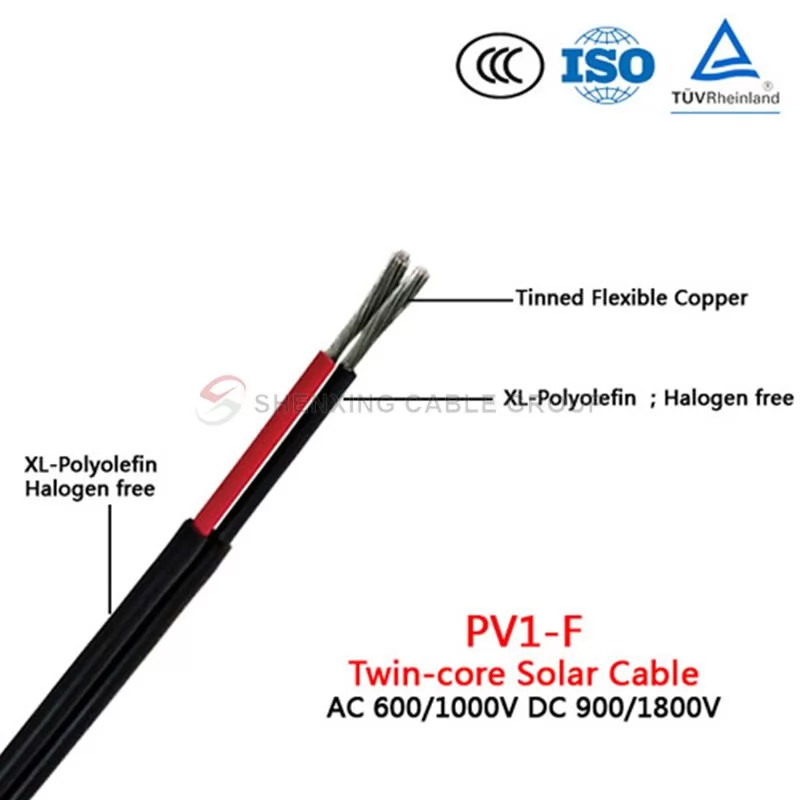

Cable Structure
PV1-F Solar Cable
Features
Features
Efficient energy transmission:
Shenxing photovoltaic cable PV1-F is specially designed for photovoltaic power generation systems to ensure the most efficient power transmission, reduce system losses, and improve overall power generation efficiency.
Minimize Voltage Drop: The cables minimize voltage drop over long distances. This ensures your solar panels operate at maximum capacity, maximizing your electrical output.
Durable and Weatherproof: Solar PV cables are waterproof and designed to withstand water, moisture and adverse weather conditions. This ensures consistent performance and protects your solar investment.
Experimental Performance
Normal operating temperature of conductor: ≤90℃
Maximum temperature of conductor: 120℃
Maximum temperature of conductor during short circuit (no more than 5 seconds): 200℃
Laying link temperature: -40℃~90℃
Bending radius: 4D
Color: red, blue, black
Service life: 25 years
Production
Production Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the common quality problems of PV1-F photovoltaic cables?
Common quality problems of PV1-F photovoltaic cables include excessive drooling of the insulation during the extrusion process, whitening of the sheath surface a few months after extrusion, unclear printing on the sheath and skipping, uneven outer diameter of the sheath, sand holes or pores on the sheath surface, scratches on the sheath surface, bubbles on the sheath surface after irradiation, and unqualified thermal extension after irradiation.
How to judge the quality of PV1-F photovoltaic cables?
The quality of PV1-F photovoltaic cables can be judged from the following aspects: nominal cross-section, conductor resistance and cable length. The nominal cross-section can be calculated by the formula, and the conductor resistance calculation formula is R=ρL/S, where ρ is the resistivity, L is the cable length, and S is the nominal cross-section of the cable. The cable length can be calculated by the formula A number of strands B number of strands C length 3.14.
What are the implementation standards of PV1-F photovoltaic cables?
The production standard of PV1-F photovoltaic cable is EU standard 2 Pfg 116/08.2007 "Requirements for Photovoltaic System Cables", and it has obtained German Rhine TUV certification.
What are the specifications of PV1-F photovoltaic cables?
The specifications of PV1-F photovoltaic cables include: rated voltage 0.6/1kV, conductor material is oxygen-free tinned copper wire, insulation material is cross-linked polyolefin (XLPE), sheath material is also cross-linked polyolefin (XLPE), adapted to ambient temperature of -40℃～+90℃, bending radius ≤5D, sheath color is black/red, insulation thickness ≥0.5mm.
What are the physical properties of PV1-F photovoltaic cables?
PV1-F photovoltaic cables are resistant to weather, high temperature, friction, UV radiation, ozone, hydrolysis, acid and salt, and have an extremely long service life. Its insulation and sheath materials have been treated with high-energy electron accelerator radiation AC, and have reliable insulation and mechanical properties.
What is the ambient temperature range of PV1-F photovoltaic cables?
The ambient temperature range of PV1-F photovoltaic cables is -40℃～+90℃, the maximum conductor temperature is 120℃, and the short-circuit temperature allowed within 5 seconds is 200℃.
How many years is the design life of PV1-F photovoltaic cables?
The design life of PV1-F photovoltaic cables is 25 years.
What are the applicable environmental conditions for PV1-F photovoltaic cables?
PV1-F photovoltaic cables are suitable for electrical installations of indoor and outdoor solar energy installations and can be used in harsh environmental conditions such as high temperature and ultraviolet radiation. Its materials include low-smoke halogen-free materials, which have excellent cold resistance, ultraviolet resistance, ozone resistance and weather resistance, and are flame retardant, cut-resistant and penetration-resistant.
More Frequently Asked Questions.
