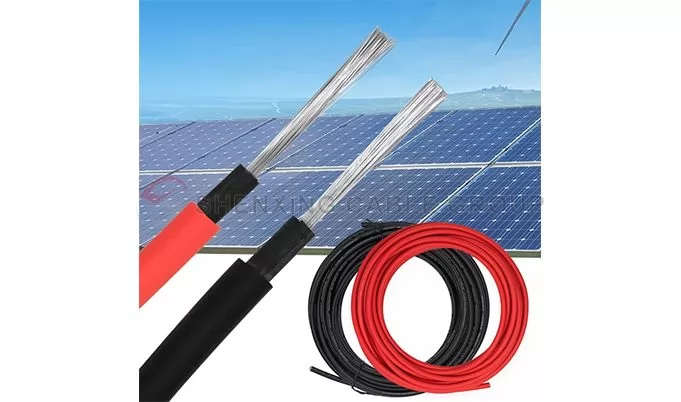

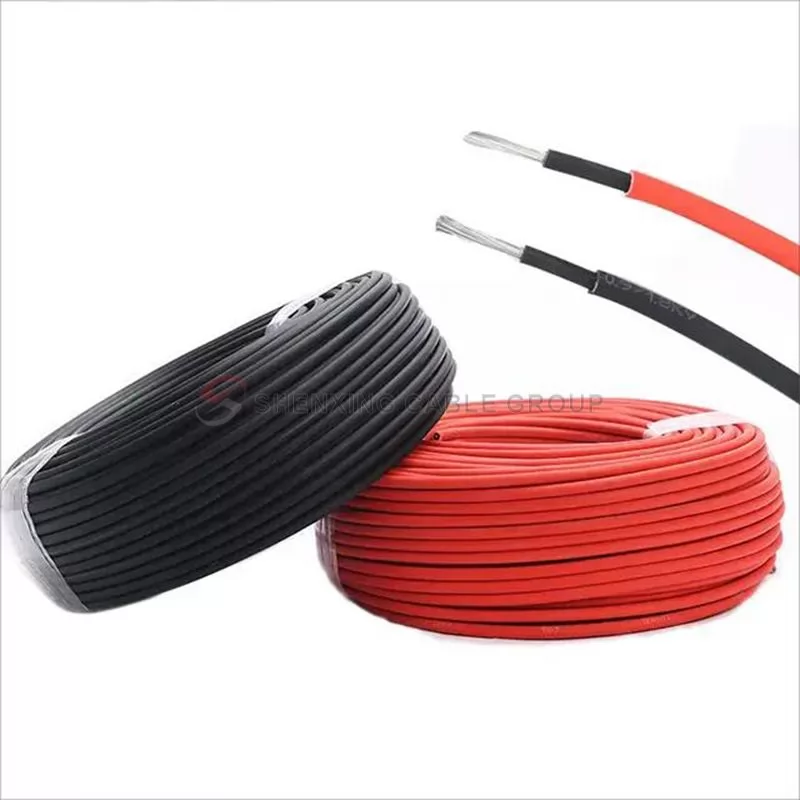

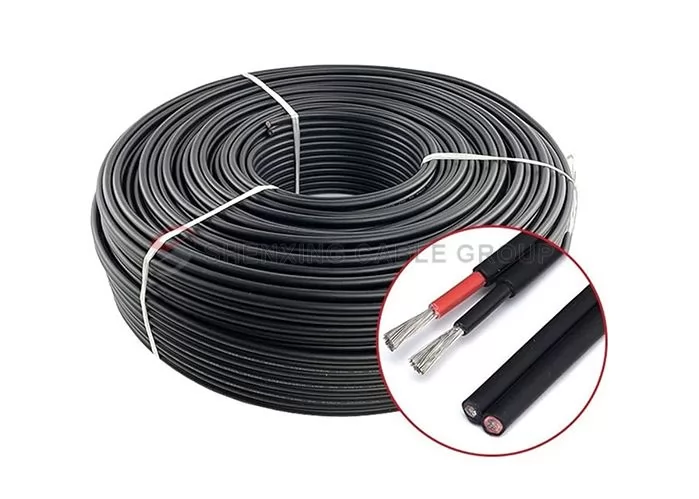

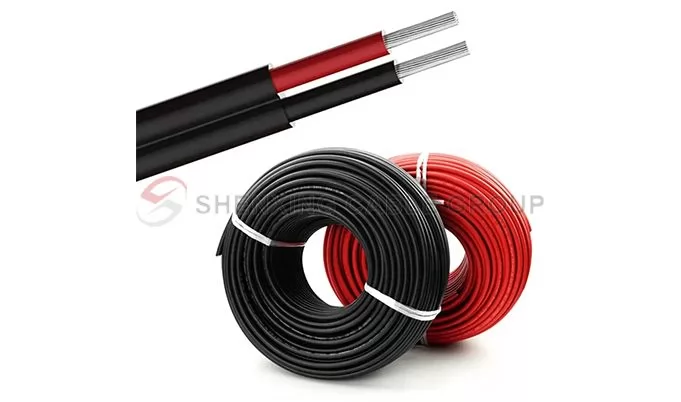

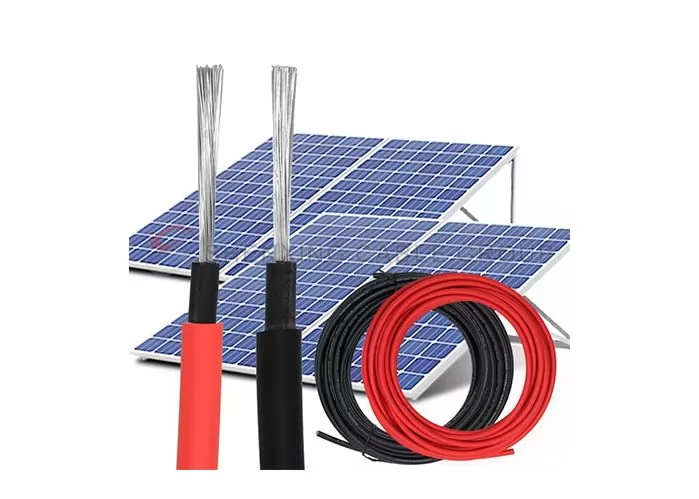

Solar Cable Range-H1Z2Z2-K
The SHENXING solar PV H1Z2Z2-K cable, which is TÜV certified according to EN 50618 and AENOR, is suitable for both fixed and mobile solar installations (solar farms, rooftop solar installations and floating plants). It is a highly flexible cable compatible with all major connectors and specially designed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations.
Share:
Our cable supply ranges from the selection of a wide range of solar cables, through the management of your PV project with our technical experts, to logistics, on time product delivery and an excellent after-sales service.
Widely Use:
Household rooftop photovoltaic power generation system
Industrial and commercial photovoltaic power generation system
Large photovoltaic power station
Photovoltaic module connection line
Outdoor solar energy equipment
Advantage:
High-quality materials to ensure efficient transmission
H1Z2Z2-K photovoltaic cable uses oxygen-free copper core to improve the efficiency of photovoltaic system. EPR insulation material is resistant to high temperature and aging, and can adapt to harsh environments.
Excellent weather resistance, adapt to extreme environments
The cable outer sheath uses low-smoke zero-halogen (LSZH) material, which has been tested for 3000 hours of UV, is resistant to UV and oxidation, and can remain stable even after long-term exposure to sunlight.
High temperature resistance, pressure resistance, safe and reliable
H1Z2Z2-K photovoltaic cable can withstand a temperature range of **-40°C to +90°C**, and can still maintain stable performance in high temperature and heavy pressure environments to avoid power outages or system failures.
Environmentally friendly and non-toxic, in line with international standards
Using environmentally friendly LSZH materials, it complies with RoHS and REACH standards to ensure safety and sustainable development, and is suitable for the global market.
Long life, reduced maintenance costs
H1Z2Z2-K photovoltaic cable has a service life of more than 30 years, ensuring long-term stable operation of the photovoltaic system and improving investment returns.
Technical Data
Number of cores | Conductor diameter | Nominal cross section | Insulation thickness | Sheath thickness | Cable outer diameter | Cable reference weight | Maximum DC resistance at 20℃ | Rated current carrying capacity at 60℃(A) | ||
(mm) | (mm²) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In the air | Surface | Two contact surfaces | |
Single core | 1.6 | 1.5 | 0.7 | 0.7 | 4.6 | 36 | 13.7 | 30 | 29 | 24 |
2 | 2.5 | 0.7 | 0.7 | 5 | 46 | 8.21 | 41 | 39 | 33 | |
2.6 | 4 | 0.7 | 0.8 | 5.6 | 62 | 5.09 | 55 | 52 | 44 | |
3.2 | 6 | 0.8 | 0.8 | 6.1 | 82 | 3.39 | 70 | 67 | 57 | |
4.1 | 10 | 0.8 | 0.8 | 7.1 | 125 | 1.95 | 98 | 93 | 79 | |
5.5 | 16 | 0.9 | 0.9 | 8.5 | 190 | 1.24 | 132 | 125 | 107 | |
6.7 | 25 | 0.9 | 1 | 10.4 | 285 | 0.795 | 176 | 167 | 142 | |
8.2 | 35 | 0.9 | 1.1 | 11.5 | 385 | 0.565 | 218 | 207 | 176 | |
9 | 50 | 1 | 1.2 | 13.7 | 540 | 0.393 | 276 | 262 | 221 | |
10.8 | 70 | 1.1 | 1.2 | 15.8 | 740 | 0.277 | 347 | 330 | 278 | |
12.6 | 95 | 1.1 | 1.3 | 17.3 | 965 | 0.21 | 416 | 395 | 333 | |
14.3 | 120 | 1.2 | 1.3 | 19.1 | 1210 | 0.164 | 488 | 464 | 390 | |
15.9 | 150 | 1.4 | 1.4 | 21.4 | 1495 | 0.132 | 566 | 538 | 453 | |
17.5 | 185 | 1.6 | 1.6 | 24.9 | 1885 | 0.108 | 644 | 612 | 515 | |
20.5 | 240 | 1.7 | 1.7 | 27.3 | 2395 | 0.082 | 775 | 736 | 620 |
Expand all
Only some product parameters are displayed. For more product information, please contact us.
The above parameters are for reference only.

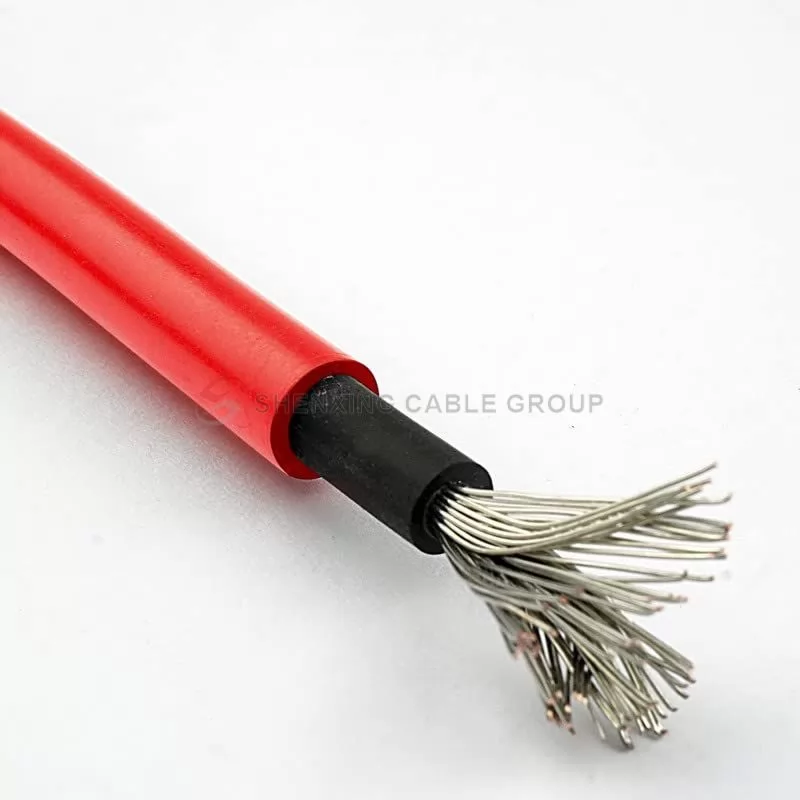

Cable Structure
Solar Cable Range-H1Z2Z2-K
Features
Features
Model: H1Z2Z2-K
Rated voltage: 0.6/1kV
Core material: oxygen-free copper
Insulation material: EPR (Ethylene Propylene Rubber)
Sheath material: LSZH (Low Smoke Zero Halogen)
Temperature range: -40°C to +90°C
Standard: IEC 60227, IEC 60332-1, IEC 62821
Color: black, red
Size: Various specifications are available to meet the needs of different photovoltaic systems
Experimental Performance
Installation Conditions
Open Air Buried.

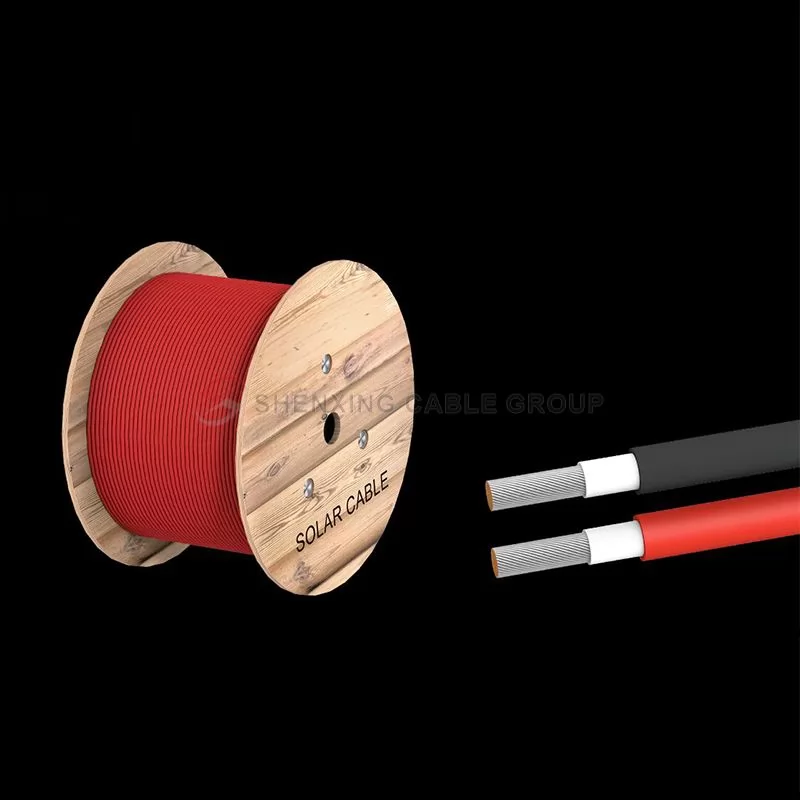

Packaging:
Available in rolls (lengths of 100 m) and reels.
Water performance:
Water presence: AD8 submersion.
Chemical performance:
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
Ozone resistant based on EN 50618.
UV Resistant based on EN 50618 and IEC 62930.
Production
Production Equipment
Experimental Equipment
Projects
COMMON QUESTIONS
SHENXING Cable Service FAQs
Want to learn more? Check out our electrical cable most frequently asked questions.
What are the main features of H1Z2Z2-K photovoltaic cable?
H1Z2Z2-K photovoltaic cable is a high-performance cable designed for photovoltaic power generation systems, with high voltage rating, high current transmission capacity, excellent environmental resistance and flexible installation methods. It can withstand DC voltages up to 1000V, uses high-purity copper or aluminum conductors, has good conductivity and resistance to UV, ozone, acid and alkali. The cable joints use advanced crimping or welding technology to ensure the reliability and safety of the connection.
What are the application scenarios of H1Z2Z2-K photovoltaic cable?
H1Z2Z2-K photovoltaic cable is widely used in photovoltaic power generation systems of various sizes, including small household rooftop photovoltaic systems and large ground photovoltaic power stations. It is suitable for interconnecting power sources in renewable energy photovoltaic systems, such as solar panel arrays in solar farms. The insulation layer and outer sheath of the cable are made of low-smoke zero-halogen materials, which are suitable for environments where corrosive smoke poses a threat to human life in the event of a fire.
What is the operating temperature range of H1Z2Z2-K photovoltaic cable?
The operating temperature range of H1Z2Z2-K photovoltaic cable is -40°C to +90°C, and it can operate stably under extreme temperature conditions.
What is the voltage level of H1Z2Z2-K photovoltaic cable?
H1Z2Z2-K photovoltaic cable can withstand DC voltage up to 1000V and is suitable for photovoltaic power generation systems of various sizes.
What are the installation methods of H1Z2Z2-K photovoltaic cable?
H1Z2Z2-K photovoltaic cable has excellent flexibility and bending resistance, and can be easily installed vertically, horizontally or suspended, adapting to various complex installation environments.
What is the insulation material of H1Z2Z2-K photovoltaic cable?
The insulation layer and sheath of H1Z2Z2-K photovoltaic cable are made of special materials and processes, and have good UV resistance, ozone resistance, acid and alkali resistance and other properties.
What is the joint technology of H1Z2Z2-K photovoltaic cable?
The cable joints use advanced crimping or welding technology to ensure the reliability and safety of the connection and avoid failures and losses caused by connection problems.
What is the environmental resistance of H1Z2Z2-K photovoltaic cables?
H1Z2Z2-K photovoltaic cables have good resistance to UV rays, ozone, acid and alkali, and can operate stably for a long time under harsh environmental conditions.
What are the electrical properties of H1Z2Z2-K photovoltaic cables?
H1Z2Z2-K photovoltaic cables use high-purity copper or aluminum conductors with good electrical conductivity, which can effectively reduce energy loss during transmission and improve the power generation efficiency of the system.
